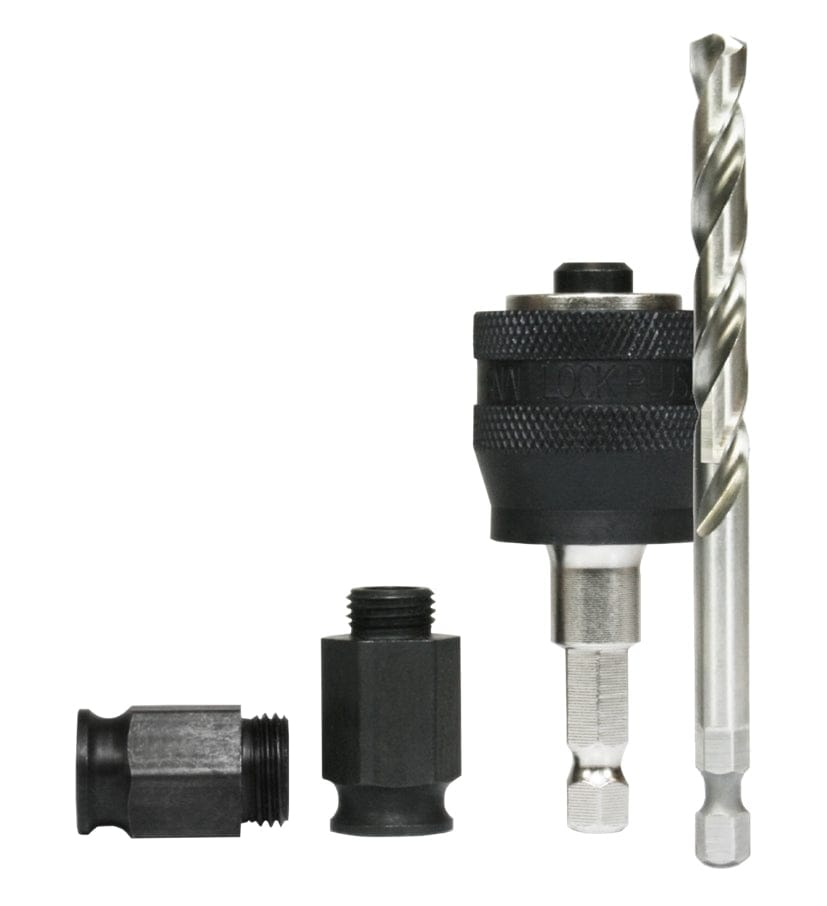

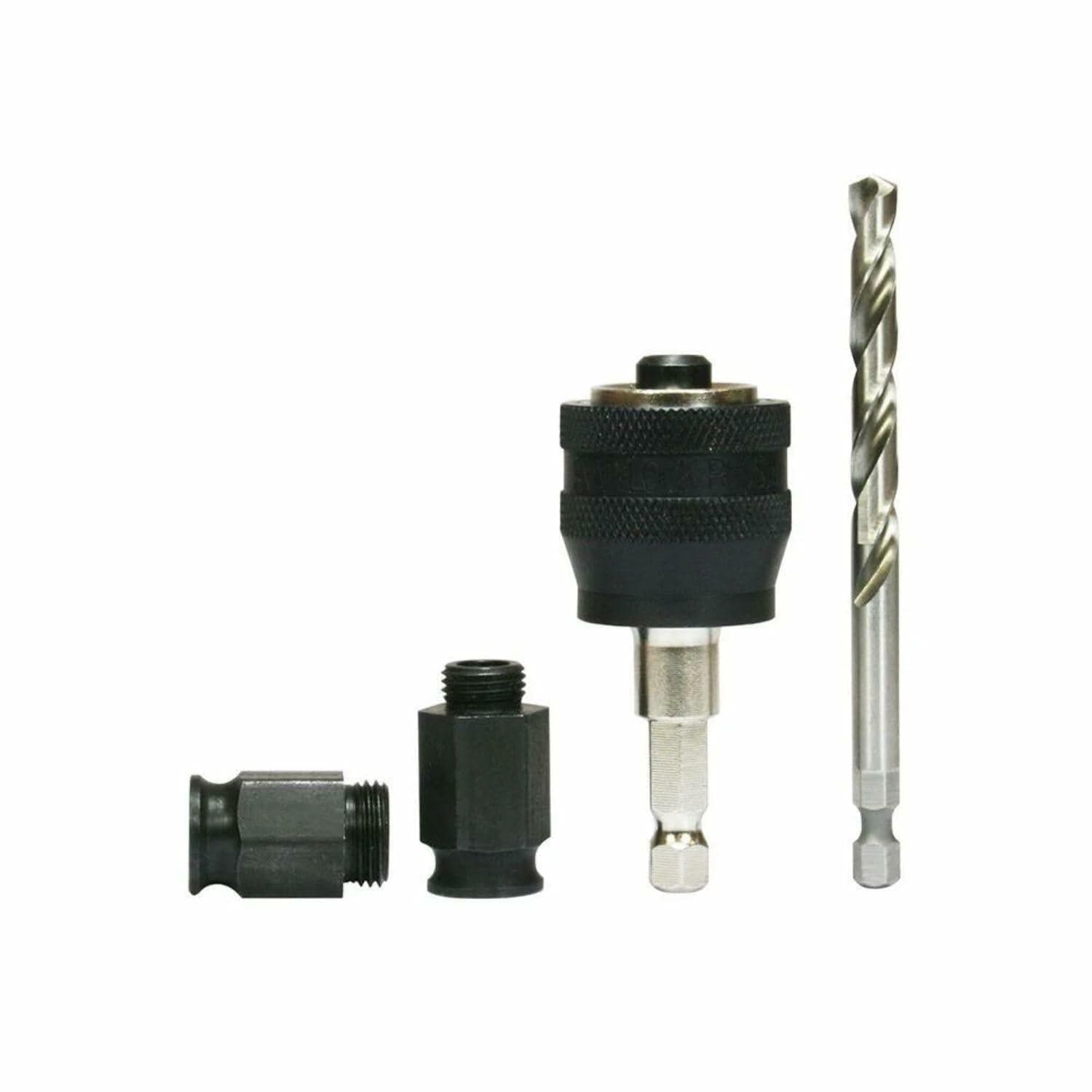

The components of the Diablo DHSAR375 mandrel system, including the Snap-Lock Plus mandrel, a pilot bit, a 1/2-inch adapter nut, and a 5/8-inch adapter nut.

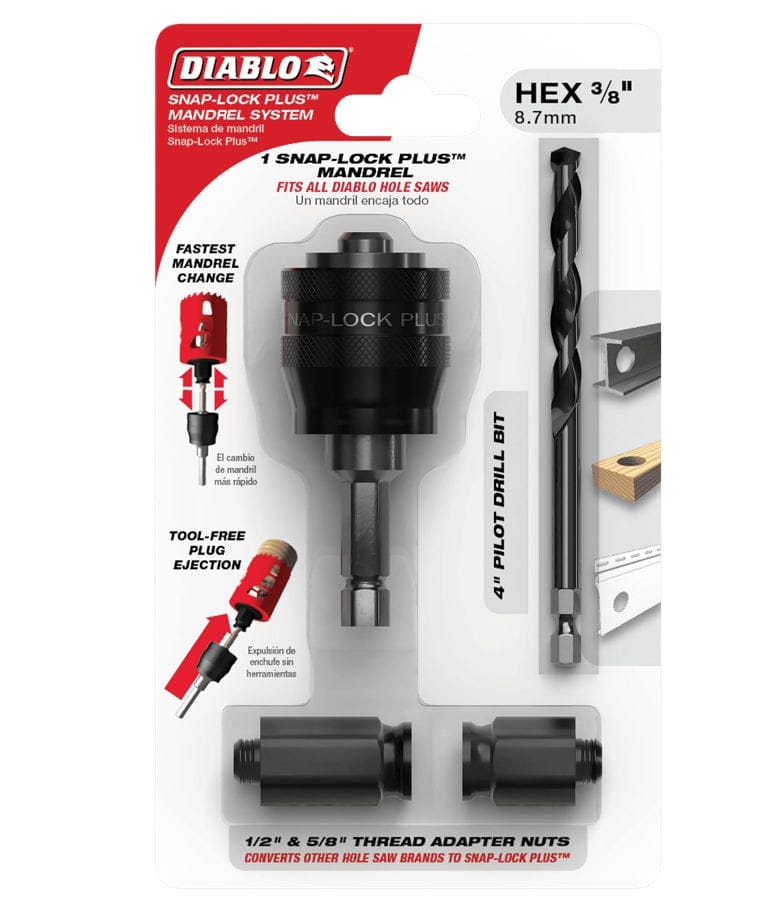

The retail packaging for the Diablo DHSAR375 3/8-inch hex Snap-Lock Plus Mandrel System, showing the mandrel, pilot bit, and two adapter nuts.

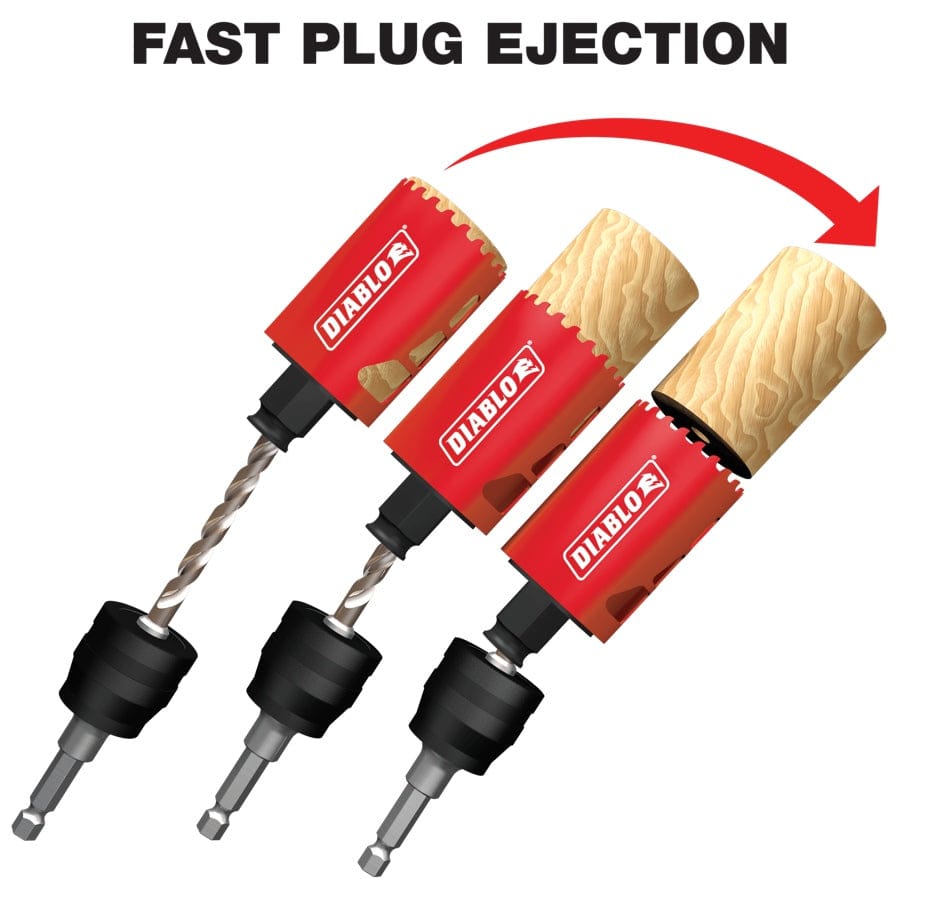

A diagram illustrating the "Fast Plug Ejection" feature of the Diablo mandrel, showing a wood plug being easily removed from the hole saw.

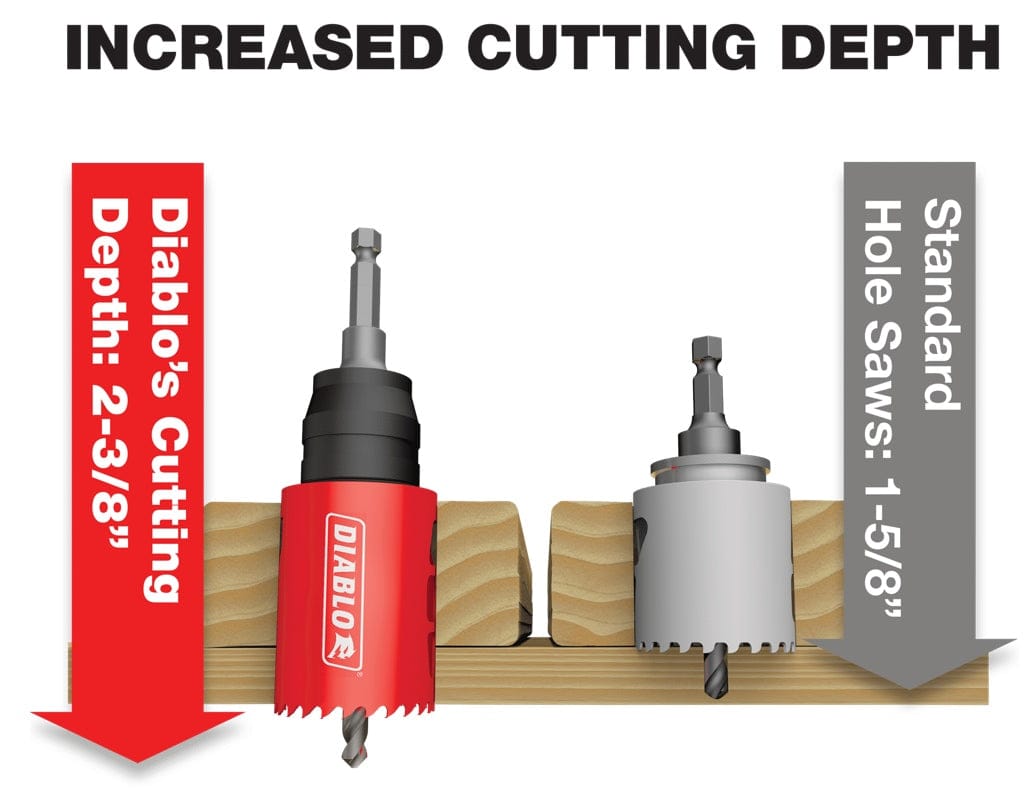

A comparison diagram illustrating the "Increased Cutting Depth" of a Diablo hole saw at 2-3/8 inches versus a standard hole saw at 1-5/8 inches.

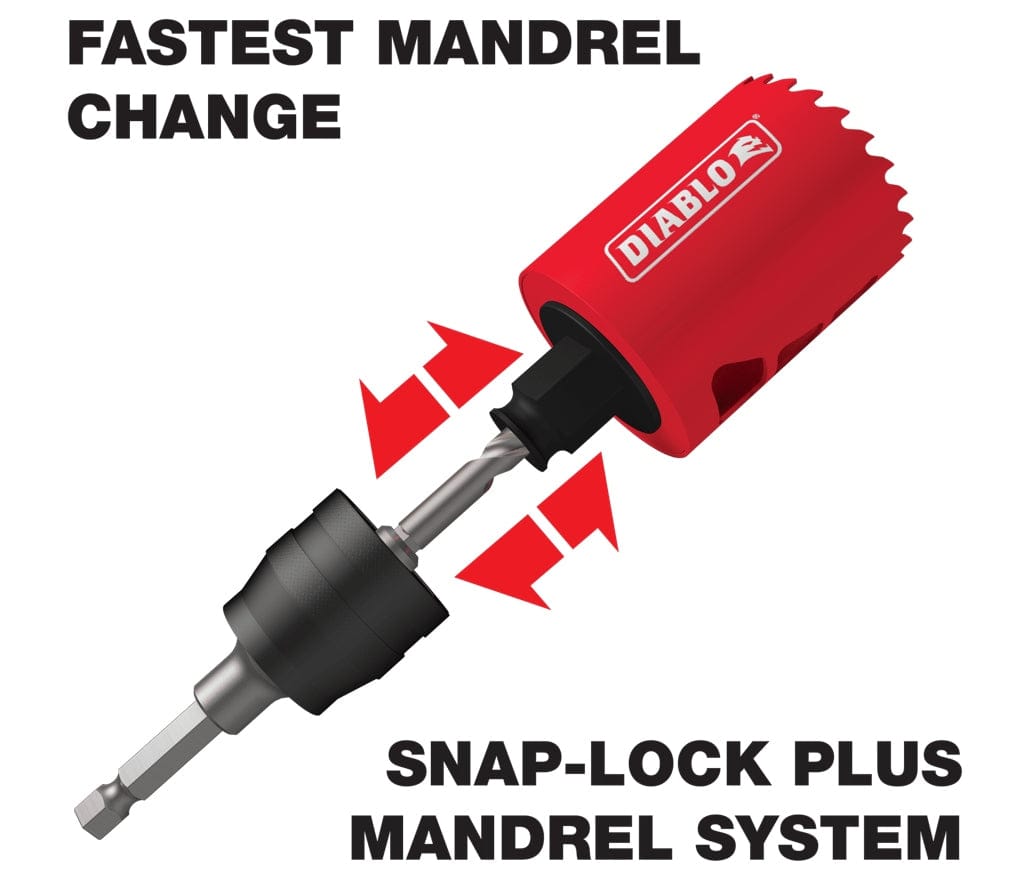

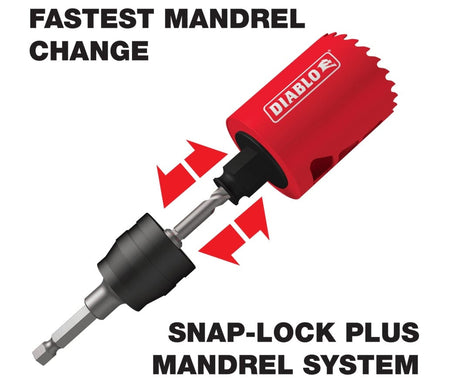

A marketing image demonstrating the "Fastest Mandrel Change" Snap-Lock Plus system, with a Diablo hole saw easily attaching to the mandrel.
The components of the Diablo DHSAR375 mandrel system, including the Snap-Lock Plus mandrel, a pilot bit, a 1/2-inch adapter nut, and a 5/8-inch adapter nut.
The retail packaging for the Diablo DHSAR375 3/8-inch hex Snap-Lock Plus Mandrel System, showing the mandrel, pilot bit, and two adapter nuts.
A diagram illustrating the "Fast Plug Ejection" feature of the Diablo mandrel, showing a wood plug being easily removed from the hole saw.
A comparison diagram illustrating the "Increased Cutting Depth" of a Diablo hole saw at 2-3/8 inches versus a standard hole saw at 1-5/8 inches.
A marketing image demonstrating the "Fastest Mandrel Change" Snap-Lock Plus system, with a Diablo hole saw easily attaching to the mandrel.
Unbranded

Diablo DHSAR375 Snap-Lock Plus Mandrel System 3/8-Inch Hex Shank for Hole Saws Fast Tool-Free Mounting Plug Ejection Includes 1/2 and 5/8-Inch Adapters

In stock
SKU: DHSAR375
$21.95
Description

Upgrade Your Hole Saw: Tool-Free Changes and Instant Plug Ejection

Eliminate downtime and frustration from your hole saw projects with the Diablo DHSAR375 Snap-Lock Plus™ Mandrel System. This innovative, high-performance system completely simplifies the attachment process, allowing you to mount hole saws fast and efficiently without any tools. It's the ultimate productivity upgrade for plumbers, electricians, and remodelers who frequently switch between hole saw sizes.

This system not only provides a quick, tool-free mounting solution but also features a tool-free plug ejection mechanism for fast material removal. It enables a deep, 60mm (2-3/8") cutting depth for boring deeper holes in a single pass. While it fits all Diablo hole saws from 5/8" to 6", this kit truly shines by including 1/2" and 5/8" adapter nuts, allowing you to convert other hole saw brands to use this fast and convenient Snap-Lock Plus™ system.

Key Features

  • Fast, Tool-Free Mounting: Snap-Lock Plus™ mandrel system simplifies the attachment process for no-downtime changes.
  • Tool-Free Plug Ejection: Quickly and easily remove material plugs for fast, repetitive cuts.
  • Deeper Hole Capability: Enables boring deeper holes up to 2-3/8" (60mm) in a single pass.
  • Secure 3/8" Hex Shank: Provides a strong, no-slip grip in standard 3/8-inch drill chucks.
  • Wide Diablo Compatibility: Fits all Diablo hole saws from 5/8" to 6" in diameter.
  • Universal Conversion: Includes 1/2" and 5/8" thread adapter nuts to convert other hole saw brands to the Snap-Lock Plus™ system.

What's Included

  • (1) 3/8” Hex Shank Snap-Lock Plus™ Mandrel
  • (1) 1/2” Adaptor Nut
  • (1) 5/8” Adaptor Nut

Specifications

Brand Diablo
Model Number DHSAR375
System Snap-Lock Plus™ Mandrel System
Shank 3/8" Hex
Application Drills wood, plastic, aluminum, metal, & stainless steel
Diablo Saw Compatibility 5/8" to 6"
Adapter Nut Threads 1/2" and 5/8"
Max Cutting Depth 60mm (2-3/8")
Category Mandrels & Adapters
Country of Origin China
Package Width 3.85 in
Package Height 1.4 in
Package Depth 6.75 in
Package Weight 0.5 lbs
UPC 008925128342
