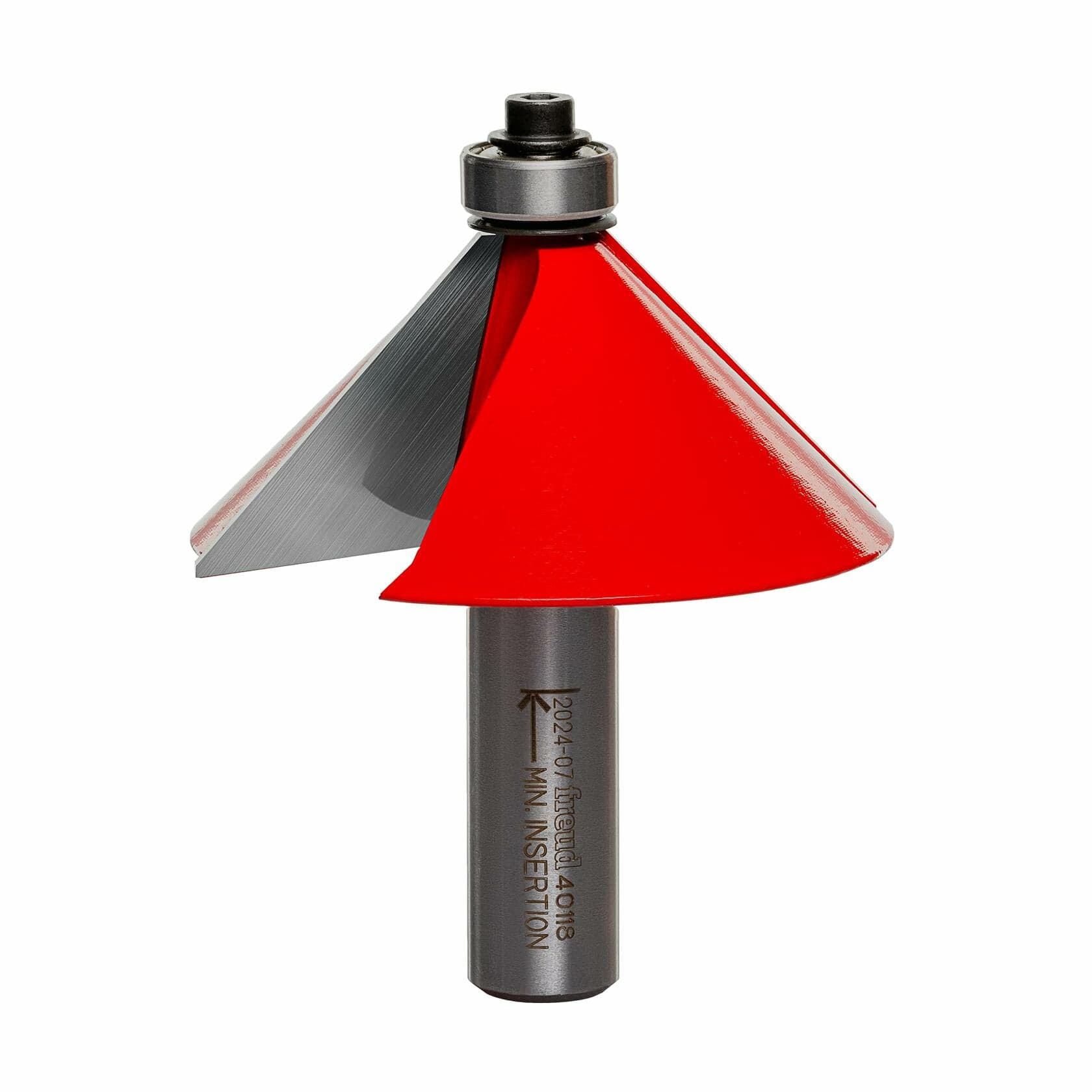

A studio image of the Freud 40-118 chamfer router bit, showing its large red 45-degree carbide head, top bearing, and 1/2-inch shank.

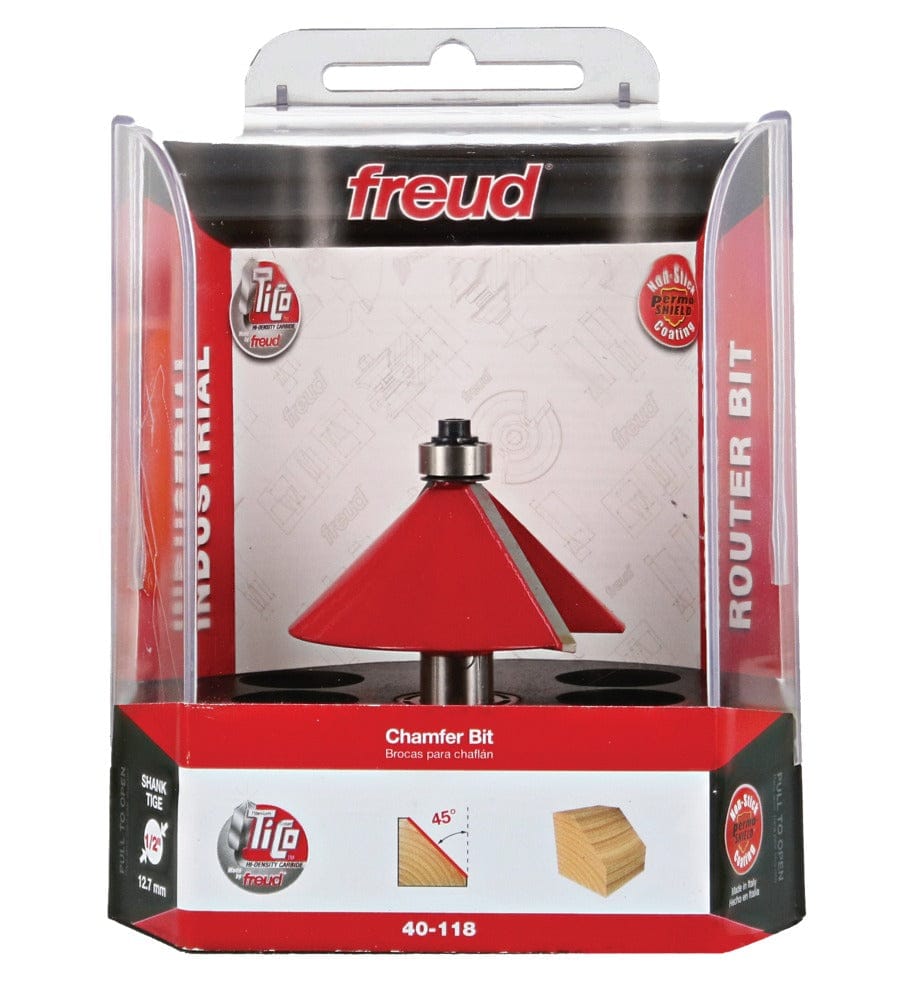

The Freud 40-118 chamfer bit in its clear and red retail packaging, displaying the 45-degree angle and 1/2-inch shank size.

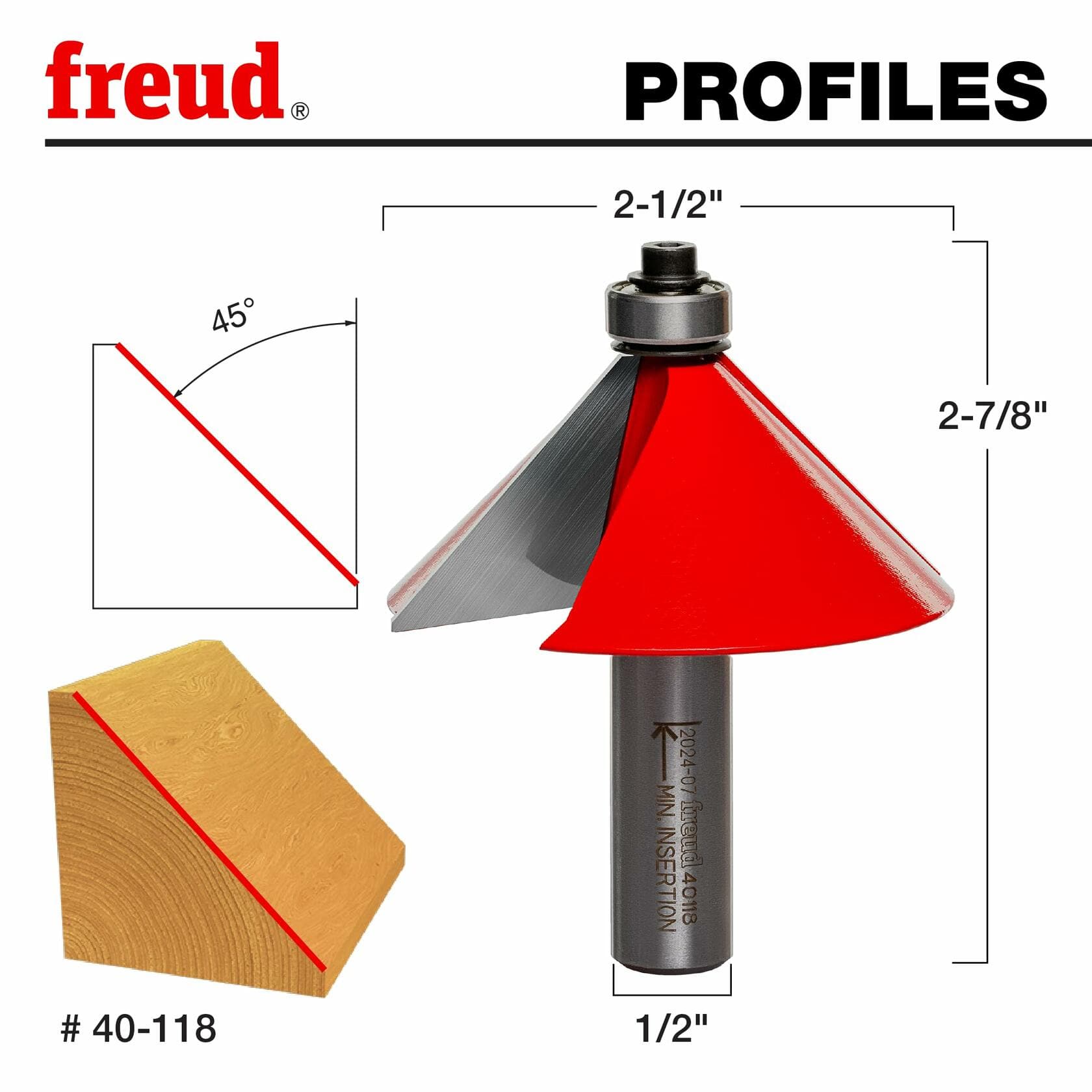

A technical profile diagram for the Freud 40-118 chamfer bit, showing its 45-degree angle, 2-1/2-inch diameter, and 1/2-inch shank.

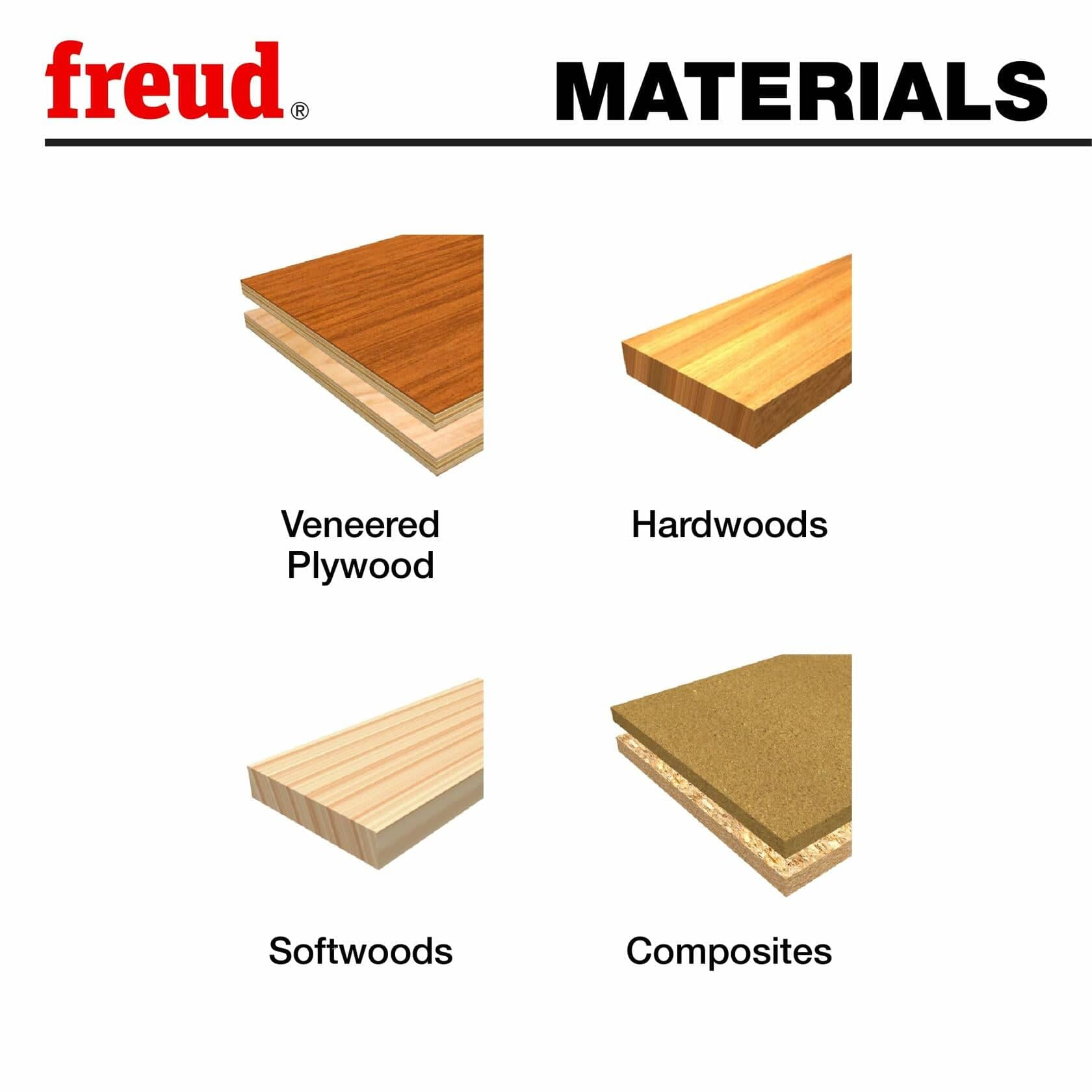

A diagram illustrating the materials the Freud chamfer bit can cut: veneered plywood, hardwoods, softwoods, and composites.

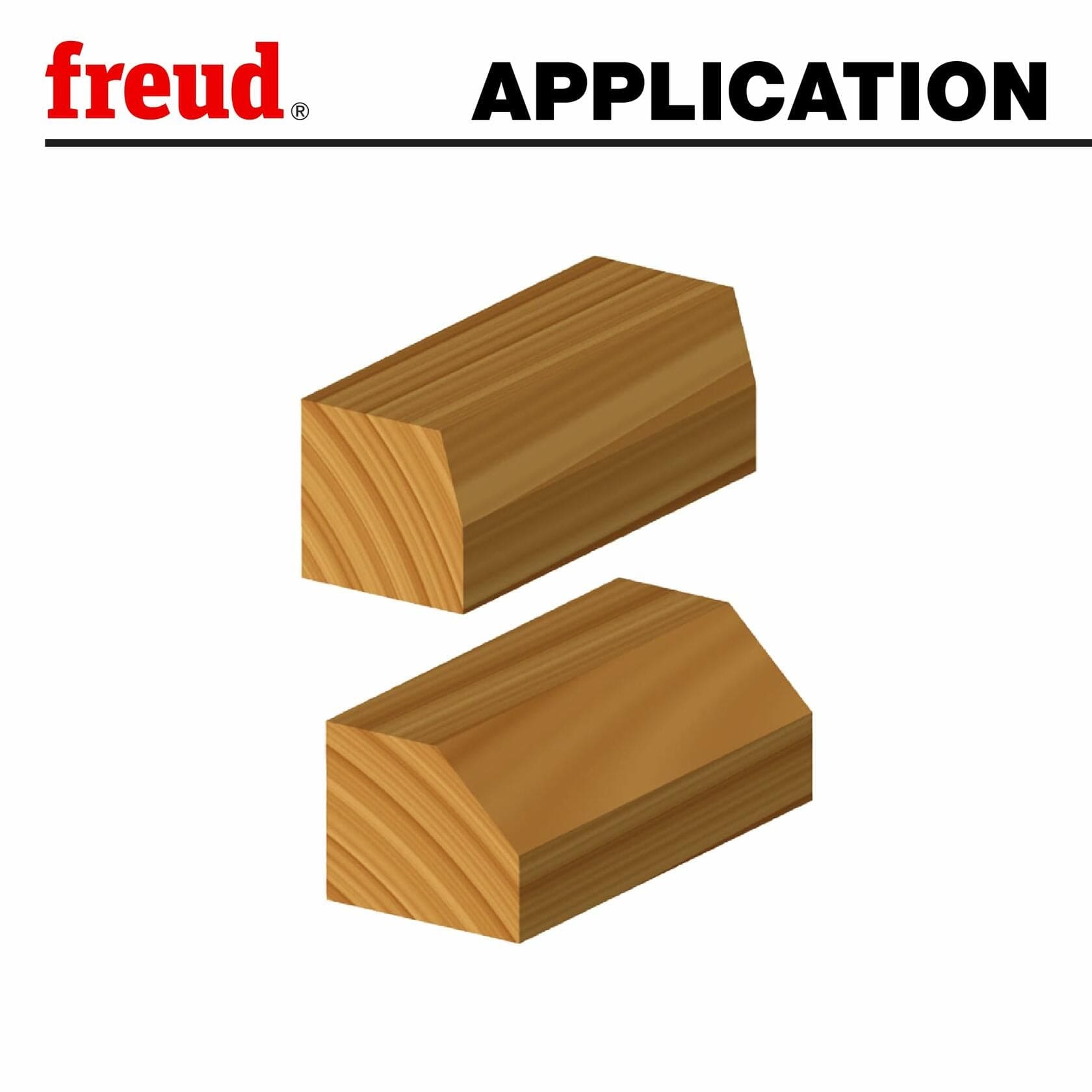

An application diagram showing two blocks of wood with clean, 45-degree chamfered edges created by the router bit.

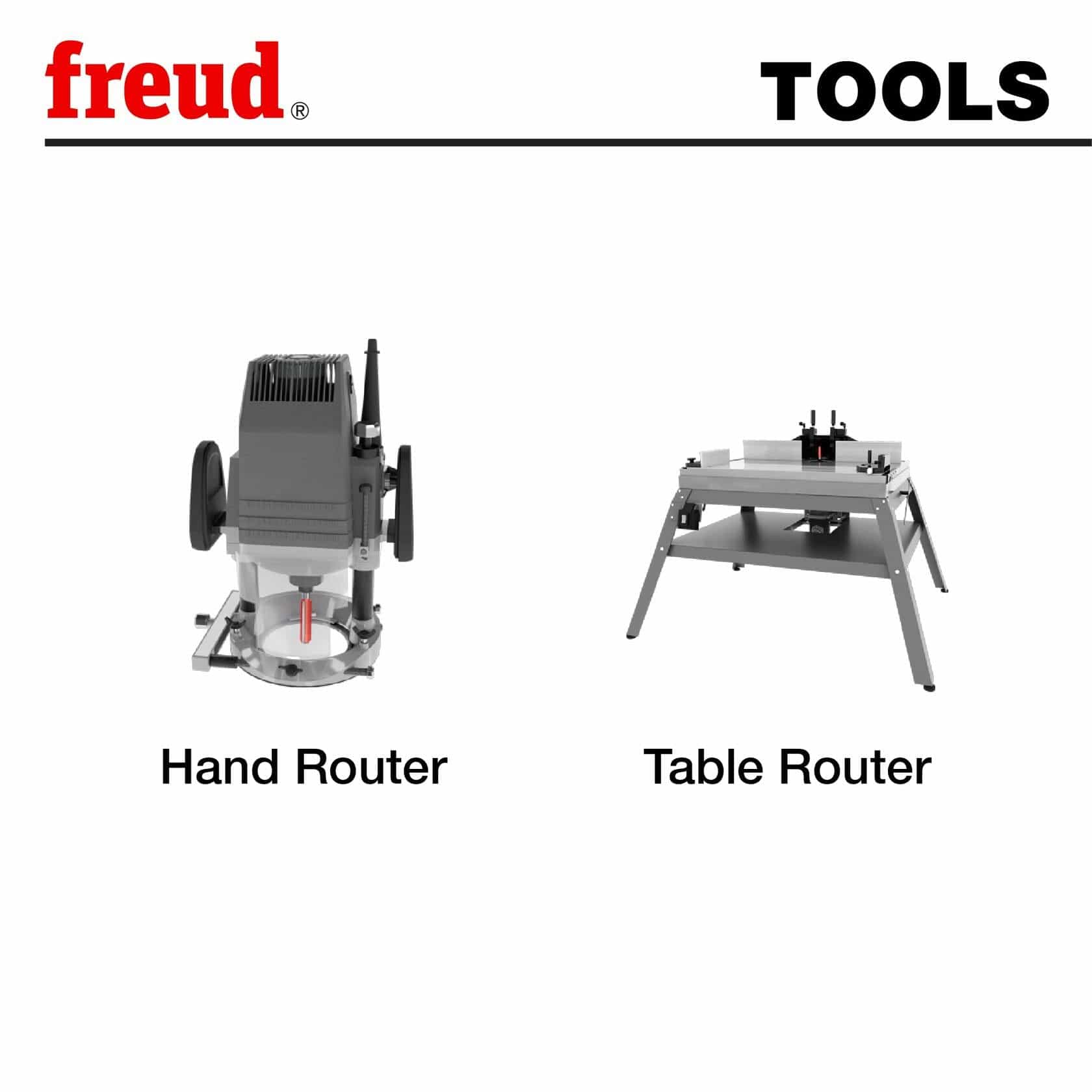

A diagram showing the compatible tools for the Freud chamfer bit: a hand router and a table router.
A studio image of the Freud 40-118 chamfer router bit, showing its large red 45-degree carbide head, top bearing, and 1/2-inch shank.
The Freud 40-118 chamfer bit in its clear and red retail packaging, displaying the 45-degree angle and 1/2-inch shank size.
A technical profile diagram for the Freud 40-118 chamfer bit, showing its 45-degree angle, 2-1/2-inch diameter, and 1/2-inch shank.
A diagram illustrating the materials the Freud chamfer bit can cut: veneered plywood, hardwoods, softwoods, and composites.
An application diagram showing two blocks of wood with clean, 45-degree chamfered edges created by the router bit.
A diagram showing the compatible tools for the Freud chamfer bit: a hand router and a table router.
Freud

Freud 2-1/2 Inch 45-Degree Chamfer Router Bit 1/2 Inch Shank 40-118 for Decorative Edging and Bevels TiCo Carbide

In stock
SKU: 40-118
$39.95
$84.21 Sale $39.95
Description

Create Large, Crisp 45° Bevels and Chamfers

Make a bold statement on your woodworking projects. The Freud 40-118 2-1/2" Chamfer Bit is a large-profile bit designed for creating wide, clean 45-degree chamfers and bevels on edges, posts, and multi-sided constructions. Its large diameter provides excellent stability in a router table, while the TiCo Hi-Density Carbide delivers a flawlessly smooth cut in hardwoods, softwoods, and composites. This bit is perfect for miter joinery, easing sharp edges, or adding a significant decorative profile.

What's Included

  • (1) Freud 2-1/2" 45° Chamfer Bit (40-118)

Key Features

  • Durable TiCo Hi-Density Carbide: Ensures long-lasting sharpness and superior performance for smooth, clean cuts.
  • Large 45° Chamfer Profile: Ideal for easing edges, creating decorative bevels, and robust joinery on multi-sided projects.
  • Adjustable Chamfer Size: Easily adjust the size of the chamfer by changing the bit height or adjusting the router table fence.
  • Multi-Material Cutting: Cuts all composition materials, hardwoods, softwoods, and plywood.
  • Router Compatibility: Designed for use in both hand-held and table-mounted portable routers (table-mounting is highly recommended for a bit of this size).

Specifications

Model 40-118
Overall Diameter 2-1/2"
Carbide Height 1"
Angle 45°
Shank Diameter 1/2"
Number of Cutters 2
Max RPM 12,000

A large 2-1/2" bit like this one performs best and most safely when it's used in a router table. To get the cleanest, most accurate chamfers, we recommend pairing it with a sturdy platform like the BOSCH Cabinet Style Router Table.
