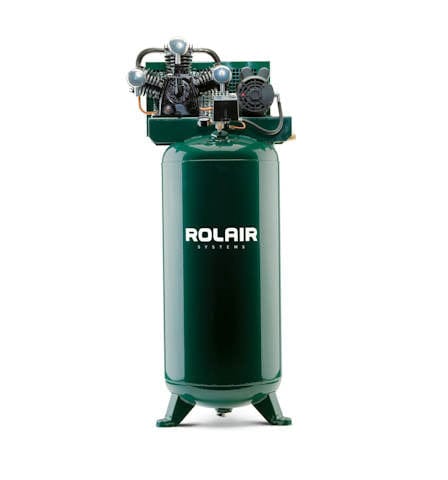

5 HP single-phase light industrial stationary electric air compressor.
DETAILS
About the pump. Single Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash Lubricated, Bearing Inserts on Connecting Rods, Swedish Lamellar Reed Valves, Oil Sight Gauge, Low RPMs to Ensure Long Life and Trouble-Free Performance.
About the motor. 3450 RPM, 60 Hz, Single Phase 230 Volt, Open Drip-Proof Motor.
Standard Equipment
Pressure Switch: Start/Stop Operation, 145-175 PSI Settings, On/Off Switch
Automatic Unloading Device for Loadless Starts
Heavy-Duty Brass Shut-Off Valve
Pressure Gauge, 0-300 PSI in 5 lb. Graduations
Safety Relief Valve - ASME Approved
Multiple V-Belt Drive
Intake Filter/Silencer with Replaceable Element
Totally Enclosed Steel Belt Guard
SPECIFICATIONS
HP: 50
Phase: Single
Tank Size: 60 Gallons, Vertical
Motor RPM: 3450
CFM Displaced: 21.1 @ 100 PSI
CFM Delivered: 16.0 @ 100 PSI
Length: 24"
Width: 20"Motor
Height: 70"
Approx. Weight: 290 lbs
