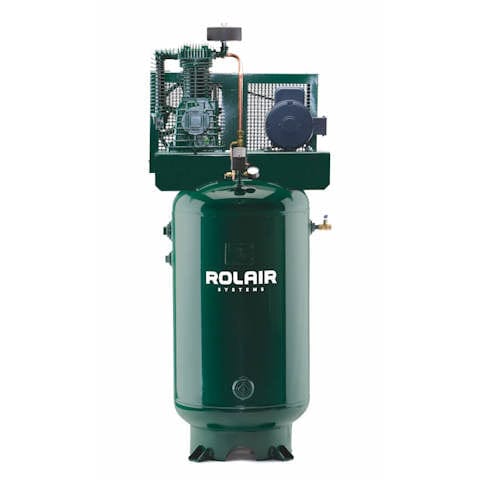

5 HP, single-stage electric stationary air compressor.
DETAILS
About the pump. Two-Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash Lubricated, Bearing Inserts on Connecting Rods, Swedish Lammelar Reed Valves, Oil Sight Gauge, Low RPM's to Ensure Long Life and Trouble-Free Performance.
About the motor. 1740 RPM, 60 Hz, Open Drip-Proof Motor. Single Phase Models Available in 208 and 230 Volt. Three Phase Models Available in 208, 230, and 460 Volt.
Standard Equipment
Pressure Switch - Start/Stop Operation
145-175 PSI Settings
On/Off Switch
Automatic Unloading Device for Loadless Starts
Heavy Duty Brass Shut-Off Valve
Pressure Gauge, 0-300 PSI in 5 lb. Graduations
Safety Relief Valve - ASME Approved
Multiple V-Belt Drive
Intake Filter/Silencer with Replaceable Element
Totally Enclosed Steel Belt Guard
SPECIFICATIONS
HP: 5
Phase: Single
Tank Size: 80 Gallons, Vertical
Motor RPM: 1740
CFM Displaced: 23.1 @ 175 PSI
CFM Delivered: 18.0 @ 175 PSI
Length: 30"
Width: 24"
Height: 77"
Approx. Weight: 490 lbs
