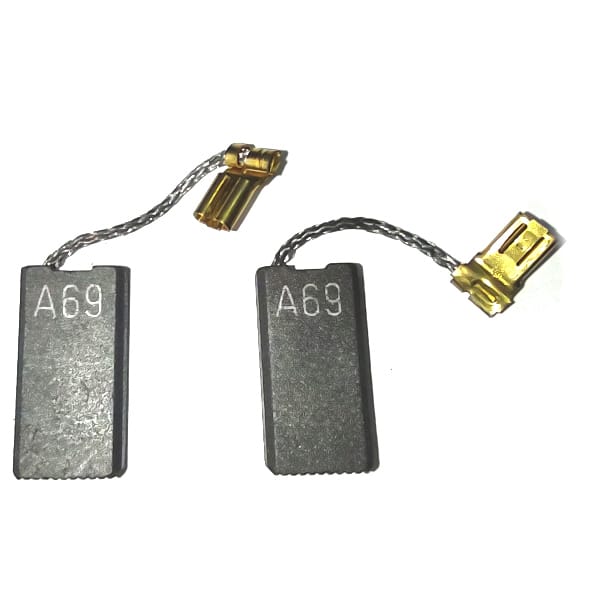

Two replacement electric brush carbon brushes with gray metal bodies, white printed 'A69' text, and gold-colored copper contacts on a white background.
Bosch

Bosch OEM Carbon Motor Brush Set for Rotary and Demolition Hammers Pack of 2 (1617014138)

In stock
SKU: 1.617.014.138
$13.95 USD

Description

Bosch logo in red with black lettering on a white background, modern and clearly designed.

Bosch OEM Carbon Motor Brush Set for Rotary and Demolition Hammers (1617014138)

The Bosch 1617014138 is a genuine OEM carbon motor brush set containing two replacement brushes for compatible Bosch rotary hammers and demolition hammers. Designed for professional concrete contractors, demolition crews, industrial maintenance technicians, and power tool repair shops, this replacement set helps restore electrical contact and consistent operation in heavy-duty brushed electric motors.

Best Used For

  • Commercial Rotary Hammer Maintenance: Replacing worn carbon brushes in compatible Bosch rotary hammers used for concrete drilling, anchor installation, and masonry construction.

  • Demolition Hammer Servicing: Maintaining Bosch demolition hammers used for concrete breaking, structural renovation, and heavy-duty chiseling.

  • Professional Power Tool Repair: Addressing motor performance issues caused by worn brushes, including intermittent operation, excessive sparking, and reduced electrical contact.

Key Performance & Safety Features

  • Genuine Bosch OEM Replacement: Original Bosch part number 1617014138 provides a manufacturer-specified replacement for compatible Bosch hammer motors.

  • Two-Brush Replacement Set: Includes two carbon motor brushes for servicing both brush positions within a compatible motor assembly.

  • Carbon/Graphite Construction: Conductive brush material maintains electrical contact with the motor commutator while accommodating normal wear during operation.

  • Flexible Electrical Leads: Equipped with flexible lead wires for connecting the replacement brushes to the existing motor brush assembly.

  • Model-Specific Compatibility: Supported models include Bosch RH540M, RH540S, GBH5-40D, 11240, 11247, 11387, 11388, and additional listed hammer models.

  • Professional Installation Safety: Requires disconnecting the tool from electrical power, inspecting the commutator, and confirming proper brush seating before operation.

What's Included

- (2) Bosch Genuine OEM Carbon Motor Brushes with Flexible Lead Wires — 1617014138

Brush holders, complete motor assemblies, rotary hammers, demolition hammers, and installation tools are not included.

Bosch 1617014138 Carbon Brush Set Specifications

Parameter Specification
Part Number & Item Bosch 1617014138 | OEM Carbon Brush Set (2-Pack)
Component Function Electrical Current Transfer & Armature Contact
Material Composition High-Conductivity Carbon Compound with Lead & Spring
Tool Compatibility Bosch Rotary & Demolition Hammers (11240, 11247, 11388, GBH 5-38, RH540M)
Sourcing Standard 100% Genuine Bosch Sourced Replacement Part
Carbon Brush Specification Note:

The Bosch 1617014138 OEM carbon brush set restores proper motor electrical contact, reduces arcing, and ensures reliable operation on compatible rotary and demolition hammers.
