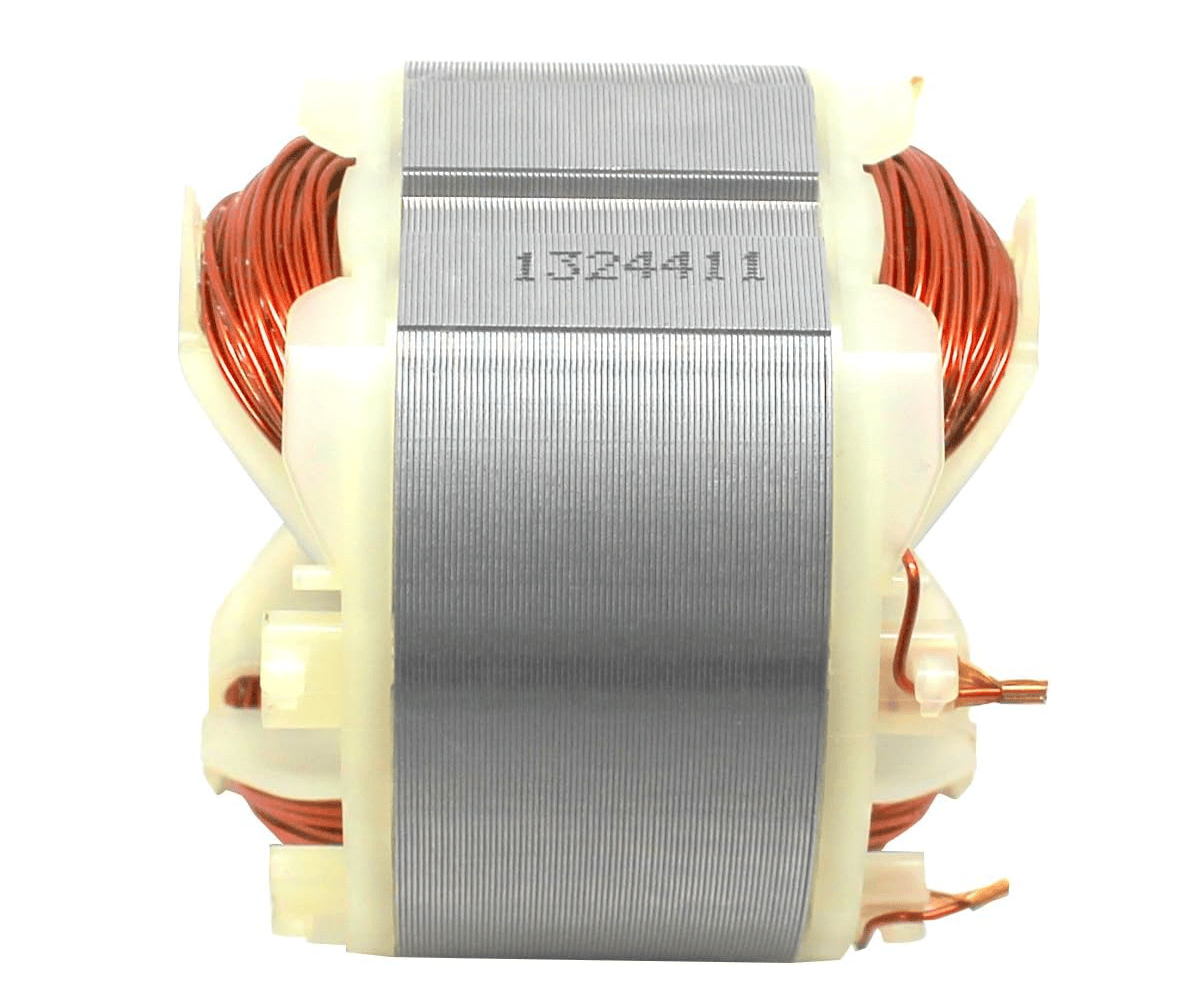

A cylindrical electric motor or transformer core component with a silver metallic center band, white plastic end housings, and copper-colored wire coils wound on both sides, featuring the stamped numbers '1324411' on the front.
Bosch

Bosch 110V OEM Motor Field Stator for Rotary Hammers Unit Only (1619P08324)

In stock
SKU: 1.619.P08.324
$0.00 USD

Description

Bosch logo in red with black lettering on a white background, modern and clearly designed.

Bosch 110V OEM Motor Field Stator for Rotary Hammers (1619P08324)

The Bosch 1619P08324 is a genuine OEM 110V motor field stator designed for compatible Bosch RH540M, RH540S, and select GBH 5-40 D rotary hammers. Built for professional power tool repair technicians, concrete contractors, industrial maintenance operations, and commercial construction equipment service departments, this replacement component supports motor repairs on heavy-duty rotary hammers used for drilling and chiseling concrete and masonry.

Best Used For

  • Commercial Rotary Hammer Motor Repair: Replacing damaged or electrically defective motor field assemblies in compatible Bosch rotary hammers used for concrete drilling and anchor installation.

  • Construction Equipment Fleet Maintenance: Servicing rotary hammer motors operated by professional masonry crews, concrete contractors, and equipment rental businesses.

  • Professional Electrical Motor Overhaul: Repairing stator-related motor faults in supported Bosch brushed electric rotary hammer assemblies.

Key Performance & Safety Features

  • Genuine Bosch OEM Component: Original Bosch replacement part number 1619P08324, identified as a motor field in Bosch service documentation.

  • 110V Field Configuration: Listed as a 110V motor field for the applicable GBH 5-40 D equipment variant.

  • Stationary Motor Winding Assembly: Provides the magnetic field required for operation of the compatible brushed electric motor.

  • Model-Specific Compatibility: Identified in Bosch RH540M and RH540S replacement-parts diagrams, with additional application references for GBH 5-40 D.

  • Factory Service Replacement: Replaces the designated original motor field rather than using a generic universal stator.

  • Electrical Service Safety: Requires correct installation, insulation inspection, voltage verification, and electrical safety testing before returning equipment to service.

What's Included

- (1) Bosch Genuine OEM Motor Field Stator — 1619P08324

Armature, carbon brushes, motor housing, power cord, switches, and installation tools are not included unless supplied separately.

Bosch 1619P08324 OEM Motor Field Specifications

Parameter Specification
Part Number & Item Bosch 1619P08324 (1.619.P08.324) | OEM Motor Field Coil
Component Function Stator Electromagnet Generation & Motor Torque Delivery
Material Construction High-Conductivity Copper Windings & Laminated Stator Core
Tool Compatibility Bosch RH540M, RH540S Rotary & Demolition Hammers
Sourcing Standard 100% Genuine Bosch Sourced Replacement Part
Motor Field Specification Note:

The Bosch 1619P08324 OEM motor field coil is manufactured from high-grade copper windings to restore full electromagnetic power and torque during professional tool motor overhauls.
