1 Top Tools Framing Nails P21113R3 3 In x 0.113 In 10d (2000 Count Bright Ring Shank Steel 21 Degree Collated Sheathing Deck Fastener)
Couldn't load pickup availability

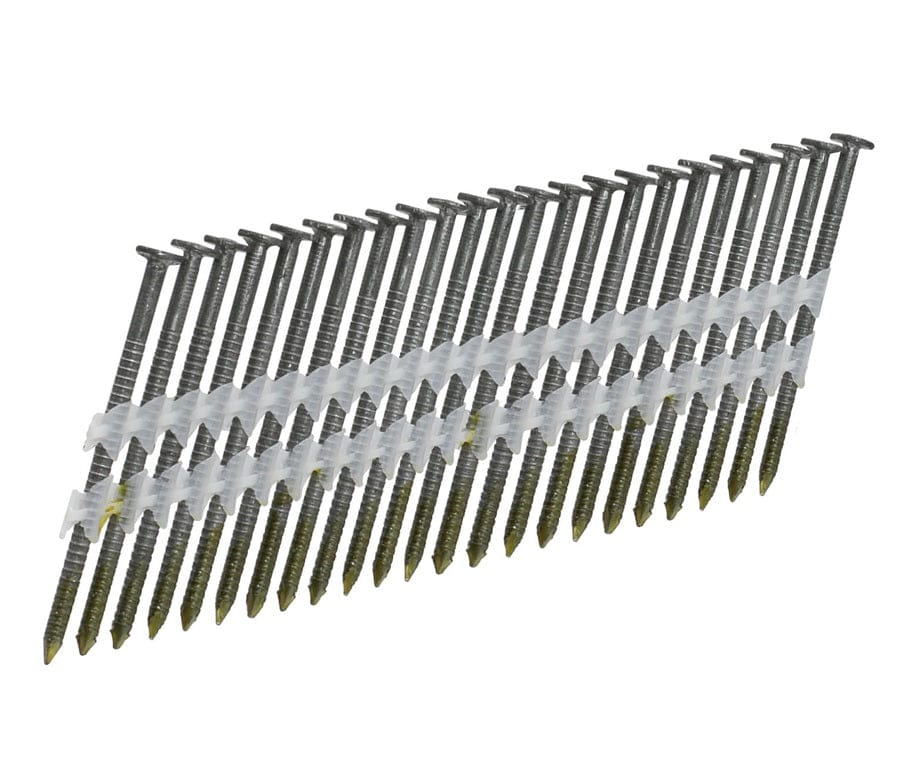

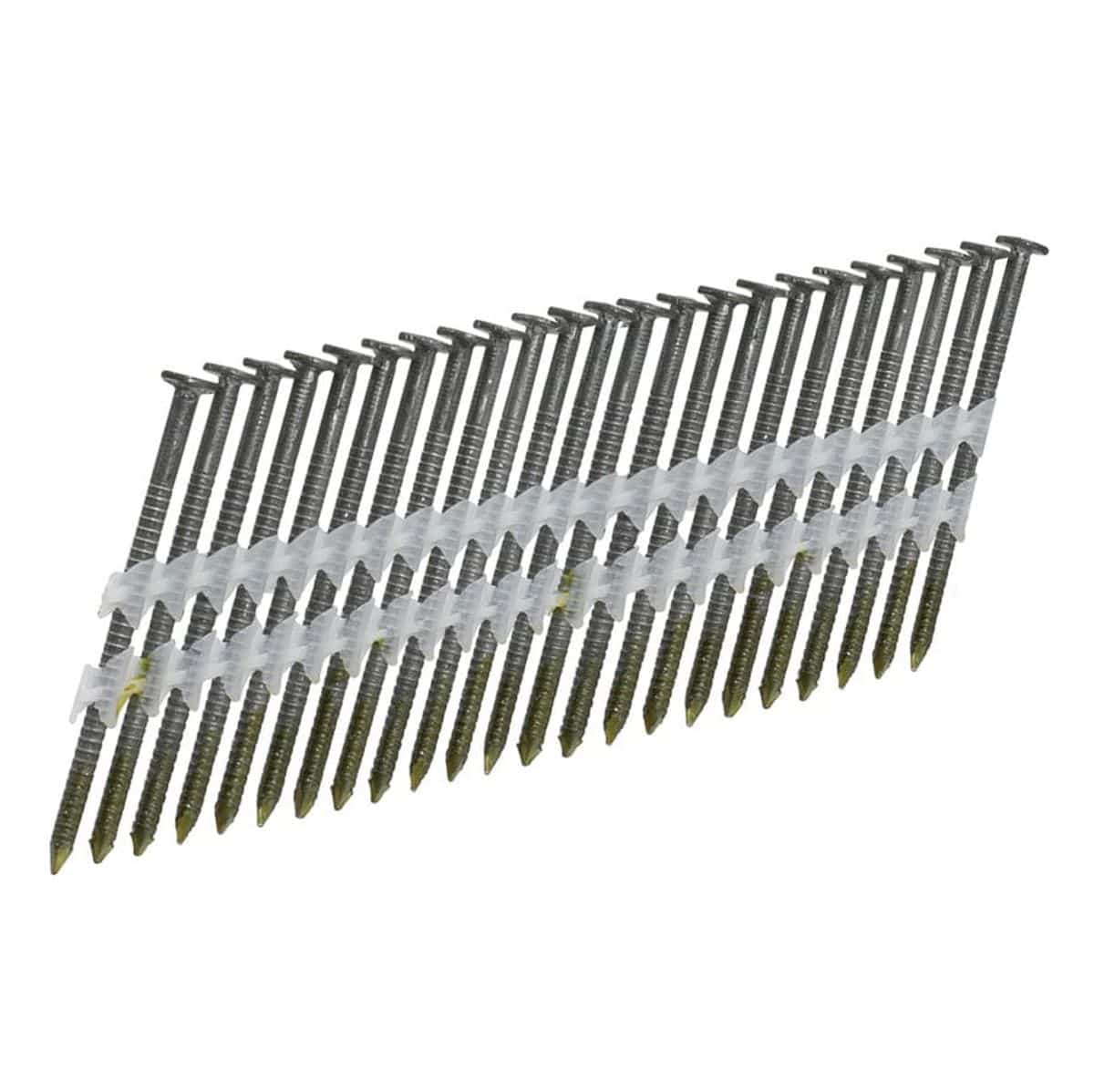

Industrial-Grade 3 Inch x 0.113 Inch 10d 21 Degree Collated Bright Ring Shank Framing Nails 2000 Count
The 1 Top Tools 3-Inch x 0.113-Inch (10d Size) Bright Ring Shank Framing Nails function as contractor-grade collated pneumatic fasteners engineered to execute structural interior timber framing, tongue-and-groove subflooring installation, and wall sheathing assembly. Formulated from high-tensile carbon steel treated with a friction-reducing vinyl resin coating, these 21-degree plastic-strip collated nails feature annular ring shank threads that interlock with wood fibers to eliminate nail-pop, floor squeaks, and fastener backing-out over time. Incorporating a 0.113-inch wire gauge shank diameter, diamond point tip, and full round head profile for high pull-through resistance, the 2,000-count fastener bulk box maintains rapid feeding reliability across continuous pneumatic framing passes in non-corrosive indoor environments.
Best Used For:
- Subfloor & Plywood Sheathing Attachment: Interlocking annular ring shanks into floor joists and studs to prevent floor squeaks, board flex, and fastener withdrawal over time.
- Interior Structural Timber Framing: Fastening non-treated 2x4 and 2x6 dimensional lumber framing plates, studs, joists, and timber headers.
- Industrial Crating & Pallet Assembly: Securing heavy wooden shipping pallets, industrial crates, and indoor timber decking sub-assemblies requiring high withdrawal resistance.
Key Performance & Safety Features
- High-Holding Power Ring Shank: Annular ridges act like locking barbs to wedge into timber fibers, maximizing resistance against wood movement and load withdrawal.
- High-Velocity Bright Vinyl Resin Coating: Specialized vinyl finish acts as a lubricant during driving to minimize tool driver wear and lower air consumption.
- Full Round Head (FRH) Geometry: Delivers maximum surface contact area for high pull-through resistance and strict structural building code compliance.
- 21-Degree Plastic Strip Collation: Precision-angled plastic collation strips feed smoothly into 21-degree framing nailers and shatter cleanly upon driver impact.
- Standard 10d Industrial Sizing: 3-inch length and 0.113-inch diameter meet standard code specs for interior wood-to-wood structural connections.
- Bulk 2,000-Piece Contractor Box: Packed in a 2M quantity box to maintain continuous job site productivity with fewer magazine reloads.
What's Included
- (2,000) 1 Top Tools 3" x 0.113" 10d 21-Degree Bright Ring Shank Collated Framing Nails
Technical Specifications
| Brand Name | 1 Top Tools |
| Model Number SKU | P21113R3 |
| Tool Classification | Collated Pneumatic Framing Nails |
| Fastener Length | 3.000 in. (3 in.) |
| Shank Diameter Gauge | 0.113 in. Gauge Wire (10d Penny Size) |
| Shank Geometry Profile | Annular Ring Shank (Annular Thread) |
| Collation Angle Rating | 21 Degrees Plastic Collated |
| Fastener Protective Finish | Bright Vinyl Coated Finish |
| Fastener Head Profile | Full Round Head (FRH) |
| Nail Point Style | Diamond Point |
| Package Quantity Count | 2,000 Nails (2M Pack) |
| Structural Material Composition | High-Tensile Carbon Steel Wire |
| Primary Machine Compatibility | 21-Degree Full Round Head Pneumatic Framing Nailers |
| Target Substrates & Lumber | Non-Treated Interior Framing Lumber, OSB Panels, Plywood Subflooring, Wood Sheathing |
Pro-Tip: When fastening interior subfloor panels or roof shear walls with these 10d 3-inch bright ring shank nails, calibrate your 21-degree framing nailer line pressure to approximately 90–100 PSI. Driving the full round head perfectly flush allows the heat-activated vinyl resin coating to bond with the lumber while the ring shanks lock into floor joists, preventing floor squeaks without tearing through OSB face layers.
