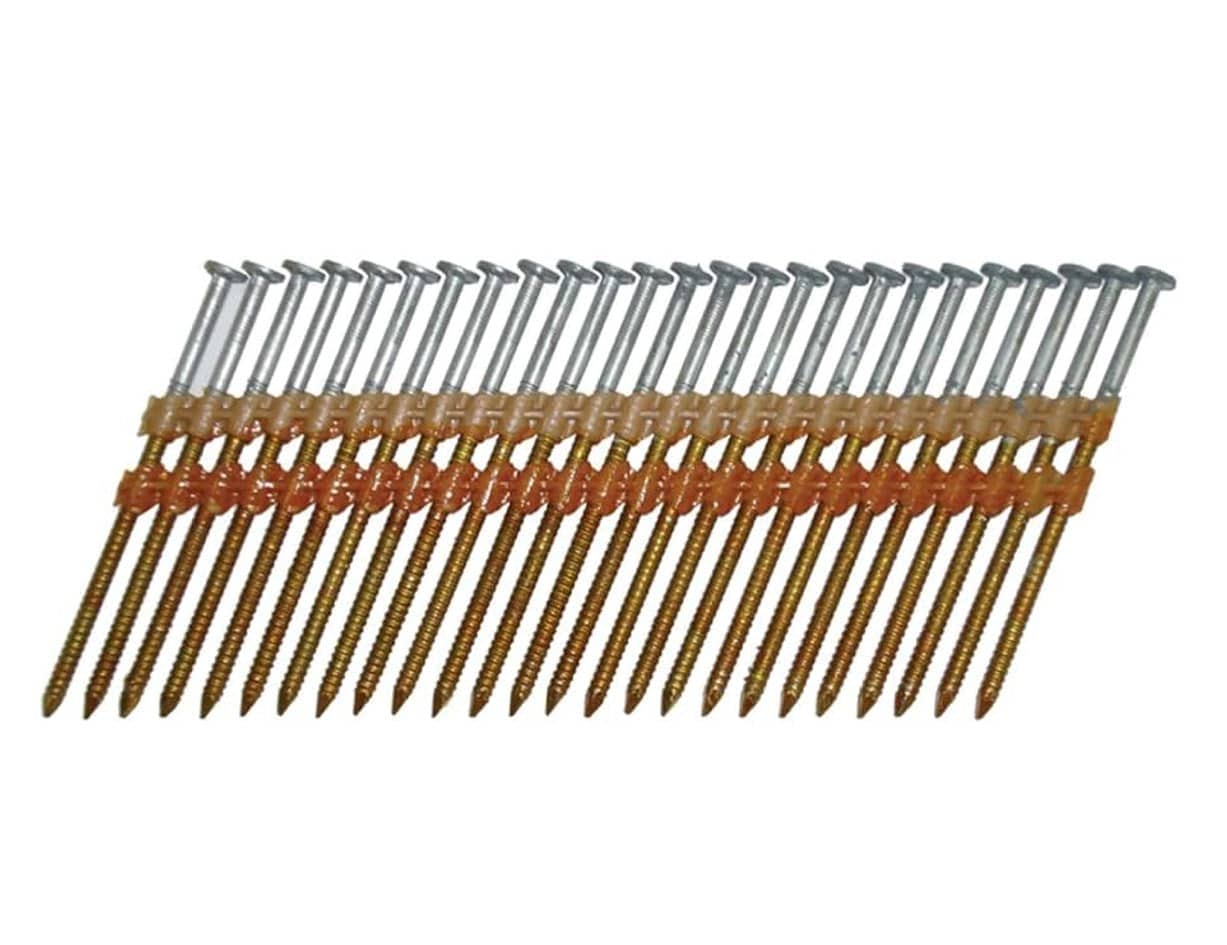

A studio photograph of hot-dipped galvanized framing nails with screw-like ring shanks, held in an orange plastic collation strip at a 21-degree angle.
A studio photograph of hot-dipped galvanized framing nails with screw-like ring shanks, held in an orange plastic collation strip at a 21-degree angle.
A studio photograph of hot-dipped galvanized framing nails with screw-like ring shanks, held in an orange plastic collation strip at a 21-degree angle.
A studio photograph of hot-dipped galvanized framing nails with screw-like ring shanks, held in an orange plastic collation strip at a 21-degree angle.
1 Top Tools

1 Top Tools Framing Nails P21113HDGSCR3 3 In x 0.113 In 10d (2000 Count HDG Screw Shank Steel 21 Degree Collated Deck Fastener)

In stock
SKU: P3120SHG2
$45.00 USD

Description

Industrial-Grade 3 Inch x 0.113 Inch 10d 21 Degree Collated HDG Screw Shank Framing Nails 2000 Count

The 1 Top Tools 3-Inch x 0.113-Inch (10d Size) Hot-Dipped Galvanized Screw Shank Framing Nails function as commercial-grade collated pneumatic fasteners engineered to execute heavy-duty exterior timber framing, pressure-treated decking assembly, and roof truss construction. Manufactured from high-tensile carbon steel encapsulated in a thick Hot-Dipped Galvanized (HDG) molten zinc barrier, these 21-degree plastic-strip collated nails feature spiral screw shanks that rotate upon pneumatic impact to form an interlocking mechanical bond within wood fibers. Incorporating a 0.113-inch (12 Gauge) shank diameter, precision diamond point tip, and full round head profile for high pull-through resistance, the 2,000-count fastener bulk pack ensures jam-free feeding and severe corrosion defense across high-moisture pressure-treated lumber applications.

Best Used For:

  • Pressure-Treated Deck Framing & Sub-Structures: Fastening pressure-treated deck joists, ledger boards, and decking substructures exposed to high ground moisture and wood preservatives.
  • Roof Truss & Exterior Timber Assembly: Threading spiral screw shanks into roof trusses, floor joists, and wall plates to prevent structural fastener withdrawal under heavy load stresses.
  • Exterior Cedar & Redwood Fencing: Securing cedar pickets, fence rails, and exterior wood siding panels without creating rust bleed streaks or surface fastener pops.

Key Performance & Safety Features

  • Hot-Dipped Galvanized (HDG) Zinc Coating: Heavy molten zinc protective layer provides sacrificial corrosion defense approved for use in pressure-treated lumber.
  • Spiral Thread Screw Shank Geometry: Helical threads rotate during driving to form an interlocking mechanical anchor inside timber fibers, maximizing withdrawal resistance.
  • Full Round Head (FRH) Profile: Delivers maximum surface contact area for high pull-through resistance and strict structural building code compliance.
  • 21-Degree Plastic Strip Collation: Precision-angled plastic collation strips feed smoothly into standard 21-degree pneumatic framing nailers and shatter cleanly upon impact.
  • Standard 10d Industrial Sizing: 3-inch length and 0.113-inch diameter meet standard structural specifications for exterior wood-to-wood framing connections.
  • Bulk 2,000-Piece Contractor Box: Packed in a 2M quantity box to maintain continuous job site productivity with fewer magazine reloads.

What's Included

  • (2,000) 1 Top Tools 3" x 0.113" 10d 21-Degree Hot-Dipped Galvanized Screw Shank Collated Framing Nails

Technical Specifications

Brand Name 1 Top Tools
Model Number SKU P21113HDGSCR3
Tool Classification Collated Pneumatic Framing Nails
Fastener Length 3.000 in. (3 in.)
Shank Diameter Gauge 0.113 in. Gauge Wire (10d Penny Size / 12 Gauge)
Shank Geometry Profile Screw Shank (Coarse Thread / Spiral)
Collation Angle Rating 21 Degrees Plastic Collated
Fastener Protective Finish Hot-Dipped Galvanized (HDG) Zinc Coating
Fastener Head Profile Full Round Head (FRH)
Nail Point Style Diamond Point
Package Quantity Count 2,000 Nails (2M Pack)
Structural Material Composition High-Tensile Carbon Steel Wire
Primary Machine Compatibility 21-Degree Full Round Head Pneumatic Framing Nailers
Target Substrates & Lumber Pressure-Treated Lumber, Cedar, Redwood, Exterior Sheathing, Decking

Pro-Tip: When installing heavy pressure-treated decking joists or roof trusses with these 10d 3-inch HDG screw shank nails, set your 21-degree pneumatic nailer pressure to approximately 90–100 PSI. As the nail drives, the spiral shank rotates and locks into the wet timber while keeping the heavy zinc layer intact on the full round head face to prevent preservative chemicals from degrading the inner steel core.
