1 Top Tools Framing Nails P21113SCR3 3 In x 0.113 In 10d (2000 Count Bright Screw Shank Steel 21 Degree Collated Sheathing Deck Fastener)
Couldn't load pickup availability

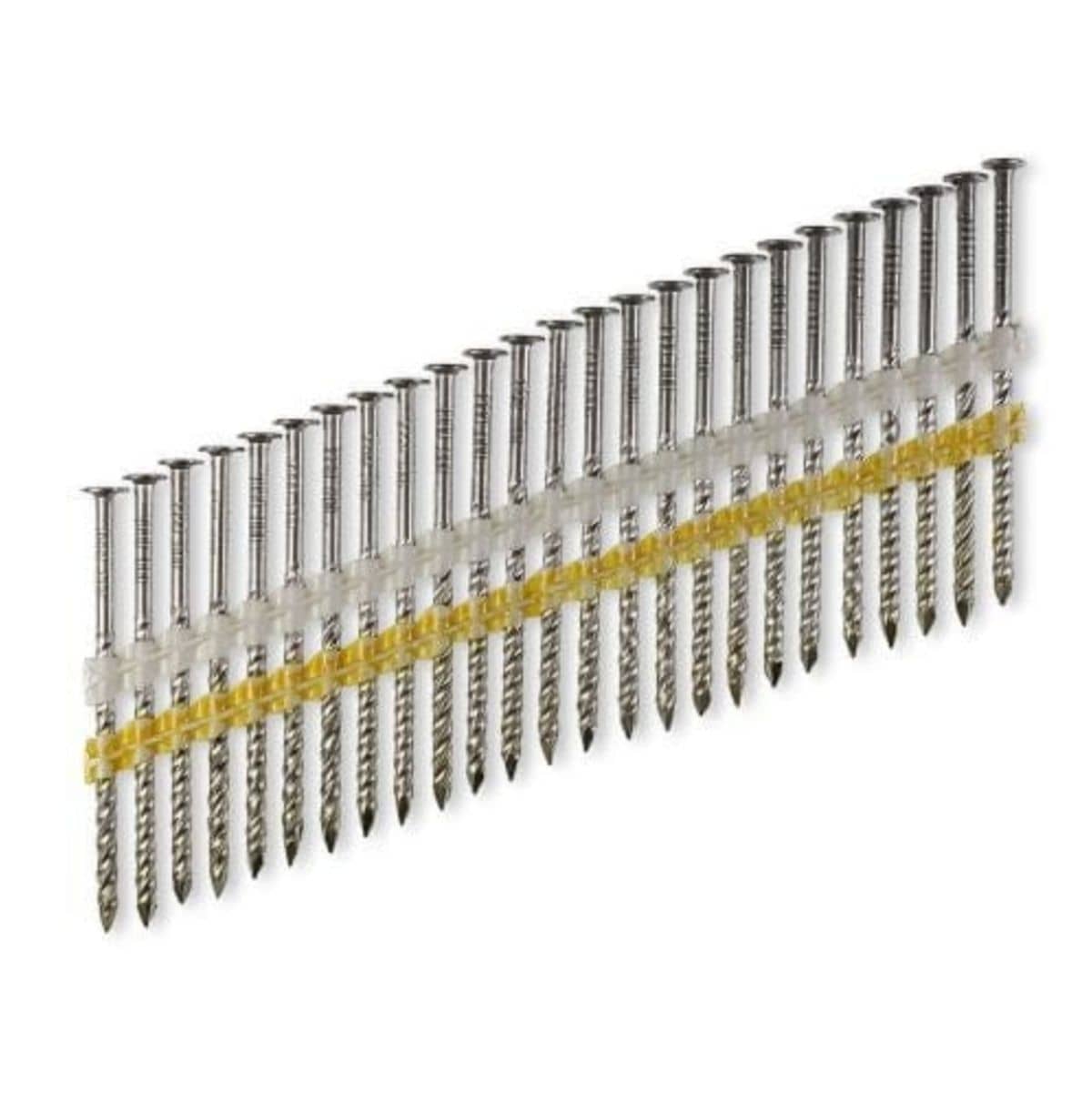

Industrial-Grade 3 Inch x 0.113 Inch 10d 21 Degree Collated Bright Screw Shank Framing Nails 2000 Count
The 1 Top Tools 3-Inch x 0.113-Inch (10d Size) Bright Screw Shank Framing Nails function as contractor-grade collated pneumatic fasteners engineered to execute high-strength interior timber framing, roof truss construction, and subfloor sheathing assembly. Formulated from high-tensile carbon steel treated with a friction-reducing bright vinyl coating, these 21-degree plastic-strip collated nails feature a helical screw shank profile that rotates during pneumatic impact to interlock with wood fibers. Incorporating a 0.113-inch (12 Gauge) shank diameter, diamond point tip, and full round head profile for high pull-through resistance, the 2,000-count fastener bulk box maintains rapid feeding reliability across continuous interior construction passes in non-corrosive indoor environments.
Best Used For:
- Subfloor & Plywood Sheathing Attachment: Threading spiral screw shanks into floor joists and wall studs to eliminate board squeaks, floor flex, and fastener backing-out.
- Roof Truss & Interior Timber Framing: Fastening non-treated 2x4 and 2x6 framing plates, floor trusses, studs, and wood sheathing panels requiring high withdrawal resistance.
- Heavy-Duty Pallet & Crate Assembly: Securing industrial wooden pallets, crating, and interior timber sub-assemblies subjected to severe transport vibration.
Key Performance & Safety Features
- Spiral Thread Screw Shank Geometry: Helical threads rotate upon penetration to create a tight mechanical lock within lumber fibers for maximum withdrawal power.
- High-Velocity Bright Vinyl Resin Coating: Specialized vinyl finish acts as a lubricant during driving to minimize tool driver wear and lower air consumption.
- Full Round Head (FRH) Geometry: Delivers maximum surface contact area for high pull-through resistance and strict structural building code compliance.
- 21-Degree Plastic Strip Collation: Precision-angled plastic collation strips feed smoothly into 21-degree pneumatic framing nailers and shatter cleanly upon drive.
- Standard 10d Industrial Sizing: 3-inch length and 0.113-inch diameter meet standard code specs for interior wood-to-wood structural connections.
- Bulk 2,000-Piece Contractor Box: Packed in a 2M quantity box to maintain continuous job site productivity with fewer magazine reloads.
What's Included
- (2,000) 1 Top Tools 3" x 0.113" 10d 21-Degree Bright Screw Shank Collated Framing Nails
Technical Specifications
| Brand Name | 1 Top Tools |
| Model Number SKU | P21113SCR3 |
| Tool Classification | Collated Pneumatic Framing Nails |
| Fastener Length | 3.000 in. (3 in.) |
| Shank Diameter Gauge | 0.113 in. Gauge Wire (10d Penny Size / 12 Gauge) |
| Shank Geometry Profile | Screw Shank (Spiral / Coarse Thread) |
| Collation Angle Rating | 21 Degrees Plastic Collated |
| Fastener Protective Finish | Bright Basic Steel / Bright Vinyl Coated Finish |
| Fastener Head Profile | Full Round Head (FRH) |
| Nail Point Style | Diamond Point |
| Package Quantity Count | 2,000 Nails (2M Pack) |
| Structural Material Composition | High-Tensile Carbon Steel Wire |
| Primary Machine Compatibility | 21-Degree Full Round Head Pneumatic Framing Nailers |
| Target Substrates & Lumber | Non-Treated Interior Framing Lumber, OSB Panels, Plywood Subflooring, Roof Trusses |
Pro-Tip: When constructing interior wood roof trusses or tongue-and-groove subfloor assemblies with these 10d 3-inch bright screw shank nails, set your 21-degree pneumatic nailer pressure to approximately 90–100 PSI. As the nail drives, the spiral threads rotate to lock into the joists while the friction-heated vinyl coating bonds to the wood fibers, maximizing withdrawal resistance against structural load shifts.
