2.25 HP VS Router Combo Kit

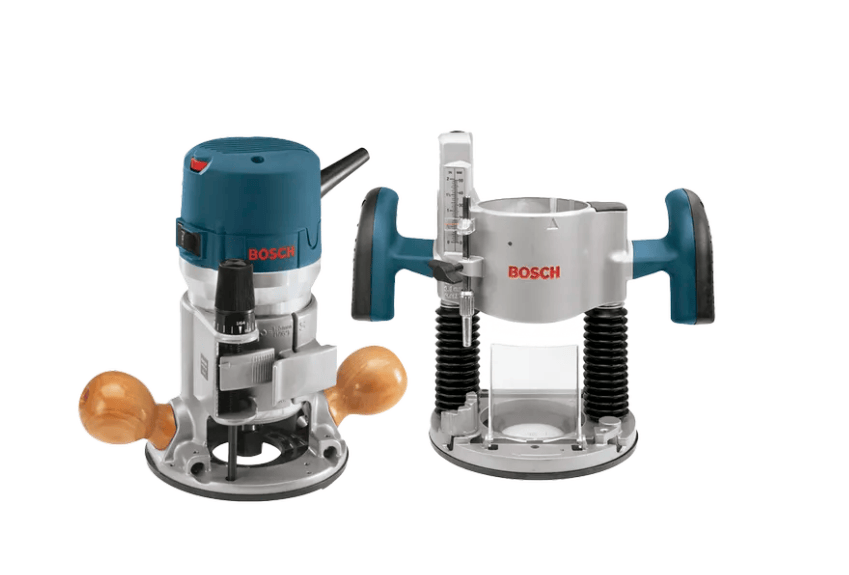

The Bosch 1617EVSPK is a 2.25 HP, 12 Amp variable-speed router combo kit that combines fixed- and plunge-base routing capability in one professional woodworking system. Its adjustable 8,000 to 25,000 RPM speed range, microfine depth adjustment, and Constant Response Circuitry provide control for routing, profiling, dadoing, template work, and other precision applications.

Best Used For

• Edge Profiling: Variable speed and precision depth adjustment support controlled edge-forming and profiling.
• Plunge Routing: The included plunge base provides smooth plunge action for templates, jigs, dovetails, and interior cuts.
• Router Table Work: The fixed base features threaded mounting holes for common router-table configurations.

Key Performance & Safety Features

• 2.25 HP Motor: 12 Amp motor provides substantial power for professional routing applications.
• Variable Speed: Adjustable 8,000 to 25,000 RPM allows the operator to select an appropriate speed for the application and bit.
• Constant Response Circuitry: Helps maintain consistent speed during cutting and stabilizes startup torque.
• Fixed & Plunge Bases: Two base configurations provide flexibility for different routing techniques.
• Microfine Depth Adjustment: Enables precise control over bit depth for accurate cuts.
• Multiple Collet Capacities: Supports 1/4 inch, 3/8 inch, 1/2 inch, and 8 mm collet sizes.

What's Included

• 1617EVS router motor
• RA1161 fixed base
• RA1166 plunge base
• 1/4 inch self-releasing collet chuck
• 1/2 inch self-releasing collet chuck
• 16 mm shaft wrench
• 24 mm collet nut wrench
• Fixed-base chip shield
• Plunge-base chip shield
• T-handle hex height adjustment wrench
• Three 10-24 screws for table mounting
• Hard carrying case
