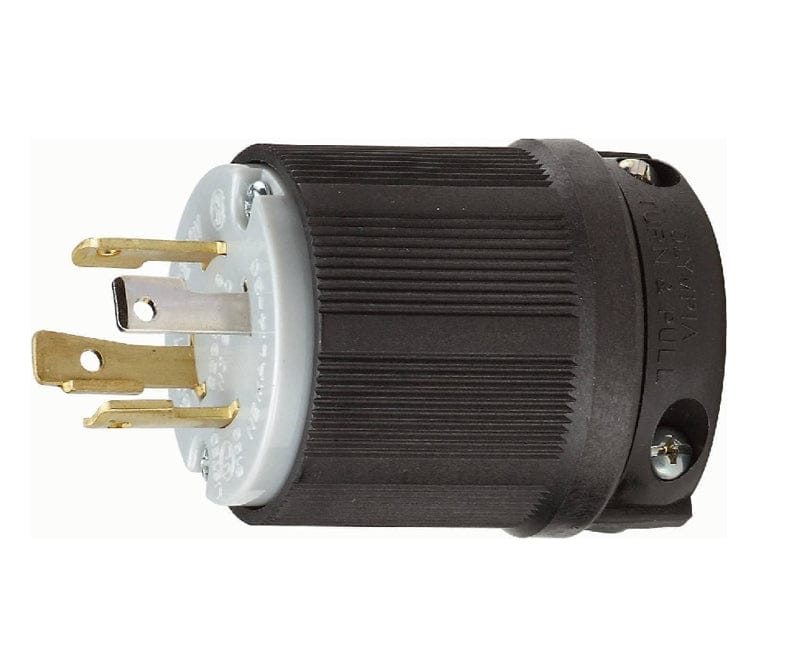

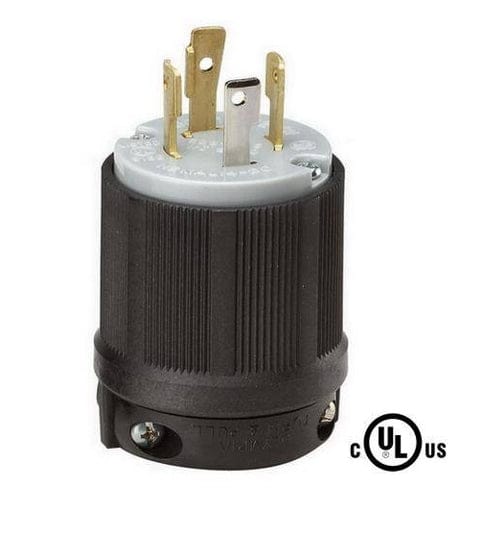

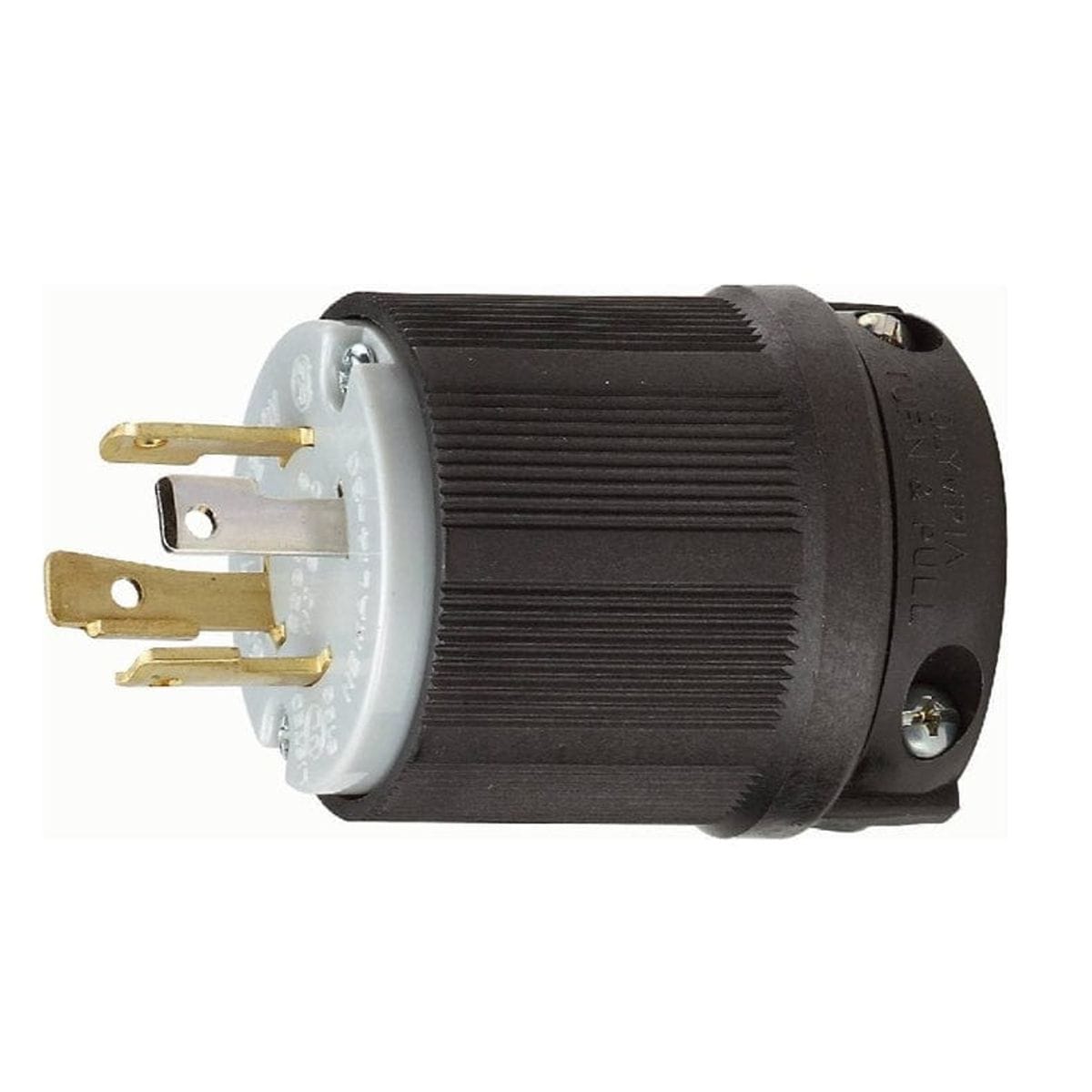

30 Amp 125/250V NEMA L14-30P Locking Plug Industrial Grade Grounding Connector 3 Pole 4 Wire Generator Interface

Secure High-Voltage Connections for Generators and Industry

Upgrade or replace your power connections with the 30 Amp 125/250V NEMA L14-30P Locking Plug. This industrial-grade connector is the gold standard for connecting heavy-duty equipment, including backup generators, large power tools, and transfer switches. Built with an abuse-resistant thermoplastic housing, it is engineered to withstand the impacts, drops, and rough handling typical of job sites and workshops. The "twist-lock" design ensures a safe, vibration-proof connection that won't accidentally pull out during operation, providing peace of mind when powering critical systems.

Installation is designed to be fast, secure, and error-free. The plug features back wire terminal clamps that bundle copper strands securely without damaging them, ensuring superior conductivity and reduced heat buildup. A unique clear terminal cover allows for immediate visual inspection of your wiring terminations, eliminating guesswork. With a rugged external cord clamp for exceptional strain relief and triple-combination head screws (Slot/Phillips/Robertson), this plug accommodates a wide range of wire gauges and is ready for use across the US and Canada.

Key Features

• Industrial Durability: Constructed from impact and abuse-resistant thermoplastic for long service life.
• Secure Locking: NEMA L14-30P twist-lock configuration prevents accidental disconnection under load.
• Visual Inspection: Features a clear wire cover housing to easily verify secure wire terminations.
• Superior Strain Relief: External cable clamp firmly secures the cord, protecting internal connections from stress.
• Easy Wiring: Back wire terminal clamps and tapered channels make inserting wires simple and secure.
• Universal Hardware: Triple combination screws (Slot/Phillips/Robertson) allow installation with standard tools.
• High Capacity: Rated for 30 Amps and 125/250 Volts, ideal for generators up to 7,500 running watts.
• Clear Markings: Amperage, voltage, and NEMA rating are molded into the face for easy identification.

What's Included

• (1) NEMA L14-30P Locking Plug (Black/White)

Specifications

Pro-Tip: The NEMA L14-30P is the most common plug used for home backup generators (up to 7500 watts) to connect to a manual transfer switch. To maintain the full 30 Amp rating and ensure safety, always use 10 AWG wire (specifically 10/4 SOOW or SJTW cord) when building your extension or interface cables.
