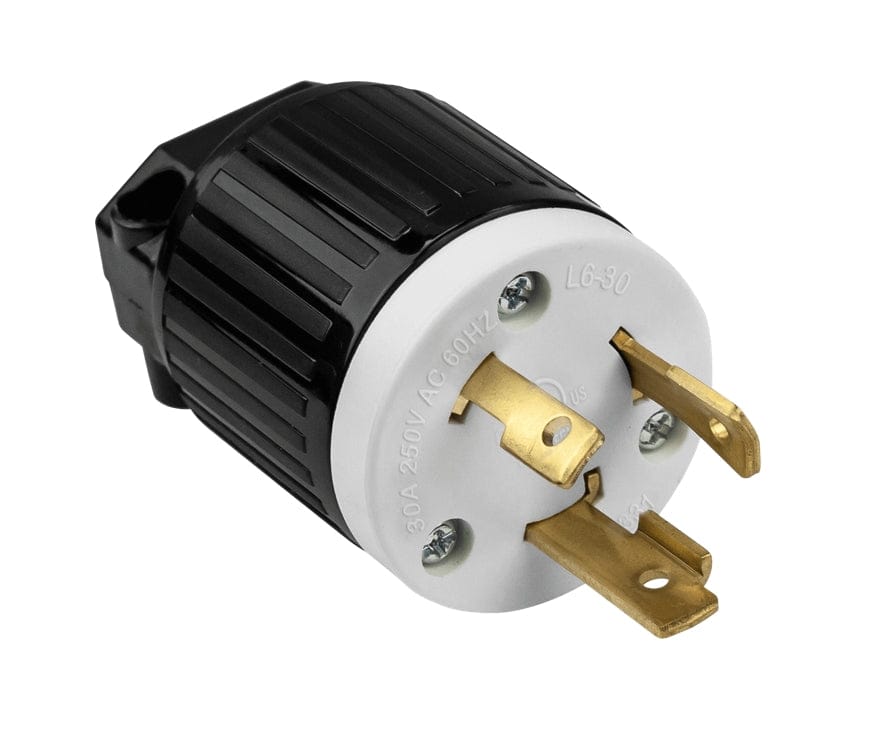

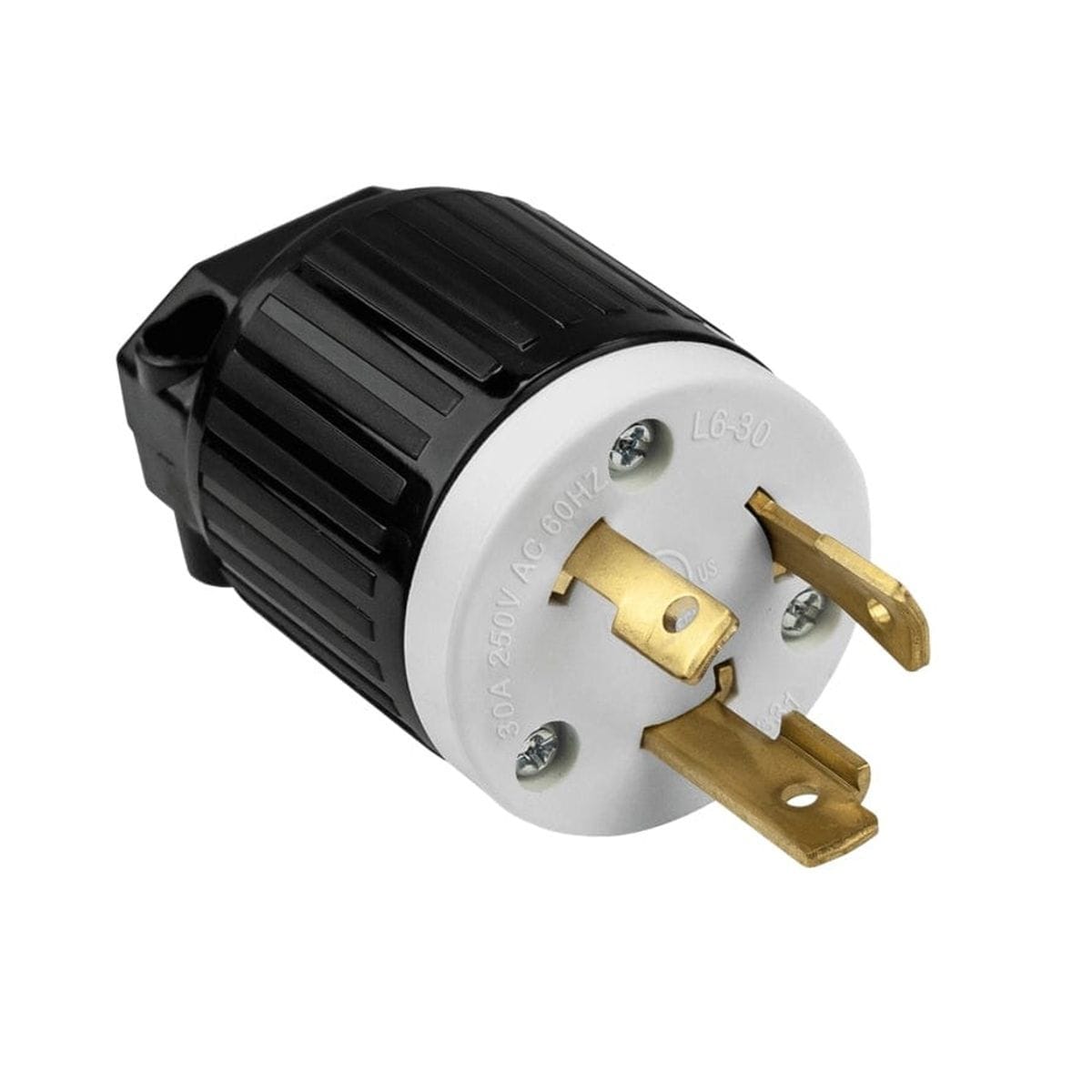

30 Amp 250V NEMA L6-30P Locking Plug Industrial Grade Grounding Connector 2 Pole 3 Wire Heavy Duty Generator Replacement

Industrial Durability for Heavy-Duty Connections

Secure your high-power equipment with the 30 Amp 250V NEMA L6-30P Locking Plug. Engineered for demanding industrial and commercial environments, this heavy-duty connector features a rugged, impact-resistant nylon body that withstands severe abrasion, chemical exposure, and mechanical stress. It is the perfect replacement cap for generators, welders, air compressors, and large power tools where a secure, vibration-proof connection is critical. The "twist-lock" design ensures the plug remains firmly seated in the receptacle, preventing accidental disconnects that can cause power loss or equipment damage.

Inside, the plug is built for superior electrical performance and safety. Solid brass blades and contacts minimize resistance and heat buildup, ensuring consistent conductivity even under heavy loads. The internal wiring chambers are designed to isolate individual conductors, preventing flashover, arcing, and stray wire strands from causing short circuits. With deep-slotted triple drive assembly screws and clear terminal markings, installation is fast and frustration-free, accommodating wire gauges from 14 to 10 AWG. Whether you are upgrading your shop wiring or replacing a damaged plug on a generator cord, this industrial-grade L6-30P plug delivers the reliability you need.

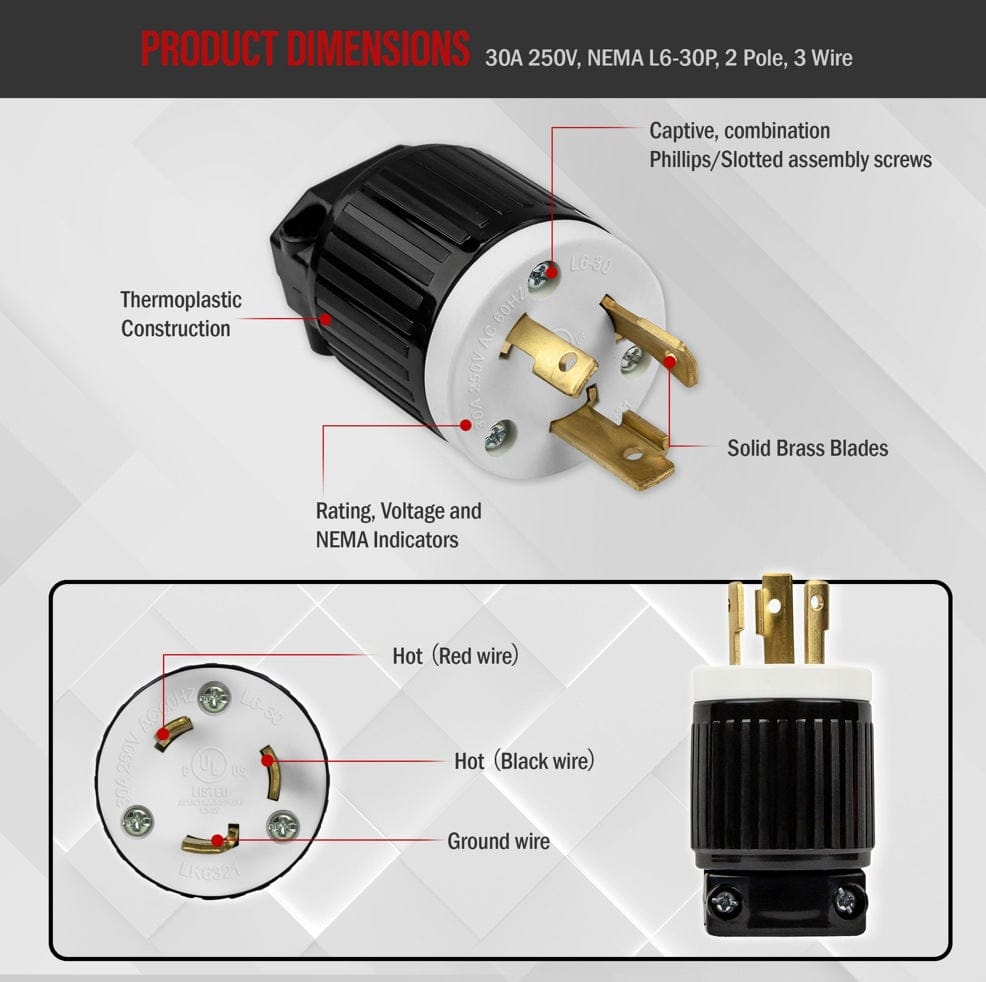

Key Features

• Industrial Grade Construction: Super tough nylon body resists damage from impacts, chemicals, and abrasion.
• Secure Locking Mechanism: NEMA L6-30P twist-lock design prevents accidental disconnection in high-vibration environments.
• Superior Conductivity: Solid brass blades feature low electrical resistance and low heat generation for long service life.
• Enhanced Safety: Internal wiring chambers isolate conductors to prevent arcing and flashover.
• Easy Installation: Color-coded terminal screws and clear NEMA ratings make wiring simple and error-free.
• Versatile Application: Ideal for connecting 250V equipment like welders, compressors, generators, and lighting systems.
• Cord Strain Relief: robust cord clamp secures the cable to prevent internal stress on wire terminations.

What's Included

• (1) NEMA L6-30P Industrial Grade Locking Plug (Black/White)

Specifications

Pro-Tip: Before purchasing, double-check your receptacle's NEMA configuration. An L6-30P plug (Locking, 250V, 30A) looks very similar to an L5-30P (125V) or L14-30P (125/250V 4-wire), but they are not compatible. Ensure your outlet specifically says "L6-30R" to guarantee a proper fit.
