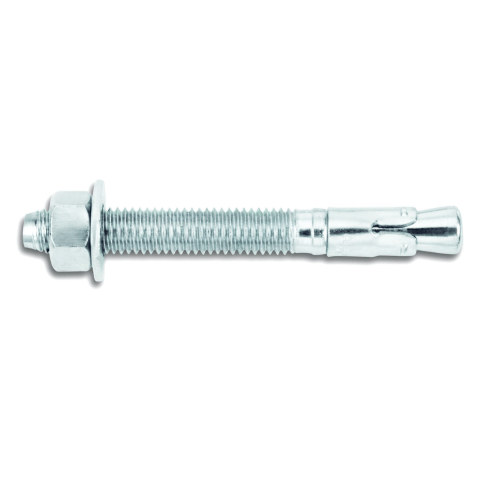

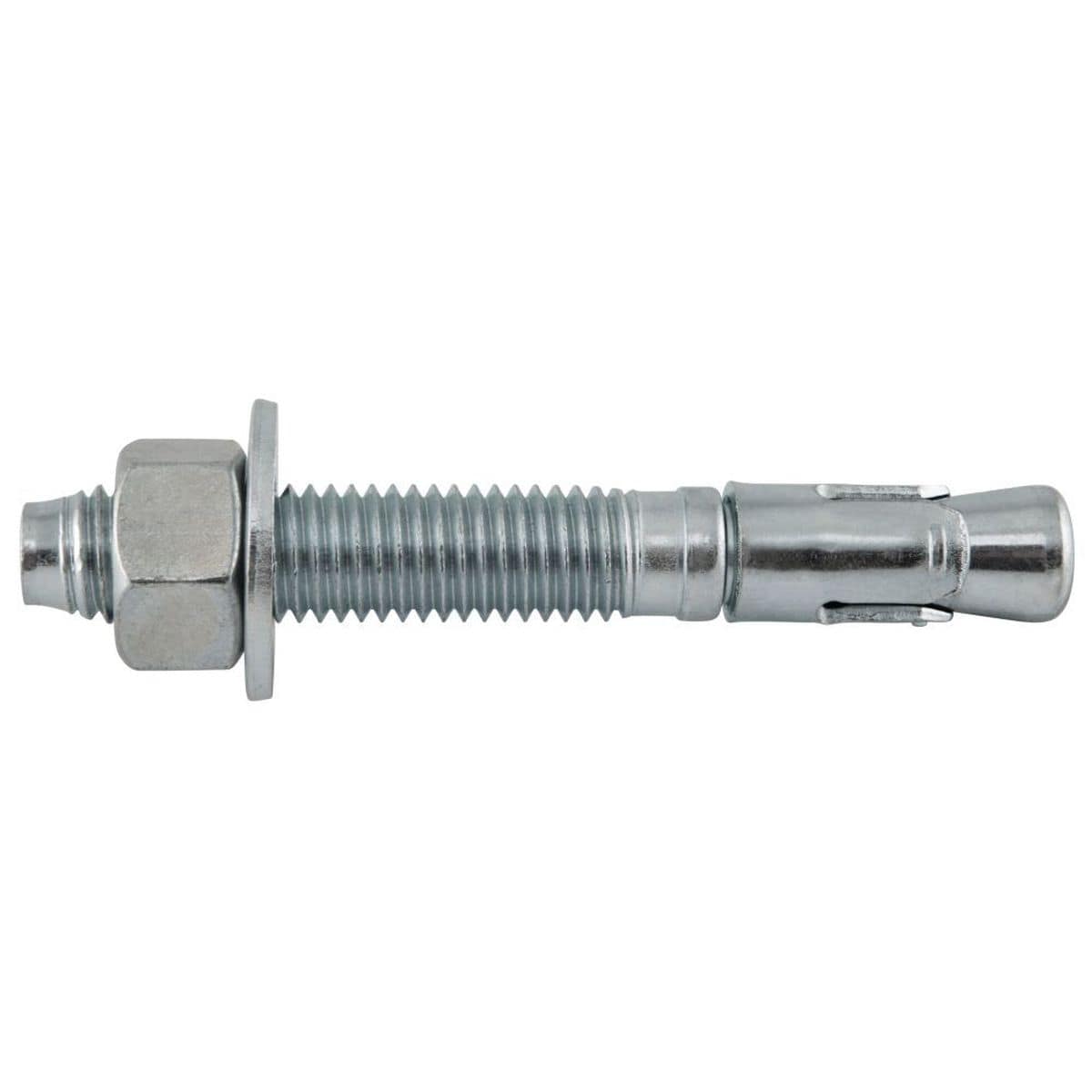

DeWalt Power Stud SD1 5/8 Inch x 4 1/2 In Carbon Steel Wedge Expansion Anchor Concrete Fastener Heavy Duty Structural Threaded Studs 25 Pack

Lock Structural Steel and Heavy Machinery to Cracked Concrete with Ultimate Torque-Controlled Security

Achieve unyielding mechanical clamping force and eliminate structural displacement risks with the heavy-duty engineering of the DeWalt Power-Stud+ SD1 Carbon Steel Wedge Expansion Anchors (5/8-Inch x 4-1/2-Inch). Explicitly developed for commercial ironworkers, structural engineers, rigging crews, and highway construction contractors, these code-compliant fasteners are optimized for high-stress tension loops. Standard non-rated sleeve anchors can slip, spin, or experience catastrophic load failure when subjected to seismic vibrations or dynamic stressors in cracked concrete matrices. This premium DeWalt anchor system completely resolves that structural bottleneck by combining a precision-threaded carbon steel body with an advanced expansion clip mechanism, ensuring absolute follow-up expansion and consistent hold down under extreme tensile loading.

Uncompromising structural longevity and effortless field installation define the technical design of these premium zinc-plated expansion studs. The universal architecture allows constructors to drill the nominal hole diameter identical to the anchor size, facilitating fast, direct alignment through standard fixture plates to minimize layout labor. Engineered with high-strength carbon steel cores and finished with a protective silver zinc coating, these anchor assemblies resist heavy installation torque and environmental wear in normal-weight concrete, sand-lightweight concrete layouts, concrete over steel decks, and grouted concrete masonry units. Each stud head features a stamped length ID code and permanent identifying marks, allowing building inspectors to easily verify proper code compliance and down-hole embedment depth long after final installation.

Key Features

• Torque-Controlled Wedge Expansion: Precision design delivers consistent, high-capacity tracking performance across both cracked and uncracked concrete zones.
• Premium Carbon Steel Body: Forged from high-grade structural steel alloy to withstand severe shear stress and continuous tensile system strains.
• Integrated Follow-Up Expansion Clip: Advanced expansion collar geometry actively expands deeper under heavy load variations to guarantee zero anchor back-out.
• True Sizing Drilling Efficiency: Nominal installation drill bit size matches the anchor diameter precisely, allowing clean plumbing through structural steel fixture holes.

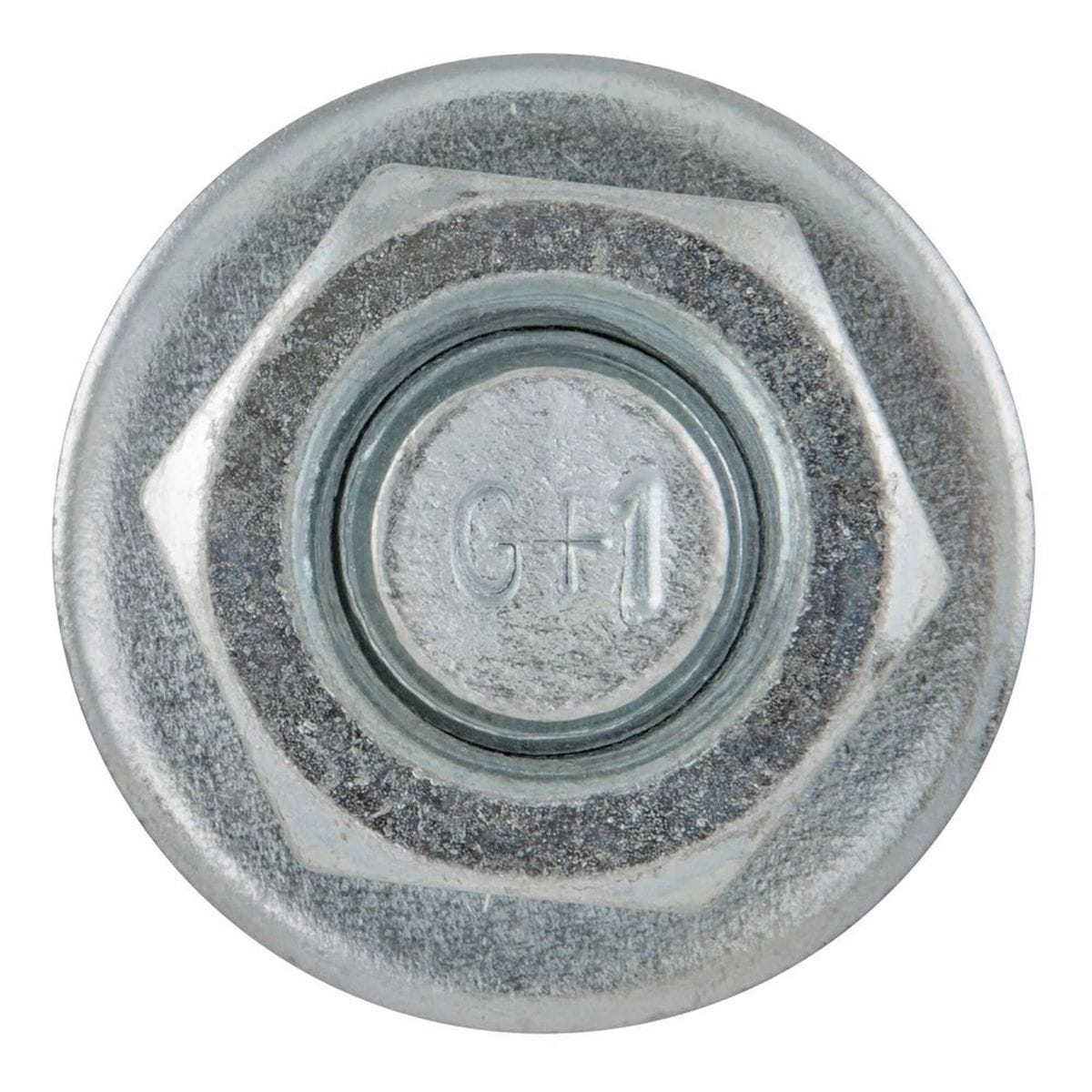

• Stamped Head Identification Codes: Permanent depth and size indicators stamped on the anchor crown enable simple, foolproof post-installation code inspection.
• Multi-Base Substrate Versatility: Fully rated for normal-weight concrete, sand-lightweight slabs, concrete over steel profiles, and grouted masonry blocks.

What's Included

• (25) DeWalt 5/8" x 4-1/2" Power-Stud+ SD1 Carbon Steel Wedge Expansion Anchors
• (25) Matching Carbon Steel Hex Nuts
• (25) Matching Carbon Steel Flat Washers

Specifications

Pro-Tip: When installing DeWalt Power-Stud wedge anchors, structural integrity relies completely on hole cleaning hygiene. Always drill your anchor path a minimum of 1/2-inch deeper than the planned embedment depth to create a debris reservoir. Use a mechanical blow-out bulb or compressed oil-free air to clean out all remaining masonry powder, then brush the channel thoroughly with a wire pipe brush before driving the stud home. When setting the hex nut, use an absolute, calibrated manual torque wrench to hit the exact manufacturer-specified torque values; avoiding pneumatic impact over-tightening protects the integrity of the carbon steel threads and ensures code-compliant wedge expansion down deep.
