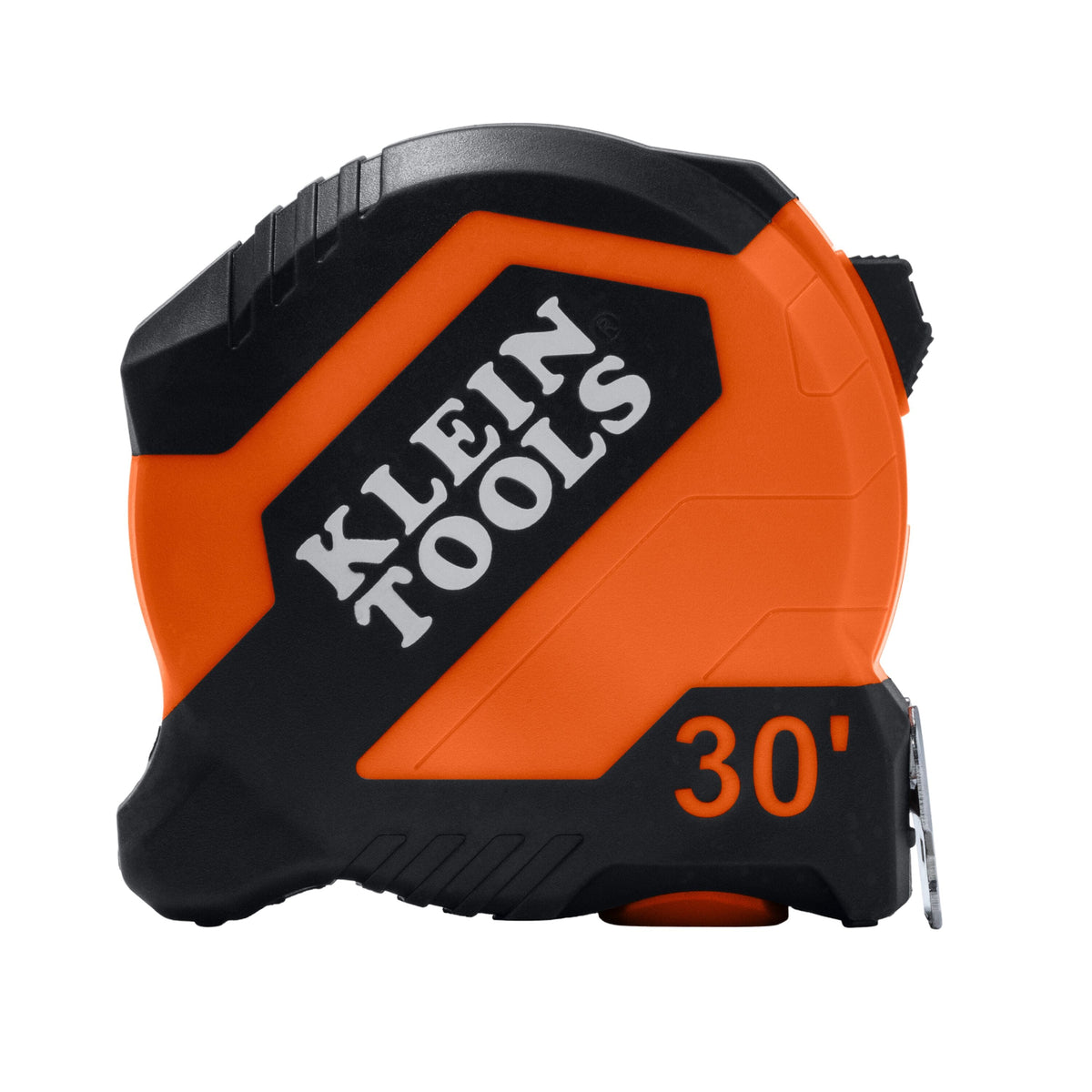

A Klein Tools 30-foot tape measure with a black and orange plastic casing, featuring the brand name 'KLEIN TOOLS' in white on a black panel and '30"' printed in orange near the bottom right.

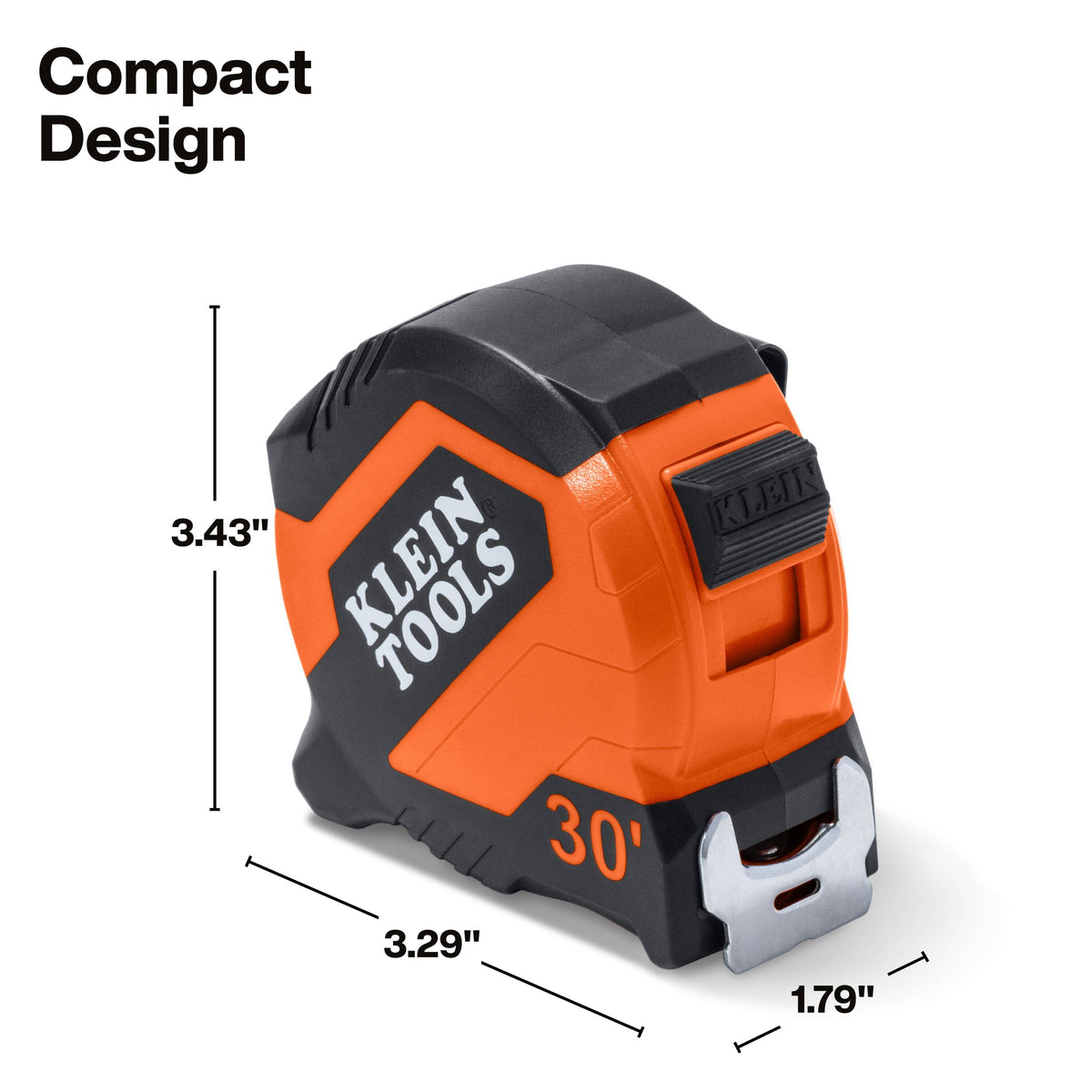

Compact design of a Klein Tools tape measure shown on a white background with dimension lines and measurements for height, width, depth, and belt loop.

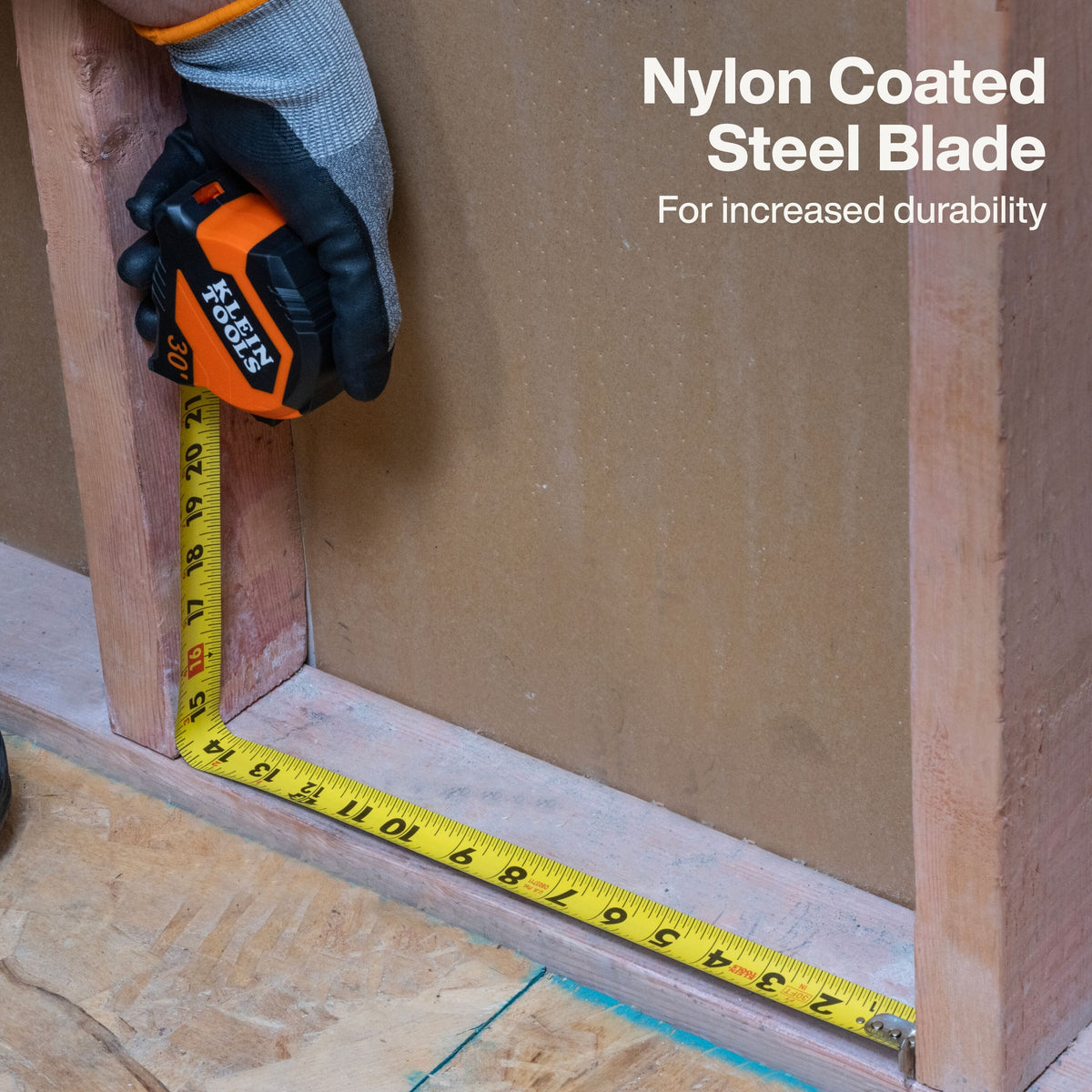

A close-up of a hand wearing a gray and black work glove holding an orange and black tape measure against a wooden frame, with a yellow tape measure also laid along the base. Text on the image reads 'Nylon Coated Steel Blade For increased durability.

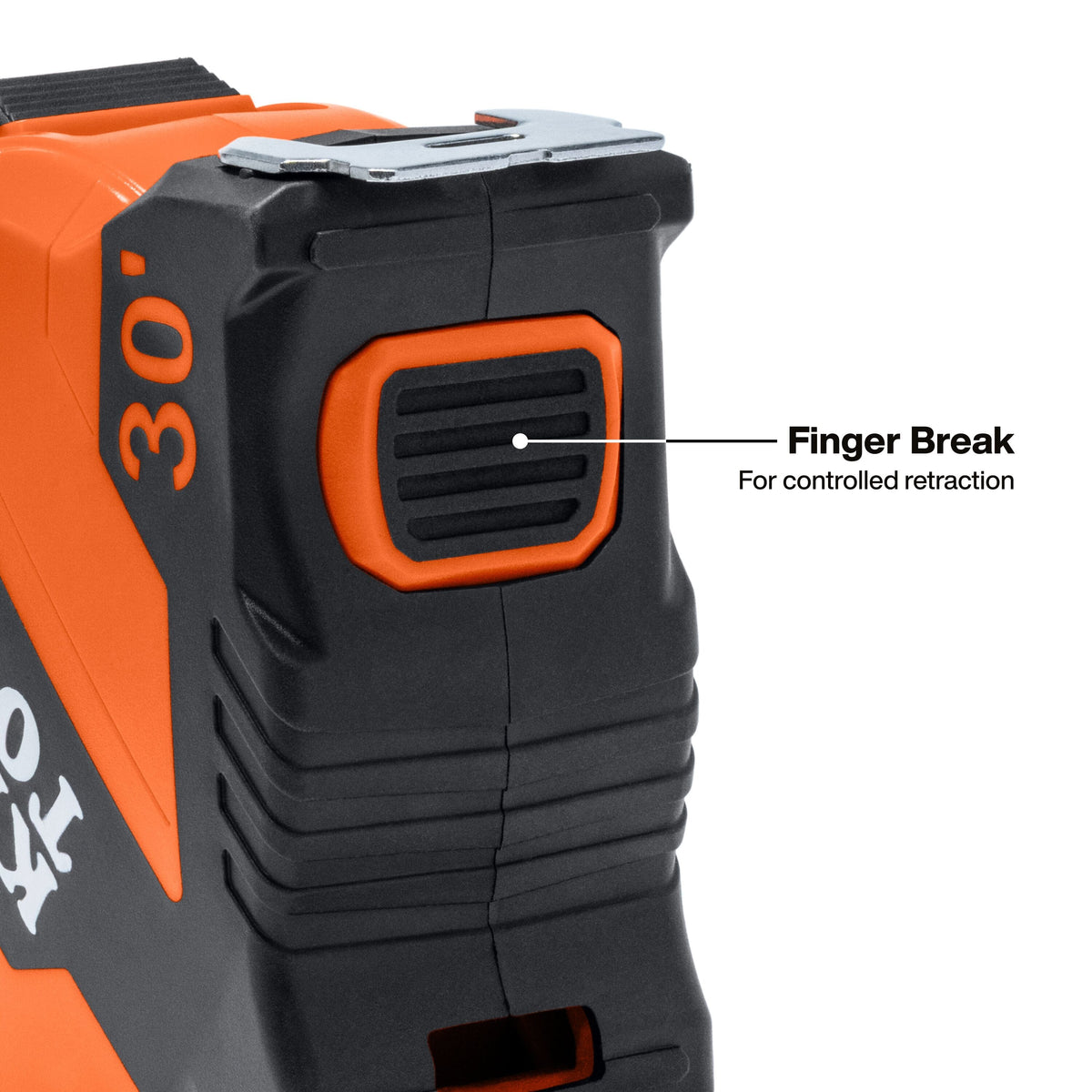

Close-up of a cordless tool showing the rear housing with an orange and black textured grip labeled 'Finger Break For controlled retraction,' plus '30°' printed on the side.

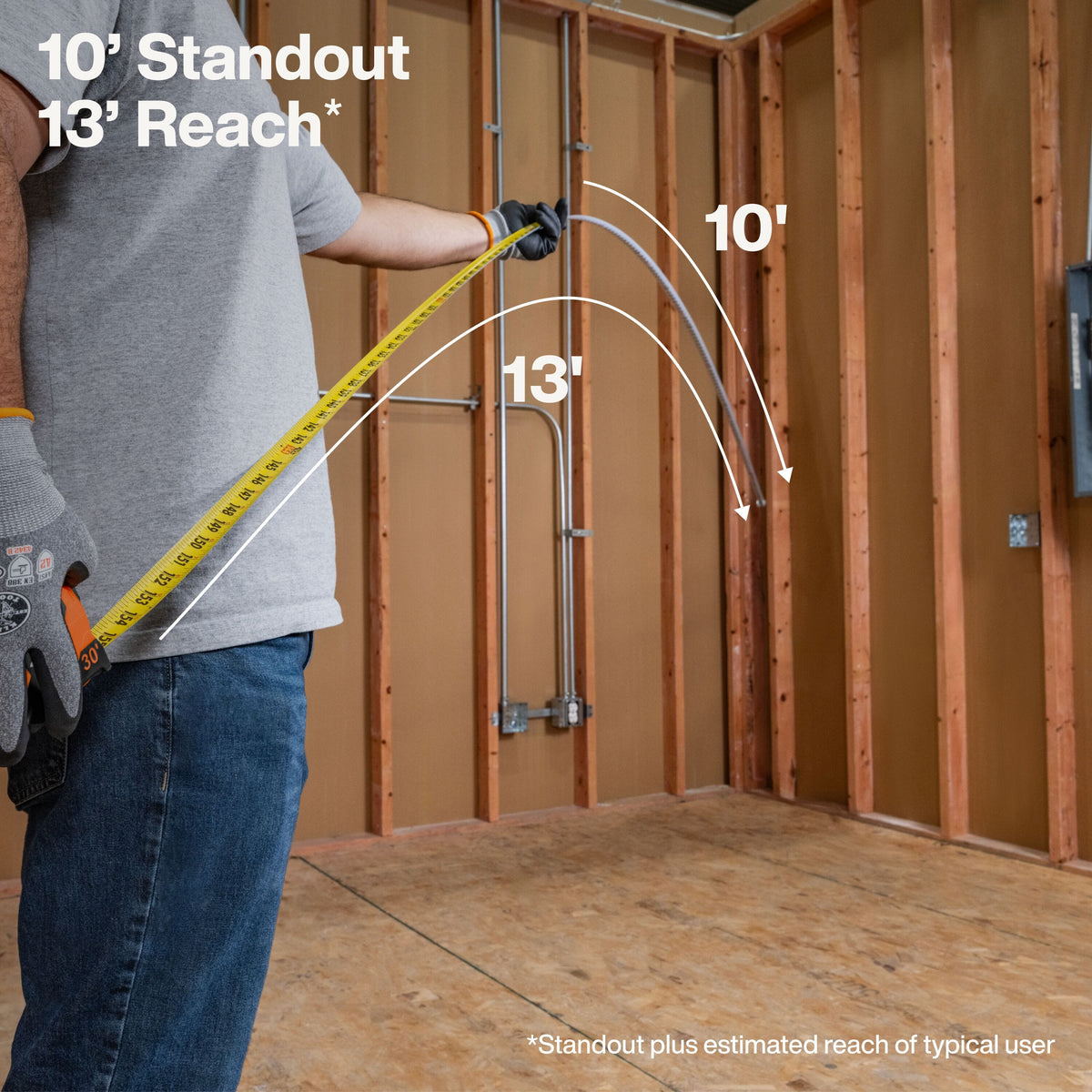

A person in a gray t-shirt and jeans uses a yellow tape measure in an unfinished room with exposed wooden studs. White text and arrows explain the product's 10-foot standout and 13-foot reach.

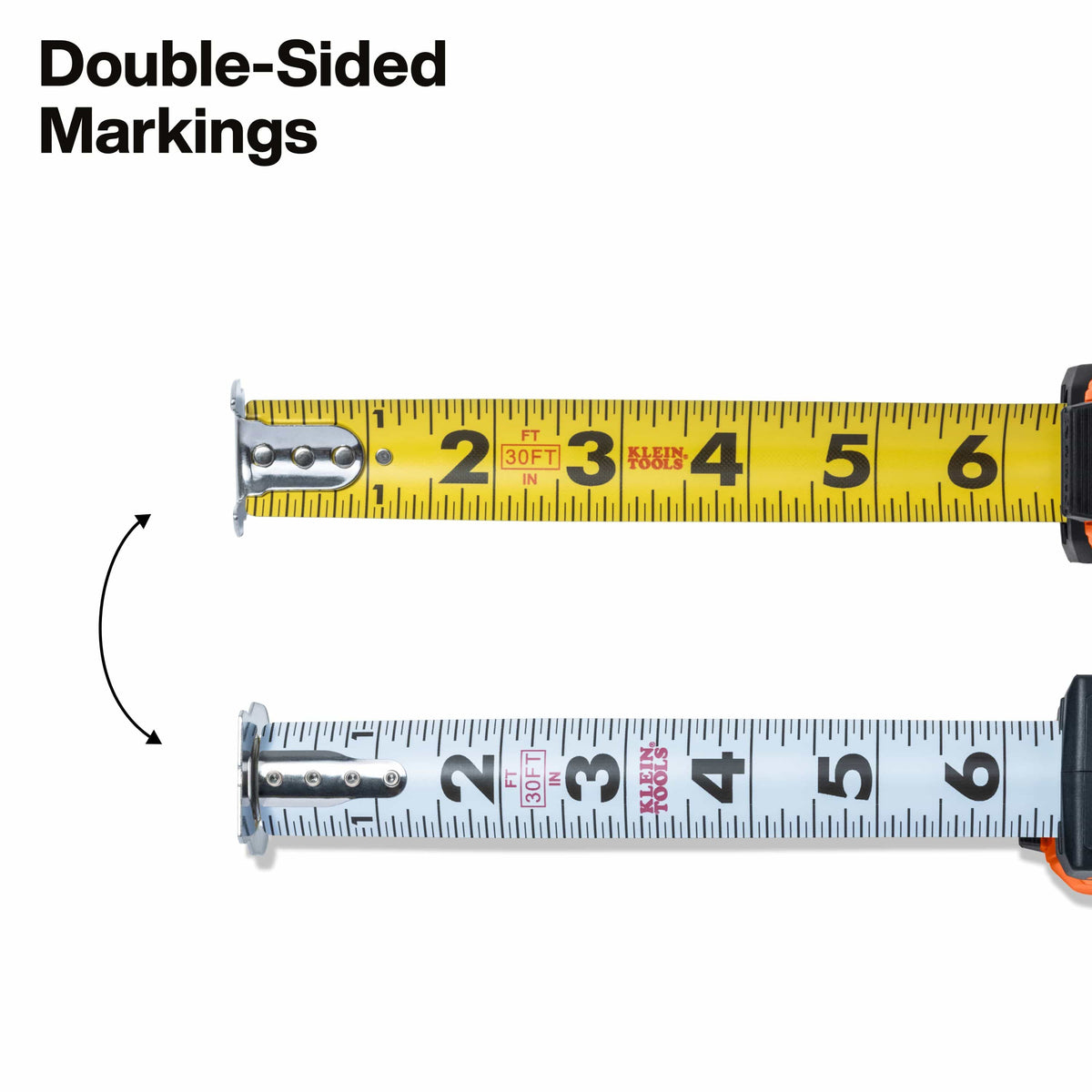

A measuring tape shown horizontally twice to demonstrate double-sided markings, with black text reading 'Double-Sided Markings' and a curved arrow indicating the flip. The tape is yellow on top and white on bottom, both showing inch and centimeter measurements.
A Klein Tools 30-foot tape measure with a black and orange plastic casing, featuring the brand name 'KLEIN TOOLS' in white on a black panel and '30"' printed in orange near the bottom right.
Compact design of a Klein Tools tape measure shown on a white background with dimension lines and measurements for height, width, depth, and belt loop.
A close-up of a hand wearing a gray and black work glove holding an orange and black tape measure against a wooden frame, with a yellow tape measure also laid along the base. Text on the image reads 'Nylon Coated Steel Blade For increased durability.
Close-up of a cordless tool showing the rear housing with an orange and black textured grip labeled 'Finger Break For controlled retraction,' plus '30°' printed on the side.
A person in a gray t-shirt and jeans uses a yellow tape measure in an unfinished room with exposed wooden studs. White text and arrows explain the product's 10-foot standout and 13-foot reach.
A measuring tape shown horizontally twice to demonstrate double-sided markings, with black text reading 'Double-Sided Markings' and a curved arrow indicating the flip. The tape is yellow on top and white on bottom, both showing inch and centimeter measurements.
Klein

Klein Tools 30-Foot Compact Nylon-Coated Steel Tape Measure Double-Hook (9530)

Only 2 left
SKU: 9530
$24.00 USD

Description

Klein Tools logo

Tape Measure, 30-Foot Compact

The Klein Tools 9530 30-Foot Compact Tape Measure is a professional measuring tool designed for construction, electrical, carpentry, remodeling, and general jobsite layout. Its compact case houses a 30-foot nylon-coated steel blade with a 10-foot standout, while double-sided imperial markings and an architectural scale provide versatile measurement options.

Best Used For

  • Construction & Framing: Take longer measurements for walls, lumber, openings, and general layout work.
  • Electrical & Mechanical Trades: Measure conduit runs, equipment dimensions, enclosures, and installation areas.
  • Carpentry & Remodeling: Use the extended blade and architectural scale for layout, cutting, and dimensional checks.

Key Performance & Safety Features

  • 30-Foot Blade: Provides up to 30 feet of measuring capacity for extended jobsite measurements.
  • 10-Foot Standout: The steel blade maintains a 10-foot horizontal standout for measurements requiring extended reach.
  • 13-Foot Reach: Klein specifies a 13-foot reach based on the 10-foot standout plus estimated extension from a typical user.
  • Nylon-Coated Steel Blade: The nylon coating helps resist blade wear and provides added protection against jobsite damage.
  • Double-Sided Markings: Imperial measurements are printed on both sides of the blade, with an architectural scale for additional layout versatility.
  • Finger Brake: Provides controlled blade retraction without requiring contact with the moving blade and helps keep fingers clear.
  • Tether Attachment Channel: Built-in attachment channel allows the tape measure to be tethered for work at height.

What's Included

  • 1 x Klein Tools 9530 30-Foot Compact Tape Measure

Klein Tools 30-Foot Heavy-Duty Tape Measure Specifications

Parameter Specification
Tool Type & Application Heavy-Duty Tape Measure; Precision Linear Measurement
Blade Length & Width 30 ft (9.14 m) Length × 1.063 in (27 mm) Width
Blade Standout 10 ft (3.05 m) Rigid Standout
Measurement Scale & Printing Imperial Scale with 1/16 in Graduations; Double-Sided Blade Printing
Blade Material & Protection Tough Spring Steel Blade with Abrasion-Resistant Nylon Coating
Rewind Mechanism & Lock Automatic Spring Retraction with Positive Slide Blade Lock
End Hook Style Double-Catch Hook (Secures Top or Bottom for Overhead and Underside Grabs)
Housing Material & Color Impact-Resistant ABS + PC Composite Housing (Orange/Black)
Carry & Safety Features Heavy-Duty Spring Steel Belt Clip; Integrated Safety Tether Attachment Channel
Overall Dimensions (L × W × H) 3.43 in × 3.29 in × 2.02 in (8.7 cm × 8.4 cm × 5.1 cm)
Total Weight 16.8 oz (476 g)
Jobsite Engineering & Safety Note:

Built for demanding trades with an extra-wide tough blade delivering an authentic 10-foot standout. Double-sided printing allows clear reading during conduit runs, framing, and overhead work. The integrated tether anchor channel supports ANSI/ISEA 121 drop prevention compliance when working at heights.
