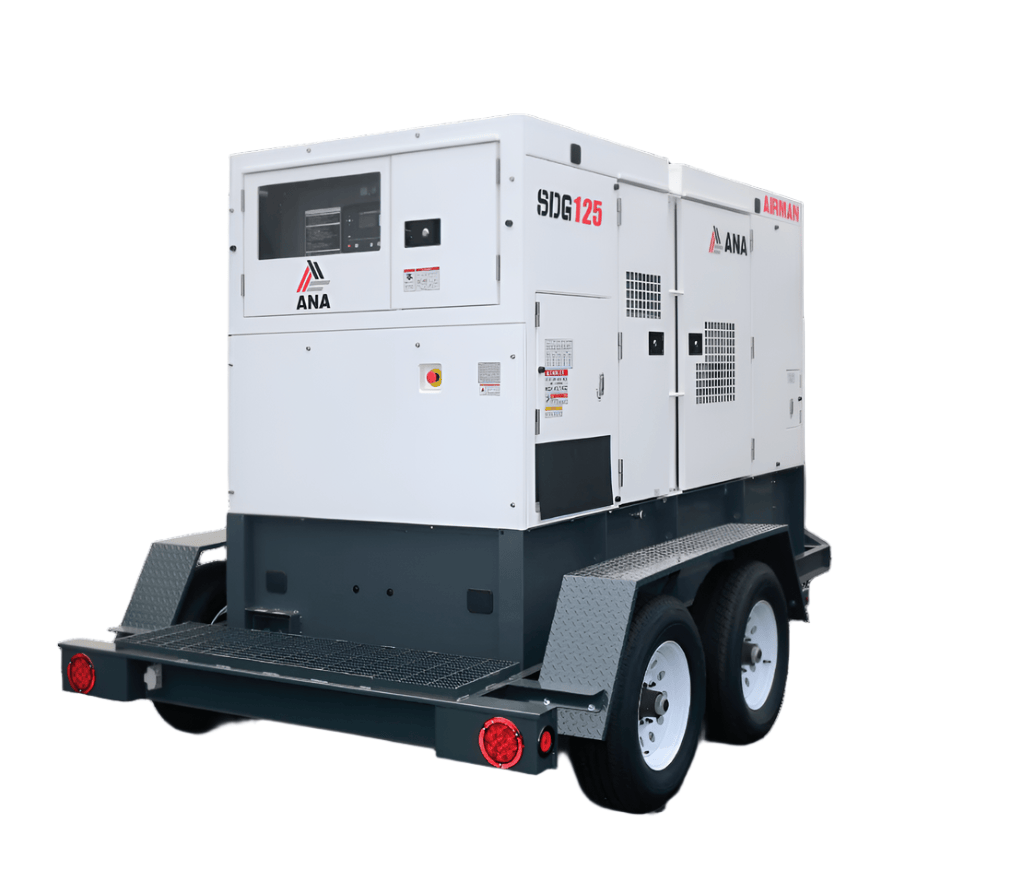

The image shows an Airman SDG125S mobile generator. This is a 125 kVA prime power generator designed for reliable performance and extended power in various applications.
Airman SDG125S diesel generator. You can see the "SDG125S" model number clearly labeled on the side. It's a substantial, enclosed generator mounted on a tandem-axle trailer, making it highly portable for various job sites around Tomball. The specifications indicate it offers 137.5 kVA of standby power and 125 kVA of prime power, with a runtime of 23.3 hours. It also features an "Airman Generators Tier 4 Final" emission standard. This type of generator is often used for construction, events, or as a reliable
The image shows an Airman SDG125S mobile generator. This is a 125 kVA prime power generator designed for reliable performance and extended power in various applications.
The image shows an Airman SDG125S mobile generator. This is a 125 kVA prime power generator designed for reliable performance and extended power in various applications.
Airman SDG125S diesel generator. You can see the "SDG125S" model number clearly labeled on the side. It's a substantial, enclosed generator mounted on a tandem-axle trailer, making it highly portable for various job sites around Tomball. The specifications indicate it offers 137.5 kVA of standby power and 125 kVA of prime power, with a runtime of 23.3 hours. It also features an "Airman Generators Tier 4 Final" emission standard. This type of generator is often used for construction, events, or as a reliable
The image shows an Airman SDG125S mobile generator. This is a 125 kVA prime power generator designed for reliable performance and extended power in various applications.
Airman

ANA AIRMAN SDG125S-8E1 100 kW 125 kVA Mobile Diesel Generator Package with Highway Trailer

Only 1 left
SKU: SDG125S-8E1
$72,245.00 USD

Shipping Quote Required

Request a Shipping Quote
Description

ANA AIRMAN 100 kW 125 kVA Mobile Diesel Generator Package with Highway Trailer (SDG125S-8E1)

The ANA AIRMAN SDG125S-8E1 125 kVA Mobile Diesel Generator Package delivers continuous, high-output three-phase and single-phase electrical generation engineered for commercial construction sites, municipal bypass operations, utility infrastructure maintenance, and emergency standby power. Driven by an EPA Tier 4 Final turbocharged 147.9 HP Isuzu BR-4HK1X liquid-cooled diesel engine, this mobile system provides 100 kW continuous prime output (110 kW maximum standby rating) while restricting operational noise down to an ultra-quiet 65 dB(A) at 23 feet.

Equipped with an integrated Smartload automated load bank system to prevent engine wet-stacking during low-demand cycles, color-coded CamLock power connections, and an electronic isochronous governor maintaining 60 Hz line frequency within ±0.25%, the SDG125S-8E1 provides stable, transient-free power across varying load profiles. Featuring a high-capacity 168-gallon onboard fuel cell delivering over 23.3 hours of runtime at full continuous load and mounted directly to a heavy-duty tandem-axle highway trailer (8,352 lbs GVWR), this turnkey mobile station ensures reliable continuous power in demanding field environments.

Recommended Jobsite Applications

  • Commercial Building & Infrastructure Projects: Running high-amperage temporary distribution panels, electric tower hoists, structural welding arrays, and high-volume site compressors.
  • Municipal Bypass & Utility Dewatering: Delivering uninterrupted 3-phase 208V, 240V, or 480V power to municipal sewage lift pumps, high-head trash pumps, and pipeline inspection stations.
  • Facility Emergency Standby: Providing automated 120/240V single-phase or three-phase emergency backup power to commercial refrigeration nodes, municipal yards, and clinics via transfer switch integration.
  • Remote Civil Engineering & Mining: Supplying continuous off-grid prime power for concrete batch plants, crushing operations, and temporary field offices.

Key Performance & Operational Features

  • Tier 4 Final Isuzu BR-4HK1X Engine: 5.2L 4-cylinder turbocharged, intercooled diesel delivers 147.9 HP with cooled EGR, DOC, and SCR aftertreatment to comply with stringent EPA clean air mandates.
  • Automated Smartload Load Bank System: Integrated system applies managed supplemental electrical load when site draw drops below critical thresholds, eliminating unburned fuel accumulation (wet-stacking) in the exhaust stream.
  • Complete Tandem-Axle Highway Trailer Package: DOT-certified transport trailer rated at 8,352 lbs GVWR equipped with highway-rated tires, electric brakes, an industrial front jack, and multi-hitch coupler options.
  • Multi-Voltage Distribution Selector: Lockable selector switch enables rapid manual reconfiguration across 3-phase 208V, 220V, 240V, 416V, 440V, and 480V, as well as single-phase line delivery.
  • Color-Coded CamLock Connection Panel: Dedicated exterior CamLock female receptacles provide fast, secure feeder cable hookups alongside standard terminal mechanical bus bars.
  • High-Capacity 168-Gallon Fuel Reservoir: Internal fuel tank provides extended runtimes of up to 23.3 hours at 100% full continuous prime load and over 43 hours at 50% load.
  • Complete Cold Weather & Remote Package: Factory-installed engine block heater, external 2-way auxiliary fuel tank piping, battery disconnect switch, and onboard automatic battery charger ensure operational readiness.

What's Included

  • 1 × ANA AIRMAN 100 kW Mobile Diesel Generator (MPN: SDG125S-8E1)
  • 1 × Factory-Installed Isuzu BR-4HK1X Tier 4 Final Turbocharged Diesel Engine (147.9 HP)
  • 1 × Heavy-Duty Tandem-Axle Highway Transport Trailer (8,352 lbs GVWR)
  • 1 × Integrated Smartload Automated Load Bank System
  • 1 × Color-Coded Exterior CamLock Distribution Panel & Mechanical Terminal Lugs
  • 1 × Integrated 168-Gallon Internal Steel Fuel Cell with Fluid Spill Containment
  • 1 × Cold Weather Package (Engine Block Heater, Battery Disconnect, and Battery Charger)
  • 1 × External 2-Way Auxiliary Bulk Fuel Piping Assembly
  • 1 × Complete Engine & Generator Technical Documentation Manual Set

Technical Specifications

Specification Parameter Product Detail
Manufacturer Brand ANA AIRMAN
Model Part Number (MPN) SDG125S-8E1
Mobility Configuration Tandem-Axle Highway Transport Trailer Package Included
Prime Continuous Power Rating 100.0 kW (125.0 kVA) Continuous @ 1,800 RPM (3-Phase)
Standby Emergency Power Rating 110.0 kW (137.5 kVA)
Engine Make & Displacement Isuzu BR-4HK1X (5.2L / 317 cu in, 4-Cylinder Turbocharged Intercooled)
Engine Emissions Certification EPA Tier 4 Final & CARB Certified (DOC + SCR with DEF)
Gross Engine Mechanical Output 147.9 HP (110.3 kW Mechanical Output @ 1,800 RPM)
Acoustic Sound Level 65 dB(A) @ 23 Feet (Full 100% Prime Load)
Three-Phase Voltage Selection 208V, 220V, 240V, 416V, 440V, 480V (Switchable)
Single-Phase Voltage Selection 120V, 127V, 139V, 240V, 254V, 277V (Switchable)
Three-Phase Continuous Amps 328A @ 208V | 300A @ 240V | 150A @ 480V
Single-Phase Continuous Amps 300A @ 240V | 300A × 2 @ 120V
Fuel Reservoir Capacity 168.0 Gallons (635.9 Liters Diesel)
Continuous Full-Load Runtime 23.3 Hours @ 100% Load (7.21 gal/hr) | >43 Hours @ 50% Load
Trailer Rating (GVWR) 8,352 lbs GVWR (Tandem-Axle Highway Transport Trailer)
Generator Dimensions (L × W × H) 113.0" L × 51.0" W × 73.0" H (Generator Unit Only)
Trailer Package Dimensions (L × W × H) 196.0" L × 79.0" W × 85.0" H (With Trailer)
Total Package Operating Weight Dry: 5,379 lbs | Wet Generator: 6,702 lbs | Trailer: 1,650 lbs

💡 SMARTLOAD OPERATIONAL SIZING TIP: While the SDG125S-8E1 features the integrated Smartload system to automatically add supplemental load during light cyclic periods, configuring your electrical site plan for an average steady-state load of 50% to 75% optimizes diesel fuel consumption per kilowatt-hour and preserves the continuous 23.3-hour runtime of the 168-gallon fuel cell.

Frequently Asked Questions: ANA AIRMAN SDG125S-8E1

Q: What engine powers the ANA AIRMAN SDG125S-8E1 mobile generator?

A: The SDG125S-8E1 is powered by an industrial 5.2-liter 4-cylinder Isuzu BR-4HK1X turbocharged, intercooled liquid-cooled diesel engine producing 147.9 HP at 1,800 RPM and complying with EPA Tier 4 Final standards using DOC and SCR exhaust aftertreatment.

Q: What electrical output voltages can this generator supply?

A: It features a lockable multi-voltage selector switch supporting three-phase 208V, 220V, 240V, 416V, 440V, and 480V, along with single-phase 120V, 127V, 139V, 240V, 254V, and 277V service at 60 Hz.

Q: What is the runtime of the ANA AIRMAN SDG125S-8E1 on a full tank of fuel?

A: With its integrated 168-gallon onboard fuel cell, the generator delivers approximately 23.3 hours of continuous operation at 100% full continuous prime load (7.21 gal/hr) and over 43 hours at 50% load (3.82 gal/hr).

Q: How does the Smartload Load Bank system benefit the generator?

A: The Smartload system automatically senses light-load conditions and applies artificial electrical load to maintain optimal exhaust temperatures, preventing unburned diesel fuel accumulation (wet-stacking) in the Tier 4 Final exhaust catalyst.

Q: Is the transport trailer included with this generator package?

A: Yes. This complete mobile package includes a factory-matched heavy-duty tandem-axle DOT highway transport trailer rated at 8,352 lbs GVWR with running gear, electric brakes, and interchangeable coupler options.
