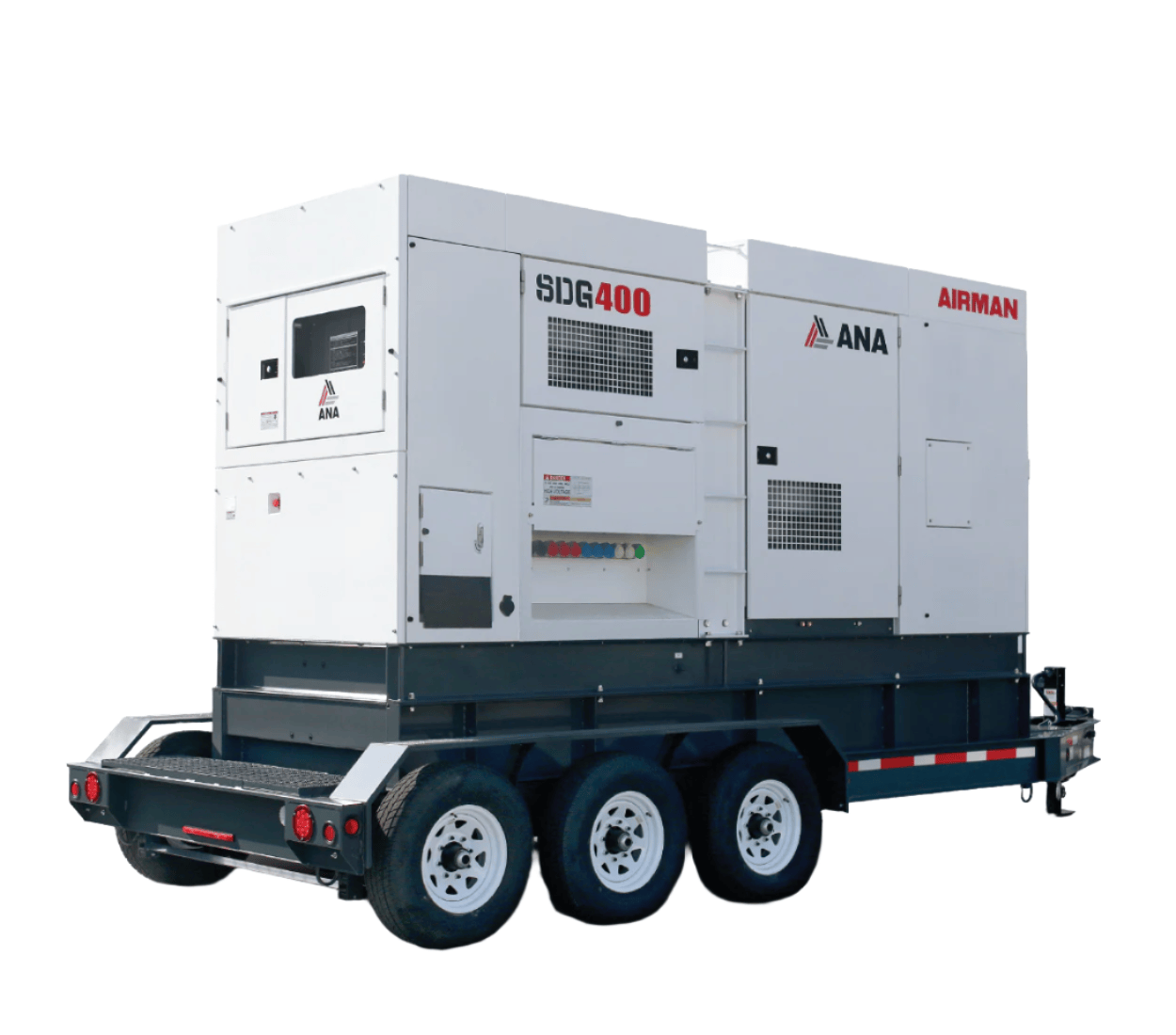

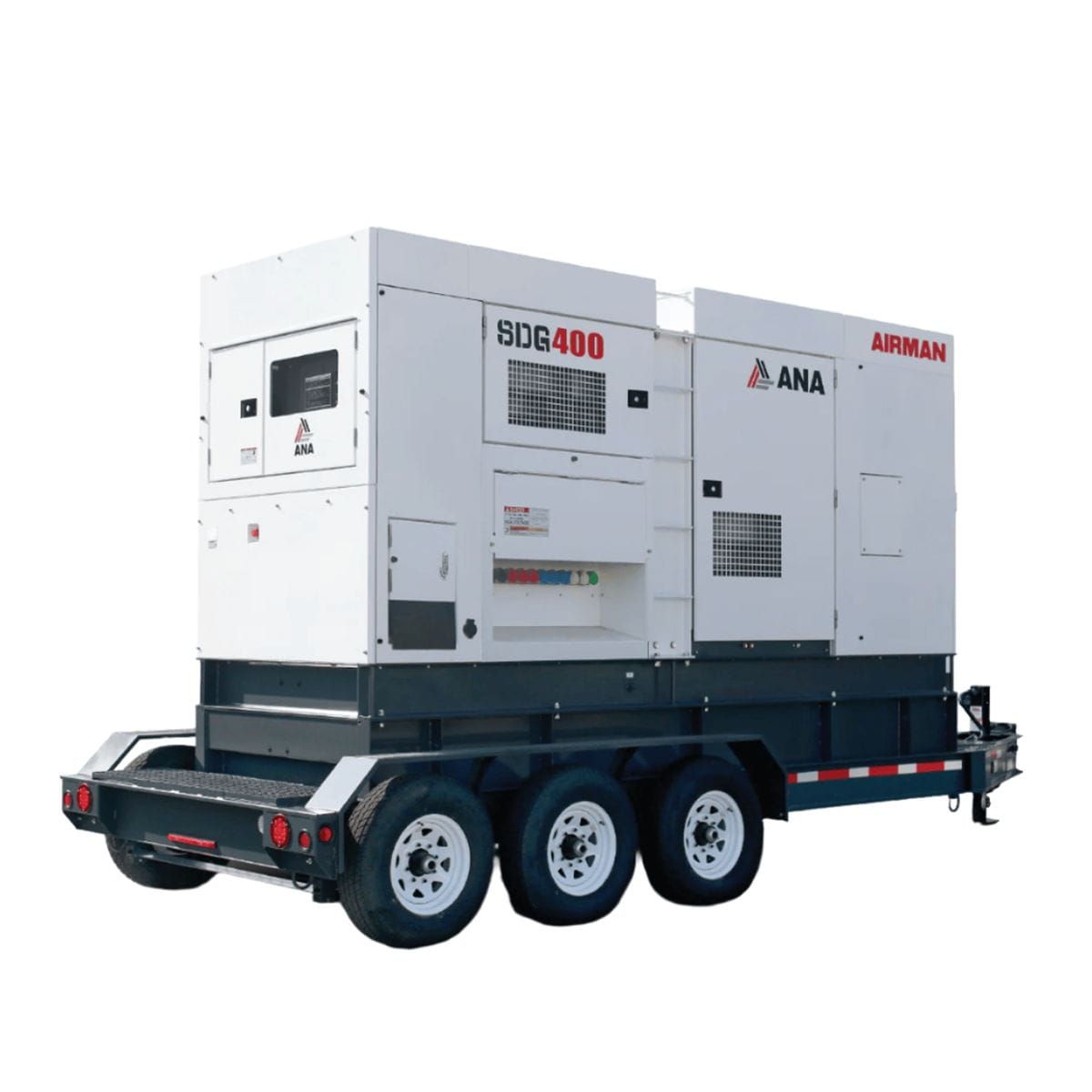

ANA AIRMAN SDG400S-8E1 320 kW 400 kVA Mobile Diesel Generator Package with Highway Trailer
Shipping Quote Required
Request a Shipping QuoteCouldn't load pickup availability
ANA AIRMAN 320 kW 400 kVA Mobile Diesel Generator Package with Highway Trailer (SDG400S-8E1)
The ANA AIRMAN SDG400S-8E1 400 kVA Mobile Diesel Generator Package delivers continuous, high-capacity three-phase and single-phase electrical output engineered for municipal infrastructure bypass, utility substation emergencies, large-scale commercial civil projects, and critical industrial operations. Driven by an EPA Tier 4 Final turbocharged 457.7 HP Isuzu 6WG1X liquid-cooled diesel engine, this mobile system provides 320 kW continuous prime output (336 kW maximum standby rating) while restricting operational noise down to an ultra-quiet 68 dB(A) at 23 feet.
Equipped with proprietary Delta Demand Excitation for high inductive motor-starting capacity and an electronic isochronous governor maintaining 60 Hz frequency regulation within ±0.25%, the SDG400S-8E1 automatically balances magnetic excitation across severe cyclic tool demands without line voltage drop. Featuring a high-capacity 491-gallon onboard fuel cell delivering over 21.3 hours of runtime at full continuous load and mounted directly to a heavy-duty highway trailer (19,602 lbs GVWR), this mobile system provides utility contractors, plant managers, and civil crews with turnkey power generation for demanding applications.
Recommended Jobsite Applications
- Utility Substation & Grid Bypass: Supplying continuous high-amperage 480V or 208V power to maintain grid operations during scheduled utility maintenance and emergency outages.
- Municipal Water & Wastewater Treatment: Powering large multi-hundred-horsepower high-head raw water pumps, centrifuges, and aeration blowers during municipal repairs.
- Large-Scale Civil & Infrastructure Projects: Running high-capacity electric tower cranes, central batching plants, multi-operator structural welding banks, and underground tunnel ventilation fans.
- Industrial Facility Emergency Standby: Providing automated prime power for cold storage logistics hubs, manufacturing processing plants, and telecommunication data centers via automatic transfer switch (ATS) integration.
Key Performance & Operational Features
- Tier 4 Final Isuzu 6WG1X Engine: 15.7L 6-cylinder turbocharged, charge-air cooled diesel delivers 457.7 HP with cooled EGR, DOC, and SCR aftertreatment to comply with stringent EPA clean air mandates.
- Delta Demand Excitation Technology: Automatically manages magnetic excitation levels to handle high motor-starting inrush spikes, preventing terminal voltage drops during heavy inductive tool starts.
- Heavy-Duty Highway Transport Trailer Package: Commercial DOT-certified trailer rated at 19,602 lbs GVWR equipped with heavy-duty running gear, an industrial tongue jack, and a commercial pintle ring connection.
- Multi-Voltage Distribution Selector: Lockable selector switch enables rapid manual reconfiguration across 3-phase 208V, 220V, 240V, 416V, 440V, and 480V, as well as single-phase line delivery.
- High-Capacity 491-Gallon Fuel Reservoir: Oversized fuel tank provides extended runtimes of up to 21.3 hours at 100% full continuous prime load and over 41 hours at 50% load.
- DSEGenset Digital Master Controller: Advanced microprocessor-based digital system provides real-time monitoring of line voltage, current amperage, frequency, engine diagnostic codes, and auto-start terminal integration.
- External Bulk Fuel Connections: Standard 3-way fuel selector valves and quick-connect external ports allow immediate hookup to auxiliary jobsite fuel cells for multi-week operations.
What's Included
- 1 × ANA AIRMAN 320 kW Mobile Diesel Generator (MPN: SDG400S-8E1)
- 1 × Factory-Installed Isuzu 6WG1X Tier 4 Final Turbocharged Diesel Engine (457.7 HP)
- 1 × Heavy-Duty Commercial Highway Transport Trailer (19,602 lbs GVWR)
- 1 × DSEGenset Digital Auto-Start / Auto-Stop Microprocessor Controller
- 1 × Integrated 491-Gallon Internal Steel Fuel Cell with Fluid Spill Containment
- 1 × External 3-Way Auxiliary Fuel Connection Port Assembly
- 1 × Complete Engine & Generator Technical Documentation Manual Set
Technical Specifications
| Specification Parameter | Product Detail |
|---|---|
| Manufacturer Brand | ANA AIRMAN |
| Model Part Number (MPN) | SDG400S-8E1 |
| Mobility Configuration | Heavy-Duty Highway Transport Trailer Package Included |
| Prime Continuous Power Rating | 320.0 kW (400.0 kVA) Continuous @ 1,800 RPM (3-Phase) |
| Standby Emergency Power Rating | 336.0 kW (420.0 kVA) |
| Engine Make & Displacement | Isuzu 6WG1X (15.7L / 958 cu in, 6-Cylinder Turbocharged) |
| Engine Emissions Certification | EPA Tier 4 Final & CARB Certified (DOC + SCR with DEF) |
| Gross Engine Mechanical Output | 457.7 HP (341.3 kW Mechanical Output @ 1,800 RPM) |
| Acoustic Sound Level | 68 dB(A) @ 23 Feet (Full 100% Prime Load) |
| Three-Phase Voltage Selection | 208V, 220V, 240V, 416V, 440V, 480V (Switchable) |
| Single-Phase Voltage Selection | 120V, 127V, 139V, 240V, 254V, 277V (Switchable) |
| Three-Phase Continuous Amps | 1,048A @ 208V | 962A @ 240V | 481A @ 480V |
| Single-Phase Continuous Amps | 50A × 3 Auxiliary Circuits |
| Fuel Reservoir Capacity | 491.0 Gallons (1,858.7 Liters Diesel) |
| Continuous Full-Load Runtime | 21.3 Hours @ 100% Load (23.0 gal/hr) | >41 Hours @ 50% Load |
| Trailer Rating (GVWR) | 19,602 lbs GVWR (Heavy-Duty Highway Transport Trailer) |
| Generator Dimensions (L × W × H) | 177.0" L × 59.0" W × 107.5" H (Generator Unit Only) |
| Trailer Package Dimensions (L × W × H) | 270.0" L × 92.0" W × 127.0" H (With Trailer) |
| Total Package Operating Weight | Dry: 13,206 lbs | Wet Generator: 17,042 lbs | Trailer: 2,650 lbs |
💡 MOTOR STARTING & RUNTIME SIZING TIP: Sizing large 480V inductive motor loads through the SDG400S-8E1 takes full advantage of the Delta Demand Excitation system. When staging primary distribution for high-horsepower municipal bypass pumps, establish a steady-state baseload of at least 30% to maintain clean exhaust temperatures in the Tier 4 Final SCR catalyst and ensure the 21.3-hour runtime profile of the 491-gallon fuel reservoir.
Frequently Asked Questions: ANA AIRMAN SDG400S-8E1
A: The SDG400S-8E1 is powered by an industrial 15.7-liter 6-cylinder Isuzu 6WG1X turbocharged, charge-air cooled diesel engine delivering 457.7 HP at 1,800 RPM and complying with EPA Tier 4 Final standards using DOC and SCR emissions aftertreatment.
A: It features a lockable multi-voltage selector switch supporting three-phase 208V, 220V, 240V, 416V, 440V, and 480V, along with single-phase 120V, 127V, 139V, 240V, 254V, and 277V service at 60 Hz.
A: With its oversized 491-gallon onboard fuel cell, the generator delivers approximately 21.3 hours of continuous operation at 100% full continuous prime load (23.0 gal/hr) and over 41 hours at 50% load (11.8 gal/hr).
A: Delta Demand Excitation automatically delivers immediate magnetic field boosting during instantaneous high-amp motor starting spikes, preventing severe terminal voltage dips when cycling large pumps, cranes, and air compressors.
A: Yes. This complete turnkey package includes a factory-matched heavy-duty DOT highway transport trailer rated at 19,602 lbs GVWR with heavy running gear and a commercial pintle ring hitch connection.
