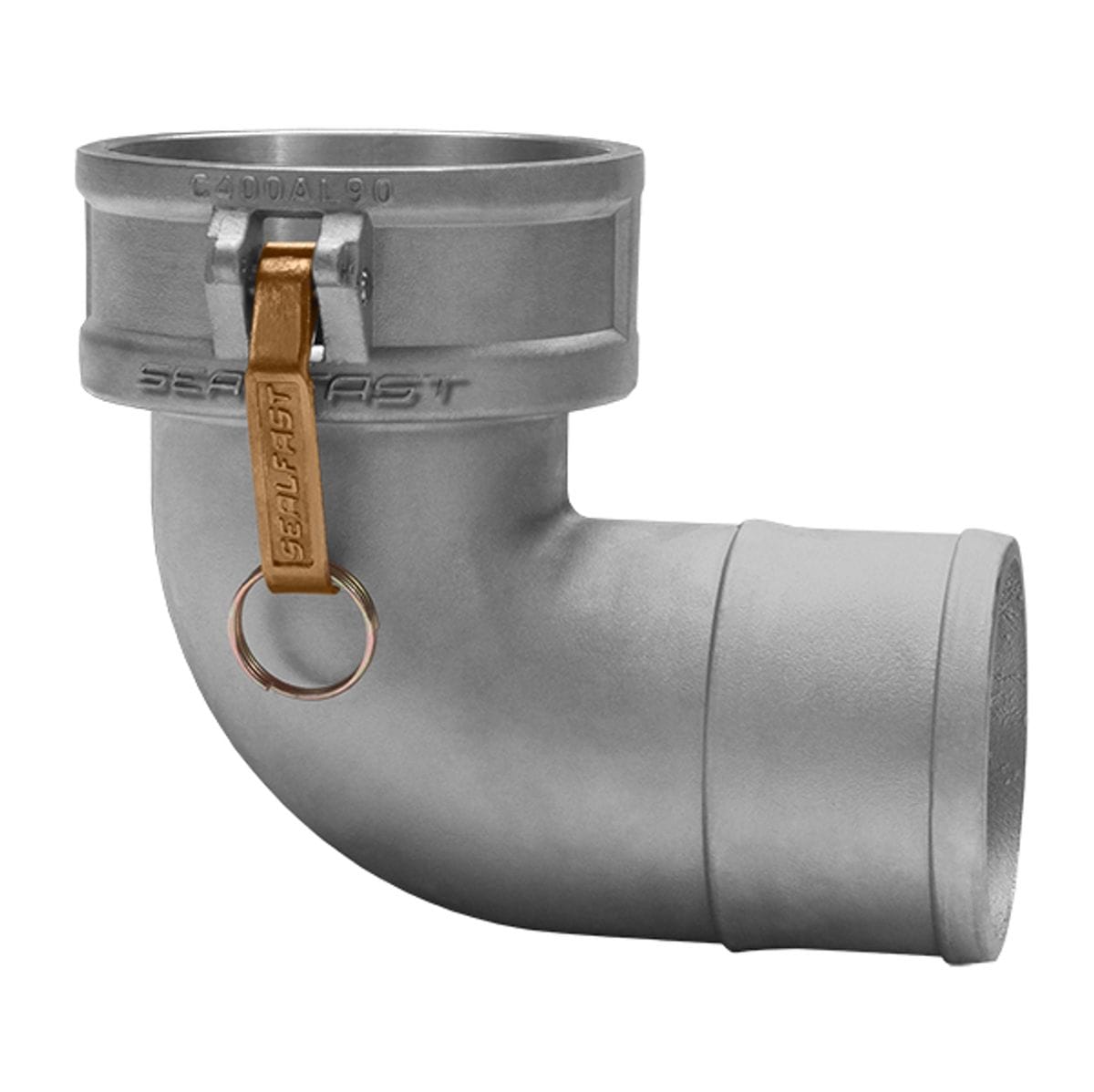

Seal Fast 90-degree aluminum cam and groove elbow coupler with female camlock fitting and hose shank. The fitting features a smooth metallic body with a brass camlock lever for secure attachment. Designed for leak-resistant hose connections in industrial fluid systems, this angled coupler redirects flow efficiently in tight spaces. Compatible with 2" to 6" hose assemblies.
Seal Fast

Seal Fast Cam and Groove 90 Degree Elbow Type C Aluminum Fitting (Female Coupler Hose Shank C200AL90 Industrial Water Fuel Slurry Chemical Transfer)

Only 1 left
SKU: C200AL90
$41.90 USD

SIZE
Description

Professional 90-Degree Aluminum Type C Female Camlock to Hose Shank Fitting

The Seal Fast Type C 90-degree elbow is an industrial-grade cam and groove coupling combining a female quick-connect socket with a multi-ribbed hose shank to redirect high-volume fluid pathways in confined spaces. Precision-cast from high-tensile structural aluminum alloy, this angled connector replaces bulky hard piping configurations to establish a low-profile, drop-tight bend capable of absorbing intense suction vacuums and line pressure spikes. Optimized for high-velocity dewatering systems, agricultural irrigation setups, and commercial fuel, chemical, or slurry transfer manifolds, its smooth curved interior geometry maximizes liquid volume transfer while stopping kinking and line strain across flexible hose assemblies.

Best Used For:

  • Tight Space Routing: Redirecting high-flow flexible suction or discharge hoses at a right angle inside compact utility vaults or pump bays.
  • Agricultural Irrigation Links: Coupling water distribution manifolds and liquid fertilizer tanks to high-output pumps without kinking lines.
  • Municipal Pumping Infrastructure: Establishing temporary wastewater bypass circuits and angled fluid routing lines during high-volume dewatering runs.

Key Performance & Safety Features

  • 90-Degree Right Angle Elbow: Specialized profile allows clean, unrestricted directional routing in tight parameters, stopping premature hose kinking.
  • Type C Camlock Interface: Standardized female quick-release socket couples rapidly to matching male plugs to speed up active layout modifications.
  • Multi-Ribbed Hose Shank: Precision machined barb ridges provide an exceptional friction bite inside hoses to optimize radial clamp retention under load.
  • Structural Forged Aluminum: High-purity metallic casting delivers premium mechanical impact durability while lowering total line weight profiles.
  • Inherent Oxidation Resistance: Heavy-duty alloy compound naturally guards against rust tracking, scaling, and chemical atmospheric pitting outdoors.

What's Included

  • (1) Seal Fast Aluminum Type C 90° Elbow Coupler (Size selected at checkout)
  • (1) Industrial High-Density Rubber Sealing Gasket (Pre-Installed)

Technical Specifications

Brand Name: Seal Fast
Fitting Profile Style: Type C 90-Degree Elbow Coupler
Core Body Metallurgy: Premium Industrial Grade Aluminum
Connection Interface Input: Standardized Female Camlock Quick-Release Socket
Connection Interface Output: Multi-Ribbed Hose Barb Shank
Sizing Range Options (SAE): 2.0 in., 3.0 in., 4.0 in., or 6.0 in. Configurations
Model Reference Numbers: C200AL90 (2"), C300AL90 (3"), C400AL90 (4"), C600AL90 (6")
Sealing Gasket Matrix: High-Density Nitrile Elastomer Barrier
Lock Mechanism Hardware: Dual Safety Cam Arms with Pivot Pins
Media Fluid Compatibility: Water, Petroleum Liquid Fuels, Industrial Chemicals, Fine Slurries
Compressed Air/Steam Safety: Not Recommended for Live Steam Applications

Pro-Tip: When installing thick-walled rubber discharge hoses over the aluminum shank barb, pre-heat the hose cuff slightly with warm water. This softens the rubber inner line to allow smooth seating down to the elbow base, ensuring an airtight, flat profile for your interlocking preformed center punch band clamps.
