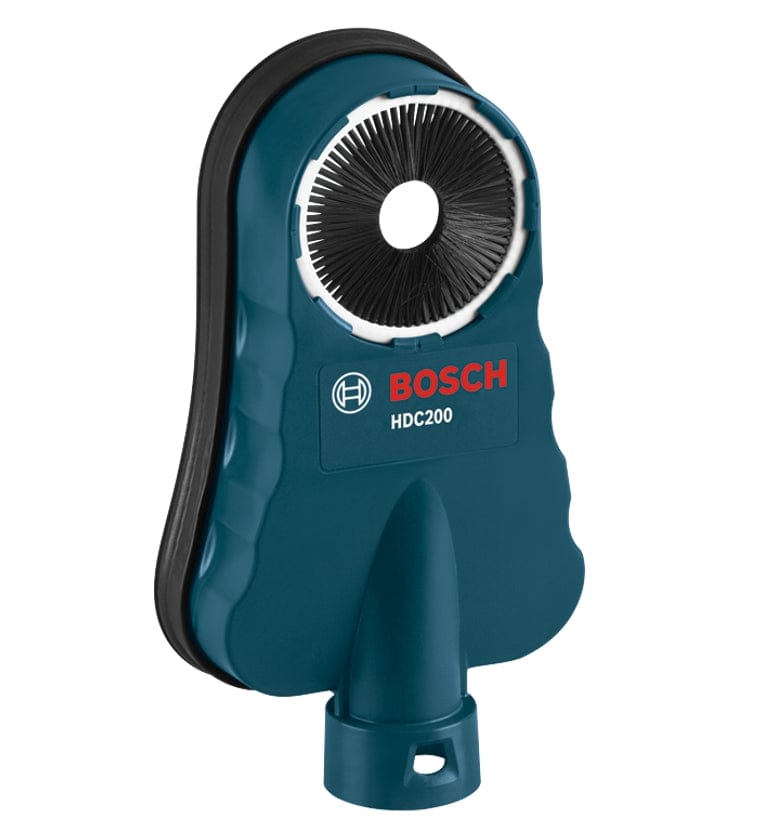

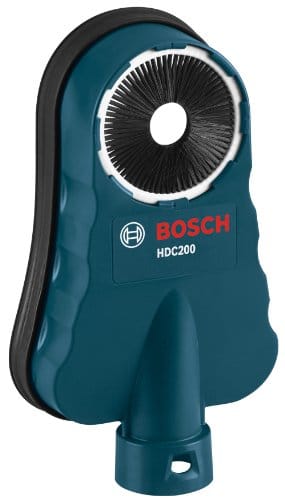

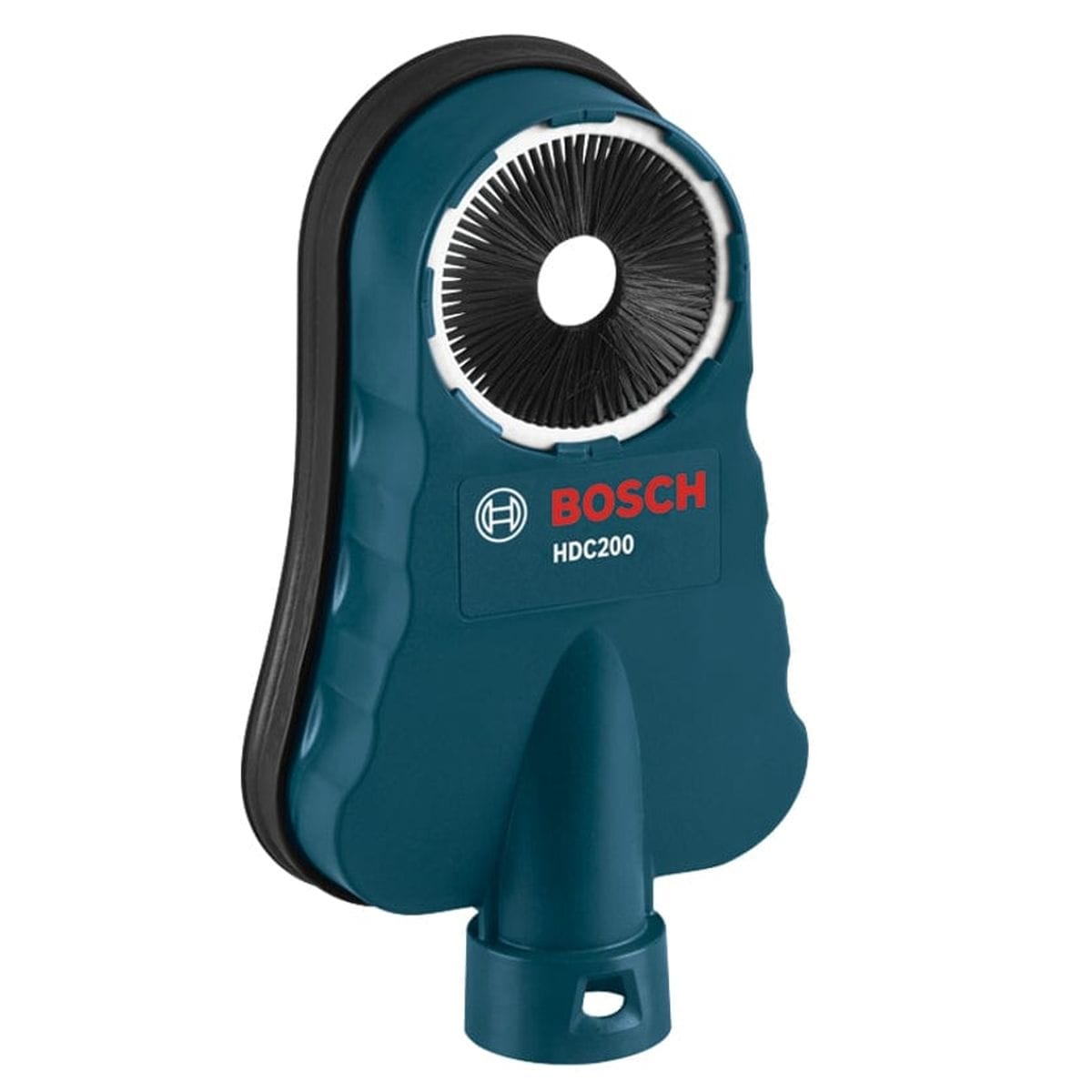

Close-up of the Bosch HDC200 dust collection attachment showing circular brush opening and Bosch branding; designed for rotary hammer drills to capture dust during concrete drilling.

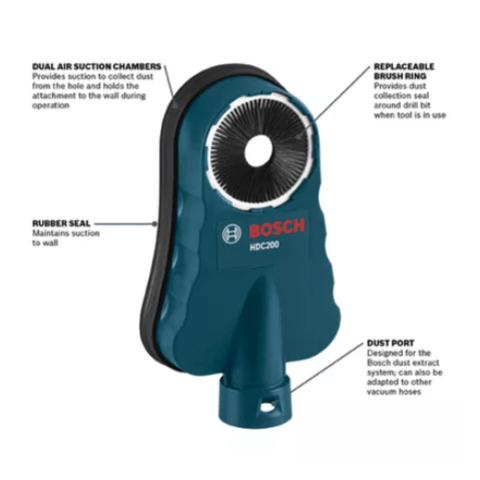

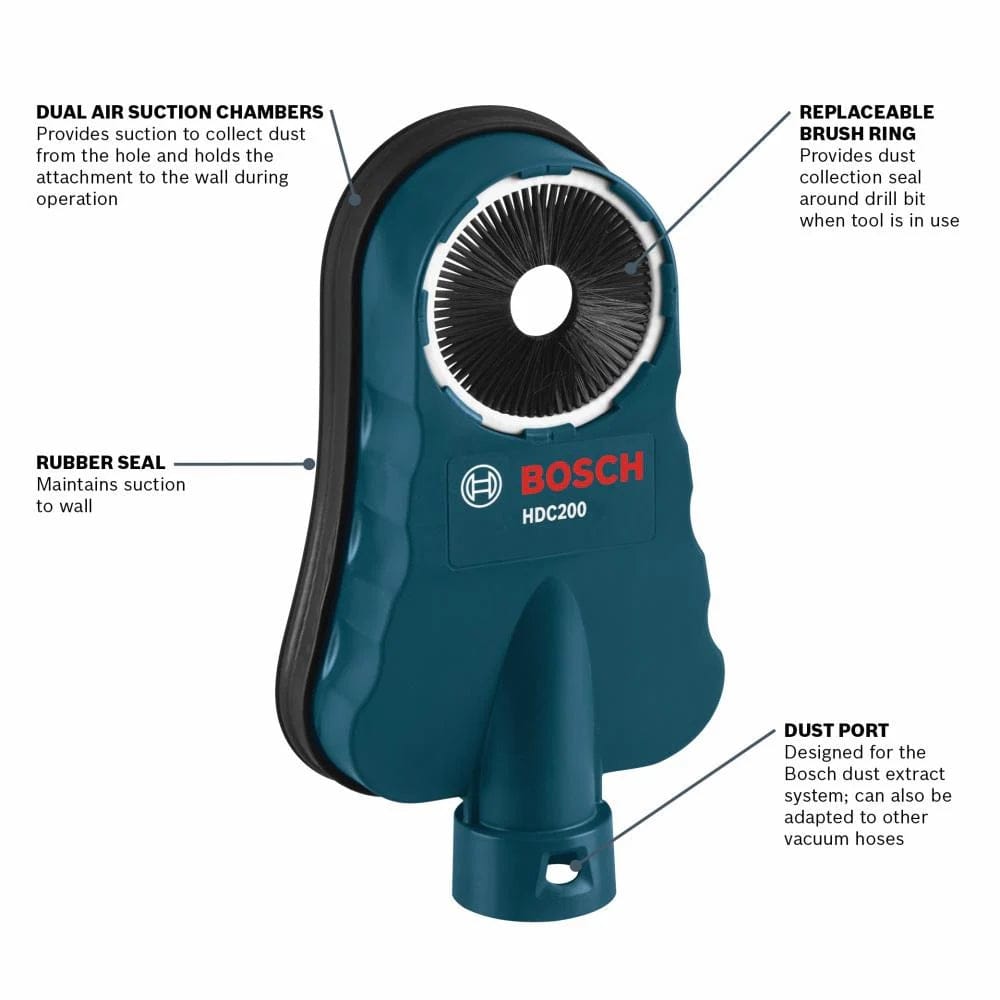

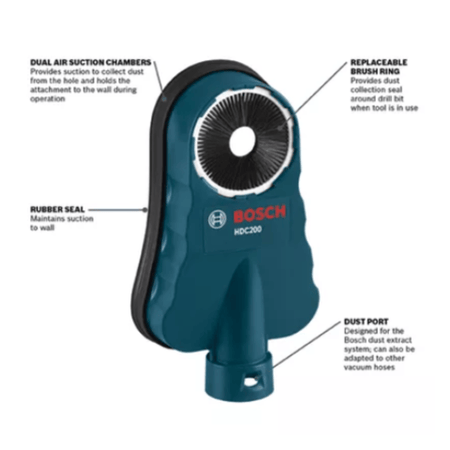

Labeled diagram of Bosch HDC200 dust collection attachment highlighting dual air suction chambers, replaceable brush ring, rubber seal, and dust port for vacuum hose connection.

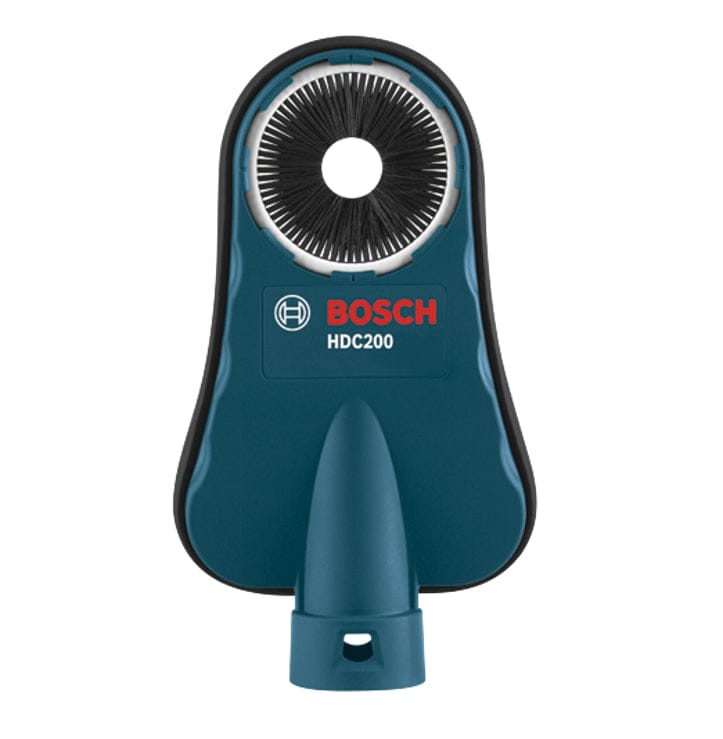

Front view of Bosch HDC200 dust collection attachment with visible brush ring and vacuum nozzle; designed for hammer drills used in masonry and concrete applications.

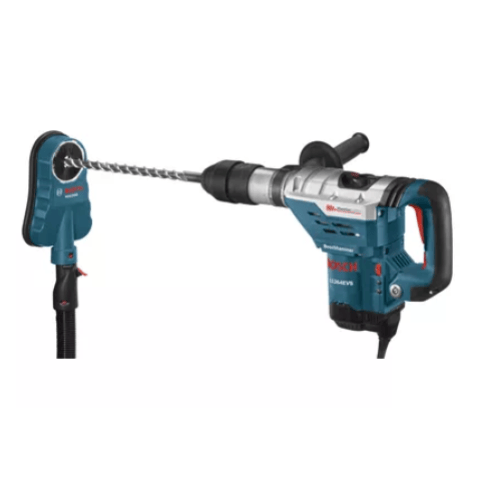

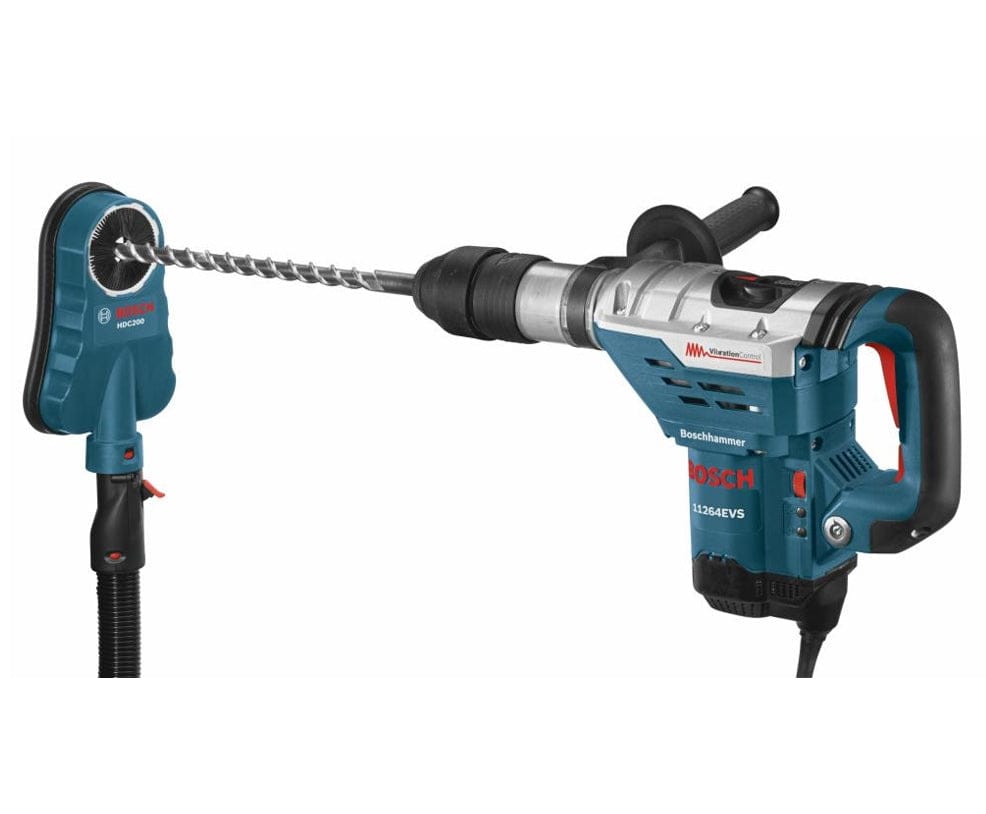

Boschhammer rotary hammer drill model 11264EVS in use with Bosch HDC200 dust collection attachment; drill bit inserted through attachment for clean concrete drilling.

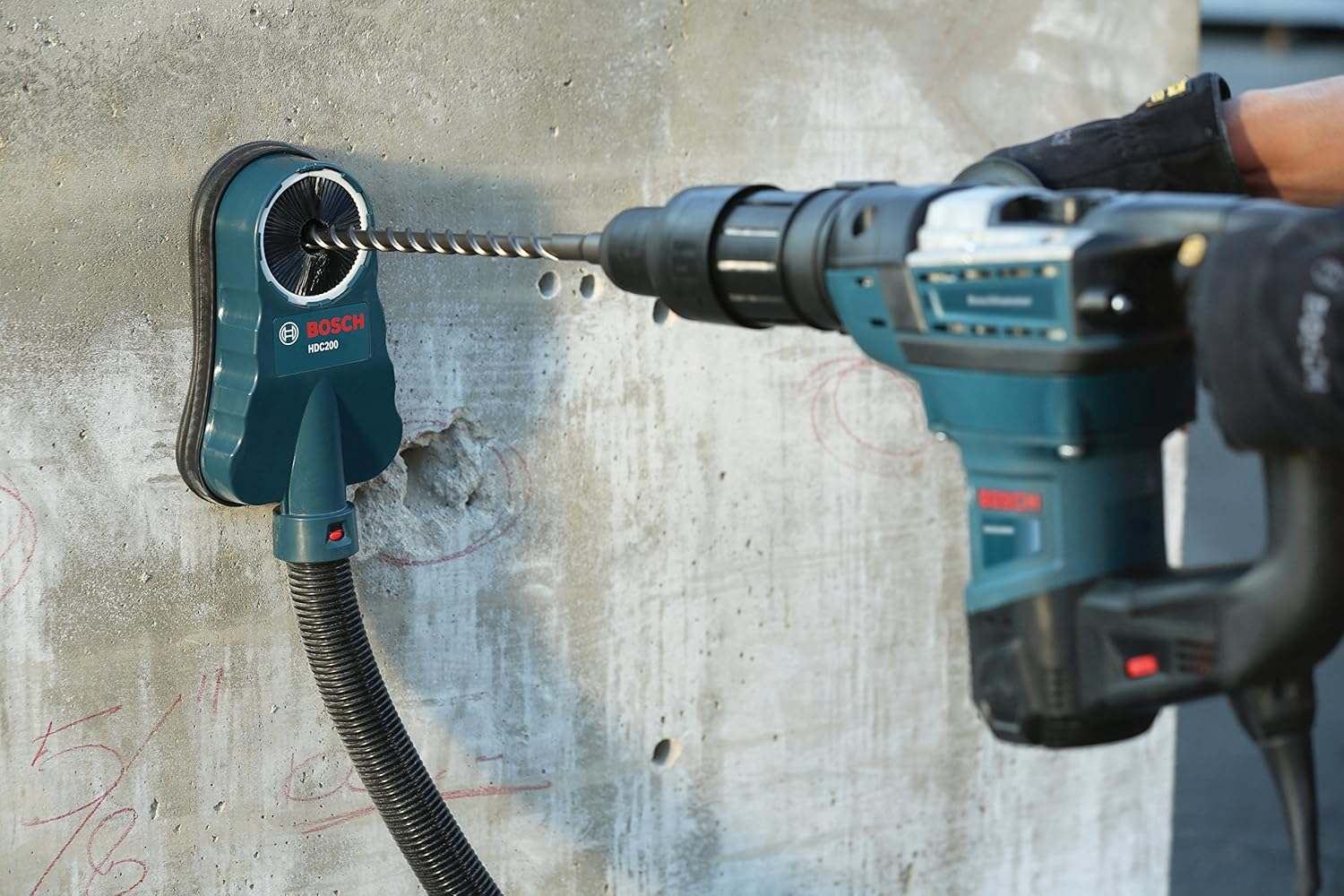

Person drilling into a concrete wall using Bosch power drill and HDC200 dust collection attachment connected to a vacuum hose; red wall markings visible near drill site.

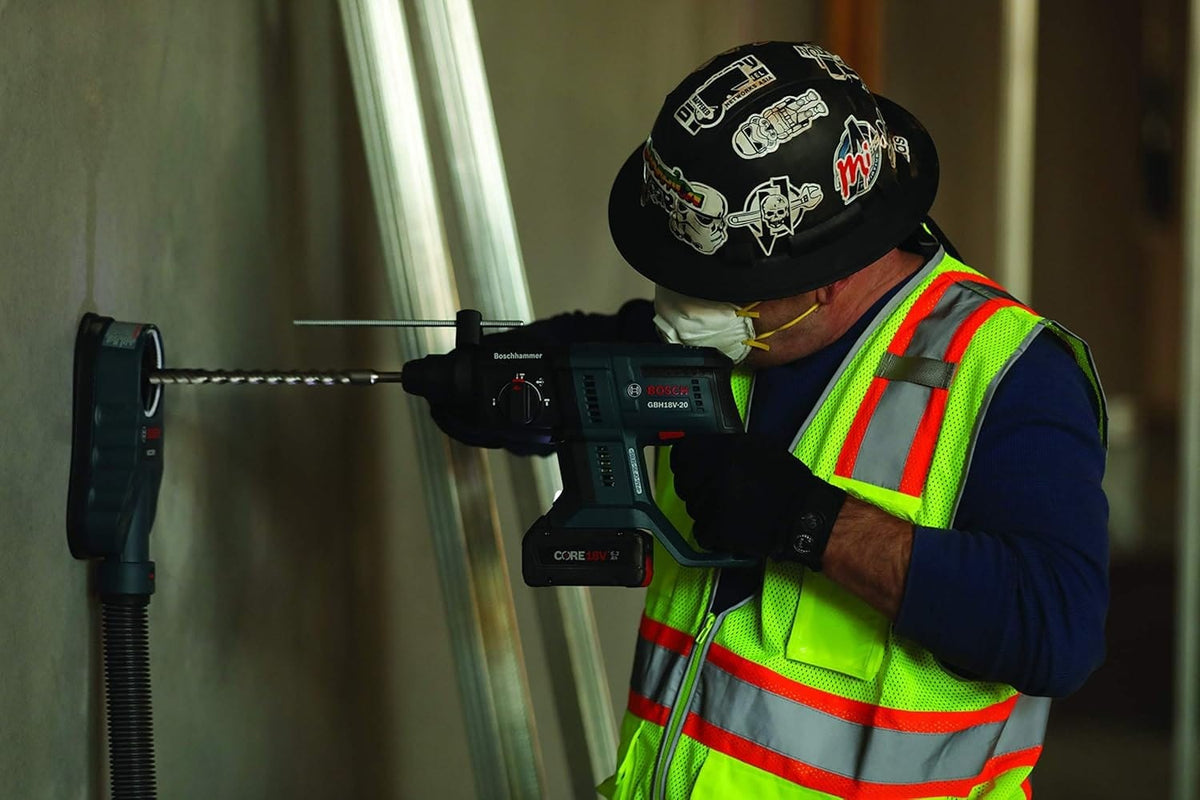

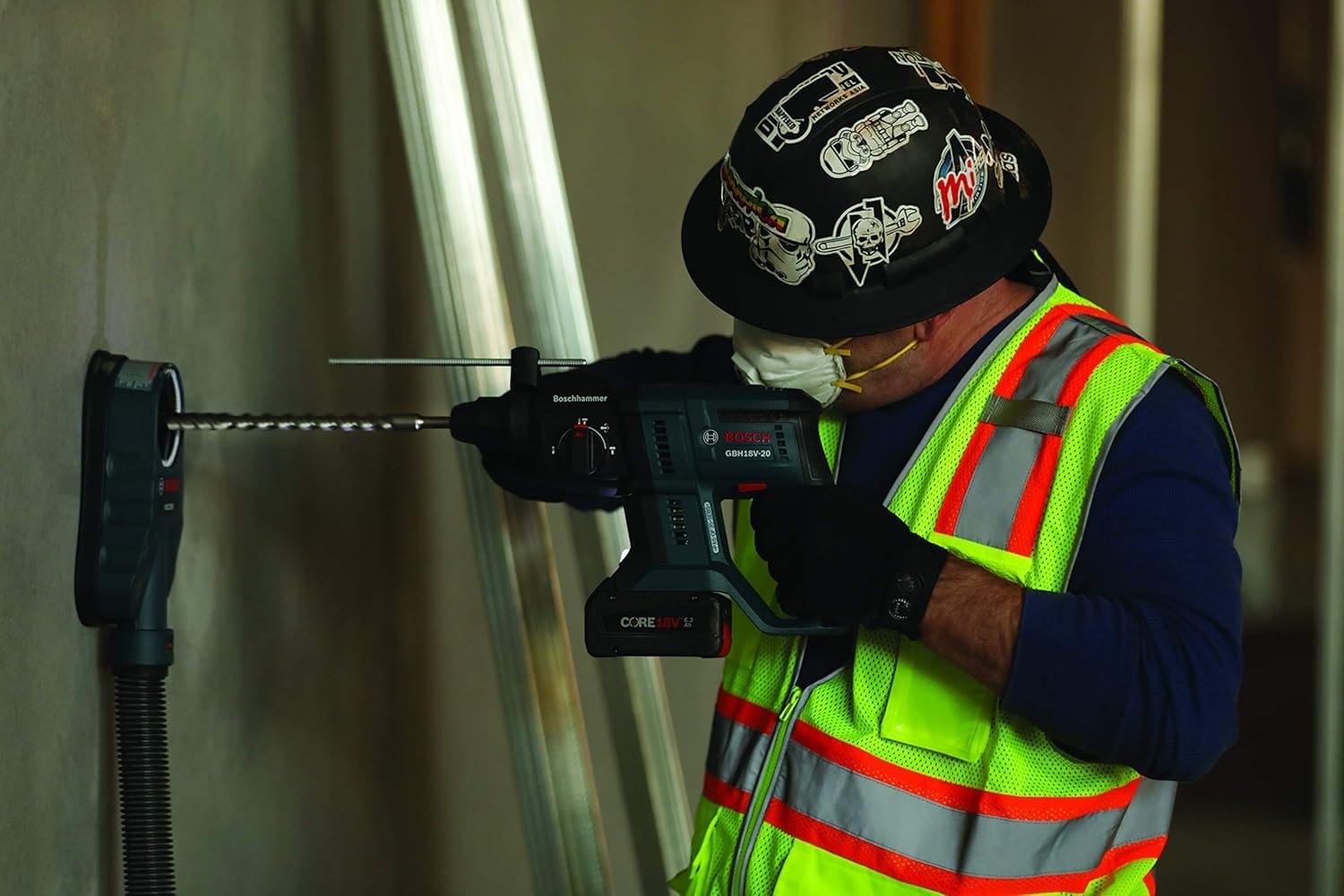

Construction worker wearing safety gear using Bosch GBH18V-20 rotary hammer drill with dust extraction system to drill into concrete wall in indoor jobsite setting.

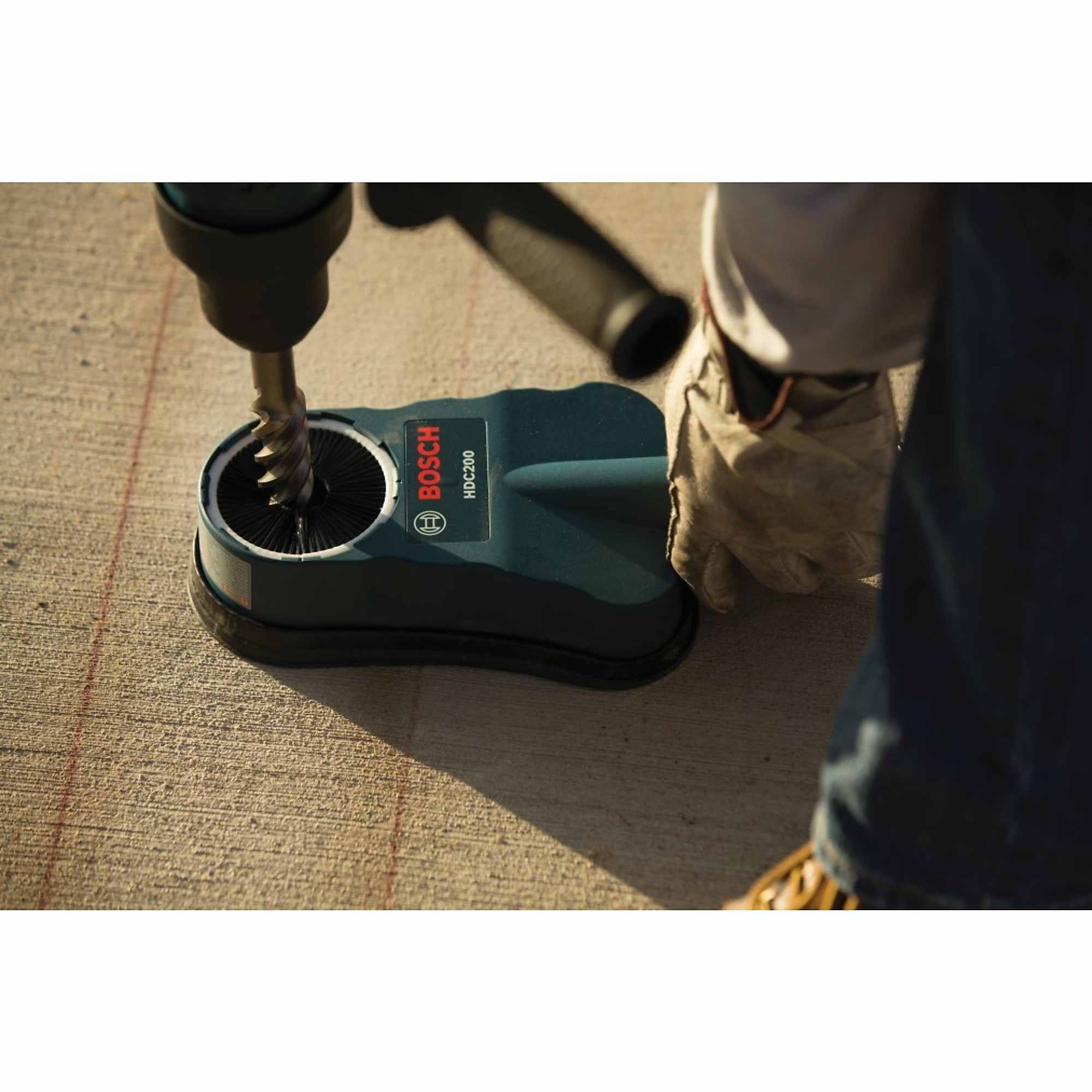

Worker using Bosch HDC200 dust collection attachment with drill on concrete surface; attachment pressed flat against wall with drill bit inserted, showcasing dust capture in action.
Close-up of the Bosch HDC200 dust collection attachment showing circular brush opening and Bosch branding; designed for rotary hammer drills to capture dust during concrete drilling.
Labeled diagram of Bosch HDC200 dust collection attachment highlighting dual air suction chambers, replaceable brush ring, rubber seal, and dust port for vacuum hose connection.
Front view of Bosch HDC200 dust collection attachment with visible brush ring and vacuum nozzle; designed for hammer drills used in masonry and concrete applications.
Boschhammer rotary hammer drill model 11264EVS in use with Bosch HDC200 dust collection attachment; drill bit inserted through attachment for clean concrete drilling.
Person drilling into a concrete wall using Bosch power drill and HDC200 dust collection attachment connected to a vacuum hose; red wall markings visible near drill site.
Construction worker wearing safety gear using Bosch GBH18V-20 rotary hammer drill with dust extraction system to drill into concrete wall in indoor jobsite setting.
Worker using Bosch HDC200 dust collection attachment with drill on concrete surface; attachment pressed flat against wall with drill bit inserted, showcasing dust capture in action.
Bosch

BOSCH HDC200 Universal Dust Collection Attachment for SDS-Plus SDS-Max Rotary Hammer Drilling Concrete Masonry with Vacuum Adapter

In stock
SKU: HDC200
$59.00
Description

Keep your workspace clean and compliant with the BOSCH HDC200 Dust Collection Attachment.

Engineered for SDS-plus® and SDS-max® rotary hammers, this universal dust collection solution is ideal for concrete and masonry drilling applications. Its dual air chamber design allows the bit to pass through while maintaining powerful suction to the wall, minimizing airborne dust and improving visibility and safety.

Optimized for drilling diameters from 5/8 inch to 1-3/8 inch, the HDC200 can accommodate up to 2-5/8 inch when the brush ring is removed. The dust port fits Bosch 1-3/8 inch vacuum nozzles and can be adapted to 1-1/4 inch or 2 inch hoses. Whether you're working with a compact hammer drill or a full-size rotary hammer, this attachment connects to most vacuum systems and supports a wide range of bit diameters and drilling depths.

Key Features

  • Universal design fits SDS-plus® and SDS-max® rotary hammers
  • Dual air chambers for efficient dust collection and wall suction
  • Optimized for drilling diameters from 5/8 in. to 1-3/8 in.
  • Accommodates up to 2-5/8 in. diameter with brush ring removed
  • Compatible with Bosch 1-3/8 in. vacuum nozzle
  • Adapters available for 1-1/4 in., 1-1/2 in., and 2-1/2 in. hoses
  • Replaceable brush ring seals around various bit sizes
  • Rubber seal maintains suction during drilling
  • Lightweight plastic construction for easy handling
  • Works with most anti-static and standard vacuum hoses

What's Included

  • Dust collection attachment
  • Universal vacuum adapter

Specifications

Height 3 in.
Length 8 in.
Material Plastic
Maximum Bit Diameter 2-5/8 in.
Maximum Core Bit Hole Diameter 2-5/8 in.
Overall Length 8 in.
Weight 0.7 lb
Compatible Tools Virtually all rotary hammers and hammer drills
Vacuum Compatibility Bosch 1-3/8 in. nozzle, 1-1/4 in., 1-1/2 in., and 2-1/2 in. hoses with adapters
Adapter Models VAC002, VAC024, VAC020, VAC005, VAC006, VH1035, VH1635A

Pro-Tip: For best results when drilling overhead or into vertical surfaces, pair the HDC200 with an anti-static vacuum hose to reduce clogging and improve airflow efficiency.
