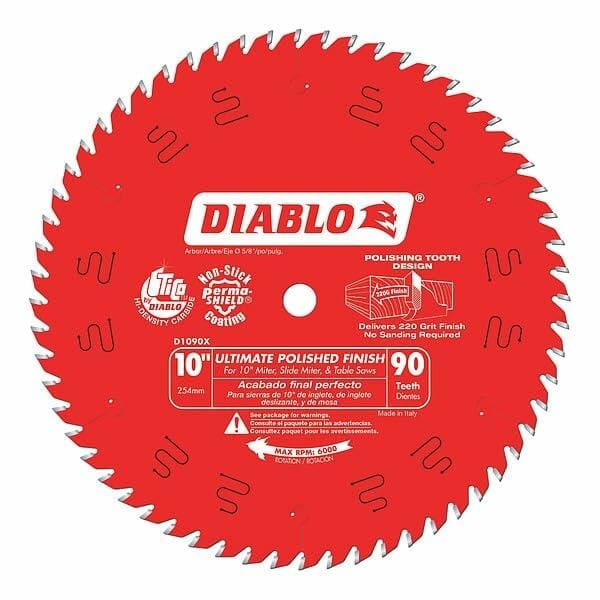

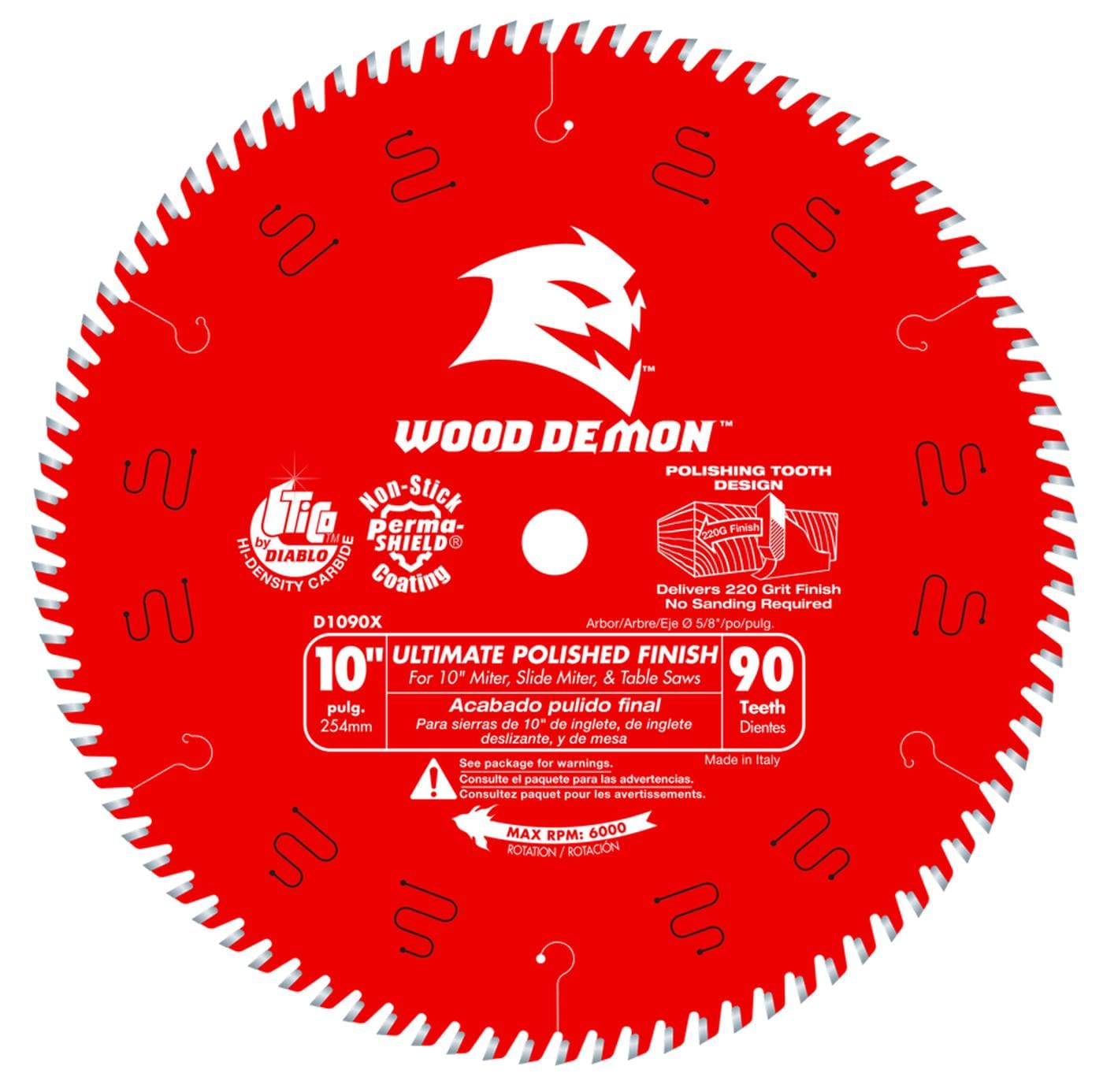

Diablo D1090X 10 Inch 90 Tooth Ultimate Polished Finish Circular Saw Blade Axial Shear Face Grind ASFG TiCo Carbide 5/8 Arbor Hardwood Trim Molding
Couldn't load pickup availability
Achieve Sandpaper-Smooth Cuts and Flawless Finishes with the Radical Axial Shear Face Grind Technology
The Diablo D1090X 10-Inch 90-Tooth Ultimate Polished Finish Saw Blade is engineered for the elite craftsman who demands perfection in every cut. Featuring the revolutionary Axial Shear Face Grind (ASFG), this blade doesn't just cut; it cleanly shears through material to produce a surface quality equal to 220-grit sandpaper or higher. By utilizing a Double-Side Grind tooth geometry—which includes an incredible 200 additional grinds—this blade eliminates the need for secondary sanding on fine moldings, veneered plywood, and delicate melamine. Whether you are working in a high-end cabinet shop or performing intricate trim work on a portable jobsite, the D1090X delivers the polished, "furniture-grade" results that define professional-level remodeling.
Performance and durability are at the core of Diablo’s REDefining technology. This blade is crafted with proprietary TiCo™ Hi-Density Carbide, specifically formulated to provide extreme durability and up to 5X longer cutting life compared to standard finishing blades. The laser-cut, ultra-thin kerf design reduces the amp draw on your tools, making it the ideal choice for maximizing the runtime of cordless saws while providing fast, effortless cuts on corded stationary equipment. To ensure long-term precision, the blade is precision-tensioned and treated to resist heat and friction, protecting your investment and saving the pro both time and money by delivering a finished edge straight off the saw.
Key Features
- Axial Shear Face Grind (ASFG): Revolutionary design shears through wood fibers for a superior, burn-free quality finish.
- 220-Grit Sandpaper Finish: Double-Side Grind tooth geometry produces polished-like cuts that eliminate the need for sanding.
- TiCo™ Hi-Density Carbide: Application-specific carbide increases performance and provides 5X longer cutting life.
- Ultra-Thin Kerf: Laser-cut design ensures fast, effortless cutting and minimal material waste with reduced power consumption.
- Maximum Versatility: Perfectly optimized for fine molding, hardwoods, softwoods, veneered plywood, and melamine.

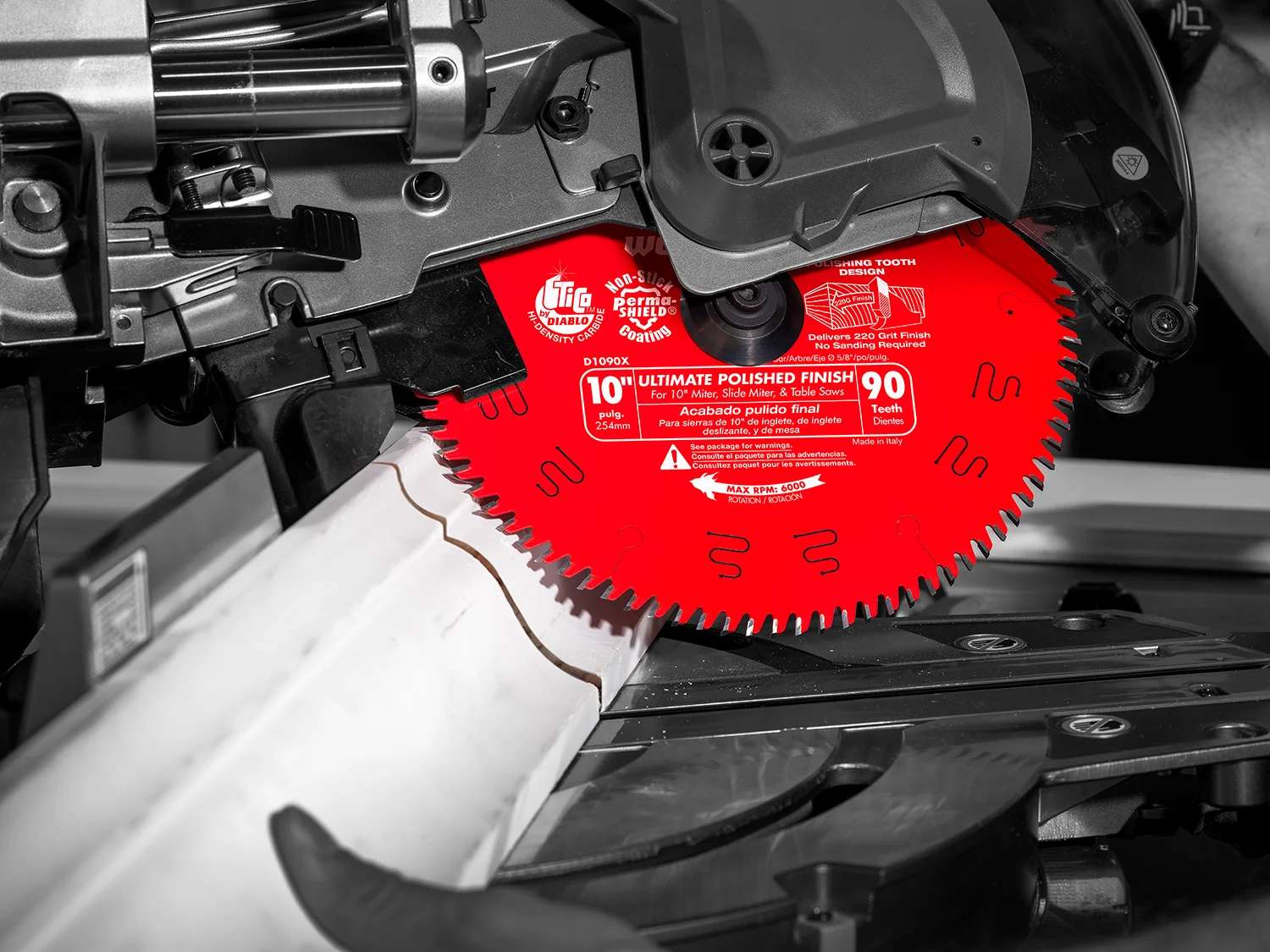

- Jobsite Efficiency: Engineered to maximize performance on both corded and cordless circular or miter saws.
- Advanced Stabilizer Vents: Laser-cut vents trap noise and vibration to keep the blade straight and running cool.
What's Included

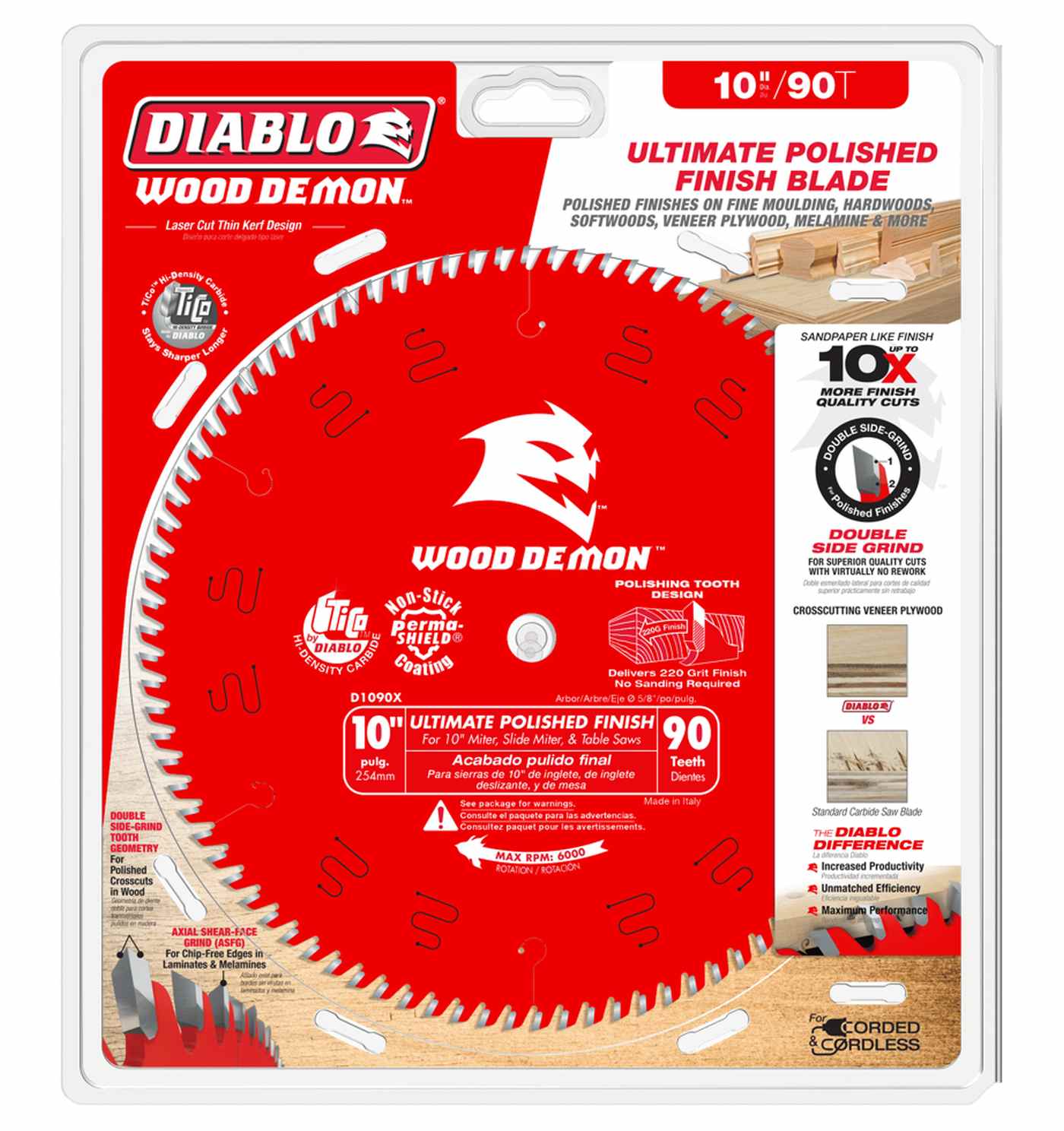

- (1) Diablo 10" x 90-Tooth Ultimate Polished Finish Circular Saw Blade (D1090X)
Specifications
| Brand | Diablo |
|---|---|
| Model Number | D1090X |
| Diameter | 10 Inches |
| Number of Teeth | 90 ASFG |
| Arbor Size | 5/8 Inch |
| Kerf Width | 0.087 Inches |
| Plate Thickness | 0.063 Inches |
| Hook Angle | 10° |
| Maximum Speed | 6,000 RPM |
| Tooth Grind | Axial Shear Face Grind (ASFG) |
| Ideal Materials | Hardwoods, Softwoods, Melamine, Veneered Plywood |
| Project Type | Fine Trim, Remodeling, Cabinetry |
Pro-Tip: To maintain the "polished" finish quality of the D1090X, ensure your saw's fence and miter gauge are perfectly calibrated. Because this blade has 90 teeth and a shear-face design, a slow and steady feed rate is essential; pushing the material too fast can cause heat friction, whereas a consistent glide will yield an edge so smooth it’s ready for finish straight off the table.
