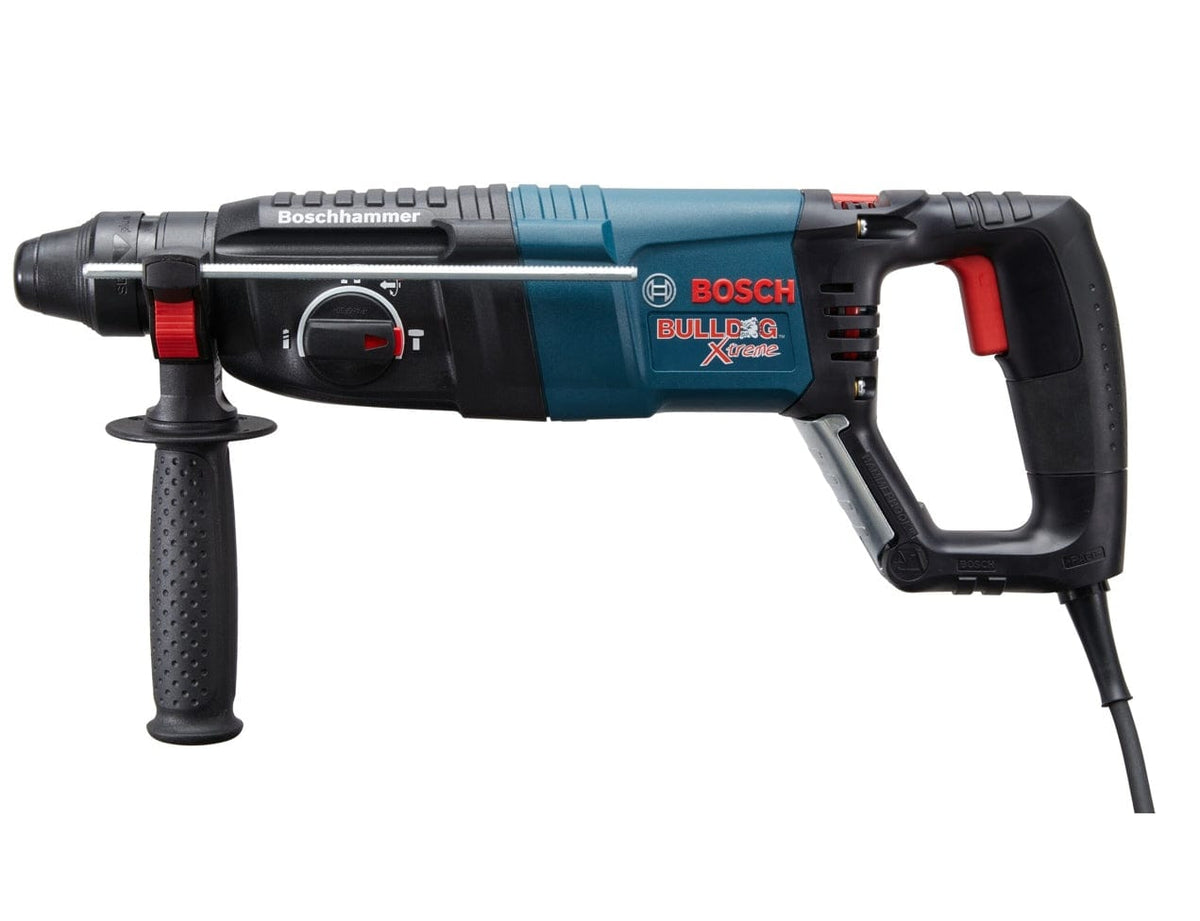

Side profile view of the rotary hammer showing the depth gauge rod attached to the side handle, the red mode selector switch, and the comfortable D-handle grip.

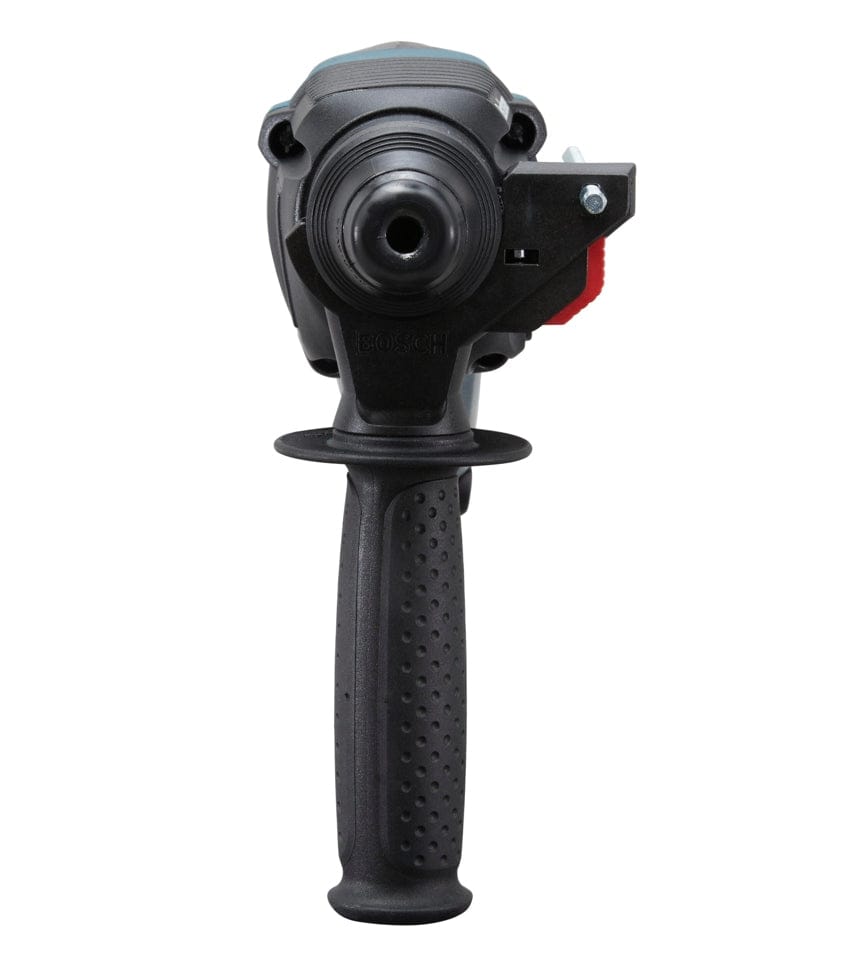

Front-facing view of the tool focusing on the SDS-plus keyless chuck, the side handle grip texture, and the depth gauge mounting point.
Top-down view of the rotary hammer displaying the slim profile, the depth gauge rod extending parallel to the body, and the ventilation slots on the motor housing.
An action shot of a worker using the rotary hammer to chip up concrete flooring, connected to a dust extraction attachment and vacuum for a clean workspace.
A close-up graphic illustrating the Vario-Lock positioning feature, showing the chuck rotating to adjust the angle of a flat chisel bit.
A close-up of a gloved hand pressing the variable-speed trigger on the D-handle, highlighting the ergonomic grip and control.

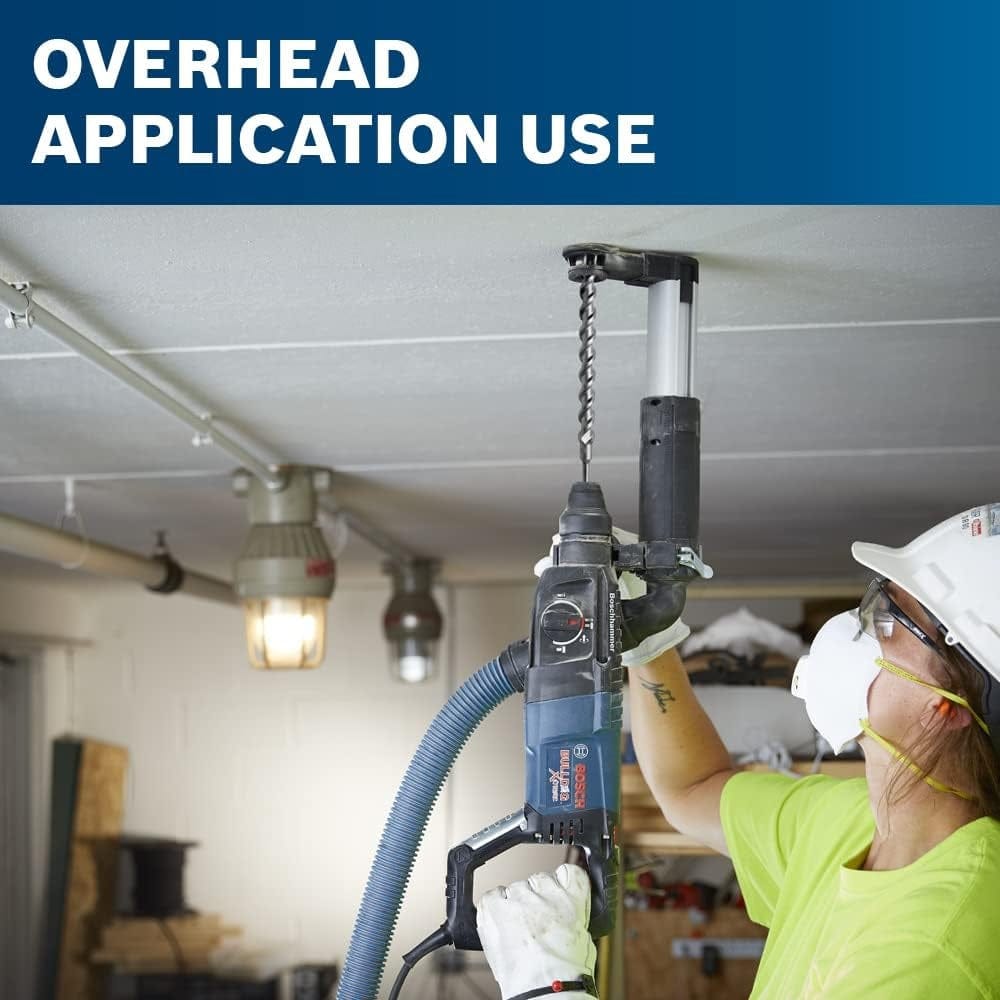

A construction worker wearing a hard hat using the rotary hammer overhead to drill into a concrete ceiling, utilizing a dust collection attachment to capture debris.
A mode selection graphic displaying icons for the three operation modes: Rotary Only, Rotary Hammer, and Hammer Only.
An informational graphic titled Available Modes displaying icons and text for the three tool settings: Rotary Only, Rotary Hammer, and Hammer Only.

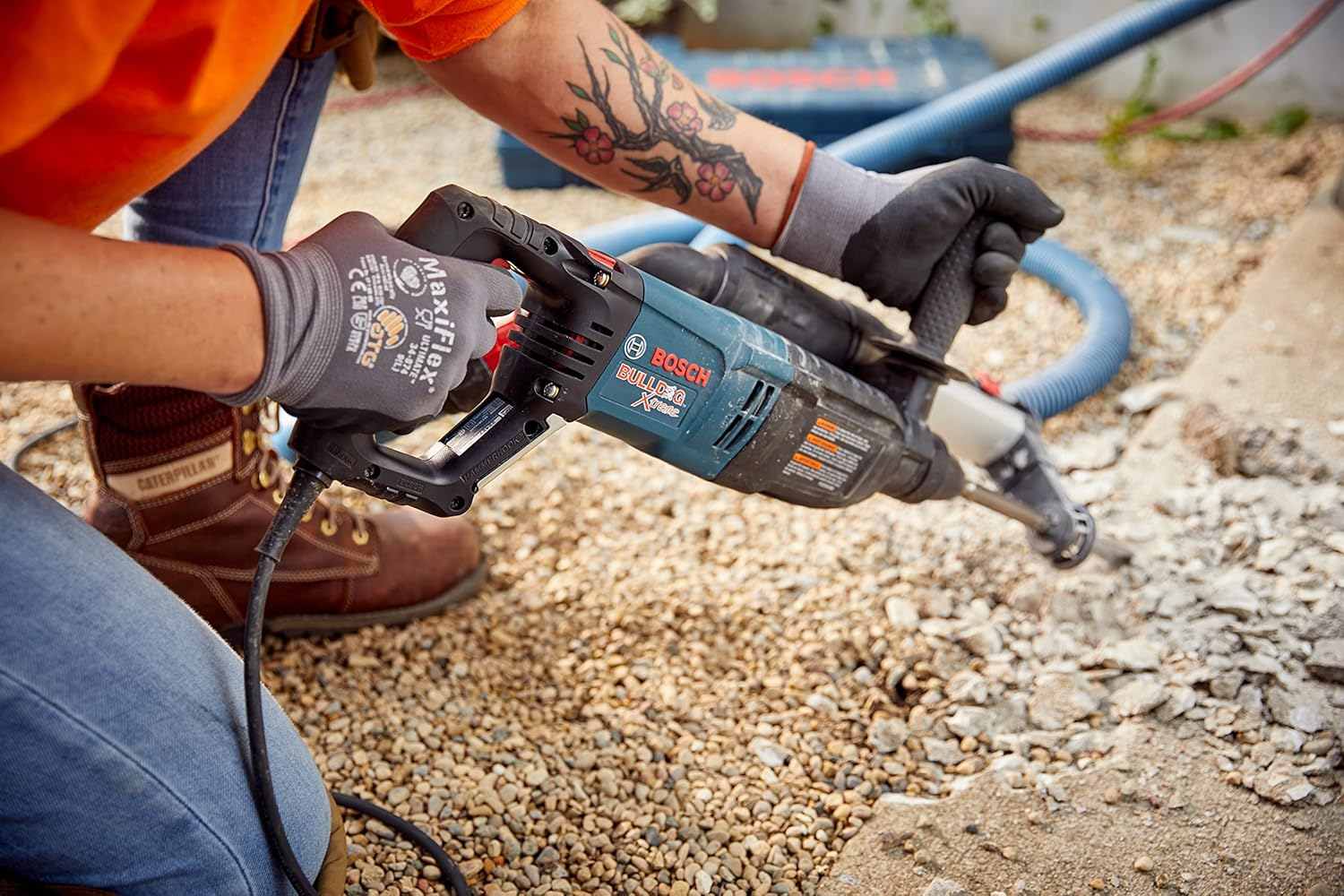

A close-up action shot of the tool chipping into concrete ground, accompanied by text stating 2.0 ft-lbs Hard-Hitting Impact.
A profile view of a worker drilling into a wall using the rotary hammer connected to a dust collection attachment to maintain a clean work environment.

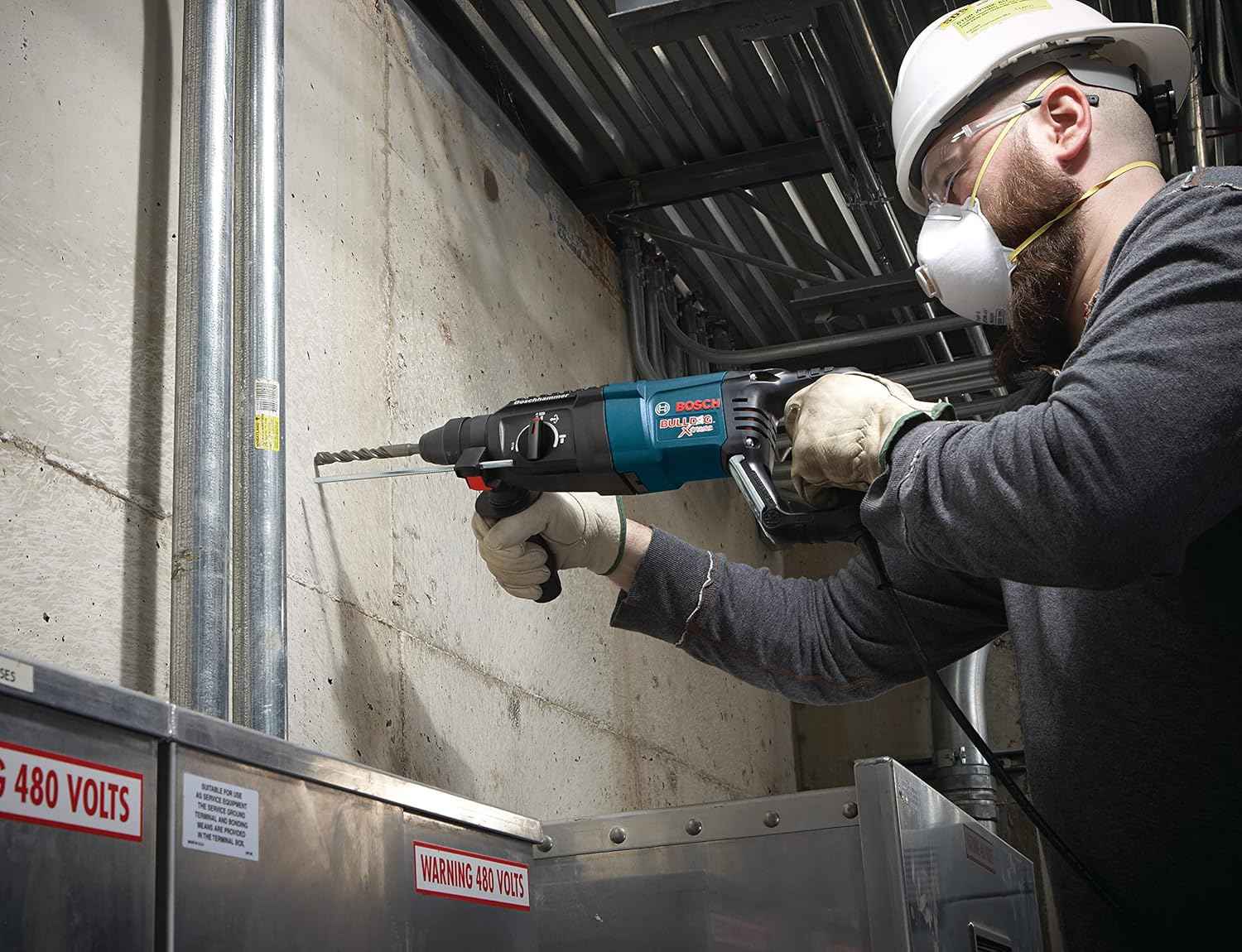

A construction worker wearing a white hard hat and safety glasses drilling into a concrete wall in an industrial setting with exposed conduit and safety signage.
A warranty information graphic displaying the Bosch logo and text stating Corded Tool 1 Year Limited Warranty.
New Bosch Outdoor Power Equipment | Bosch WOC 2026 promotional video
A studio shot of the Bosch 11255VSR Bulldog Xtreme rotary hammer featuring a blue and black body, a D-handle rear grip, and a side auxiliary handle.
An informational diagram of the rotary hammer highlighting key features such as the multi-function selector, variable-speed trigger, Vario-Lock positioning, and integral clutch.
Side profile view of the rotary hammer showing the depth gauge rod attached to the side handle, the red mode selector switch, and the comfortable D-handle grip.
Front-facing view of the tool focusing on the SDS-plus keyless chuck, the side handle grip texture, and the depth gauge mounting point.
Top-down view of the rotary hammer displaying the slim profile, the depth gauge rod extending parallel to the body, and the ventilation slots on the motor housing.
An action shot of a worker using the rotary hammer to chip up concrete flooring, connected to a dust extraction attachment and vacuum for a clean workspace.
A close-up graphic illustrating the Vario-Lock positioning feature, showing the chuck rotating to adjust the angle of a flat chisel bit.
A close-up of a gloved hand pressing the variable-speed trigger on the D-handle, highlighting the ergonomic grip and control.
A construction worker wearing a hard hat using the rotary hammer overhead to drill into a concrete ceiling, utilizing a dust collection attachment to capture debris.
A mode selection graphic displaying icons for the three operation modes: Rotary Only, Rotary Hammer, and Hammer Only.
An informational graphic titled Available Modes displaying icons and text for the three tool settings: Rotary Only, Rotary Hammer, and Hammer Only.
A close-up action shot of the tool chipping into concrete ground, accompanied by text stating 2.0 ft-lbs Hard-Hitting Impact.
A profile view of a worker drilling into a wall using the rotary hammer connected to a dust collection attachment to maintain a clean work environment.
A construction worker wearing a white hard hat and safety glasses drilling into a concrete wall in an industrial setting with exposed conduit and safety signage.
A warranty information graphic displaying the Bosch logo and text stating Corded Tool 1 Year Limited Warranty.
New Bosch Outdoor Power Equipment | Bosch WOC 2026 promotional video
BOSCH

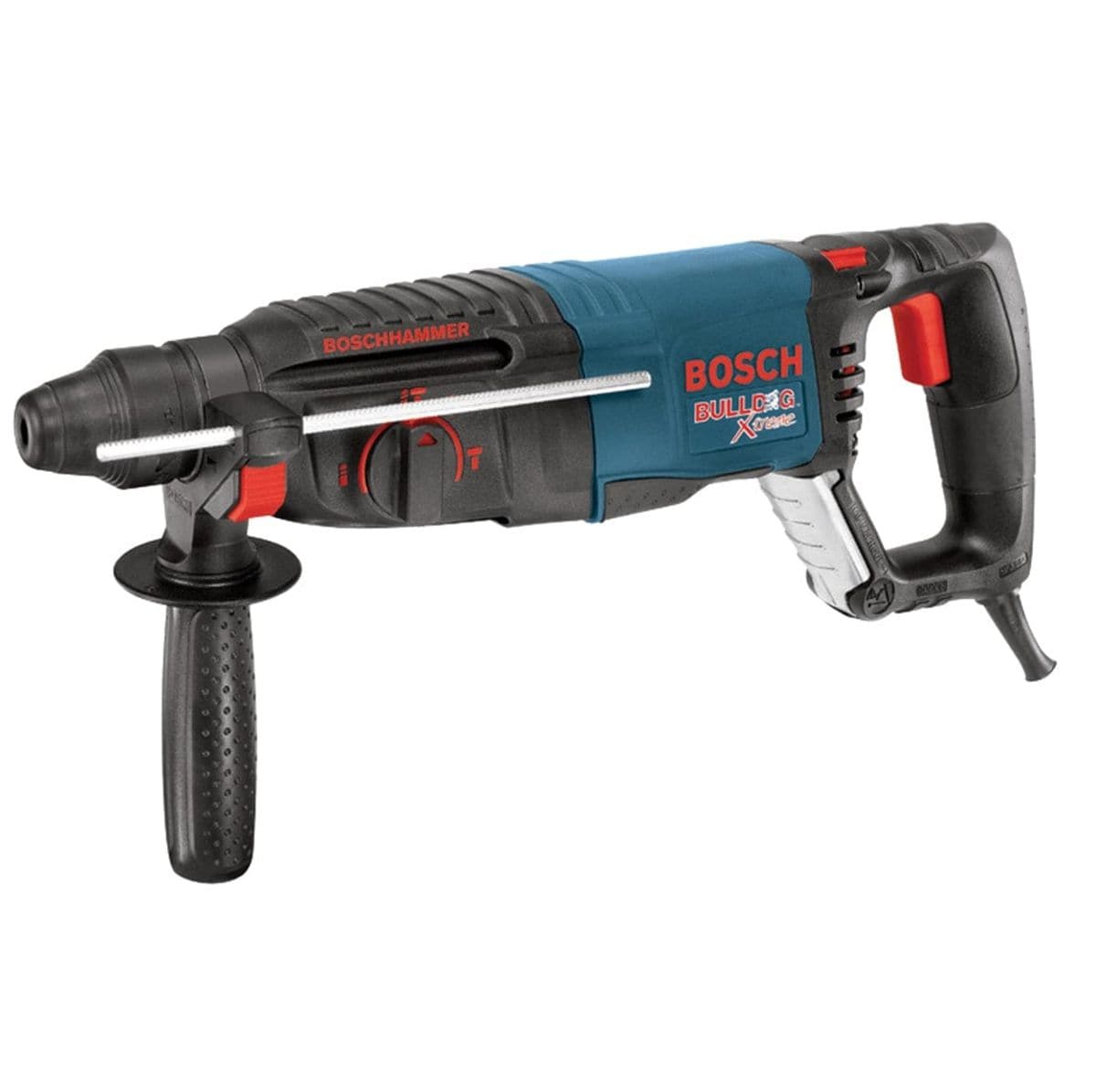

Bosch 11255VSR Bulldog Xtreme 1 Inch Rotary Hammer SDS-Plus 8 Amp Corded Concrete Drill with Variable Speed D-Handle and Case

In stock
SKU: 11255VSR
$219.00 USD

Description

Bosch Promtional Logo Logout

Unleash Legendary Power with the Ultimate Multi-Mode Concrete Rotary Hammer

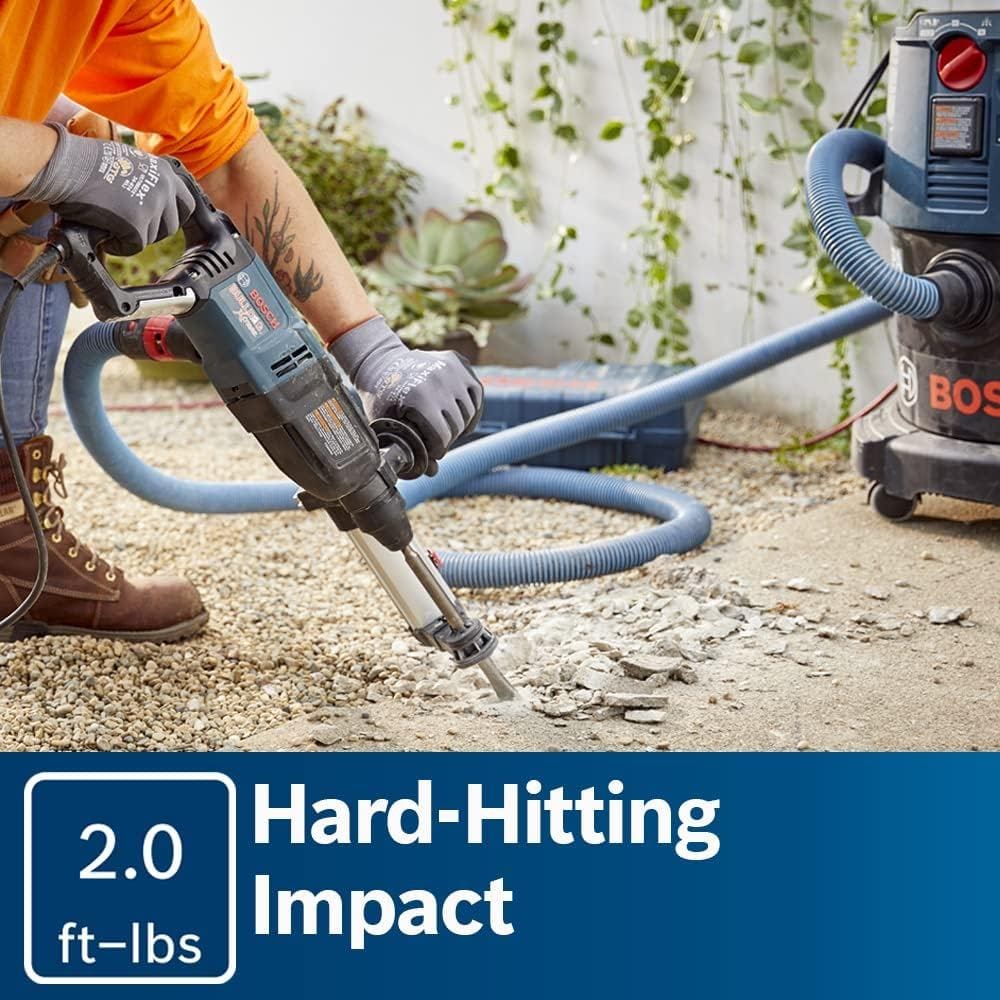

Dominate your job site with the Bosch 11255VSR SDS-plus® Bulldog™ Xtreme 1 In. Rotary Hammer, a tool engineered in the tradition of the legendary Bulldog line to deliver superior performance and durability. Powered by a robust 8.0 Amp motor, this rotary hammer generates an impressive 2.0 ft-lbs of impact energy and up to 5,800 no-load BPM. Whether you are anchoring into solid concrete or breaking down masonry materials, the 11255VSR provides the raw power needed to get the job done right the first time. Weighing in at just 6.7 lbs, it offers an exceptional power-to-weight ratio, ensuring you can work longer with less fatigue.

Versatility is key for the modern professional, and this tool excels with its multi-function mode selector, allowing you to instantly switch between rotary hammer, rotation only, and hammer only modes. For precise chipping, the Vario-Lock™ positioning system lets you rotate and lock the chisel into 36 different angles, optimizing your working position. Designed for compliance and comfort, the tool works with Bosch’s PRO+GUARD™ dust solutions to help meet OSHA Silica Table 1 standards. It also features a variable-speed reversing trigger for accurate bit starting and an exclusive rotating brush plate that ensures equal power in both forward and reverse, extending the life of the brushes.

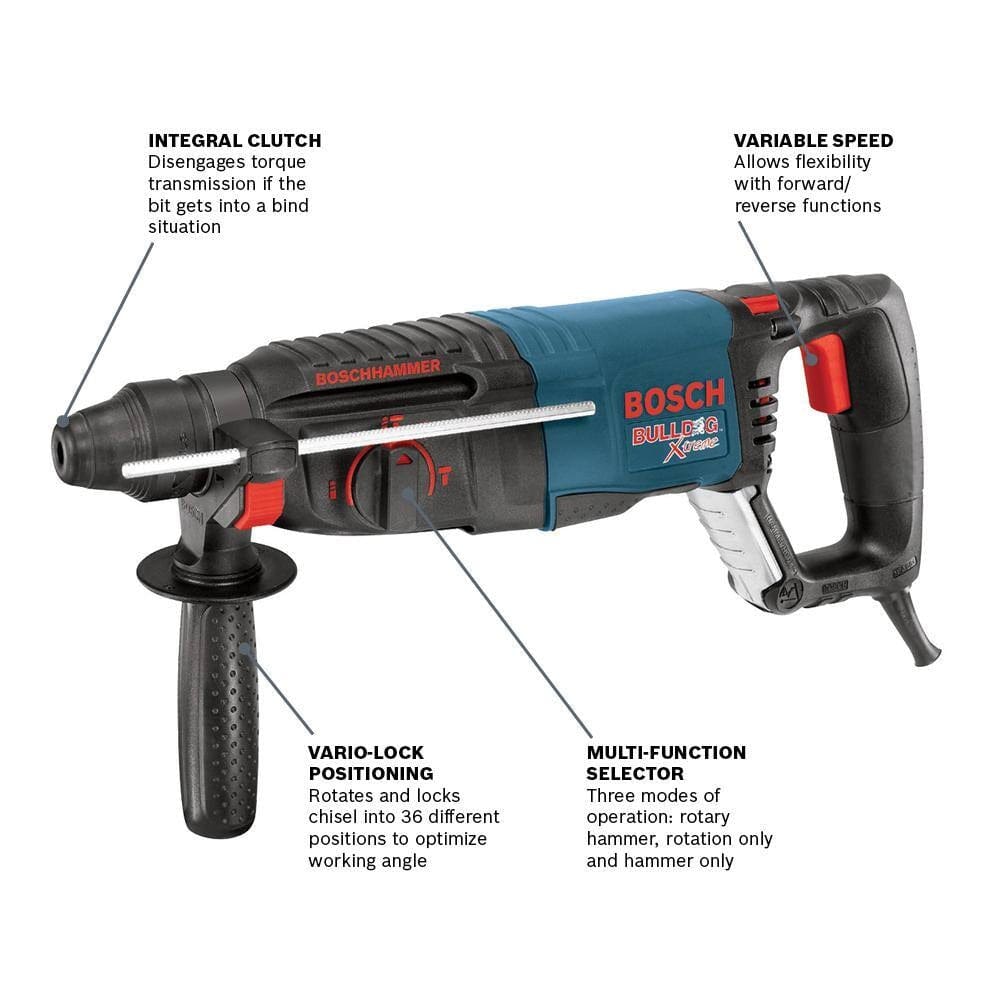

Key Features

  • Powerful 8.0 Amp Motor: Delivers 0-1,300 RPM and 0-5,800 BPM for hammering through the toughest concrete and masonry.

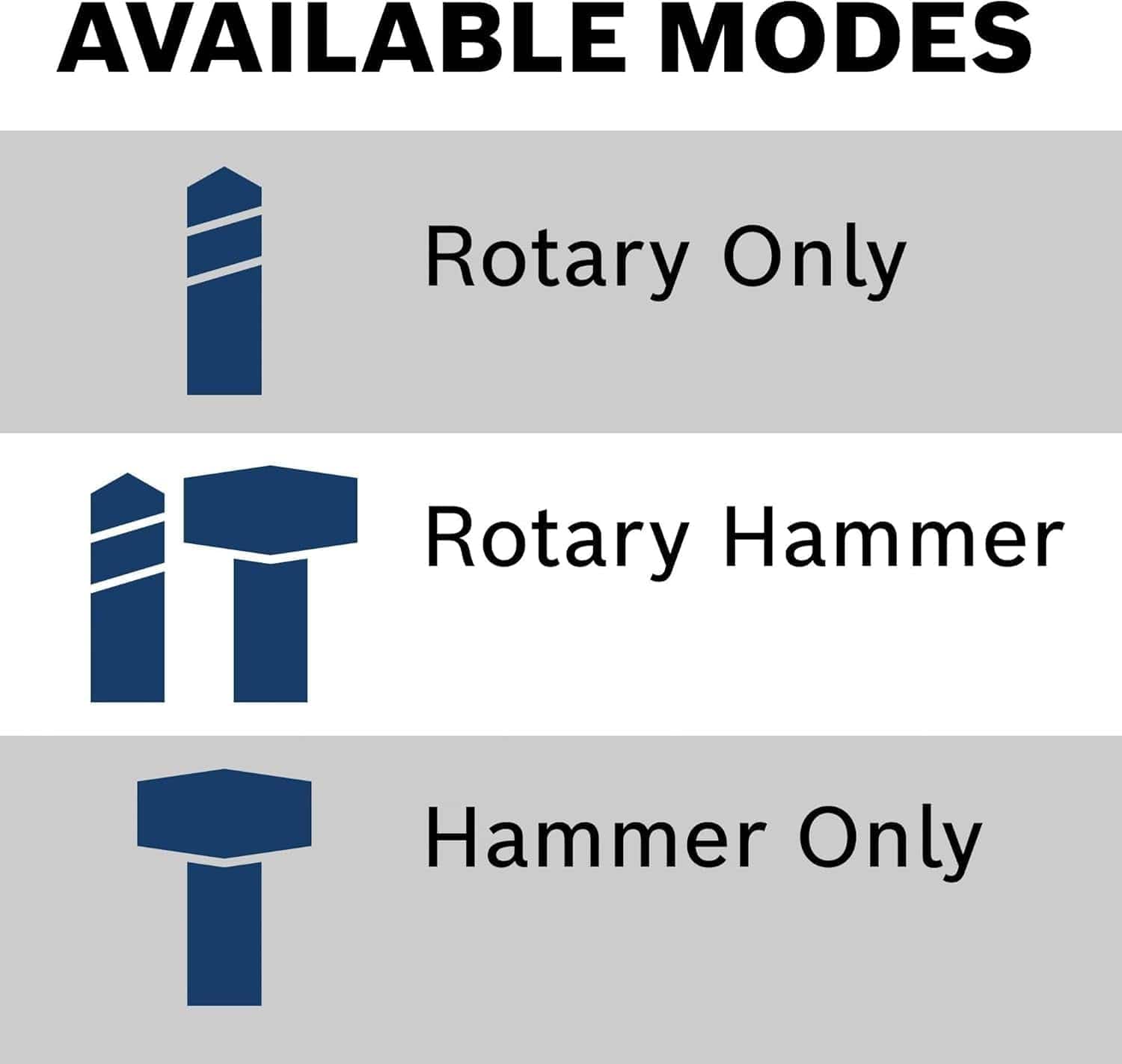

  • Multi-Function Selector: Offers three modes of operation: rotary hammer, rotation only, and hammer only for maximum versatility.

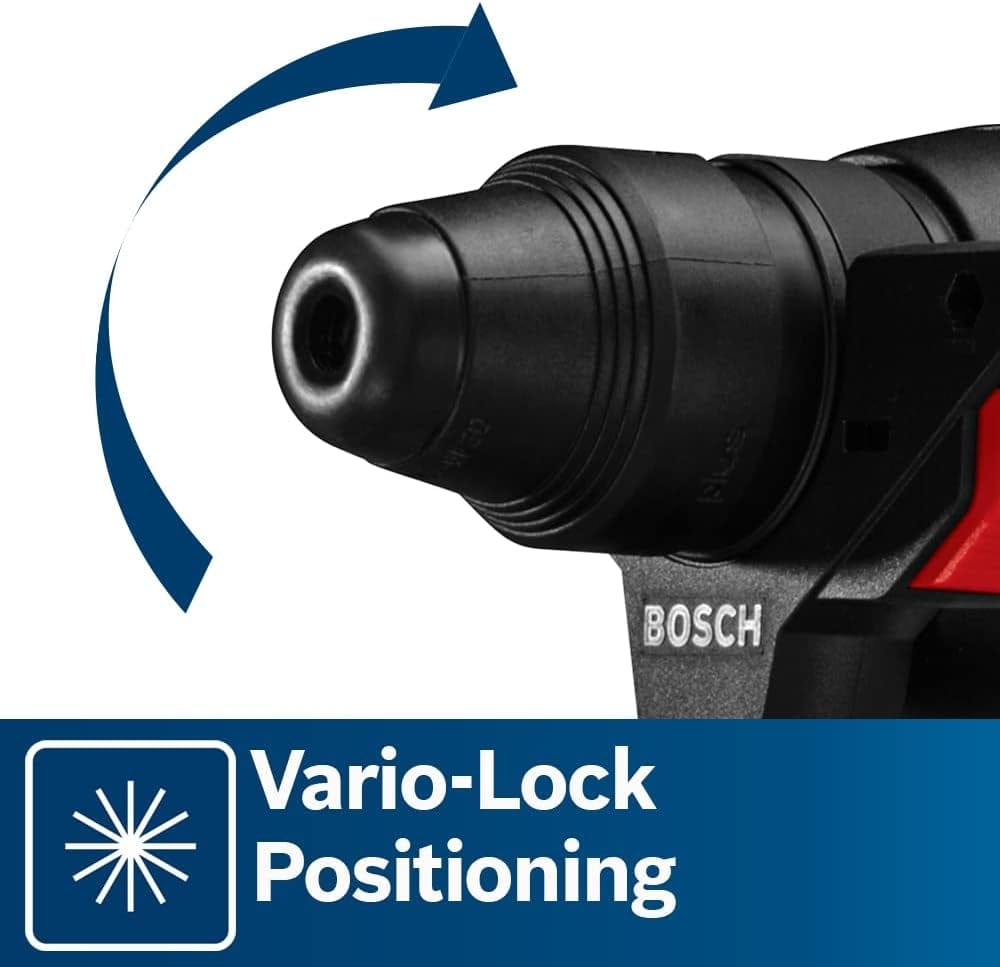

  • Vario-Lock™ Positioning: Rotates and locks the chisel into 36 different positions to optimize the working angle.
  • Rotating Brush Plate: Provides equal power in forward and reverse and extends brush life.

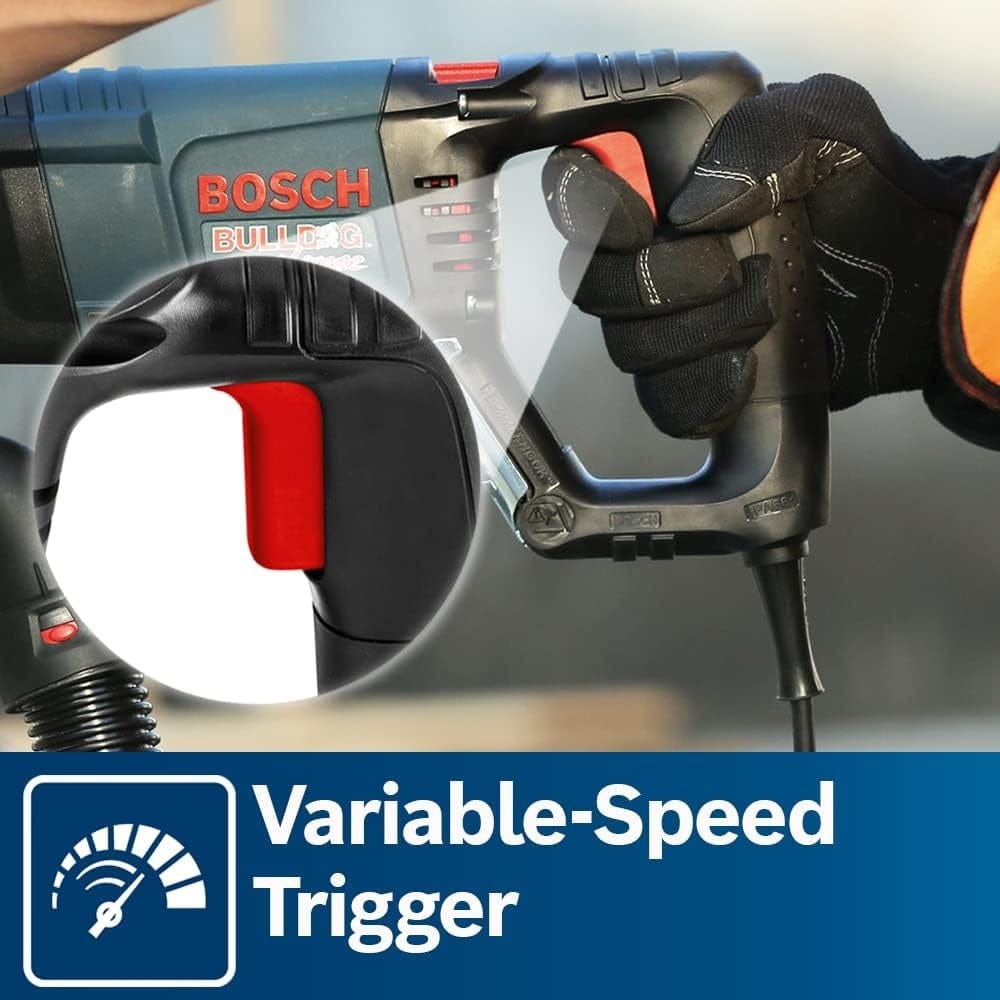

  • Variable-Speed Trigger: Allows for accurate bit starting and controlled drilling speeds.
  • Integral Clutch: Disengages torque transmission if the bit binds, minimizing kickback and protecting the user.
  • HammerHook™: Integrated hook allows users to hang the tool on the job site for quick storage.
  • SDS-plus® System: Enables tool-free bit changes with automatic bit locking for maximum impact energy transfer.
  • D-Handle Design: Ideal for overhead and downward drilling applications, providing superior control.

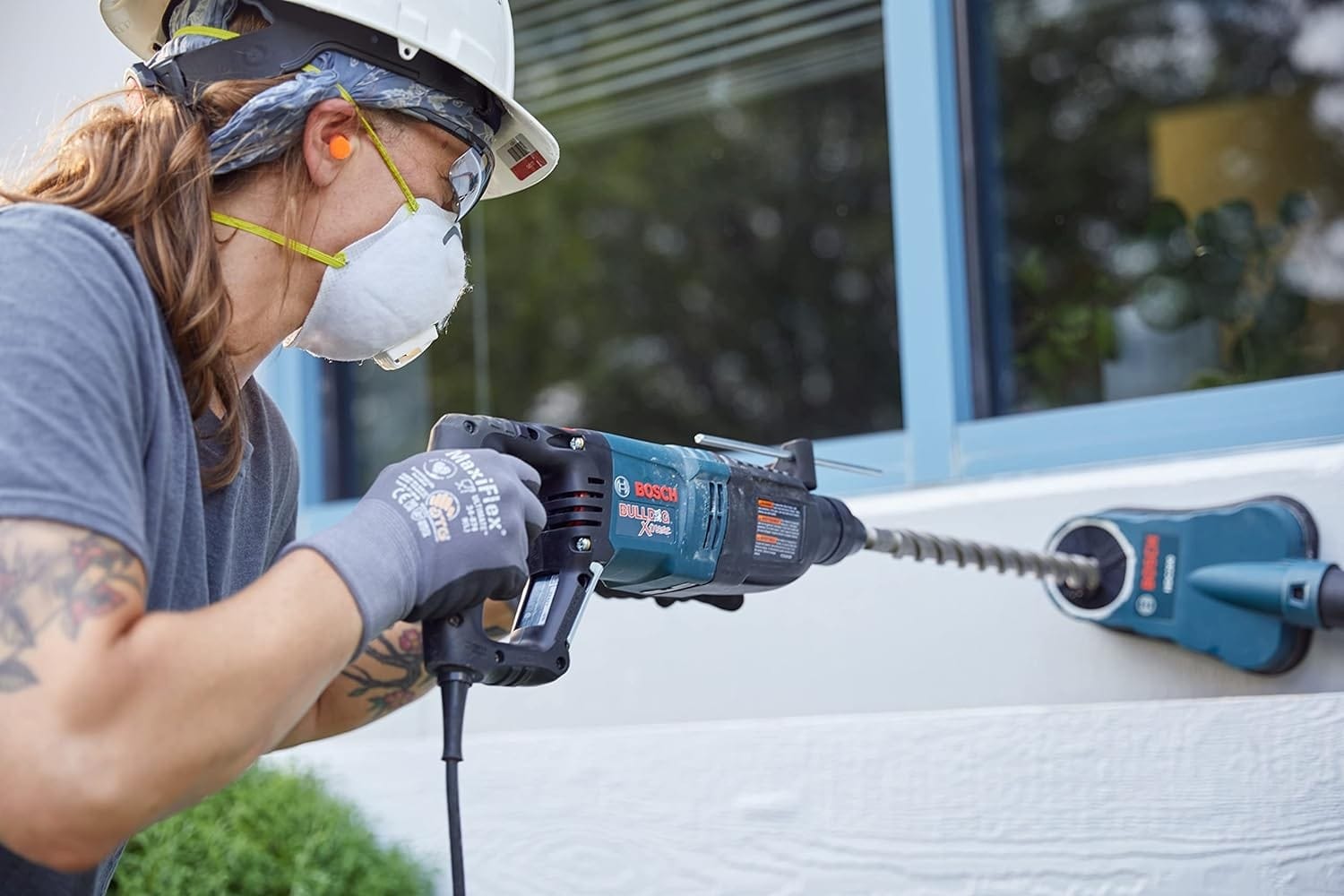

  • PRO+GUARD™ Compatible: Designed to work with Bosch dust-collection systems for OSHA Silica Table 1 dust compliance.

What's Included

  • (1) 11255VSR SDS-plus® Bulldog™ Xtreme 1 In. Rotary Hammer
  • (1) Auxiliary Handle
  • (1) Depth Gauge
  • (1) Carrying Case

Specifications

Amperage 8.0 Amps
Voltage 120V
Chuck Type SDS-Plus (Keyless)
Impact Energy 2.0 ft-lbs
No Load RPM 0 - 1,300
No Load BPM 0 - 5,800
Max Capacity (Concrete) 1 in.
Max Capacity (Core Bit) 2-5/8 in.
Max Capacity (Wood) 1 in.
Max Capacity (Steel) 1/2 in.
Weight 6.7 lbs
Dimensions (LxWxH) 17.25 x 3.5 x 6 in.
Pro-Tip: To extend the life of your tool and your bits, always apply a small amount of grease to the shank (the grooved end) of the SDS-plus bit before inserting it into the chuck. This reduces friction and wear on the internal striking mechanism.
