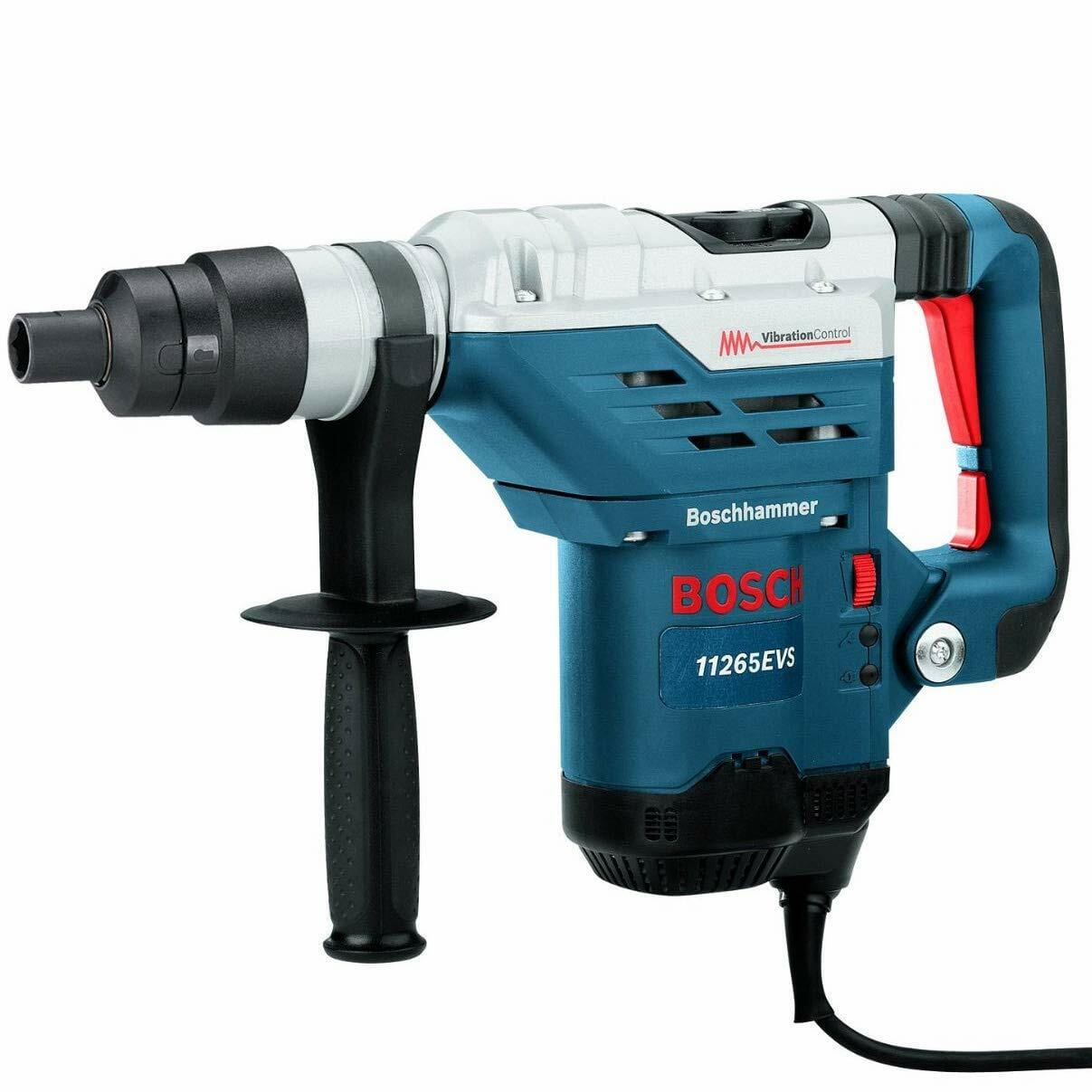

Studio shot of the Bosch 11265EVS 13 Amp Spline Combination Rotary Hammer Drill featuring blue housing, silver hammer mechanism, black auxiliary handle, and ergonomic main handle with Vibration Control technology

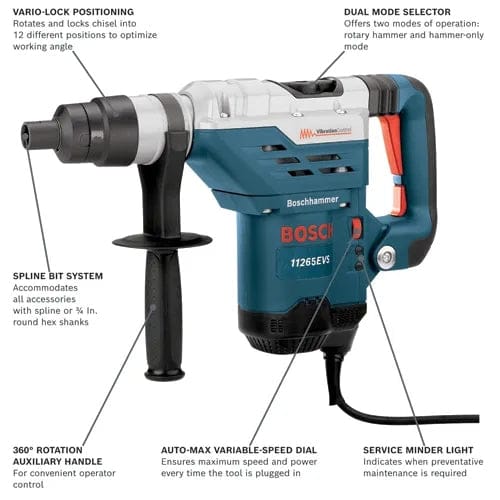

Diagram of the Bosch 11265EVS Spline Combination Hammer with callouts labeling its key features, including Vario-Lock positioning, Dual Mode Selector, 360-degree auxiliary handle, Auto-Max variable-speed dial, and Service Minder light
Studio shot of the Bosch 11265EVS 13 Amp Spline Combination Rotary Hammer Drill featuring blue housing, silver hammer mechanism, black auxiliary handle, and ergonomic main handle with Vibration Control technology
Diagram of the Bosch 11265EVS Spline Combination Hammer with callouts labeling its key features, including Vario-Lock positioning, Dual Mode Selector, 360-degree auxiliary handle, Auto-Max variable-speed dial, and Service Minder light
Bosch

Bosch 13 Amp 1-5/8 Inch Spline Combination Rotary Hammer Drill 11265EVS with Vibration Control and Turbo Power Mode for Heavy Duty Concrete Demolition

In stock
SKU: 11265EVS
$739.00
Description

Unrivaled Power and Comfort: Bosch's Heavy-Duty 1-5/8 Inch Spline Combination Hammer

The Bosch 11265EVS Spline Combination Hammer is a powerhouse engineered for the most demanding concrete drilling and chiseling applications. Driven by a robust 13.0 Amp motor, this tool delivers 6.5 Ft.-Lbs. of impact energy while maintaining a light operating weight of just 15.1 pounds—an industry-leading power-to-weight ratio for superior jobsite production. With its dual-mode selector, you can seamlessly switch between rotary hammer (drilling up to 1-5/8 inches) and hammer-only modes, providing the versatility concrete contractors need for anchoring, thru-hole drilling, and medium-duty chipping tasks.

Engineered for maximum user efficiency and comfort, the 11265EVS features Bosch's sophisticated Vibration Control technology in both the hammer mechanism and the grip area, drastically reducing fatigue during extended periods of work. The built-in Constant Response circuitry ensures soft starts and maintains constant speed under heavy load, while the Turbo Power feature automatically boosts performance by 20 percent in hammer-only mode for tough chiseling jobs. Furthermore, the 12-position Vario-Lock allows you to precisely optimize the chisel angle, and the Service Minder light notifies you when preventative maintenance is required, guaranteeing reliable, long-term performance.

Key Features

  • High Impact Energy: Powerful 13.0 Amp motor delivers 6.5 Ft.-Lbs. of impact energy for maximum drilling and chipping output.
  • Vibration Control: Advanced vibration reduction in the mechanism and grip area maximizes user comfort and reduces strain.
  • Dual-Mode Versatility: Seamlessly switch between Rotary Hammer mode (drilling) and Hammer-Only mode (chiseling/demolition).
  • Turbo Power: Automatically delivers 20% more power in hammer-only mode for greater chipping efficiency.
  • Constant Response Circuitry: Provides smooth starts and maintains consistent speed and power when under load.
  • Vario-Lock Positioning: Rotates and locks the chisel into 12 distinct positions to optimize the working angle.
  • Auto-Max Dial: Variable-speed control dial ensures maximum speed and power is delivered every time the tool is started.
  • Service Minder Light: Indicator illuminates when preventative maintenance is due, minimizing unexpected downtime.
  • Integral Clutch: Safety feature disengages torque if the bit binds, protecting the user and the tool.

What's Included

  • (1) 11265EVS Spline 1-5/8 In. Combination Hammer
  • (1) Auxiliary Side Handle
  • (1) Grease Tube for maintenance
  • (1) Durable Carrying Case

Specifications

Model 11265EVS
Amperage 13.0 Amps
Impact Energy (EPTA) 6.5 Ft.-Lbs.
Chuck Type Spline Drive
Max Hole Diameter (Concrete) 1-5/8 In.
Max Core Bit Diameter 4-1/8 In.
No Load BPM (Blows Per Min) 1,700 – 2,900
No Load RPM 170 – 340
Weight 15.1 lbs
Voltage 120V
Dimensions (L x H) 19.25 in. x 10.5 in.
Variable Speed Control Yes (Auto-Max Dial)
Pro Tip:

When using the hammer-only (chipping) mode, utilize the 12-position Vario-Lock to angle the chisel bit correctly for the application—a flatter angle is best for sweeping floors or breaking up asphalt, while a sharper angle is necessary for breaking down vertical concrete walls. Always apply fresh grease from the included tube to the spline shank before use to ensure optimal impact transmission and extend the life of your bits.
