Bosch Router 1617EVSPK 2.25 HP Corded Variable Speed Kit (12 Amp Motor Plunge Fixed Base Woodworking Edge Forming Joinery)

Only 2 left
SKU: 1617EVSPK
$279.00 USD

Description

Bosch Promotional Logo Logout

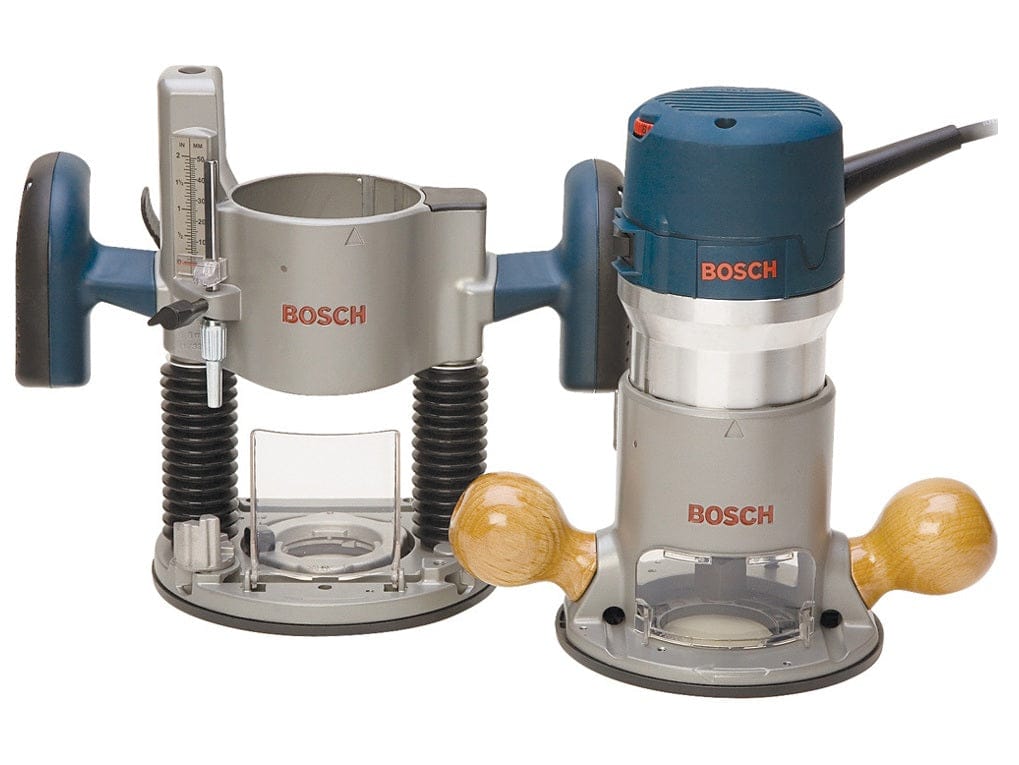

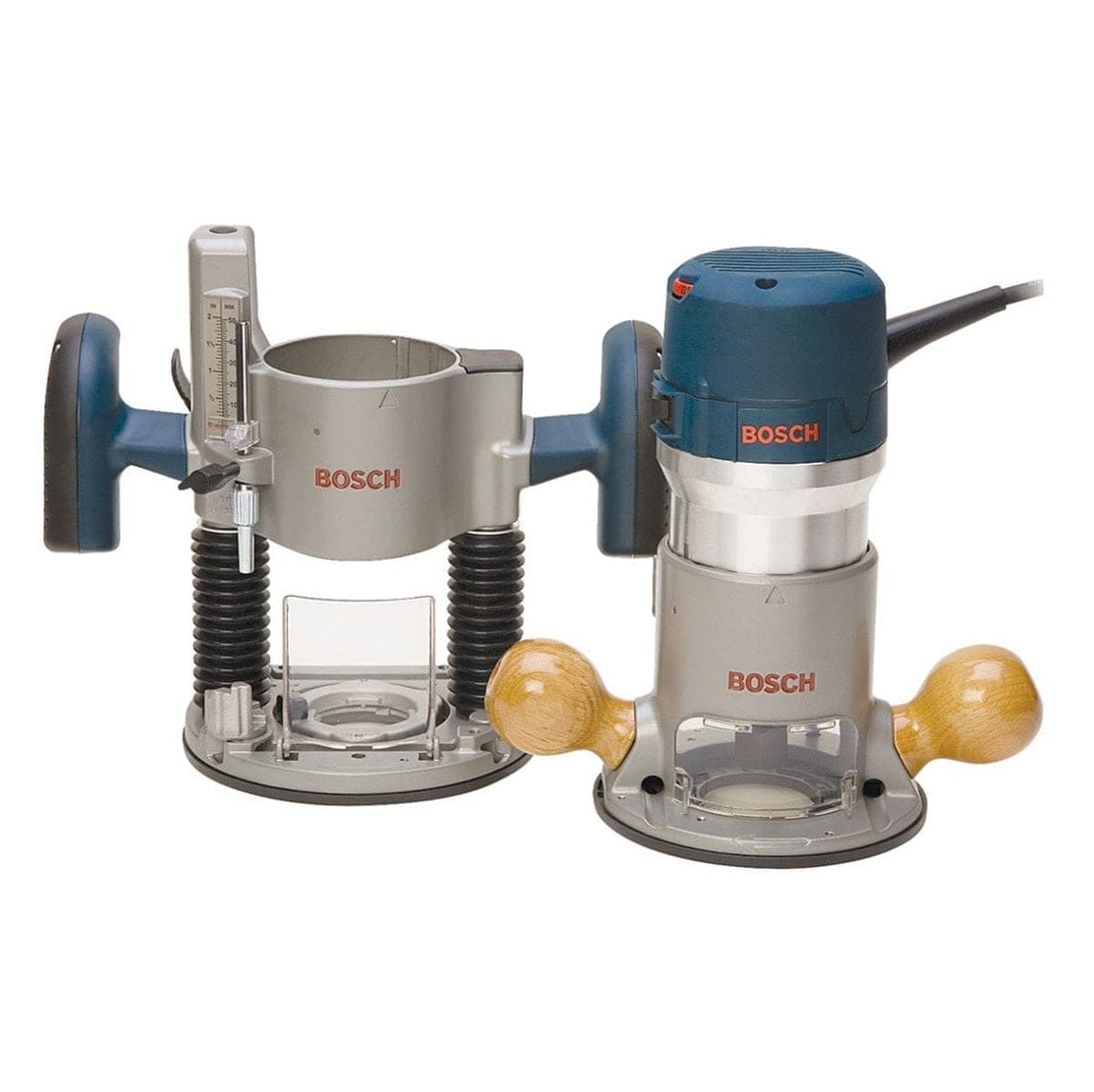

Bosch 1617EVSPK 12 Amp 2.25 HP Corded Variable Speed Plunge and Fixed Base Router Kit

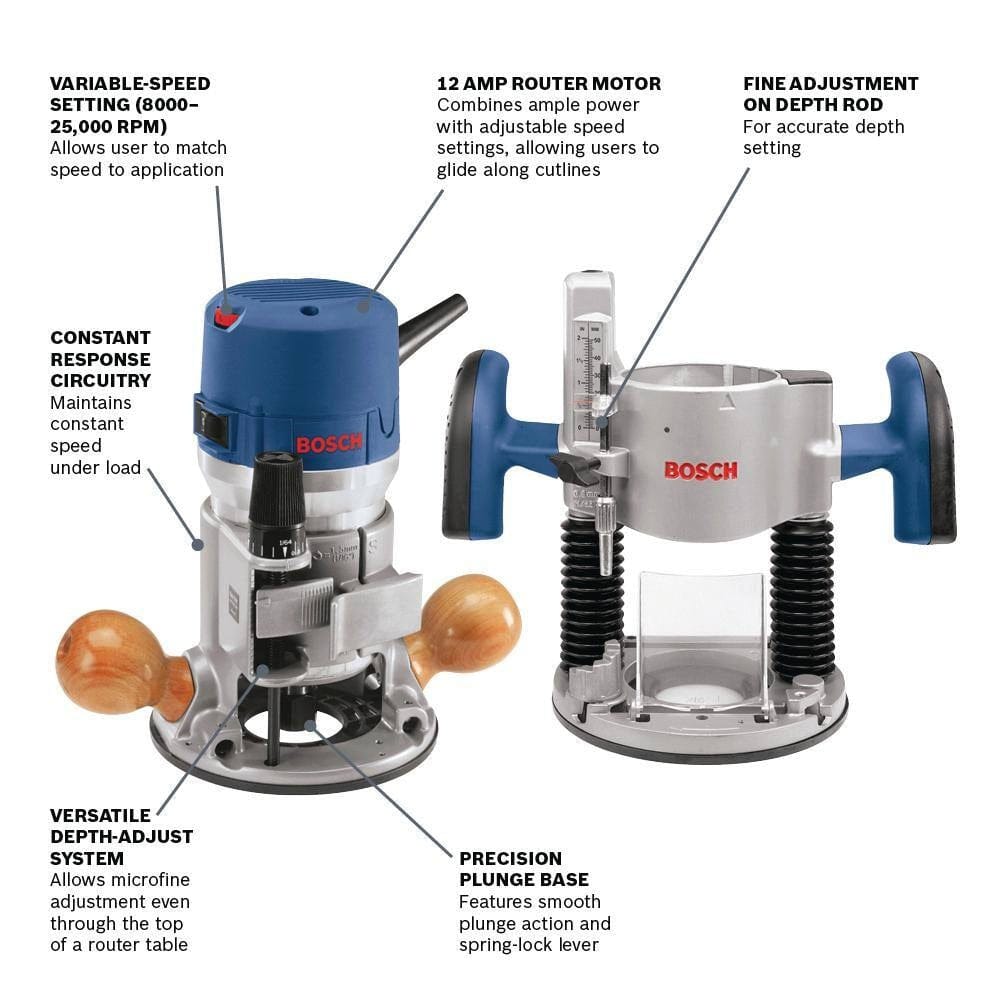

The Bosch 1617EVSPK 12 Amp Electronic Router Kit is a professional woodworking power tool engineered for precision edge profiling, template routing, and mortise joinery. Driven by a robust 12-amp motor producing a 2.25 HP peak output across a variable speed range of 8,000 to 25,000 RPM, this dual-base system includes both plunge and fixed bases for maximum shop versatility. Outfitted with Constant Response circuitry to maintain constant speed under load, microfine depth adjustment controls, and a dust-sealed power switch, this kit delivers exceptional routing accuracy across hard and soft wood materials.

Best Used For:

  • Precision Edge Profiling & Shaping: Forming decorative edges, rabbets, and dados on hardwood panels using fixed or plunge base configurations.

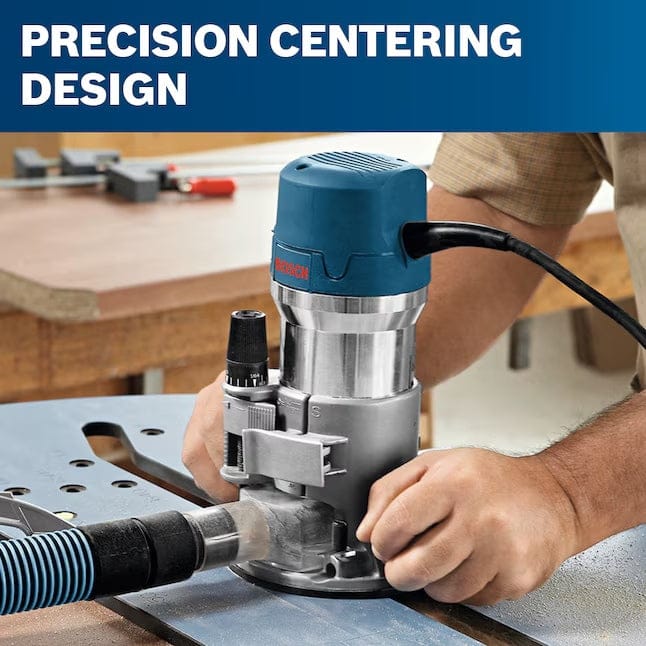

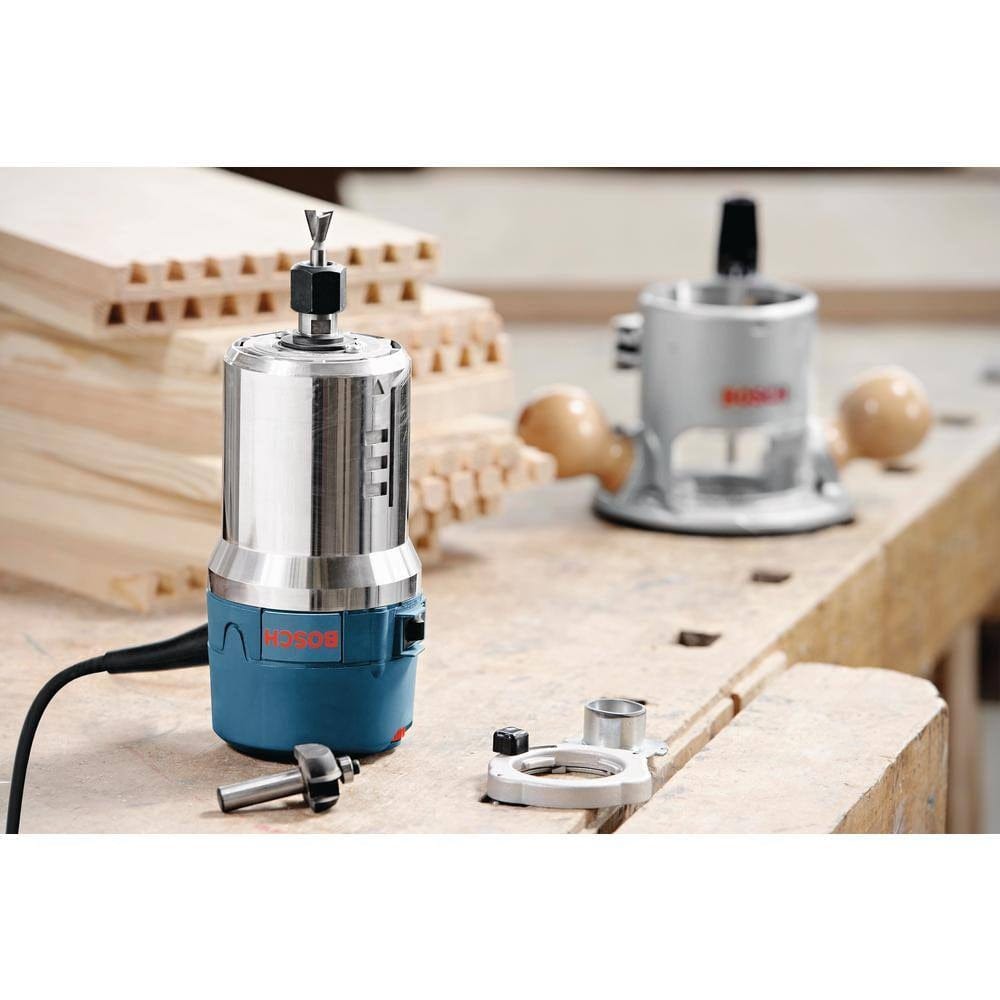

  • Template Routing & Joinery Work: Executing clean template guide cuts and dovetail joints using precision-centering sub-bases and microfine depth adjustments.
  • In-Table Router Mounting: Mounting the motor and fixed base into dedicated router tables using the above-table height adjustment system and standard three-hole pattern.

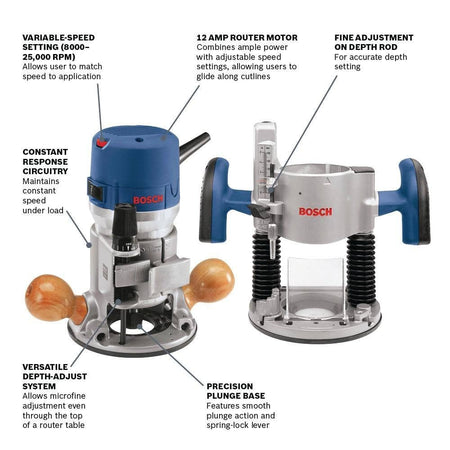

Key Performance & Safety Features

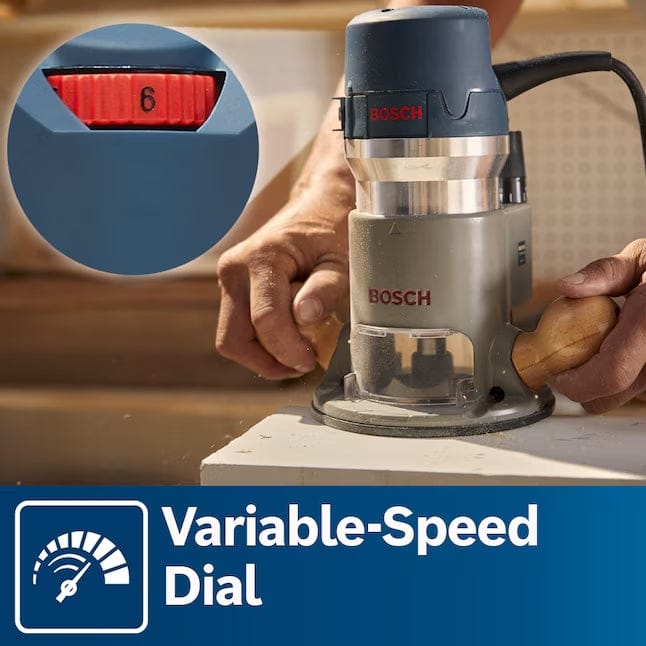

  • 12 Amp Motor Performance: Delivers 2.25 HP peak power and variable speeds from 8,000 to 25,000 RPM to handle demanding wood routing tasks.

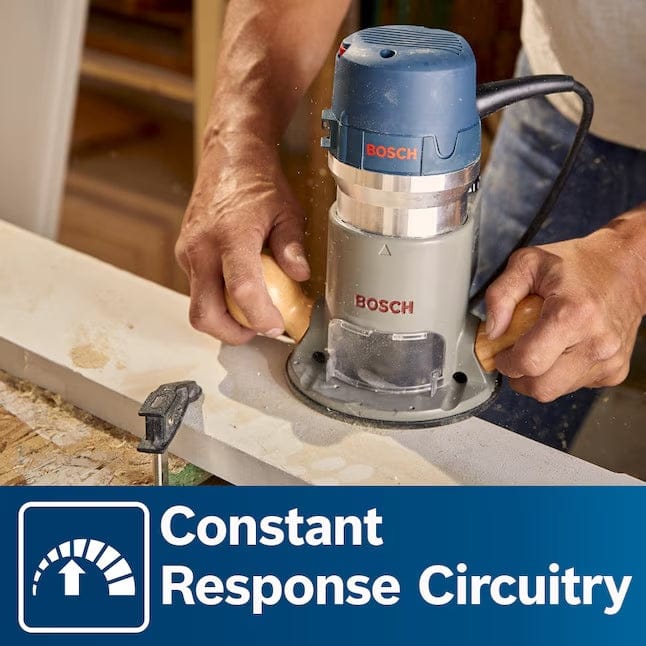

  • Constant Response Circuitry: Monitors and maintains consistent speed under load to prevent bogging down while feeding through dense stock.

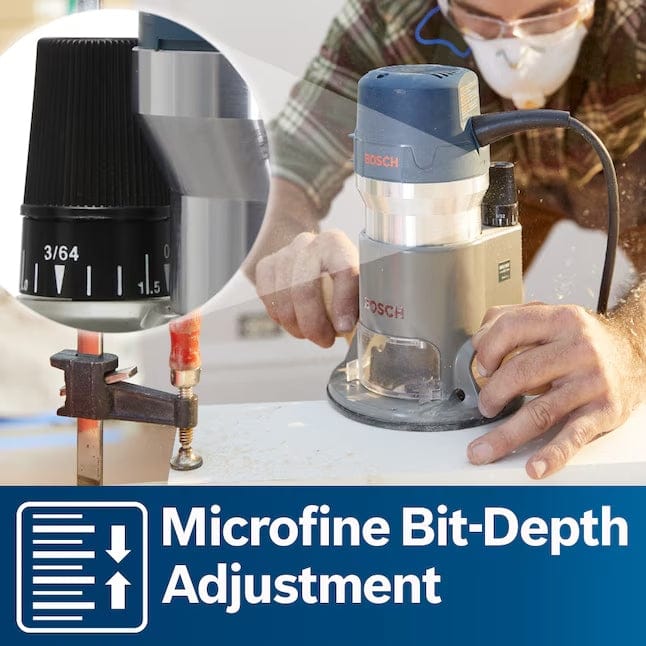

  • Microfine Depth Adjustment: Provides precise bit-depth control on both plunge and fixed bases for exact routing depths.
  • Dust-Sealed Power Switch: Protects internal electrical components from wood dust and debris accumulation to extend operational lifespan.
  • Above-Table Height Adjustment: Allows quick and easy bit height changes from above the table when mounted in a router table setup.
  • Double-Insulated Motor Housing: Enhances electrical safety isolation for professional operators on the jobsite.

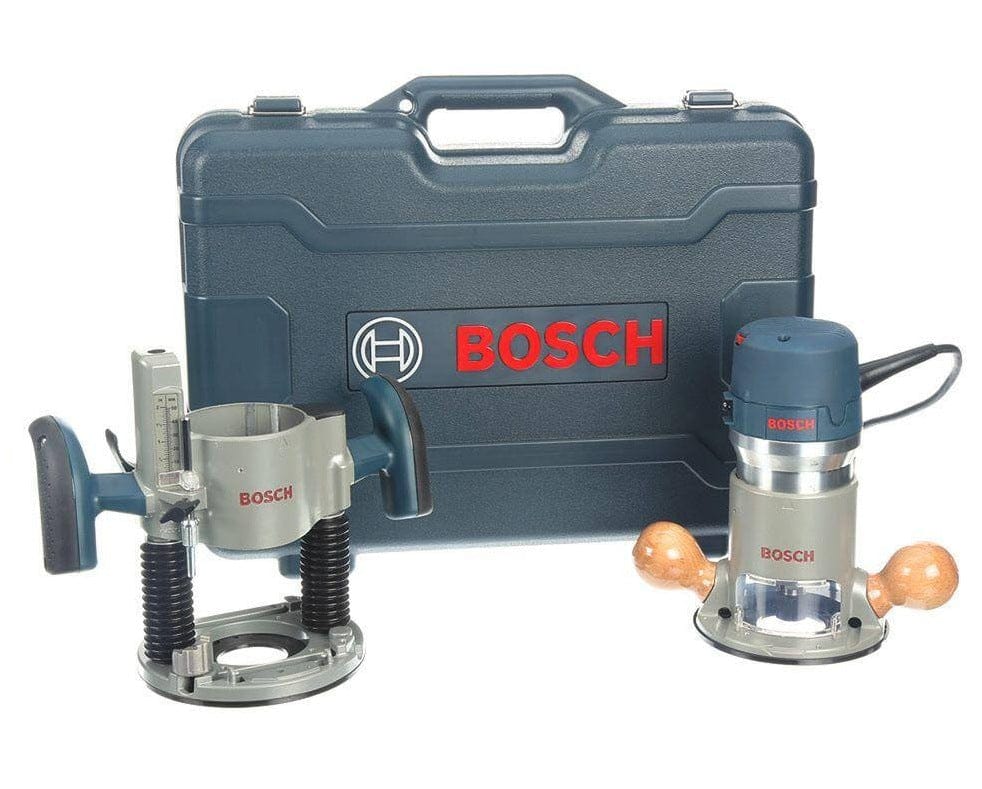

What's Included

  • (1) Motor
  • (1) Fixed Base (RA1161)

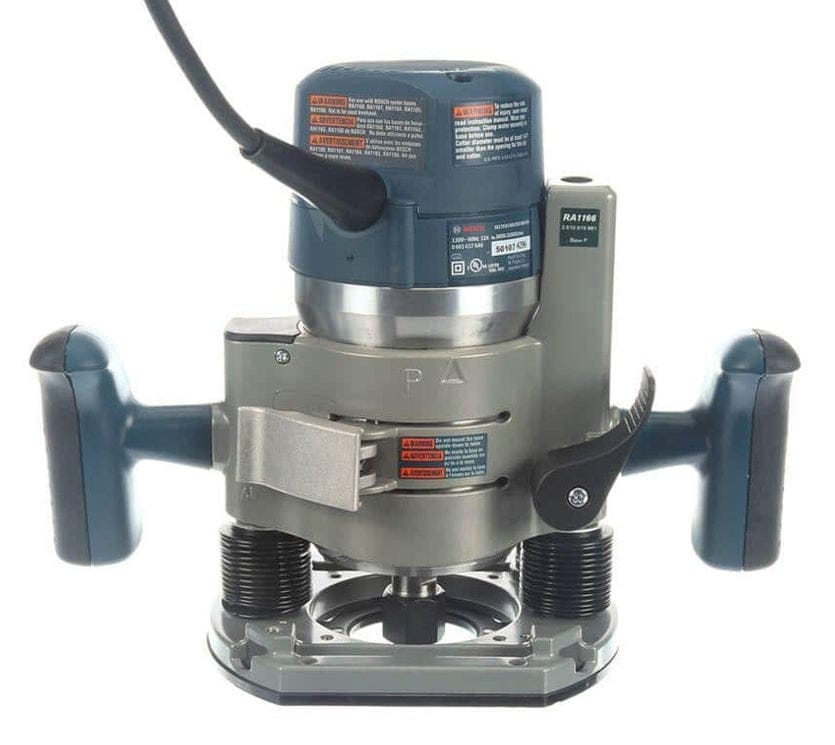

  • (1) Plunge Base (RA1166)
  • (1) 1/4" Self-Releasing Collet Chuck
  • (1) 1/2" Self-Releasing Collet Chuck
  • (1) 16mm Shaft Wrench
  • (1) 24mm Collet Nut Wrench
  • (1) Fixed Base Chip Shield
  • (1) Plunge Base Chip Shield
  • (1) T-Handle Hex Height Adjustment Wrench
  • (1) Pack of 3 10-24 Screws for Table Mounting
  • (1) Hard Carrying Case

Technical Specifications

Brand / Manufacturer Bosch
Model / Part Number 1617EVSPK
Motor Power Rating 2.25 HP (Peak Horsepower)
Electrical Amperage & Voltage 12.0 Amps @ 120V AC / 60 Hz
No-Load Speed Range 8,000 – 25,000 RPM (Variable Speed Dial)
Plunge Depth Capacity 2.25 in. (57.15 mm / 2-1/4 in.)
Fixed-Base Depth Range 1.625 in. (41.27 mm / 1-5/8 in.)
Collet Capacity Options 1/4 in., 3/8 in., 1/2 in., and 8 mm Collets
Base Plate Diameters 6.0 in. (Fixed) / 6.6875 in. (Plunge)
Tool Net Operating Weight 10.0 lbs (4.54 kg)
Tool Physical Dimensions 6.0 in. x 11.5 in. x 11.625 in.
Pro-Tip: Feed the router against the direction of bit rotation when routing external workpiece edges; this counter-forces prevents the router from wandering and ensures a clean, splinter-free cut.
