Bosch Diamond Blade DB1465S 14 Inch Segmented Asphalt Green Concrete Cutting (5500 Max RPM High Speed Saw Power Cutter Attachment)

Bosch DB1465S 14-Inch Segmented Diamond Power Cutter Blade for Asphalt and Green Concrete

The Bosch DB1465S 14-Inch Segmented Diamond Blade is an industrial abrasive material cutting disc engineered for high-speed wet and dry cutting through asphalt, uncured green concrete, and soft brick. Rated for a maximum operating speed of 5,500 RPM, this 0.118-inch thick power cutter disc incorporates a tensioned steel core to eliminate blade wobble and deep segment gullets to eject slurry while cutting expansion joints. Featuring a universal 1-inch and 20mm arbor configuration, this heavy-duty blade mounts onto handheld gas cut-off saws, walk-behind concrete saws, and large circular saws for road repair and utility trenching.

Best Used For:

• Asphalt Pavement & Utility Trenching: Sawing clean, straight expansion joint borders and trench lines in asphalt roadways and parking lots.
• Green Concrete Expansion Joint Cutting: Cutting contraction control joints in freshly poured green concrete slabs before stress cracking occurs.
• Abrasive Soft Masonry Sawing: Trimming soft brick, lime-sand blocks, and cinder blocks without premature diamond segment glazing.

Key Performance & Safety Features

• Slurry-Clearing Segmented Rim: Deeply notched segment gullets expel abrasive asphalt slurry and concrete dust to prevent blade binding and core undercut.
• Industrial Hard-Bond Diamond Matrix: Hardened bond formula retains diamond grit when cutting highly abrasive aggregates and un-cured concrete sand.
• Tensioned High-Strength Steel Core: Stiffened center disc absorbs high operating torque at 5,500 RPM to maintain straight cut alignment.
• Dual 1-Inch and 20mm Arbor Bushing: Universal arbor system fits standard 1-inch and 20mm drive arbors on gas cut-off saws and walk-behind saws.
• Wet and Dry Cutting Flexibility: Formulated to operate under continuous water spray cooling or dry jobsite cutting conditions.
• Color-Coded Material Identification: Visual color-coding system ensures rapid blade selection for soft abrasive material applications.

What's Included

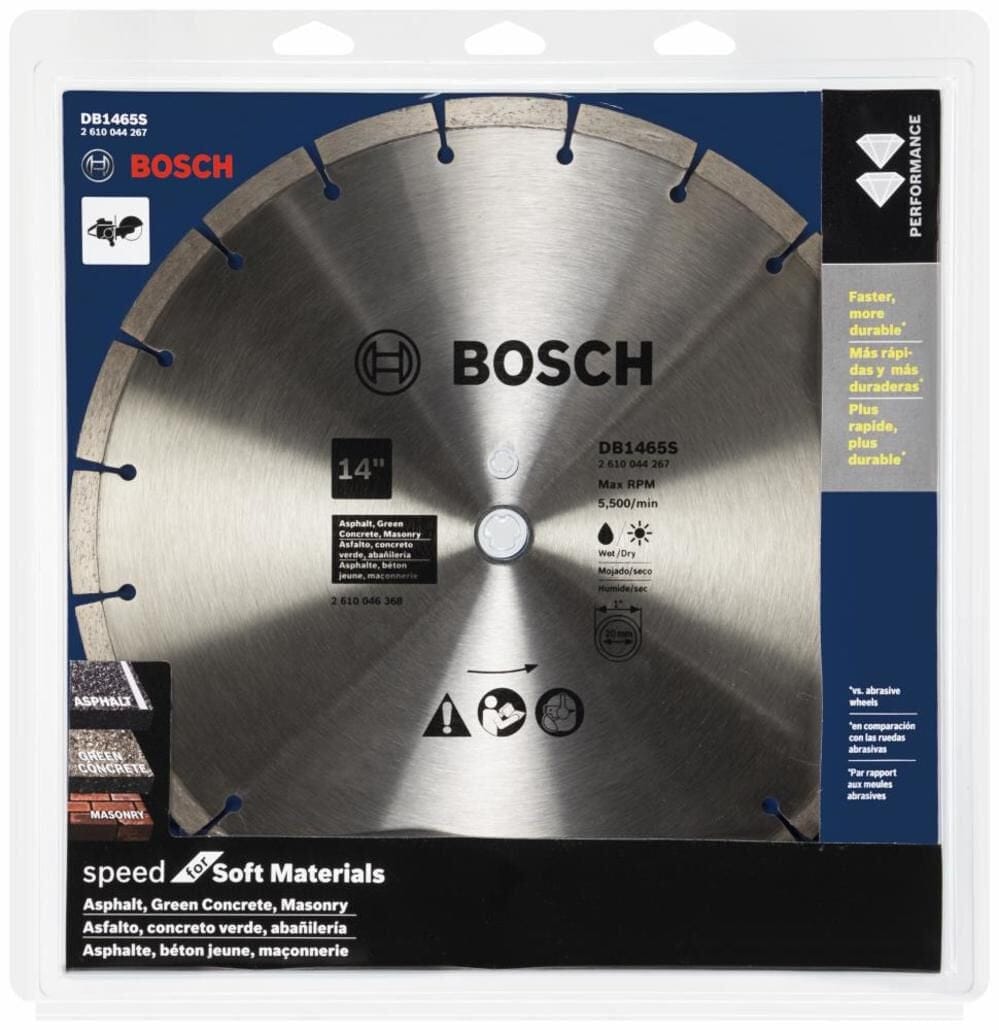

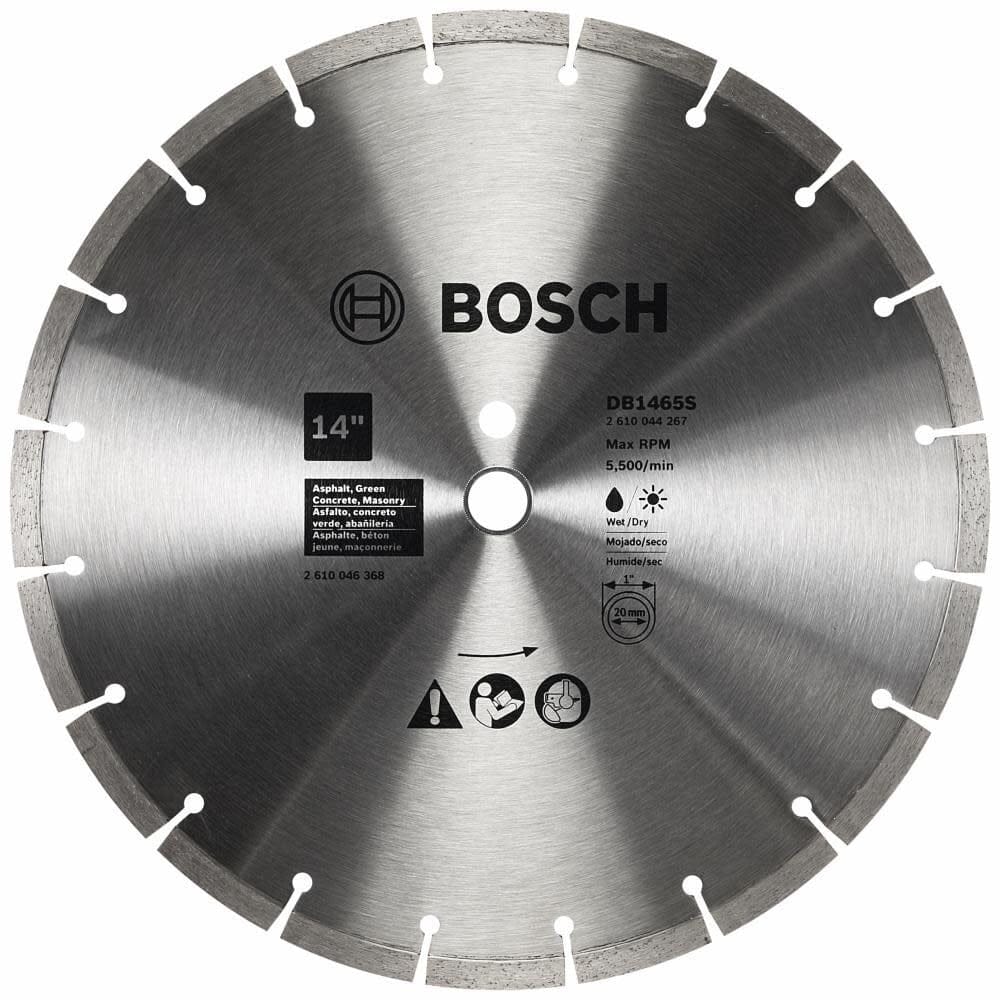

• (1) Bosch DB1465S 14-Inch Segmented Rim Diamond Blade
• (1) 20mm to 1-Inch Arbor Reduction Adapter Bushing

Technical Specifications

Pro-Tip: Always use water cooling when sawing asphalt or green concrete to flush out soft sticky slurry, preventing the abrasive slurry from undercutting the steel core weld below the diamond segments.
