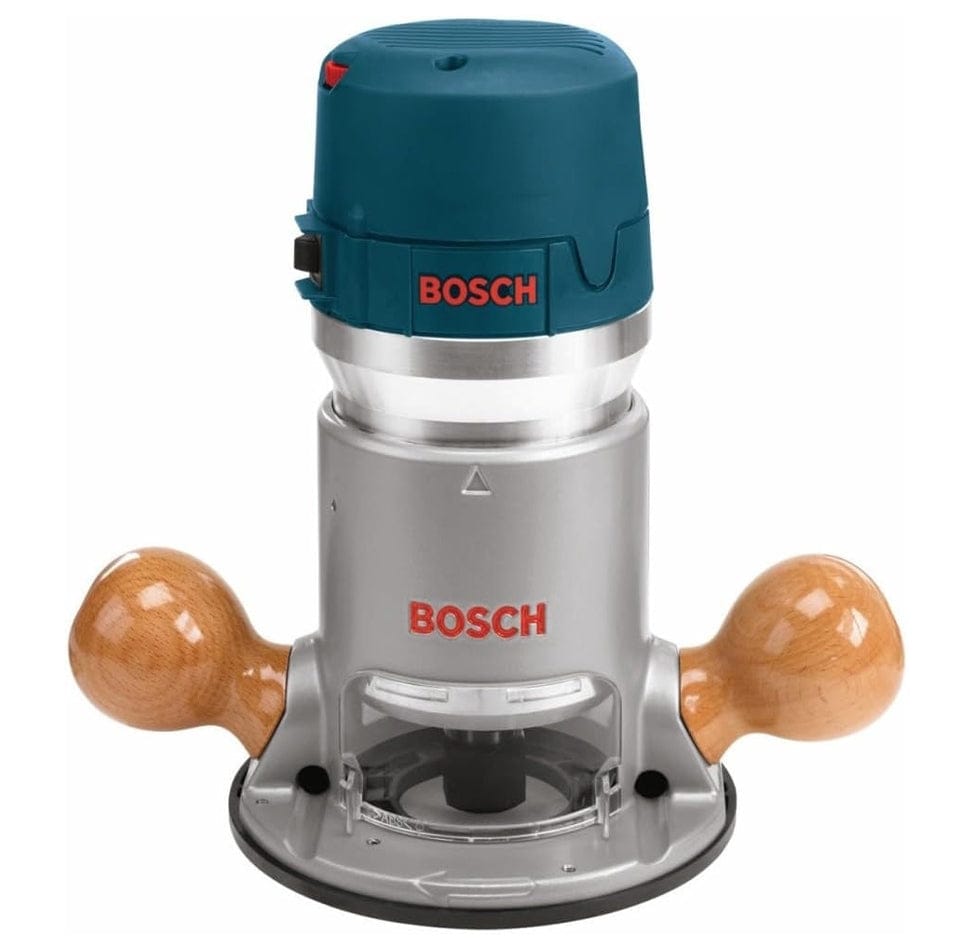

Bosch 1617EVS-46 2.25 HP electronic fixed-base router featuring a blue motor housing, durable silver metal base, and classic ergonomic hardwood handles for professional woodworking.

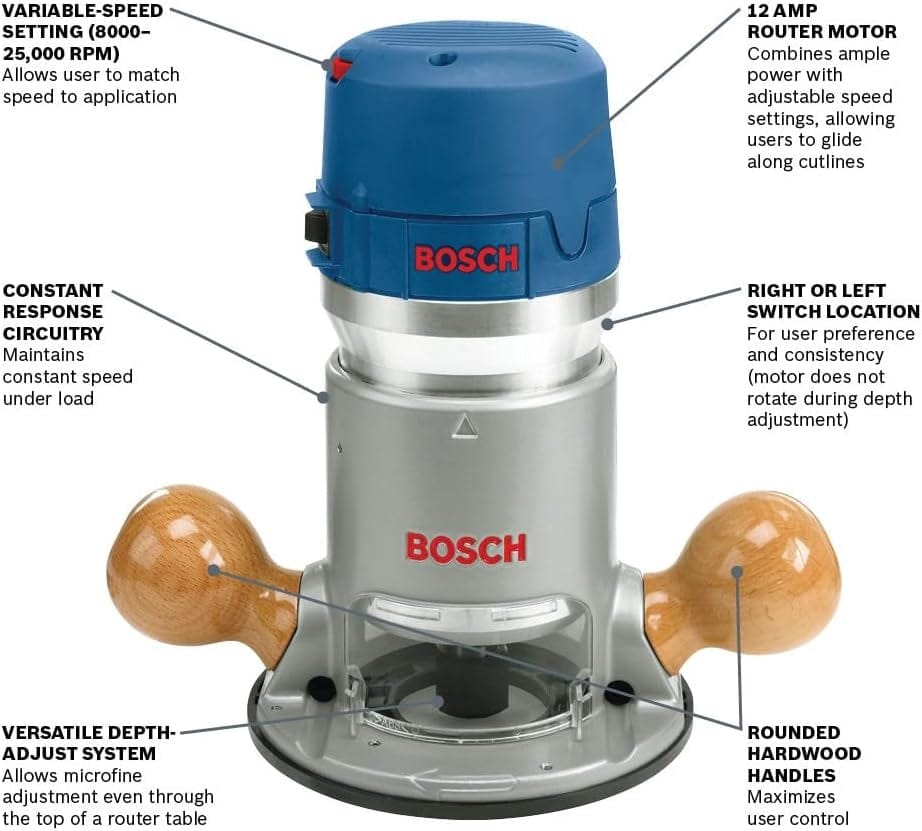

Detailed infographic of the Bosch 1617EVS router highlighting a 12 Amp motor, variable-speed dial from 8,000 to 25,000 RPM, constant response circuitry, and a microfine depth-adjustment system.

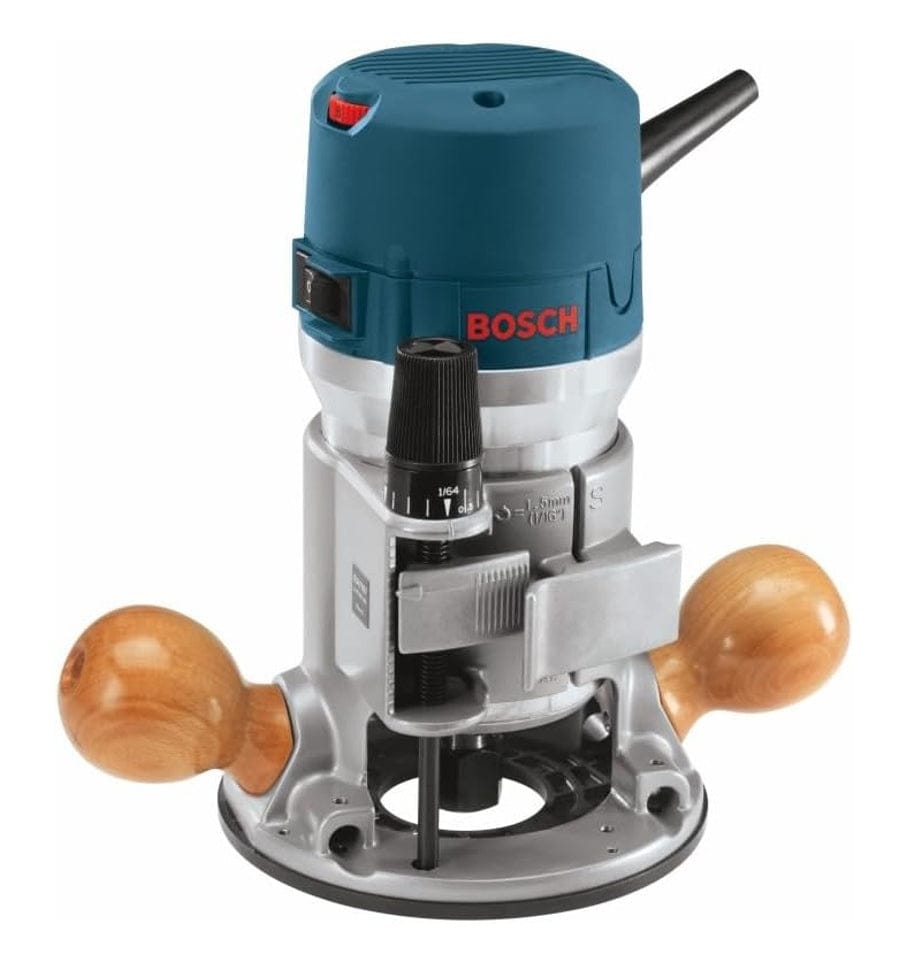

Three-quarter perspective of the Bosch 1617EVS fixed-base router showcasing the microfine bit-depth adjustment knob, base clamp mechanism, and precision-centered design for wood milling.
Included accessories for the Bosch router kit including a 1/4 inch and 1/2 inch self-releasing collet chuck, two offset wrenches, and a T-handle hex height adjustment wrench.

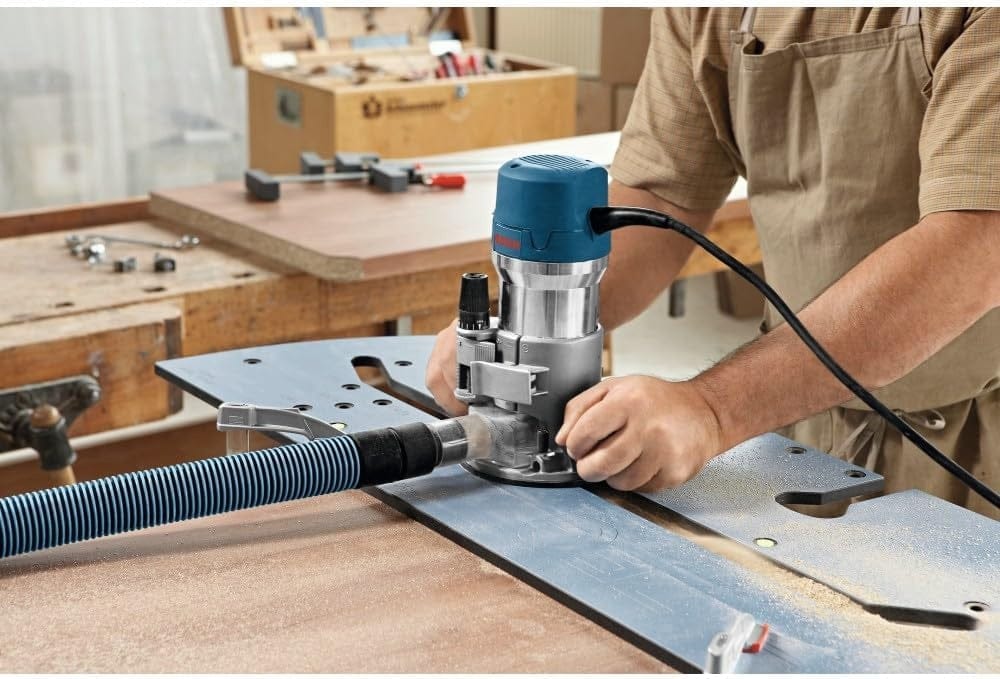

Professional action shot of a woodworker using the Bosch 1617EVS router on a workbench with a dust extraction hose to mill a precise groove along a large wooden board.

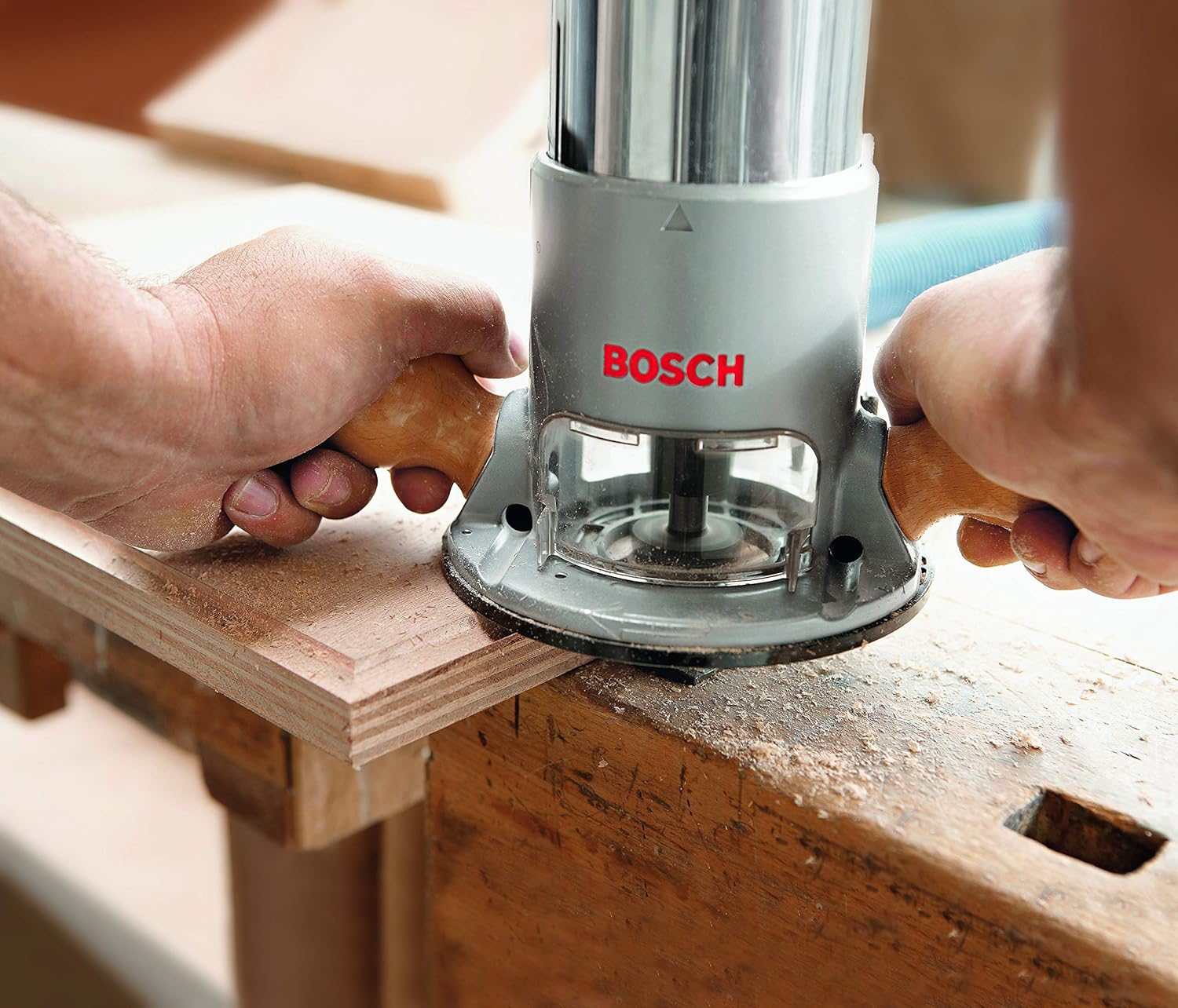

Close-up perspective of a woodworker’s hands gripping the hardwood handles of the Bosch 1617EVS router to perform a decorative edge routing pass on a thick piece of lumber.

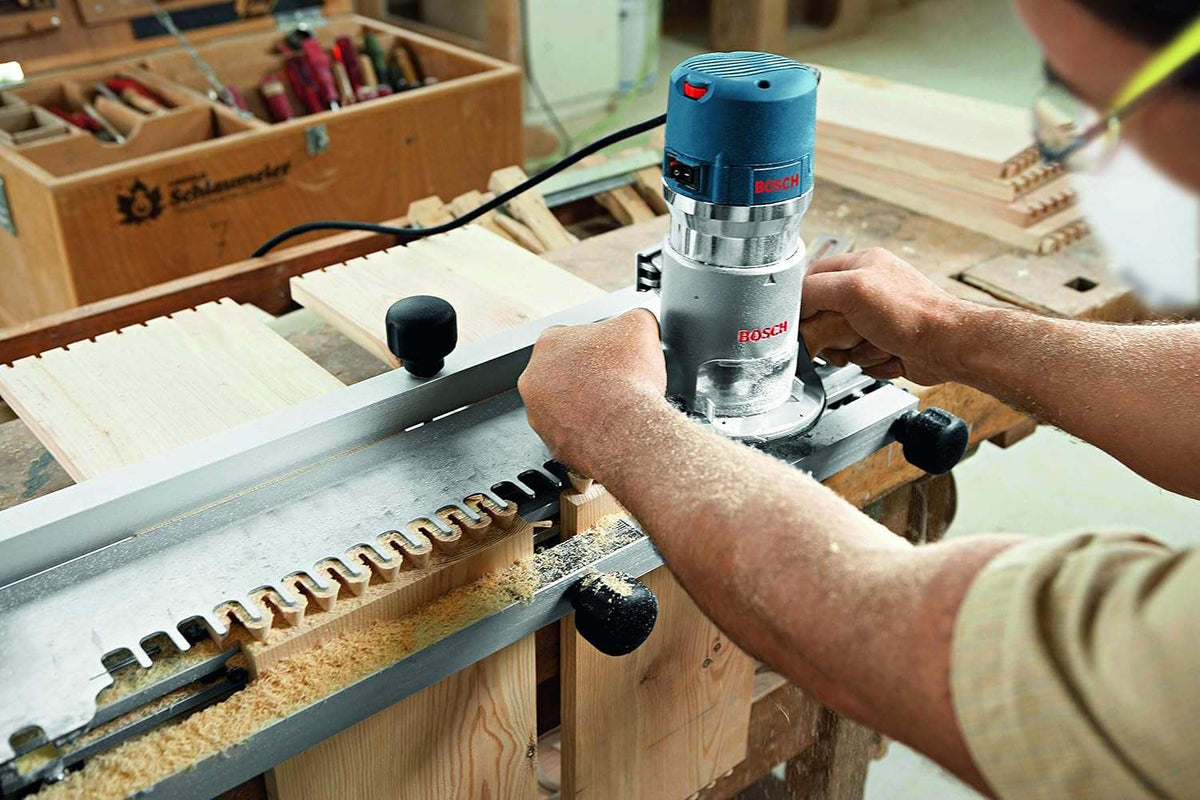

Construction professional using the Bosch 1617EVS-46 fixed-base router with a dovetail jig template to create high-quality interlocking wood joints for cabinetry.

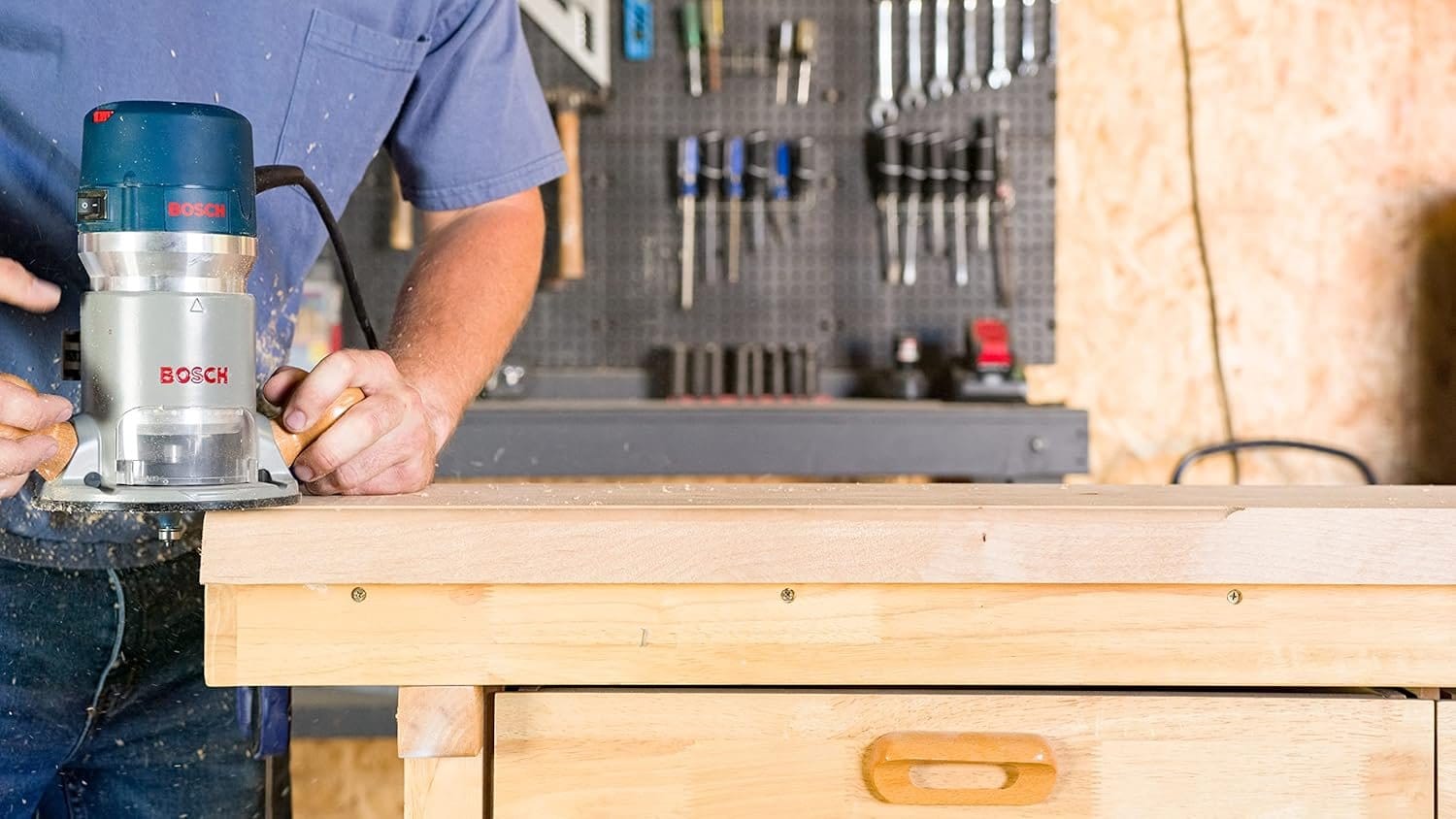

Action shot of a technician using the Bosch 2.25 HP corded router to trim the edge of a wood panel, illustrating the tool's stability and power for consistent edge-forming.

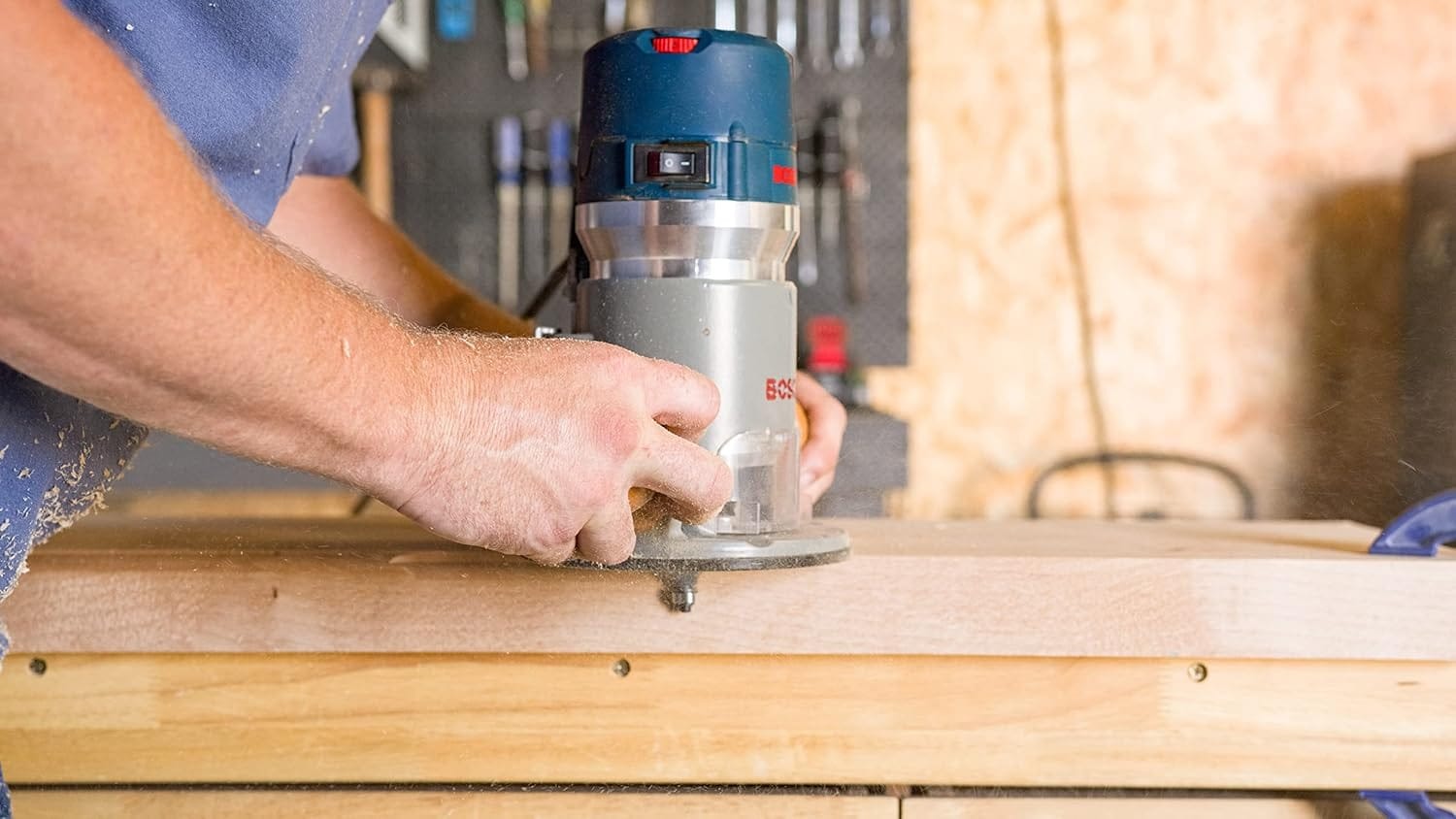

Side action view of the Bosch fixed-base router in operation on a workbench, highlighting the dust-sealed power switch and smooth glide across a hardwood surface.
Low-angle view showing the underside of the Bosch 1617EVS router base with a router bit installed, demonstrating precise bit positioning for edge-routing applications.

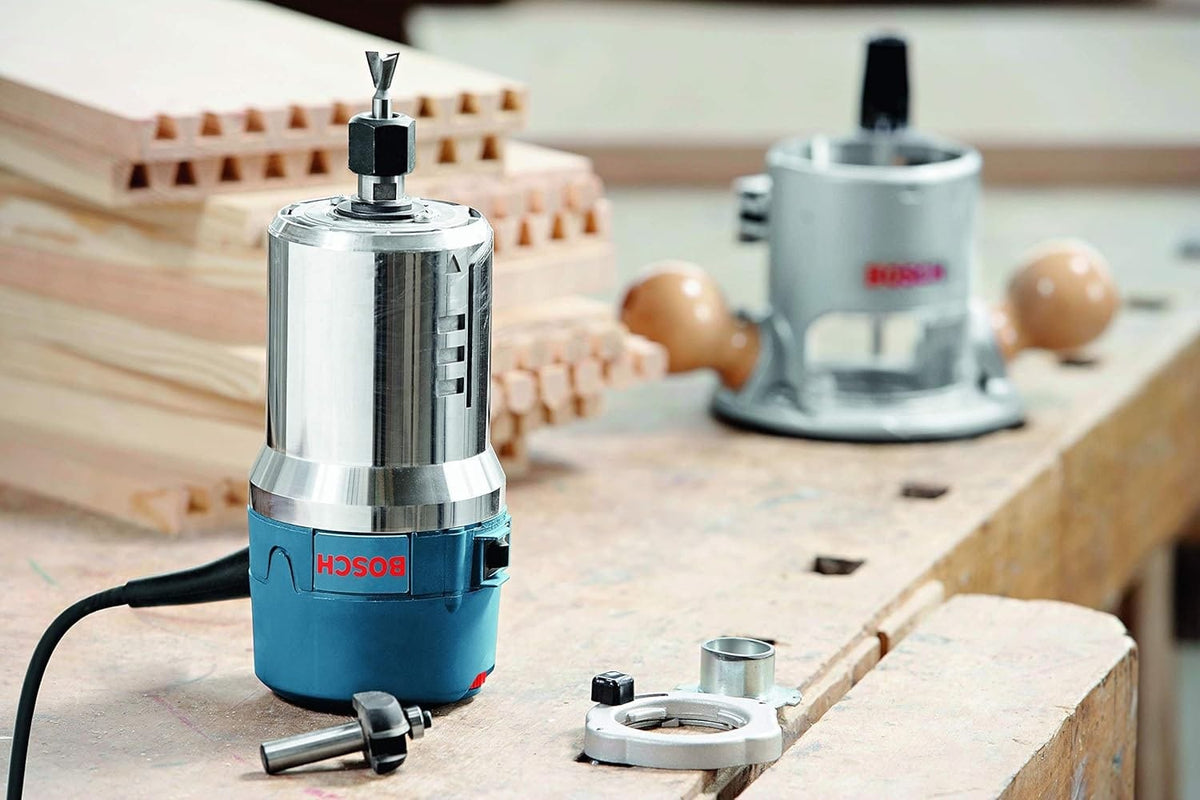

Studio shot of the Bosch 1617EVS motor unit removed from the fixed base, shown next to router bits and template guides on a professional woodworking bench.
Product feature graphic for the Bosch 1617EVS router summarizing technical advantages including soft start, constant speed response, and versatile depth-adjustment system.
Infographic explaining the Bosch reconditioning process, including expert disassembly, hand-restoration to pristine condition, and the official Bosch remastered stamp of approval.
Warranty information graphic stating that Bosch corded tools include a 1-year limited warranty, effective for products covered after June 1, 2023.
New Bosch Outdoor Power Equipment | Bosch WOC 2026 promotional video
Bosch 1617EVS-46 2.25 HP electronic fixed-base router featuring a blue motor housing, durable silver metal base, and classic ergonomic hardwood handles for professional woodworking.
Detailed infographic of the Bosch 1617EVS router highlighting a 12 Amp motor, variable-speed dial from 8,000 to 25,000 RPM, constant response circuitry, and a microfine depth-adjustment system.
Three-quarter perspective of the Bosch 1617EVS fixed-base router showcasing the microfine bit-depth adjustment knob, base clamp mechanism, and precision-centered design for wood milling.
Included accessories for the Bosch router kit including a 1/4 inch and 1/2 inch self-releasing collet chuck, two offset wrenches, and a T-handle hex height adjustment wrench.
Professional action shot of a woodworker using the Bosch 1617EVS router on a workbench with a dust extraction hose to mill a precise groove along a large wooden board.
Close-up perspective of a woodworker’s hands gripping the hardwood handles of the Bosch 1617EVS router to perform a decorative edge routing pass on a thick piece of lumber.
Construction professional using the Bosch 1617EVS-46 fixed-base router with a dovetail jig template to create high-quality interlocking wood joints for cabinetry.
Action shot of a technician using the Bosch 2.25 HP corded router to trim the edge of a wood panel, illustrating the tool's stability and power for consistent edge-forming.
Side action view of the Bosch fixed-base router in operation on a workbench, highlighting the dust-sealed power switch and smooth glide across a hardwood surface.
Low-angle view showing the underside of the Bosch 1617EVS router base with a router bit installed, demonstrating precise bit positioning for edge-routing applications.
Studio shot of the Bosch 1617EVS motor unit removed from the fixed base, shown next to router bits and template guides on a professional woodworking bench.
Product feature graphic for the Bosch 1617EVS router summarizing technical advantages including soft start, constant speed response, and versatile depth-adjustment system.
Infographic explaining the Bosch reconditioning process, including expert disassembly, hand-restoration to pristine condition, and the official Bosch remastered stamp of approval.
Warranty information graphic stating that Bosch corded tools include a 1-year limited warranty, effective for products covered after June 1, 2023.
New Bosch Outdoor Power Equipment | Bosch WOC 2026 promotional video
BOSCH

Bosch Fixed Base Router Kit 1617EVS-46 2.25 HP Woodworking Tool (12 Amp Variable Speed Constant Response Circuitry Core Mortising Edge Reconditioned)

In stock
SKU: 1617EVS-46
$219.00 USD

Description

Bosch Promtional Logo Logout

Professional 12 Amp Variable Speed Fixed Base Woodworking Router System

The Bosch 1617EVS-46 is an industrial-grade 12 Amp electronic fixed-base corded router kit delivering 2.25 horsepower to execute high-capacity plunging, mortising, profiling, and template-guided edge routing. Equipped with built-in Constant Response Circuitry, this advanced wood-milling system actively monitors torque demands to stabilize start-up rotation and maintain a consistent speed under heavy, dense load cycles. Operating across a variable threshold of 8,000 to 25,000 RPM, the tool incorporates a microfine depth adjustment assembly and an specialized precision centering architecture to lock sub-base alignment and completely eliminate path runout during high-stakes structural joinery operations.

Best Used For:

  • Structural Dovetail Milling: Executing ultra-clean, interlocking cabinet drawer joints inside dense hardwoods using dedicated jig assemblies.
  • Deep Wood Mortising: Hogging out high-volume mortise slots and deep architectural channels safely without motor drop-down or binding.
  • Template Guided Edging: Copying identical template framework profiles smoothly via the rigid precision centering sub-base layout.

Key Performance & Safety Features

  • Constant Response Circuitry: Electronic internal monitor dynamically regulates power feed to maintain continuous angular velocity under dense resistance.
  • Precision Centering Architecture: Specialized structural alignment design locks matching bits exactly to the axis center for zero-error template routing.
  • RA1161 Fixed Base Module: Includes an integrated sub-base system engineered specifically for vertical micro-depth adjustments from above a router table surface.
  • Microfine Depth Calibration: Features a macro-to-micro click ring tracking mechanism to provide crisp, instantaneous linear depth modifications.
  • Dust-Sealed Power Switch: Critical electronic component barrier intercepts airborne fine wood flour to optimize electrical switch lifecycle metrics.
  • One-Piece Armature Spindle: Unified precision ground drive shaft yields maximum concentricity to reduce mechanical runout and tool chattering.

Note: This is a manufacturer-reconditioned tool, certified to look and perform like new.

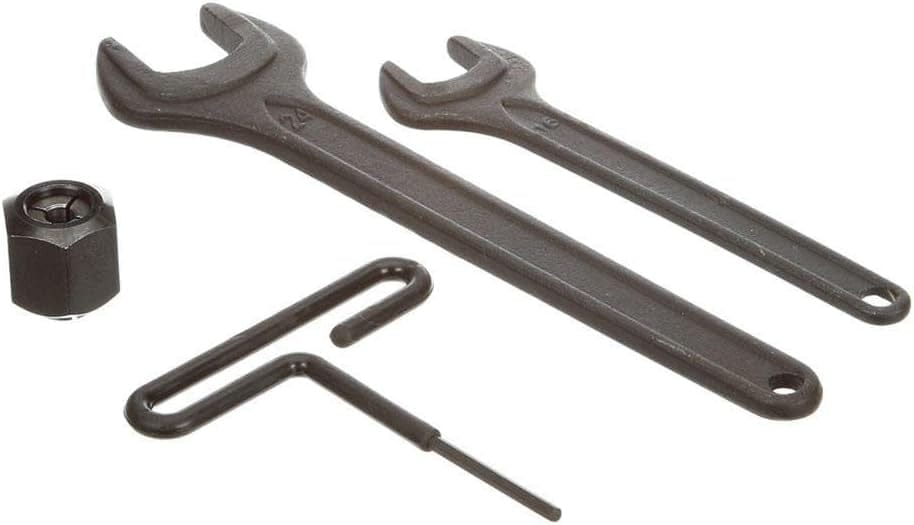

What's Included

  • (1) 1617EVS 12 Amp Variable Speed Router Motor
  • (1) RA1161 Fixed Base with Above-Table Adjustment Capability
  • (1) 1/4" Self-Releasing Collet Chuck
  • (1) 1/2" Self-Releasing Collet Chuck
  • (1) 16mm Shaft Wrench
  • (1) 24mm Collet Nut Wrench
  • (1) T-Handle Hex Height Adjustment Wrench
  • (1) Clear Impact-Resistant Chip Shield
  • (1) Structural Table-Mounting Bolt Pack (3 Count, 10-24 Thread)

Technical Specifications

Brand Name: Bosch
Model Number: 1617EVS-46
Motor Output Capacity: 2.25 HP
Amperage Draw Rating: 12.0 A
Electrical Input Voltage: 120V AC Standard Line Power
No Load Speed Window: 8,000 – 25,000 RPM (Dial Variable)
Collet Compatibility Array: 1/4 in. / 3/8 in. / 1/2 in. / 0.315 in. (8mm)
Fixed-Base Structural Diameter: 6.0 in.
Fixed-Base Depth Stroke Range: 1.625 in.
Sub-Base Central Aperture Opening: 2.0 in.
Net Assembly Tool Weight: 8.3 lbs.
Tool Footprint Extent: 6.0" Length x 10.0" Width
Factory Calibration State: Manufacturer Reconditioned (Certified Performance Line)
Router Table Interface Support: RA1171, RA1180, RA1181, RA1182, RA1200 Industrial Platen Systems

Pro-Tip: When deploying this kit inside a router table via the RA1161 fixed base, routinely blow compressed air into the top adjustment access hole. Clearing fine dust fields from the internal microfine gear teeth blocks pitch binding and guarantees that your above-table hex height adjustment wrench rotates smoothly with zero resistance.
