Bosch Grinder Dust Shroud 2602025284 7 Inch Cutting Guide (1.37 In Vacuum Port Depth Stop Steel Shoe Concrete Masonry Silica Extraction Guard)

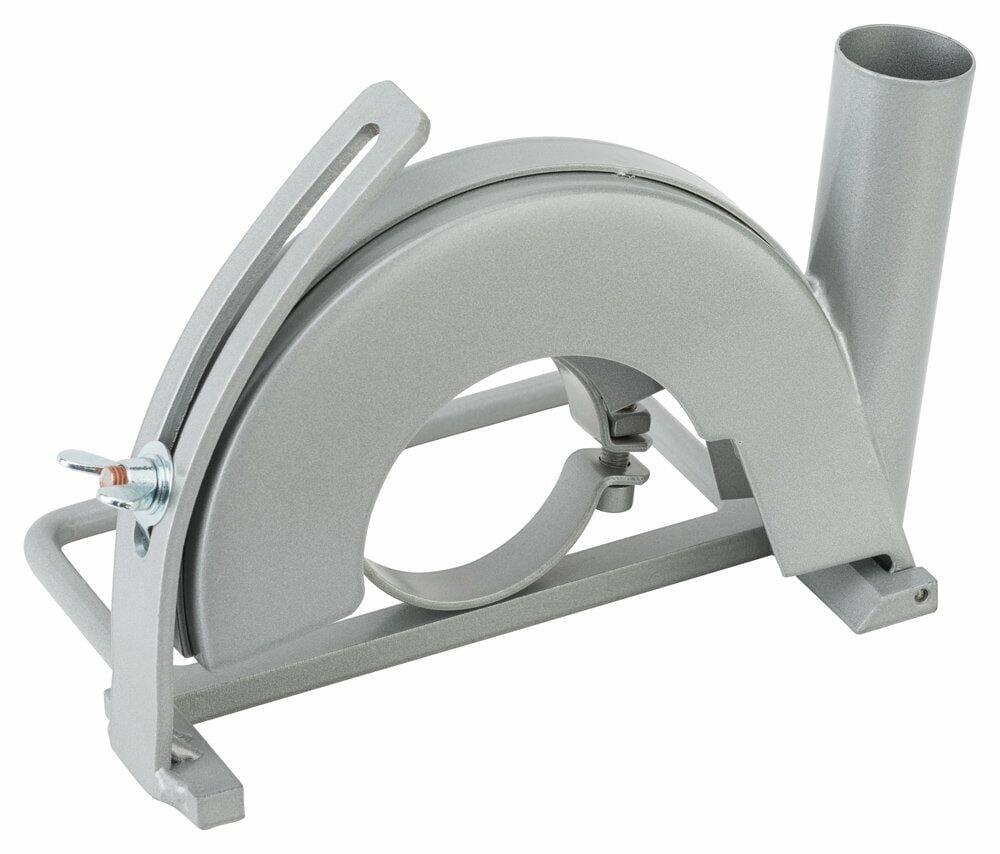

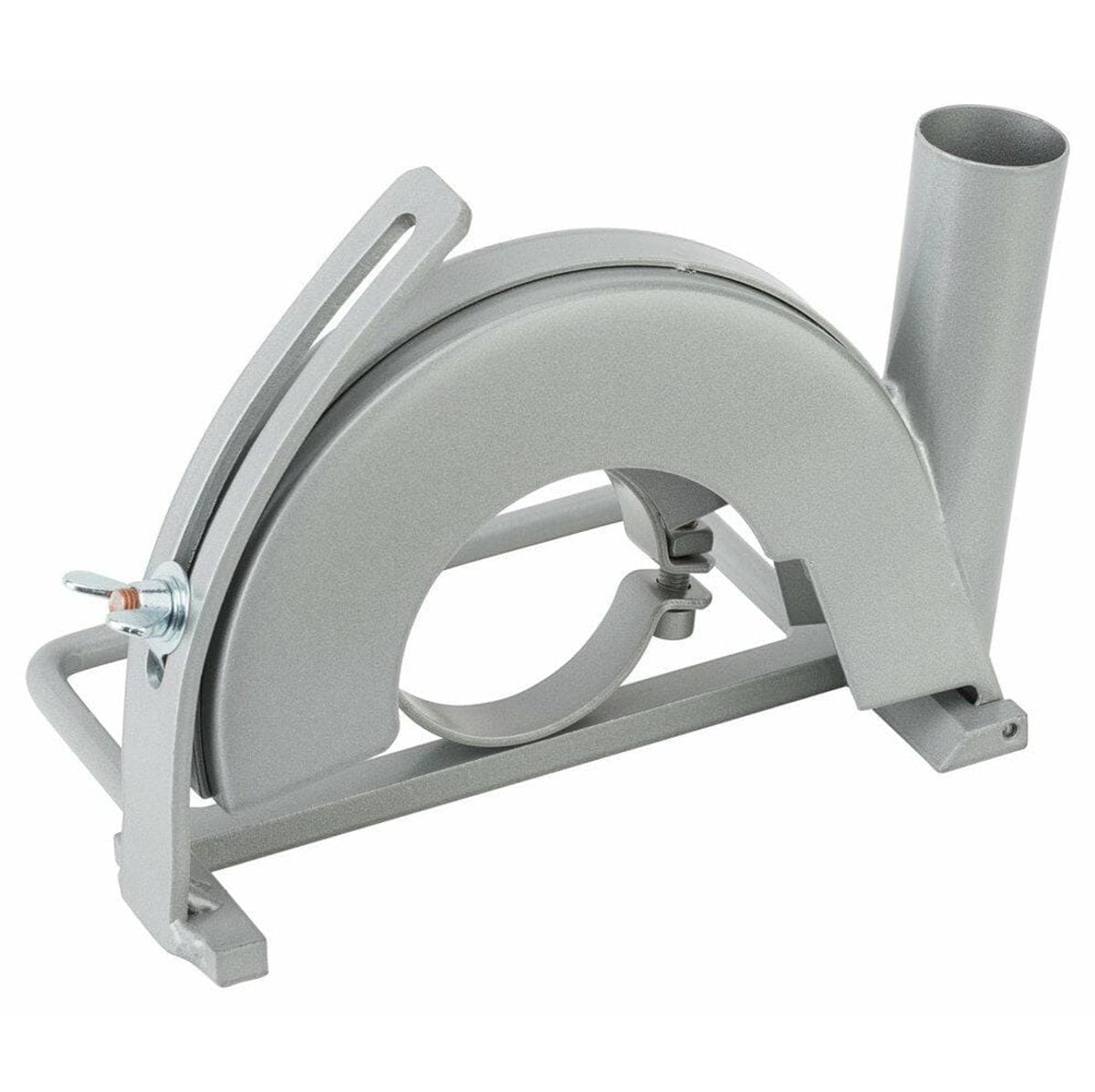

Bosch 2602025284 7" Large Angle Grinder Dust Collection Cutting Shroud

The Bosch 2602025284 7-inch dust collection cutting guide converts large angle grinders into precision, track-guided concrete and masonry slotting systems while capturing airborne crystalline silica particles at the source. Designed for heavy-duty slab cutting and foundation joint relief, this 2.1-lb attachment integrates a wide steel guide shoe that glides across flat masonry to ensure straight, wander-free tracking. Featuring a tool-free stepless depth-adjustment stop, an angled 1.37-inch (35mm) vacuum extraction port compatible with Bosch AIRSWEEP systems, and a dual-mount auxiliary side handle, it enables clean, OSHA Table 1 compliant cutting across cured concrete slabs, architectural stone, brick mortar joints, and pavers.

Best Used For:

• Concrete Slab Control Joint Scoring: Guiding 7-inch diamond blades along chalk lines on cured warehouse slabs to execute clean, straight contraction joints without dust clouds.
• Interlocking Paver and Brick Sizing: Slicing dense architectural pavers, retaining wall caps, and common clay brick on dry outdoor jobsites with active vacuum extraction.
• Edge-Close Masonry and Curb Trenching: Operating right alongside vertical perimeter walls and concrete curbing using the streamlined, angled suction port profile.

Key Performance & Safety Features

• OSHA Silica Dust Compliance: Captures respirable crystalline silica particulates directly at the cutting wheel edge when paired with an industrial HEPA dust extractor.
• Precision Stepless Depth Stop: Single-action tool-free adjustment knob allows operators to set and maintain consistent cutting depths for repeatable trenching.
• Wide Structural Steel Guide Shoe: Heavy-gauge flat footplate stabilizes the grinder against the substrate to prevent blade twisting and uneven kerfs.
• 1.37-Inch (35mm) AIRSWEEP Vacuum Port: Connects directly to standard 35mm vacuum hoses and extraction systems without requiring loose friction-fit adapters.
• Ambidextrous Auxiliary Handle Mounting: Threaded side handle can be secured on the left or right side to give operators maximum control over grinder torque.
• Close-to-Wall Housing Geometry: Low-profile front and side contour enables flush and near-edge cutting passes next to foundation footings and obstructions.

What's Included

• (1) Bosch 2602025284 7-Inch Dust Collection Cutting Guide Shroud (19DC-7)
• (1) Ambidextrous Auxiliary Side Handle

Technical Specifications

Pro-Tip: Always power on your vacuum dust extractor prior to spinning up the angle grinder; establishing steady airflow through the shroud before plunging into concrete creates an instant vacuum seal that captures 99% of dust particles from the very first cut.
