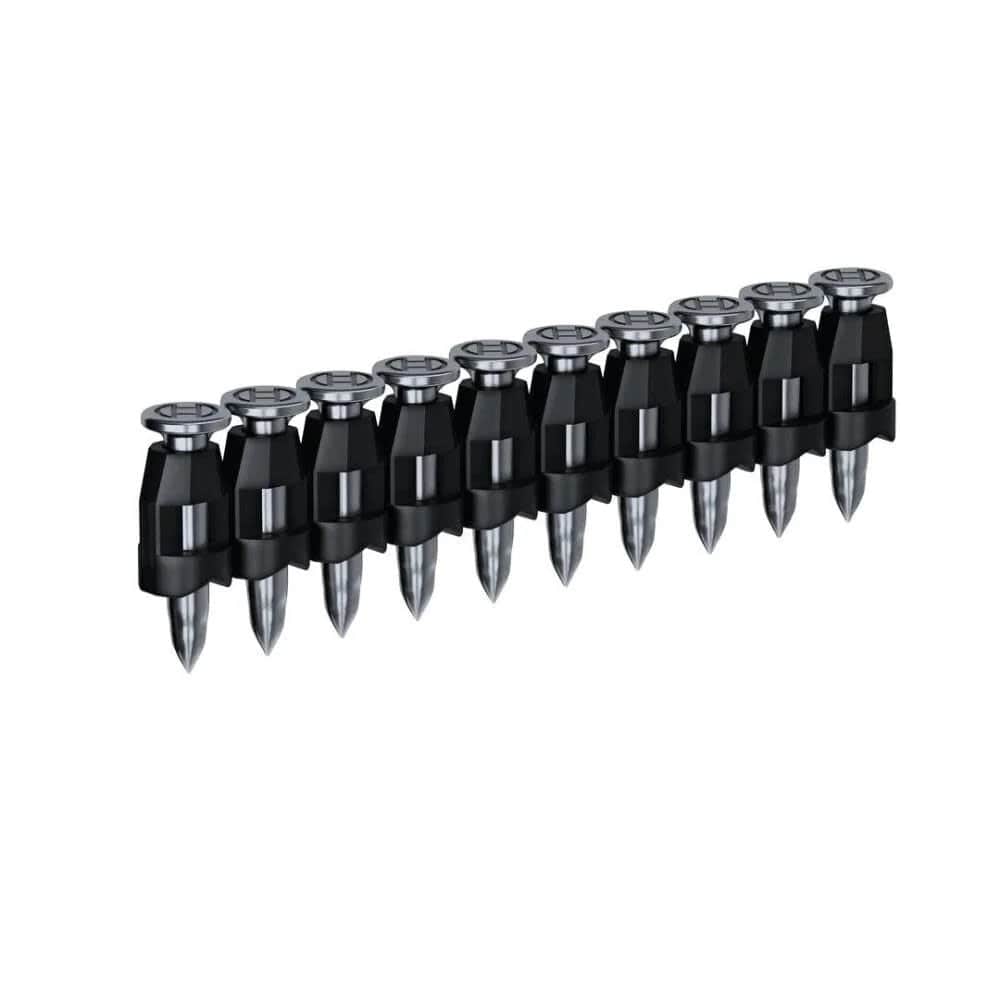

A studio photograph of a strip of 10 collated steel pin nails with full round heads featuring the Bosch logo, held together by a black plastic collation strip.

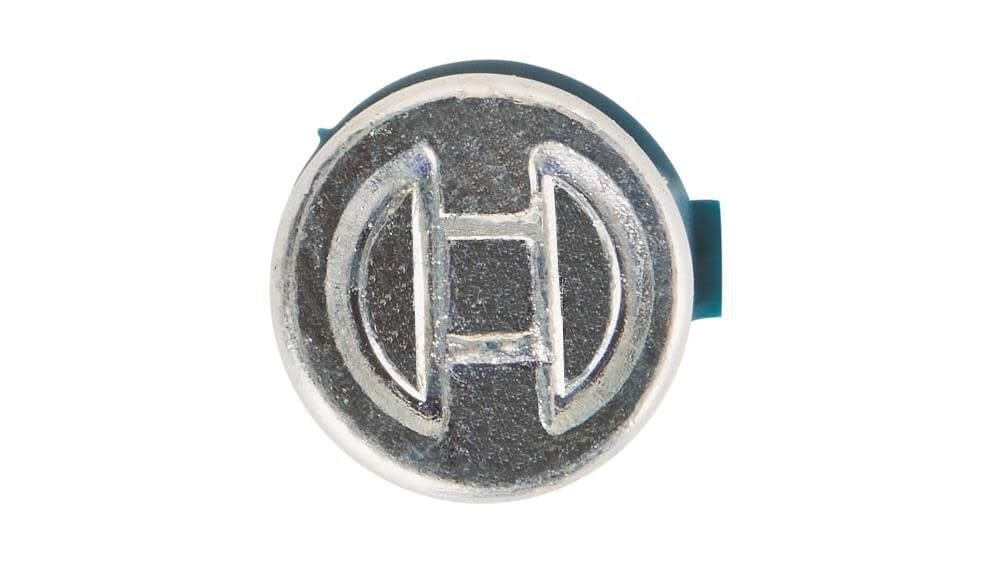

A close-up studio photograph of the full round head of a single steel pin nail, prominently featuring the embossed Bosch logo.

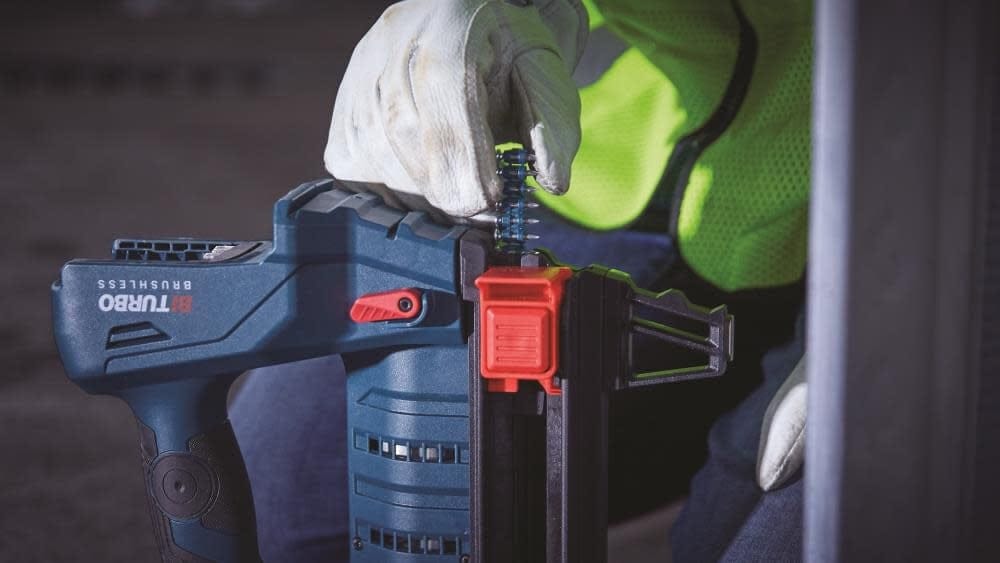

An action photograph of a worker's gloved hand inserting a strip of collated steel pin nails into the magazine of a Bosch GNB18V-12 cordless concrete nailer.
A wide action photograph showing the Bosch GNB18V-12 cordless concrete nailer resting on a concrete ledge next to a strip of collated steel nails and a pair of yellow work gloves.
BOSCH

Bosch Concrete Pin Nails NM-075 3/4 In GNB18V-12 (1000 Count Collated Steel Full Round Head Attach Metal Tracks Steel Substrates)

In stock
SKU: NM-075
$115.00 USD

Description

Bosch Promtional Logo Logout

Industrial Bosch 3/4 Inch Collated Steel Pin Nails NM-075 for GNB18V-12 Concrete Nailer 1000 Count

The Bosch 3/4-Inch Collated Steel Pin Nails (NM-075) function as ICC-certified structural fasteners engineered to attach drywall track, electrical conduits, and metal framing to heavy steel substrates and concrete. Designed specifically for the Bosch GNB18V-12 PROFACTOR 18V Cordless Concrete Nailer, these 0.75-inch hardened steel pins feature a full round head geometry that delivers high pull-through resistance and code-compliant holding strength without gas fuel cells. Incorporating plastic collation strips compatible with standard 22-shot and 44-shot extra-capacity magazines, this 1,000-count fastener box provides continuous high-speed driving productivity for interior commercial drywall and metal track installation.

Best Used For:

  • Commercial Drywall Steel Track Installation: Fastening cold-formed metal track and floor runners directly to structural steel beams, I-beams, and concrete slabs.
  • Electrical Conduit & Junction Box Mounting: Securing metal conduit straps, junction boxes, and cable clips to interior structural steel framing.
  • Mechanical & Plumbing Sub-Assembly Strapping: Anchoring metal pipe hangers, duct straps, and drywall partition channels to structural overhead steel.

Key Performance & Safety Features

  • ICC Tested & Certified Fastening System: Tested jointly with the Bosch GNB18V-12 nailer to satisfy strict ICC building code structural requirements.
  • Full Round Head (FRH) Geometry: Provides maximum surface contact area over steel track flanges to prevent fastener pull-through under tension.
  • Hardened High-Tensile Steel Wire: Formulated to penetrate tough structural steel and high-PSI concrete without bending or shear failure.
  • Gas-Free Battery-Powered Compatibility: Engineered for cordless 18V fly-wheel nailers, eliminating expensive gas fuel cell consumables.
  • Plastic Strip Collation: Precision-molded collation strips feed smoothly into 22-shot standard and 44-shot extended nailer magazines.
  • Bulk 1,000-Piece Contractor Box: Packed in a 1M bulk box to maintain rapid cycle times on commercial interior build-outs.

What's Included

  • (1,000) Bosch 3/4" Collated Steel Pin Nails for GNB18V-12 Concrete Nailer (Model NM-075)

Technical Specifications

Brand Name Bosch
Model Number SKU NM-075
Tool Classification Collated Hardened Steel Pins for Concrete/Steel
Fastener Length 0.750 in. (3/4 in.)
Head Profile Style Full Round Head (FRH)
Structural Material Composition Hardened High-Tensile Carbon Steel
Nailer Model Compatibility Bosch GNB18V-12 PROFACTOR 18V Concrete Nailer
Code Certification ICC Tested and Certified System
Collation Substrate Plastic Strip Collation
Package Quantity Count 1,000 Pins (1M Box)
Package Weight 2.70 lbs (1.22 kg)
Package Dimensions (D x H) 8.35 in. x 3.47 in.
Target Substrates Structural Steel Beams, Cold-Formed Metal Track, Hardened Concrete Slabs

Pro-Tip: When shooting these 3/4-inch steel pins into structural steel framing with the Bosch GNB18V-12 nailer, set the tool depth-of-drive wheel to flush and hold the nosepiece strictly perpendicular (90 degrees) to the metal track flange. Maintaining perpendicular nose contact ensures complete pin penetration into structural steel without crushing the track track flange or bending the pin head.
