Bosch Optical Level GOL 32-RT 5.6 Inch Automatic Kit (32x Magnification Reconditioned 400 Ft Range 1/16 In Accuracy IP54 Plumb Bob Case Surveying)

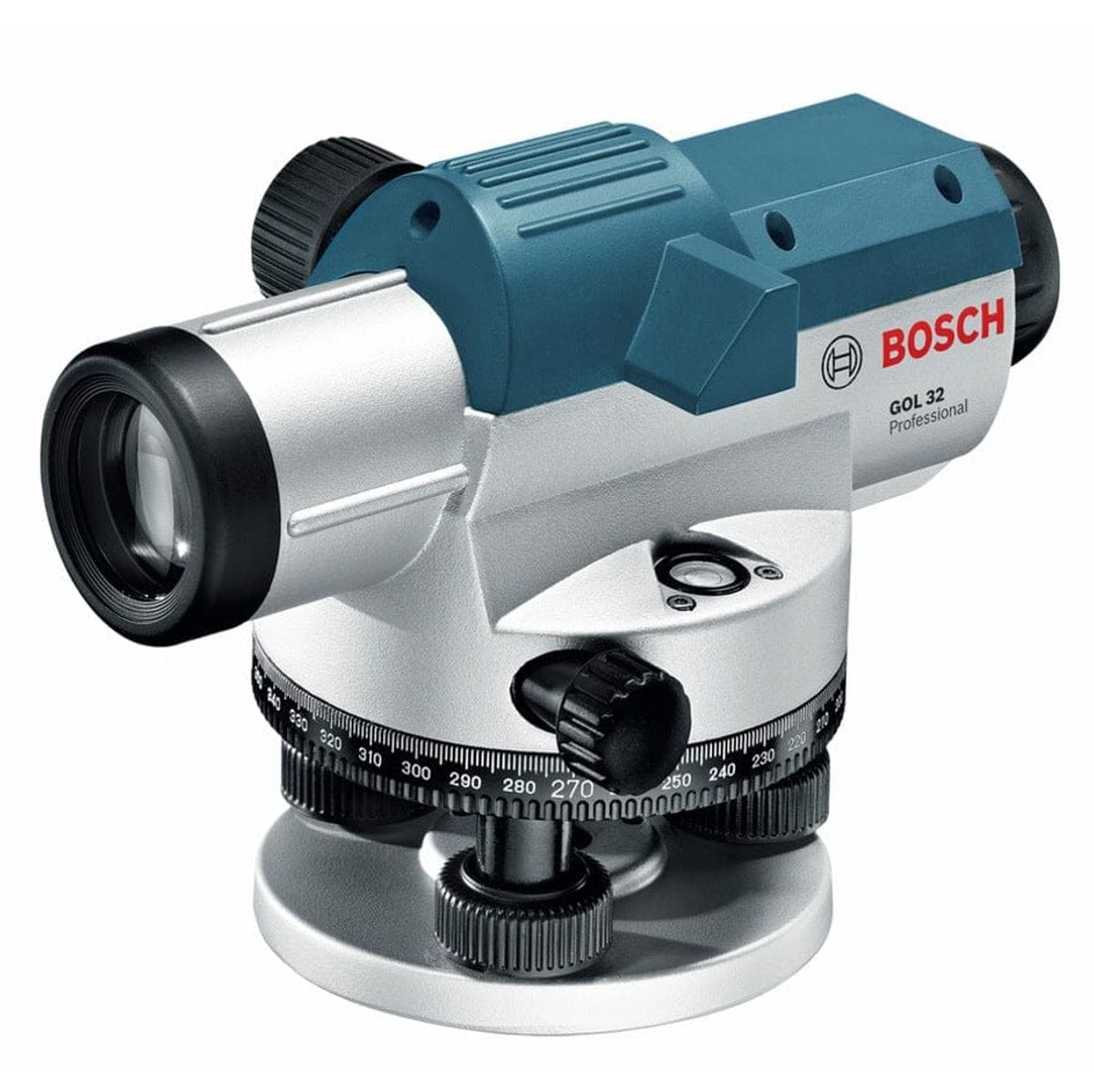

Bosch GOL 32-RT 5.6 Inch 32x Automatic Optical Level Kit Reconditioned

The Bosch GOL 32-RT is a 32x magnification automatic optical level engineered for precision site layout, foundation grading, and elevation surveying. Featuring a magnetically dampened self-leveling compensator and a large-aperture objective lens, this instrument delivers accurate leveling within ±1/16 inch at 100 feet across working distances up to 400 feet. Constructed with an IP54-rated weather-resistant housing, a 5/8-11 tripod mount thread, a circular bubble vial with a 90-degree prism, and stadia lines for optical distance measurement, this 3.7 lb surveyor tool provides fast setup and reliable field calibration.

Note: This is a manufacturer-reconditioned tool, certified to look and perform like new.

Best Used For:

• Building Foundation & Slab Grading: Establishing flat concrete form elevations and verifying subgrade depth consistency across large residential and commercial building pads.
• Site Boundary & Trench Layout: Alignment and distance estimation for utility trenching, drainage swales, and site fence lines using crosshairs with stadia lines.
• Cut-and-Fill Land Surveying: Transferring vertical bench elevation marks and checking topographical elevation differentials with a surveying rod.

Key Performance & Safety Features

• Automatic Compensator Lock: Pendulum lock mechanism secures internal optics during transit to prevent calibration loss and mechanical shock damage.
• 32x Magnification Optical Lens: High-resolution optical lens with a large aperture collects ambient light for crisp reticle readability across 400-foot working ranges.
• IP54 Weather-Resistant Construction: Sealed metal base and composite outer housing shield optical components from jobsite dust contamination and rain splash.
• 90-Degree Prism & Circular Bubble Vial: Integrated bubble vial prism allows operator view verification from standing position without altering eye elevation.
• Stadia Distance Measurement Lines: Reticle crosshairs feature stadia marks to calculate optical target distance directly through the eyepiece.
• Standard 5/8-11 Mount Threading: Universal base threading couples securely to industrial flat-head and dome-head aluminum survey tripods.

What's Included

• (1) Bosch GOL 32-RT Automatic Optical Level (Reconditioned)
• (1) Brass Plumb Bob Assembly
• (1) Lens Cap Shield
• (1) Adjustment Tool Kit (Hex Wrench & Adjusting Pin)
• (1) Heavy-Duty Molded Hard Carrying Case

Technical Specifications

Pro-Tip: Always engage the compensator transport lock before stowing the GOL 32 into its hard case; locking the internal wire-hung pendulum prevents calibration drift caused by transit vibration over rough jobsite terrain.
