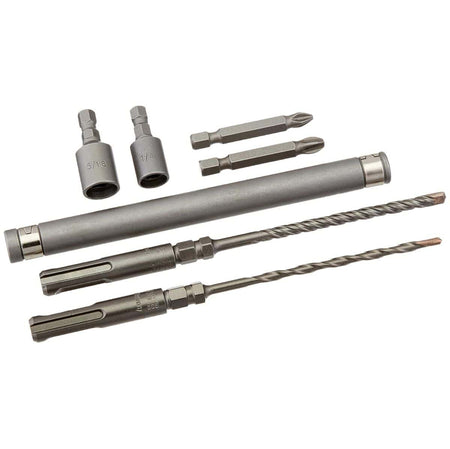

A Bosch 7-piece SDS-Plus Bulldog anchor drive installation kit neatly laid out on a plain white background, displaying the long metal drive sleeve, two slotted hex drive masonry drill bits, two hex nutsetter sockets marked with 1/4 and 5/16 size stamps, and two steel Phillips screwdriver insert bits.

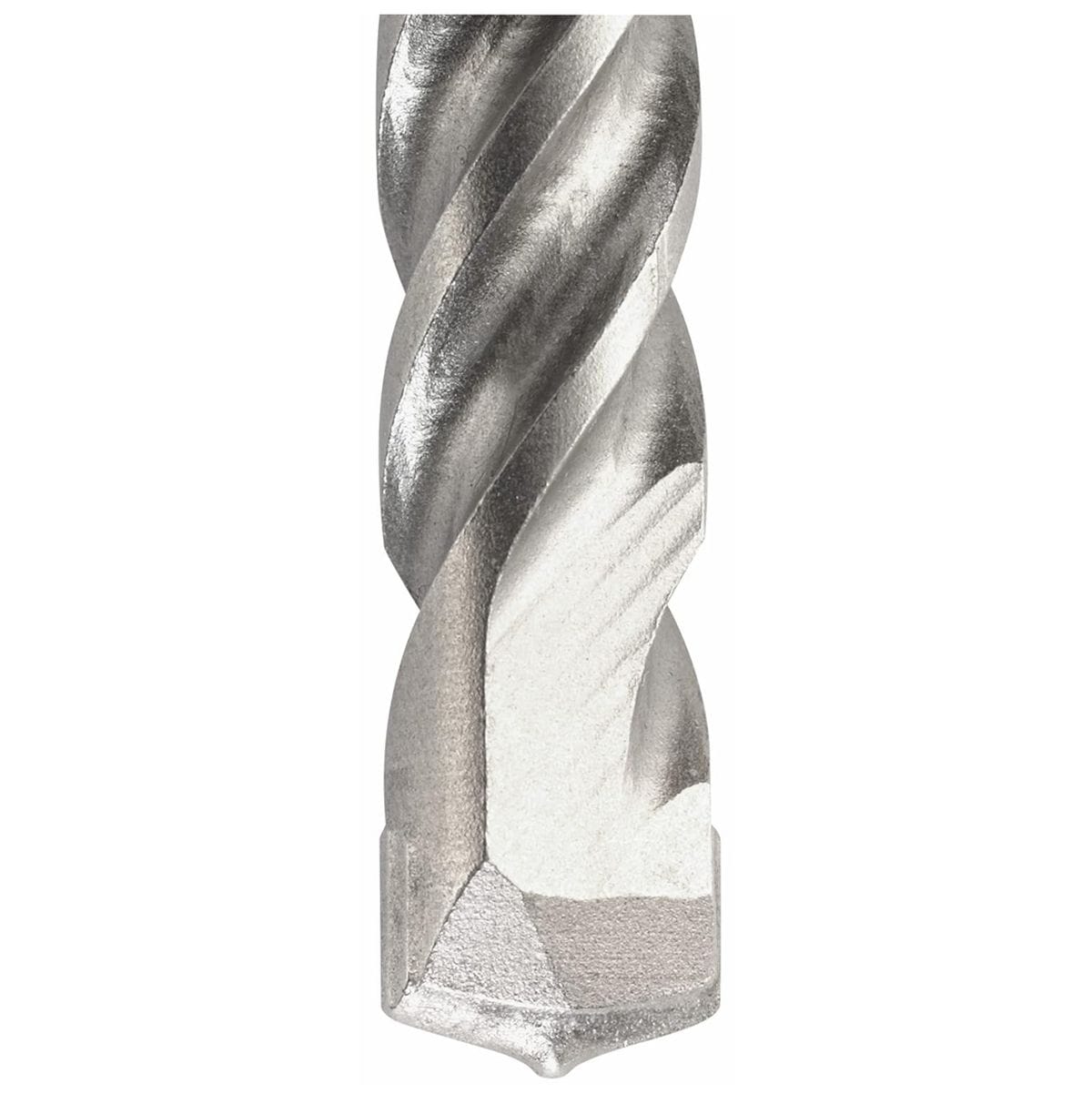

A macro close-up image showcasing the rugged steel spiral flutes and precision-ground centric conical carbide tip of a Bosch Bulldog masonry drill bit engineered for accelerated dust clearance and clean concrete boring.

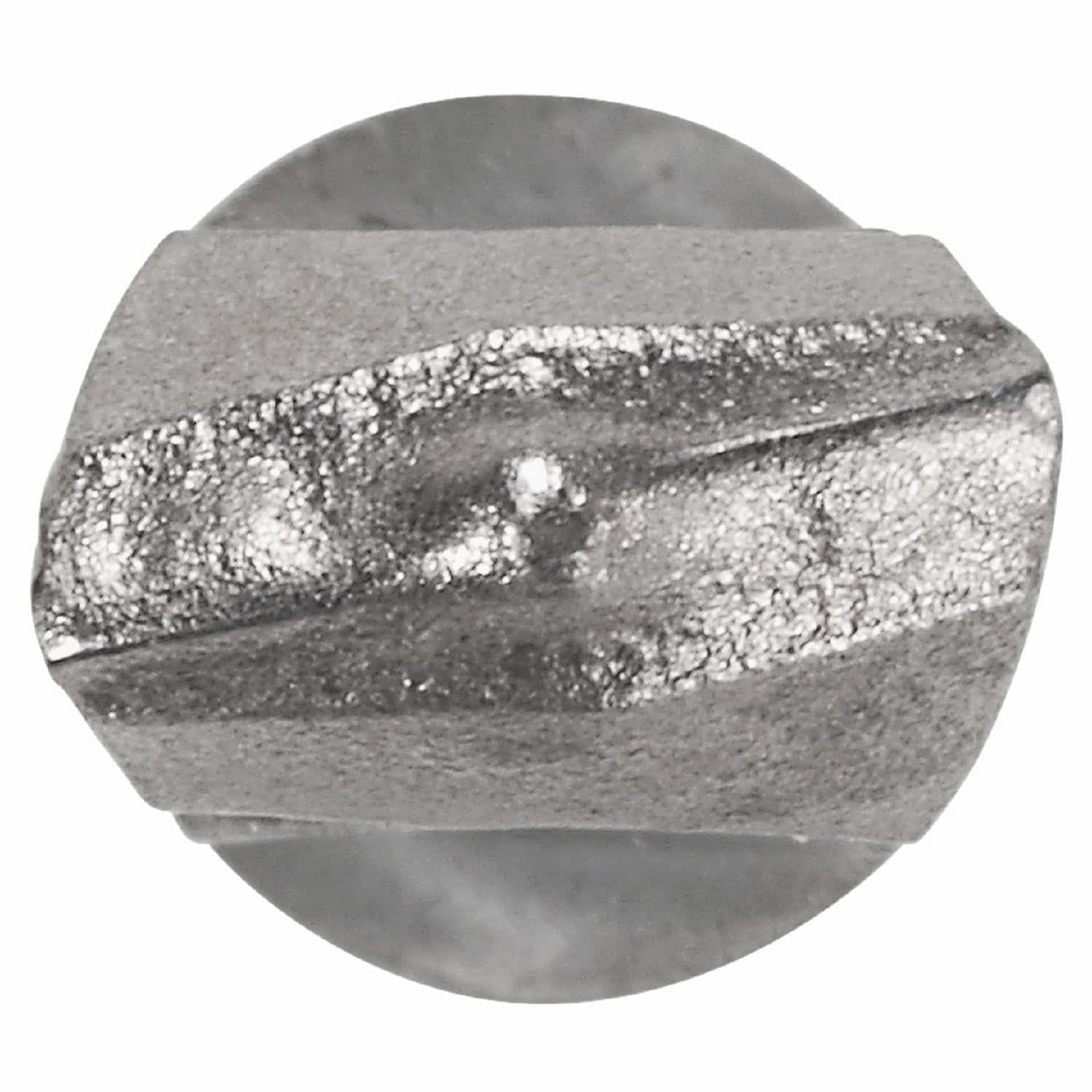

A detailed top-down view focusing on the dual cutting edges of a Bosch Bulldog carbide tip, highlighting its geometric layout engineered to minimize vibration and deliver high-durability anchor hole sizing.
A clear product marketing diagram illustrating a Bosch Bulldog SDS-plus anchor bit with pointer lines highlighting its 2-cutter carbide head, optimized flute design that reduces bit stress, and a centric tip with built-in wear marks indicating hole placement tolerances.

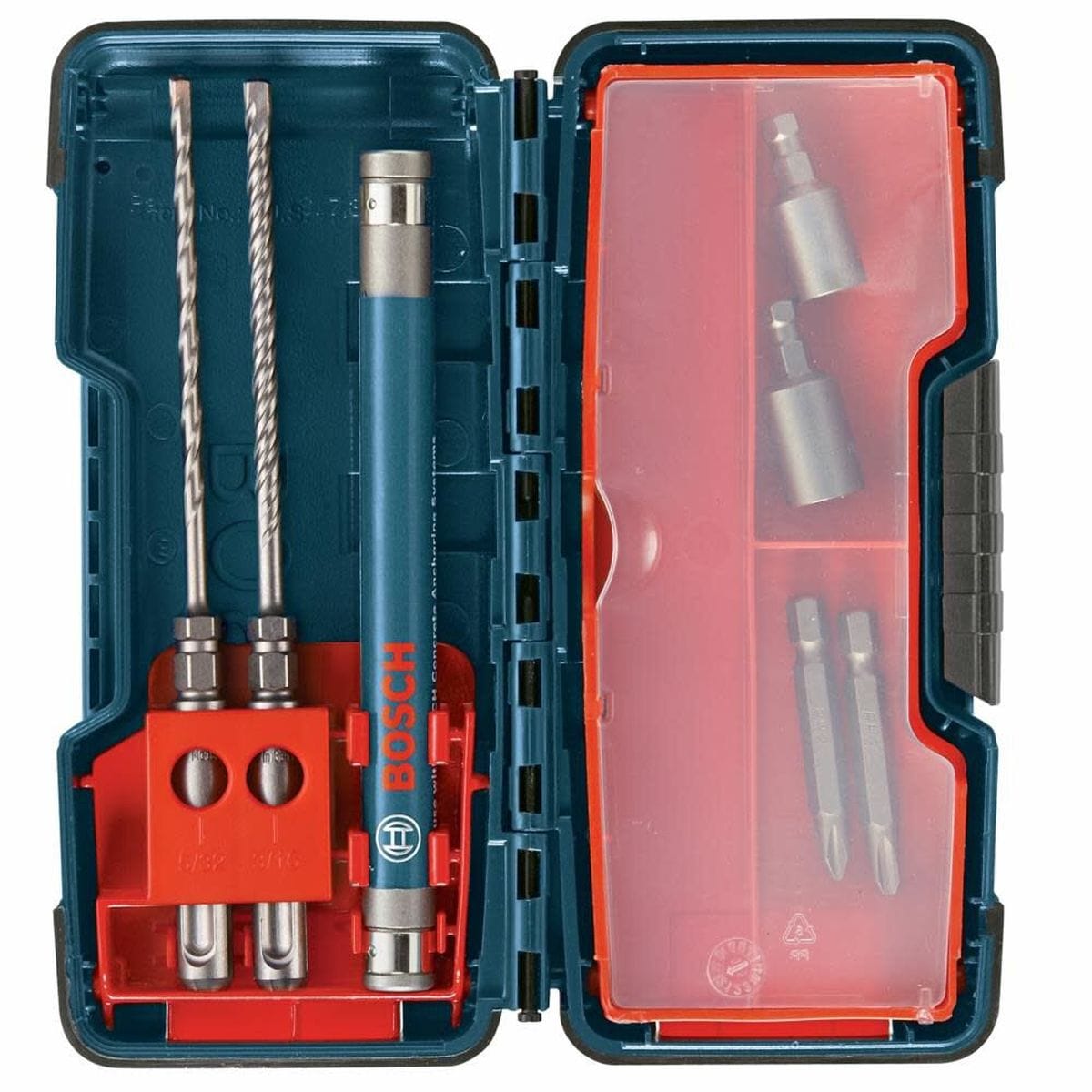

An overhead overhead photo showing the blue Bosch hard shell storage organizer case opened flat, cleanly holding the masonry drill bits, anchor drive sleeve, Phillips screwdriver tips, and nutsetter sockets in customized molded retention slots.
A functional graphic chart with a bold navy header reading BEST FOR, displaying individual window graphics illustrating natural masonry stone, clay brick face, hollow concrete block, and a poured solid concrete slab block to showcase application compatibility.
A two-panel promotional split-graphic featuring a close-up text layout titled CARBIDE-TIPPED BIT HEADS, paired next to an action shot of an operator using a blue corded Bosch rotary hammer drill to bore anchor holes into a textured concrete wall substrate.
An industrial application materials chart highlighting target structural substrates with large text titles layered over texture swatches of textured aggregate concrete, classic red brick mortar layout, and stacked gray cinder masonry blocks.
The complete Bosch HC2309 7-piece anchor drive installation tool kit displayed inside its original clear retail clamshell blister packaging, showing the blue paper card labeling with product model details and international translation texts.
Bosch Concrete Tool Accessories | Bosch WOC 2026 promotional video

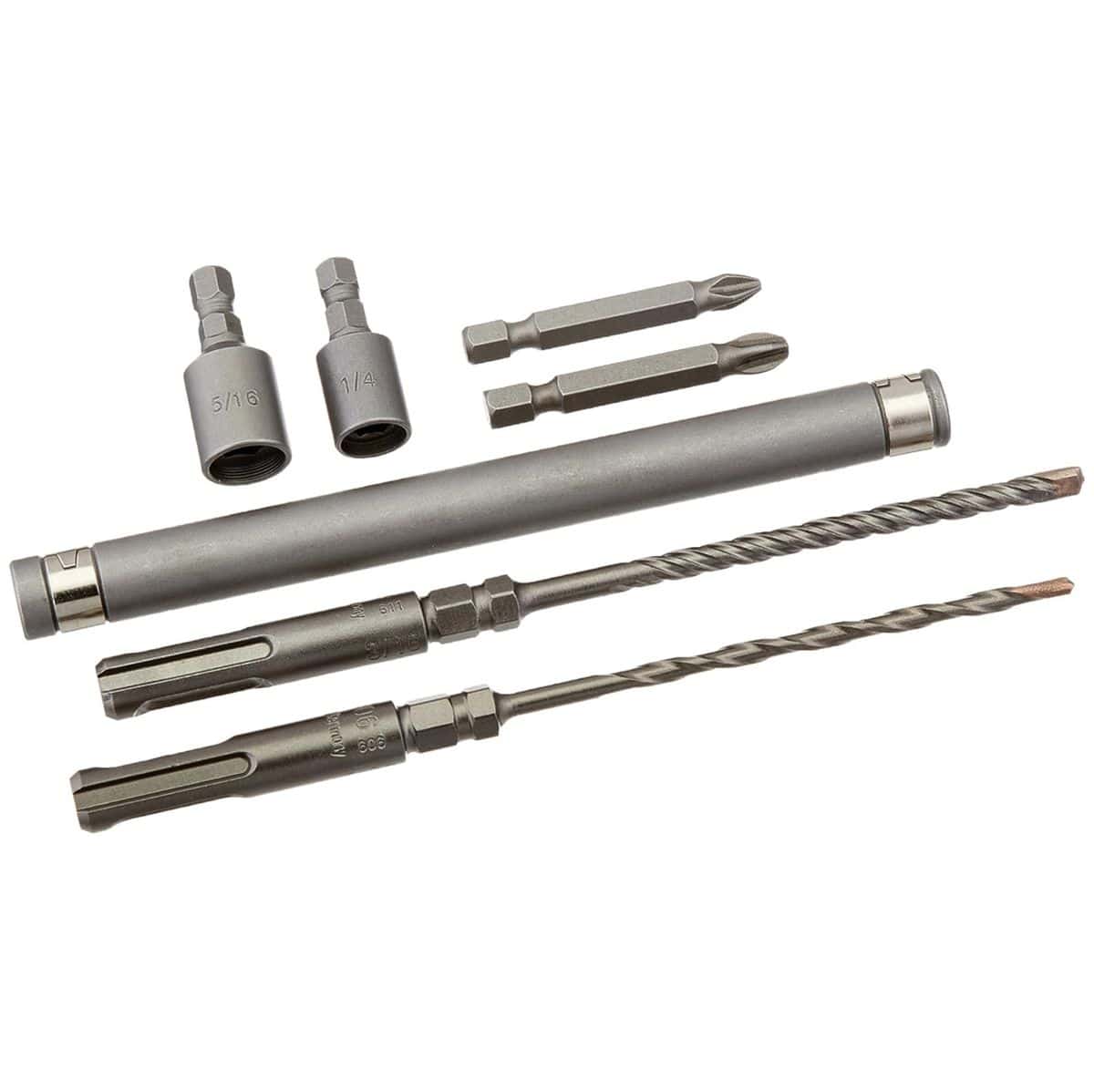

A Bosch 7-piece SDS-Plus Bulldog anchor drive installation kit neatly laid out on a plain white background, displaying the long metal drive sleeve, two slotted hex drive masonry drill bits, two hex nutsetter sockets marked with 1/4 and 5/16 size stamps, and two steel Phillips screwdriver insert bits.
A macro close-up image showcasing the rugged steel spiral flutes and precision-ground centric conical carbide tip of a Bosch Bulldog masonry drill bit engineered for accelerated dust clearance and clean concrete boring.
A detailed top-down view focusing on the dual cutting edges of a Bosch Bulldog carbide tip, highlighting its geometric layout engineered to minimize vibration and deliver high-durability anchor hole sizing.

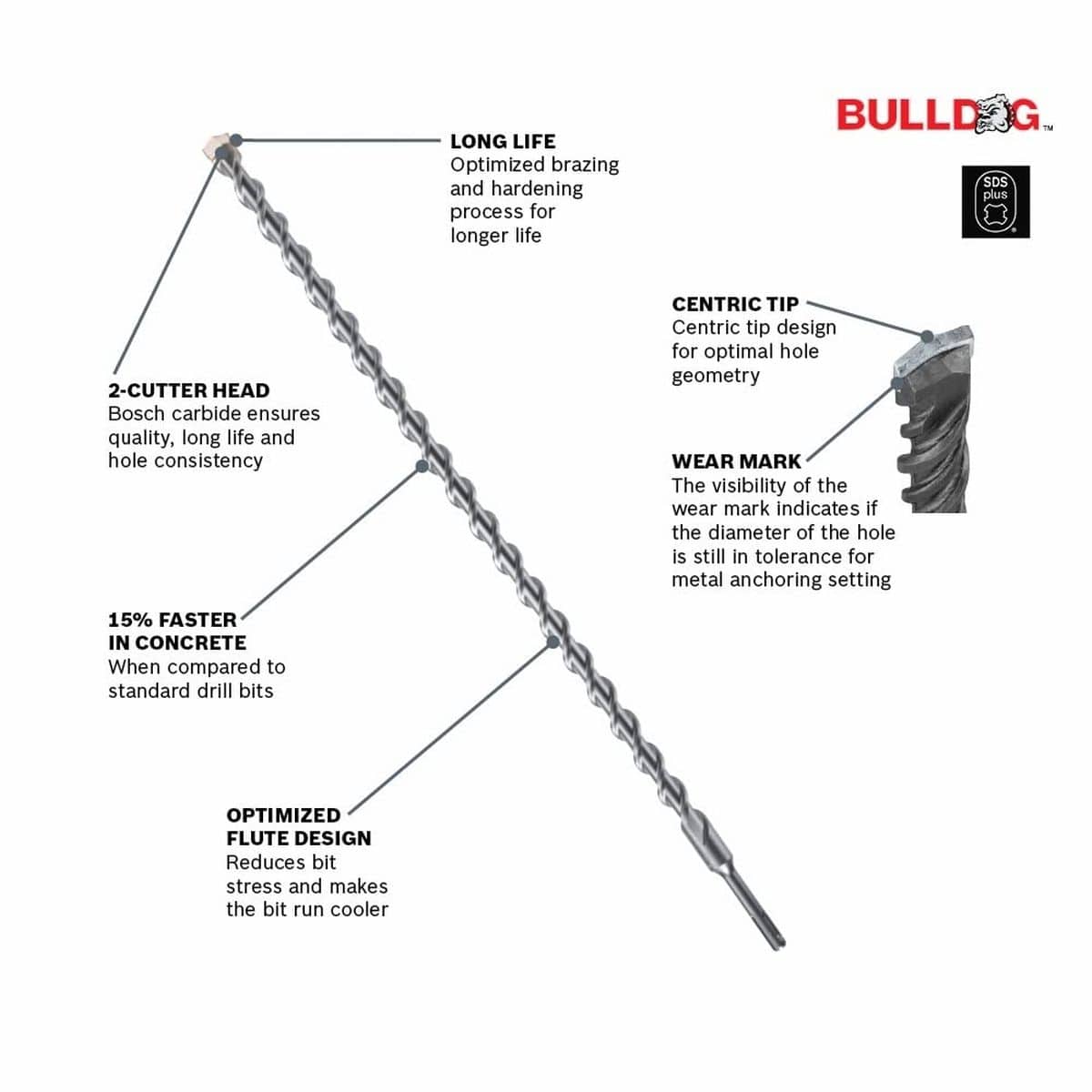

A clear product marketing diagram illustrating a Bosch Bulldog SDS-plus anchor bit with pointer lines highlighting its 2-cutter carbide head, optimized flute design that reduces bit stress, and a centric tip with built-in wear marks indicating hole placement tolerances.
An overhead overhead photo showing the blue Bosch hard shell storage organizer case opened flat, cleanly holding the masonry drill bits, anchor drive sleeve, Phillips screwdriver tips, and nutsetter sockets in customized molded retention slots.
A functional graphic chart with a bold navy header reading BEST FOR, displaying individual window graphics illustrating natural masonry stone, clay brick face, hollow concrete block, and a poured solid concrete slab block to showcase application compatibility.
A two-panel promotional split-graphic featuring a close-up text layout titled CARBIDE-TIPPED BIT HEADS, paired next to an action shot of an operator using a blue corded Bosch rotary hammer drill to bore anchor holes into a textured concrete wall substrate.
An industrial application materials chart highlighting target structural substrates with large text titles layered over texture swatches of textured aggregate concrete, classic red brick mortar layout, and stacked gray cinder masonry blocks.

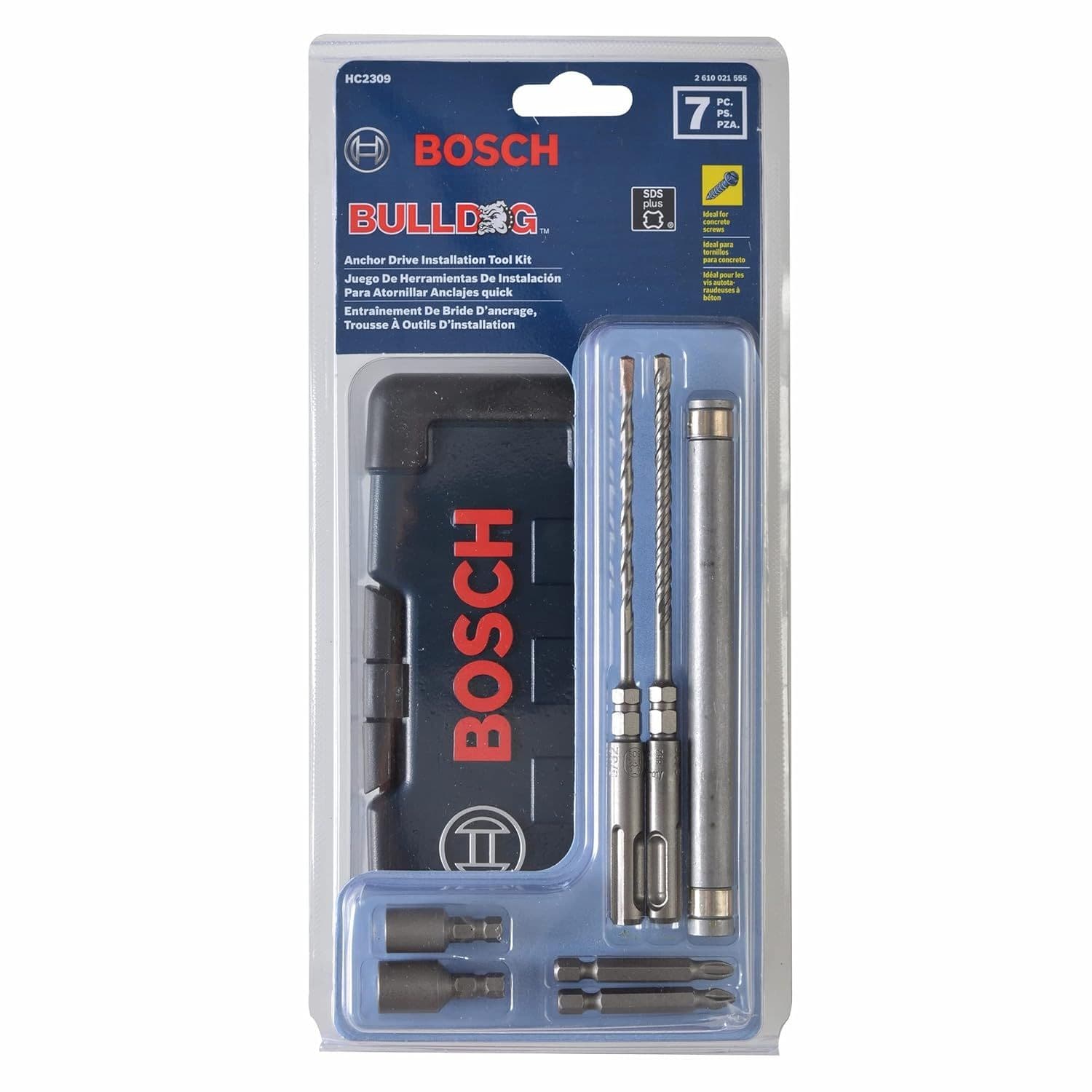

The complete Bosch HC2309 7-piece anchor drive installation tool kit displayed inside its original clear retail clamshell blister packaging, showing the blue paper card labeling with product model details and international translation texts.
Bosch Concrete Tool Accessories | Bosch WOC 2026 promotional video
BOSCH

Bosch 7 Piece SDS Plus Bulldog Hex Drive Rotary Hammer Bit Anchor Installation Driver Sleeve Set Reinforced Concrete Masonry Boring Tool Kit HC2309

Only 2 left
SKU: HC2309
$33.99

Description

Bosch Promtional Logo Logout

Streamline Your Concrete Fastening and Tapcon Anchor Placements with an All-In-One Heavy-Duty Slotted Hex Drive Installation System

Maximize your jobsite efficiency and eliminate time-wasting tool swaps with the professional-grade Bosch 7-Piece Bulldog SDS-Plus Hex Drive Anchor Installation Set. Engineered explicitly for commercial electrical contractors, HVAC installers, structural framing crews, and masonry waterproofing specialists, this heavy-duty commercial master kit is built to streamline the installation of masonry fastening systems. Standard anchor setups require workers to constantly cycle between using a rotary hammer drill to bore a tracking path and a standard drill driver to sink mechanical masonry screws. This innovative system alters your structural workflow entirely by adapting an industrial driver sleeve mechanism directly over the specialized SDS-Plus hex bit, enabling you to drill code-compliant anchoring paths and drive fasteners using a single, high-performance power tool setup.

Forged in Germany from premium-alloy tool steel, each components in this heavy-duty kit is built to withstand intense dynamic forces. The included premium Bulldog bits feature a proprietary, high-density Bosch carbide matrix armed with an advanced centric conical tip that bites instantly into slick concrete faces, providing a non-slip start that prevents marring around the target drilling zone. An upgraded high-volume spiral flute core aggressively exhausts fine pulverized stone dust and abrasive silica sand out of the borehole, lowering thermal tension to speed up drilling cycles. Complete with integrated standard Phillips insert bits, magnetic nutsetter sockets, and a rugged driver sleeve that slips over the hex extensions seamlessly, this master contractor collection ensures pristine anchor sets through reinforced poured concrete, brick masonry, and structural block walls shift after shift.

Key Features

  • All-In-One Anchor Installation: Permits users to drill precise structural anchor pathways and run fasteners sequentially without swapping tools.
  • Centric Conical Tip Geometry: Sharp centering point guides the cutting path instantly to eliminate surface skating and protect adjacent materials.
  • Premium Bosch Carbide Matrix: Heavy-duty, industrial-grade brazed carbide inserts deliver exceptional service life when cutting composite aggregates.
  • Advanced Dust-Clearing Flutes: Deep-cut spiral channels pull abrasive limestone residue away from the cutting crown for cool, high-velocity operation.
  • Universal SDS-Plus Hex Drive: Slotted quick-change connection shanks seat mechanically into industrial rotary hammer chucks for high-torque transfer.
  • German-Engineered Construction: Precision-milled components deliver professional industrial durability and reliable fitment under continuous high-impact workloads.

What's Included

  • (1) 5/32 in. SDS-Plus Hex Drive Drill Bit
  • (1) 3/16 in. SDS-Plus Hex Drive Drill Bit
  • (1) 5-3/4 in. Anchor Installation Driver Sleeve
  • (1) 1/4 in. Magnetic Socket Nutsetter
  • (1) 5/16 in. Magnetic Socket Nutsetter
  • (1) #2 Phillips Drive Insert Bit
  • (1) #3 Phillips Drive Insert Bit

Specifications

Specification Profile Details / Performance Value
Brand Name Bosch
Manufacturer Part Number HC2309
Product Line Array Bulldog™ Anchor Drive Series
Shank Interface Style SDS-Plus with Hex Drive Core Fitting
Bit Tip Composition Industrial-Grade Tungsten Carbide Tipped
Drill Bit Diameters 5/32 in. and 3/16 in.
Maximum Flute Length 5.0 in.
Sleeve Drive Profile Length 5-3/4 in.
Socket Sizes Provided 1/4 in. and 5/16 in. Internal Hex Sockets
Total Bundle Piece Count 7 Individual Installation Elements
Country of Origin Germany
Primary Material Target Reinforced Concrete, Aggregates, Brick Face, Mortar Joints, and Stone

Pro-Tip: Remember to toggle your SDS-Plus rotary hammer into "Rotation Only" mode before sliding the driver sleeve assembly over the hex bit to drive concrete anchors or Tapcon screws. Running your tool in full percussive "Hammer" mode while driving can instantly shear off screw heads, over-torque the drive inserts, strip out thread tracking in fresh masonry, or damage internal driver sleeve locking rings.
