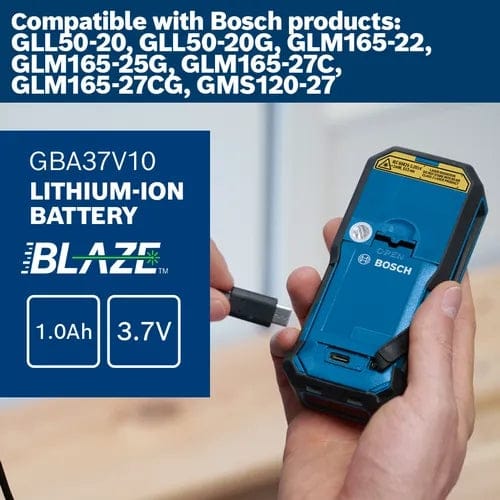

Infographic detailing the compatibility of the 3.7V 1.0 Ah GBA37V10 Lithium-Ion Battery pack with the Bosch GLM165-27CG and other laser measuring devices
Infographic promoting the Bosch MeasureOn App, showing the digital project documentation features including floor plans and measurement transfer across smartphone, tablet, and laptop devices
Graphic illustrating the four key measuring functions of the laser distance meter: Length, Area, Indirect (Pythagorean), and Volume calculations shown in room diagrams

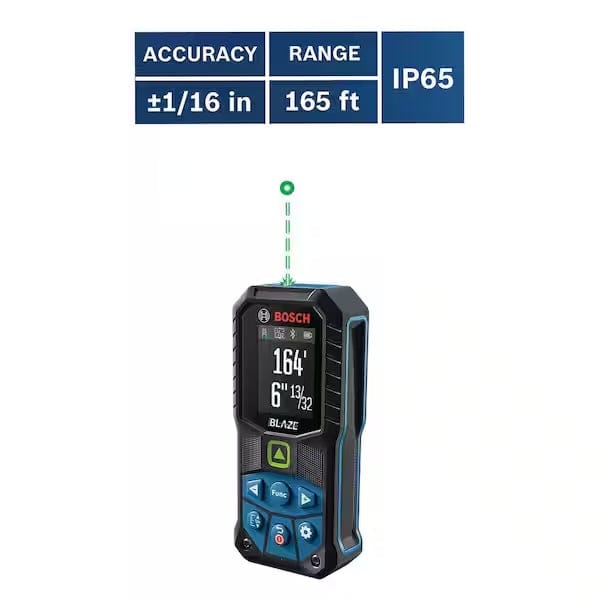

Studio shot of the Bosch GLM165-27CG laser measure with a graphic overlay highlighting key specifications: Accuracy $\pm 1/16$ inch, Range 165 feet, and IP65 protection rating
Overhead action shot of a construction worker using the Bosch GLM165-27CG laser measure to measure and mark a line on a 2x4 piece of lumber on a construction site floor
Action shot showing the Bosch GLM165-27CG laser measure held against a sloping metal handrail, demonstrating the inclinometer function being used to read the tilt angle
GLM165-27CG Blaze Laser Distance Measure promotional video.
Studio shot of the Bosch BLAZE GLM165-27CG green laser distance measure, showing the screen displaying a 164 foot measurement and the projected green laser dot
The Bosch GLM165-27CG laser measure displayed next to a smartphone, illustrating the tool's Bluetooth connectivity and digital measurement transfer capability with the Bosch MeasureOn app
Infographic diagram of the Bosch GLM165-27CG labeling key features including the 4X brighter green beams, inclinometer, Bluetooth connectivity, and IP65 robust construction
Rear view of the Bosch GLM165-27CG laser measure showing the attached metal belt clip for convenient storage and access on the jobsite
Infographic detailing the compatibility of the 3.7V 1.0 Ah GBA37V10 Lithium-Ion Battery pack with the Bosch GLM165-27CG and other laser measuring devices
Infographic promoting the Bosch MeasureOn App, showing the digital project documentation features including floor plans and measurement transfer across smartphone, tablet, and laptop devices
Graphic illustrating the four key measuring functions of the laser distance meter: Length, Area, Indirect (Pythagorean), and Volume calculations shown in room diagrams
Studio shot of the Bosch GLM165-27CG laser measure with a graphic overlay highlighting key specifications: Accuracy $\pm 1/16$ inch, Range 165 feet, and IP65 protection rating
Overhead action shot of a construction worker using the Bosch GLM165-27CG laser measure to measure and mark a line on a 2x4 piece of lumber on a construction site floor
Action shot showing the Bosch GLM165-27CG laser measure held against a sloping metal handrail, demonstrating the inclinometer function being used to read the tilt angle
GLM165-27CG Blaze Laser Distance Measure promotional video.
BOSCH

Bosch Laser Measure BLAZE GLM165-27CG 165 Foot Green Beam (4X Brighter Bluetooth Inclinometer Haptic Feedback IP65 Dust Water Belt Clip Pouch)

In stock
SKU: GLM165-27CG
$169.00 USD

Description

Bosch Promotional Logo Logout

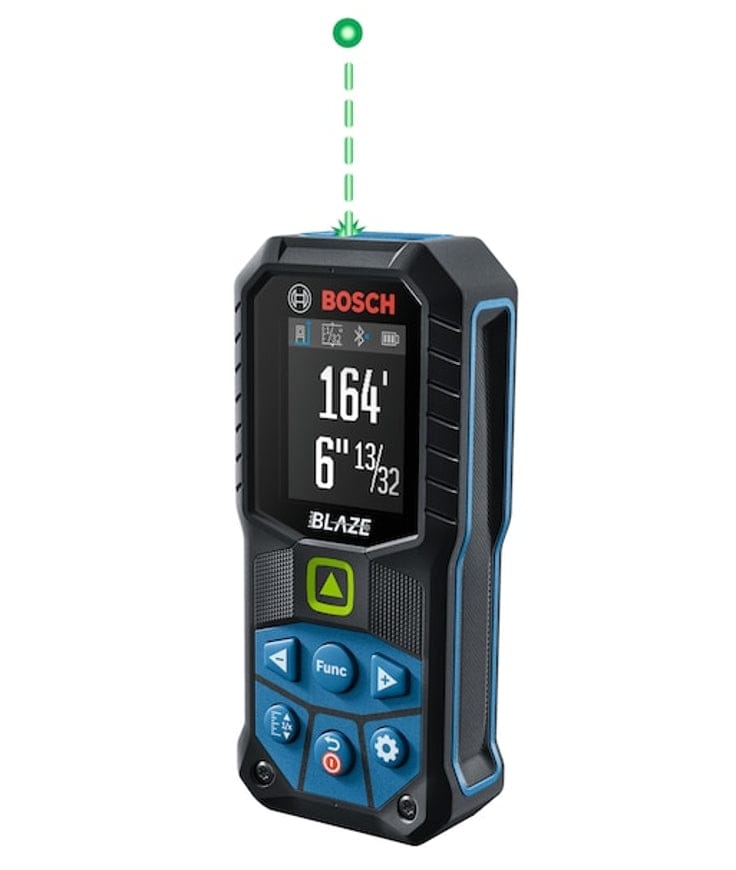

Bosch BLAZE GLM165-27CG 165-Foot Green Beam Connected Laser Distance Measure

The Bosch BLAZE GLM165-27CG 165-Foot Green Beam Connected Laser Distance Measure is an optical layout instrument engineered for calculating room volumes, documenting floor plan dimensions, and determining indirect heights on outdoor commercial construction jobsites. Generating green laser dots up to four times brighter than red beams across a 165-foot working range, this digital measure delivers a distance accuracy of ±1/16 inch while incorporating Bluetooth Smart 4.2 connectivity for transferring data directly to the Bosch MeasureOn mobile application. Outfitted with a 360-degree digital inclinometer, 11 calculation modes, a tactile haptic feedback vibration motor, a backlit color LCD screen, an IP65 dust and water protection rating, and a full rubber overmold housing, this 0.22-pound device executes digital site estimations.

Best Used For:

  • High-Visibility Site Estimation & Plan Creation: Capturing length, area, and volume metrics across 165-foot outdoor spans and syncing measurements via Bluetooth.
  • 360-Degree Angle & Indirect Height Calculation: Measuring roof pitches, stair angles, and indirect vertical heights using the integrated tilt sensor.

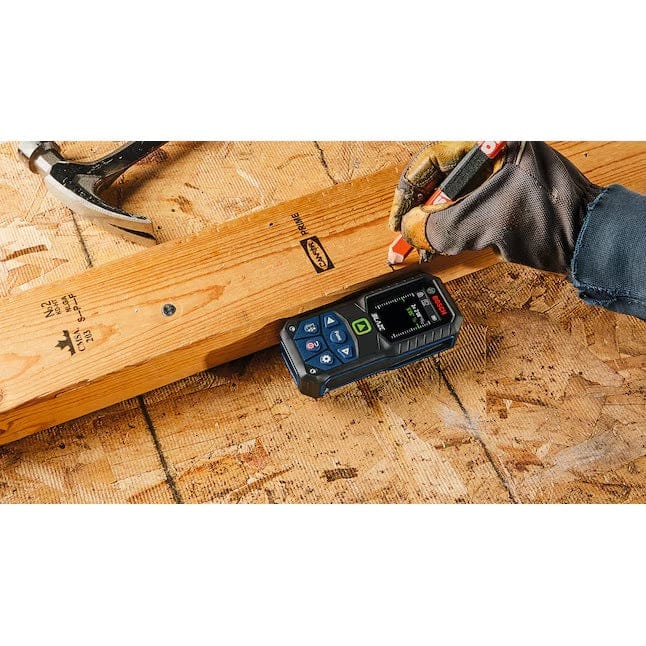

  • High-Noise Jobsite Layout Verification: Receiving immediate haptic vibration confirmation when taking critical layout measurements in loud environments.

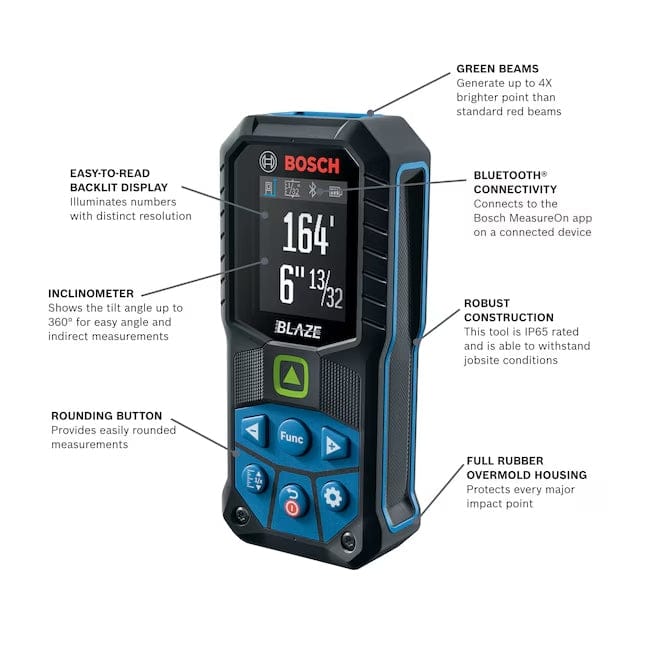

Key Performance & Safety Features

  • 4X Brighter Green-Beam Laser Engine: Generates a high-visibility green laser dot for superior clarity and long-range targeting in direct sunlight.
  • 165-Foot Precision Measuring Range: Accurately measures distances up to 165 feet with tight ±1/16 inch tolerances for trade estimates.

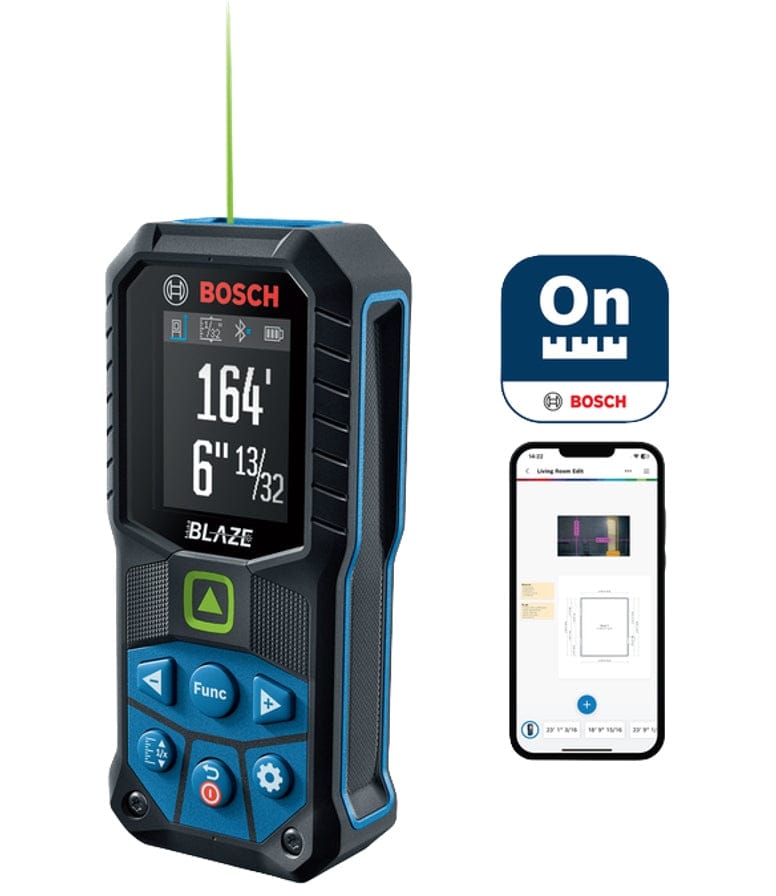

  • Bluetooth Smart 4.2 Data Transfer: Wirelessly pairs with mobile devices via the free Bosch MeasureOn app to digitize jobsite plans and photos.

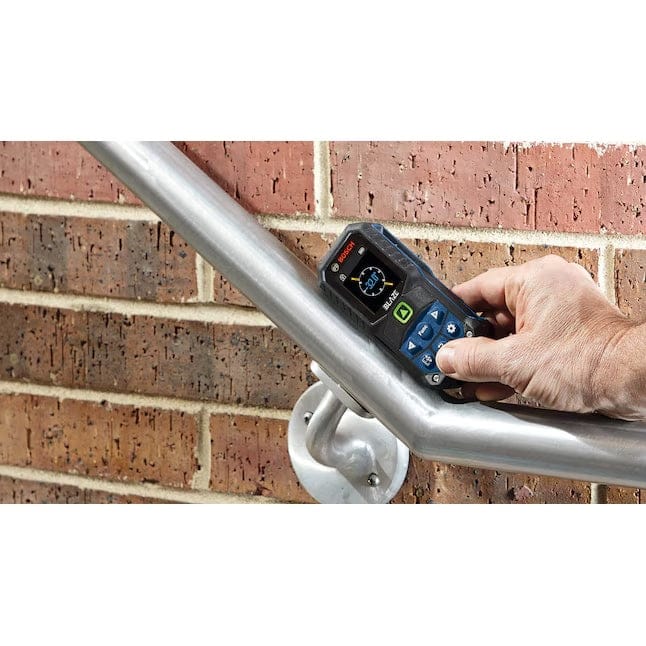

  • Integrated 360-Degree Digital Inclinometer: Measures tilt angles across a full 360 degrees to solve complex indirect height and slope equations.
  • Tactile Haptic Feedback Motor: Vibrates the tool body to provide positive physical confirmation of captured readings in high-decibel work areas.
  • IP65 Rated Dust & Water Protection: Roll-cage rubber overmold housing withstands harsh weather conditions, dust ingress, and jobsite drops.

What's Included

  • (1) GLM165-27CG BLAZE Connected Green-Beam 165 Ft. Laser Distance Measure

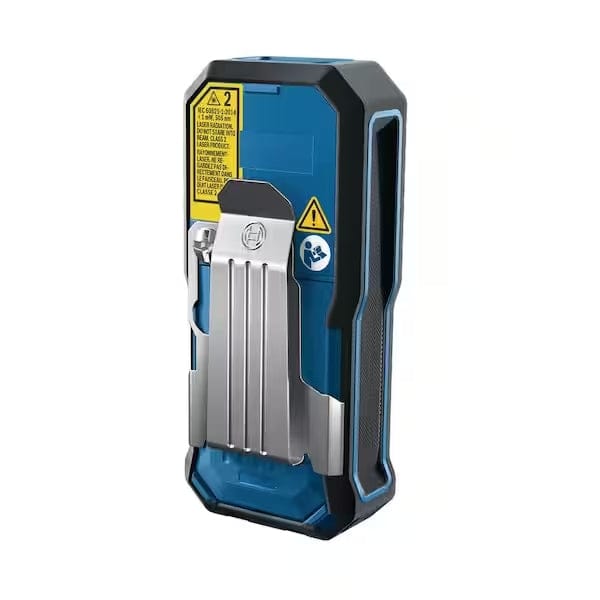

  • (1) Heavy-Duty Belt Clip
  • (2) AA 1.5V Alkaline Batteries
  • (1) Protective Fabric Storage Pouch

Technical Specifications

Brand / Manufacturer Bosch Power Tools
Model / Part Number GLM165-27CG (BLAZE Series)
Maximum Distance Measuring Range Up to 165 ft. (50.29 Meters)
Distance Measuring Accuracy Tolerance ±1/16 in. (±1.5 mm)
Laser Diode Projection Type Class 2 Green Beam (4X Brighter, 510-530 nm)
Wireless Connectivity Protocol Bluetooth Smart 4.2
Digital Inclinometer Range 360° Angle Tilt Sensor
Ingress Protection Rating IP65 Certified (Dust-Tight & Water Jet Protected)
Display Screen Type Backlit Color Graphic LCD Screen

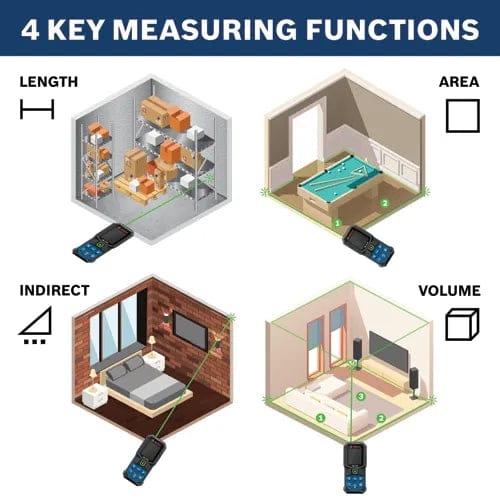

Total Measurement Functions 11 (Real-Time Length, Area, Volume, Indirect, Add/Subtract, etc.)
Power Supply Source (2) AA 1.5V Alkaline Batteries
Overall Dimensions (H x L x W) 4.70 in. x 2.10 in. x 1.20 in. (119.38 x 53.34 x 30.48 mm)
Assembled Net Tool Weight 0.22 lb (0.10 kg)
Pro-Tip: Use the dedicated rounding button to instantly convert decimal laser readings into standard fraction increments (such as 1/16 in. or 1/8 in.) for fast, error-free material cut-list calculations on site.
