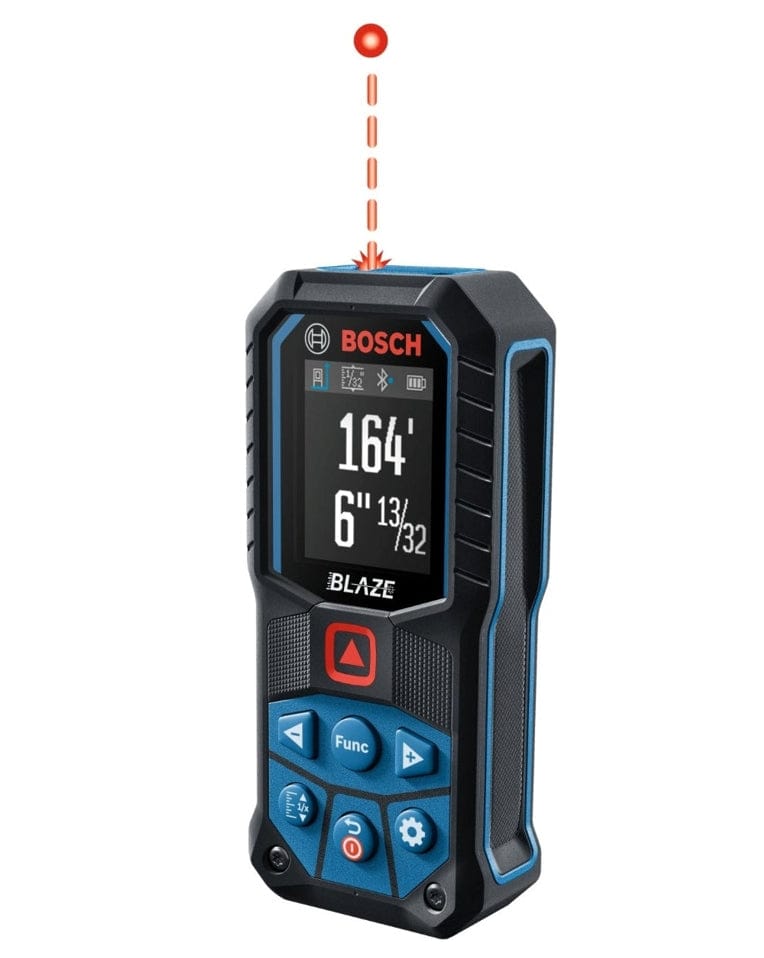

Studio shot of the Bosch BLAZE GLM165-27C laser measure with the screen displaying a 164 foot measurement and the red laser beam pointing upward

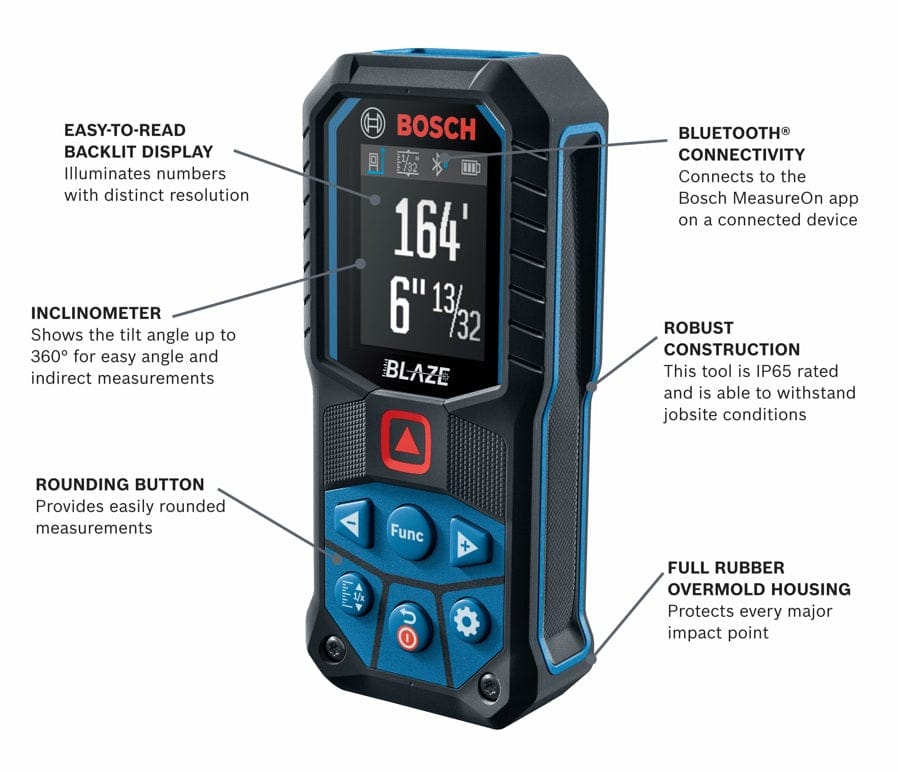

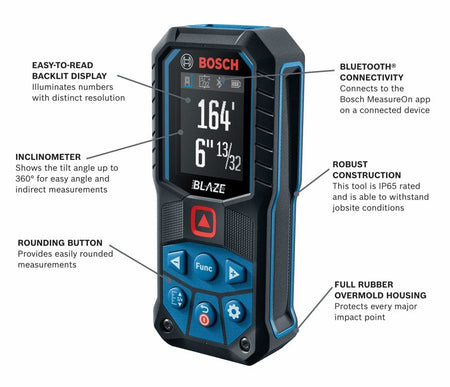

Infographic diagram of the Bosch GLM165-27C labeling key features including the backlit color display, inclinometer, rounding button, Bluetooth connectivity, and IP65-rated robust construction

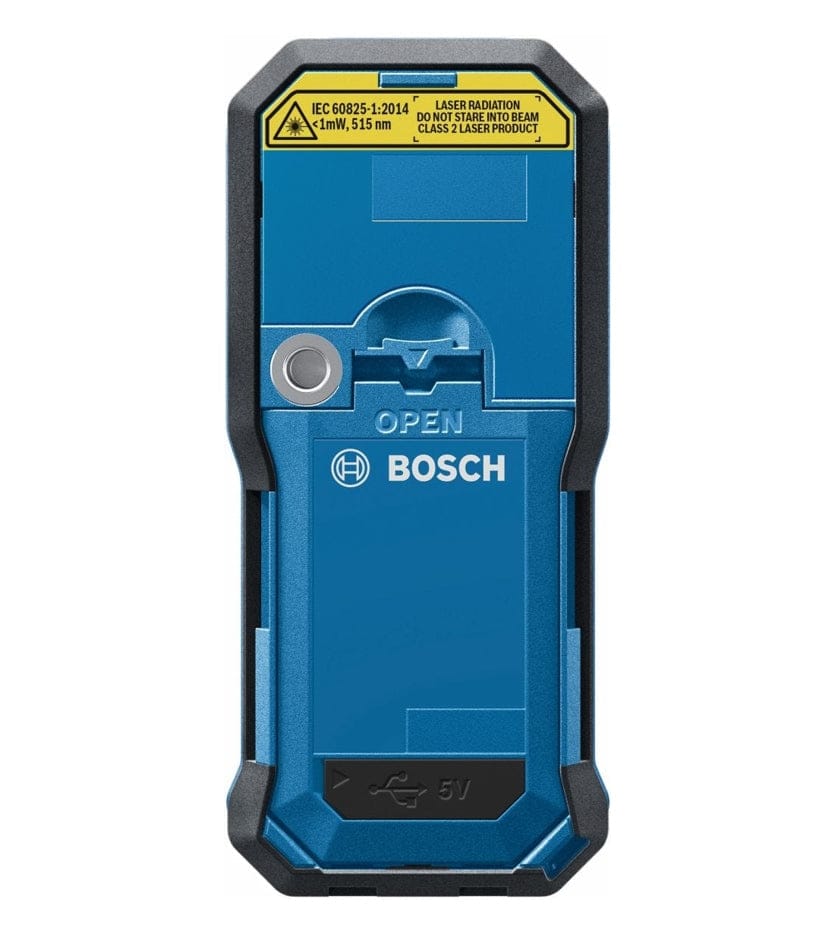

Rear view of the Bosch GLM165-27C showing the blue battery compartment cover, laser warning label, and the charging/data port location

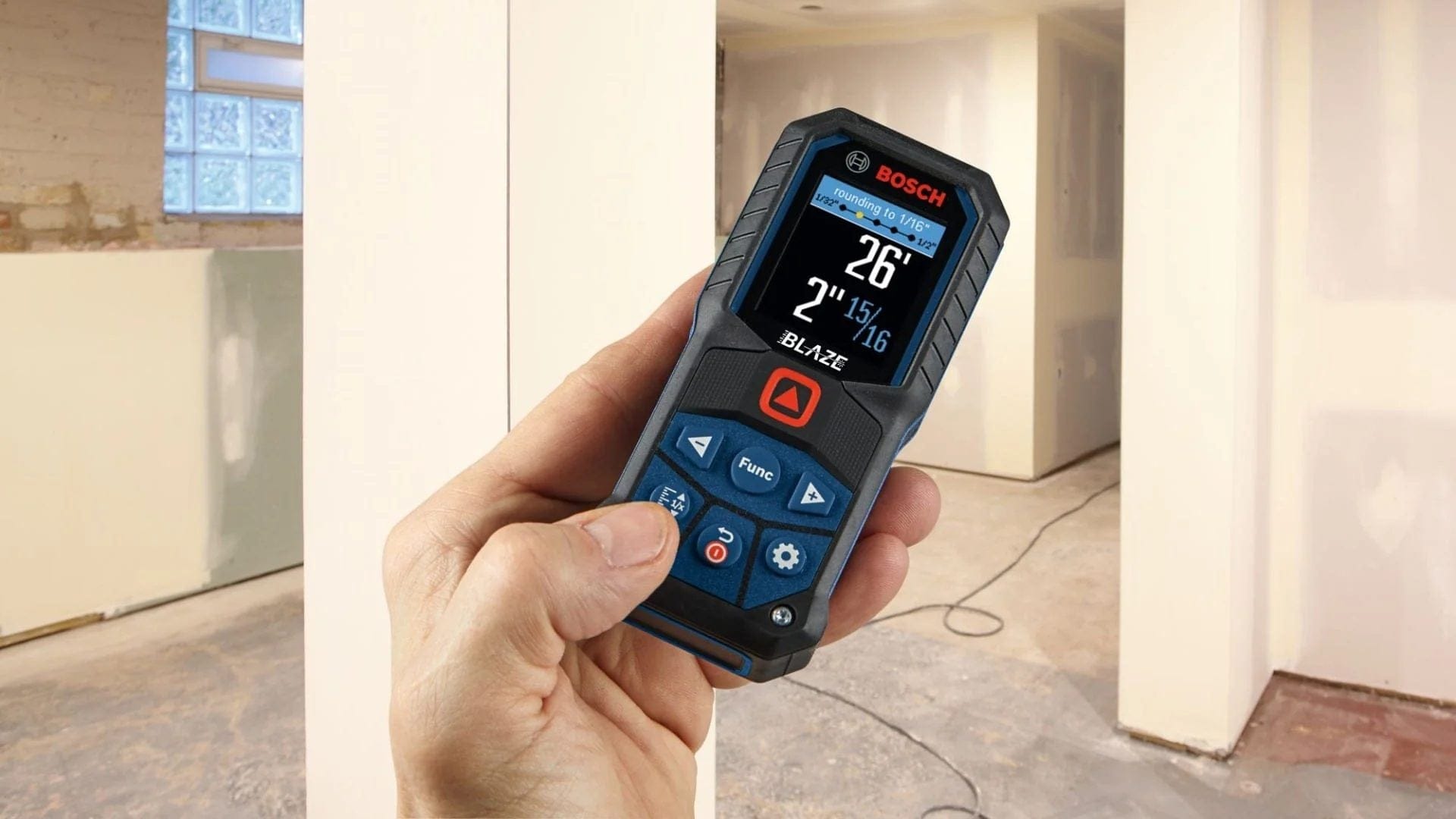

Action shot of a hand holding the GLM165-27C inside a room under construction, with the color display showing a measurement and the rounding function active

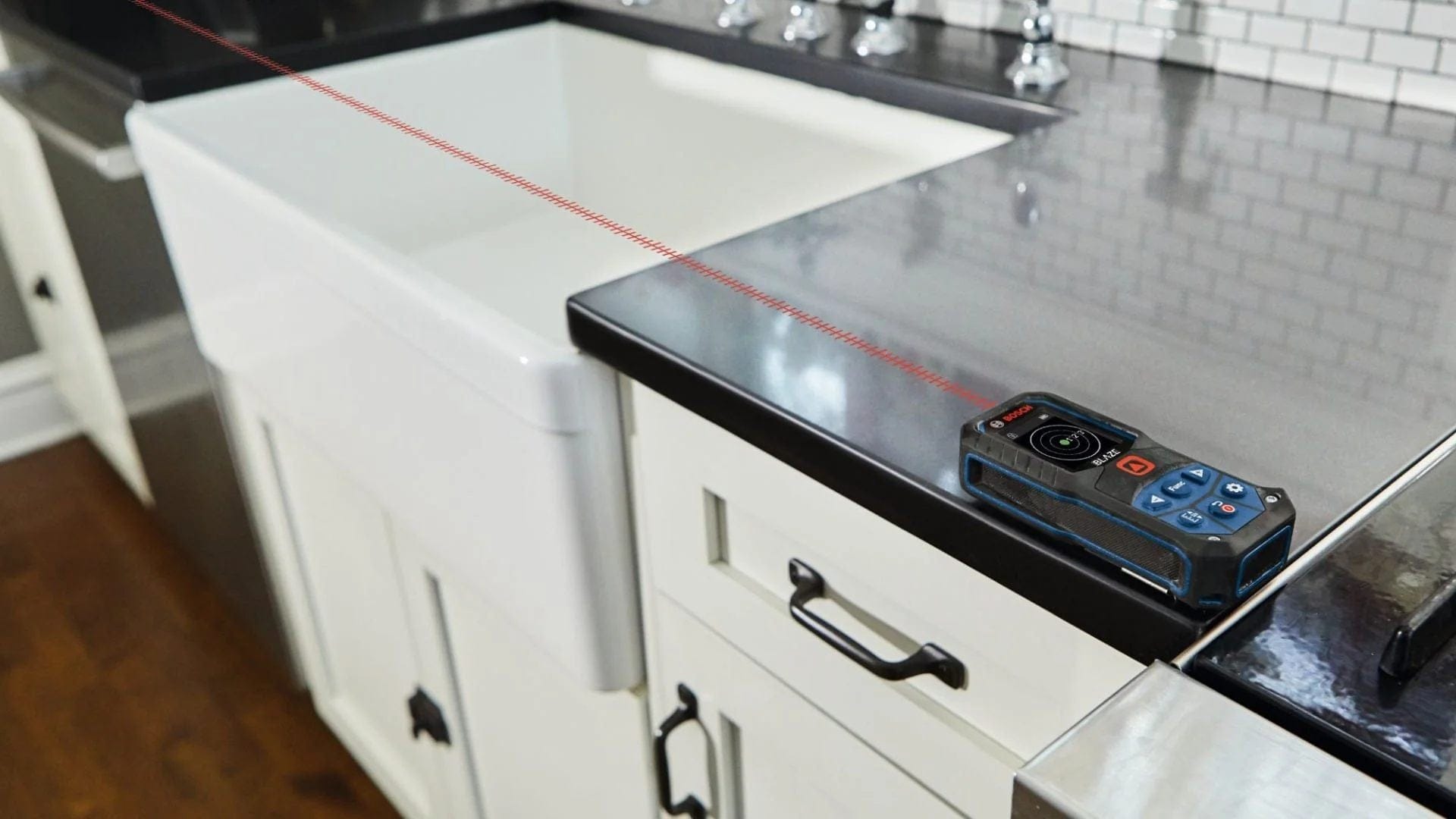

Action shot showing the Bosch BLAZE GLM165-27C laser measure sitting on a countertop, projecting the red laser beam across a kitchen sink to take an accurate indoor measurement

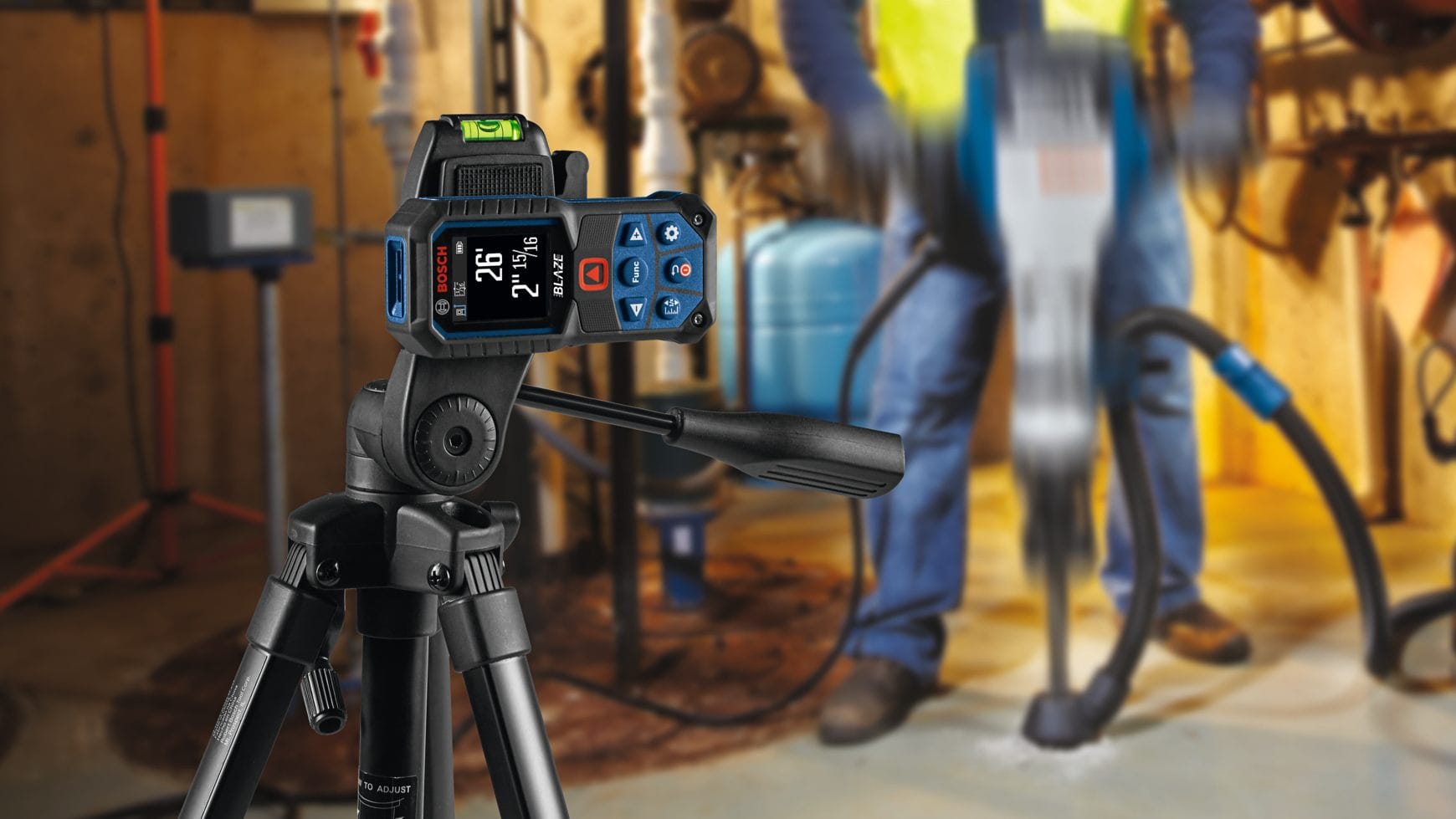

Action shot showing the GLM165-27C laser measure mounted on a tripod for stable, accurate measurements, with a worker performing demolition in the noisy background

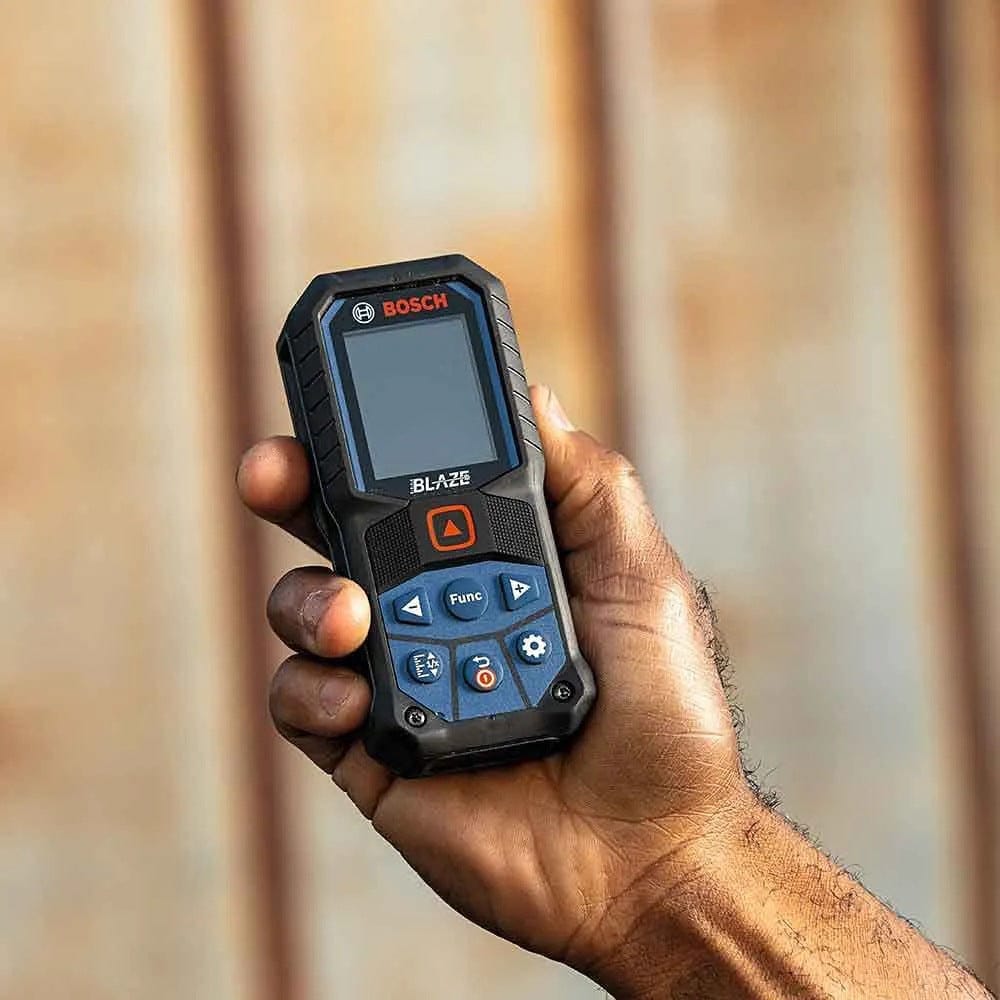

Close-up action shot of a hand holding the Bosch BLAZE GLM165-27C laser measure, highlighting the compact size, rugged rubber overmold housing, and color display interface

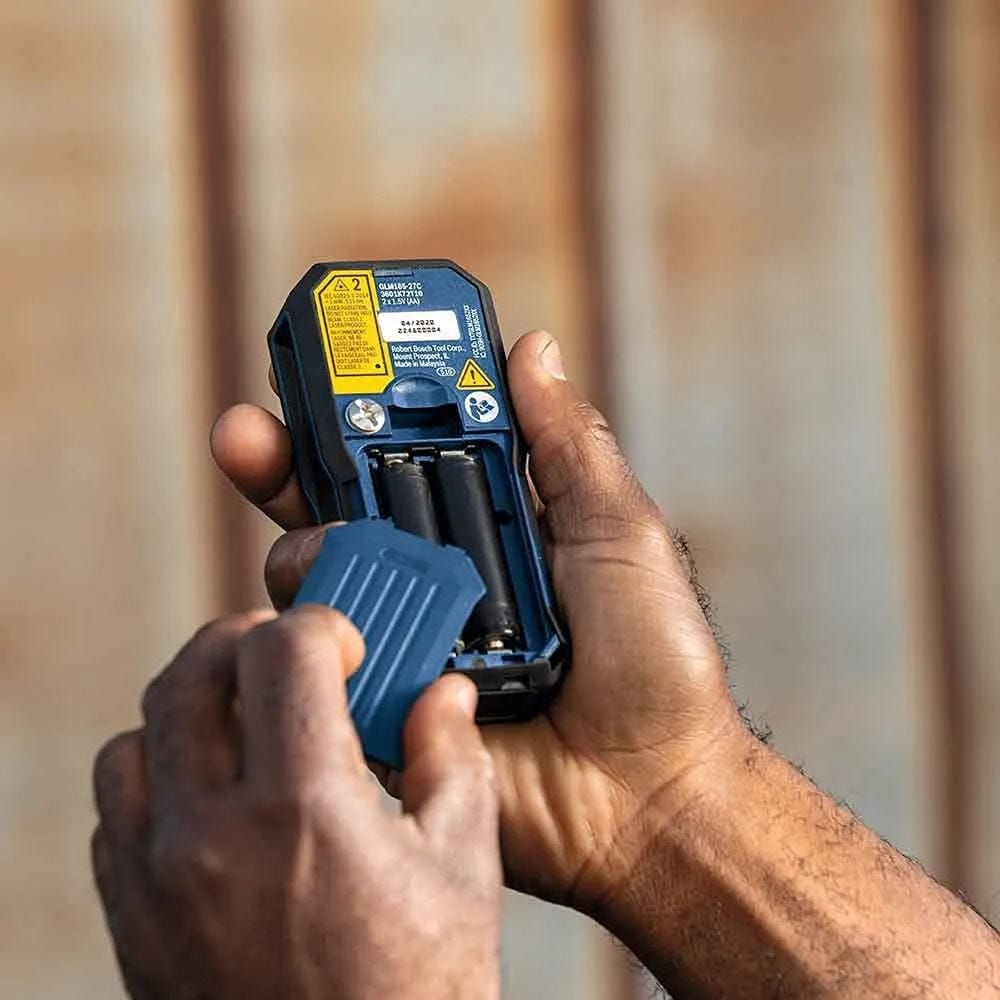

Close-up view of hands opening the battery compartment of the laser measure, showing the bay for inserting or replacing the two AA batteries
New Bosch Outdoor Power Equipment | Bosch WOC 2026 promotional video
Studio shot of the Bosch BLAZE GLM165-27C laser measure with the screen displaying a 164 foot measurement and the red laser beam pointing upward
Infographic diagram of the Bosch GLM165-27C labeling key features including the backlit color display, inclinometer, rounding button, Bluetooth connectivity, and IP65-rated robust construction
Rear view of the Bosch GLM165-27C showing the blue battery compartment cover, laser warning label, and the charging/data port location
Action shot of a hand holding the GLM165-27C inside a room under construction, with the color display showing a measurement and the rounding function active
Action shot showing the Bosch BLAZE GLM165-27C laser measure sitting on a countertop, projecting the red laser beam across a kitchen sink to take an accurate indoor measurement
Action shot showing the GLM165-27C laser measure mounted on a tripod for stable, accurate measurements, with a worker performing demolition in the noisy background
Close-up action shot of a hand holding the Bosch BLAZE GLM165-27C laser measure, highlighting the compact size, rugged rubber overmold housing, and color display interface
Close-up view of hands opening the battery compartment of the laser measure, showing the bay for inserting or replacing the two AA batteries
New Bosch Outdoor Power Equipment | Bosch WOC 2026 promotional video
BOSCH

Bosch Laser Measure BLAZE GLM165-27C 165 Foot Bluetooth (Inclinometer Haptic Feedback Backlit Color Display IP65 Dust Water Rated Belt Clip Pouch)

In stock
SKU: GLM165-27C
$169.00 USD

Description

Bosch Promotional Logo Logout

Bosch BLAZE GLM165-27C 165-Foot Connected Laser Distance Measure

The Bosch BLAZE GLM165-27C 165-Foot Connected Laser Distance Measure is an optical layout instrument engineered for calculating room volumes, documenting floor plan dimensions, and determining indirect heights on commercial construction jobsites. Delivering an operational measuring range up to 165 feet with ±1/16 inch accuracy, this digital measure incorporates Bluetooth Smart 4.2 connectivity for transferring data directly to the Bosch MeasureOn mobile application. Outfitted with a 360-degree digital inclinometer, 11 calculation functions, a tactile haptic feedback vibration engine, a backlit color LCD screen, an IP65 dust and water protection rating, and a full rubber overmold housing, this 0.22-pound device executes digital site estimations.

Best Used For:

  • Digital Floor Plan & Site Estimation: Capturing length, area, and volume metrics across 165-foot spans and syncing measurements via Bluetooth.
  • 360-Degree Angle & Indirect Height Calculation: Measuring roof slopes, stair angles, and indirect vertical heights using the integrated tilt sensor.
  • High-Noise Jobsite Layout Verification: Receiving immediate haptic vibration confirmation when taking critical layout measurements in loud environments.

Key Performance & Safety Features

  • 165-Foot Precision Laser Engine: Accurately measures distance up to 165 feet with tight ±1/16 inch tolerances for trade estimates.
  • Bluetooth Smart 4.2 Data Transfer: Wirelessly pairs with mobile devices via the free Bosch MeasureOn app to digitize jobsite plans and photos.
  • Integrated 360-Degree Digital Inclinometer: Measures tilt angles across a full 360 degrees to solve complex indirect height and slope equations.
  • Tactile Haptic Feedback Motor: Vibrates the tool body to provide positive physical confirmation of captured readings in high-decibel work areas.
  • IP65 Rated Dust & Water Jet Protection: Roll-cage rubber overmold housing withstands harsh weather conditions, dust ingress, and jobsite drops.
  • Full-Color Backlit Graphic Display: High-resolution screen displays clear numerical values, battery status, and active calculation modes in low light.

What's Included

  • (1) GLM165-27C BLAZE Connected 165 Ft. Laser Distance Measure
  • (1) Heavy-Duty Belt Clip
  • (2) AA 1.5V Alkaline Batteries
  • (1) Protective Fabric Storage Pouch

Technical Specifications

Brand / Manufacturer Bosch Power Tools
Model / Part Number GLM165-27C (BLAZE Series)
Maximum Distance Measuring Range Up to 165 ft. (50.29 Meters)
Distance Measuring Accuracy Tolerance ±1/16 in. (±1.5 mm)
Laser Diode Projection Type Class 2 Red Beam (635 nm, <1mW)
Wireless Connectivity Protocol Bluetooth Smart 4.2
Digital Inclinometer Range 360° Angle Tilt Sensor
Ingress Protection Rating IP65 Certified (Dust-Tight & Water Jet Protected)
Display Screen Type Backlit Color Graphic LCD Screen
Total Measurement Functions 11 (Real-Time Distance, Area, Volume, Indirect, Add/Subtract, etc.)
Power Supply Source (2) AA 1.5V Alkaline Batteries
Overall Dimensions (L x W x H) 4.70 in. x 2.10 in. x 1.20 in. (119.38 x 53.34 x 30.48 mm)
Assembled Net Tool Weight 0.22 lb (0.10 kg)
Pro-Tip: Use the rounding button feature to quickly convert exact decimal readings to standard jobsite fractions (such as 1/16 in. or 1/8 in.) for fast material cut-list calculations.
