Bosch BlueGranite Turbo 1/4 Inch x 10 Inch Carbide Hammer Drill Bit PowerGrip Straight Shank Multi Grind Concrete Masonry Brick Boring Tool HCBG07T
Couldn't load pickup availability
Execute Lightning-Fast Anchor Holes and Passages in Brick Face Concrete and Masonry with a High-Speed Carbide Turbo Bit Pack
Supercharge your workflow and conquer demanding fastening tasks with the professional-grade Bosch BlueGranite Turbo Carbide Hammer Drill Bit. Engineered specifically for commercial masonry contractors, structural electricians, HVAC installers, and general residential builders, this 1/4-inch by 10-inch premium tool sets a new industry benchmark for performance. Standard multi-purpose drill bits wear out within minutes under the intense heat generated by modern high-speed hammer drills, leading to drifting layouts and stalled projects. This industrial masonry bit completely resolves those costly field bottlenecks by utilizing an advanced structural build that delivers a phenomenal five times longer service life and two times faster drilling speeds than standard competing bits, ensuring your crew stays productive shift after shift.
Forged from exclusive, high-density Bosch carbide matrices, the bit features an upgraded four-grind cutting head that adds two additional precision cutting angles to maximize material fragmentation. This unique layout is augmented by a specialized multi-grind centering tip that bites directly into slick cinder blocks, stone facades, old brickwork, and poured concrete decks without slipping or walking. Power transmission is handled flawlessly by an innovative PowerGrip round shank equipped with steel ridges that lock mechanically into your standard three-jaw drill chuck, eliminating slipping under immense torsional loads. Supported by deeply milled U-flutes with an engineered fast-spiral core, this ultra-durable tool continuously pulls pulverized stone grit away from the working tip to avoid thermal binding and prolong overall structural lifespan.
Key Features
- Turbo Five-Times Durability: Advanced structural engineering delivers up to 5X longer service life and 2X faster velocities than generic masonry tooling.
- PowerGrip Straight Shank: Ground ridges engage completely with regular three-jaw chuck interfaces to maximize torque and prevent bit rotation under load.
- Four-Grind Precision Head: Provides two extra cutting angles to achieve smooth, low-friction material removal and drastically shorten plunge times.

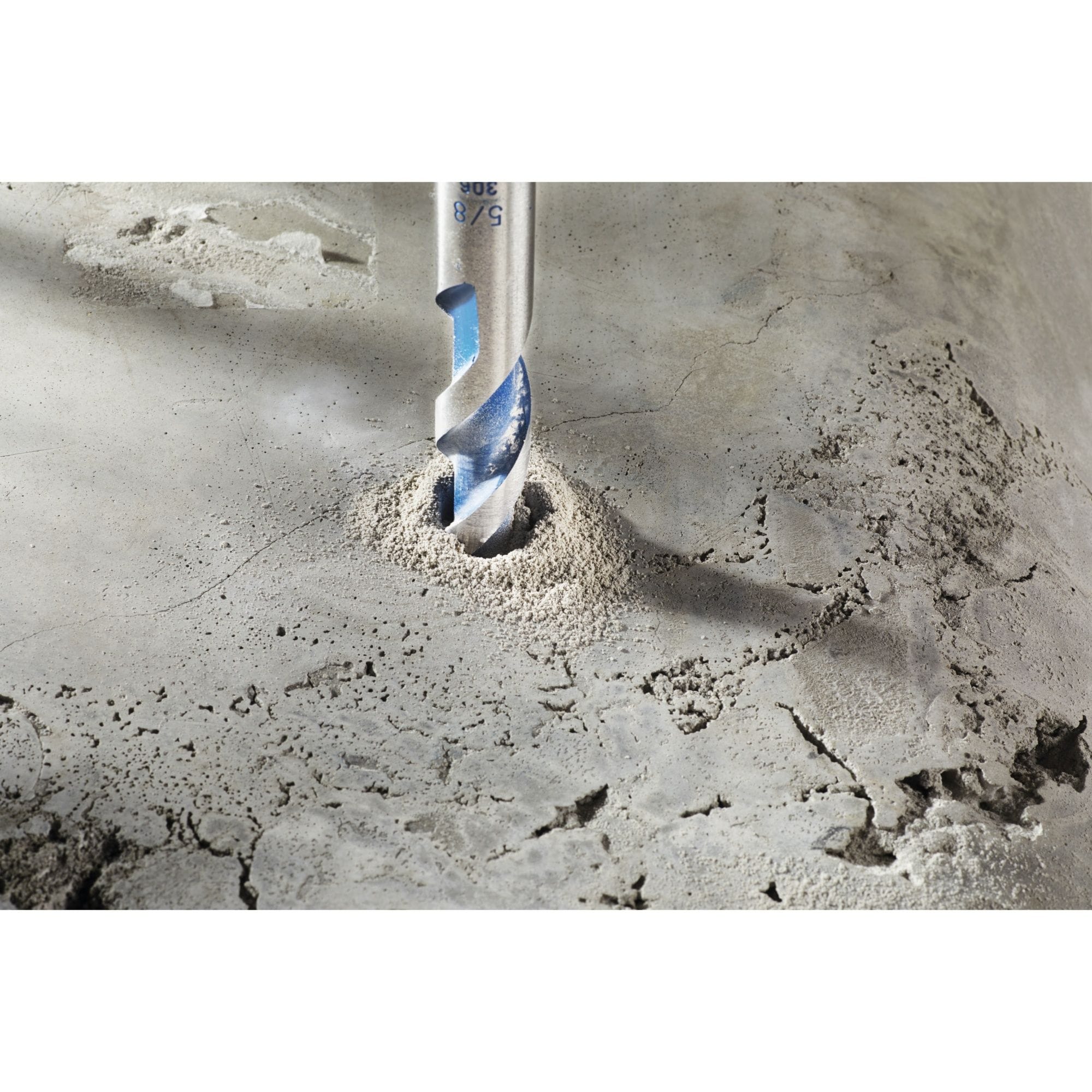

- Multi-Grind Centering Tip: Sharp carbide point bites immediately into hard brick or stone to ensure absolute accuracy on initial starter paths.
- Deep-Cut Milled U-Flutes: High-volume spiral channels evacuate micro-fine stone powder quickly to lower operating temperatures and stop binding.
- Industrial Bosch-Made Carbide: Propitetary thermal-shipped carbide matrix handles extreme percussive shock without fracturing.
What's Included

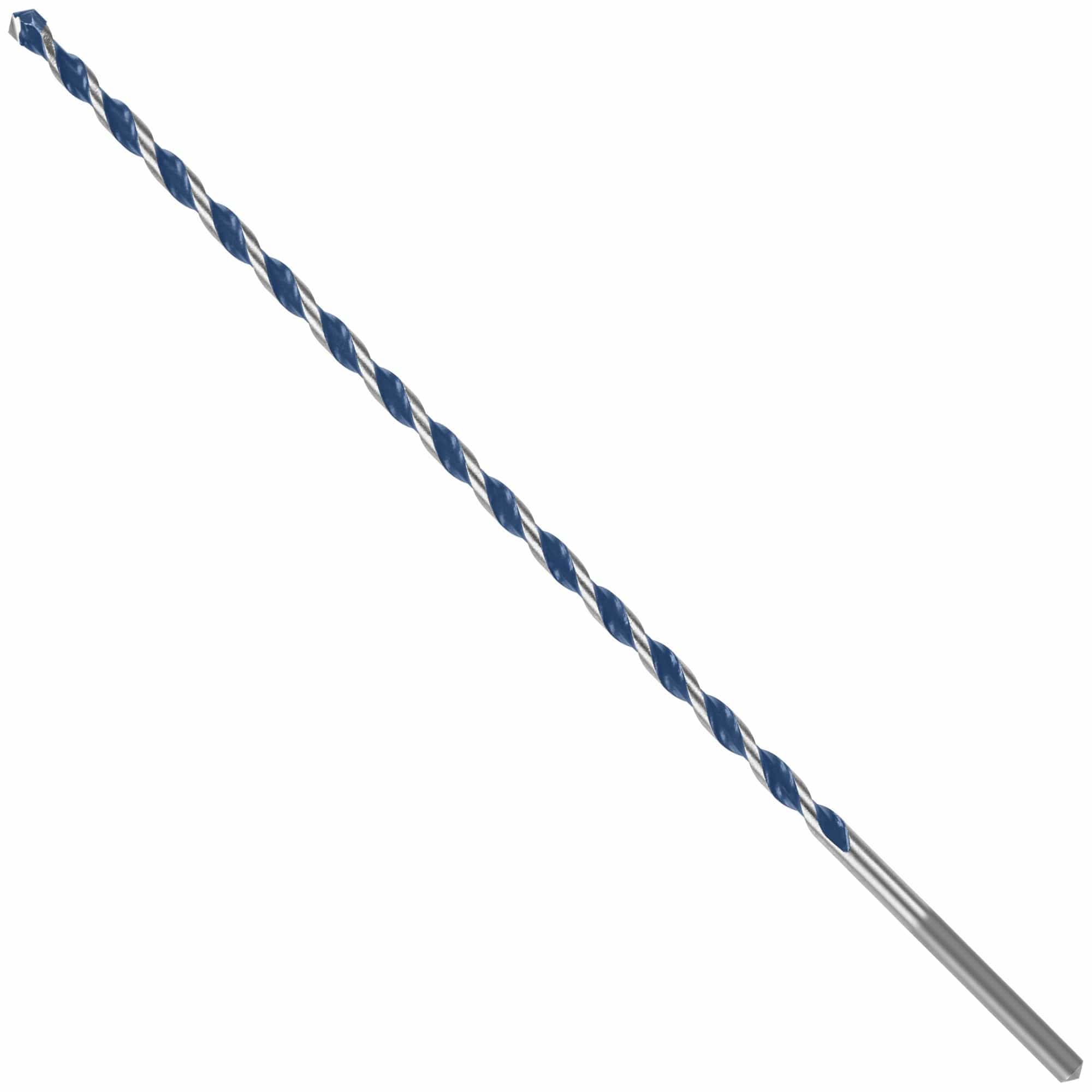

- (1) Bosch BlueGranite Turbo™ 1/4 in. x 10 in. Carbide Hammer Drill Bit
Specifications
| Specification Profile | Details / Performance Value |
|---|---|
| Brand Name | Bosch |
| Model Identification Number | HCBG07T |
| Bit Diameter Size | 1/4 in. |
| Overall Bit Length | 10.0 in. |
| Shank Type Profile | PowerGrip Cylindrical Straight Shank with Ridges |
| Cutting Crown Style | 4-Grind Head Configuration |
| Starter Point Configuration | Multi-Grind Precision Centering Point |
| Flute Engineering Geometry | Deep Milled U-Flute Spiral Array |
| Material Formulation | High-Alloy Tool Steel with Brazed Tungsten Carbide Tip |
| Compatible Power Tool Formats | Standard Corded or Cordless Hammer Drills with 3-Jaw Chucks |
| Primary Application Target | Brick Face, Natural Stone, Cinder Block, Concrete Mortar, and Aggregate Masonry |
| Product Shipping Weight | 0.10 lbs |
Pro-Tip: This straight-shank BlueGranite Turbo bit is engineered specifically for standard rotary hammer drills with adjustable three-jaw chucks, not slotted SDS-Plus slider chucks. For optimal performance when drilling deep 10-inch holes, make sure your tool toggle is switched into "Hammer-Drill" mode. Running the tool in standard rotation-only mode will dull the carbide tip prematurely, while applying light, steady pressure and pulsing the bit outward every few inches will maintain excellent velocity and eject pulverized stone dust seamlessly.
