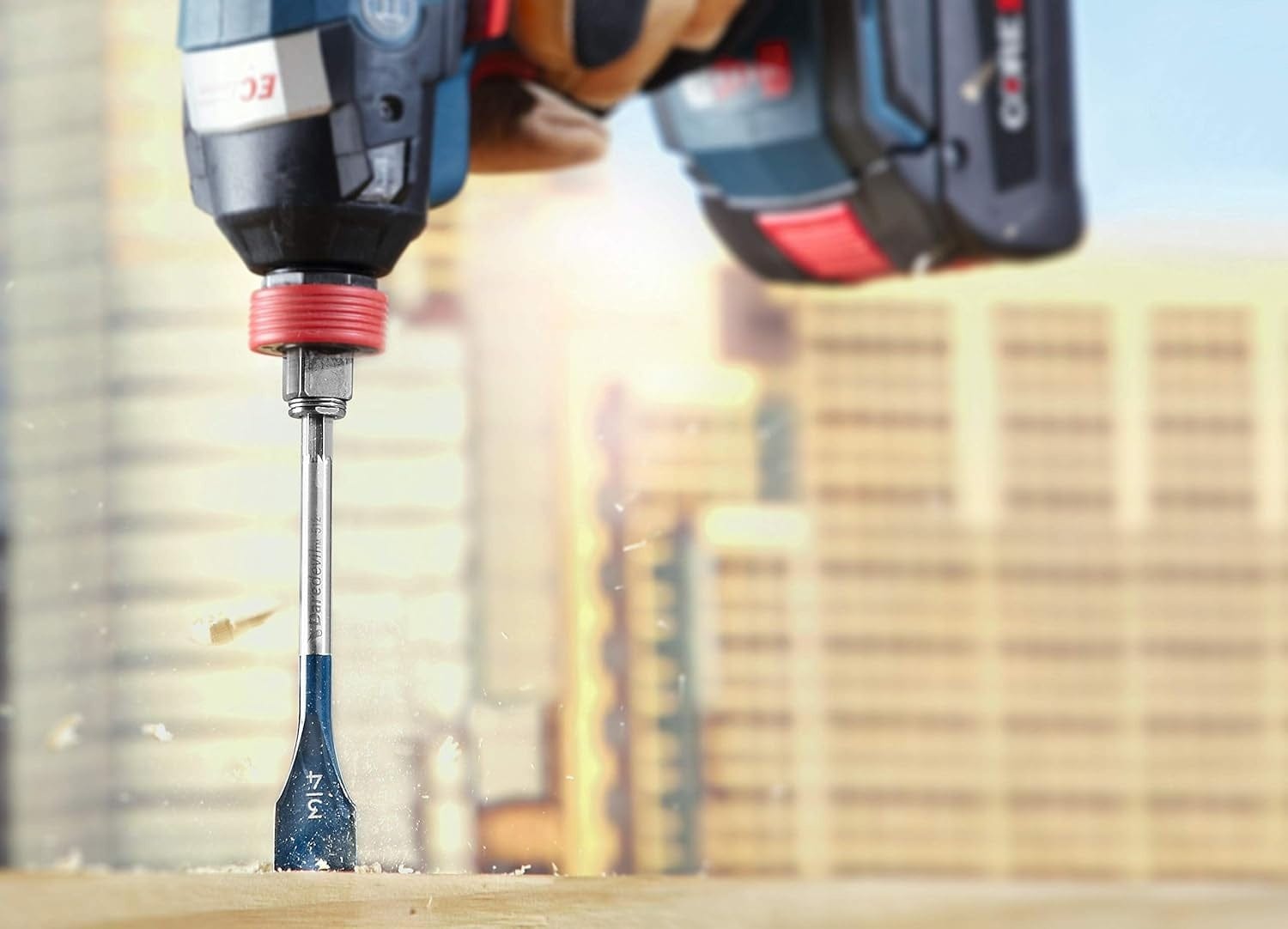

Low angle view of the spade bit secured in the chuck of a cordless impact driver with a blurred building construction background.
Arrangement of three Daredevil spade bits of varying sizes resting on a wooden surface scattered with wood shavings.
Studio view of the 5/16 inch Daredevil spade bit featuring a blue paddle, full-cone threaded tip, and hex shank.
Infographic diagram detailing features including the self-feeding threaded tip, speedwave paddle for chip removal, and hex shank with power groove.
Graphic titled Best For displaying a cross-section of a tree log labeled Wood to indicate the primary application material.
Action shot of a cordless impact driver driving a fastener into a wooden stud, demonstrating the power tool platform compatible with the bit.
Close-up action shot of the blue spade bit boring a hole through a wooden beam with wood chips being ejected by the contoured paddle.
Low angle view of the spade bit secured in the chuck of a cordless impact driver with a blurred building construction background.
Arrangement of three Daredevil spade bits of varying sizes resting on a wooden surface scattered with wood shavings.
BOSCH

Bosch Spade Drill Bit DSB1002 5/16 Inch Daredevil Wood Boring Paddle Tool 6 Inch Length 1/4 Hex Shank Self Feeding Threaded Tip For Framing Lumber

In stock
SKU: DSB1002
$4.89 USD

Description

Bosch Promtional Logo Logout

High-Speed Self-Feeding Wood Boring Bit for Fast Structural Framing and Rough-In Assemblies

The Bosch DSB1002 Daredevil Spade Drill Bit is a 5/16-inch diameter by 6-inch length wood-boring tool engineered to complete heavy-duty penetrations through structural lumber up to 10 times faster than conventional spade bits. A prominent full-cone threaded tip continuously pulls the cutting geometry through wood fibres, minimizing physical force requirements while lowering operator fatigue and vibration. The contoured wave paddle design maximizes high-volume wood chip evacuation, preventing thermal binding and frictional clogging inside deep bored holes. Fitted with a 1/4-inch hex shank featuring an integrated power groove, it delivers secure, slip-free power transfer in high-torque impact drivers and standard drill chucks.

Best Used For:

  • Electrical Cable Routing: Boring precise 5/16-inch holes through wall studs and structural framing plates for clean wire pulling.
  • Finish Woodworking Layouts: Creating crisp, splinter-free entry and exit penetrations in structural pine, plywood, and softwoods.
  • General Construction Rough-Ins: Drilling consistent clearance openings through joists and structural framing members on commercial jobsites.

Key Performance & Safety Features

  • Full-Cone Threaded Tip: Provides rapid self-feeding engagement into lumber for fast, effortless drilling with minimal downforce.
  • Spur and Reamer Blades: Score the outer perimeter of the wood fibers first to eliminate breakout for smooth hole quality.
  • Contoured Paddle Design: Features an exclusive wave profile that clears wood chips quickly to maintain continuous cutting speed.
  • Hex Shank Power Groove: Universal 1/4-inch hex configuration reduces slippage and drops directly into standard impact drivers.
  • Reduced Vibration Performance: Engineered balanced structural body delivers smooth rotation compared to traditional flat paddle bits.

What's Included

  • (1) 5/16 In. x 6 In. Daredevil™ Spade Drill Bit

Technical Specifications

Brand Bosch
Model Number DSB1002
Product Type Spade Bit / Paddle Bit
Bit Diameter 5/16 in.
Overall Length 6 in.
Shank Size 1/4 in.
Shank Type Hex with Power Groove
Tip Design Full-Cone Threaded Self-Feeding
Primary Application Wood Boring
UPC 000346388589

Pro-Tip: Because this bit is self-feeding, keep a firm two-handed grip on your drill or impact driver. Let the threaded cone lead the tool through the wood, maintaining a straight approach angle to prevent structural binding.
