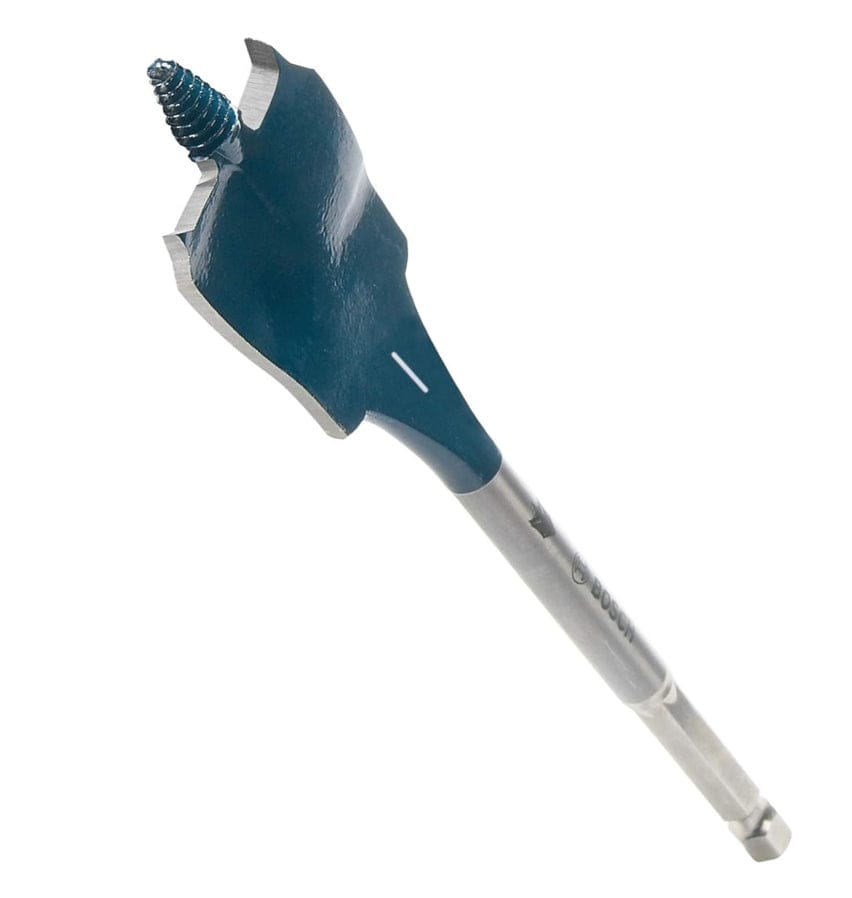

Studio view of the Daredevil spade bit featuring a blue paddle, full-cone threaded tip, and hex shank.
Infographic diagram detailing features including the self-feeding threaded tip, speedwave paddle for chip removal, and hex shank with power groove.
Graphic titled Best For displaying a cross-section of a tree log labeled Wood to indicate the primary application material.
Action shot of a cordless impact driver using the spade bit to drill into a wooden stud.

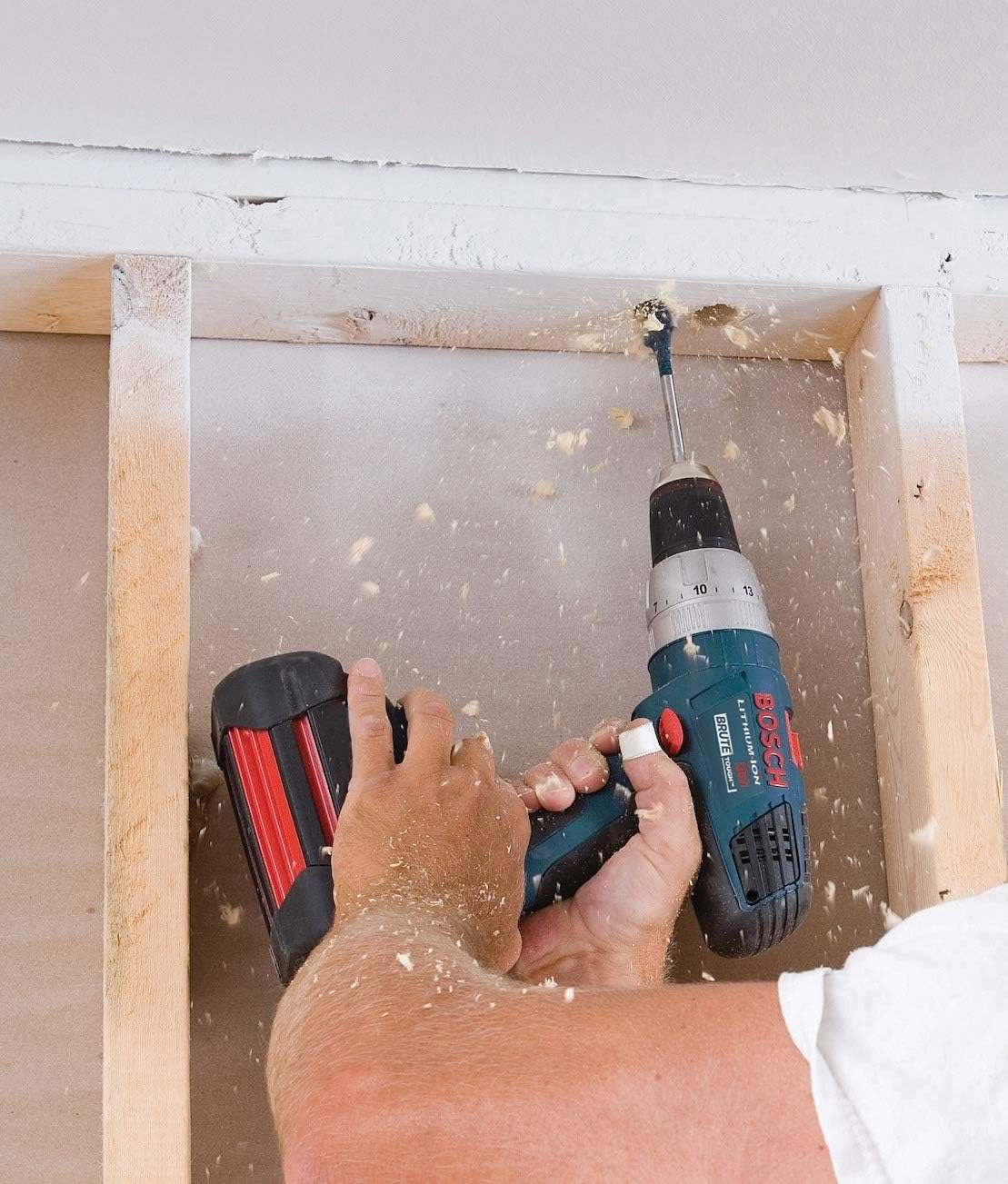

Close-up action shot of the blue spade bit boring a hole through a wooden beam with wood chips being ejected by the contoured paddle.
Low angle view of the spade bit secured in the chuck of a cordless impact driver with a blurred building construction background.
Arrangement of three Daredevil spade bits of varying sizes resting on a wooden surface scattered with wood shavings.

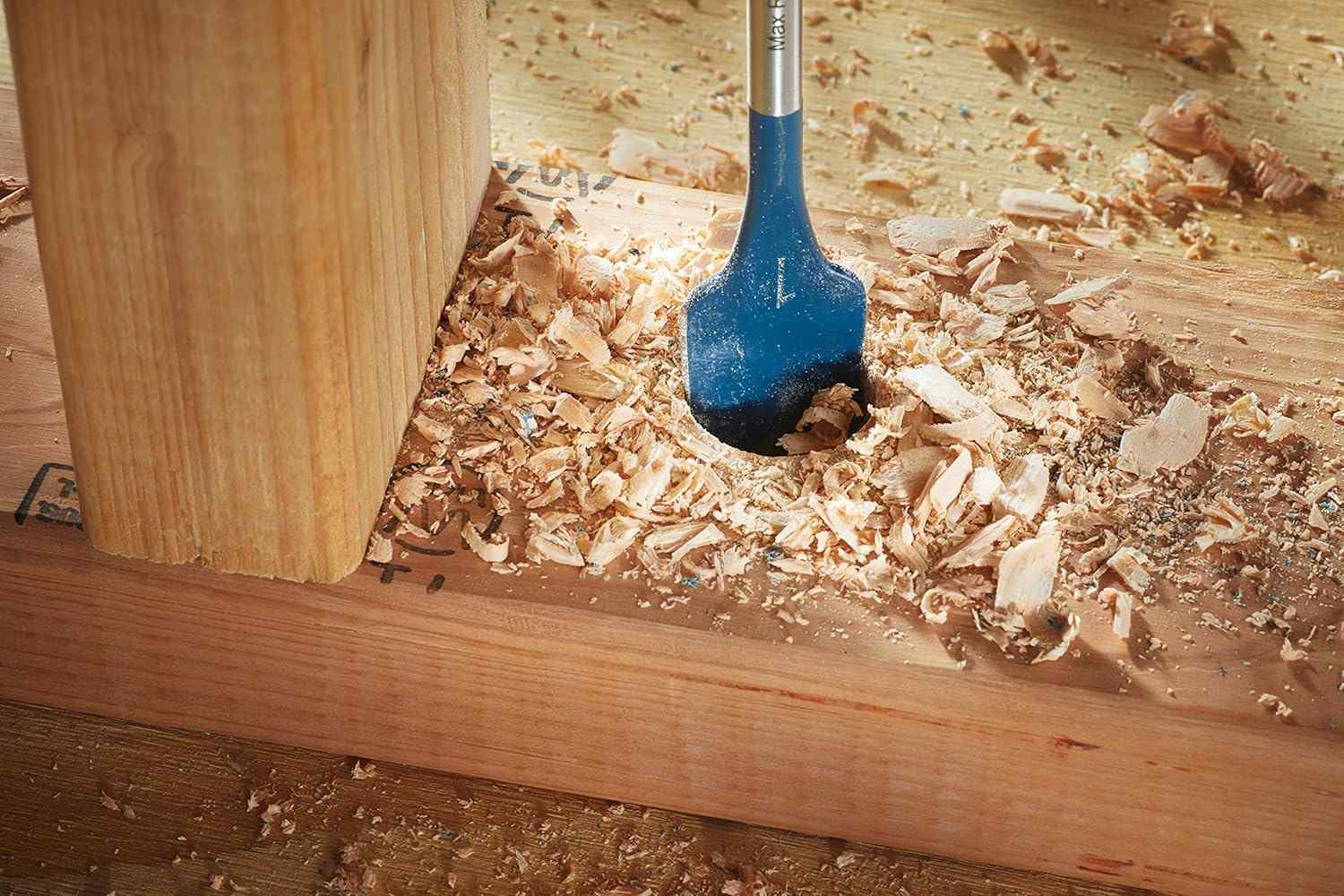

Close-up action shot of the 7/8 inch blue spade bit boring a hole through a wooden stud showing the size marking on the paddle.

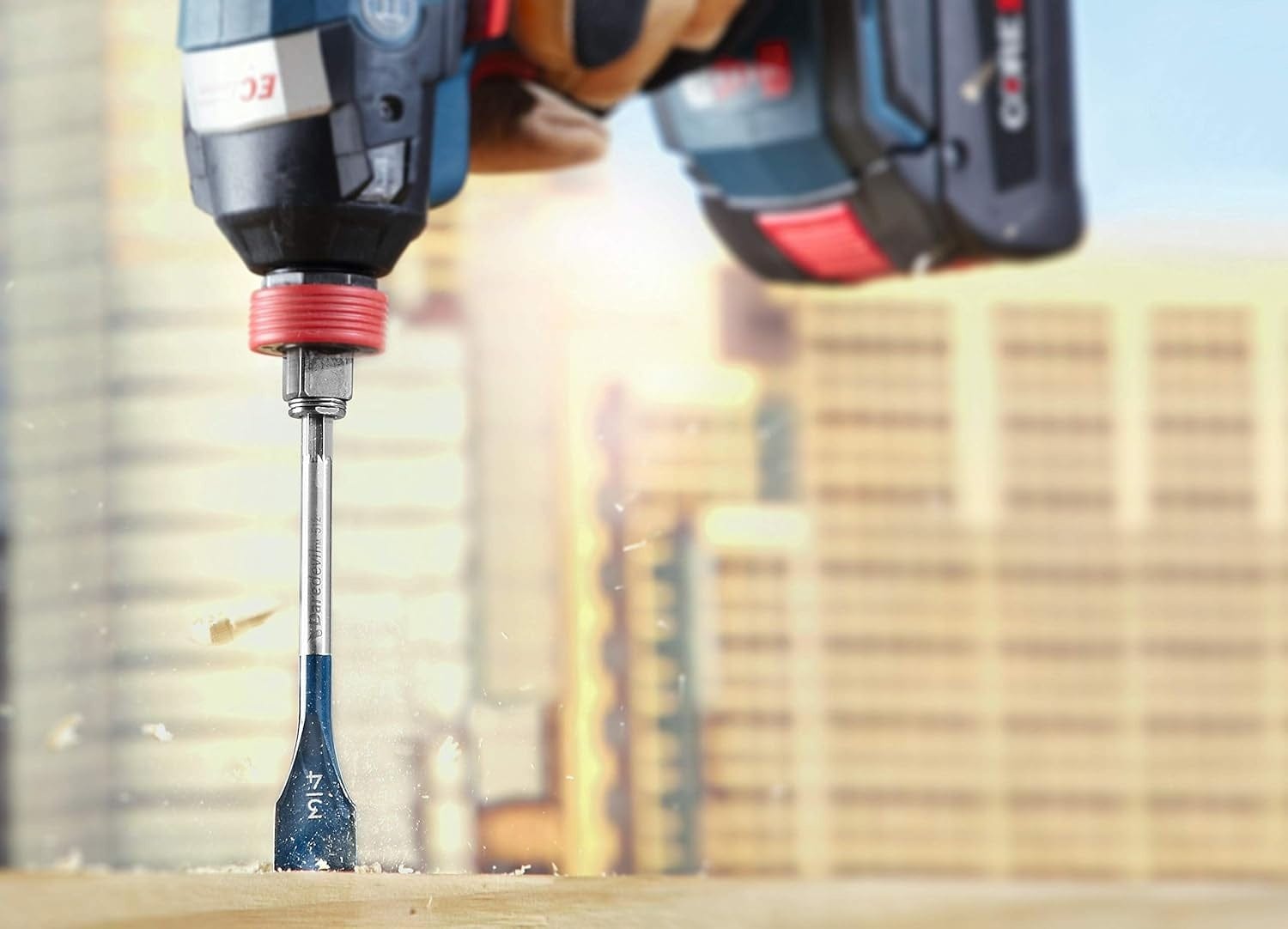

Low angle view of a blue spade bit secured in the chuck of a cordless impact driver with a blurred construction background.
Action shot of a cordless impact driver driving a fastener into a wooden stud with wood chips flying demonstrating the tool platform.
Studio view of the Daredevil spade bit featuring a blue paddle, full-cone threaded tip, and hex shank.
Infographic diagram detailing features including the self-feeding threaded tip, speedwave paddle for chip removal, and hex shank with power groove.
Graphic titled Best For displaying a cross-section of a tree log labeled Wood to indicate the primary application material.
Action shot of a cordless impact driver using the spade bit to drill into a wooden stud.
Close-up action shot of the blue spade bit boring a hole through a wooden beam with wood chips being ejected by the contoured paddle.
Low angle view of the spade bit secured in the chuck of a cordless impact driver with a blurred building construction background.
Arrangement of three Daredevil spade bits of varying sizes resting on a wooden surface scattered with wood shavings.
Close-up action shot of the 7/8 inch blue spade bit boring a hole through a wooden stud showing the size marking on the paddle.
Low angle view of a blue spade bit secured in the chuck of a cordless impact driver with a blurred construction background.
Action shot of a cordless impact driver driving a fastener into a wooden stud with wood chips flying demonstrating the tool platform.
BOSCH

Bosch Spade Drill Bit DSB1011 7/8 Inch Daredevil Wood Boring Paddle Tool 6 Inch Length 1/4 Hex Shank Self Feeding Threaded Tip For Electrical Conduit

In stock
SKU: DSB1011
$4.29 USD

Description

Bosch Promtional Logo Logout

High-Speed Self-Feeding Wood Boring Bit for Fast Structural Framing and Utility Rough-Ins

The Bosch DSB1011 Daredevil Spade Drill Bit is a 7/8-inch diameter by 6-inch length wood-boring tool engineered to drill clean utility penetrations through structural lumber up to 2.4 times faster than conventional spade bits. An aggressive full-cone threaded tip continuously self-feeds through the material, minimizing required operator downforce while drastically reducing tool vibration and muscle fatigue. The patented contoured wave paddle design maximizes rapid chip evacuation to prevent thermal binding and friction-induced jamming inside deep framing holes. Equipped with a universal 1/4-inch hex shank and safety power groove, this high-speed steel bit ensures a reliable, slip-free mechanical connection inside high-torque impact drivers and standard drill chucks.

Best Used For:

  • Electrical Rough-Ins: Boring clean 7/8-inch openings through structural studs and top plates to route Romex lines or PVC conduit.
  • Plumbing Pipe Passages: Fabricating clearance holes through floor joists and framing assemblies for PEX water supply lines.
  • Heavy Timber Drilling: Penetrating deep structural wood assemblies, pressure-treated framing lumber, and thick plywood subfloors.

Key Performance & Safety Features

  • Full-Cone Threaded Tip: Aggressively self-feeds the tool into wood substrates for rapid, high-speed drilling with minimal physical pressure.
  • Spur and Reamer Geometry: Utilizes dual cutting spurs to score wood fibers along the perimeter first, delivering clean exits with reduced breakout.
  • Contoured Paddle Profile: Engineered wave design forces wood chips away from the cutting path instantly to eliminate boring stalls.
  • Hex Shank Power Groove: Fixed 1/4-inch hex configuration provides slip-free torque transfer and rapid-change utility in impactors.
  • High-Speed Steel Composition: Hardened tool steel matrix preserves tooth sharpness and extends structural life during rigorous industrial use.

What's Included

  • (1) 7/8 In. x 6 In. Daredevil™ Spade Drill Bit

Technical Specifications

Brand Bosch
Model Number DSB1011
Product Type Spade Bit / Paddle Bit
Drill Bit Size 7/8 in.
Overall Length 6 in.
Shank Size 1/4 in.
Shank Type Hex with Power Groove
Tip Design Full-Cone Threaded Self-Feeding
Material High Speed Steel
Primary Application Wood Boring
Number of Spurs 2

Pro-Tip: Allow the aggressive self-feeding full-cone thread to pull the paddle bit through the wood at its own pace. Trying to push hard while drilling will cause high-torque impact drivers to shift into impact mode unnecessarily, which can slow down your boring speed.
