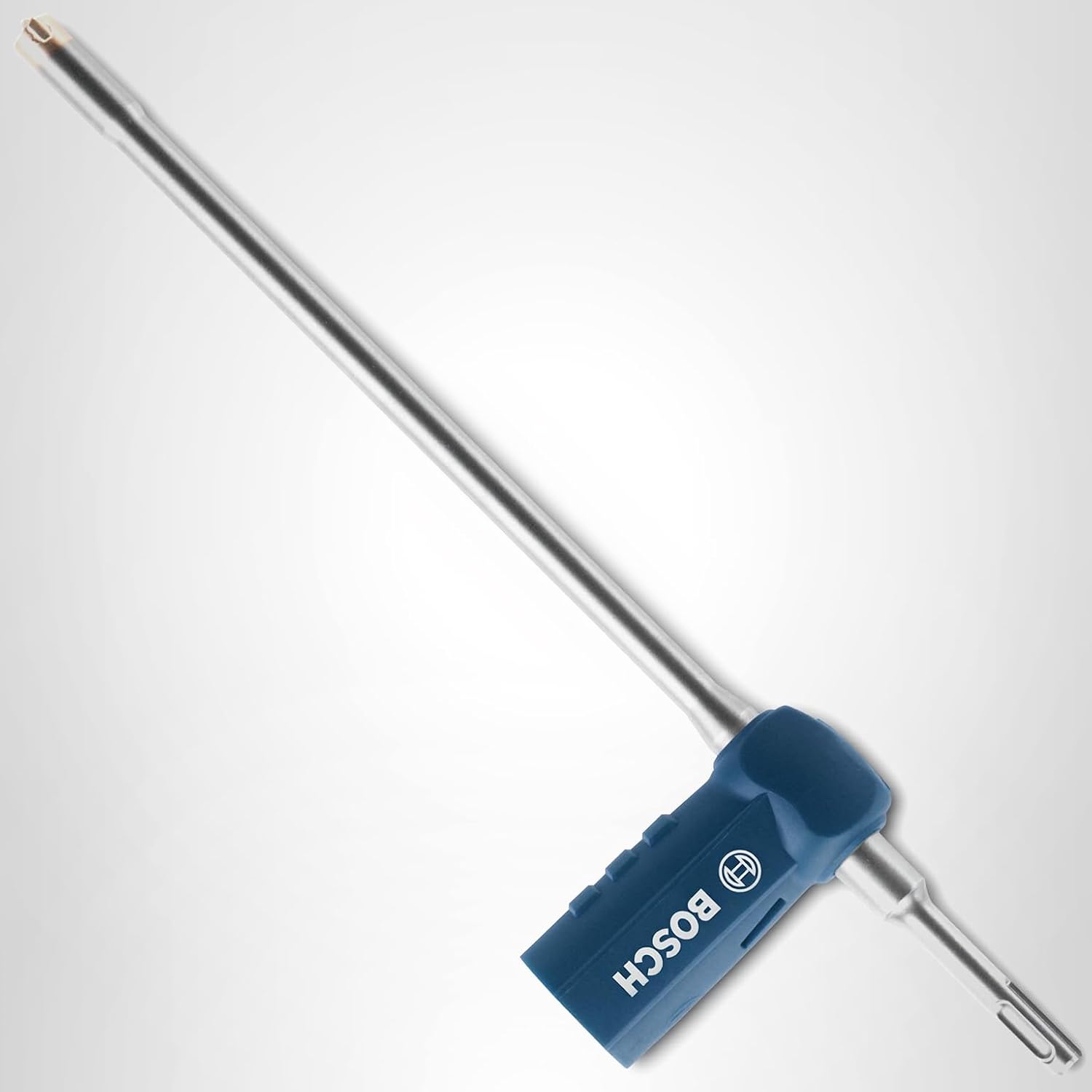

A clean product studio shot of the Bosch DXS2094 hollow dust extraction hammer drill bit against a neutral light gray background, highlighting the elongated steel body shaft, the blue rubber vacuum attachment collar showing the white Bosch logo, and the integrated SDS-plus shank connection configuration.
An informative product diagram of the Bosch Speed Clean hollow core bit system with descriptive text callouts indicating key structural features including the dual dust-extraction ports link, the premium carbide tip design, optimized drilling depth length by diameter, and the robust construction built for SDS-plus hammers.

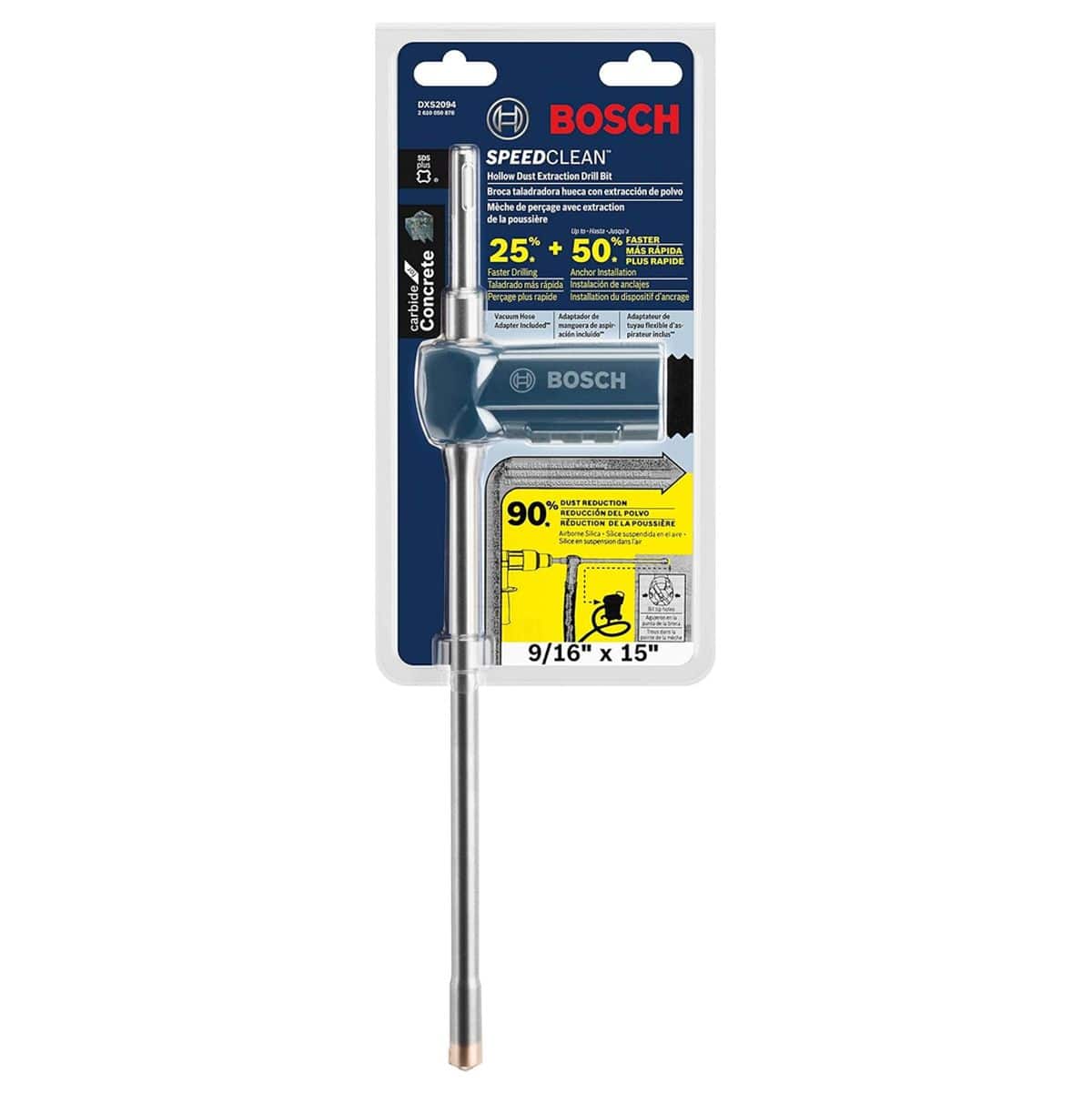

The Bosch DXS2094 9/16-inch x 15-inch Speed Clean hollow dust extraction concrete drilling bit shown enclosed inside its clear plastic retail clamshell packaging, prominently displaying its specialized masonry performance metrics such as 25% faster drilling, 50% faster chemical anchor installation, and 90% jobsite dust reduction.
A commercial construction professional wearing a safety vest and hard hat utilizes a heavy-duty rotary hammer equipped with the Bosch DXS2074 extraction bit to drill vertically into a warehouse concrete floor, with the suction hose routing debris straight into a matching blue Bosch dust extractor vacuum.
A close-up shot of a trade worker wearing safety gear operating an SDS-plus hammer drill and a Bosch hollow dust extraction bit next to industrial warehouse shelving units, pulling harmful masonry concrete dust away from the hole dynamically through a connected vacuum system.
A full industrial workspace view showing a contractor operating a corded Bosch hammer drill with the Speed Clean dust extraction system on a smooth concrete floor slab, illustrating how the portable HEPA-ready vacuum setup keeps the active workspace clean and free of airborne silica dust.
An installer uses a Bosch Bulldog rotary hammer drill coupled with the DXS2074 hollow extraction bit near structural steel racks to prepare anchor points in concrete, demonstrating the flexible, extended range of the vacuum hose assembly on an active industrial jobsite.
An outdoor construction scene showing a worker wearing a safety harness and green hard hat drilling horizontally into a concrete column with a Bosch dustless hammer drill bit system, while a laser level sits nearby on the jobsite floor to ensure perfect structural alignment.
A close-up view of an installer using a cordless 36V Bosch rotary hammer drill fitted with the DXS2074 hollow suction bit to precisely drill through a carpet cutout template into the subfloor, capturing all concrete debris instantaneously to protect indoor environments.
A low-angle view looking up at a commercial ironworker or concrete mason standing against a high-rise building framework, using a cordless Bosch SDS-plus hammer drill with a Speed Clean extraction bit to prepare structural anchor settings on an open-air concrete ledge.
Bosch PROFACTOR™ 18V Hitman™ SDS-max® 1-9/16 In promotional video
A clean product studio shot of the Bosch DXS2094 hollow dust extraction hammer drill bit against a neutral light gray background, highlighting the elongated steel body shaft, the blue rubber vacuum attachment collar showing the white Bosch logo, and the integrated SDS-plus shank connection configuration.
An informative product diagram of the Bosch Speed Clean hollow core bit system with descriptive text callouts indicating key structural features including the dual dust-extraction ports link, the premium carbide tip design, optimized drilling depth length by diameter, and the robust construction built for SDS-plus hammers.
The Bosch DXS2094 9/16-inch x 15-inch Speed Clean hollow dust extraction concrete drilling bit shown enclosed inside its clear plastic retail clamshell packaging, prominently displaying its specialized masonry performance metrics such as 25% faster drilling, 50% faster chemical anchor installation, and 90% jobsite dust reduction.
A commercial construction professional wearing a safety vest and hard hat utilizes a heavy-duty rotary hammer equipped with the Bosch DXS2074 extraction bit to drill vertically into a warehouse concrete floor, with the suction hose routing debris straight into a matching blue Bosch dust extractor vacuum.
A close-up shot of a trade worker wearing safety gear operating an SDS-plus hammer drill and a Bosch hollow dust extraction bit next to industrial warehouse shelving units, pulling harmful masonry concrete dust away from the hole dynamically through a connected vacuum system.
A full industrial workspace view showing a contractor operating a corded Bosch hammer drill with the Speed Clean dust extraction system on a smooth concrete floor slab, illustrating how the portable HEPA-ready vacuum setup keeps the active workspace clean and free of airborne silica dust.
An installer uses a Bosch Bulldog rotary hammer drill coupled with the DXS2074 hollow extraction bit near structural steel racks to prepare anchor points in concrete, demonstrating the flexible, extended range of the vacuum hose assembly on an active industrial jobsite.
An outdoor construction scene showing a worker wearing a safety harness and green hard hat drilling horizontally into a concrete column with a Bosch dustless hammer drill bit system, while a laser level sits nearby on the jobsite floor to ensure perfect structural alignment.
A close-up view of an installer using a cordless 36V Bosch rotary hammer drill fitted with the DXS2074 hollow suction bit to precisely drill through a carpet cutout template into the subfloor, capturing all concrete debris instantaneously to protect indoor environments.
A low-angle view looking up at a commercial ironworker or concrete mason standing against a high-rise building framework, using a cordless Bosch SDS-plus hammer drill with a Speed Clean extraction bit to prepare structural anchor settings on an open-air concrete ledge.
Bosch PROFACTOR™ 18V Hitman™ SDS-max® 1-9/16 In promotional video
BOSCH

Bosch Drill Bit DXS2094 SDS Plus Speed Clean 9/16 x 15 Inch Hollow Concrete Masonry (Hollow Extraction Core 10 In Usable Adhesive Anchor Boring)

In stock
SKU: DXS2094
$89.95 USD

Description

Bosch Promtional Logo Logout

Bosch DXS2094 SDS-Plus Speed Clean 9/16 Inch x 15 Inch Dust Extraction Drill Bit

The Bosch DXS2094 SDS-Plus Speed Clean 9/16-Inch x 15-Inch Dust Extraction Bit operates as a hollow concrete masonry drilling tool engineered to extract silica dust through the bit body while boring holes for chemical adhesive anchors and post-installed rebar dowels. Featuring a solid carbide-tipped two-cutter head, an SDS-plus shank, a 9/16-inch diameter, a 10-inch usable length, and a 15-inch overall length, this hollow extraction bit connects to jobsite extractors using the included rubber adapter. By drawing concrete debris through an internal extraction channel during drilling, this tool increases drilling speeds up to 25%, captures 90% of airborne dust, and eliminates manual hole-cleaning steps required for structural epoxies.

Best Used For:

  • Chemical Adhesive Anchor & Rebar Dowel Installation: Boring 9/16-inch holes for post-installed rebar and structural anchors while meeting clean-hole standards for Simpson Strong-Tie AT-XP and Set-XP epoxies without manual blow-brush cycles.
  • OSHA Table 1 Compliant Concrete Drilling: Capturing 90% of airborne respirable crystalline silica dust directly at the point of impact when connected to a HEPA vacuum extractor.
  • Deep Structural Masonry Penetration: Drilling clean 10-inch deep penetrations through solid poured concrete, masonry blocks, and brick for heavy mechanical fastenings.

Key Performance & Safety Features

  • Integrated Hollow Extraction Channel: Internal vacuum passage removes concrete dust instantly at the cutter head, bypassing manual hole cleaning to accelerate anchor installation by 50%.
  • Up to 25% Faster Drilling Speed: Continuous dust extraction eliminates debris accumulation at the cutter tip, reducing thermal friction for rapid penetration.
  • 90% Airborne Silica Dust Reduction: Captures respirable crystalline silica dust directly at the bit head to assist in maintaining OSHA Table 1 jobsite compliance.
  • Solid Carbide Two-Cutter Head: Thermally brazed carbide cutting tip maintains hole diameter accuracy and provides service life comparable to solid drill bits.
  • Adhesive Anchor System Certified: Fulfills strict clean-hole parameters required by commercial structural epoxies including Simpson Strong-Tie AT-XP and Set-XP.
  • Includes Speed Clean Vacuum Adapter: Flexible rubber adapter connects the SDS-plus hollow shank directly to standard jobsite extractor hoses.

What's Included

  • (1) 9/16" x 10" x 15" SDS-Plus Speed Clean Dust Extraction Drill Bit
  • (1) Heavy-Duty Speed Clean Rubber Vacuum Hose Adapter

Technical Specifications

Brand Manufacturer Bosch
Model Identification OEM SKU DXS2094
Cutting Diameter Metric / SAE 0.5625 in. (9/16 in. / 14.28 mm)
Usable Drilling Depth 10.0 in. (254.0 mm)
Total Overall Length 15.0 in. (381.0 mm)
Shank System Interface SDS-Plus® Keyless System
Cutter Head Architecture Solid Carbide-Tipped 2-Cutter Head
Flute Engineering Design Spiral with Internal Extraction Core
Dust Collection Mechanism Hollow Extraction Core via Vacuum Adapter
Cutter Point Tip Style Hollow Core (120-Degree Cutting Angle)
Epoxy Compatibility Standard Certified for Simpson Strong-Tie® AT-XP® & Set-XP®
OSHA Compliance Standard Meets Silica Dust Table 1 Requirements with Extractor

Pro-Tip: When using the DXS2094 Speed Clean bit for deep 10-inch rebar doweling, ensure your connected dust extractor maintains an active filter-cleaning pulse mechanism. Uninterrupted airflow ensures the internal extraction core remains clear, allowing you to inject structural epoxy immediately after drilling without manual hole brushing.
