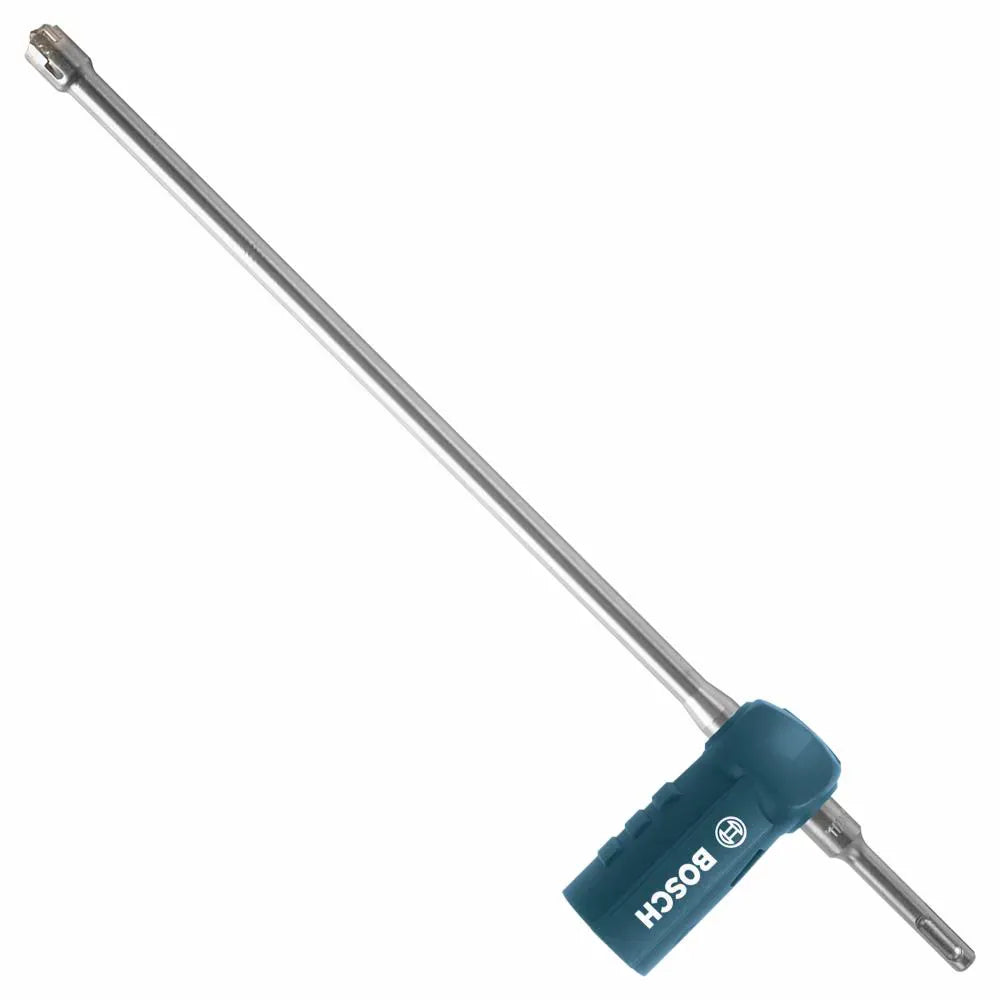

A studio product shot of the Bosch DXS2114 hollow dust extraction hammer drill bit, showcasing its extra-long steel shaft, durable four-cutter carbide head, integrated blue extraction connector block with white branding, and the universal SDS-plus shank connection.

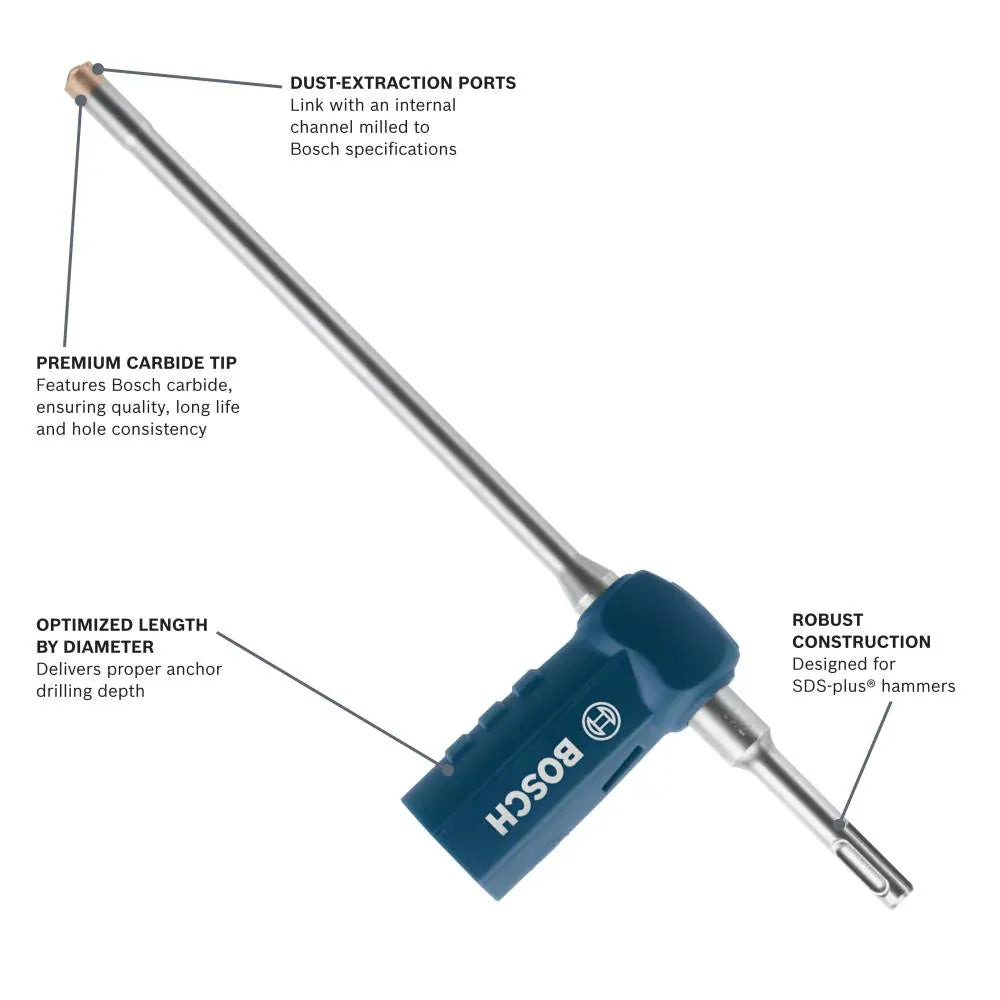

An informational features diagram of the Bosch Speed Clean dust extraction bit with technical pointers highlighting the dual dust-extraction ports, premium embedded carbide tip, optimized drilling length by diameter, and the robust construction designed for SDS-plus hammers.
An outdoor construction professional wearing a green hard hat, orange shirt, and full safety harness uses a cordless Bosch rotary hammer drill fitted with the DXS2114 hollow extraction bit to drill into a concrete structural column on an open high-rise building floor, with a blue HEPA-ready vacuum setup extraction system attached.
A construction worker operating a cordless SDS-plus rotary hammer with the Bosch hollow dustless extraction bit system to drill horizontally into a concrete support wall, utilizing an adjacent blue Bosch dust extractor vacuum while a compact line laser rests on the concrete floor for alignment.
An industrial jobsite view showing an ironworker or concrete mason utilizing a Bosch dustless hammer drill bit system to drill a deep anchoring hole into a concrete partition on an upper floor level, showing the vacuum extraction hose routing debris dynamically into a blue HEPA-ready dust extractor vacuum against a city skyline.
A commercial construction professional wearing a safety vest and hard hat utilizes a heavy-duty rotary hammer equipped with the Bosch DXS2074 extraction bit to drill vertically into a warehouse concrete floor, with the suction hose routing debris straight into a matching blue Bosch dust extractor vacuum.
A close-up shot of a trade worker wearing safety gear operating an SDS-plus hammer drill and a Bosch hollow dust extraction bit next to industrial warehouse shelving units, pulling harmful masonry concrete dust away from the hole dynamically through a connected vacuum system.
A full industrial workspace view showing a contractor operating a corded Bosch hammer drill with the Speed Clean dust extraction system on a smooth concrete floor slab, illustrating how the portable HEPA-ready vacuum setup keeps the active workspace clean and free of airborne silica dust.
An installer uses a Bosch Bulldog rotary hammer drill coupled with the DXS2074 hollow extraction bit near structural steel racks to prepare anchor points in concrete, demonstrating the flexible, extended range of the vacuum hose assembly on an active industrial jobsite.
A close-up view of an installer using a cordless 36V Bosch rotary hammer drill fitted with the DXS2074 hollow suction bit to precisely drill through a carpet cutout template into the subfloor, capturing all concrete debris instantaneously to protect indoor environments.
A low-angle view looking up at a commercial ironworker or concrete mason standing against a high-rise building framework, using a cordless Bosch SDS-plus hammer drill with a Speed Clean extraction bit to prepare structural anchor settings on an open-air concrete ledge.
Bosch PROFACTOR™ 18V Hitman™ SDS-max® 1-9/16 In promotional video
A studio product shot of the Bosch DXS2114 hollow dust extraction hammer drill bit, showcasing its extra-long steel shaft, durable four-cutter carbide head, integrated blue extraction connector block with white branding, and the universal SDS-plus shank connection.
An informational features diagram of the Bosch Speed Clean dust extraction bit with technical pointers highlighting the dual dust-extraction ports, premium embedded carbide tip, optimized drilling length by diameter, and the robust construction designed for SDS-plus hammers.
An outdoor construction professional wearing a green hard hat, orange shirt, and full safety harness uses a cordless Bosch rotary hammer drill fitted with the DXS2114 hollow extraction bit to drill into a concrete structural column on an open high-rise building floor, with a blue HEPA-ready vacuum setup extraction system attached.
A construction worker operating a cordless SDS-plus rotary hammer with the Bosch hollow dustless extraction bit system to drill horizontally into a concrete support wall, utilizing an adjacent blue Bosch dust extractor vacuum while a compact line laser rests on the concrete floor for alignment.
An industrial jobsite view showing an ironworker or concrete mason utilizing a Bosch dustless hammer drill bit system to drill a deep anchoring hole into a concrete partition on an upper floor level, showing the vacuum extraction hose routing debris dynamically into a blue HEPA-ready dust extractor vacuum against a city skyline.
A commercial construction professional wearing a safety vest and hard hat utilizes a heavy-duty rotary hammer equipped with the Bosch DXS2074 extraction bit to drill vertically into a warehouse concrete floor, with the suction hose routing debris straight into a matching blue Bosch dust extractor vacuum.
A close-up shot of a trade worker wearing safety gear operating an SDS-plus hammer drill and a Bosch hollow dust extraction bit next to industrial warehouse shelving units, pulling harmful masonry concrete dust away from the hole dynamically through a connected vacuum system.
A full industrial workspace view showing a contractor operating a corded Bosch hammer drill with the Speed Clean dust extraction system on a smooth concrete floor slab, illustrating how the portable HEPA-ready vacuum setup keeps the active workspace clean and free of airborne silica dust.
An installer uses a Bosch Bulldog rotary hammer drill coupled with the DXS2074 hollow extraction bit near structural steel racks to prepare anchor points in concrete, demonstrating the flexible, extended range of the vacuum hose assembly on an active industrial jobsite.
A close-up view of an installer using a cordless 36V Bosch rotary hammer drill fitted with the DXS2074 hollow suction bit to precisely drill through a carpet cutout template into the subfloor, capturing all concrete debris instantaneously to protect indoor environments.
A low-angle view looking up at a commercial ironworker or concrete mason standing against a high-rise building framework, using a cordless Bosch SDS-plus hammer drill with a Speed Clean extraction bit to prepare structural anchor settings on an open-air concrete ledge.
Bosch PROFACTOR™ 18V Hitman™ SDS-max® 1-9/16 In promotional video
BOSCH

Bosch DXS2114 SDS Plus Speed Clean Dust Extraction Hammer Drill Bit 11 16 Inch x 18 Inch Hollow Concrete Masonry Bit with Adapter

In stock
SKU: DXS2114
$126.99 USD

Description

Bosch Promtional Logo Logout

Achieve Unmatched Structural Anchoring Velocity with Dustless Core Drilling

Redefine efficiency on your commercial jobsite with the Bosch DXS2114 11/16-Inch x 18-Inch SDS-Plus® Speed Clean™ Dust Extraction Bit. This ultra-durable, hollow core masonry drill bit is built from a single, solid piece of industrial-grade steel with an integrated internal channel precisely engineered to extract dust dynamically while drilling. By pulling concrete powder and aggregate debris directly through the center of the bit, it completely eliminates the traditional, labor-intensive manual "drill-blow-brush-blow" routine. When hooked up to a standard HEPA-certified jobsite dust extractor, this system allows mechanical and adhesive anchors to be installed up to 50% faster, giving you a massive boost in productivity for major structural masonry installations and rebar doweling.

The Bosch Speed Clean system is optimized to improve both operational longevity and crew safety. Instantly removing abrasive dust reduces thermal friction on the premium four-cutter head, which generates up to 25% faster drilling speeds while producing 90% less dust than classic drilling practices. Solid carbide tips are deeply embedded into the steel head to enhance bit life, offering exceptional wear resilience that rivals the legendary Bosch Bulldog™ family. This internal vacuum extraction system effortlessly delivers the ultra-clean hole standards required by premier structural anchoring epoxies such as Simpson Strong-Tie® AT-XP®. Using the included rubber vacuum hose adapter, this bit integrates perfectly into the Bosch PRO+GUARD™ dust solution to mitigate hazardous airborne crystalline silica dust, ensuring a pristine work environment and effortless compliance with strict OSHA Table 1 safety mandates.

Key Features

  • 50% Labor Time Savings: Bypasses the tedious manual brush-and-blow cleaning sequence, cutting post-installed anchor setup times in half.
  • 25% Faster Concrete Penetration: Continuous core dust extraction prevents dust packings around the cutter tip, lowering friction to drive up drilling speeds by 25%.
  • 90% Airborne Dust Reduction: Dynamically draws fine concrete particles through the hollow steel core, trapping up to 90% of structural masonry dust.
  • Heavy-Duty Four-Cutter Geometry: Features embedded solid carbide tips with a robust 4-cutter head engineered for maximum structural life under load.
  • OSHA Silica Compliance Ready: Combines with industrial HEPA dust extractors via the included rubber adapter to heavily reduce respirable crystalline silica exposure.

What's Included

  • (1) 11/16" x 13" x 18" SDS-Plus® Speed Clean™ Dust Extraction Drill Bit
  • (1) Specialized Speed Clean Rubber Vacuum Hose Adapter

Specifications

Specification Value
Brand Name Bosch
Model Number / MFG Part # DXS2114
Bit Diameter 11/16 in.
Useable Drilling Length 13 in.
Total Overall Length 18 in.
Shank Type SDS-Plus®
Bit Material Solid Carbide Tipped / One-Piece Steel Body
Tool Flute Type Parabolic (Hollow Interior Extraction Core)
Number of Flutes 3
Cutter Head Design Robust Four-Cutter Geometry
Cutting Angle String 120 Degrees
Optimized Epoxy Match Simpson Strong-Tie® AT-XP® Anchoring Adhesive
Product Condition Brand New

PRO-TIP: To extend the life of your long 18-inch hollow dust extraction bit, let the tool do the work. Avoid leaning your full body weight onto the rotary hammer drill; extra pressure will not increase penetration speed, but it will generate excessive heat on the internal vacuum channel walls. Keep your dust extractor's automatic filter-shaker turned ON to ensure consistent airflow and keep the internal parabolic flutes free of damp mud buildup!
