Bosch SDS max Drill Bit DXS5060 1 1 8 Inch x 17 In Speed Clean Hollow Concrete Carbide Tipped 4 Cutter Dust Extraction Rotary Hammer

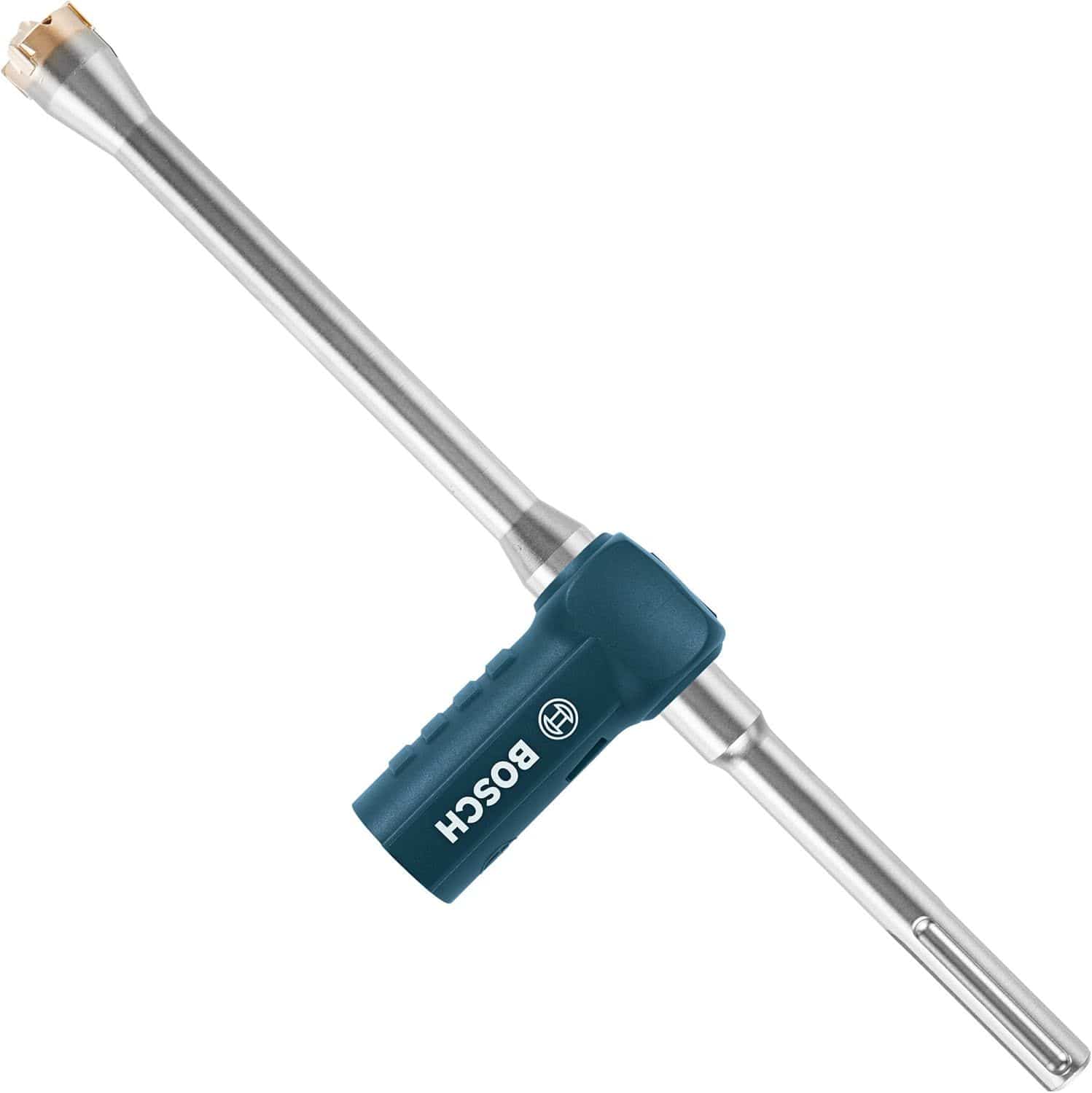

Bosch DXS5060 SDS-max Speed Clean Hollow Dust Extraction Concrete Drill Bit

The Bosch DXS5060 is a 1-1/8-inch by 17-inch SDS-max hollow carbide-tipped rotary hammer drill bit designed to extract airborne concrete dust directly through its internal steel core while drilling. Engineered with a solid carbide 4-cutter head and a pre-assembled rubber vacuum shroud, this industrial bit connects directly to a dust extractor to eliminate the manual blow-brush-blow cleanout process required for structural chemical anchoring. Removing masonry debris at the point of impact reduces friction and delivers up to 25% faster drilling speeds in reinforced concrete, stone, and brick while capturing 90% of respirable silica dust for OSHA Table 1 compliance.

Best Used For:

• Dustless Chemical & Mechanical Anchor Setting: Drilling precise 1-1/8-inch anchor holes in concrete slabs without requiring manual blow-brush-blow cleaning routines.
• OSHA Silica Dust Compliant Indoor Drilling: Capturing up to 90% of airborne respirable crystalline silica dust during indoor commercial masonry renovation.
• Reinforced Concrete Rebar Penetration: Preventing bit hang-ups and binding when encountering embedded steel rebar using a solid carbide 4-cutter head.

Key Performance & Safety Features

• Internal Vacuum Channel: Hollow core draws dust directly through the bit body into an attached vacuum extractor to prevent hole clogging.
• 4-Cutter Carbide Geometry: Solid carbide tipped tip geometry provides fast drilling speeds and resists rebar impacts.
• OSHA Table 1 Compliance: Removes up to 90% of airborne respirable silica dust when connected to a compatible dust collection extractor.
• 25% Faster Penetration: Immediate removal of concrete dust eliminates bit friction and prevents heat buildup.
• One-Piece Milled Steel Construction: Machined from a single piece of treated steel for durability under heavy rotary hammer percussion loads.
• Pre-Assembled Shroud Adapter: Flexible rubber adapter maintains a tight seal with standard vacuum extractor hoses.

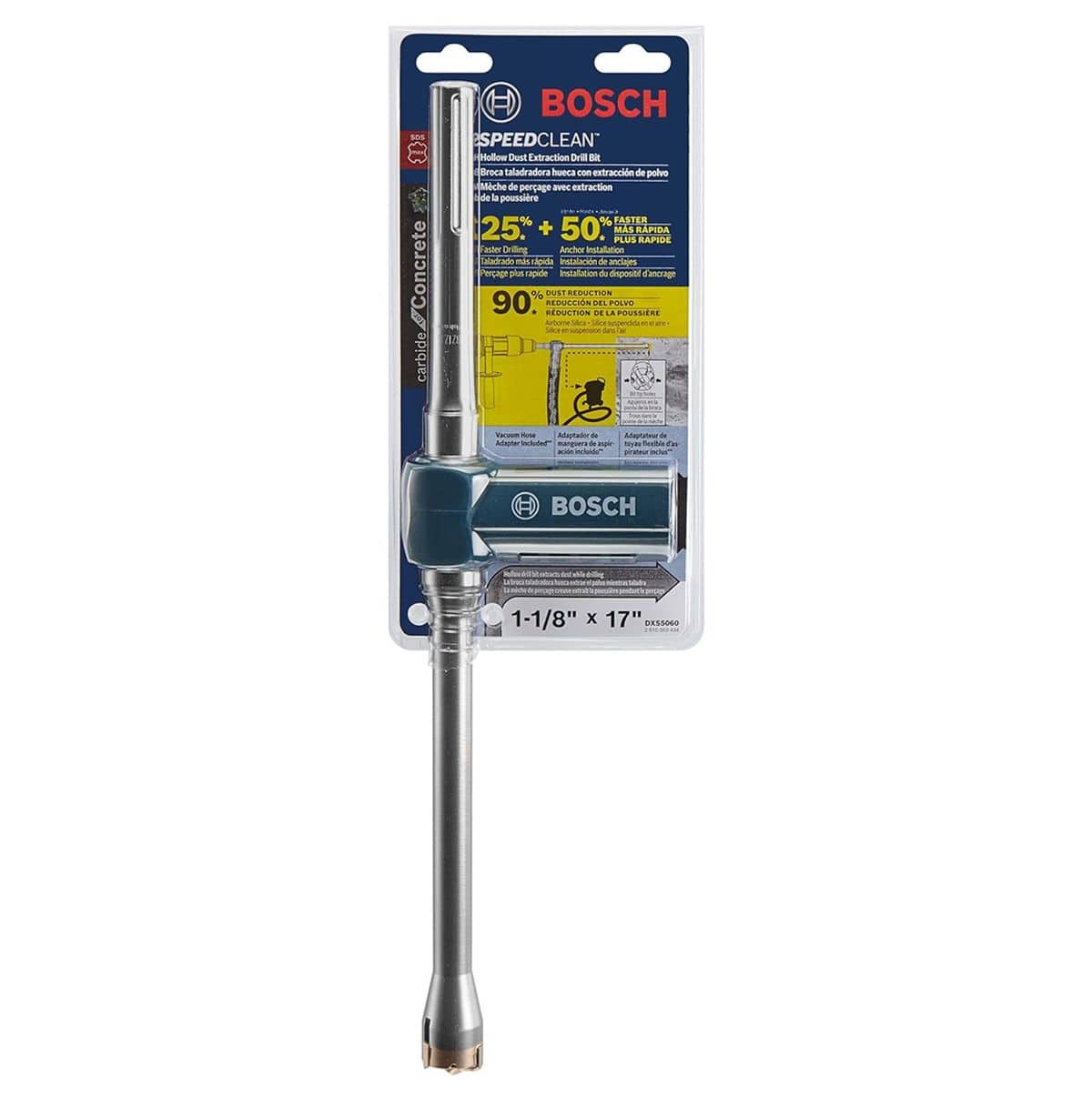

What's Included

• (1) Bosch DXS5060 1-1/8" x 8" x 17" SDS-max® Speed Clean™ Dust Extraction Drill Bit
• (1) Pre-Assembled Replaceable Rubber Vacuum Adapter Shroud

Technical Specifications

Pro-Tip: Check the hollow core opening periodically and verify your dust extractor filter auto-clean pulse cycle is active to prevent fine wet concrete sludge from restricting suction during continuous deep anchor drilling.
