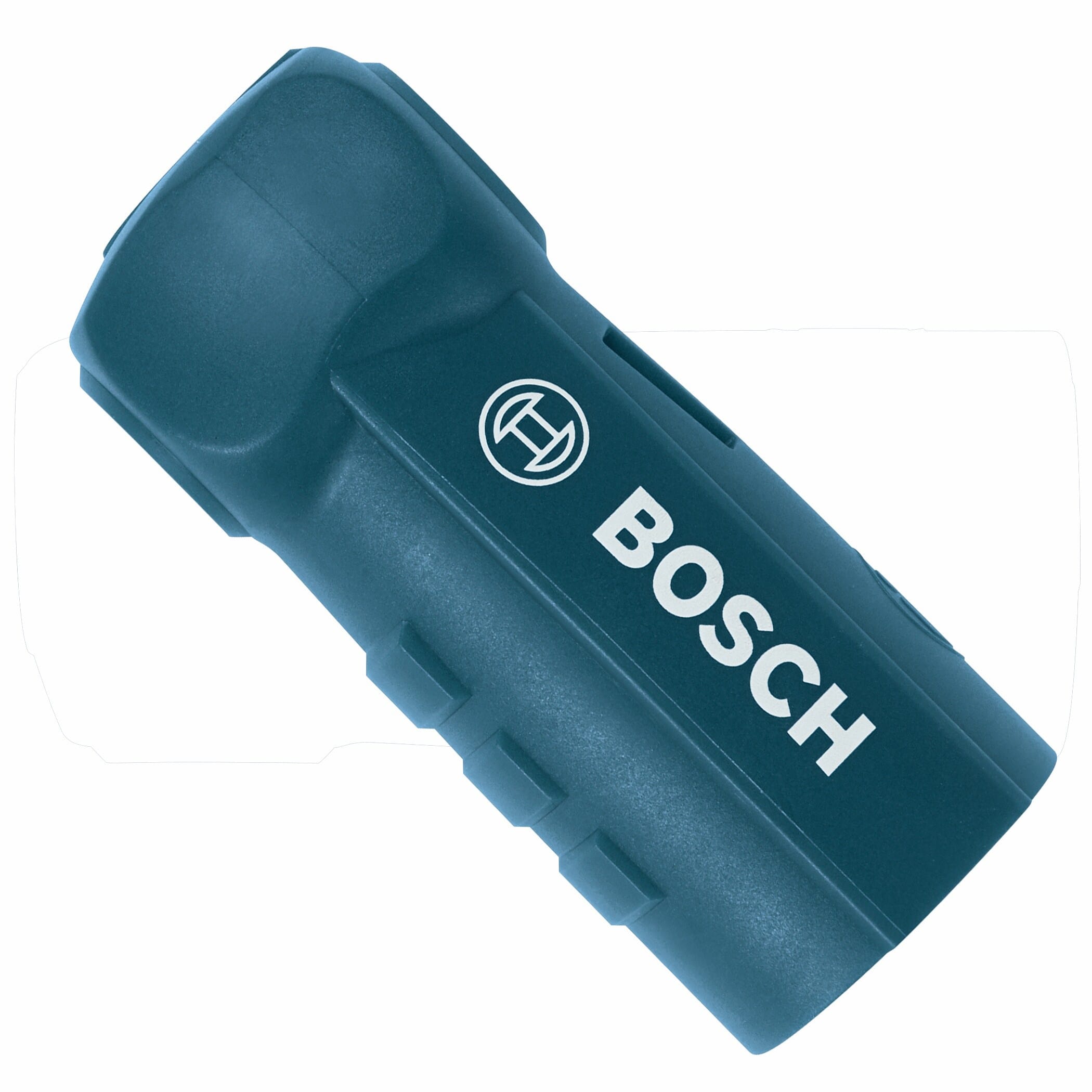

An isometric, close-up studio shot of the blue Bosch DXSPLUS SDS-Plus Speed Clean vacuum adapter collar, showcasing its heavy-duty rubber construction, integrated hose mounting port, and the prominent white printed Bosch logo.

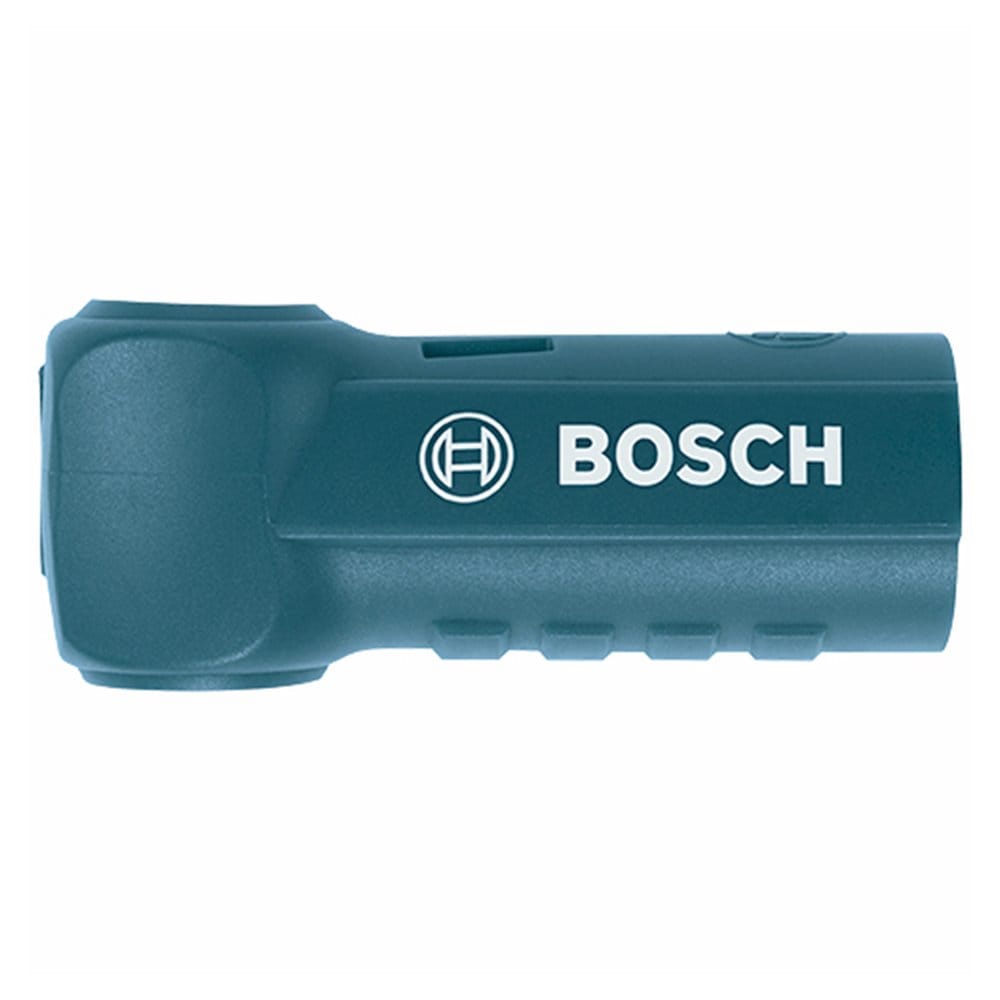

A crisp profile view of the blue Bosch rubber dust extraction replacement adapter, positioned horizontally against a plain white background to display the molded side grips, the center alignment port slot, and the clean white Bosch logo.

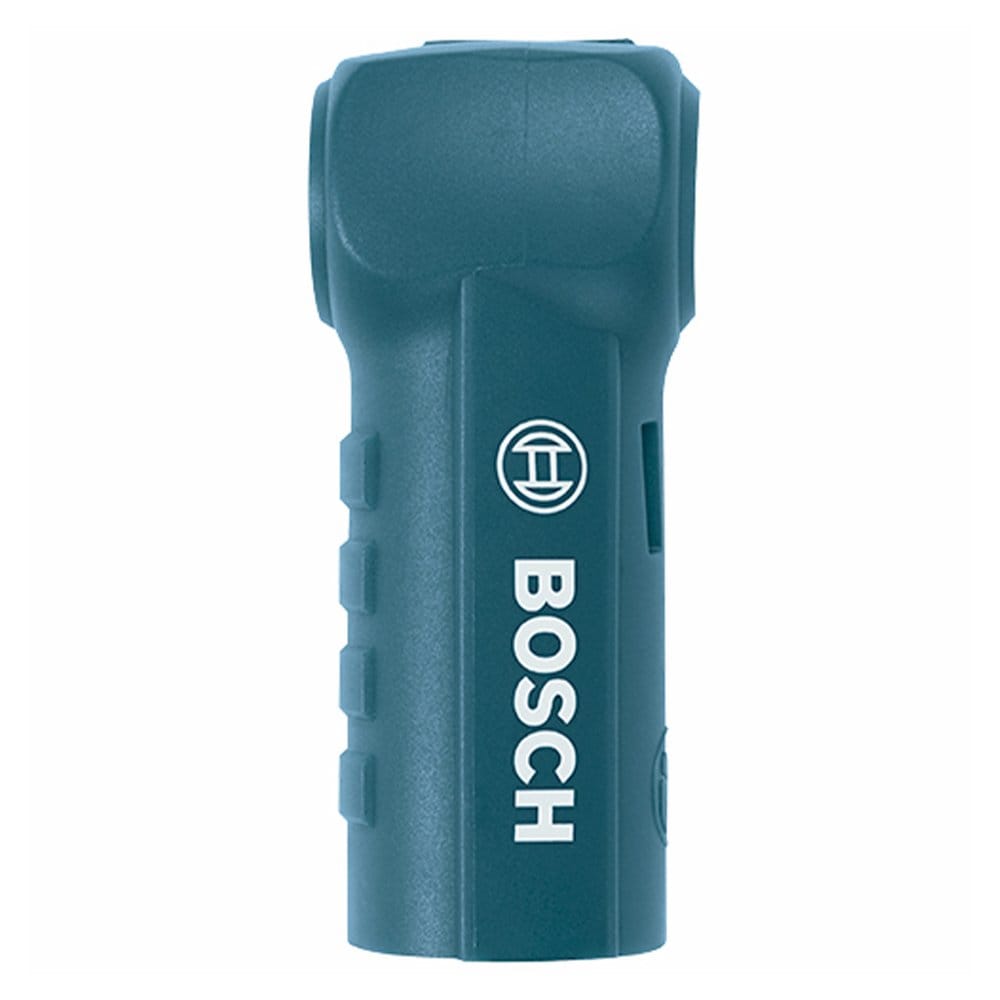

A full front vertical view of the Bosch DXSPLUS replacement vacuum hose connector, emphasizing the specialized high-flexibility rubber material body, tactical side ribbing, and distinct white manufacturer logo details.
A commercial construction professional wearing a safety vest and hard hat utilizes a heavy-duty rotary hammer equipped with the Bosch DXS2074 extraction bit to drill vertically into a warehouse concrete floor, with the suction hose routing debris straight into a matching blue Bosch dust extractor vacuum.
A close-up shot of a trade worker wearing safety gear operating an SDS-plus hammer drill and a Bosch hollow dust extraction bit next to industrial warehouse shelving units, pulling harmful masonry concrete dust away from the hole dynamically through a connected vacuum system.
A full industrial workspace view showing a contractor operating a corded Bosch hammer drill with the Speed Clean dust extraction system on a smooth concrete floor slab, illustrating how the portable HEPA-ready vacuum setup keeps the active workspace clean and free of airborne silica dust.
An installer uses a Bosch Bulldog rotary hammer drill coupled with the DXS2074 hollow extraction bit near structural steel racks to prepare anchor points in concrete, demonstrating the flexible, extended range of the vacuum hose assembly on an active industrial jobsite.
A close-up view of an installer using a cordless 36V Bosch rotary hammer drill fitted with the DXS2074 hollow suction bit to precisely drill through a carpet cutout template into the subfloor, capturing all concrete debris instantaneously to protect indoor environments.
An outdoor construction scene showing a worker wearing a safety harness and green hard hat drilling horizontally into a concrete column with a Bosch dustless hammer drill bit system, while a laser level sits nearby on the jobsite floor to ensure perfect structural alignment.
A low-angle view looking up at a commercial ironworker or concrete mason standing against a high-rise building framework, using a cordless Bosch SDS-plus hammer drill with a Speed Clean extraction bit to prepare structural anchor settings on an open-air concrete ledge.
An outdoor construction professional wearing a green hard hat, orange shirt, and full safety harness uses a cordless Bosch rotary hammer drill fitted with the DXS2114 hollow extraction bit to drill into a concrete structural column on an open high-rise building floor, with a blue HEPA-ready vacuum setup extraction system attached.

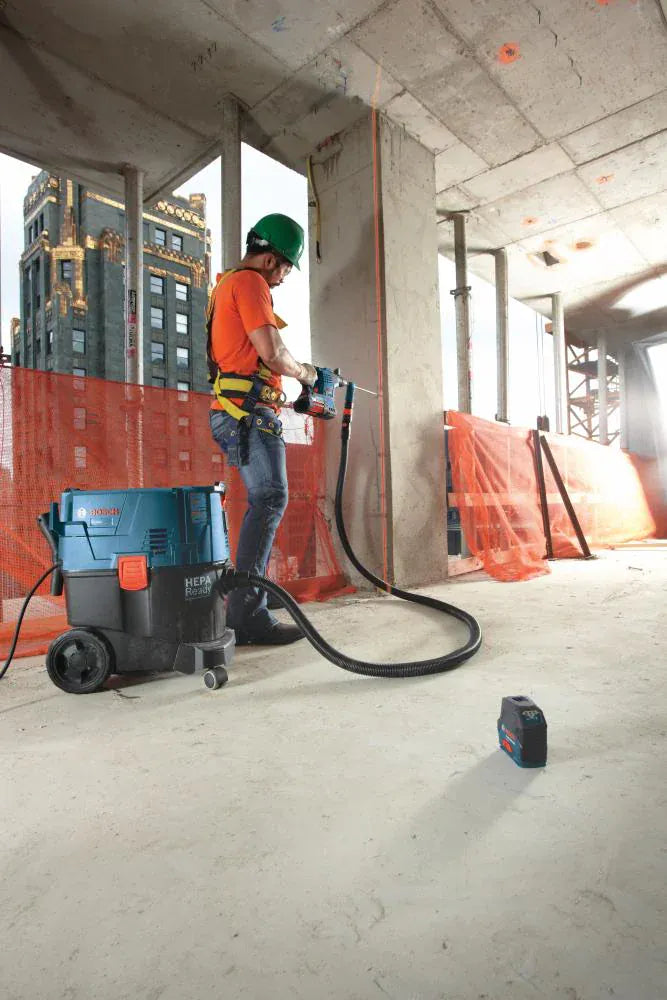

A construction worker operating a cordless SDS-plus rotary hammer with the Bosch hollow dustless extraction bit system to drill horizontally into a concrete support wall, utilizing an adjacent blue Bosch dust extractor vacuum while a compact line laser rests on the concrete floor for alignment.

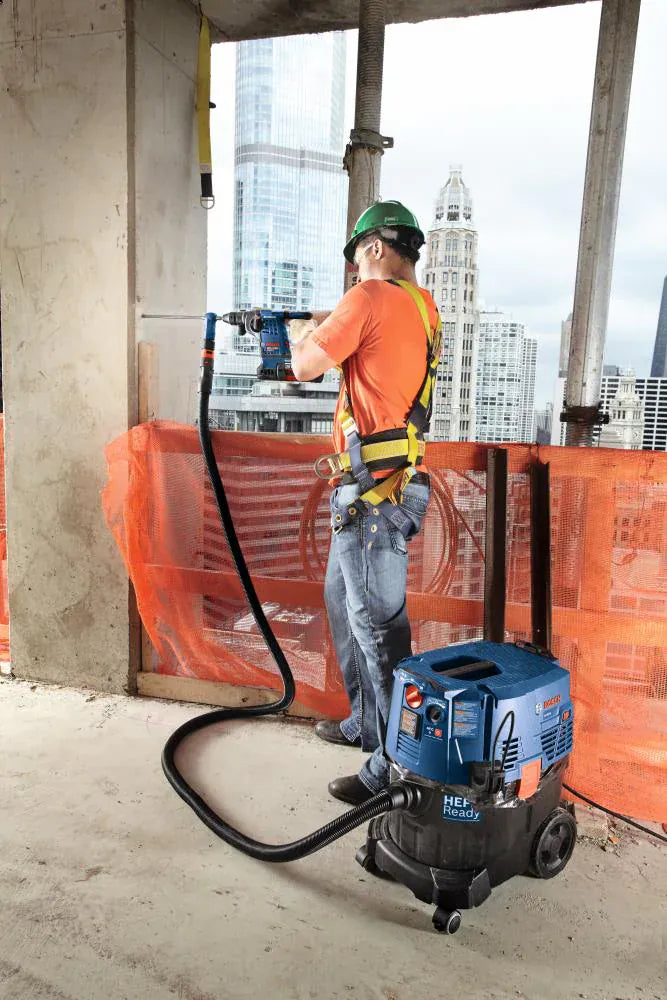

An industrial jobsite view showing an ironworker or concrete mason utilizing a Bosch dustless hammer drill bit system to drill a deep anchoring hole into a concrete partition on an upper floor level, showing the vacuum extraction hose routing debris dynamically into a blue HEPA-ready dust extractor vacuum against a city skyline.
Bosch PROFACTOR™ 18V Hitman™ SDS-max® 1-9/16 In promotional video
An isometric, close-up studio shot of the blue Bosch DXSPLUS SDS-Plus Speed Clean vacuum adapter collar, showcasing its heavy-duty rubber construction, integrated hose mounting port, and the prominent white printed Bosch logo.
A crisp profile view of the blue Bosch rubber dust extraction replacement adapter, positioned horizontally against a plain white background to display the molded side grips, the center alignment port slot, and the clean white Bosch logo.
A full front vertical view of the Bosch DXSPLUS replacement vacuum hose connector, emphasizing the specialized high-flexibility rubber material body, tactical side ribbing, and distinct white manufacturer logo details.
A commercial construction professional wearing a safety vest and hard hat utilizes a heavy-duty rotary hammer equipped with the Bosch DXS2074 extraction bit to drill vertically into a warehouse concrete floor, with the suction hose routing debris straight into a matching blue Bosch dust extractor vacuum.
A close-up shot of a trade worker wearing safety gear operating an SDS-plus hammer drill and a Bosch hollow dust extraction bit next to industrial warehouse shelving units, pulling harmful masonry concrete dust away from the hole dynamically through a connected vacuum system.
A full industrial workspace view showing a contractor operating a corded Bosch hammer drill with the Speed Clean dust extraction system on a smooth concrete floor slab, illustrating how the portable HEPA-ready vacuum setup keeps the active workspace clean and free of airborne silica dust.
An installer uses a Bosch Bulldog rotary hammer drill coupled with the DXS2074 hollow extraction bit near structural steel racks to prepare anchor points in concrete, demonstrating the flexible, extended range of the vacuum hose assembly on an active industrial jobsite.
A close-up view of an installer using a cordless 36V Bosch rotary hammer drill fitted with the DXS2074 hollow suction bit to precisely drill through a carpet cutout template into the subfloor, capturing all concrete debris instantaneously to protect indoor environments.
An outdoor construction scene showing a worker wearing a safety harness and green hard hat drilling horizontally into a concrete column with a Bosch dustless hammer drill bit system, while a laser level sits nearby on the jobsite floor to ensure perfect structural alignment.
A low-angle view looking up at a commercial ironworker or concrete mason standing against a high-rise building framework, using a cordless Bosch SDS-plus hammer drill with a Speed Clean extraction bit to prepare structural anchor settings on an open-air concrete ledge.
An outdoor construction professional wearing a green hard hat, orange shirt, and full safety harness uses a cordless Bosch rotary hammer drill fitted with the DXS2114 hollow extraction bit to drill into a concrete structural column on an open high-rise building floor, with a blue HEPA-ready vacuum setup extraction system attached.
A construction worker operating a cordless SDS-plus rotary hammer with the Bosch hollow dustless extraction bit system to drill horizontally into a concrete support wall, utilizing an adjacent blue Bosch dust extractor vacuum while a compact line laser rests on the concrete floor for alignment.
An industrial jobsite view showing an ironworker or concrete mason utilizing a Bosch dustless hammer drill bit system to drill a deep anchoring hole into a concrete partition on an upper floor level, showing the vacuum extraction hose routing debris dynamically into a blue HEPA-ready dust extractor vacuum against a city skyline.
Bosch PROFACTOR™ 18V Hitman™ SDS-max® 1-9/16 In promotional video
BOSCH

Bosch Vacuum Adapter DXSPLUS SDS Plus Speed Clean (Rubber Replacement Connector Hollow Concrete Masonry Extraction Bits Dust Collector Collar)

In stock
SKU: DXSPLUS
$15.99 USD

Description

Bosch Promtional Logo Logout

Bosch DXSPLUS SDS-Plus Speed Clean Vacuum Hose Adapter Replacement

The Bosch DXSPLUS SDS-Plus Speed Clean Vacuum Adapter functions as a heavy-duty rubber replacement connector collar engineered to seal the extraction path between hollow core concrete masonry drill bits and industrial vacuum hoses. Constructed from a high-flexibility blue rubber compound measuring 4.25 inches in length and weighing 0.125 pounds, this genuine Bosch replacement adapter slides onto SDS-plus extraction bit shanks without tools. By restoring an airtight seal to maintain continuous suction, this adapter extracts 90% of airborne respirable crystalline silica dust directly at the bit tip, sustaining up to 25% faster drilling speeds and eliminating manual blow-brush hole cleaning required for structural adhesive anchor installation.

Best Used For:

  • Chemical Adhesive Anchor Hole Extraction: Maintaining continuous vacuum seal suction on SDS-plus Speed Clean bits to meet clean-hole specifications for structural epoxies.
  • OSHA Table 1 Compliant Concrete Drilling: Capturing 90% of airborne respirable crystalline silica dust directly at the impact point when connected to a HEPA vacuum extractor.
  • Replacing Worn Extractor Collars on Job Sites: Restoring airtight suction connections on SDS-plus hollow extraction bits when original rubber seals become worn or abraded.

Key Performance & Safety Features

  • Airtight Suction Restoration: Establishes a sealed vacuum pathway between hollow drill shanks and extraction hoses to maximize dust evacuation velocity.
  • Tool-Free Installation: Flexible rubber body slides directly onto compatible SDS-plus hollow bit shanks for fast, tool-free field replacement.
  • Heavy-Duty Flexible Rubber Construction: Engineered compound resists tearing, concrete aggregate abrasion, and chemical degradation under continuous jobsite use.
  • OSHA Table 1 Compliance Support: Sustains dust collection efficiency to protect operators from respirable crystalline silica hazards during concrete drilling.
  • Bypasses Manual Hole Cleaning: Preserves the Speed Clean automatic dust extraction process to accelerate adhesive anchor setup times by up to 50%.

What's Included

  • (1) Bosch DXSPLUS SDS-Plus Speed Clean Rubber Vacuum Hose Adapter Collar

Technical Specifications

Brand Manufacturer Bosch
Model Designation OEM SKU DXSPLUS
Product Functional Category Dust Extraction Hose Adapter Collar
System Shank Compatibility SDS-Plus® Hollow Extraction Bits
Primary Construction Material Heavy-Duty Flexible Rubber Compound
Overall Unit Length 4.25 in. (107.95 mm)
Bare Component Net Weight 0.125 lbs. (0.057 kg)
Total Assembled Weight 0.178 lbs. (0.081 kg)
Color Finish Bosch Blue
OSHA Compliance Integration Supports Silica Dust Table 1 Requirements with Extractor
Global UPC Barcode 000346469448
Country of Origin China

Pro-Tip: Inspect the internal seating ring of the DXSPLUS adapter before attaching it to your SDS-plus hollow bit shank. Keeping the interior rubber surface clean of packed concrete slurry ensures a tight mechanical seal on the bit, maintaining full CFM airflow to your HEPA vacuum extractor during deep anchor hole drilling.
