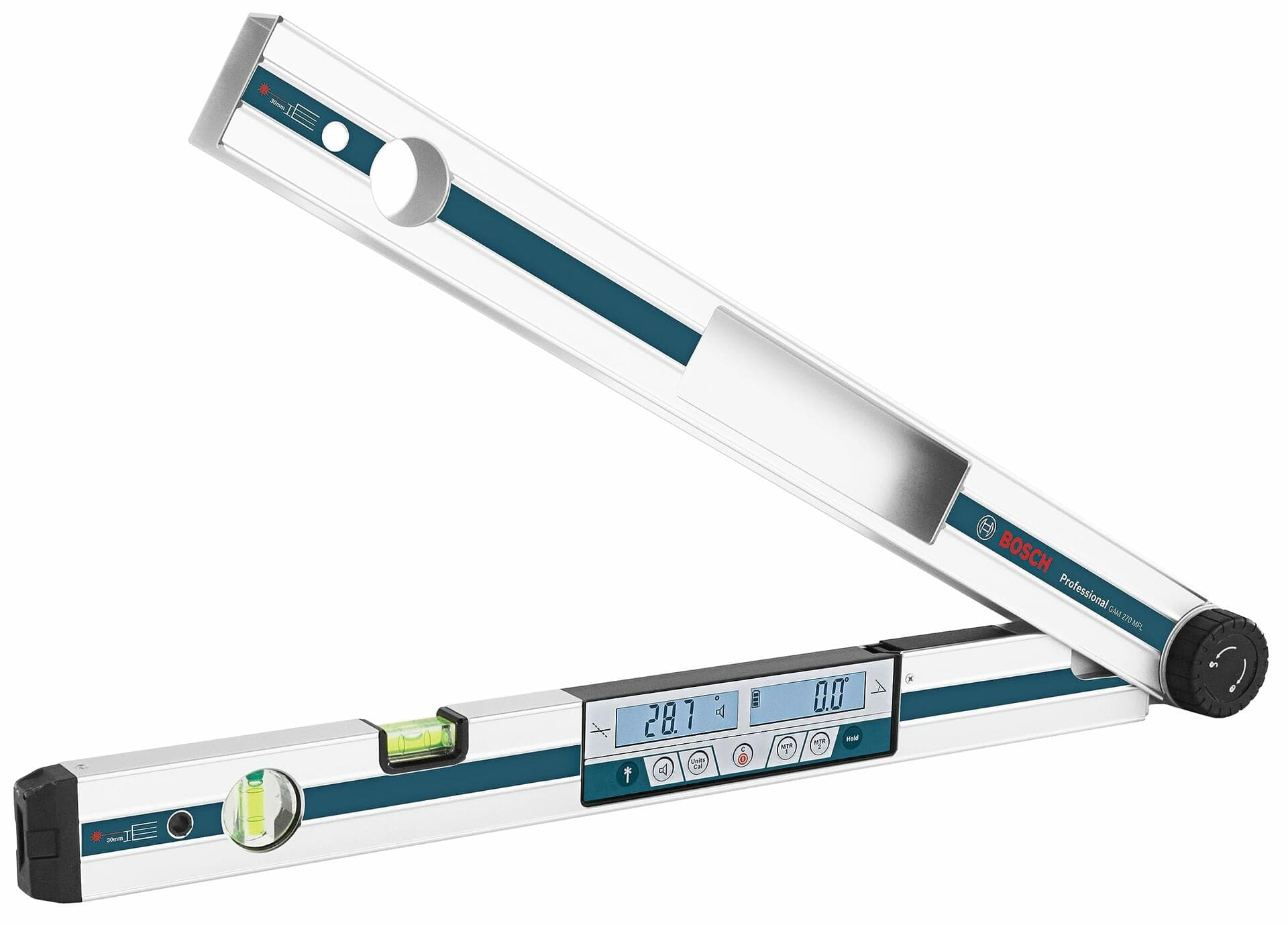

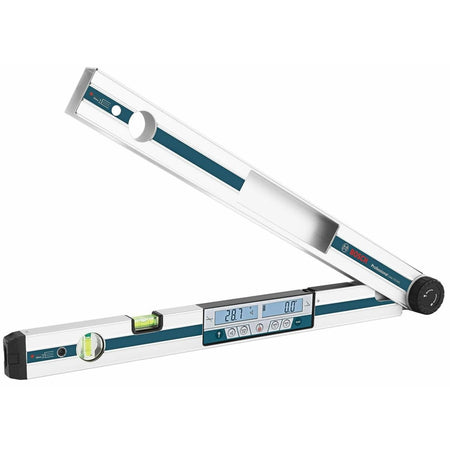

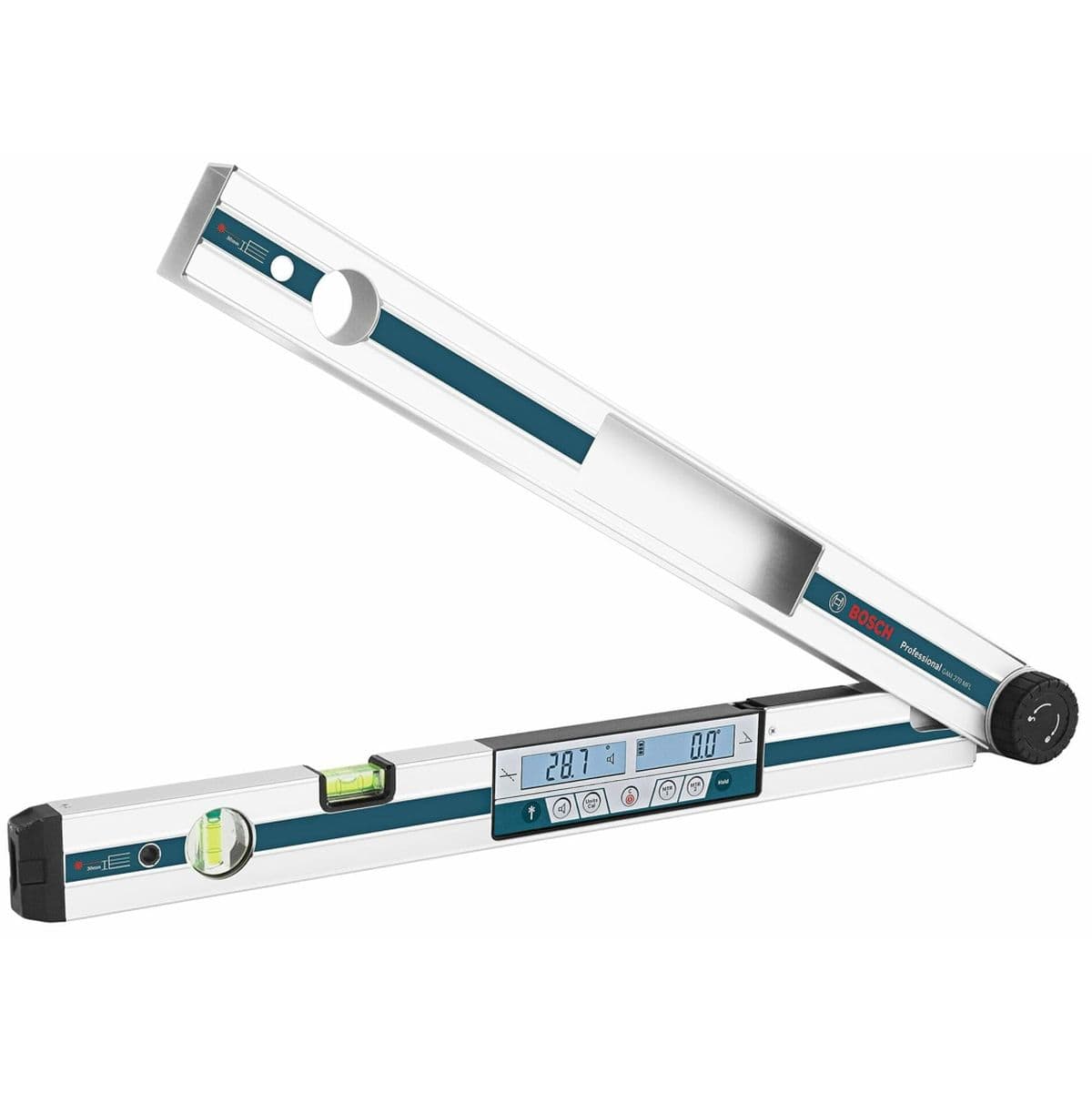

A three-quarter studio view of the Bosch GAM 270 MFL digital angle finder open, displaying the digital screen on the main body and the extended rotating arm.

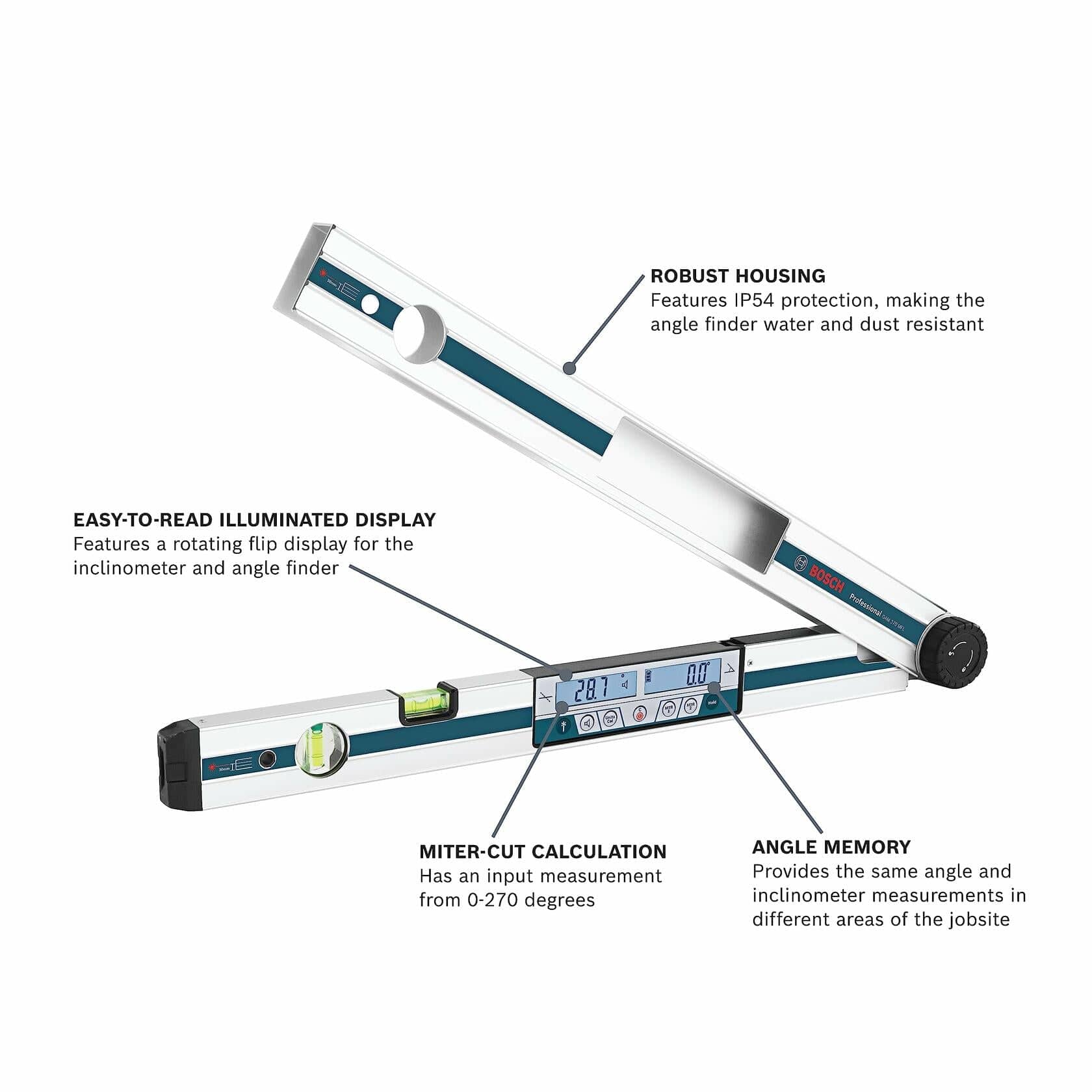

An infographic of the Bosch GAM 270 MFL with text callouts pointing to key features: Robust Housing, Easy-to-Read Illuminated Display, Miter-Cut Calculation, and Angle Memory

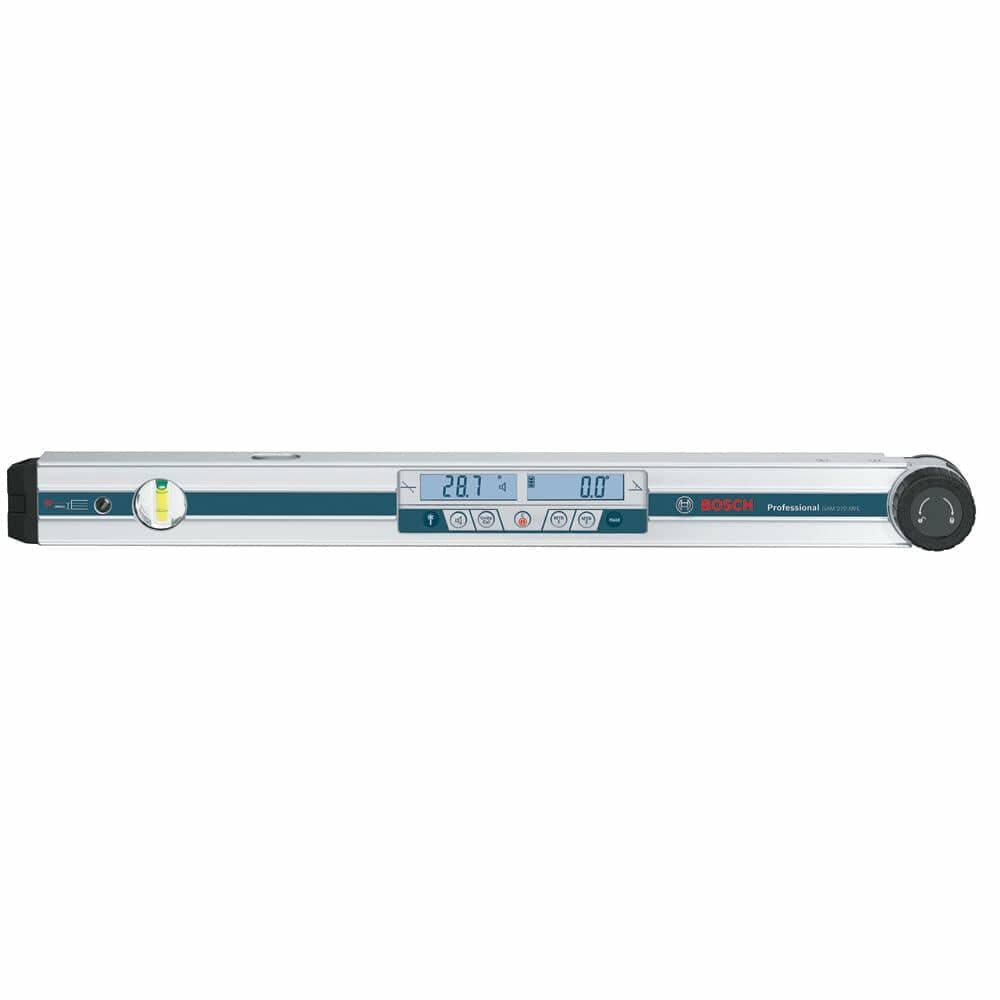

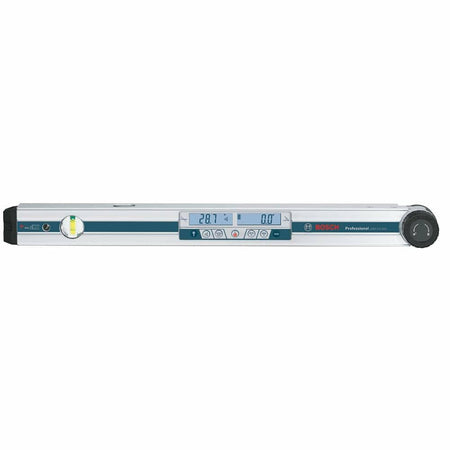

Front-on studio view of the Bosch GAM 270 MFL digital angle finder in its closed position, showing the illuminated digital display, control panel, and spirit level.

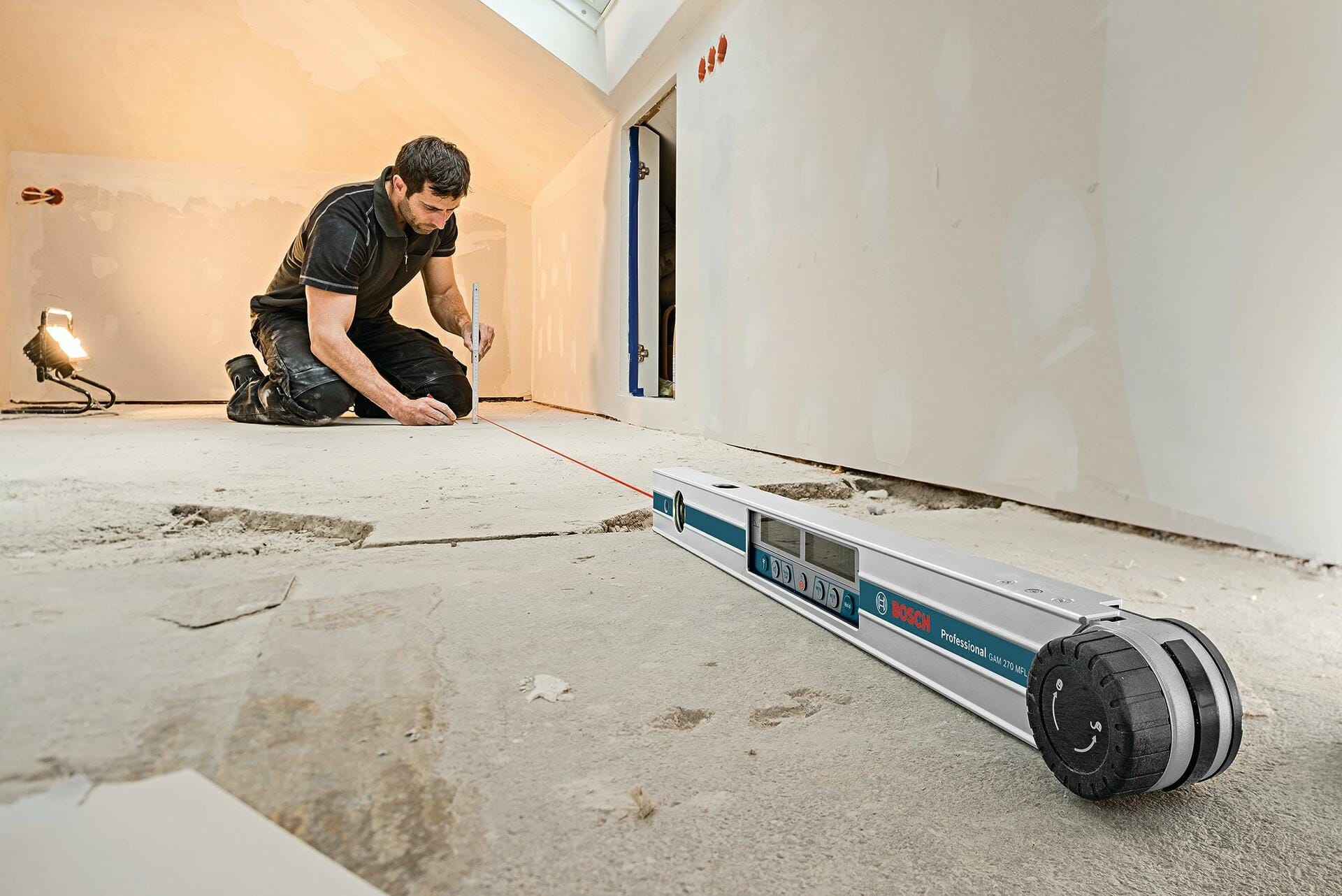

The Bosch GAM 270 MFL rests on a concrete floor, projecting its integrated red laser line for layout, while a worker kneels in the background to mark the line.

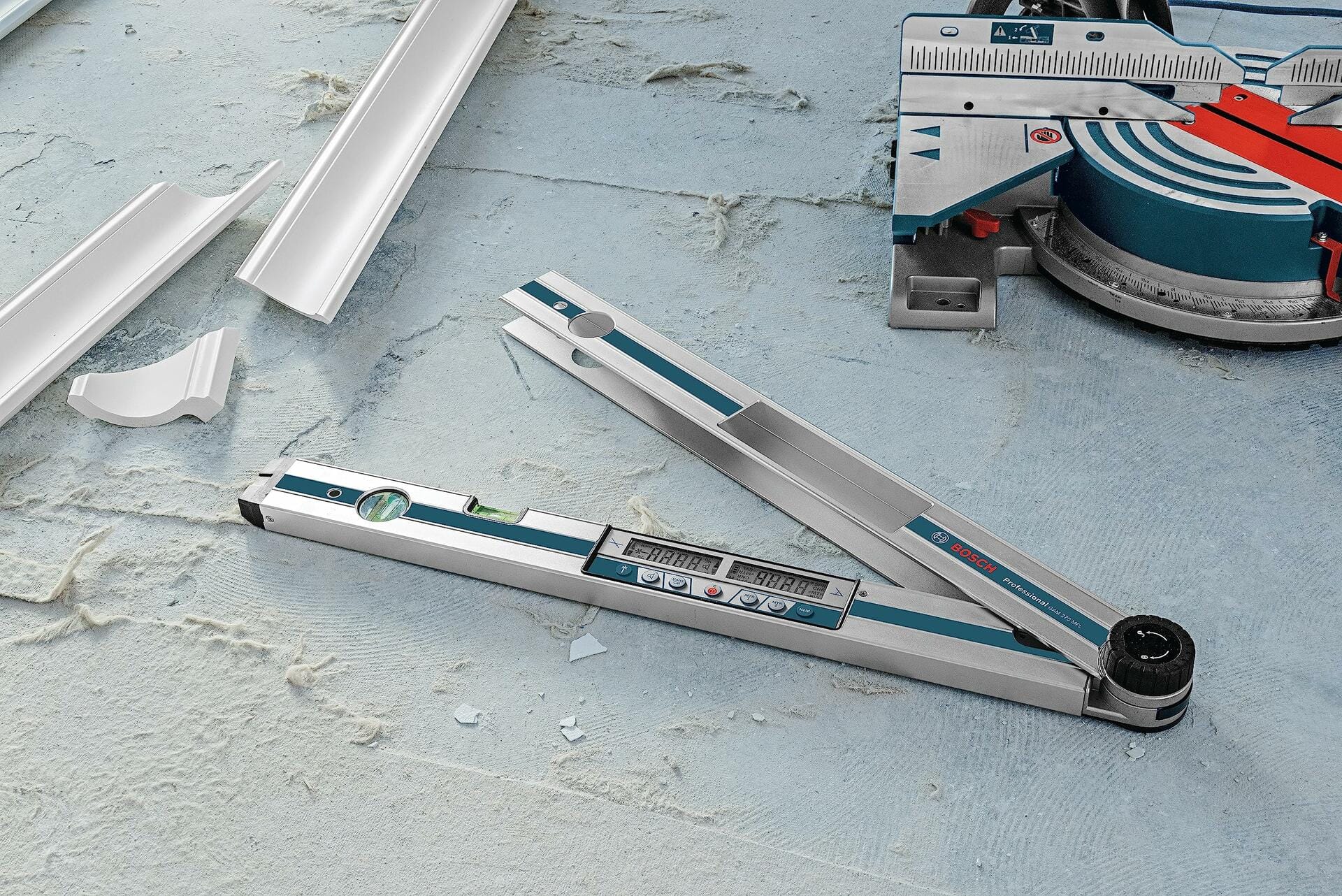

A close-up of the Bosch GAM 270 MFL on a dusty floor, displaying an angle measurement, with pieces of cut crown molding and a miter saw in the background.

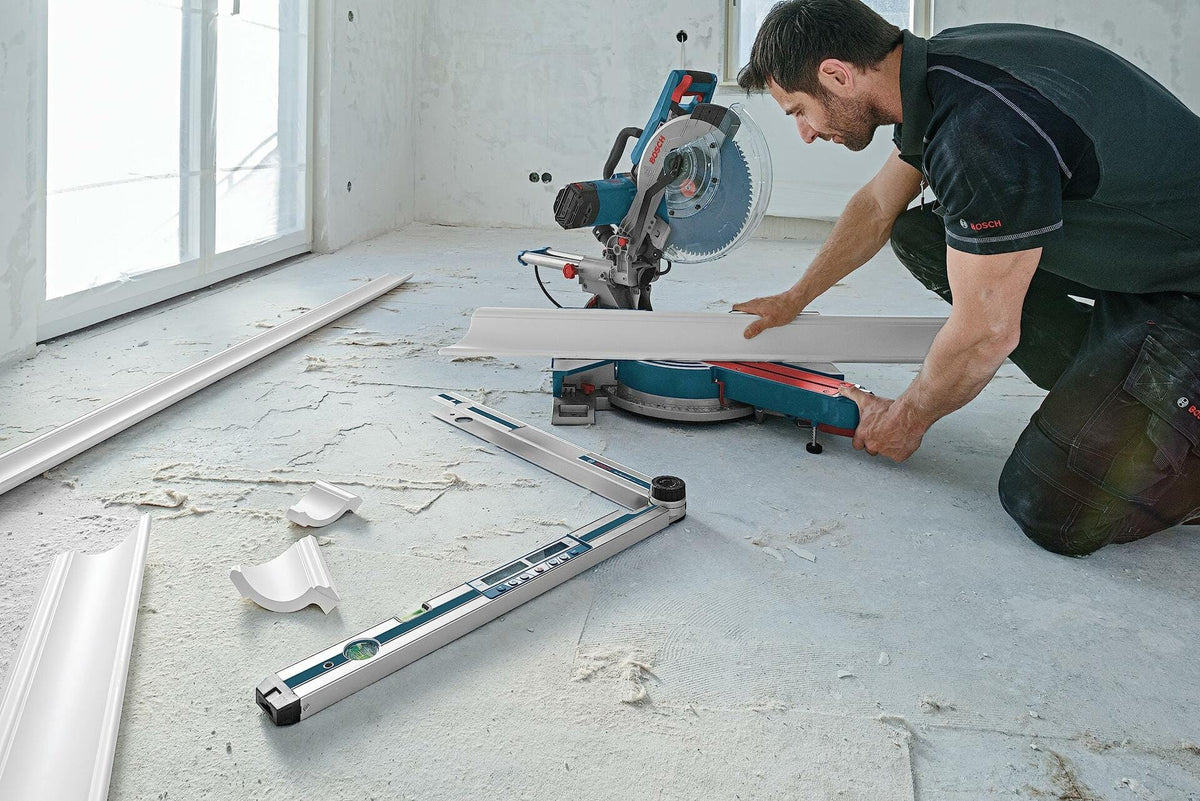

A carpenter prepares to cut crown molding on a Bosch miter saw, with the GAM 270 MFL angle finder resting on the floor nearby, illustrating its use in calculating complex miter cuts.

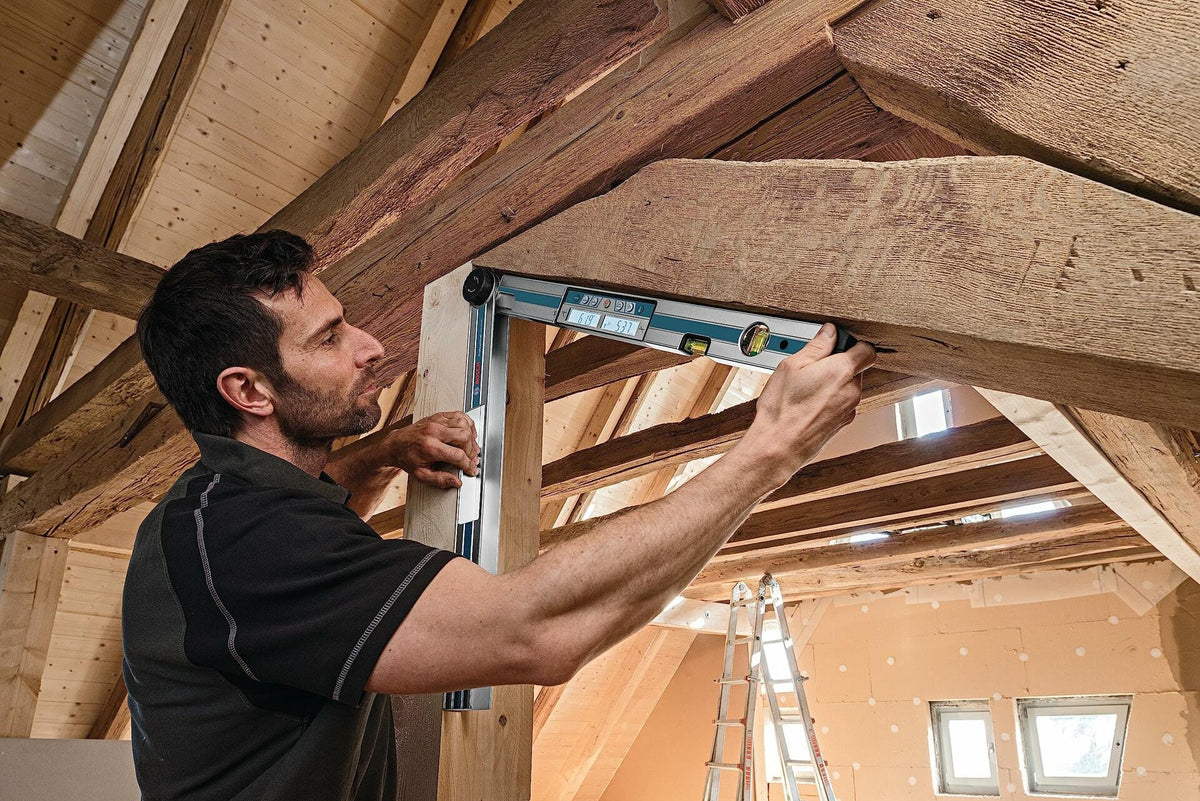

A carpenter uses the Bosch GAM 270 MFL to measure the complex angle between a vertical post and a large, rustic wooden ceiling beam in a framing application.

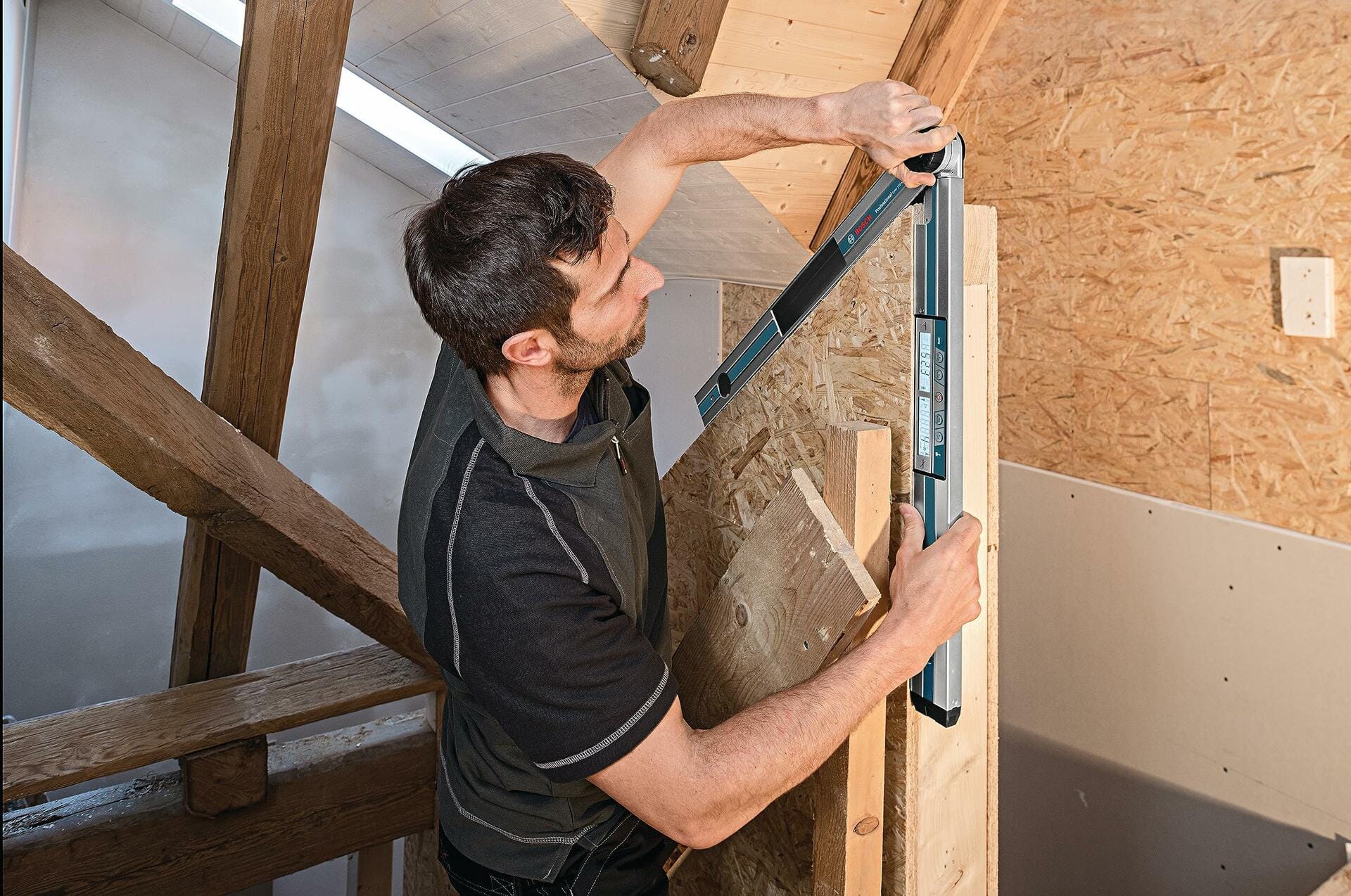

A carpenter holds the Bosch digital angle finder vertically against a wooden structure to measure and verify an angle, demonstrating its use in framing and construction.
A three-quarter studio view of the Bosch GAM 270 MFL digital angle finder open, displaying the digital screen on the main body and the extended rotating arm.
Bosch Big Game Ad (EXTENDED) | The More You Bosch promotional video
A three-quarter studio view of the Bosch GAM 270 MFL digital angle finder open, displaying the digital screen on the main body and the extended rotating arm.
An infographic of the Bosch GAM 270 MFL with text callouts pointing to key features: Robust Housing, Easy-to-Read Illuminated Display, Miter-Cut Calculation, and Angle Memory
Front-on studio view of the Bosch GAM 270 MFL digital angle finder in its closed position, showing the illuminated digital display, control panel, and spirit level.
The Bosch GAM 270 MFL rests on a concrete floor, projecting its integrated red laser line for layout, while a worker kneels in the background to mark the line.
A close-up of the Bosch GAM 270 MFL on a dusty floor, displaying an angle measurement, with pieces of cut crown molding and a miter saw in the background.
A carpenter prepares to cut crown molding on a Bosch miter saw, with the GAM 270 MFL angle finder resting on the floor nearby, illustrating its use in calculating complex miter cuts.
A carpenter uses the Bosch GAM 270 MFL to measure the complex angle between a vertical post and a large, rustic wooden ceiling beam in a framing application.
A carpenter holds the Bosch digital angle finder vertically against a wooden structure to measure and verify an angle, demonstrating its use in framing and construction.
A three-quarter studio view of the Bosch GAM 270 MFL digital angle finder open, displaying the digital screen on the main body and the extended rotating arm.
Bosch Big Game Ad (EXTENDED) | The More You Bosch promotional video
BOSCH

Bosch GAM 270 MFL 5 in 1 Digital Angle Finder Inclinometer and Laser Level with Miter Cut Calculator Leg Extension and Case for Precise Trim Work

In stock
SKU: GAM 270 MFL
$379.00

Description

Bosch Promtional Logo Logout

Master Complex Layouts with the Bosch 5-in-1 Digital Angle Finder and Laser Inclinometer

Stop switching between multiple tools and eliminate the guesswork from your layout tasks. The Bosch GAM 270 MFL is the ultimate 5-in-1 measurement solution, masterfully combining a digital angle finder, inclinometer, protractor, spirit level, and miter cut calculator into one robust professional device. This is the essential tool for finish carpenters, custom cabinet installers, and remodelers who demand perfect angles and flawless joints on every project. With a massive measurement range of 0° to 270°, this tool ensures you can capture even the most obscure angles in older homes or custom architectural builds with absolute ±0.1° accuracy.

Beyond simple angle finding, the GAM 270 MFL features an integrated point laser that allows you to accurately transfer inclination measurements across distances up to 100 feet. The dual, illuminated flip displays automatically rotate for easy reading in any orientation, while the onboard simple and compound miter calculators handle the complex trigonometry of crown molding and trim work for you. Built to survive the rigors of a busy jobsite, the tool features a rugged aluminum housing and IP54 protection against dust and water. Whether you are framing a roof, installing ornate trim, or leveling long runs of cabinetry, this Bosch powerhouse ensures your first cut is always the right cut.

Key Features

  • Five-Tools-in-One: Versatile functionality as a digital angle finder, inclinometer, miter calculator, protractor, and level.
  • 100 Ft Laser Transfer: Integrated point laser transfers inclination measurements over long distances for accurate leveling across large rooms.
  • Automatic Miter Calculator: Instantly calculates miter and bevel angles for simple and compound cuts without manual math.
  • Illuminated Dual Flip Displays: Two easy-to-read, rotating screens for the angle finder and inclinometer that provide clear visibility in low light.
  • Memory & Hold Function: Easily stores and recalls measurements for repeated use and fast transfer to your miter saw.
  • IP54 Durability: Robust aluminum construction with dust and splash protection for reliable performance in harsh construction environments.
  • Precision Leg Extension: Includes a specialized leg extension to help you capture accurate angles in tight or hard-to-reach corners.

What's Included

  • (1) GAM 270 MFL Digital Angle Finder and Inclinometer
  • (1) Leg Extension Attachment
  • (4) AA 1.5V Batteries
  • (1) Protective Hard Carrying Case

Specifications

Model Number GAM 270 MFL
Angle Range 0° to 270°
Angle Accuracy ±0.1°
Laser Range Up to 100 ft
Vial Leveling Accuracy ±0.05°
IP Protection IP 54
Material Reinforced Aluminum
Power Source (4) AA Batteries
Tool Length 26.9 in
Weight 2.4 lbs
Auto Shut-off Approx. 30 Minutes
Operating Temp 14°F to 122°F

Pro-Tip: For the most accurate compound miter cuts on crown molding, use the integrated miter calculator to store your "Spring Angle" (the angle at which the molding sits against the wall). This allows the tool to provide the exact saw settings needed for corners that aren't perfectly square.
