Bosch Rotary Hammer Kit GBH18V-34CQB24 1-1/4 Inch SDS-plus Bulldog 4.3 Ft Lbs Impact BITURBO Brushless 18V 2 8.0Ah Batteries Charger Concrete Chisel

In stock
SKU: GBH18V-34CQB24
Regular price $945.00 USD

Bosch Promotional Logo Logout

Bosch GBH18V-34CQB24 PROFACTOR 18V 1-1/4" SDS-plus Bulldog Rotary Hammer Kit

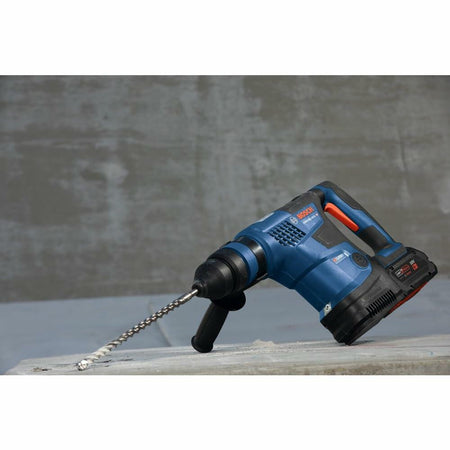

The Bosch GBH18V-34CQB24 PROFACTOR 18V 1-1/4-inch SDS-plus Bulldog cordless rotary hammer delivers 4.3 ft-lbs of EPTA impact energy for heavy-duty concrete drilling, structural anchor boring, and masonry chiseling without a cord. Powered by a high-efficiency BITURBO Brushless motor and two CORE18V 8.0Ah PROFACTOR Performance batteries, this 10.8-lb hammer matches corded tool velocity while generating 0-500 RPM and 0-2,900 BPM. Outfitted with an interchangeable quick-release chuck system to swap between SDS-plus and standard 3-jaw attachments, an on-tool digital user interface, KickBack Control, and a 16-amp Hell-ion Turbo Charger with Power Boost mode, it ensures safe, versatile, and continuous operation on commercial jobsites.

Best Used For:

  • Commercial Concrete Anchoring and Rebar Pinning: Boring 1/2-inch to 1-1/4-inch diameter anchor holes into high-strength cured concrete slabs and foundation footings.
  • Masonry Chipping and Wall Tile Removal: Scaling mortar buildup, removing ceramic tiles, and channeling concrete blocks in hammer-only mode using Vario-Lock flat chisels.
  • Multi-Material Wood and Metal Drilling: Swapping to the quick-release 3-jaw chuck to bore large holes in structural timber, framing plates, and heavy steel beams using standard straight-shank bits.

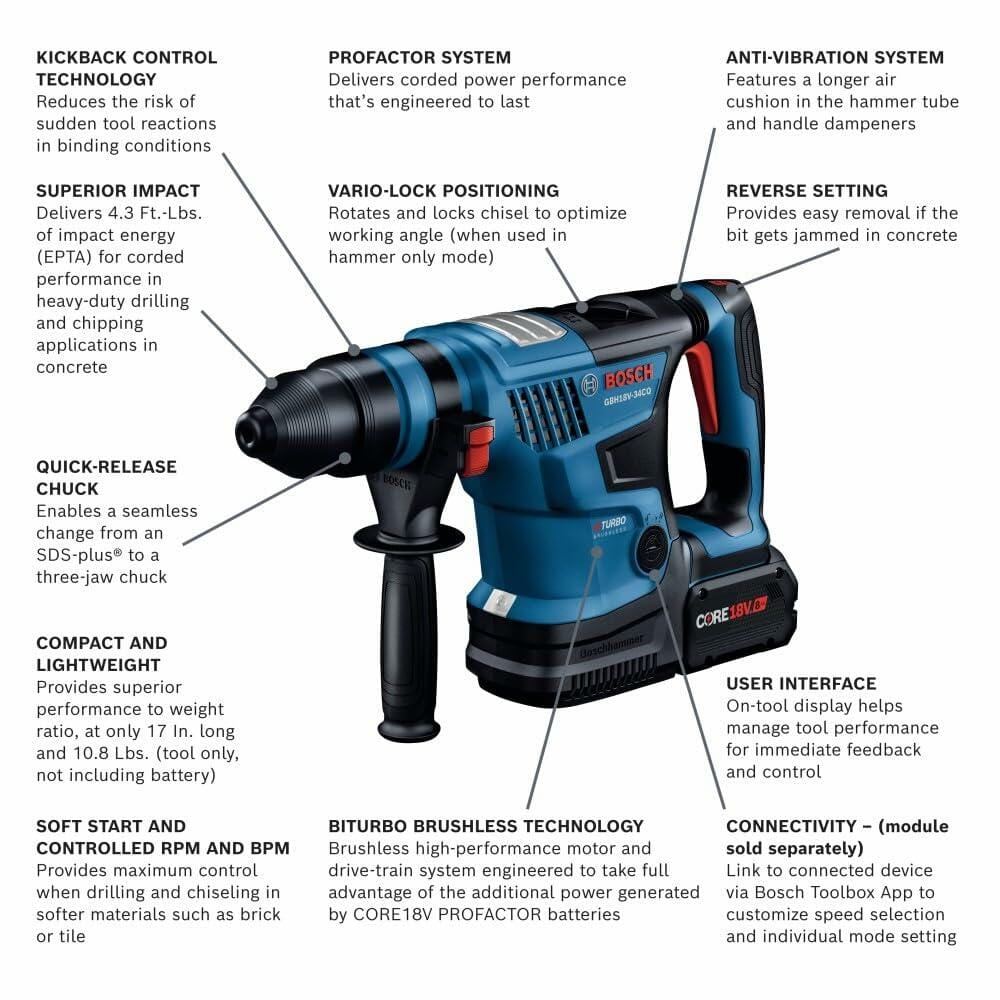

Key Performance & Safety Features

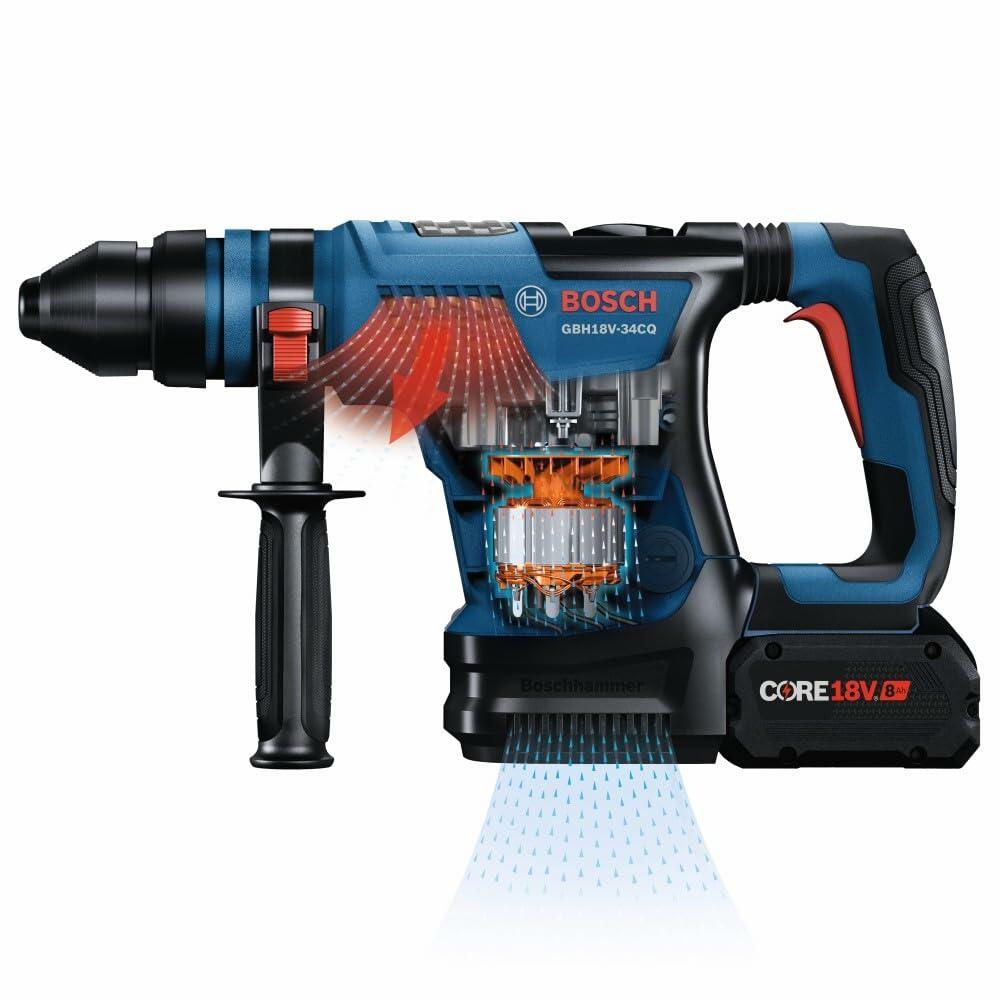

  • BITURBO Brushless Motor Technology: High-performance drivetrain takes full advantage of the high-current output delivered by CORE18V PROFACTOR batteries to produce 4.3 ft-lbs of impact energy.
  • Quick-Release Dual Chuck System: Enables tool-free swapping between the heavy-duty SDS-plus chuck and an included 3-jaw keyless chuck for standard round-shank drill bits.
  • Integrated KickBack Control: Built-in acceleration sensors instantly shut down the motor during sudden bit jams to protect the operator against violent rotational kickback.
  • Vibration Control Dampening Architecture: Features an extended internal pneumatic air cushion inside the hammer tube and rubberized handle isolators to reduce hand-arm fatigue.
  • On-Tool Digital User Interface: Interactive display provides real-time tool feedback, battery charge status, temperature monitoring, and selectable Soft Start drilling modes.
  • 16-Amp Hell-ion Turbo Charger: Equipped with Power Boost mode to fast-charge CORE18V 8.0Ah battery packs up to 50% capacity in minutes for minimal downtime.

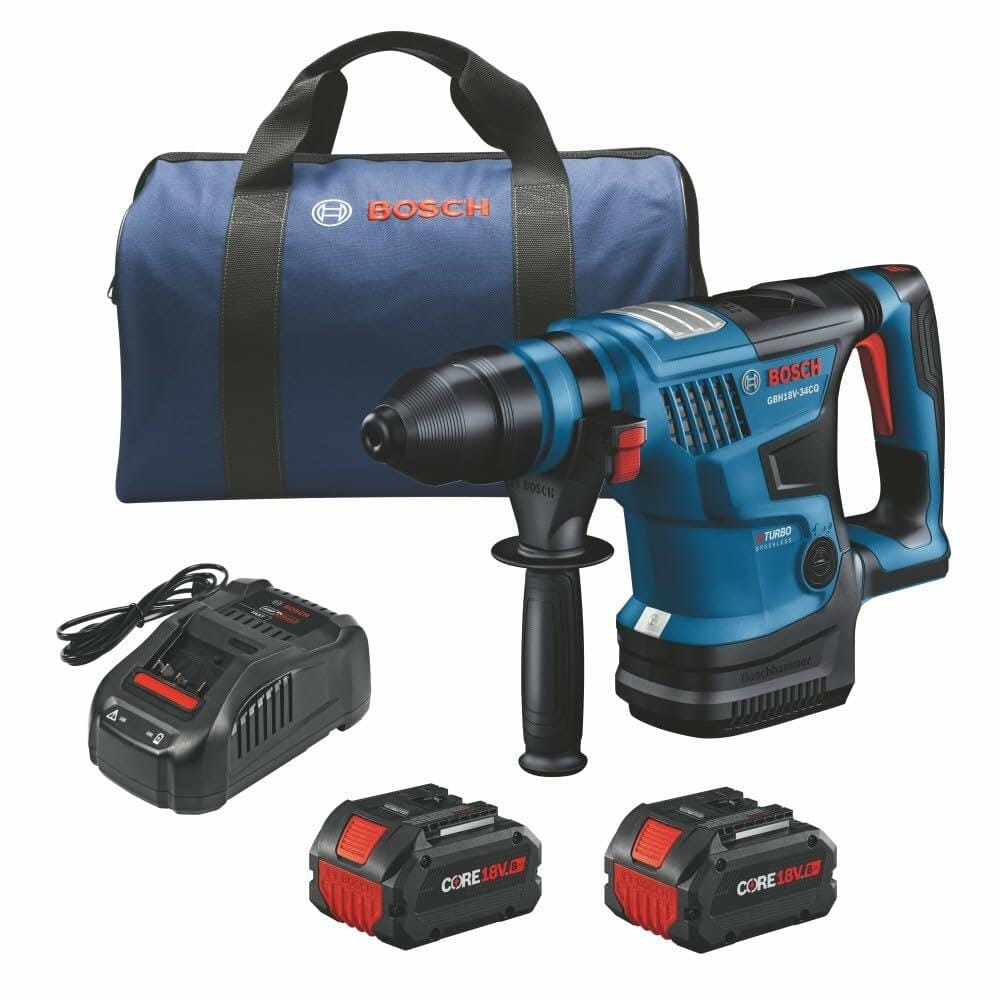

What's Included

  • (1) Bosch GBH18V-34CQ PROFACTOR 18V Connected-Ready 1-1/4" SDS-plus Bulldog Rotary Hammer

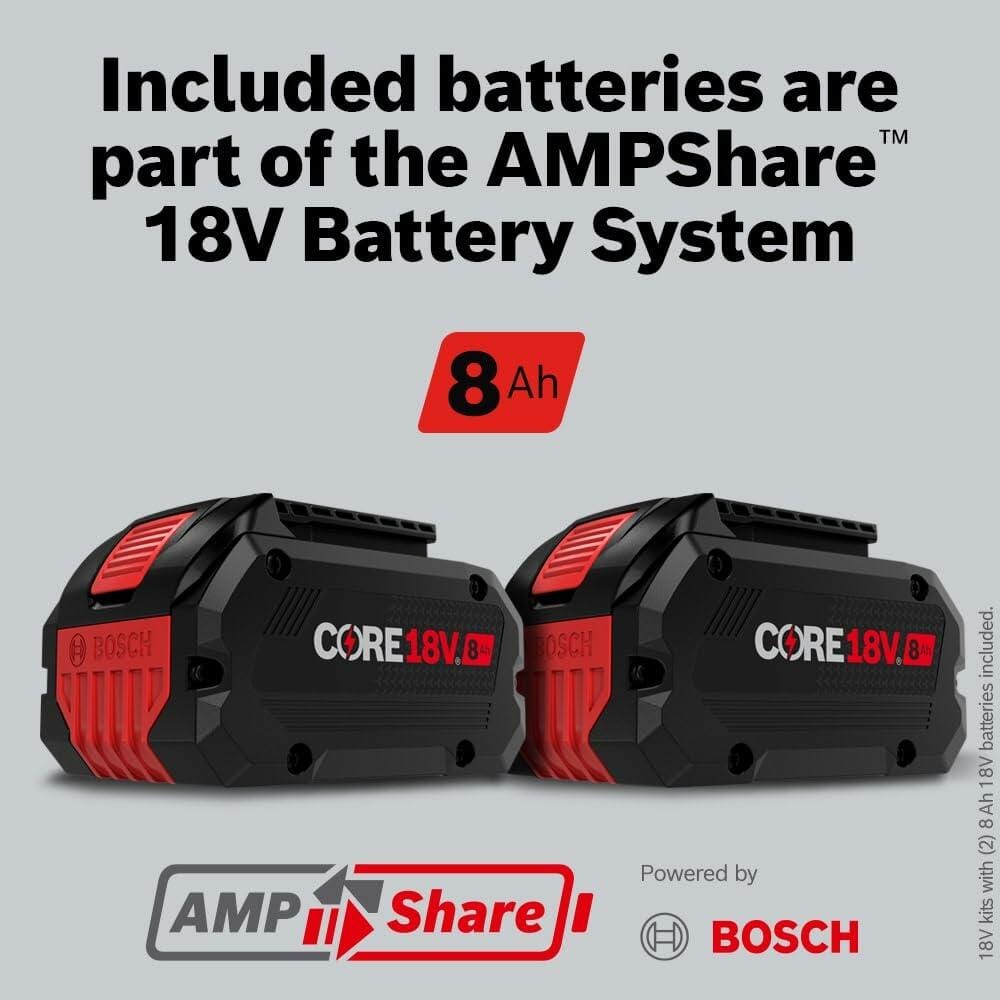

  • (2) Bosch CORE18V 8.0Ah PROFACTOR Performance Lithium-Ion Batteries (GBA18V80)
  • (1) Bosch GAL18V-160C 18V Hell-ion 16-Amp Lithium-Ion Turbo Battery Charger
  • (1) Quick-Release 3-Jaw Keyless Chuck Adapter
  • (1) 360-Degree Auxiliary Side Handle
  • (1) Heavy-Duty Jobsite Carrying Bag

Technical Specifications

Manufacturer Bosch Power Tools
Model Number / Kit SKU GBH18V-34CQB24
Product Line / Platform PROFACTOR Bulldog Series (18V System)
Motor Architecture BITURBO Brushless Motor
Impact Energy (EPTA Certified) 4.3 ft-lbs (5.83 Joules)
Chuck Drive Interface SDS-plus Quick-Release with 3-Jaw Adapter
Max Concrete Drilling Diameter 1-1/4 inches (31.75 mm)
No-Load Rotational Speed (RPM) 0 - 500 RPM
Impact Frequency (BPM) 0 - 2,900 Blows Per Minute
Safety / Jam Protection Electronic KickBack Control Acceleration Sensor
Bare Tool Net Weight 10.80 lbs (172.8 oz / 4.90 kg)
Tool Dimensions (L x W x H) 17.0 in x 3.7 in x 9.8 in (431.8 mm x 94.0 mm x 248.9 mm)
Included Power Battery Packs (2) CORE18V 8.0Ah PROFACTOR Performance Batteries
Charger Specification 16-Amp GAL18V-160C Hell-ion Turbo Charger

Pro-Tip: When drilling into brittle masonry or hollow brick, activate the Soft Start setting via the on-tool digital display; ramping up RPM and BPM gradually prevents face blowout and keeps anchor holes clean and accurate.
