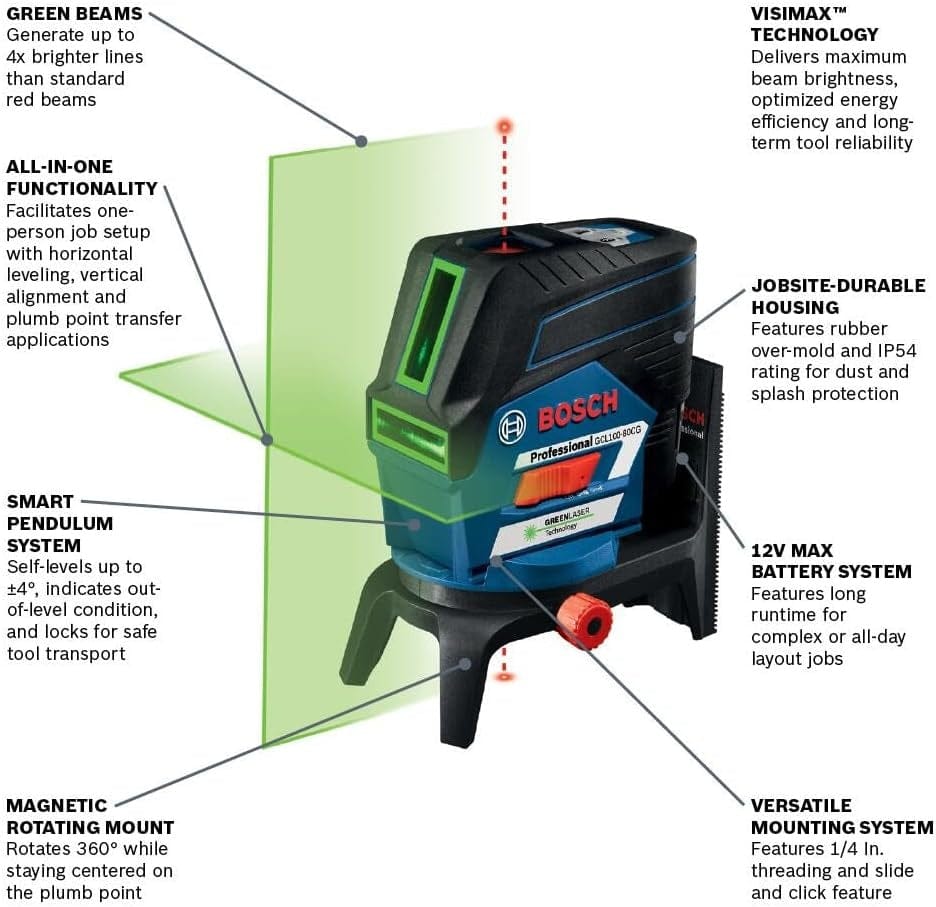

An informational diagram of the laser level highlighting features like 4x brighter green beams, VisiMax technology, smart pendulum system, and 12V Max battery compatibility.
The complete laser level kit including the blue hard carrying case, GCL100-80CG tool, RM 2 magnetic mount, 12V battery and charger, ceiling clip, target plate, and soft pouch.

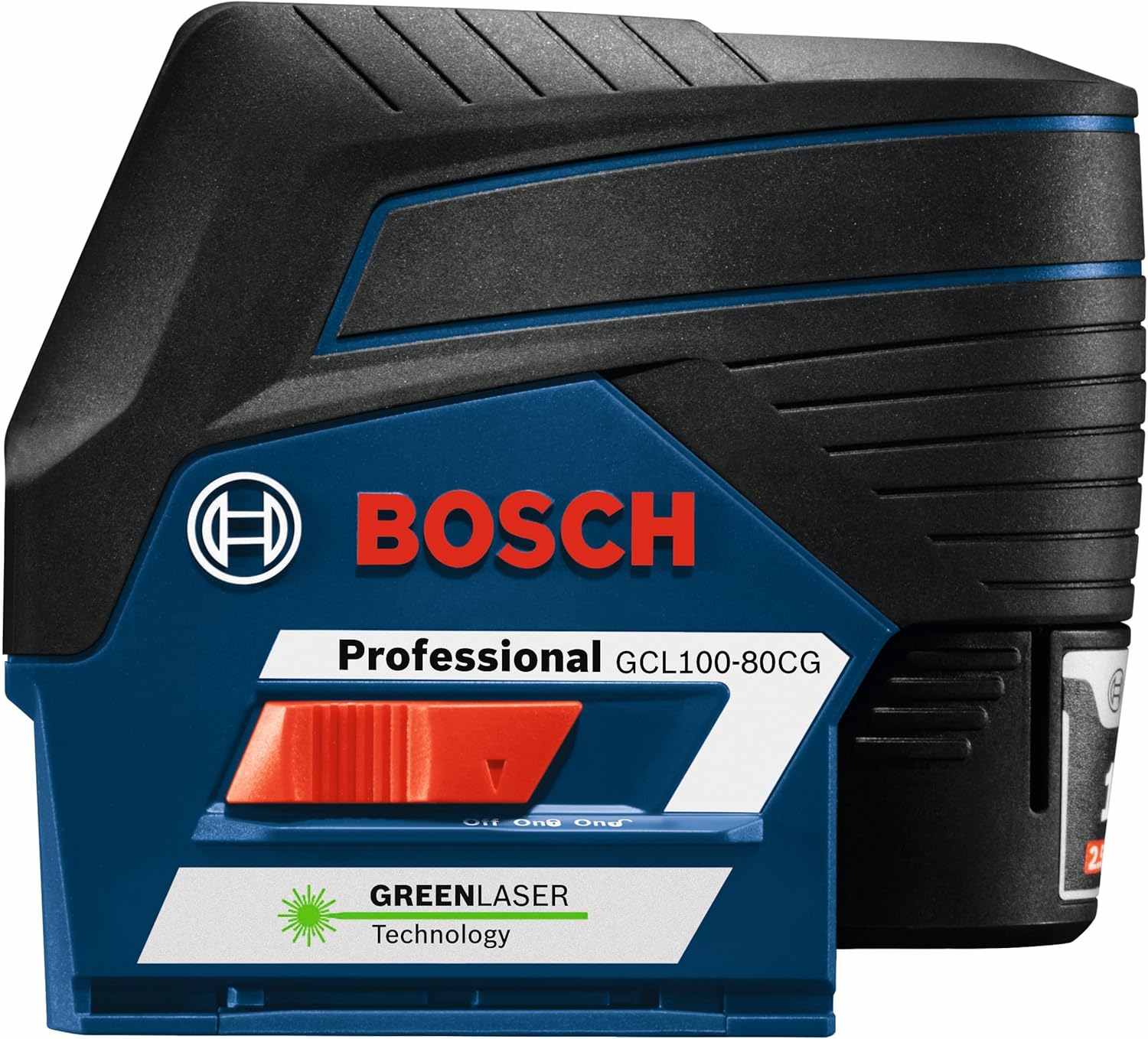

A close-up view of the side of the laser level featuring the red on/off slide switch and the GreenLaser Technology label.

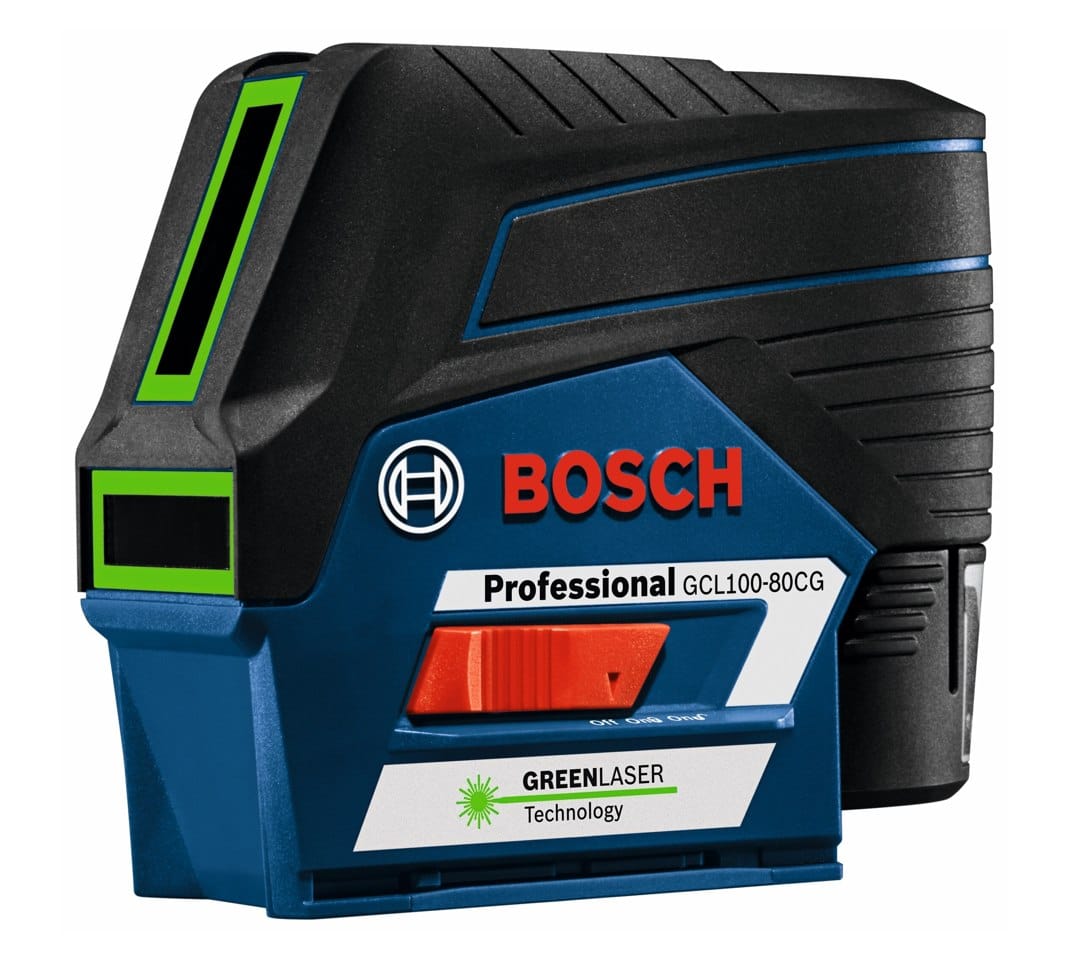

An angled view of the laser tool showing the rugged blue and black housing and the front laser emission windows.
Front view of the laser level displaying the vertical and horizontal green beam apertures and the central plumb point opening.

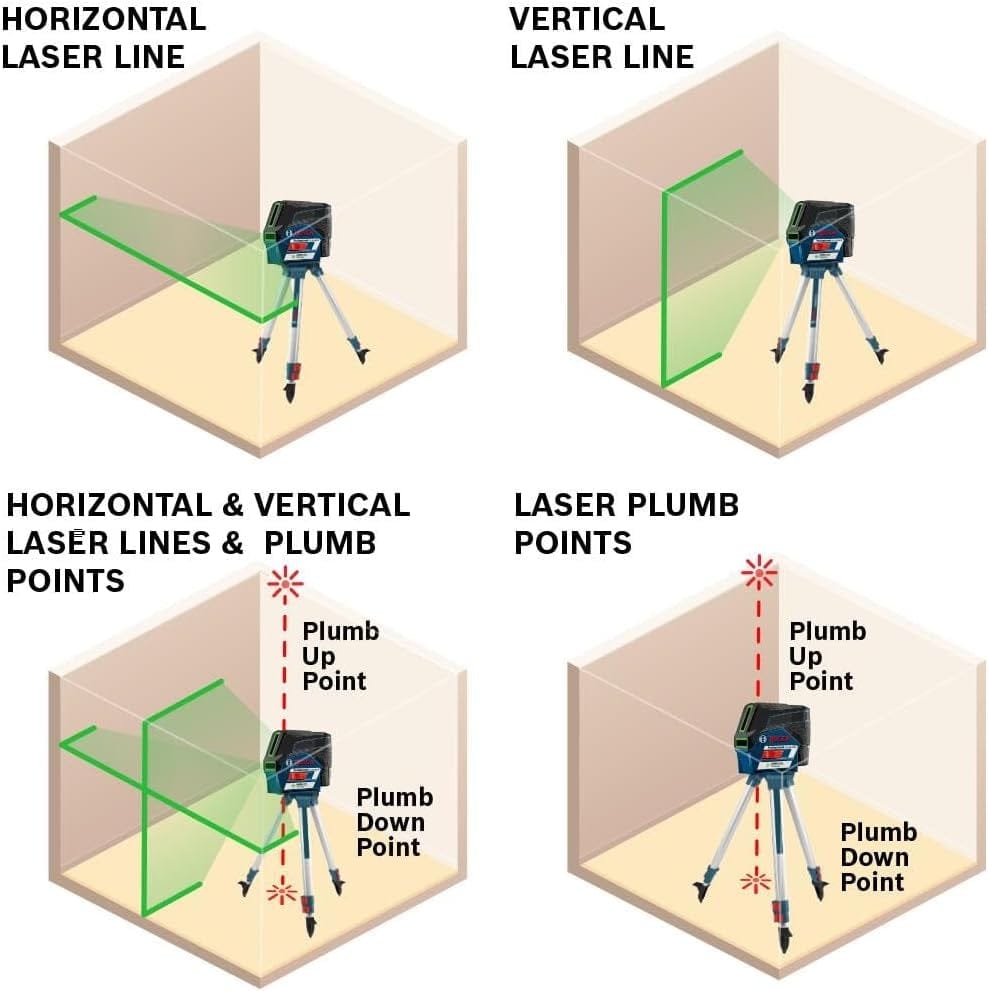

A four-panel illustration demonstrating the laser's projection modes: horizontal line, vertical line, cross-lines with plumb points, and standalone plumb points.

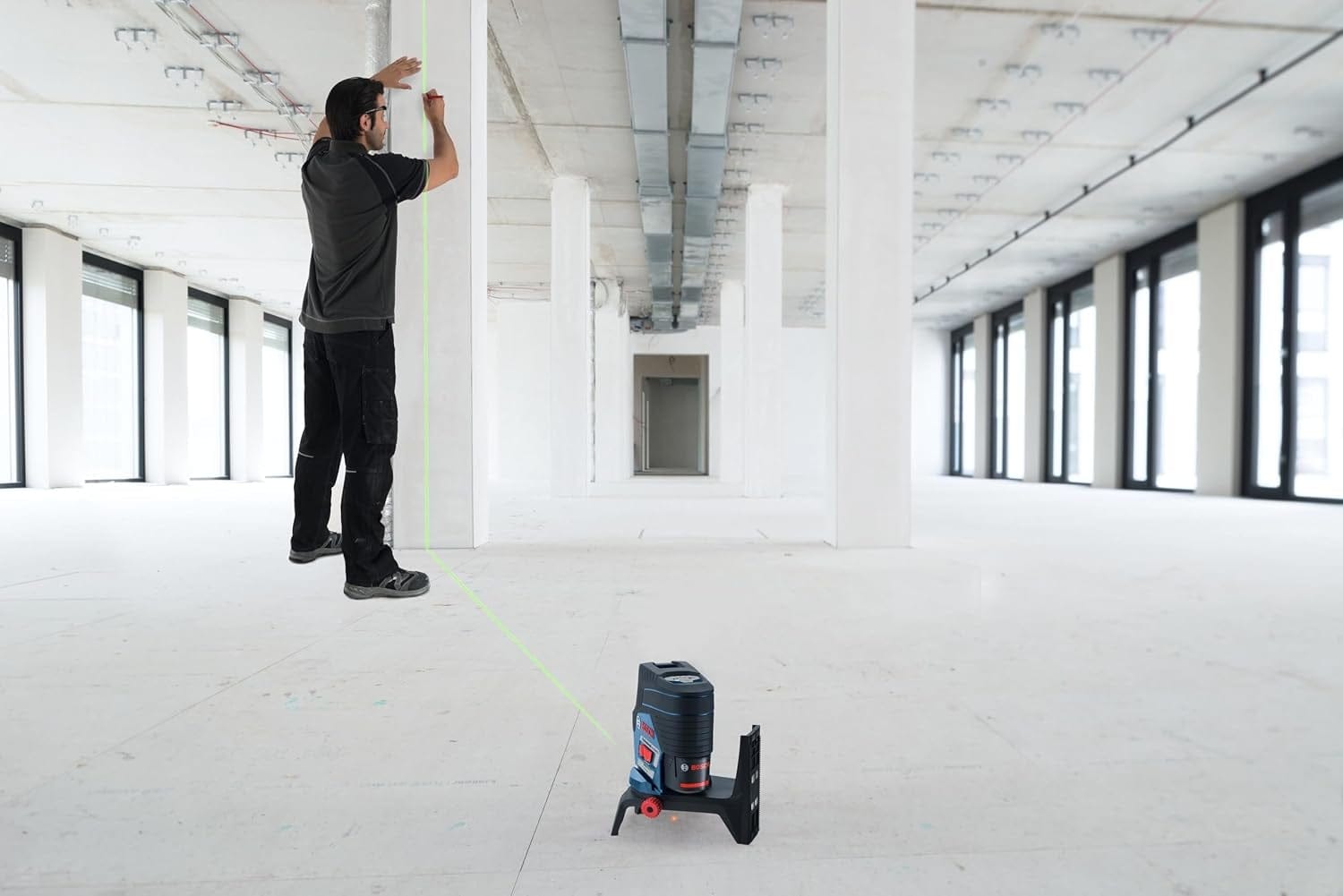

A construction professional using the floor-placed laser level to mark a vertical reference line on a concrete pillar in a large commercial space.

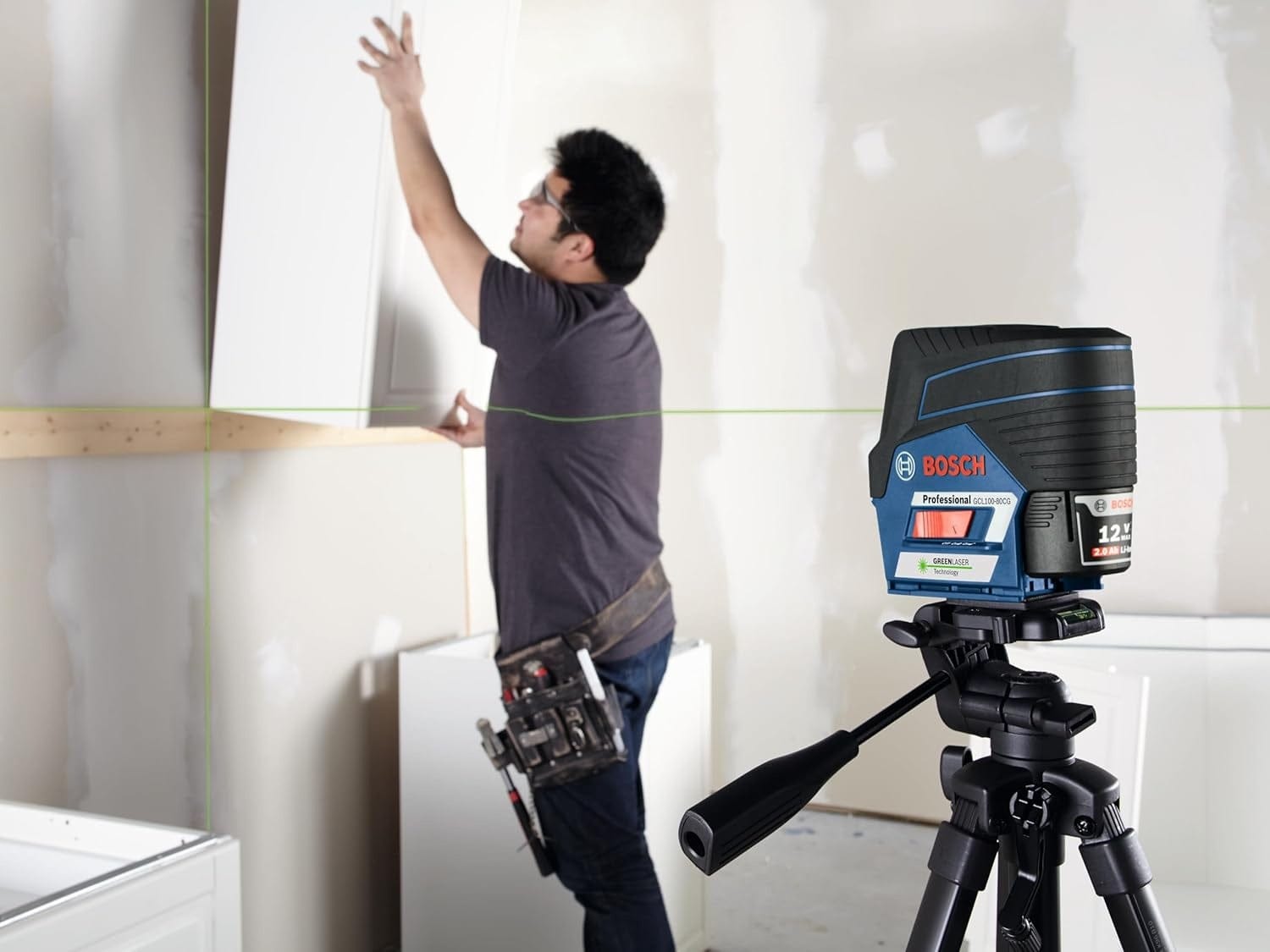

A carpenter installing white cabinetry using the laser level mounted on a tripod to project a precise horizontal leveling line.

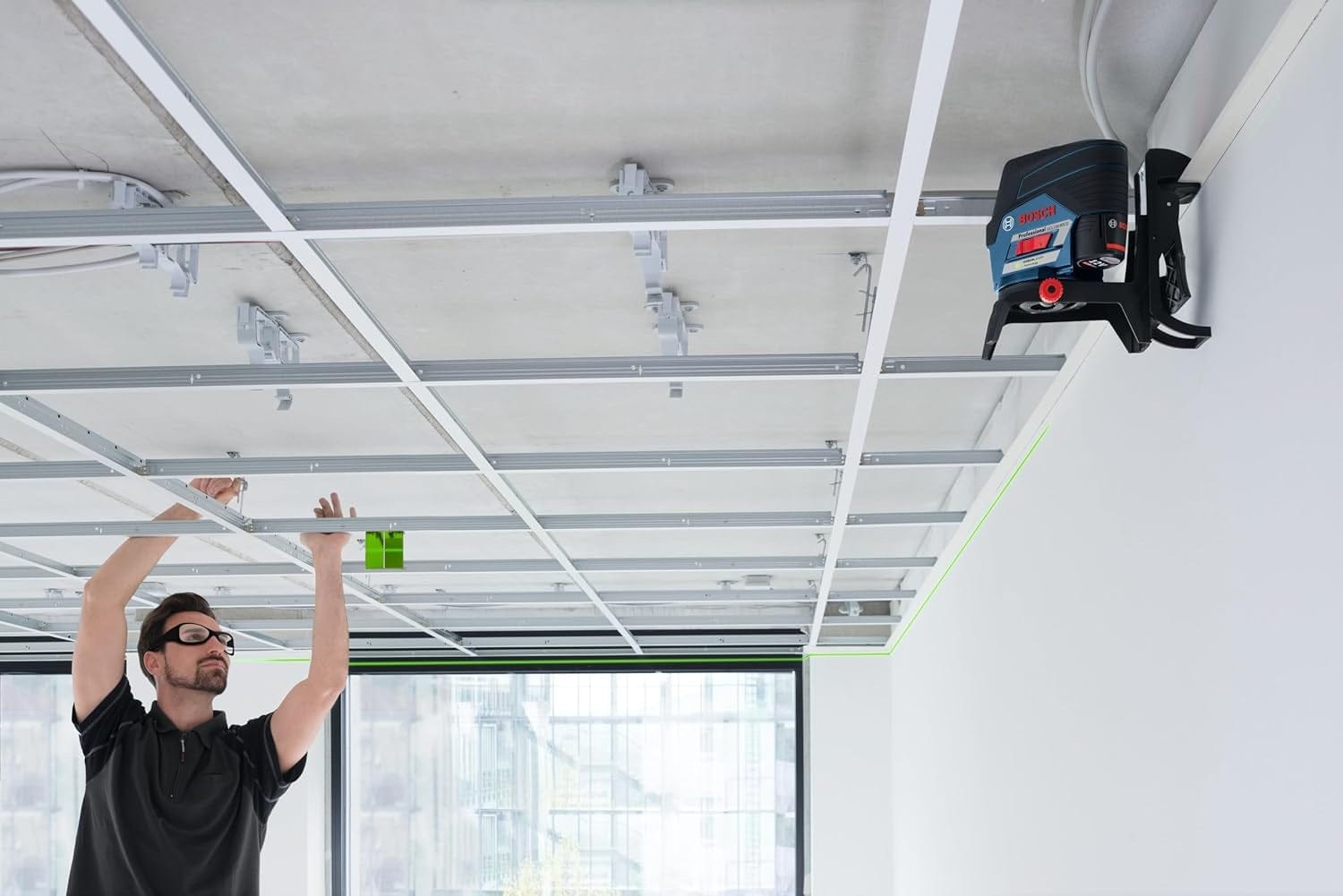

A worker installing a suspended ceiling grid, using the laser level mounted on a wall track to ensure perfect alignment of the metal frame.
A construction worker kneeling on a concrete floor in a bright room, using a straight edge to verify alignment with the green laser line projected by the tool mounted on a tripod.

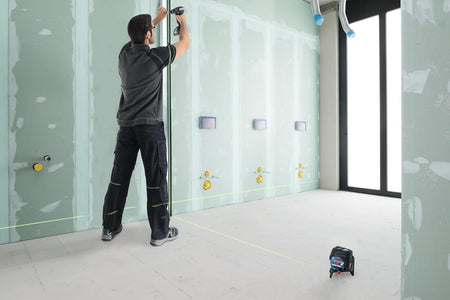

A professional fastening a metal stud track to a wall, using the vertical green beam projected from the floor-mounted laser to ensure the installation is perfectly plumb.
A large commercial framing site showing a worker marking a layout on the floor, while the laser level is magnetically mounted to a steel column to project a horizontal reference line.
A close-up of a worker kneeling on the floor and using a pencil to mark a reference point directly underneath the laser unit, utilizing the tool's plumb down feature.
Bosch VISIMAX: The Next Generation of Line Laser promotional video
The Bosch GCL100-80CG green beam cross-line laser level projecting bright horizontal and vertical lines against a green background graphic.
An informational diagram of the laser level highlighting features like 4x brighter green beams, VisiMax technology, smart pendulum system, and 12V Max battery compatibility.
The complete laser level kit including the blue hard carrying case, GCL100-80CG tool, RM 2 magnetic mount, 12V battery and charger, ceiling clip, target plate, and soft pouch.
A close-up view of the side of the laser level featuring the red on/off slide switch and the GreenLaser Technology label.
An angled view of the laser tool showing the rugged blue and black housing and the front laser emission windows.
Front view of the laser level displaying the vertical and horizontal green beam apertures and the central plumb point opening.
A four-panel illustration demonstrating the laser's projection modes: horizontal line, vertical line, cross-lines with plumb points, and standalone plumb points.
A construction professional using the floor-placed laser level to mark a vertical reference line on a concrete pillar in a large commercial space.
A carpenter installing white cabinetry using the laser level mounted on a tripod to project a precise horizontal leveling line.
A worker installing a suspended ceiling grid, using the laser level mounted on a wall track to ensure perfect alignment of the metal frame.
A construction worker kneeling on a concrete floor in a bright room, using a straight edge to verify alignment with the green laser line projected by the tool mounted on a tripod.
A professional fastening a metal stud track to a wall, using the vertical green beam projected from the floor-mounted laser to ensure the installation is perfectly plumb.
A large commercial framing site showing a worker marking a layout on the floor, while the laser level is magnetically mounted to a steel column to project a horizontal reference line.
A close-up of a worker kneeling on the floor and using a pencil to mark a reference point directly underneath the laser unit, utilizing the tool's plumb down feature.
Bosch VISIMAX: The Next Generation of Line Laser promotional video
BOSCH

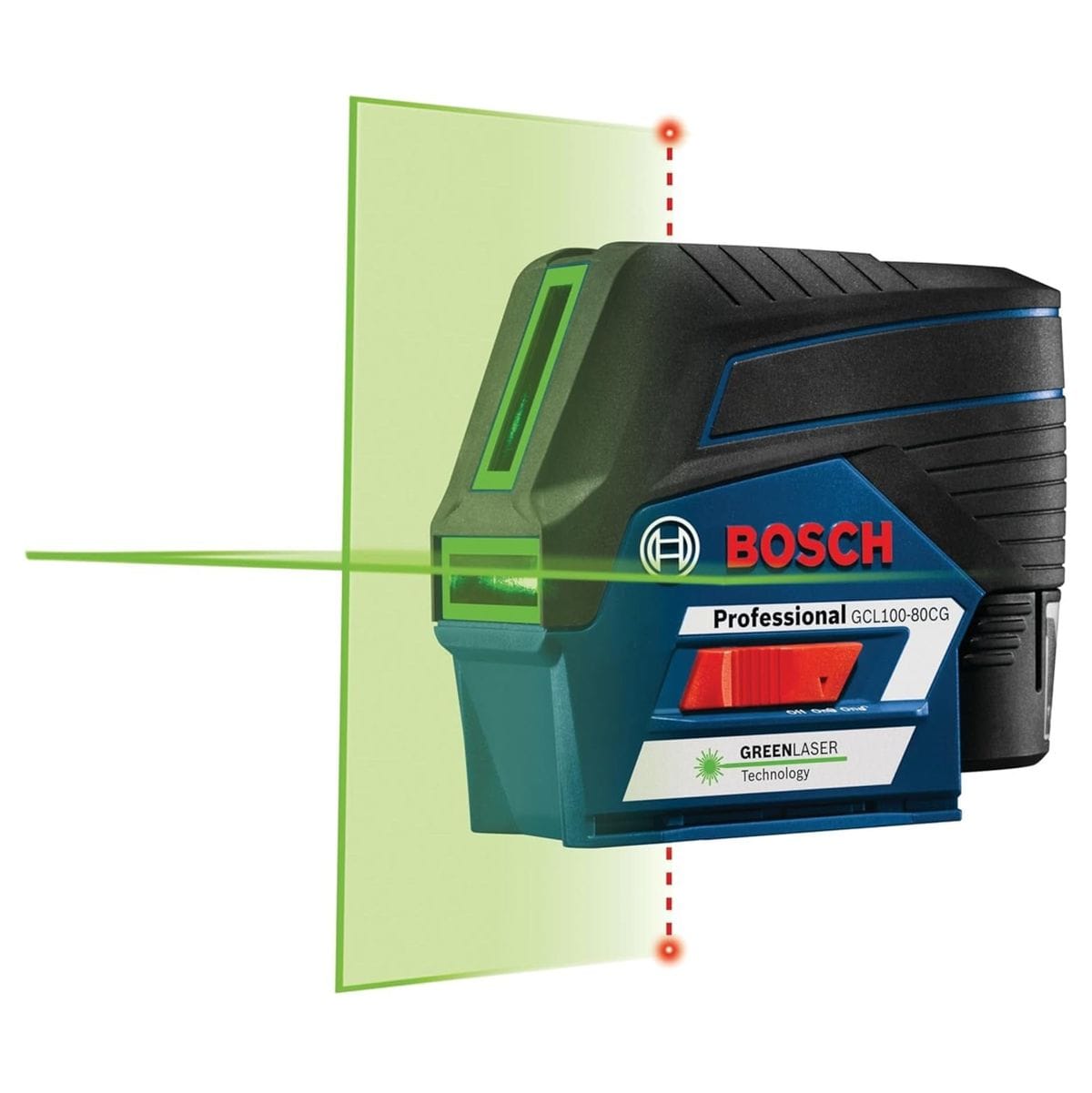

Bosch GCL100-80CG 12V Max Green Beam Cross Line Laser Self Leveling with Plumb Points Bluetooth Connectivity and Mount Kit

Only 3 left
SKU: GCL100-80CG
$429.99

Description

Bosch Promtional Logo Logout

Experience Superior Visibility and Smart Control for Precision Layouts

Elevate your layout accuracy with the Bosch GCL100-80CG 12V Max Connected Green-Beam Cross-Line Laser. Designed for professional ease and precision, this all-in-one tool projects bright green laser lines that are up to 4X brighter than standard red beams, ensuring visibility even in well-lit conditions. Powered by Bosch-exclusive VisiMax™ technology, the unit actively monitors power consumption and temperature to deliver the optimal line brightness while protecting the diode from overheating. Whether you are leveling horizontal structures, aligning vertical framing, or transferring plumb points from floor to ceiling, this laser provides the versatility needed for complex job sites.

Efficiency meets modern technology with the tool's integrated Bluetooth connectivity. By pairing with the free Bosch Leveling Remote App, you can control the laser from your smartphone—turning lines on or off, adjusting brightness, and checking battery life without ever touching the device and risking a setup disturbance. The kit includes the RM 2 Magnetic Rotating Mount, which features a fine adjustment knob for precise alignment around the plumb point. Running on the robust Bosch 12V Max Lithium-Ion platform, this laser ensures you have the extended runtime required for all-day reliability.

Key Features

  • Superior Green Beam: Projects lines up to 4X brighter than standard red lasers, offering a visible range of up to 100 ft.
  • Bluetooth Connectivity: Connects to the Bosch Leveling Remote App for hands-free control of modes, visibility, and battery monitoring.
  • Dual-Power Versatility: Powered by the Bosch 12V Max Lithium-Ion system for extended runtime and reliability on the job.
  • All-in-One Layout: Provides horizontal leveling, vertical alignment, and plumb point transfer in a single tool.
  • VisiMax™ Technology: Optimizes line visibility and energy efficiency while protecting the tool from overheating.
  • Smart Pendulum System: Self-levels up to ±4°, locks for safe transport, and alerts you when the tool is out-of-level.
  • RM 2 Magnetic Mount: Included mount rotates 360° around the plumb point and features a micro-fine adjustment knob for precision setup.
  • Pulse Receiver Mode: Compatible with optional laser receivers (LR 6 or LR8) to extend the working range up to 165 ft in bright conditions.

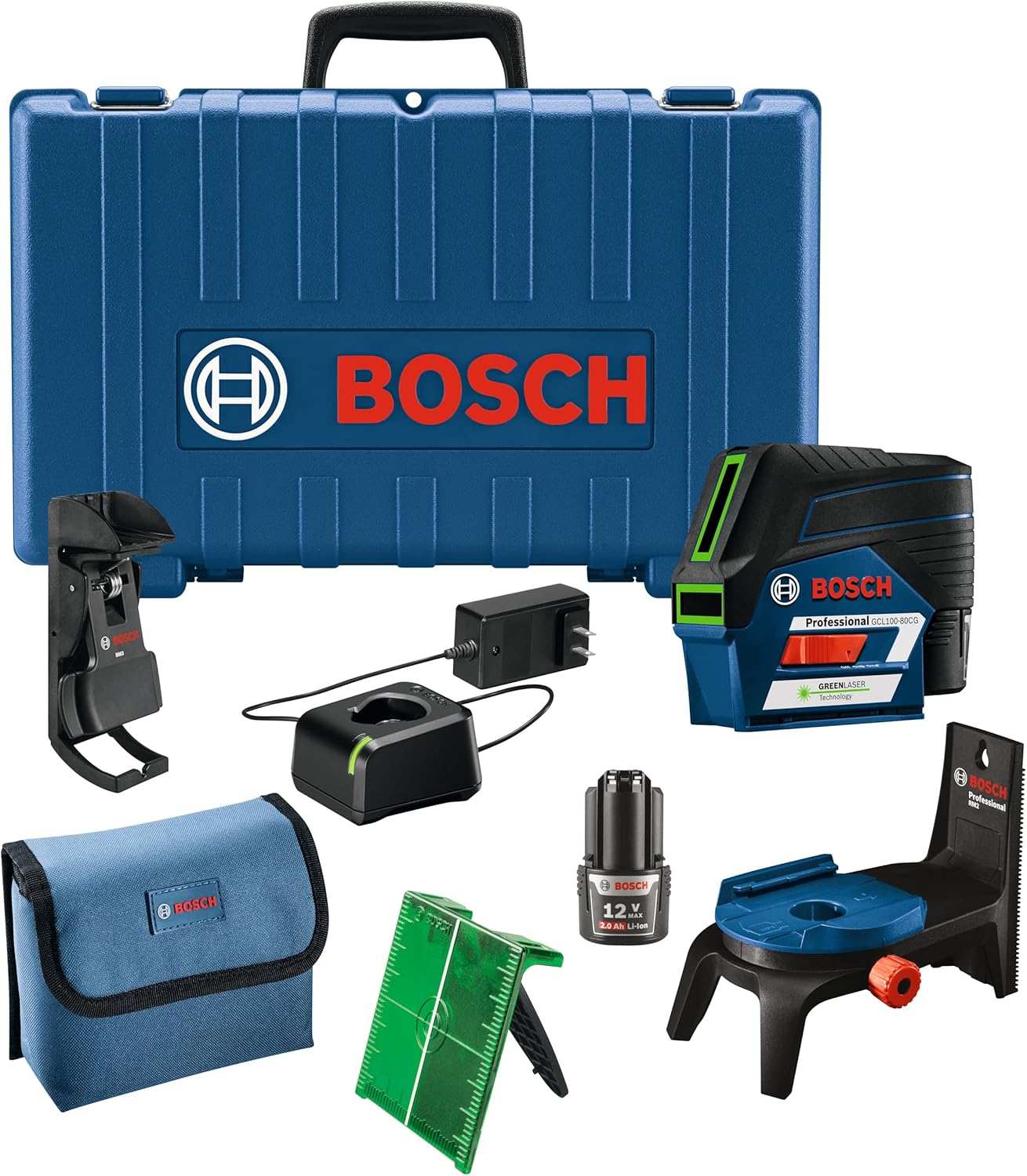

What's Included

  • (1) GCL100-80CG 12V Max Connected Green-Beam Cross-Line Laser with Plumb Points
  • (1) RM 2 Magnetic Rotating Mount
  • (1) 12V Max Lithium-Ion 2.0 Ah Battery
  • (1) 12V Max Lithium-Ion Battery Charger
  • (1) Ceiling Grid Clip
  • (1) Laser Target Plate
  • (1) Heavy-Duty Pouch
  • (1) Hard Carrying Case

Specifications

Battery Voltage 12V Max
Laser Diode Color Green (500 - 540 nm)
Visible Range Up to 100 ft.
Range with Receiver Up to 165 ft.
Accuracy (Lines) ± 1/8 in. @ 30 ft.
Accuracy (Points) ± 9/32 in. @ 30 ft.
Self-Leveling Range Up to 4°
Mount Threading 1/4-20
Operating Temperature 14°F to 122°F
Dimensions (LxWxH) 5.4" x 2.2" x 4.8"
Material Plastic with Over-mold
Pro-Tip: When working on a ladder or scaffold, use the Bosch Leveling Remote App to put the laser into "Standby" mode during breaks. This conserves battery power without requiring you to climb down to switch the unit off, ensuring you have full power when you are ready to resume work.
