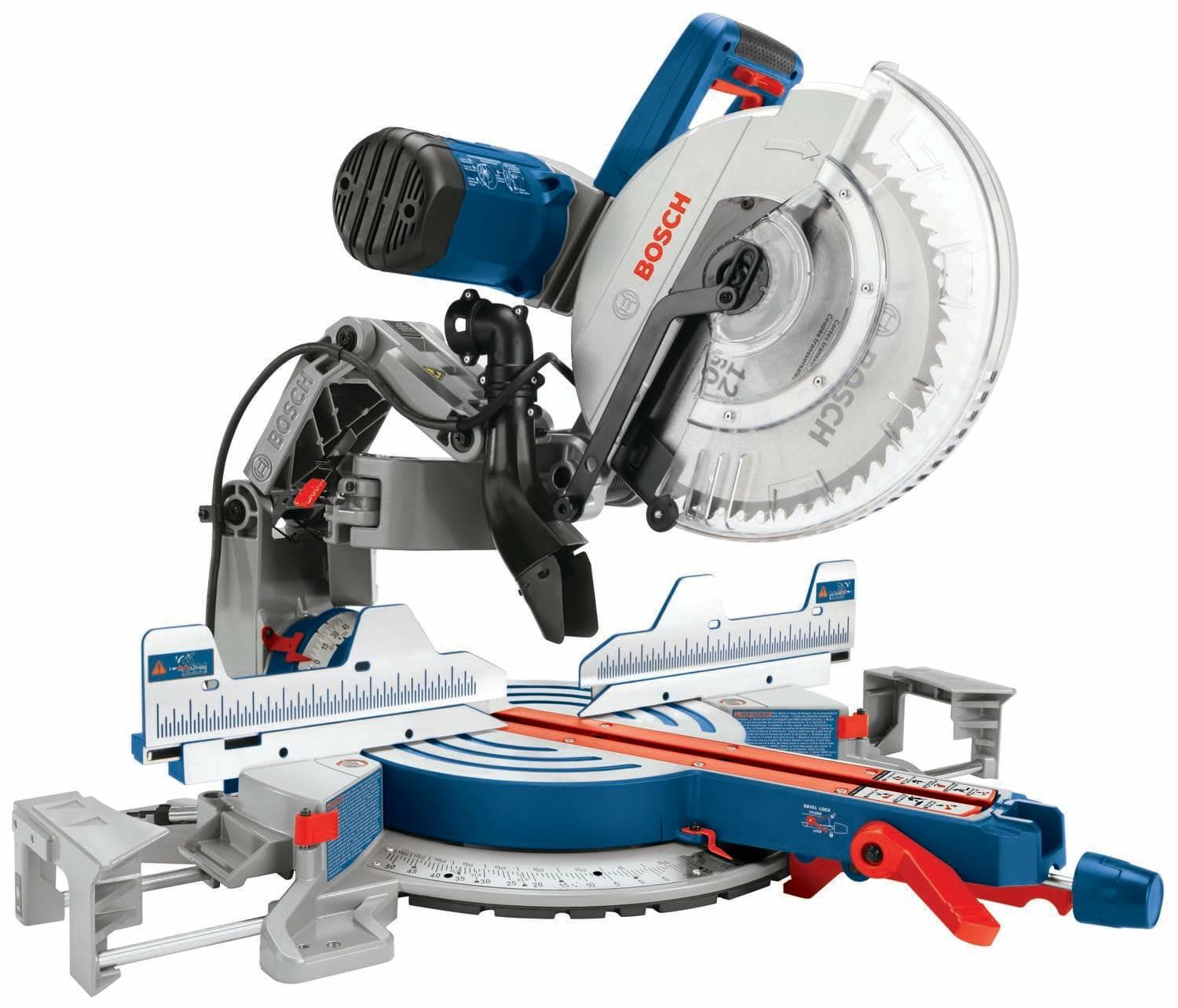

Studio angle view of the Bosch GCM12SD 12-inch dual-bevel glide miter saw showing the 60-tooth blade, clear lower guard, stainless steel miter scale, and the unique axial-glide arm system in the rear

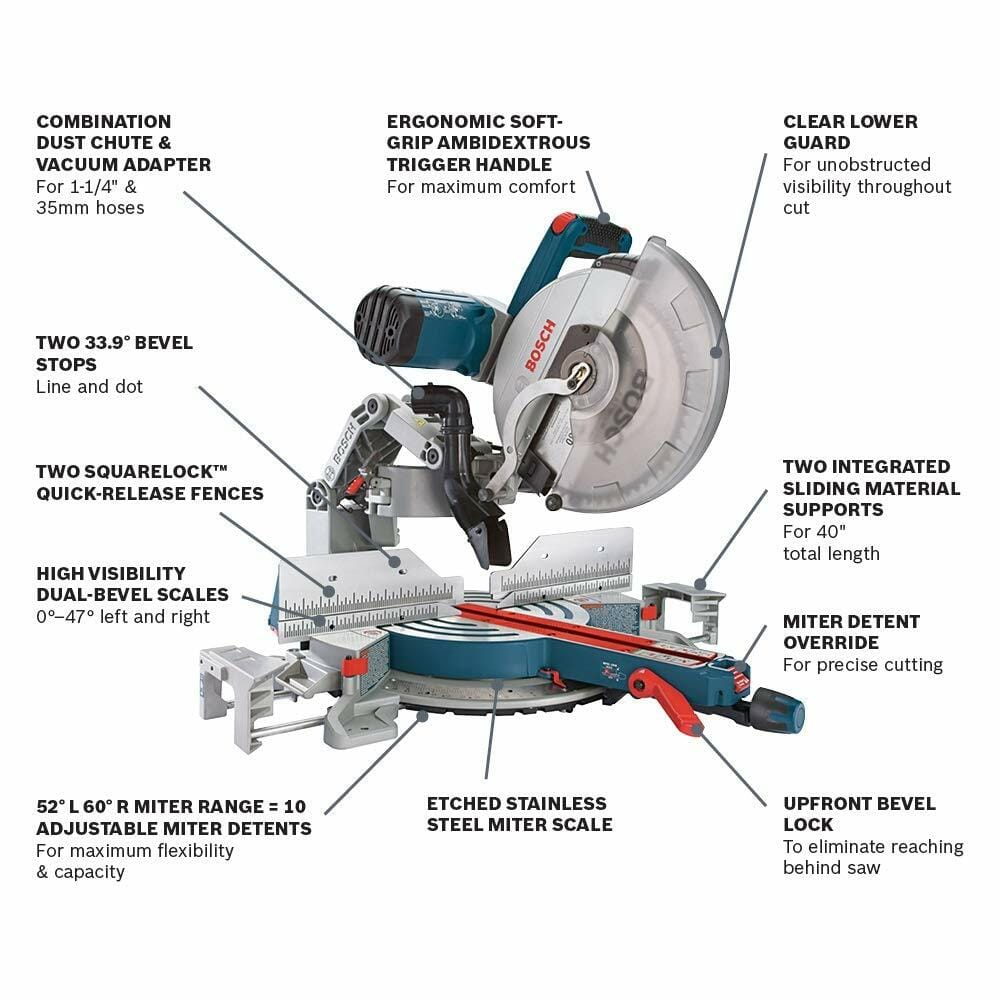

Infographic diagram of the Bosch GCM12SD labeling key features including the SquareLock fences, upfront bevel lock, ergonomic soft-grip handle, clear lower guard, and integrated sliding material supports

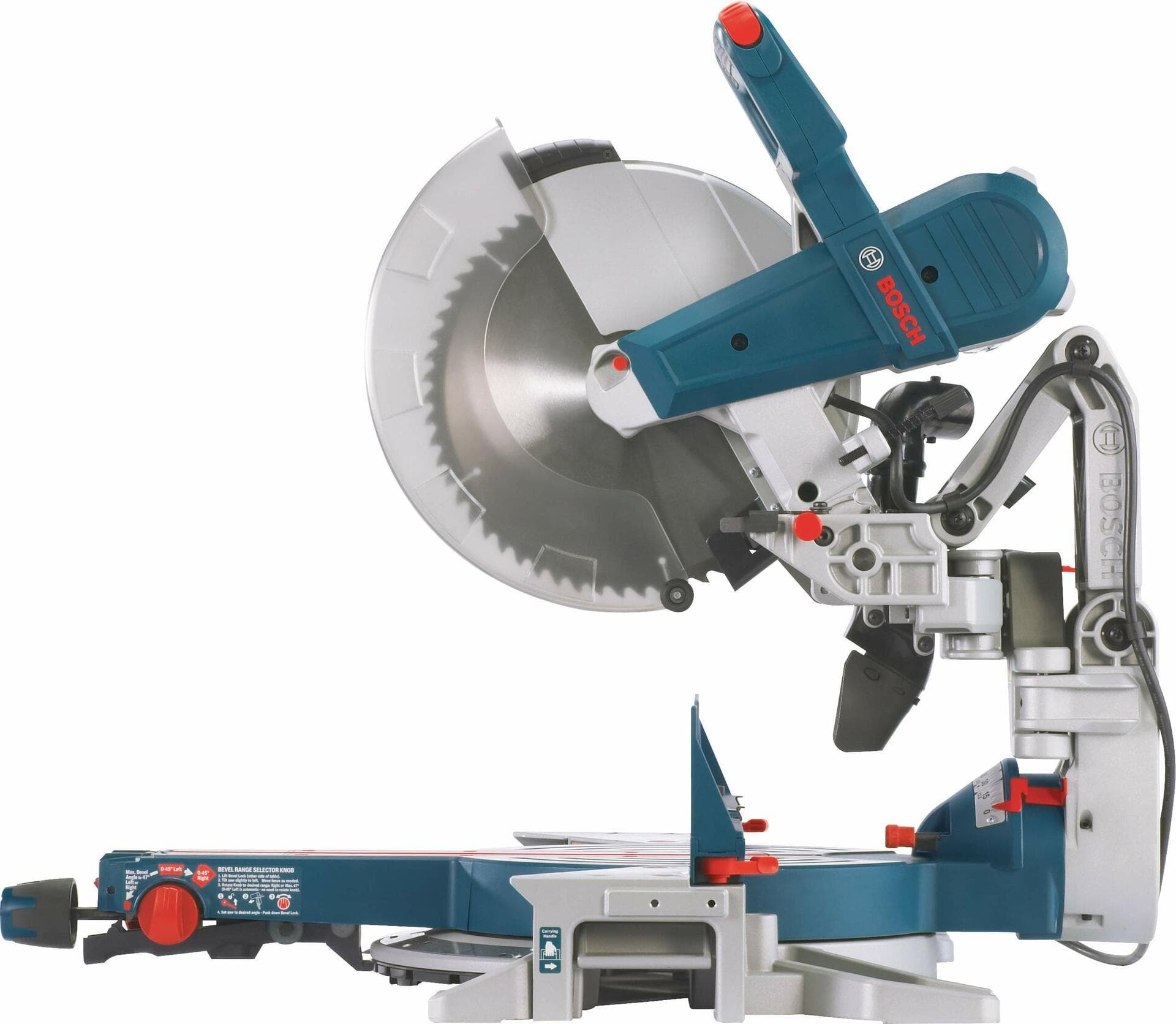

Side profile view of the Bosch glide miter saw with the cutting head raised, displaying the large 12-inch blade, the blue motor housing, the ergonomic handle, and the upfront bevel controls

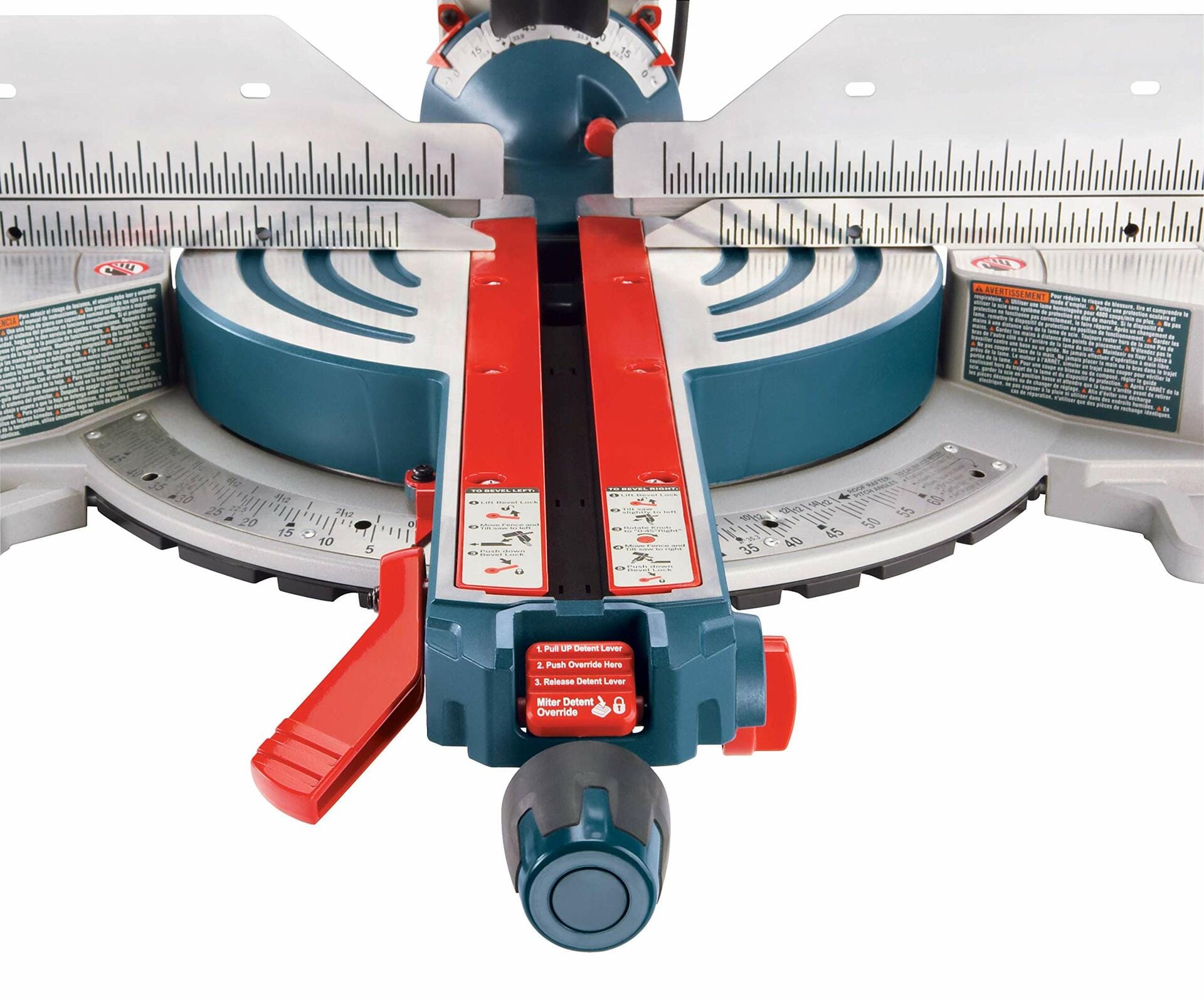

High-angle close-up of the upfront controls showing the red bevel lock lever, the miter detent override push-button, and the main miter locking knob with the stainless steel degree scale

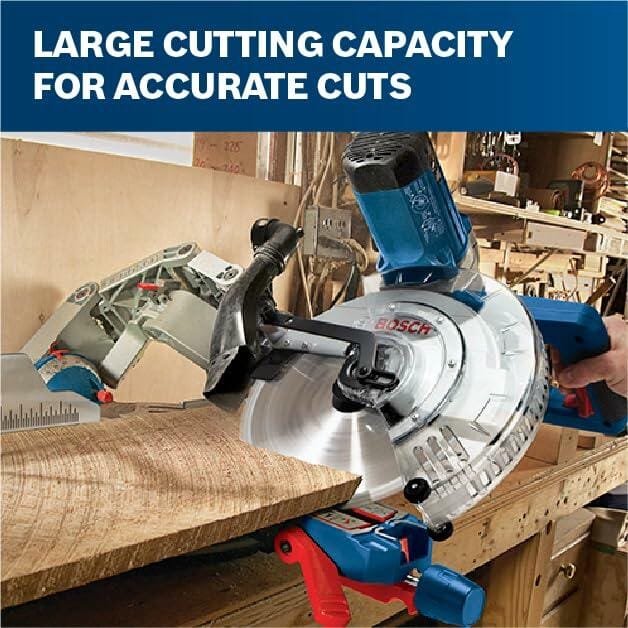

Action shot of the miter saw cutting through a wide piece of rough lumber in a workshop setting with text overlay reading Large Cutting Capacity for Accurate Cuts

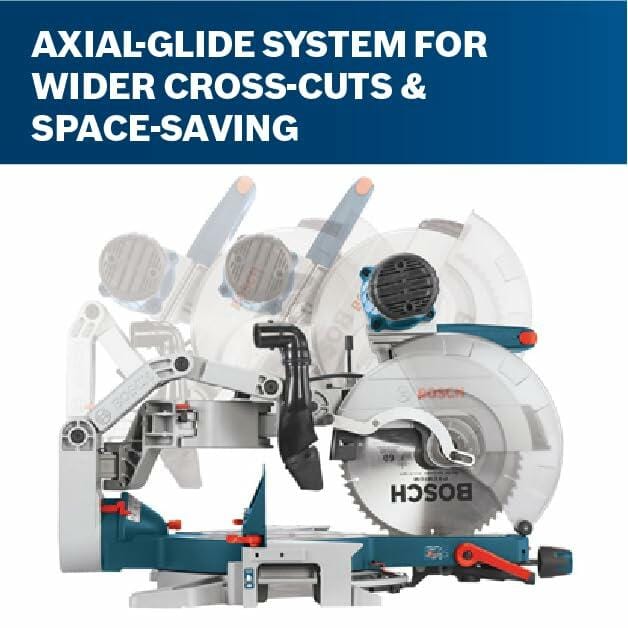

Graphic demonstrating the Axial-Glide system motion with ghosted images showing the saw head moving forward and back, accompanied by text stating Axial-Glide System for Wider Cross-Cuts and Space-Saving

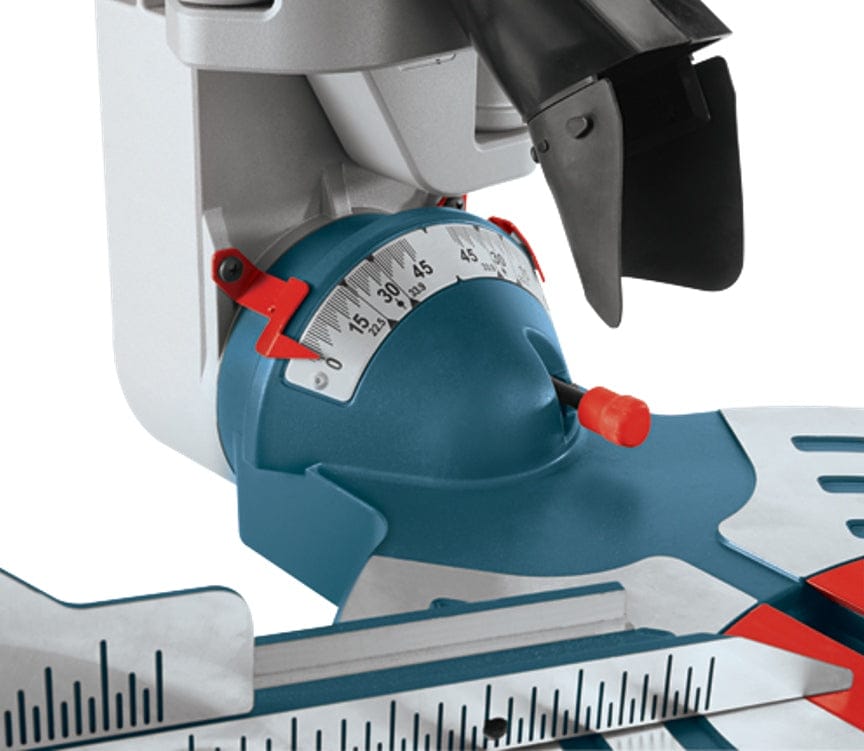

Close-up view of the high-visibility dual-bevel scale with red pointers indicating the specific angle setting for precise bevel adjustments

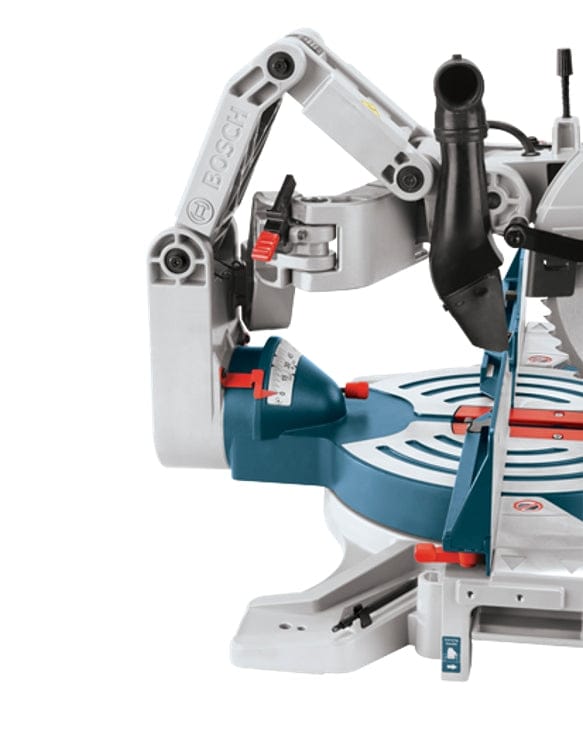

Close-up detailed view of the patented Axial-Glide articulating arm system on the back of the saw, showing the hinged cast aluminum construction and dust collection port

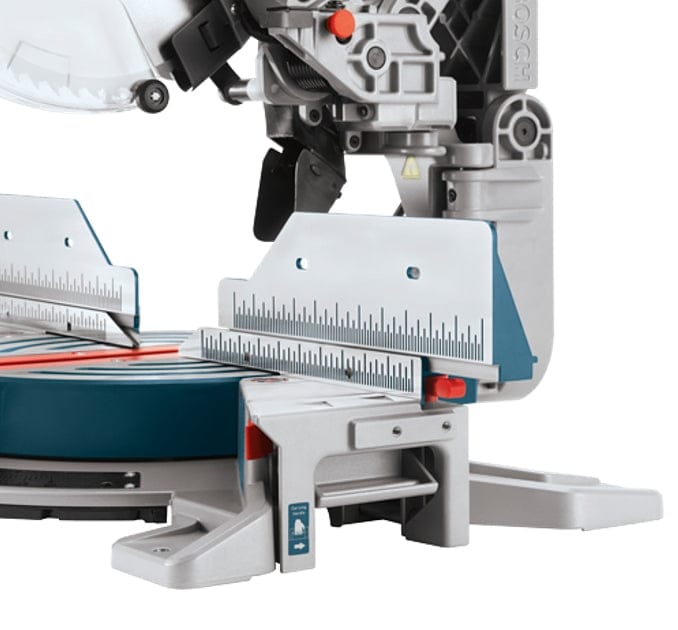

Detailed view of the left side of the saw base featuring the tall sliding fence for material support and the integrated expanding base extension for long workpieces

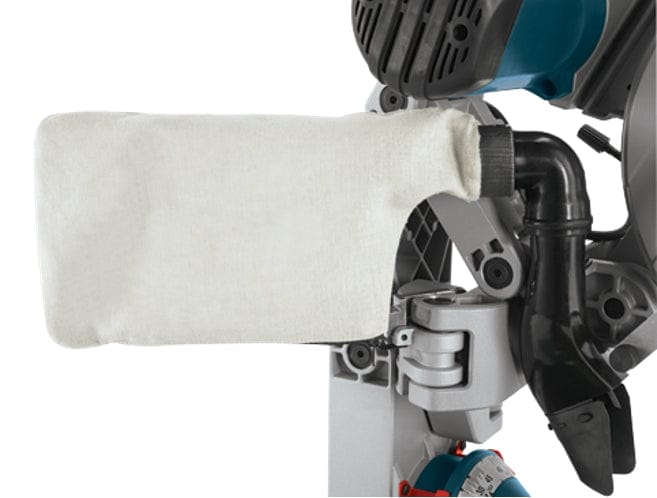

Close-up view of the included white cloth dust collection bag attached to the rear dust chute elbow behind the motor housing
Studio angle view of the Bosch GCM12SD 12-inch dual-bevel glide miter saw showing the 60-tooth blade, clear lower guard, stainless steel miter scale, and the unique axial-glide arm system in the rear
Infographic diagram of the Bosch GCM12SD labeling key features including the SquareLock fences, upfront bevel lock, ergonomic soft-grip handle, clear lower guard, and integrated sliding material supports
Side profile view of the Bosch glide miter saw with the cutting head raised, displaying the large 12-inch blade, the blue motor housing, the ergonomic handle, and the upfront bevel controls
High-angle close-up of the upfront controls showing the red bevel lock lever, the miter detent override push-button, and the main miter locking knob with the stainless steel degree scale
Action shot of the miter saw cutting through a wide piece of rough lumber in a workshop setting with text overlay reading Large Cutting Capacity for Accurate Cuts
Graphic demonstrating the Axial-Glide system motion with ghosted images showing the saw head moving forward and back, accompanied by text stating Axial-Glide System for Wider Cross-Cuts and Space-Saving
Close-up view of the high-visibility dual-bevel scale with red pointers indicating the specific angle setting for precise bevel adjustments
Close-up detailed view of the patented Axial-Glide articulating arm system on the back of the saw, showing the hinged cast aluminum construction and dust collection port
Detailed view of the left side of the saw base featuring the tall sliding fence for material support and the integrated expanding base extension for long workpieces
Close-up view of the included white cloth dust collection bag attached to the rear dust chute elbow behind the motor housing
Bosch

Bosch 12 Inch Dual Bevel Sliding Glide Miter Saw GCM12SD 15 Amp Motor with Axial Glide System and 60 Tooth Carbide Blade for Precision Cutting

Only 1 left
SKU: GCM12SD
$669.99
Description

Unmatched Precision and Space-Saving Design with the Bosch Axial-Glide System

Revolutionize your workshop workflow with the Bosch GCM12SD 12-Inch Dual-Bevel Glide Miter Saw. Unlike traditional sliding miter saws that require ample room behind the tool for rail clearance, the GCM12SD features the patented Axial-Glide system. This articulated arm design not only provides a compact footprint, allowing you to place the saw flush against a wall, but also delivers incredibly smooth cross-cuts and wider cutting capacity. Powered by a robust 15 Amp motor delivering 4,000 RPM, this saw powers through dimensional lumber, hard woods, and thick molding with ease, ensuring a clean, accurate finish every time.

Engineered for the professional carpenter and serious woodworker, this saw prioritizes accuracy and ease of use. It features upfront bevel controls, eliminating the need to reach behind the saw to make adjustments, and an all-metal bevel lock lever for security. The SquareLock quick-release fences provide superior material support and align 90 degrees to the table without adjustment. With class-leading dust collection capable of capturing 90% of dust when paired with a vacuum, and ergonomic ambidextrous handles, the Bosch GCM12SD ensures your workspace stays clean and your cuts stay precise throughout the longest workdays.

Key Features

  • Axial-Glide System: Patented arm design offers wider cross-cuts and saves up to 12 inches of workspace by eliminating rear rails.
  • Upfront Controls: All-metal bevel lock lever and range selector are located at the front for quick and easy settings without reaching behind the saw.
  • Expanded Capacity: Offers a massive 14-inch horizontal cutting capacity and 6-1/2-inch vertical capacity for baseboard against the fence.
  • Precision Alignment: Pre-aligned SquareLock fences maintain permanent 90-degree straightness and include one-touch lock/unlock sliding.
  • Superior Dust Control: Optimized dust chute and vacuum adapter capture up to 90% of sawdust for a cleaner, safer work environment.
  • Adjustable Detents: Features distinct miter detents at common angles (0°, 15°, 31.6°, 22.5°, 45°, 60°) with a push-button override for fine-tuning.
  • User Comfort: Equipped with a large, form-fitting ergonomic trigger handle with a soft grip for ambidextrous use.
  • Integrated Extensions: Base extensions slide out to provide 40 inches of left-to-right material support for long workpieces.

What's Included

  • (1) GCM12SD 12 In. Dual-Bevel Glide Miter Saw
  • (1) Premium 12 In. 60-Tooth Carbide-Tipped Blade
  • (1) Wrench
  • (1) Toolless Vertical Work Clamp
  • (1) Dust Bag Assembly
  • (1) Vacuum Adapter Elbow

Specifications

Model GCM12SD
Amperage 15 Amps
Blade Diameter 12 Inches
No Load RPM 4,000
Bevel Angle Range 47° Left / 47° Right
Miter Angle Range 52° Left / 60° Right
Max Cut (0° Miter/0° Bevel) 3-1/2 in. x 13-1/2 in. (4x14 Lumber)
Max Cut (45° Miter/0° Bevel) 3-1/2 in. x 9-1/2 in. (4x10 Lumber)
Dimensions (L x W x H) 32.375" x 26.5" x 27"
Weight 65 lbs
Dust Collection Yes (Bag and Vac Port)
Electric Brake Yes
Pro Tip:

The beauty of the Axial-Glide system is that it has no rear slide rails, meaning you can place this saw directly against a shop wall or right at the edge of a workbench without losing cutting capacity. To maximize accuracy, periodically check the tension on the glide arm using the adjustment bolt to ensure it remains silky smooth without being too loose.
