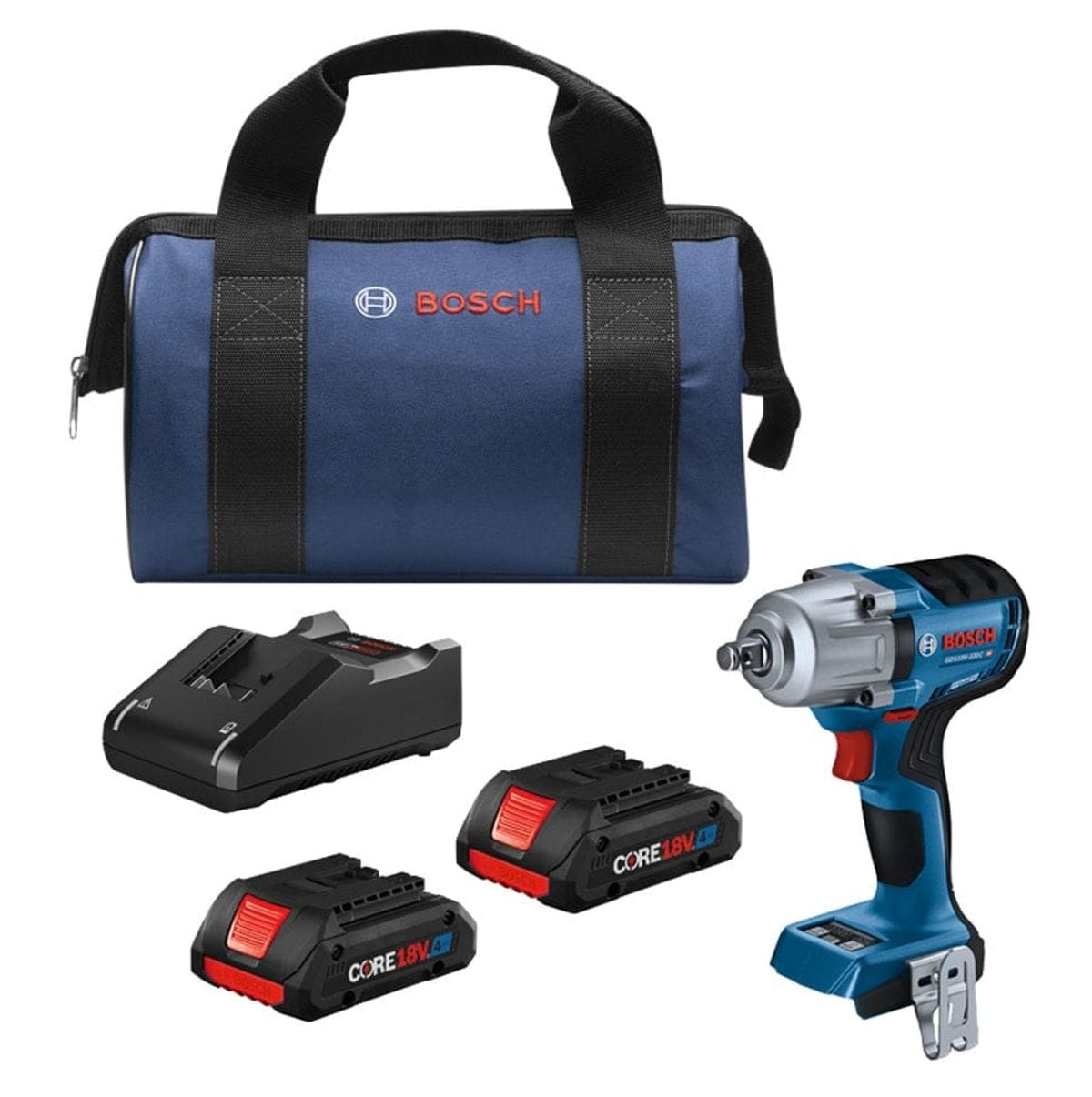

A comprehensive product shot of the Bosch 18V mid-torque impact wrench kit, featuring the handheld tool, two CORE18V 4.0 Ah batteries, a battery charger, and a blue and black zippered carrying bag with the Bosch logo.
An informative product diagram of the GDS18V-330C impact wrench with callouts pointing to key features: the mid-torque power delivering 330 foot-pounds of fastening torque and 590 foot-pounds of max breakaway torque, the brushless motor, connectivity capabilities via the Bosch Toolbox App, an onboard user interface for mode control, an articulating LED light, a variable speed trigger, and the 1/2-inch anvil with friction ring and thru-hole.
A perspective studio shot of the Bosch brushless mid-torque impact wrench standing upright with a CORE18V battery attached to the base, highlighting its professional blue and black design and silver-colored front housing.
A direct side-profile view of the Bosch 18V mid-torque impact wrench showing the compact head length, ergonomic textured grip, red trigger, and a silver metal belt clip attached to the side.
A direct front view of the impact wrench showcasing the 1/2-inch square drive anvil, the red trigger button, and the slim profile of the battery housing at the base.
A direct rear view of the impact wrench highlighting the motor housing with brushless motor branding, the textured back of the handle, and the battery fuel gauge visible on the rear of the attached CORE18V battery.
A comprehensive product shot of the Bosch 18V mid-torque impact wrench kit, featuring the handheld tool, two CORE18V 4.0 Ah batteries, a battery charger, and a blue and black zippered carrying bag with the Bosch logo.
An action shot showing a professional using the Bosch impact wrench and a socket to tighten a large bolt on a heavy industrial red plumbing valve.
Close-up action shot of the cordless mid-torque impact wrench being used by a worker in safety gloves to remove or tighten a lug nut on a large vehicle wheel.
An action shot showing the Bosch impact wrench with an attached deep socket being used to secure a bolt into a metal structural beam on a construction site.
Close-up action shot of a worker using the 18V mid-torque impact wrench and a green-banded impact socket to drive a heavy-duty fastener into a wooden structural beam outdoors.
An action shot showing a worker using the Bosch impact wrench to tighten hardware on a large overhead industrial pipe assembly.
A high-angle product shot of the Bosch mid-torque impact wrench resting on a wooden board next to a blue heavy-duty bolt, showing an impact socket attached to the anvil.
A close-up shot of a hand holding a smartphone displaying the Bosch Toolbox App, which is connected to the GDS18V-330C impact wrench to customize modes and settings like RPM adjustment.
A graphic detailing the Bosch 18V Limited Warranty for tool, charger, and battery kits, featuring the Bosch logo and text stating a 5-year tool/charger warranty and a 3-year battery warranty.
An infographic showcasing recommended batteries for the AMPShare 18V Battery System, displaying 4.0 Ah, 6.0 Ah, and 8.0 Ah CORE18V batteries as part of the multi-brand compatible system powered by Bosch.
A promotional graphic for the AMPShare multi-brand compatible 18V battery system, showing various sizes of CORE18V and standard 18V battery packs from 4.0 Ah up to 12.0 Ah with the AMPShare and Bosch logos at the top.
“Macho Man” | Bosch 18V 2-in-1 Impact Driver promotional video
A comprehensive product shot of the Bosch 18V mid-torque impact wrench kit, featuring the handheld tool, two CORE18V 4.0 Ah batteries, a battery charger, and a blue and black zippered carrying bag with the Bosch logo.
An informative product diagram of the GDS18V-330C impact wrench with callouts pointing to key features: the mid-torque power delivering 330 foot-pounds of fastening torque and 590 foot-pounds of max breakaway torque, the brushless motor, connectivity capabilities via the Bosch Toolbox App, an onboard user interface for mode control, an articulating LED light, a variable speed trigger, and the 1/2-inch anvil with friction ring and thru-hole.
A perspective studio shot of the Bosch brushless mid-torque impact wrench standing upright with a CORE18V battery attached to the base, highlighting its professional blue and black design and silver-colored front housing.
A direct side-profile view of the Bosch 18V mid-torque impact wrench showing the compact head length, ergonomic textured grip, red trigger, and a silver metal belt clip attached to the side.
A direct front view of the impact wrench showcasing the 1/2-inch square drive anvil, the red trigger button, and the slim profile of the battery housing at the base.
A direct rear view of the impact wrench highlighting the motor housing with brushless motor branding, the textured back of the handle, and the battery fuel gauge visible on the rear of the attached CORE18V battery.
A comprehensive product shot of the Bosch 18V mid-torque impact wrench kit, featuring the handheld tool, two CORE18V 4.0 Ah batteries, a battery charger, and a blue and black zippered carrying bag with the Bosch logo.
An action shot showing a professional using the Bosch impact wrench and a socket to tighten a large bolt on a heavy industrial red plumbing valve.
Close-up action shot of the cordless mid-torque impact wrench being used by a worker in safety gloves to remove or tighten a lug nut on a large vehicle wheel.
An action shot showing the Bosch impact wrench with an attached deep socket being used to secure a bolt into a metal structural beam on a construction site.
Close-up action shot of a worker using the 18V mid-torque impact wrench and a green-banded impact socket to drive a heavy-duty fastener into a wooden structural beam outdoors.
An action shot showing a worker using the Bosch impact wrench to tighten hardware on a large overhead industrial pipe assembly.
A high-angle product shot of the Bosch mid-torque impact wrench resting on a wooden board next to a blue heavy-duty bolt, showing an impact socket attached to the anvil.
A close-up shot of a hand holding a smartphone displaying the Bosch Toolbox App, which is connected to the GDS18V-330C impact wrench to customize modes and settings like RPM adjustment.
A graphic detailing the Bosch 18V Limited Warranty for tool, charger, and battery kits, featuring the Bosch logo and text stating a 5-year tool/charger warranty and a 3-year battery warranty.
An infographic showcasing recommended batteries for the AMPShare 18V Battery System, displaying 4.0 Ah, 6.0 Ah, and 8.0 Ah CORE18V batteries as part of the multi-brand compatible system powered by Bosch.
A promotional graphic for the AMPShare multi-brand compatible 18V battery system, showing various sizes of CORE18V and standard 18V battery packs from 4.0 Ah up to 12.0 Ah with the AMPShare and Bosch logos at the top.
“Macho Man” | Bosch 18V 2-in-1 Impact Driver promotional video
BOSCH

Bosch Impact Wrench Kit GDS18V-330CB25 18V Brushless 1/2 Drive (330 Ft-Lbs Torque Friction Ring Thru-Hole Two 4Ah CORE18V Batteries Charger Bag Sockets)

In stock
SKU: GDS18V-330CB25
$449.00 USD

Description

Bosch Promtional Logo Logout

Contractor-Grade 18V Brushless 1/2-Inch Mid-Torque Fastening System with Auto Bolt Release and Friction Ring Socket Drive

The Bosch GDS18V-330CB25 18V Brushless 1/2-Inch Mid-Torque Impact Wrench Kit delivers professional-grade mechanical tightening velocity and breakaway force under demanding jobsite structural loads. Driven by a high-efficiency brushless motor, this cordless installation tool generates a stable 3,300 impacts per minute (IPM) alongside 330 Ft.-Lbs. of maximum fastening torque and 590 Ft.-Lbs. of breakaway torque. This mobile fastening solution resolves physical space constraints and user muscle fatigue problems during high-volume structural steel assembly, automotive lug nut removal, or heavy wood lag bolt driving by combining an agile 6.6-inch head length with a lightweight system profile of only 4.6 lbs. Supplied with two CORE18V 4 Ah Advanced Power batteries utilizing CoolPack 2.0 thermal regulation, this high-performance system incorporates Auto Stop protection to eliminate fastener over-tightening hazards.

Best Used For:

  • Structural Steel Erection: Securing heavy frame bolts, anchoring brackets, and coupling heavy iron structural components with uniform rotational force.
  • Heavy Timber Construction: Driving long lag bolts and structural self-tapping screws through multi-ply laminated veneer lumber (LVL) beams and heavy framing studs.
  • Automotive Fleet Maintenance: Removing rusted lug nuts, disassembling suspension assemblies, and servicing industrial equipment quickly without air hoses.

Key Performance & Safety Features

  • 590 Ft.-Lbs. Breakaway Force: Delivers heavy-duty breakaway torque to loosen stubborn, seized, or corroded industrial anchors and lug nuts rapidly.
  • Dual Pin Retention Drive: Integrates a 1/2-inch square drive anvil with both a friction ring and a thru-hole to allow quick socket changes and optimal safety.
  • Intelligent Auto Bolt Release: Advanced sensor algorithm terminates shaft rotation instantly when a fastener breaks free to completely prevent dropped hardware.
  • Auto Stop Tightening Mode: Embedded technology stops impact cycles the moment a fastener seats, mitigating the risk of material deformation and stripped threads.
  • CoolPack 2.0 Heat Management: Advanced battery housing structures protect the two included 4 Ah cells to manage heat dissipation during continuous load tracking.

What's Included

  • (1) GDS18V-330C 18V Brushless Connected-Ready 1/2 In. Mid-Torque Impact Wrench
  • (2) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Batteries
  • (1) 18V Lithium-Ion Standard Battery Charger (GAL18V-40)
  • (1) Heavy-Duty Spring Steel Belt Clip
  • (1) Rugged Fabric Transport Carrying Bag

Technical Specifications

Specification Value
Brand Bosch
Model Number GDS18V-330CB25
Anvil Size and Type 1/2 in Square Drive (Friction Ring + Thru-Hole)
Maximum Fastening Torque 330 Ft.-Lbs.
Maximum Breakaway Torque 590 Ft.-Lbs.
Impact Frequency Rate 0 - 3,300 IPM
No Load RPM Range 0-1,000 / 0-1,500 / 0-2,300 RPM
Transmission Configuration 3-Speed Variable Selector
Head Assembly Length 6.6 in
Chassis Tool Height 8.3 in
Chassis Tool Width 3.0 in
Battery Chemistry Core 4.0 Ah Advanced Power CORE18V Lithium-Ion
Net Weight (with 4Ah Battery) 4.6 lbs.

Pro-Tip: When shifting between high-speed structural bolt installations and precision assembly, utilize the onboard electronic console interface to alternate speed stages. Lowering the gear thresholds for light metric fasteners prevents high impact shock lines from fracturing low-grade structural materials.
