Bosch Impact Wrench GDS18V-740N 1/2 Inch Friction Ring Bare Tool (18V PROFACTOR BITURBO Brushless 740 Ft-Lbs Fastening 1180 Breakaway Nut Busting)
Couldn't load pickup availability

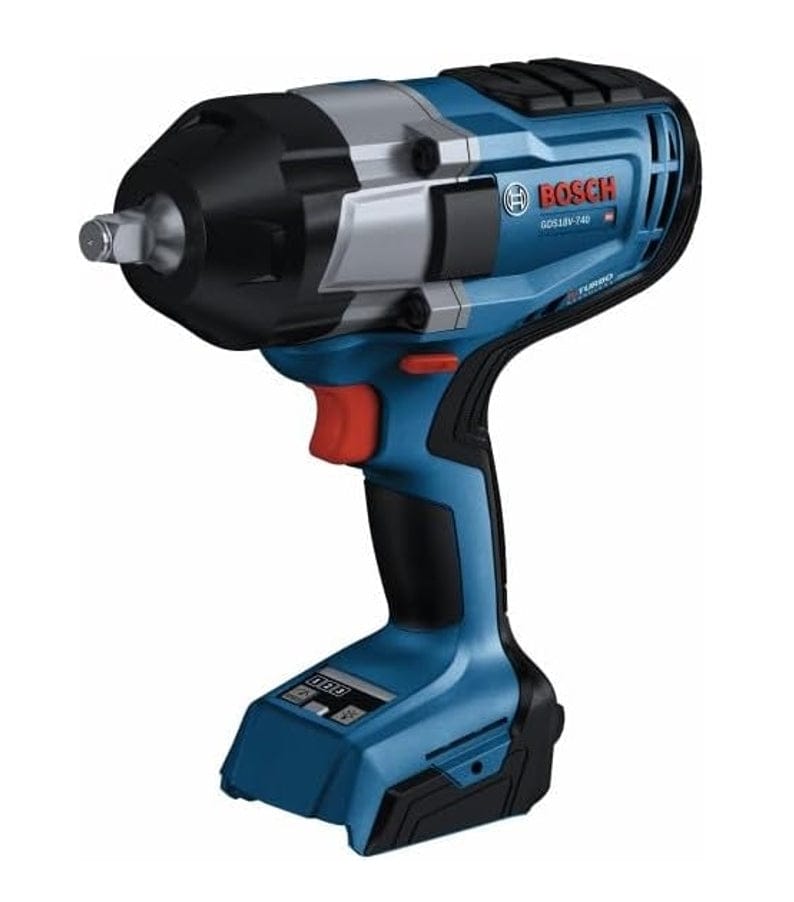

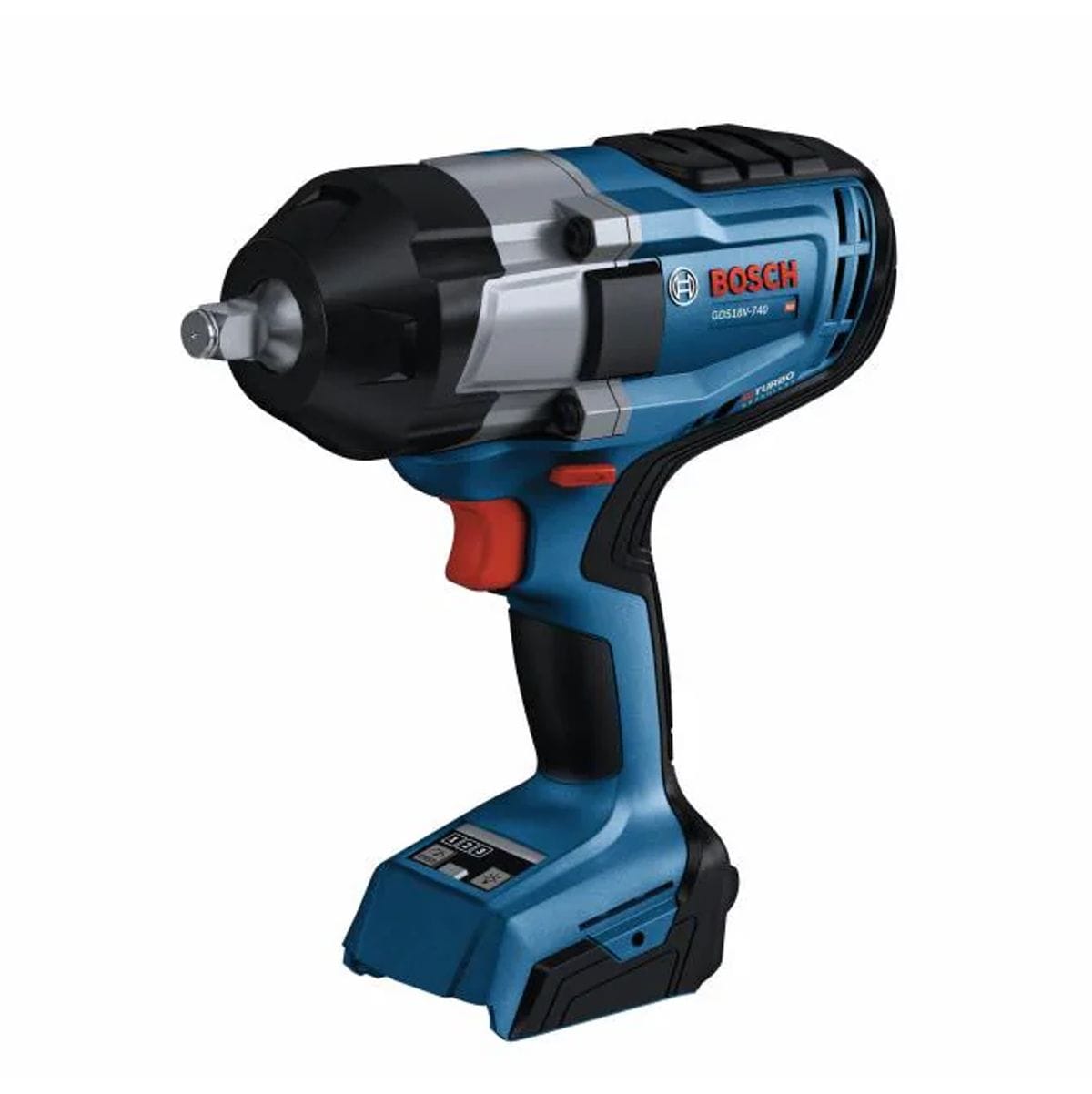

Bosch PROFACTOR GDS18V-740N 18V BITURBO Brushless 1/2" High-Torque Impact Wrench - Bare Tool
The Bosch PROFACTOR GDS18V-740N 18V cordless 1/2-inch square drive high-torque impact wrench breaks loose seized industrial nuts, secures heavy structural steel connections, drives large timber lag screws, and tightens commercial concrete wedge anchors. Engineered with BITURBO Brushless Technology and a high-output drivetrain optimized for CORE18V High Power batteries, this 6.4-lb cordless tool delivers up to 740 ft-lbs of fastening torque and 1,180 ft-lbs of breakaway nut-busting torque. Featuring an integrated 1/2-inch friction ring anvil for rapid socket changeouts, a 3-speed digital user interface (0-800 / 1,200 / 1,750 RPM), a protective rubber nose casing, and an adjustable LED worklight, it equips ironworkers, heavy equipment mechanics, and millwrights with corded-grade torque delivery.
**Battery and charger sold separately.
Best Used For:

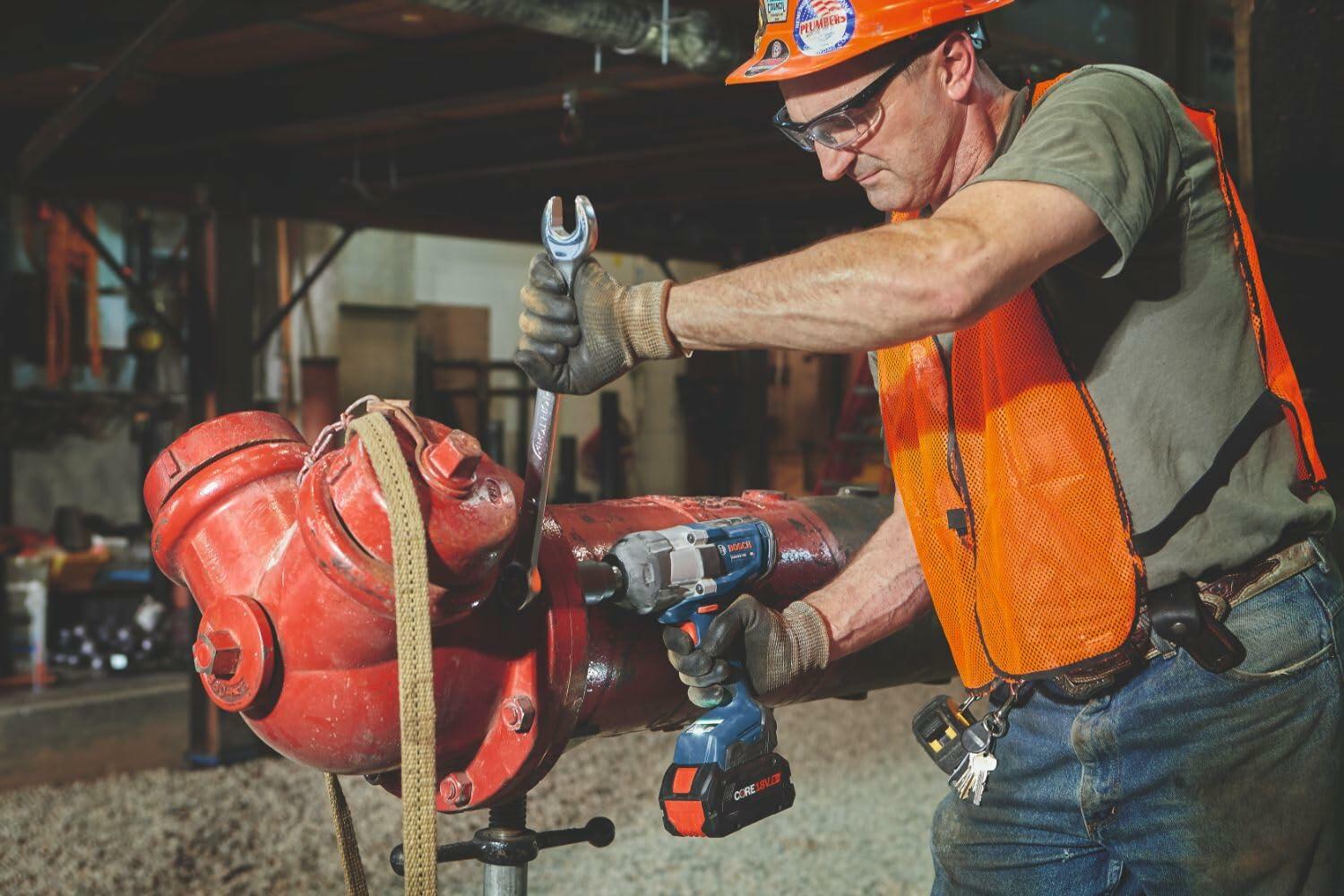

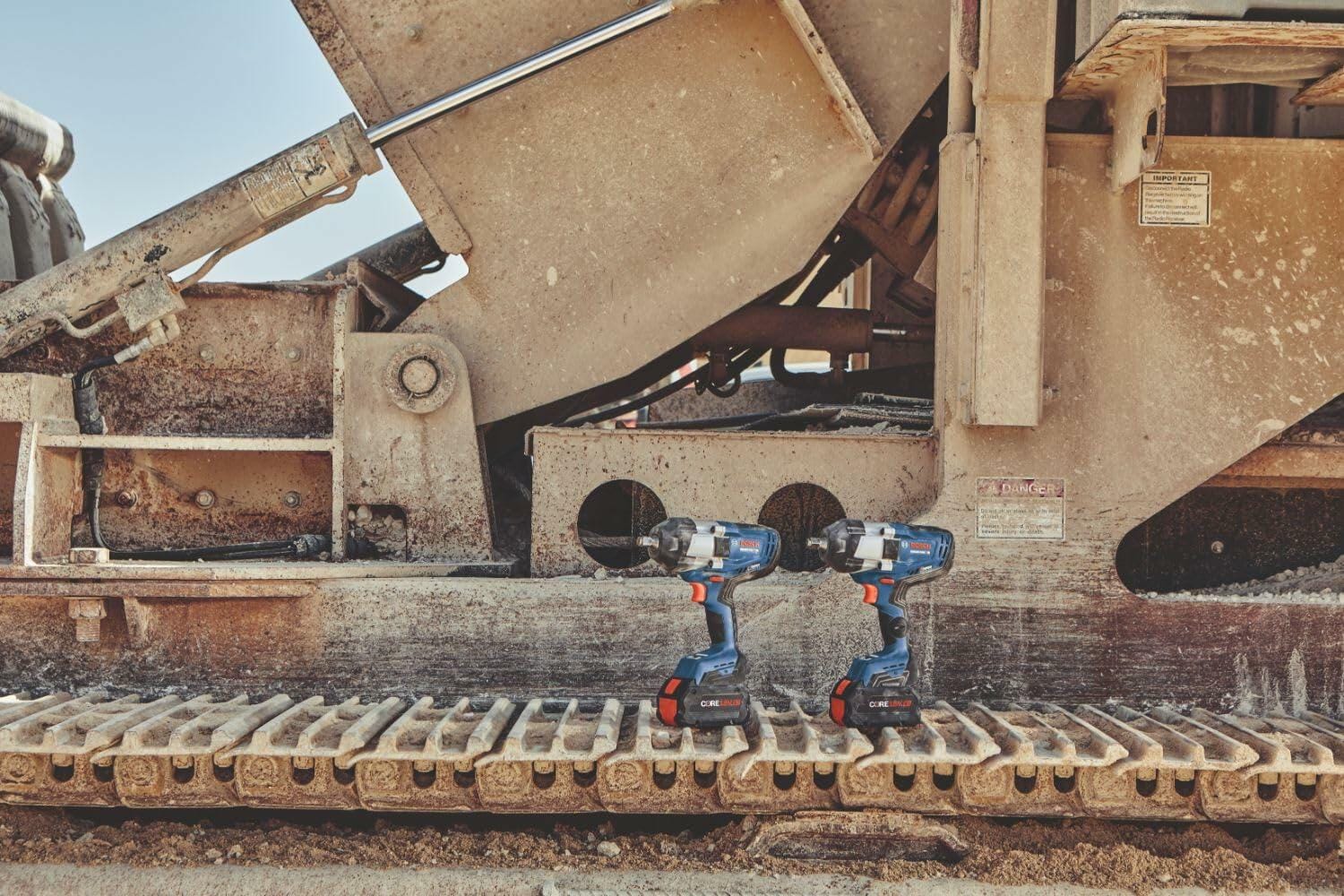

- Heavy Commercial Vehicle and Equipment Lug Service: Breaking loose stubborn, rusted 33mm fleet wheel lug nuts and suspension hardware with 1,180 ft-lbs of breakaway torque.
- Structural Steel Bolting and Girders: Securing heavy A325 and A490 structural framing bolts rapidly without pneumatic airline encumbrances.
- Large-Diameter Concrete Anchor and Timber Lag Driving: Driving large screw anchors and heavy timber construction lags cleanly using variable digital speed regulation.

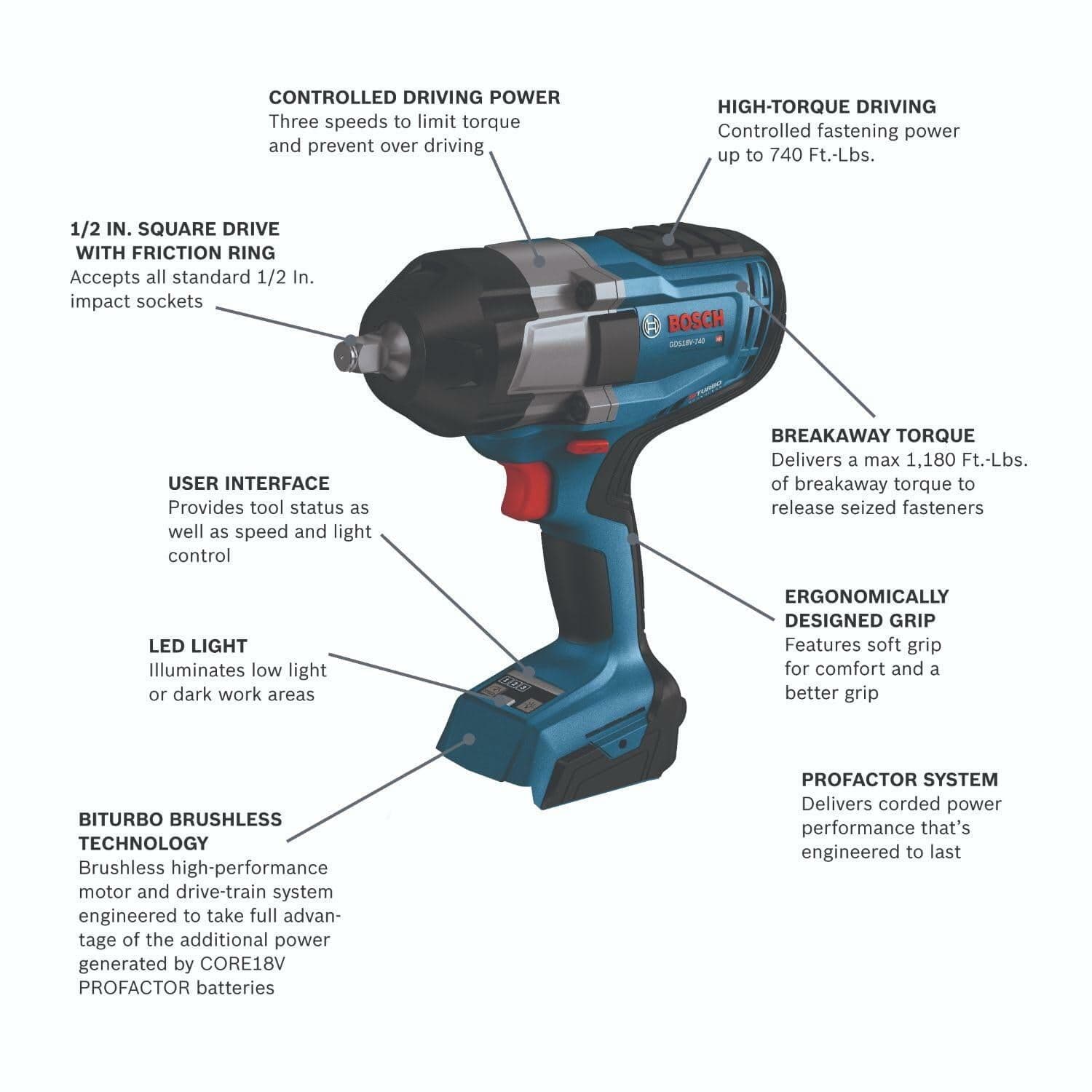

Key Performance & Safety Features
- BITURBO Brushless™ Technology: Pairs a high-performance motor with a reinforced drivetrain to maximize power output from CORE18V high-capacity battery packs.
- High-Torque Fastening and Breakaway Power: Delivers 740 ft-lbs of max continuous fastening torque and 1,180 ft-lbs of breakaway torque to free frozen fasteners.
- Three-Speed Digital Control Interface: On-tool electronic push-button selector limits rotational velocity and impact energy across 0-800, 0-1,200, and 0-1,750 RPM settings.

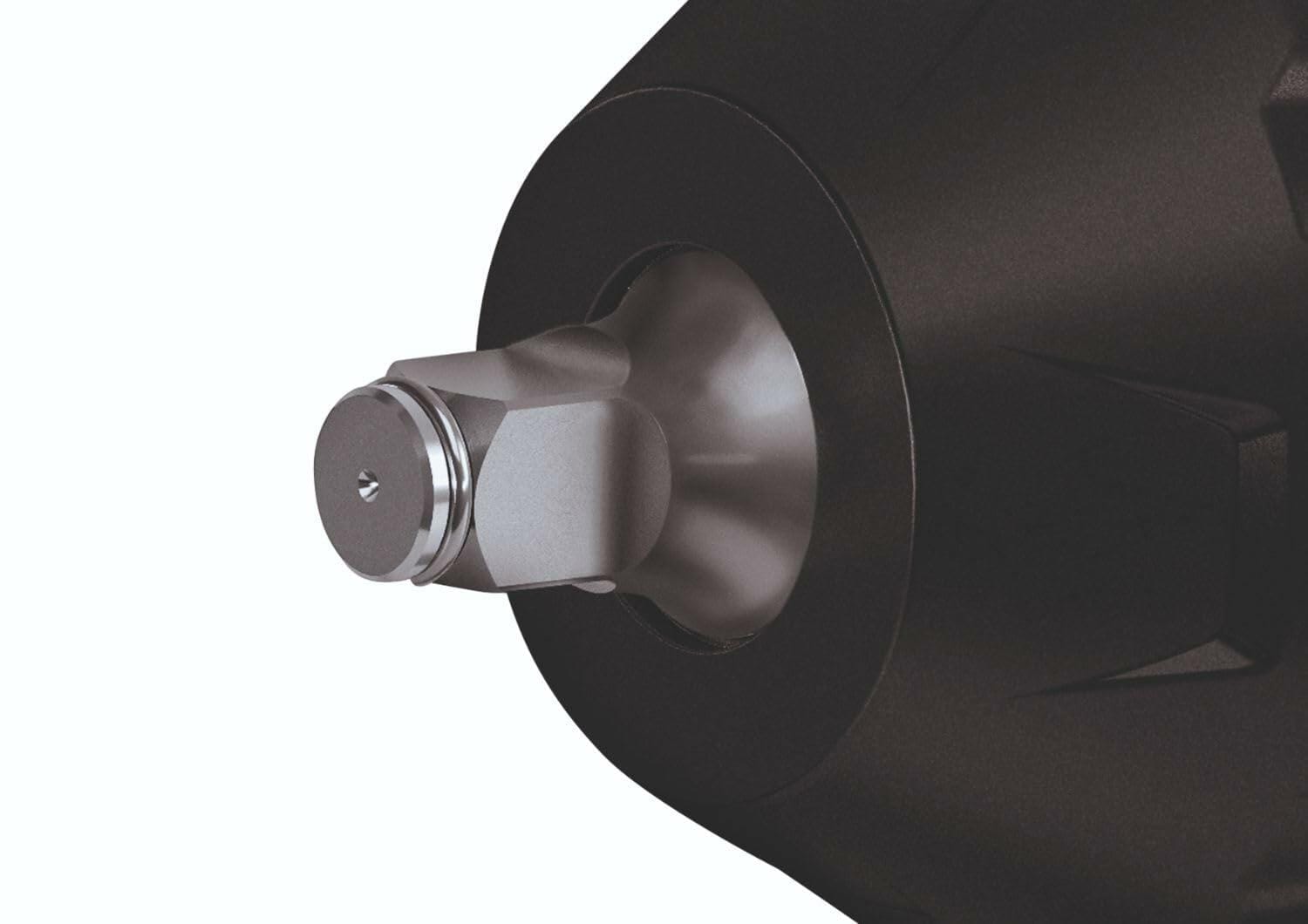

- 1/2" Square Drive Friction Ring Anvil: Ensures secure impact socket retention under heavy cyclic vibration while enabling fast, tool-free manual socket swaps.
- Protective Rubber Gearcase Shroud: Durable elastomeric front nose cover shields sensitive workpieces and protects aluminum tool housings from abrasion.
- Integrated Multi-Level LED Worklight: Illuminates low-visibility machinery housings and dark structural bays with selectable on/off brightness controls.
What's Included
- (1) Bosch PROFACTOR GDS18V-740N 18V 1/2" High-Torque Impact Wrench (Bare Tool)
- (1) Heavy-Duty Steel Joist / Belt Hanger Clip
Technical Specifications
| Manufacturer | Bosch Power Tools |
| Model / Part Number | GDS18V-740N |
| Product Line / Platform | PROFACTOR™ / AMPShare™ 18V Cordless System |
| System Operating Voltage | 18.0 Volts DC |
| Motor Drive Mechanism | BITURBO Brushless™ DC Motor |
| Anvil Drive Size & Style | 1/2-inch Square Drive with Friction Ring (Hog Ring) |
| Maximum Fastening Torque | 740 ft-lbs (8,880 in-lbs / 1,003.3 Nm) |
| Maximum Breakaway Nut-Busting Torque | 1,180 ft-lbs (14,160 in-lbs / 1,600.0 Nm) |
| No-Load Speed Settings (RPM) | Stage 1: 0-800 RPM | Stage 2: 0-1,200 RPM | Stage 3: 0-1,750 RPM |
| Digital Control Panel | 3-Stage Electronic Speed/Torque Selector with LED Interface |
| Tool Net Operating Weight (Bare) | 6.40 lbs (102.4 oz / 2.90 kg) |
| Overall Tool Dimensions (L x W x H) | 8.70 in x 3.40 in x 9.50 in (221.0 mm x 86.4 mm x 241.3 mm) |
| Tool Housing Protection | High-Impact Protective Rubber Front Nose Boot |
| Manufacturer Tool Warranty | 5-Year Limited Manufacturer Warranty |
Pro-Tip: To unlock the full 1,180 ft-lbs breakaway torque payload of the BITURBO Brushless motor, power the tool with a Bosch CORE18V 8.0Ah or 12.0Ah High Power battery; larger 21700 cell architecture supplies the massive instantaneous current necessary for busting high-torque rusted bolts without voltage sag.
