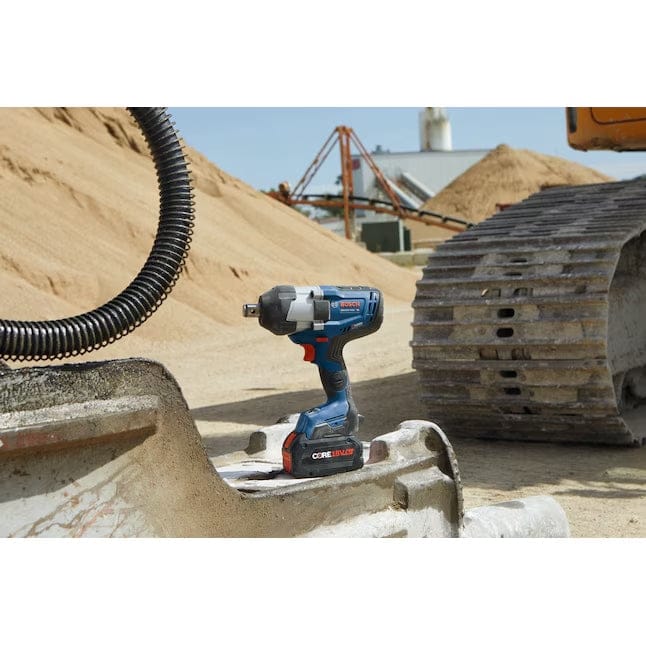

The Bosch GDS18V-770CN impact wrench with a CORE18V battery is shown resting on a concrete form at a construction site, with sand piles and heavy equipment in the background.
BOSCH

Bosch Cordless Impact Wrench GDS18V-770CN 3/4 Inch Drive Bare Tool (1250 Ft Lbs Breakaway Torque 770 Fastening 18V Brushless Construction Assembly)

In stock
SKU: GDS18V-770CN
$355.00 USD

Description

Bosch Promotional Logo Logout

Bosch PROFACTOR GDS18V-770CN 18V 3/4" BITURBO Brushless Impact Wrench (Bare Tool)

The Bosch PROFACTOR GDS18V-770CN 18V 3/4-inch cordless impact wrench breaks free seized fasteners, loosens rusted structural bolts, and secures high-torque hardware in heavy industrial construction and fabrication settings. Engineered with a BITURBO brushless motor and drive-train system that delivers 770 ft-lbs of fastening torque and 1,250 ft-lbs of maximum breakaway torque, this 5.2-pound bare tool features an onboard user interface with three speed settings up to 1,750 RPM. Outfitted with an Auto Bolt Release mode to prevent dropped hardware and a 3/4-inch friction ring anvil with a thru-hole for secure socket retention, it equips commercial ironworkers, heavy equipment mechanics, and steel erectors with high-efficiency cordless fastening power.

**Battery and charger sold separately.

Best Used For:

  • Heavy Machinery and Commercial Equipment Maintenance: Loosening stubborn, rusted lug nuts and heavy-duty chassis bolts on industrial vehicles and construction machinery.
  • Structural Steel Erection and Ironworking: Driving and securing large structural bolts and high-torque fasteners across steel building frameworks.

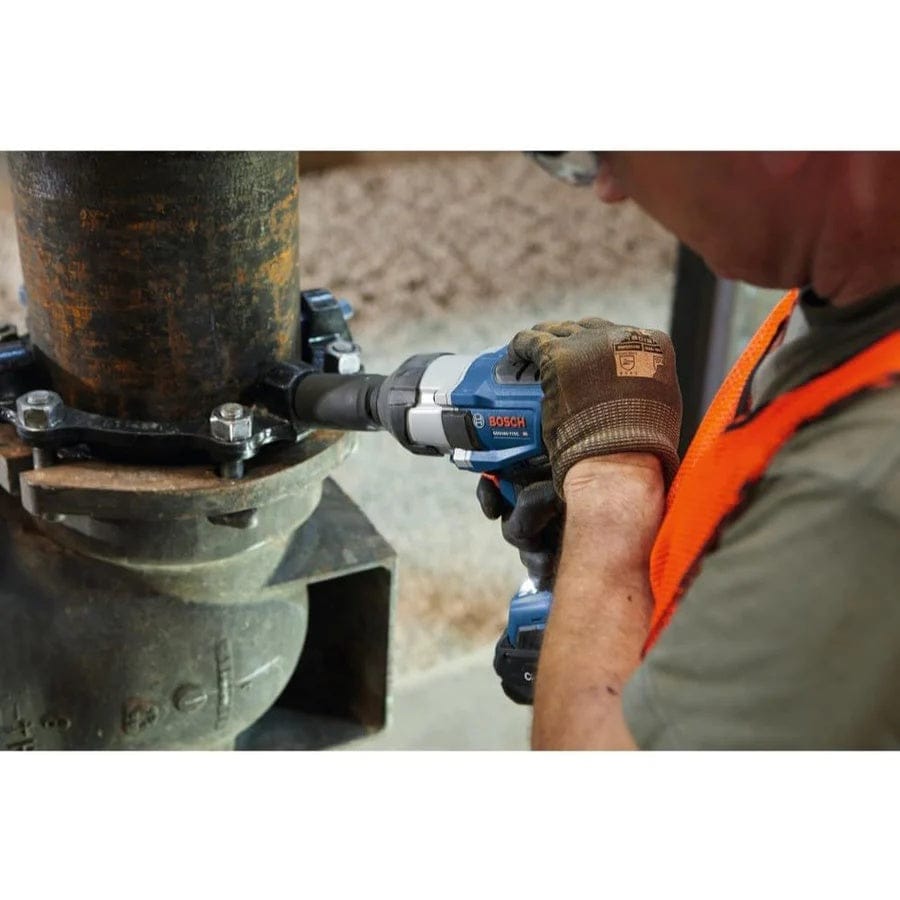

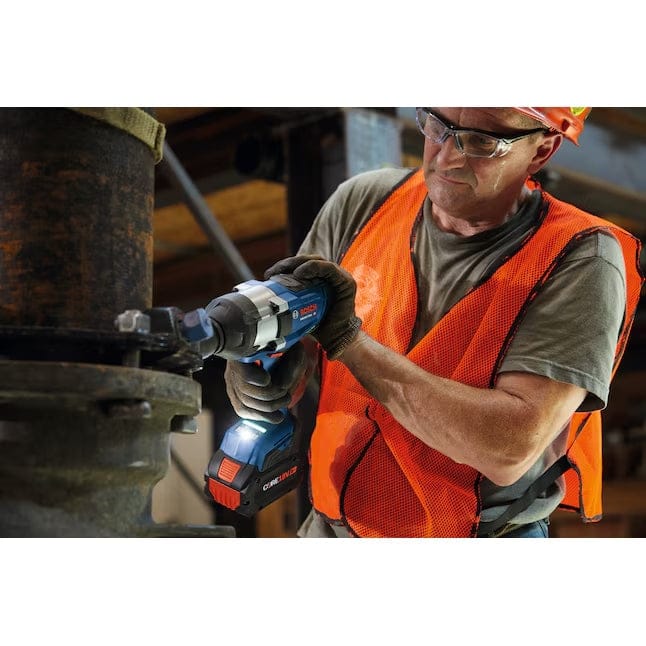

  • Industrial Pipe Flange and Assembly Bolting: Fastening heavy commercial pipe flanges, machinery bases, and structural anchor plates quickly and safely.

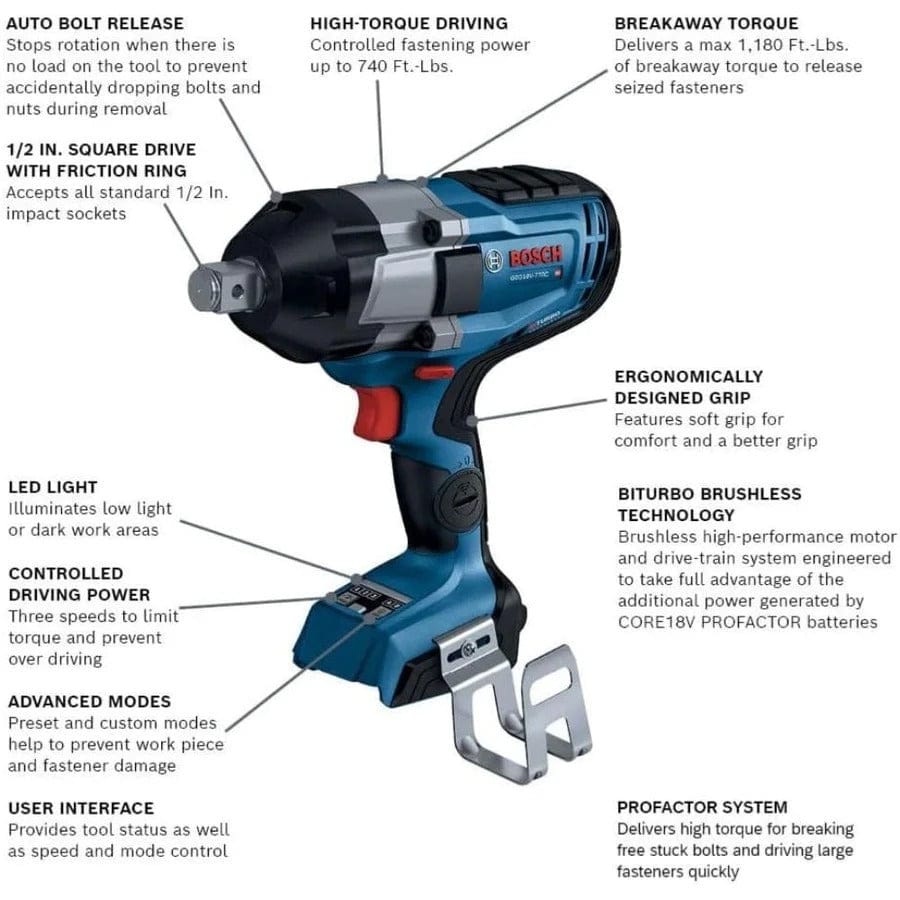

Key Performance & Safety Features

  • BITURBO Brushless Technology: High-performance motor and drive-train system engineered to optimize power delivery when paired with high-capacity CORE18V batteries.
  • High-Torque Performance: Produces 770 ft-lbs of rated fastening torque and up to 1,250 ft-lbs of max breakaway torque for heavy industrial tasks.
  • 3-Speed Electronic Control: Integrated user interface allows operators to select between 0-800, 0-1,300, and 0-1,750 RPM to prevent fastener over-tightening.
  • Auto Bolt Release Mechanism: Automatically stops tool rotation once the fastener is unloaded to prevent nuts and bolts from falling during removal.
  • Friction Ring with Thru-Hole Anvil: Heavy-duty 3/4-inch square drive anvil ensures fast socket changes and positive socket retention under heavy vibration.

What's Included

  • (1) Bosch GDS18V-770C PROFACTOR 18V Connected-Ready 3/4 In. Impact Wrench (Bare Tool)
  • (1) Heavy-Duty Metal Belt Hanger

Technical Specifications

Manufacturer Robert Bosch Tool Corporation
Model Number GDS18V-770CN
Product Classification Cordless High-Torque Impact Wrench (Bare Tool)
Square Drive Anvil Size 0.750 inches (3/4 in. Square Drive)
Anvil Retention Type Friction Ring with Retaining Thru-Hole
Operating Voltage 18 Volts DC (Bosch CORE18V Battery Platform)
Maximum Breakaway Torque 1,250 ft-lbs (1,695 Nm)
Maximum Fastening Torque 770 ft-lbs (1,044 Nm)
No-Load Speed Settings 3 Speeds: 0-800 / 0-1,300 / 0-1,750 RPM
Bare Tool Weight 5.20 lbs (2.36 kg)
Overall Tool Height 9.50 inches (241.3 mm)
Motor Technology BITURBO Brushless Motor
Manufacturer Warranty 5-Year Limited Warranty

Pro-Tip: When using high-torque 3/4-inch impact wrenches to remove stubborn or rusted structural bolts, always use heavy-duty impact-rated sockets with a retaining pin through the anvil's thru-hole; standard chrome sockets will shatter under high rotational shock loads.
