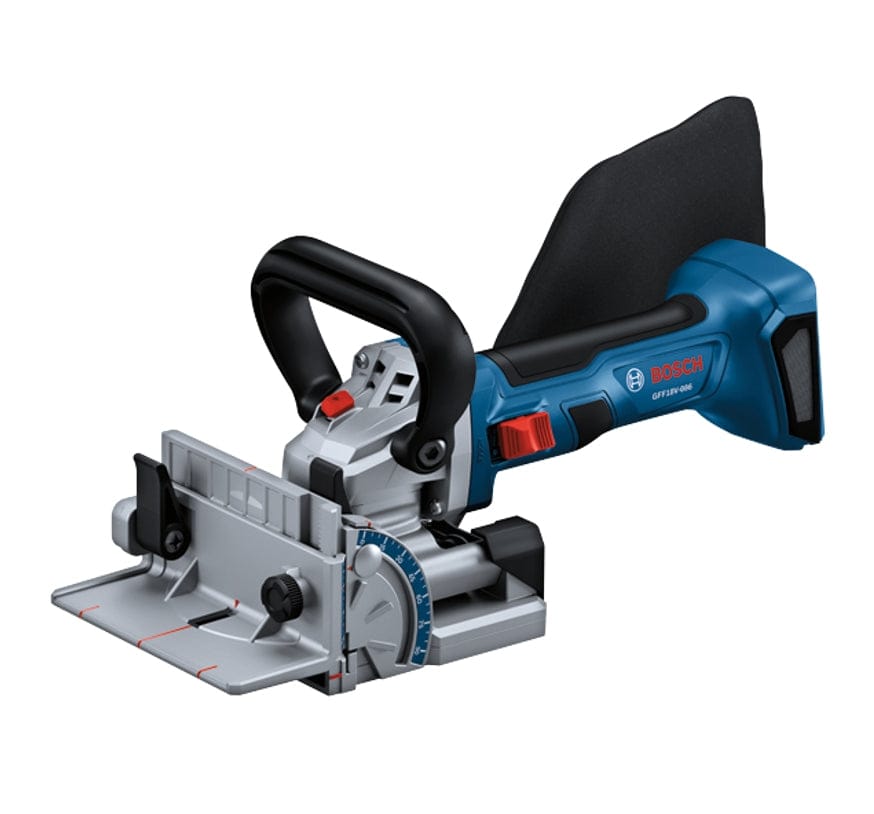

An angled studio view of the Bosch GFF18V-086 cordless biscuit joiner with its black dust bag, highlighting the adjustable metal fence and ergonomic D-style auxiliary handle.

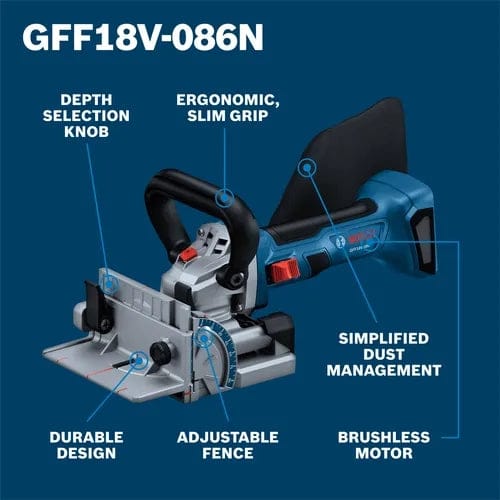

A technical product diagram of the Bosch GFF18V-086 cordless biscuit joiner with callouts for several key features, including the depth selection knob, ergonomic slim grip, simplified dust management, brushless motor, adjustable fence, and durable design.

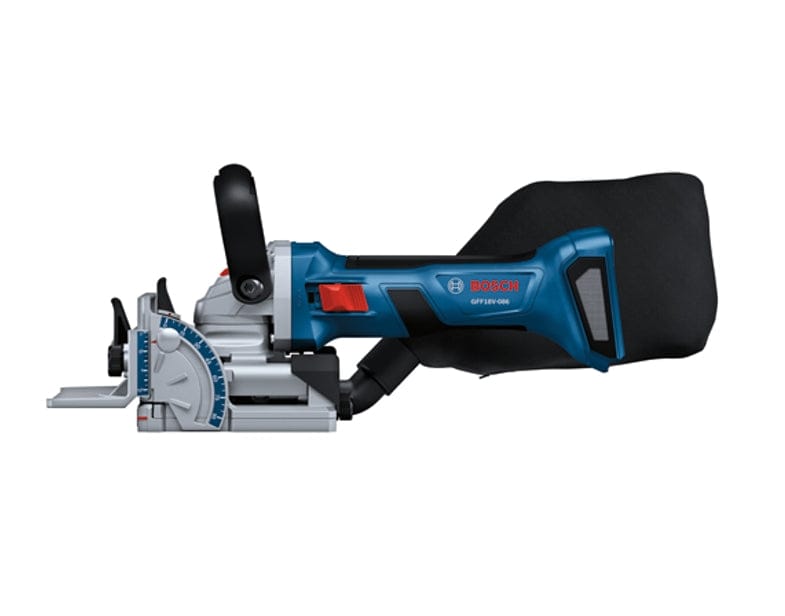

A side-profile studio view of the blue and black Bosch 18V biscuit joiner featuring a large black dust bag attached to the rear dust port and a red power switch on the body.
A front studio view of the cordless biscuit joiner showing the adjustable silver metal fence, the black auxiliary handle, and the red depth adjustment knob.

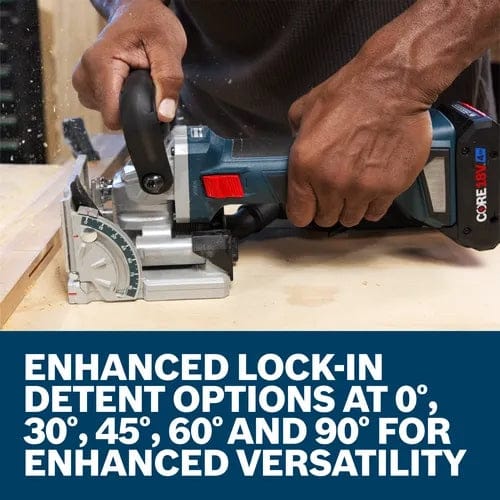

An action shot of an operator using the Bosch biscuit joiner on a wood workpiece, with overlaid text highlighting enhanced lock-in detent options at 0, 30, 45, 60, and 90 degrees for versatility.

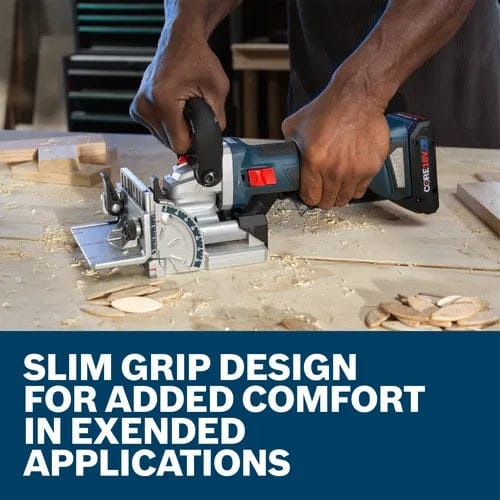

An operator in a workshop uses the Bosch cordless biscuit joiner on a light-colored wood surface, with overlaid text emphasizing the slim grip design for added comfort in extended applications.

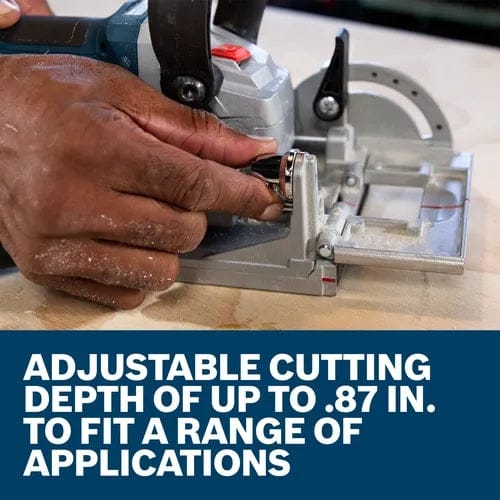

A close-up view showing a hand adjusting the cutting depth setting on the Bosch biscuit joiner, with overlaid text stating the tool has an adjustable cutting depth of up to .87 inches to fit a range of applications.
An angled studio view of the Bosch GFF18V-086 cordless biscuit joiner with its black dust bag, highlighting the adjustable metal fence and ergonomic D-style auxiliary handle.
A technical product diagram of the Bosch GFF18V-086 cordless biscuit joiner with callouts for several key features, including the depth selection knob, ergonomic slim grip, simplified dust management, brushless motor, adjustable fence, and durable design.
A side-profile studio view of the blue and black Bosch 18V biscuit joiner featuring a large black dust bag attached to the rear dust port and a red power switch on the body.
A front studio view of the cordless biscuit joiner showing the adjustable silver metal fence, the black auxiliary handle, and the red depth adjustment knob.
An action shot of an operator using the Bosch biscuit joiner on a wood workpiece, with overlaid text highlighting enhanced lock-in detent options at 0, 30, 45, 60, and 90 degrees for versatility.
An operator in a workshop uses the Bosch cordless biscuit joiner on a light-colored wood surface, with overlaid text emphasizing the slim grip design for added comfort in extended applications.
A close-up view showing a hand adjusting the cutting depth setting on the Bosch biscuit joiner, with overlaid text stating the tool has an adjustable cutting depth of up to .87 inches to fit a range of applications.
BOSCH

Bosch Biscuit Joiner GFF18V-086N 18V Brushless Bare Tool (0.87 Inch Depth 6000 RPM Reconditioned Cordless Wood Plate Jointer Furniture Cabinetry)

Only 1 left
SKU: GFF18V-086N-RT
$279.00 USD

Description

Bosch Promotional Logo Logout

Bosch GFF18V-086N 18V Brushless Biscuit Joiner Reconditioned Bare Tool

The Bosch GFF18V-086N is an 18V brushless cordless biscuit joiner engineered to cut precise slot pockets for #0, #10, and #20 wooden biscuits in cabinet assembly, panel edge-gluing, and fine furniture joinery. Powered by an 18V motor operating at 6,000 RPM no-load speed, this tool executes smooth plunge passes up to a maximum depth of 0.87 inches (22 mm). Featuring a 0-degree to 90-degree tilting fence with positive stops, a slim 6.14-inch handle circumference, a metal base plate, and a thin application plate for narrow stock, this 5.7 lb joiner produces flush alignment across solid hardwoods, softwoods, and composite panels.

Note: This is a manufacturer-reconditioned tool, certified to look and perform like new.

**Battery and charger sold separately.

Best Used For:

  • Cabinet Carcass & Face Frame Joinery: Slotting matching pocket cuts into cabinet side panels and face frames to establish flush glue joints.
  • Tabletop Panel Edge-Gluing: Milling precise edge slots along solid hardwood planks to prevent surface offset during panel clamping.
  • Mitered Corner & Narrow Stock Assembly: Cutting angled slots in 45-degree miter joints using the thin application plate attachment for narrow stock.

Key Performance & Safety Features

  • High-Efficiency Brushless Motor: Maintenance-free 18V motor delivers 6,000 RPM to maintain high torque through dense hardwoods.
  • Tool-Free Depth Selection Knob: Quick-dial stop mechanism accurately indexes plunge depths up to 0.87 inches for standard biscuit sizes (#0, #10, #20).
  • 0-to-90-Degree Adjustable Tilting Fence: Cast aluminum fence tilts smoothly with positive detent locks at 0°, 30°, 45°, 60°, and 90°.
  • Ergonomic Slim-Grip Handle Frame: Reduced 6.14-inch housing circumference paired with a large auxiliary front handle ensures steady tool alignment.
  • Precision Thin Application Plate: Included clip-on plate allows safe, stable indexing when cutting slots into narrow or thin wood workpieces.
  • Integrated Dust Collection Port: Connects directly to the included cloth dust bag or standard vacuum hoses for clean jobsite operation.

What's Included

  • (1) Bosch GFF18V-086N 18V Brushless Cordless Biscuit Joiner (Reconditioned)
  • (1) 4-Inch 6-Tooth Carbide-Tipped Joiner Blade
  • (1) Snap-On Thin Application Plate
  • (1) Fabric Dust Bag
  • (1) Pin Wrench for Blade Changes

Technical Specifications

Brand Manufacturer Bosch® Power Tools
Model Part Number OEM SKU GFF18V-086N
Condition Rating Grade Factory Reconditioned (Certified Like-New)
Operating System Voltage 18 Volts DC (AMPShare™ / Bosch 18V)
Motor Type Construction Brushless DC Motor
Maximum Operating Speed 6,000 RPM
Maximum Plunge Cut Depth 0.870 inches (22.0 mm)
Fence Angle Range Tilt 0° to 90° (Detents at 0°, 30°, 45°, 60°, 90°)
Biscuit Size Compatibility #0, #10, #20 and Custom Depth Settings
Handle Housing Circumference 6.140 inches (156.0 mm)
Overall Tool Length 15.500 inches (393.7 mm)
Overall Tool Width 5.500 inches (139.7 mm)
Overall Tool Height 7.000 inches (177.8 mm)
Total Bare Tool Weight 5.70 lbs (2.58 kg)

Pro-Tip: Always register the base plate or fence firmly flat against your reference face before starting the motor and plunging; holding solid pressure against the workpiece prevents slot pitch distortion and ensures perfectly flush panel joints.
