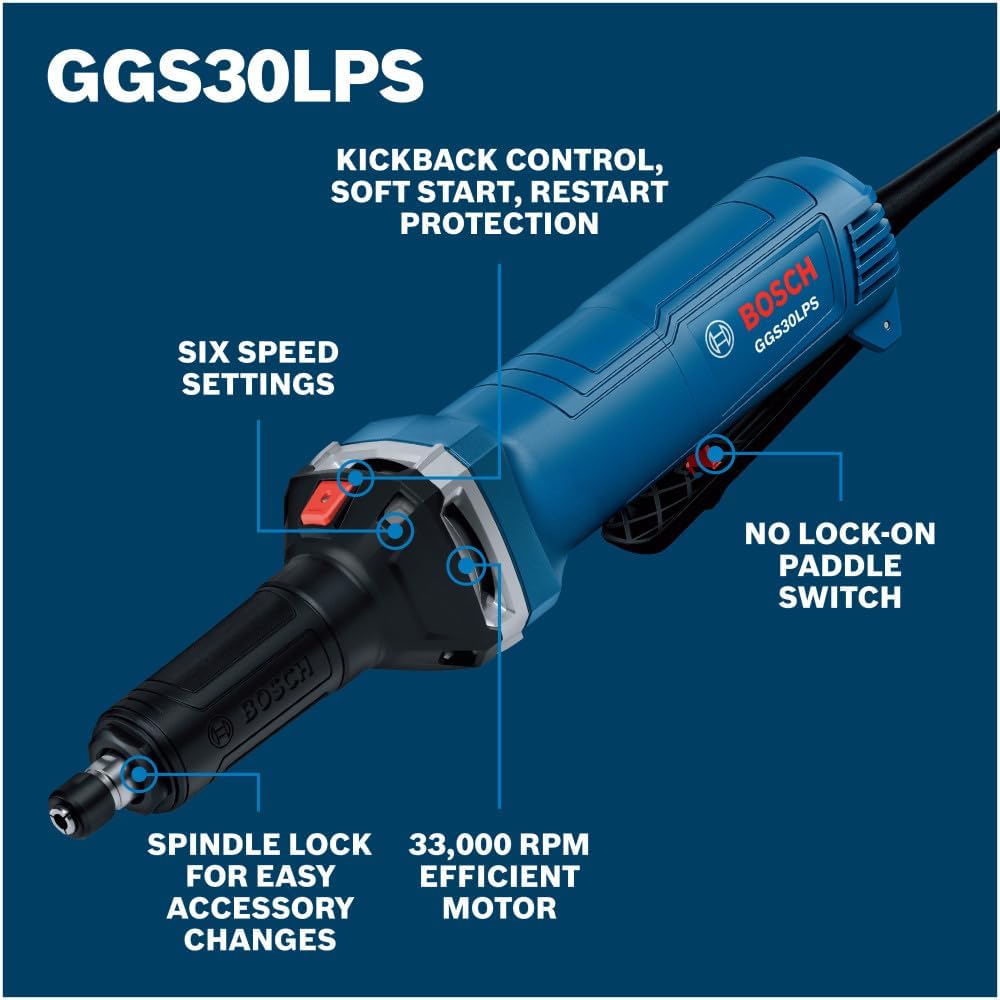

A technical marketing diagram of the corded straight die grinder assembly isolated against a solid dark blue background under the white bold model header GGS30LPS, using radial callout lines to point out core performance features including kickback control, soft start, restart protection, six speed settings, single-wrench spindle lock, 33,000 RPM efficient motor, and the no lock-on paddle switch.
A close-up action application view of a metal fabricator wearing protective work gloves firmly holding the blue Bosch straight die grinder horizontally to debur and clean up internal welding beads along an open steel box frame structure.
An operational action view of a technician using the long-nose Bosch die grinder to smooth out the internal edge cuts of a steel cylinder pipe secured in a metal bench vice, capturing a stream of bright orange friction sparks spraying from the grinding tip.
An industrial application shot showing an operator using the high-performance Bosch straight die grinder to clean out and debur structural bolt hole orifices along a massive heavy metal pipe flange connection ring on a workshop floor.
A promotional warranty badge graphic layout set against a deep blue background with white Bosch branding, displaying a white protective shield icon containing a checkmark next to white text reading LIMITED WARRANTY, positioned right beside a solid red square block reading 1 YEAR Tool.
A wide workshop perspective shot of an industrial metalworker wearing heavy safety gloves using the Bosch corded straight die grinder to mill and smooth the inner rim of a large circular steel fabrication flange.
A high-angle industrial action shot of a professional welder wearing a protective safety face shield helmet and thick leather apron using the Bosch long-nose die grinder to bevel a thick steel beam plate seam, generating a concentrated cluster of orange sparks.
A front-facing action shot of a workshop technician wearing a blue hard hat and safety glasses guiding the extended nozzle of the Bosch paddle-switch die grinder to polish the interior edge of a metal pipe clamped into a structural pipe vice.
A close-up action view of a fabricator using the Bosch corded straight die grinder to smooth down internal corner welds inside a square steel structural tubing junction, detailing the tool's extended slim nose spindle profile navigating the narrow channel.
A macro close-up view highlighting the underside of the blue Bosch straight die grinder body, showing the non-lockable black safety PROtection paddle switch lever with its red trigger safety lock button integrated into the handle housing.
A close-up shot focusing directly on a worker's gloved hand pressing down on the prominent red mechanical spindle lock push-button located on the black cast metal gear housing of the Bosch straight grinder to perform a one-wrench accessory change.
A close-up technical overview shot looking straight down the body of the Bosch GGS30LPS die grinder, focusing on the rear-mounted red variable speed selection dial showing numbered increments for setting precision motor RPM performance.
An industrial application shot showing a technician in leather work gloves using the long-nose Bosch straight grinder to polish the machined internal surface of a heavy steel pipe joint section, with an attached grinding point bit visible inside the collet chuck.
An isolated product studio three-quarter view of the complete Bosch GGS30LPS Professional corded straight die grinder set against a clean white background, showcasing its extended slim black long-nose spindle housing, non-lockable black PROtection paddle switch on the underbelly, integrated red safety lock button, and blue motor handle chassis with an attached power cord.
A complete product kit layout on a plain white background showing the Bosch corded straight die grinder side-by-side with its included maintenance accessories below it, featuring a silver steel single-ended service spanner wrench, a black clamping nut, and a precision steel collet sleeve insert.
A technical marketing diagram of the corded straight die grinder assembly isolated against a solid dark blue background under the white bold model header GGS30LPS, using radial callout lines to point out core performance features including kickback control, soft start, restart protection, six speed settings, single-wrench spindle lock, 33,000 RPM efficient motor, and the no lock-on paddle switch.
A close-up action application view of a metal fabricator wearing protective work gloves firmly holding the blue Bosch straight die grinder horizontally to debur and clean up internal welding beads along an open steel box frame structure.
An operational action view of a technician using the long-nose Bosch die grinder to smooth out the internal edge cuts of a steel cylinder pipe secured in a metal bench vice, capturing a stream of bright orange friction sparks spraying from the grinding tip.
An industrial application shot showing an operator using the high-performance Bosch straight die grinder to clean out and debur structural bolt hole orifices along a massive heavy metal pipe flange connection ring on a workshop floor.
A promotional warranty badge graphic layout set against a deep blue background with white Bosch branding, displaying a white protective shield icon containing a checkmark next to white text reading LIMITED WARRANTY, positioned right beside a solid red square block reading 1 YEAR Tool.
A wide workshop perspective shot of an industrial metalworker wearing heavy safety gloves using the Bosch corded straight die grinder to mill and smooth the inner rim of a large circular steel fabrication flange.
A high-angle industrial action shot of a professional welder wearing a protective safety face shield helmet and thick leather apron using the Bosch long-nose die grinder to bevel a thick steel beam plate seam, generating a concentrated cluster of orange sparks.
A front-facing action shot of a workshop technician wearing a blue hard hat and safety glasses guiding the extended nozzle of the Bosch paddle-switch die grinder to polish the interior edge of a metal pipe clamped into a structural pipe vice.
A close-up action view of a fabricator using the Bosch corded straight die grinder to smooth down internal corner welds inside a square steel structural tubing junction, detailing the tool's extended slim nose spindle profile navigating the narrow channel.
A macro close-up view highlighting the underside of the blue Bosch straight die grinder body, showing the non-lockable black safety PROtection paddle switch lever with its red trigger safety lock button integrated into the handle housing.
A close-up shot focusing directly on a worker's gloved hand pressing down on the prominent red mechanical spindle lock push-button located on the black cast metal gear housing of the Bosch straight grinder to perform a one-wrench accessory change.
A close-up technical overview shot looking straight down the body of the Bosch GGS30LPS die grinder, focusing on the rear-mounted red variable speed selection dial showing numbered increments for setting precision motor RPM performance.
An industrial application shot showing a technician in leather work gloves using the long-nose Bosch straight grinder to polish the machined internal surface of a heavy steel pipe joint section, with an attached grinding point bit visible inside the collet chuck.
BOSCH

Bosch Die Grinder GGS30LPS 6 Amp 33000 RPM Paddle Switch Long Nose Straight (1/4 Inch Collet Variable Speed KickBack Control Metal Deburring Tool)

In stock
SKU: GGS30LPS
$219.00 USD

Description

Bosch Promtional Logo Logout

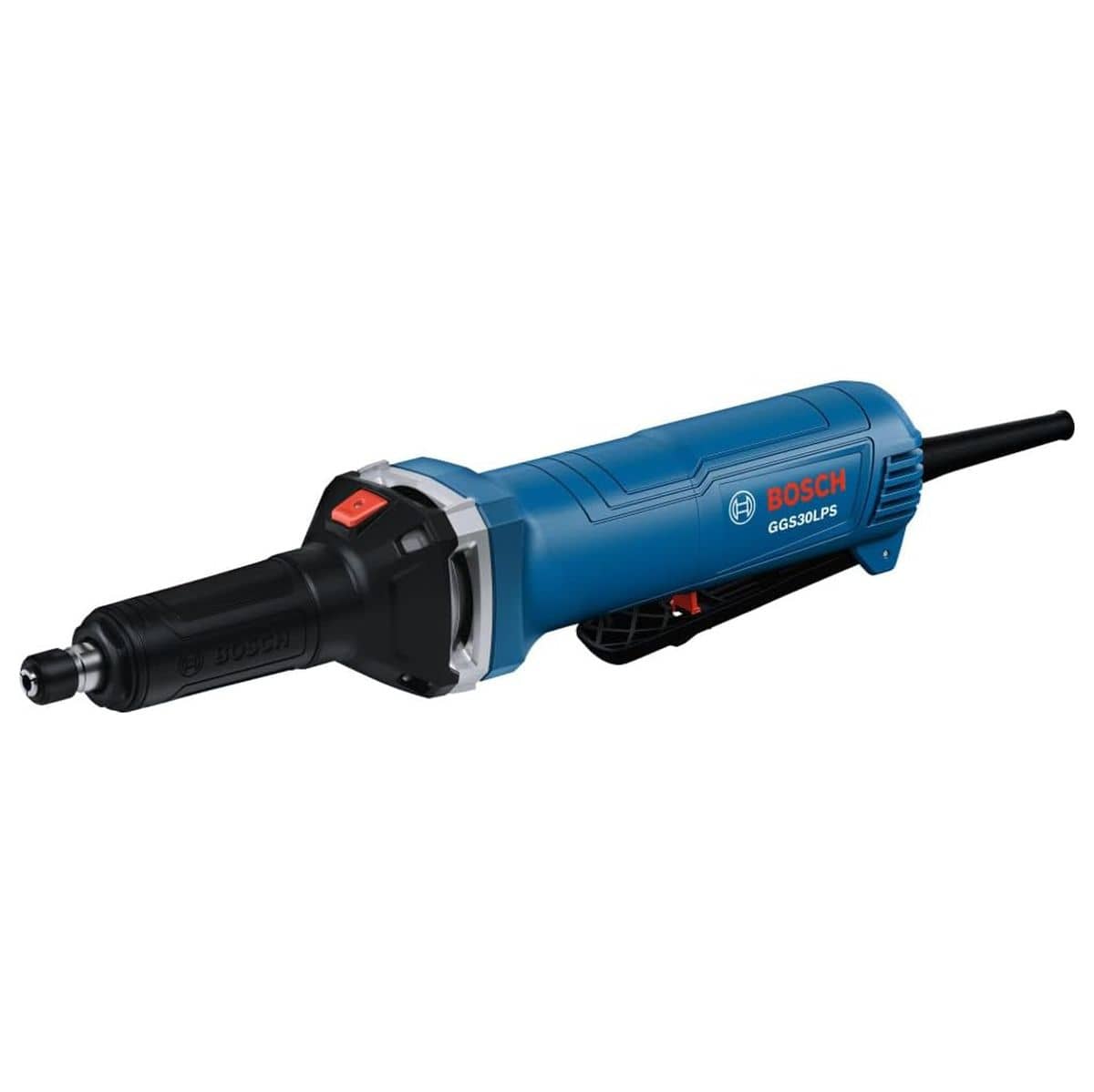

Bosch GGS30LPS 6 Amp 33,000 RPM Variable Speed Long-Nose Straight Die Grinder

The Bosch GGS30LPS Professional 6 Amp Straight Die Grinder operates as an industrial-grade metal-finishing and internal deburring power tool engineered to access narrow pipe bores, deep casting channels, and tight mold cavities. Powered by a 750W (1.0 HP class) motor delivering 400W of continuous output across a variable speed range of 7,000 to 33,000 RPM, this long-nose straight grinder features a 1/4-inch collet assembly, a non-lockable PROtection paddle switch, and a net tool weight of 3.97 pounds. Compatible with grinding accessories up to 1 inch in diameter and polishing wheels up to 2 inches, this slim-chassis tool incorporates KickBack Control, Constant Response circuitry, soft-start electronics, and a single-wrench spindle lock to eliminate weld seams and heavy rust without motor stalls.

Best Used For:

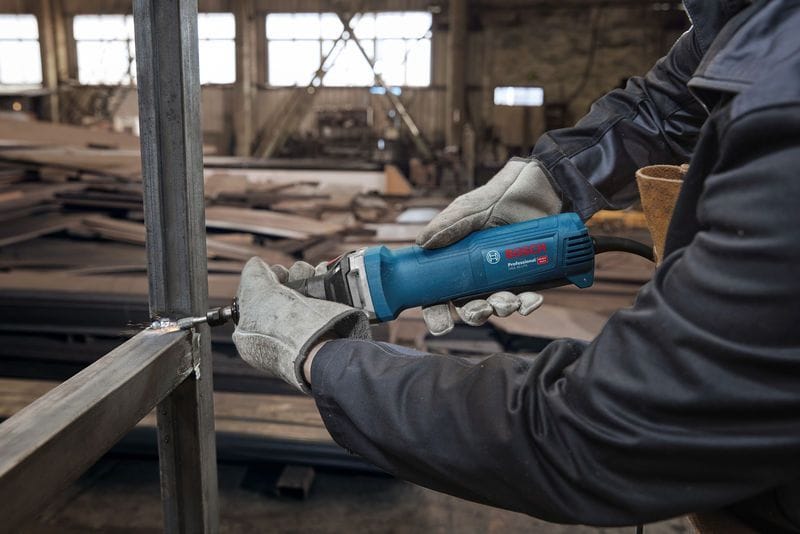

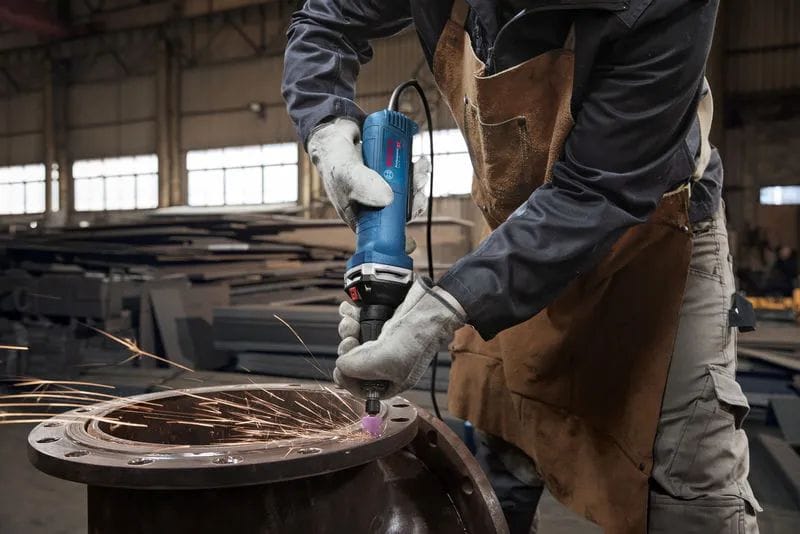

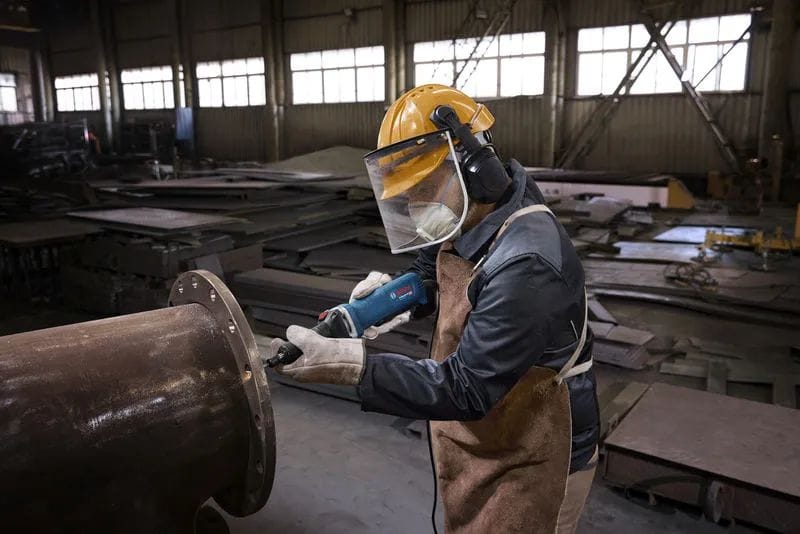

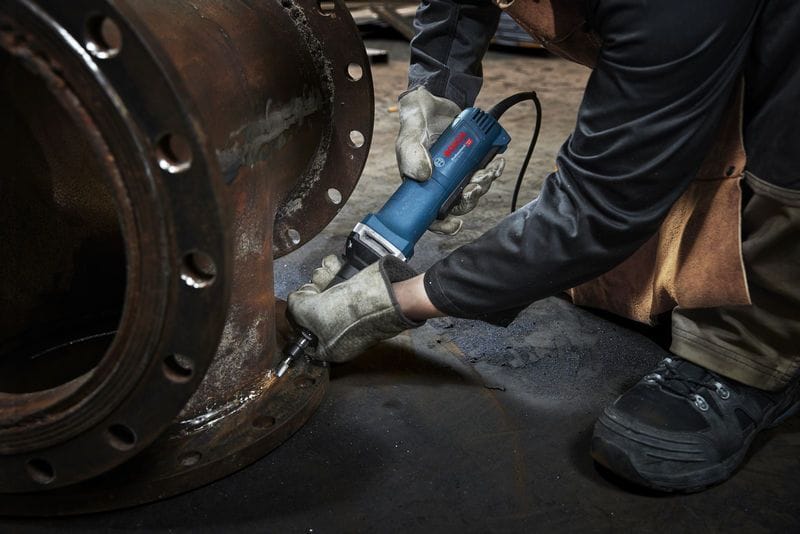

  • Deep Internal Bore & Pipe Weld Deburring: Reaching deep into narrow pipe interiors, manifold ports, and cast iron channels using the elongated, ultra-slim long-nose housing.
  • Precision Mold Tooling & Metal Fabrication: Removing flash lines, dressing die cavities, and smoothing hard metal contours across variable 7,000 to 33,000 RPM speed thresholds.
  • High-Safety Surface Prep & Polishing: Blending surface welds, stripping corrosion, and polishing detailed steel or stone surfaces safely using the dead-man paddle switch.

Key Performance & Safety Features

  • Industrial 6 Amp Motor Performance: Delivers 750 Watts of input power with variable speed settings from 7,000 to 33,000 RPM to match exact abrasive or polishing material needs.
  • Dead-Man PROtection Paddle Switch: Non-lockable bottom paddle switch automatically cuts tool motor power immediately upon release for maximum active operator safety.
  • KickBack Control Sensor Array: Advanced internal acceleration sensors kill power to the grinding head instantly if an accessory freeze or bind-up occurs.
  • Constant Response Circuitry: Smart electronic speed monitoring maintains uniform rotational velocity and torque output under heavy structural grinding loads.
  • Single-Wrench Spindle Lock: Mechanical shaft-locking mechanism eliminates the traditional dual-wrench requirement, minimizing downtime during collet accessory changes.
  • Extended Long-Nose Spindle Housing: Elongated structural neck glides effortlessly into deep recesses, tight pipe profiles, and complex cast channels.

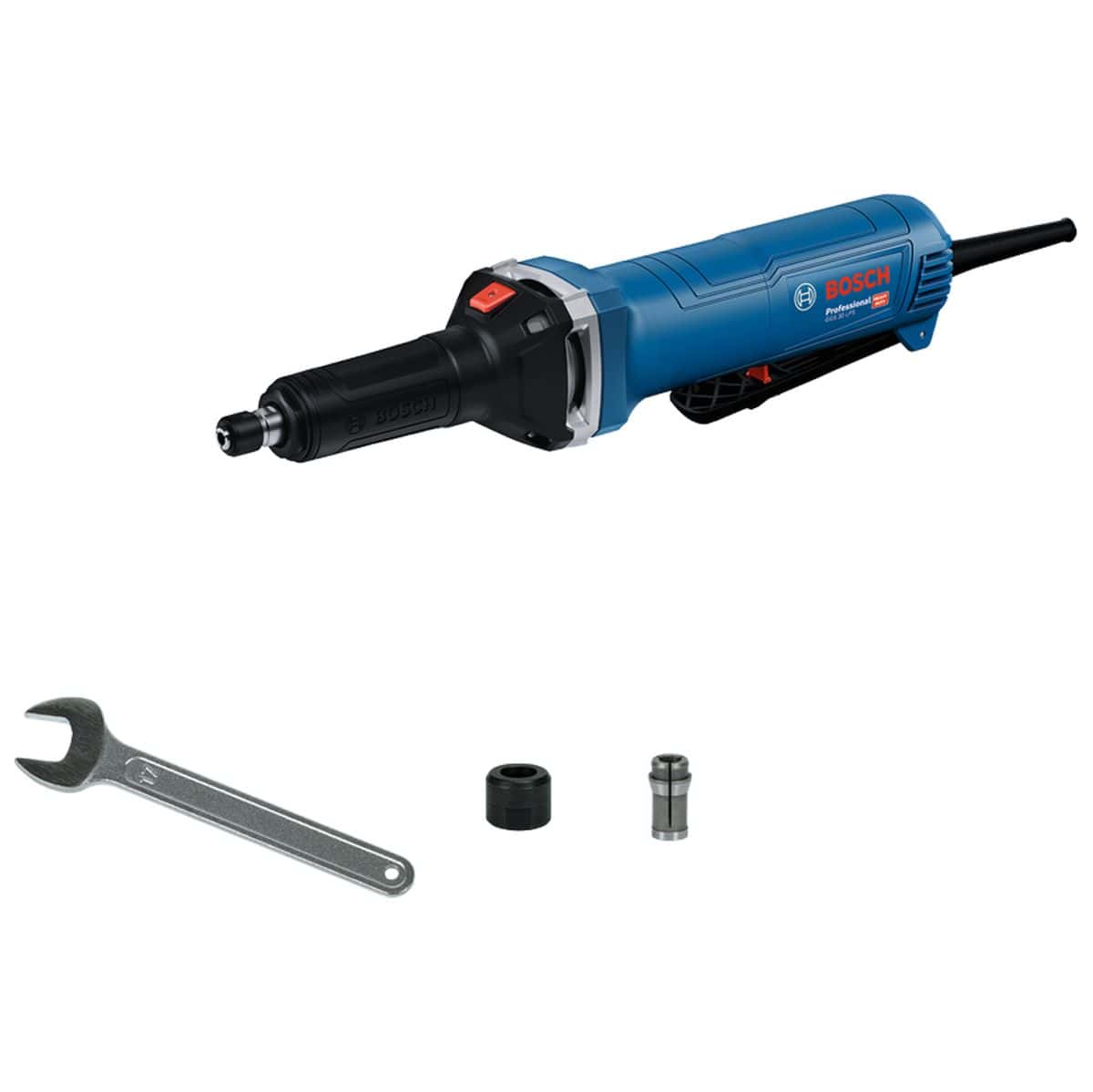

What's Included

  • (1) Bosch GGS30LPS 6 Amp Electric Straight Die Grinder
  • (1) Premium 1/4" Industrial Collet
  • (1) High-Tensile Clamping Nut
  • (1) Service Spanner Wrench

Technical Specifications

Brand Name Bosch
Model Number SKU GGS30LPS
Amperage Demand Class 6.0 Amps
Rated Input Power 750 Watts (1.0 HP Class Equivalent)
Continuous Effective Power Output 400 Watts
No-Load Dynamic Speed Range 7,000 to 33,000 RPM (Variable Dial Selection)
Spindle Collar Attachment Diameter 1.69 in. (43 mm)
Supplied Factory Collet Capacity 0.250 in. (1/4 in. / 6 mm Installed)
Maximum Compatible Collet Range 1/8 in., 1/4 in., 5/16 in. (3 mm, 6 mm, 8 mm)
Maximum Grinding Accessory Diameter 1.000 in. (25 mm)
Maximum Polishing Accessory Diameter 2.000 in. (50 mm)
Locking Nut Hex Wrench Size 0.67 in. (17 mm)
Power Activation Switch Style Non-Lockable PROtection Paddle Switch (Dead-Man)
Net Dry Tool Weight 3.97 lbs. (1.8 kg)

Pro-Tip: When using carbide burrs or mounted grinding stones in tight pipe bores, let the tool's 33,000 RPM high speed do the work rather than applying excessive sideways pressure against the long spindle. Constant Response circuitry maintains grinding velocity under light contact, preventing chatter marks and extending the lifespan of your collet and spindle bearings.
