Bosch Digital Level GIM60 24 Inch Inclinometer (0.05 Degree Accuracy Illuminated Rotating Display Audible Signal IP54 Rated Aluminum Frame Alignment)

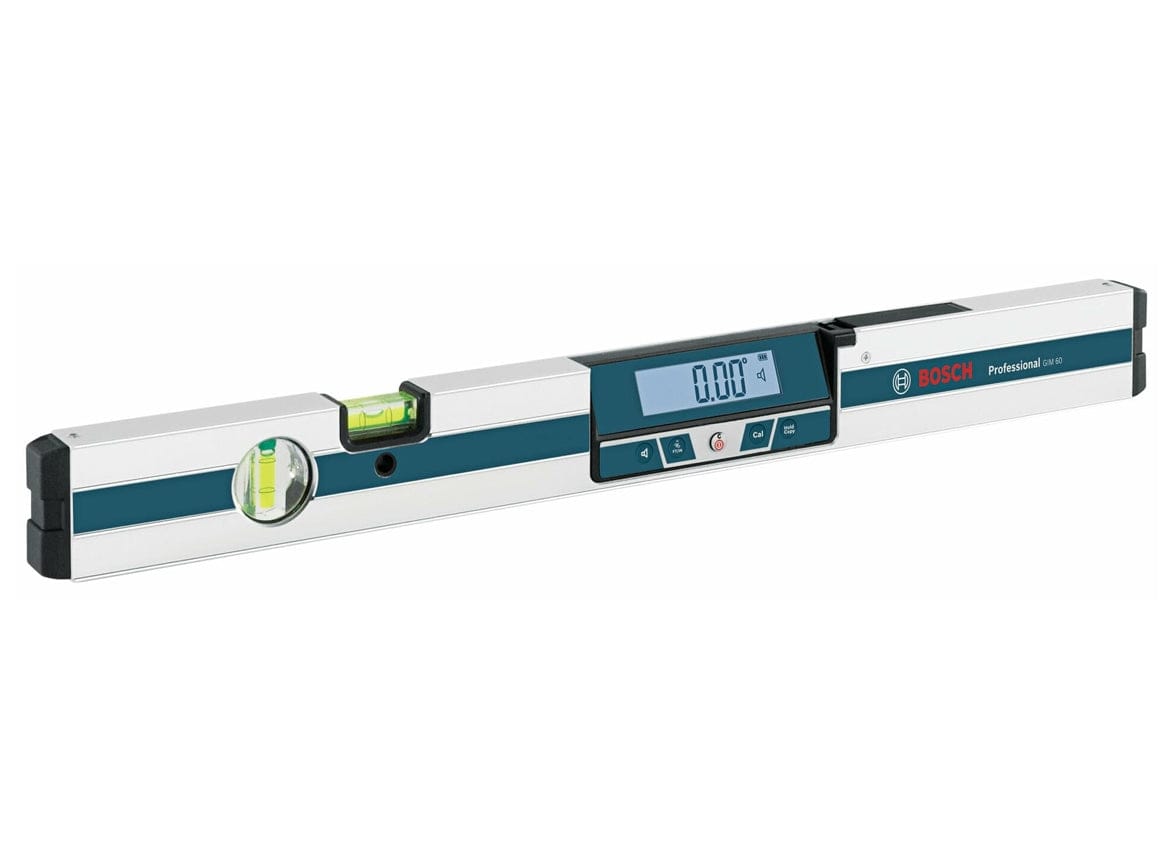

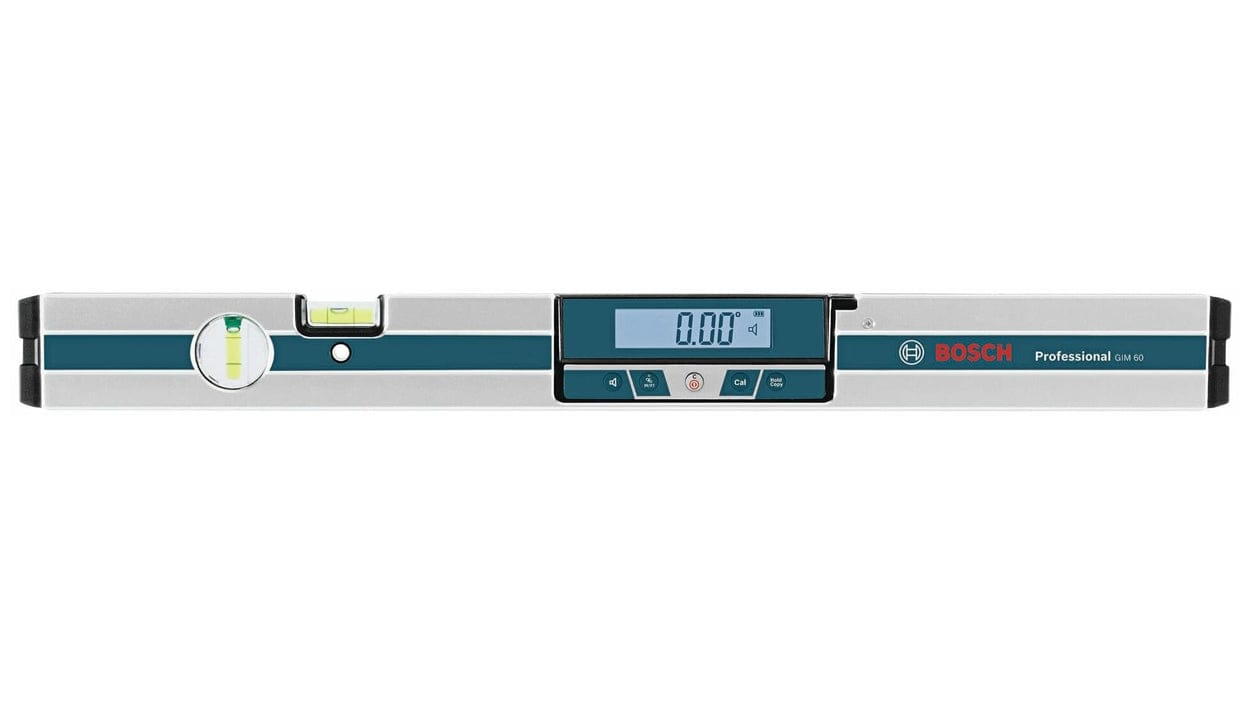

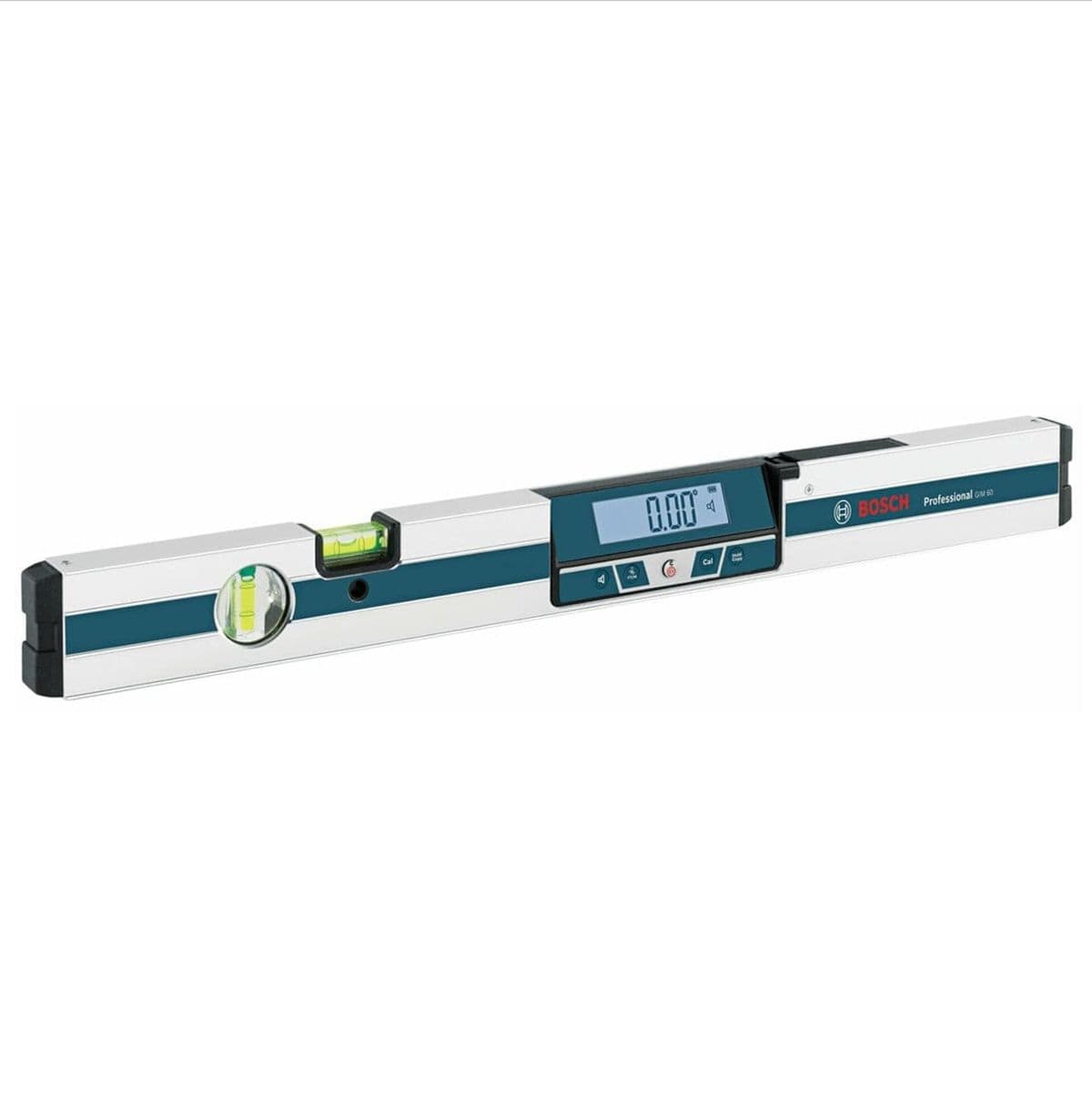

Bosch GIM60 24-Inch Digital Level Inclinometer

The Bosch GIM60 24-Inch Digital Level Inclinometer is a precision electronic alignment instrument engineered for slope setting, structural framing, plumbing pipe slope verification, and ceiling grid layout. Delivering an operational accuracy of ±0.05 degrees at horizontal (0°) and vertical (90°), this digital level features an illuminated, angled LCD screen that automatically flips orientation during overhead measuring tasks. Outfitted with an audible tone signal at 0° and 90°, a Hold/Copy function for transferring incline angles across work spaces, an IP54 dust and splash protection rating, and a 1.5-pound reinforced aluminum housing, this 24-inch tool executes trade angle calculations.

Best Used For:

• Plumbing Drain & Pipe Slope Alignment: Measuring and setting exact fractional pipe pitch per foot using degrees or percentage readout modes.

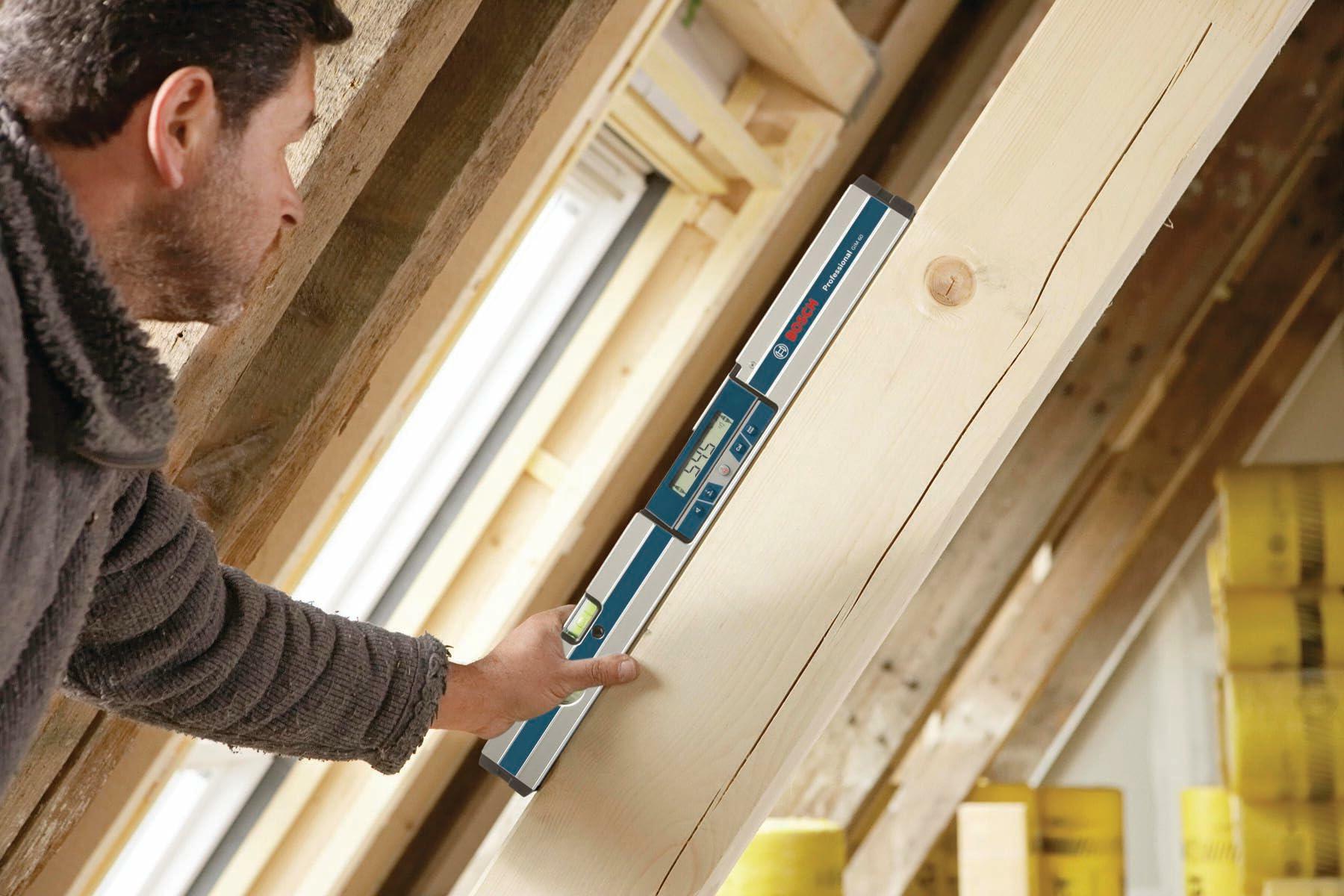

• Structural Framing & Rafter Layout: Verifying true plumb wall studs and copying roof rafter angles across multiple framing bays.
• Overhead Ceiling Grid & Handrail Installation: Setting level benchmarks in inverted overhead positions using the automatic rotating backlit display.

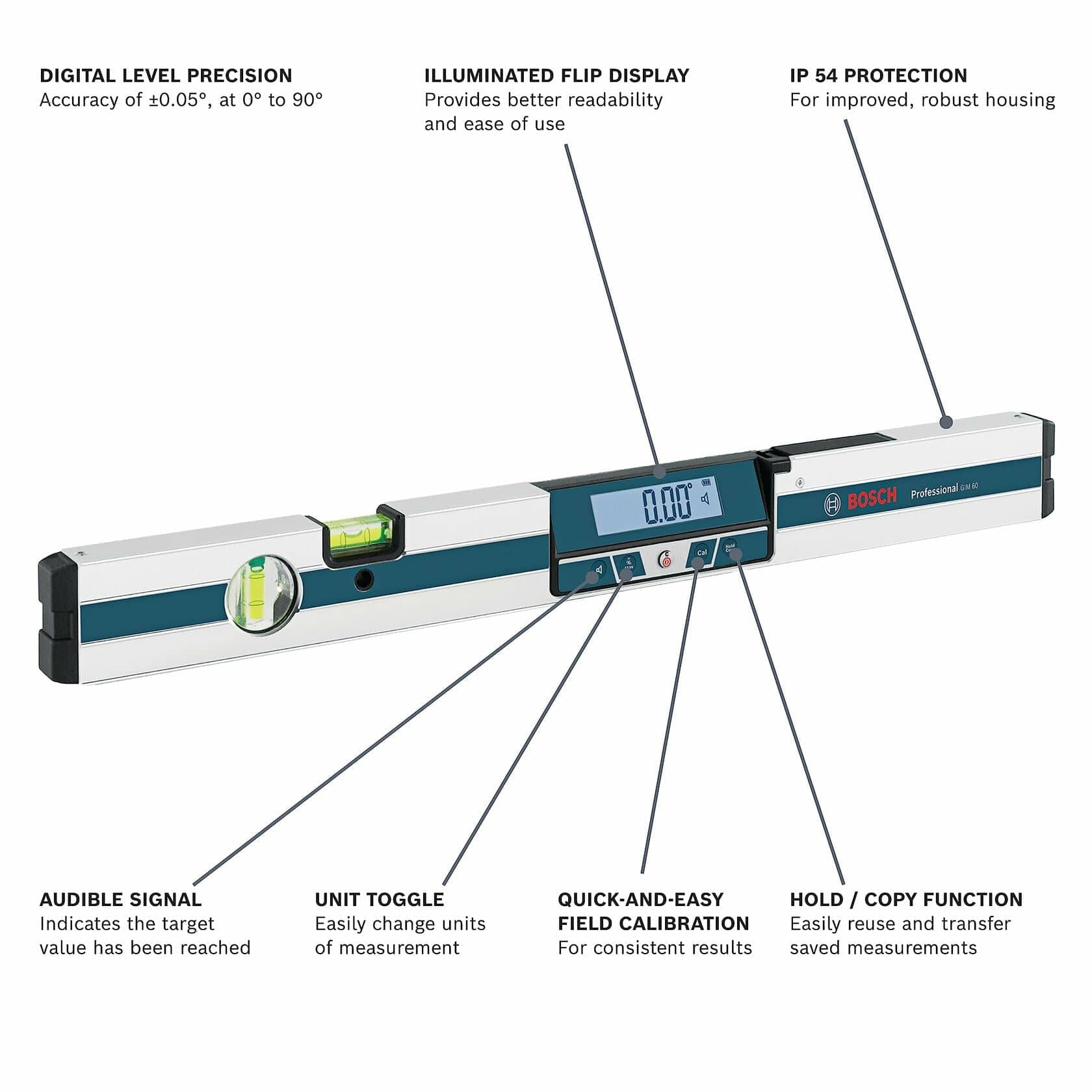

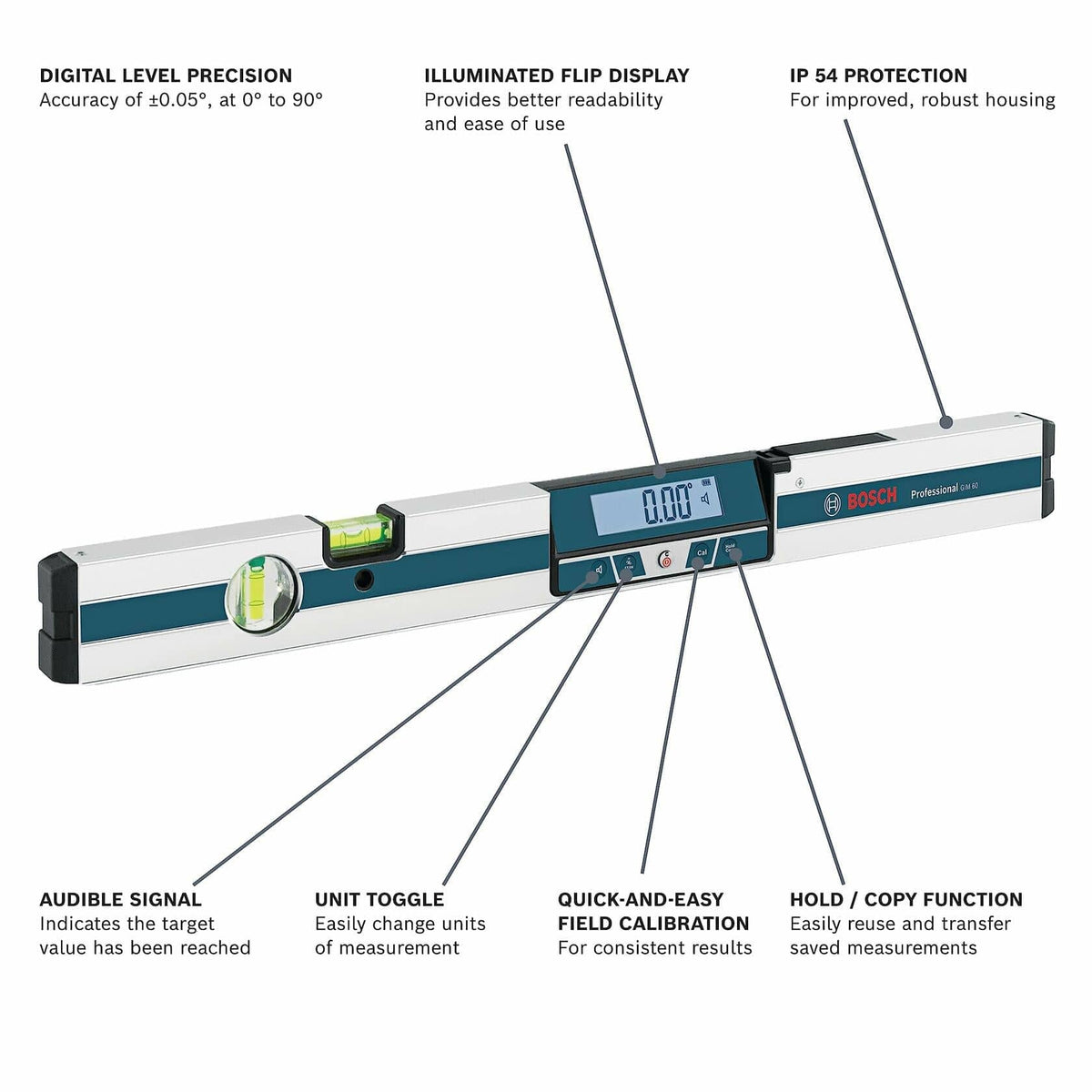

Key Performance & Safety Features

• ±0.05° Precision Sensor Accuracy: Delivers high electronic measuring accuracy of ±0.05° at 0°/90° and ±0.2° from 1° to 89°.
• Auto-Inverting Illuminated LCD Screen: Angled graphic display automatically flips right-side-up when working overhead or in inverted positions.
• Audible Level & Plumb Beeper Signal: Emits continuous audio tones when reaching 0° level or 90° plumb positions for hands-free adjustments.
• Hold/Copy Angle Memory Function: Locks measured angles on screen and replicates custom inclines across multiple jobsite locations.
• Multi-Unit Digital Measurement Selection: Converts readings instantly between degrees (°), slope percentages (%), or fractional feet and inches (in/ft).
• Heavy-Duty IP54 Aluminum Frame Housing: Extruded aluminum profile with rubber end caps resists jobsite drops, airborne dust, and moisture spray.

What's Included

• (1) Bosch GIM60 24 In. Digital Level Inclinometer
• (4) AA 1.5V Alkaline Batteries
• (1) Protective Fabric Carrying Case

Technical Specifications

Pro-Tip: Perform a quick field calibration check before taking critical slope measurements by taking a reading, rotating the level 180 degrees horizontally on the same flat surface, and verifying that both digital readouts match exactly.
