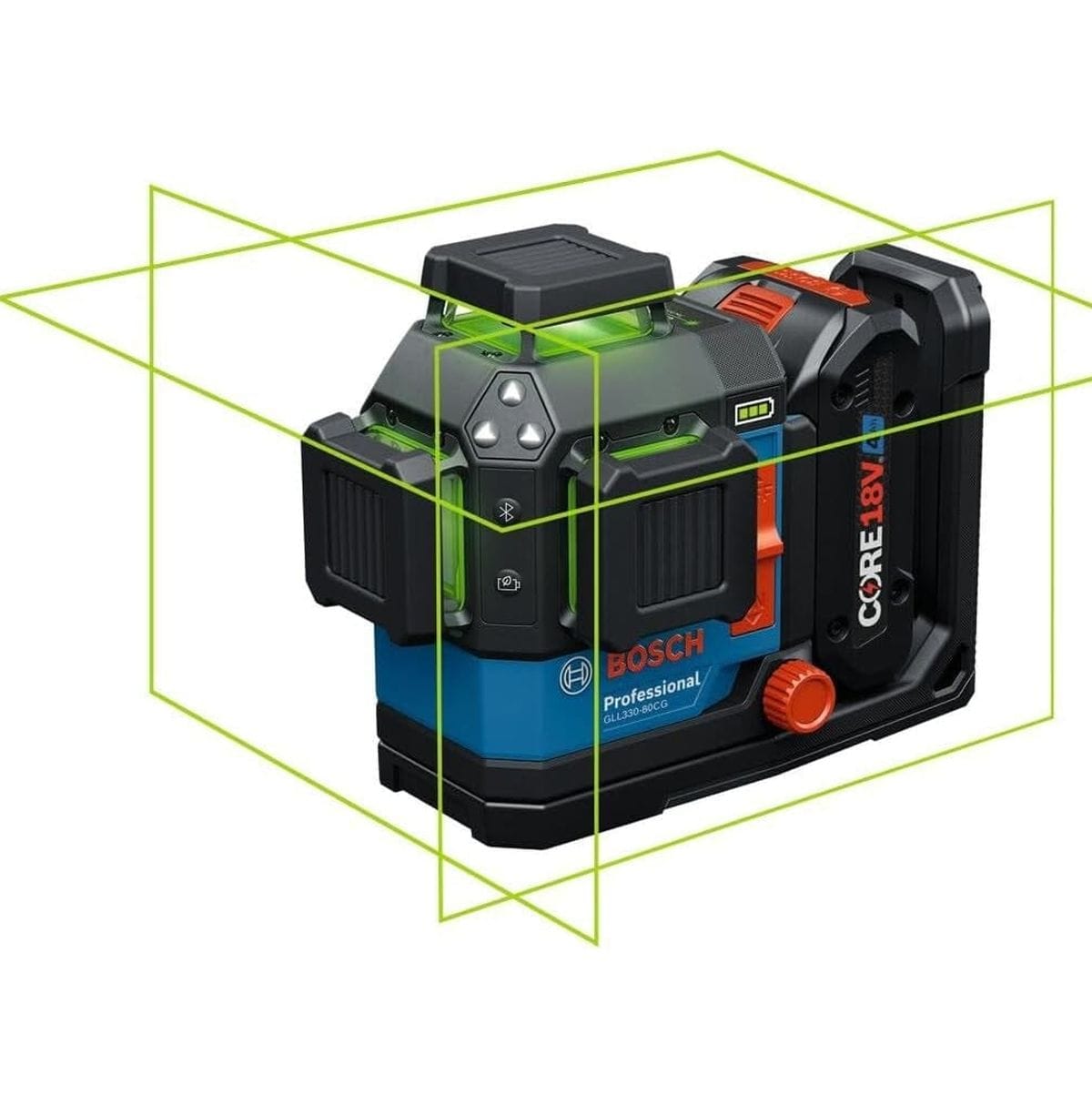

Studio shot of the Bosch 18V laser level showing three 360-degree green laser planes and the attached battery against a white background

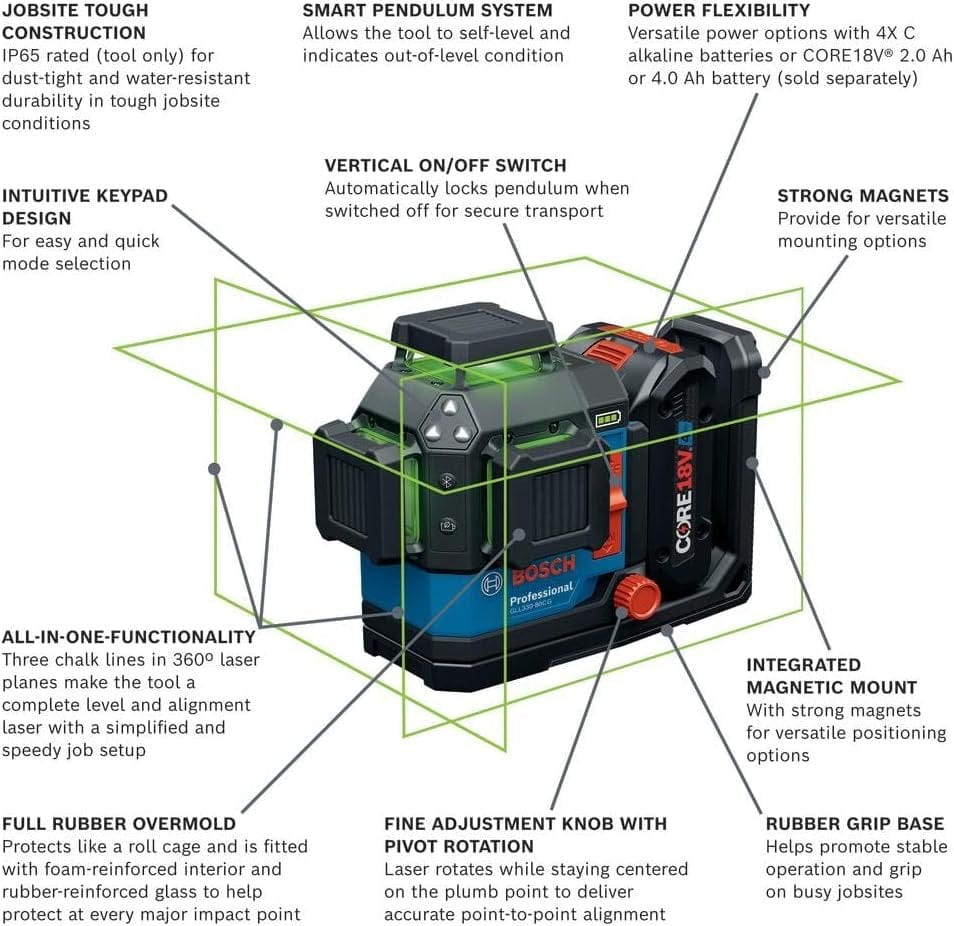

Infographic diagram of the laser level with text callouts pointing to features like the smart pendulum system, integrated magnetic mount, and rubber overmold housing

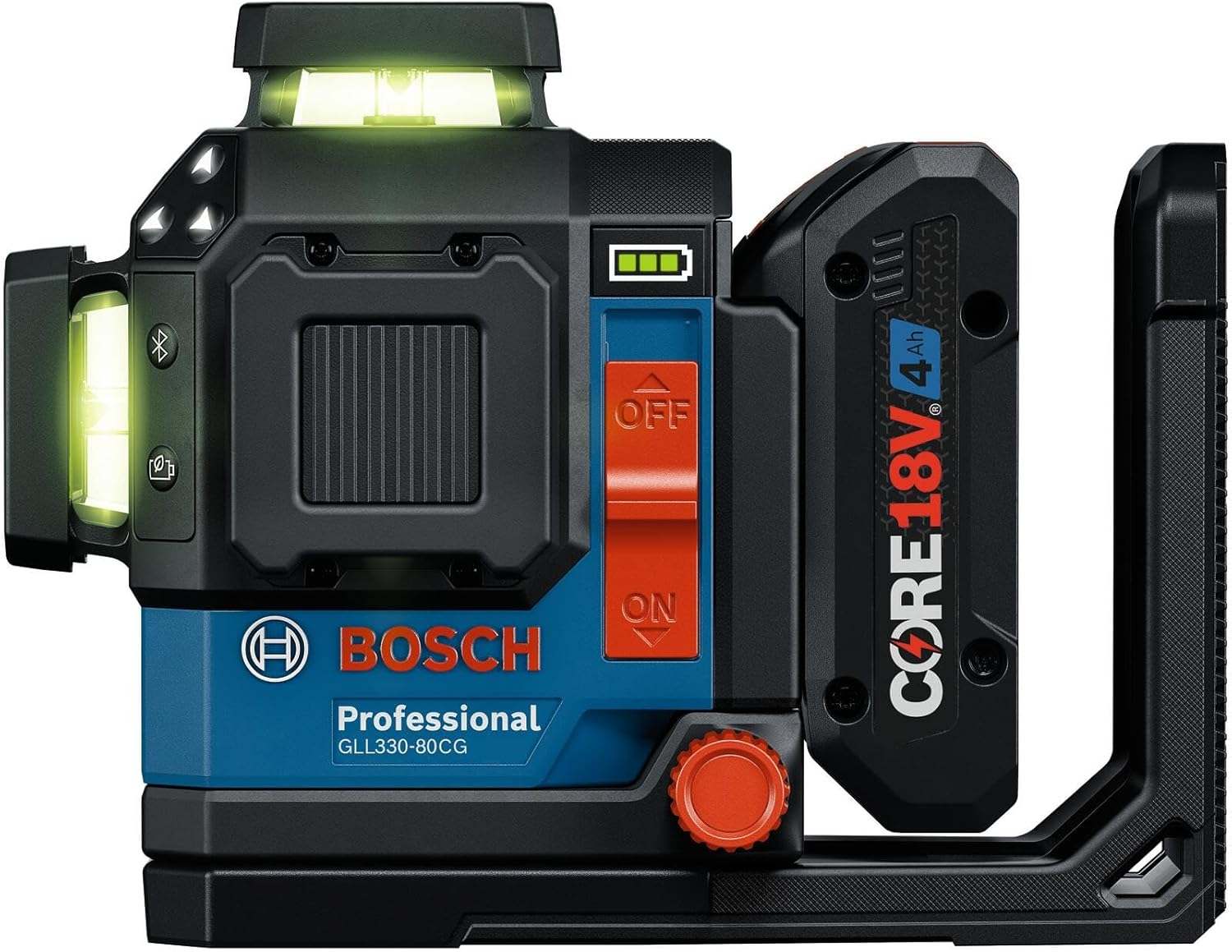

Side view of the tool highlighting the intuitive keypad, large red vertical on/off switch, and the Core18V 4Ah battery
A hand positioning the laser level against a metal stud to demonstrate the strong integrated magnetic mount
The laser level magnetically attached to a metal ceiling track and projecting a bright green horizontal line
A construction worker in a safety vest marking a wall along the green laser beam projected by the tool

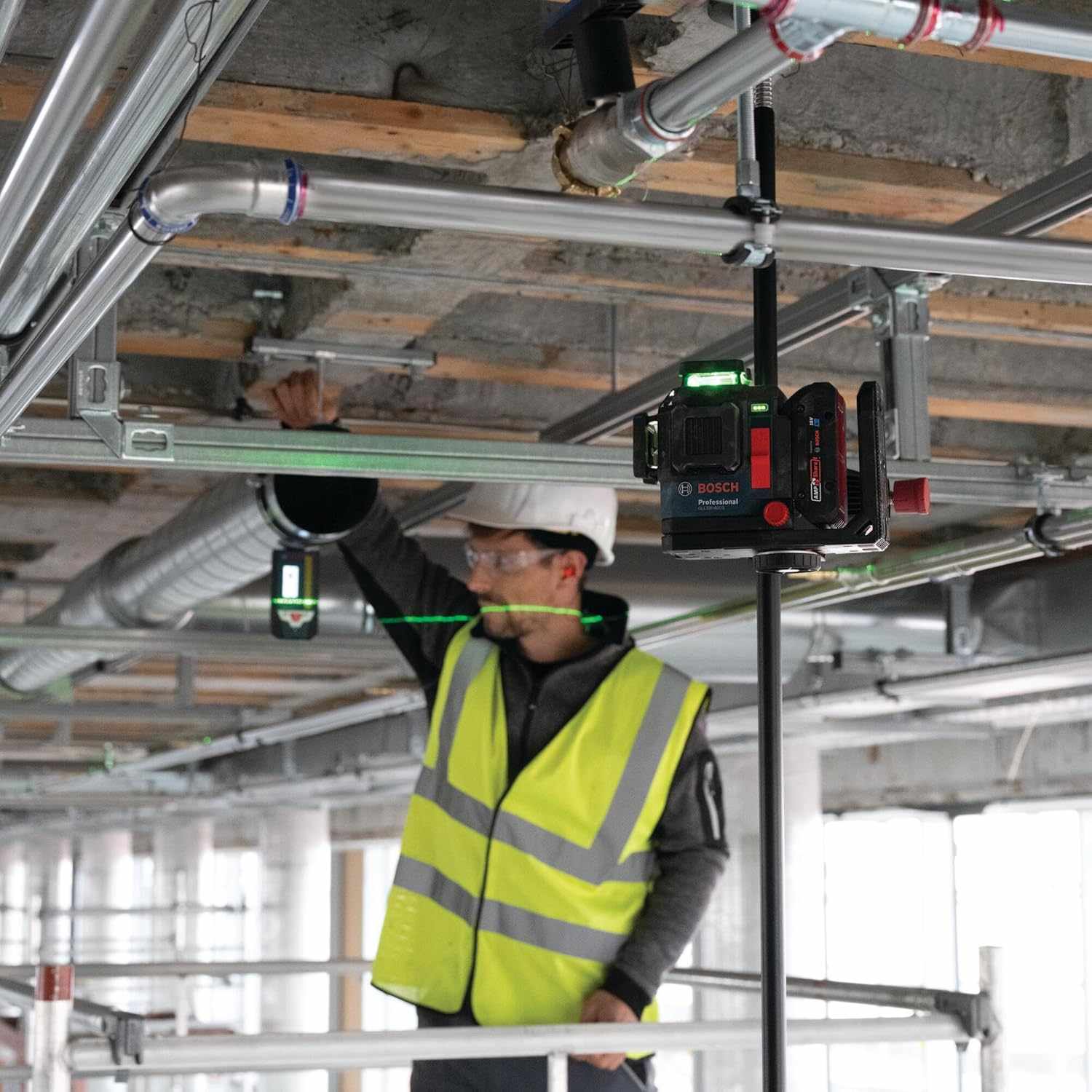

The laser level mounted high on a telescoping pole during a ceiling installation with a worker checking alignment in the background
Hands demonstrating the installation of the 18V battery pack into the side of the laser level unit
Close-up view of a user holding the laser level and sliding the rechargeable battery into place

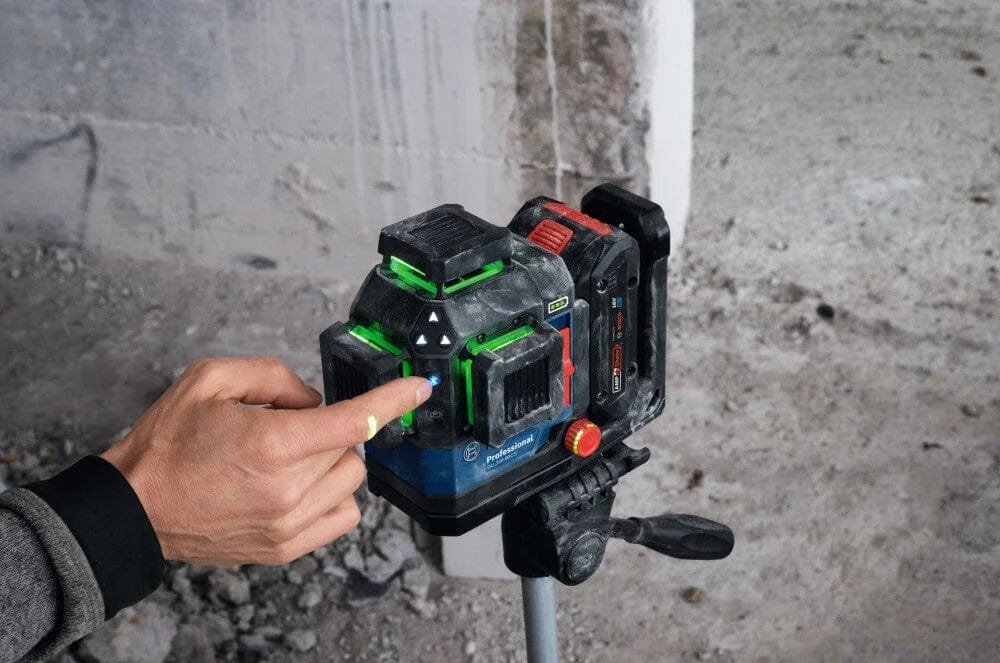

A finger pressing the Bluetooth button on the keypad of the laser level while it is mounted on a tripod in a dusty jobsite environment

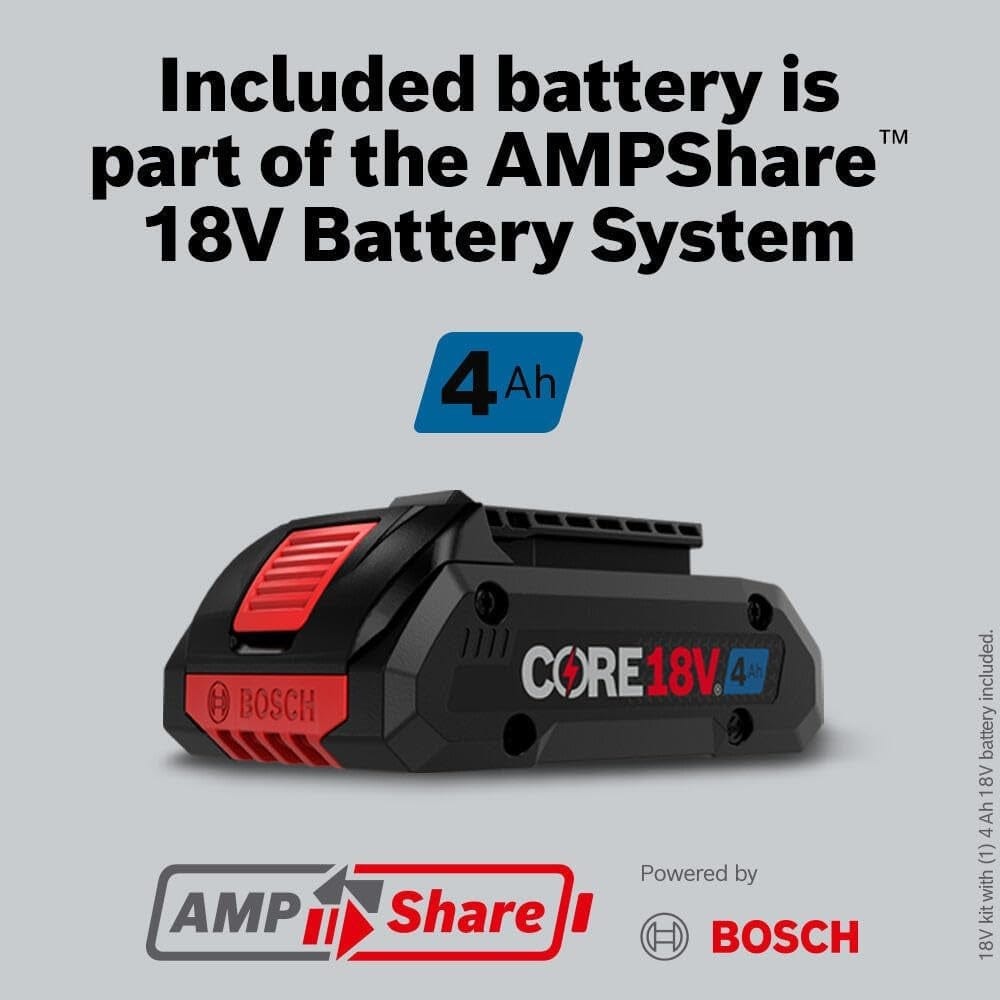

Informational graphic featuring the Core18V 4Ah battery with text stating the included battery is part of the AMPShare 18V Battery System
Warranty information graphic displaying coverage details including 1 year for the tool, 3 years for the battery, and 5 years for the charger
Bosch GLL330-80CGL 18V 360° Green Laser: Jobsite Precision & Connectivity promotional video
Studio shot of the Bosch 18V laser level showing three 360-degree green laser planes and the attached battery against a white background
Infographic diagram of the laser level with text callouts pointing to features like the smart pendulum system, integrated magnetic mount, and rubber overmold housing
Side view of the tool highlighting the intuitive keypad, large red vertical on/off switch, and the Core18V 4Ah battery

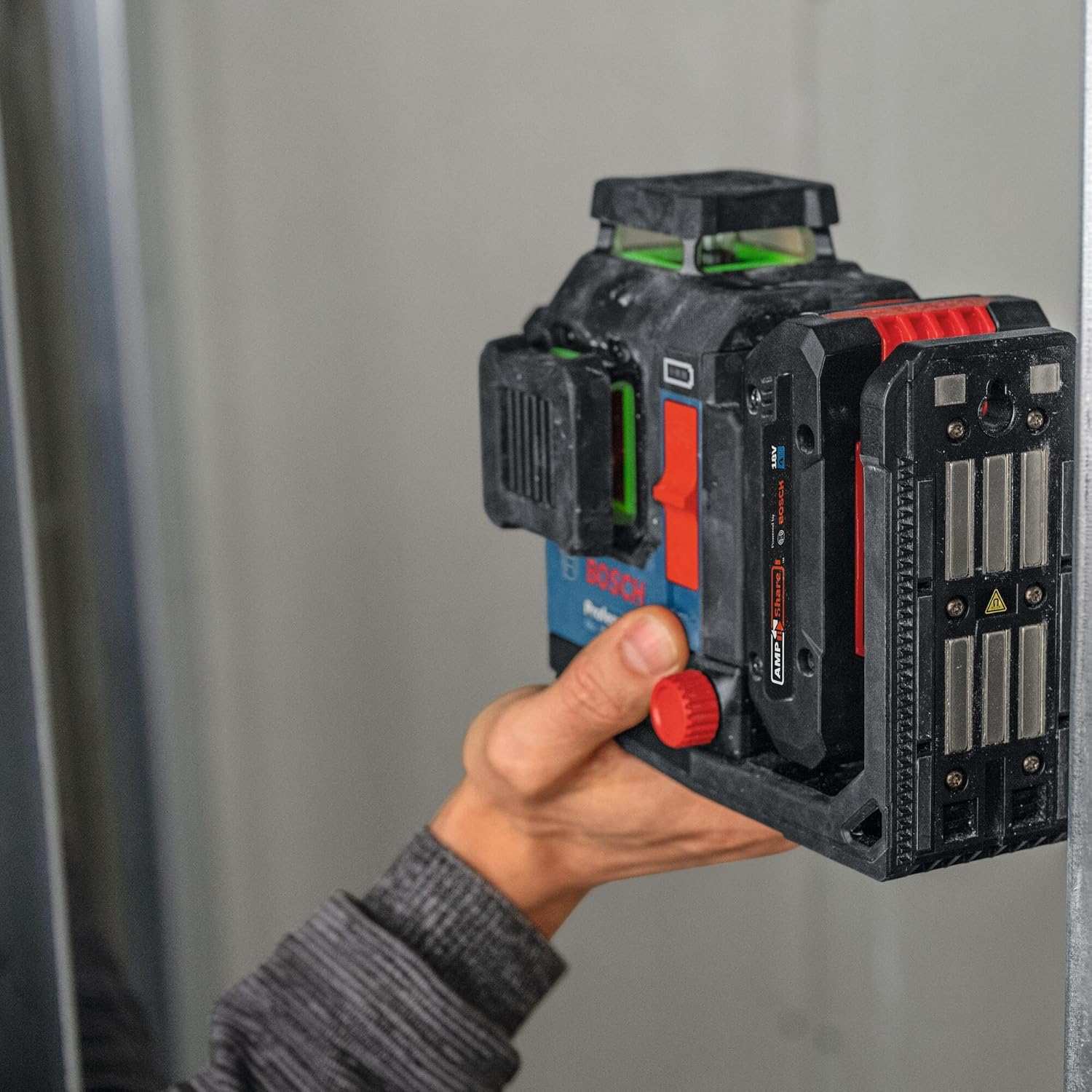

A hand positioning the laser level against a metal stud to demonstrate the strong integrated magnetic mount

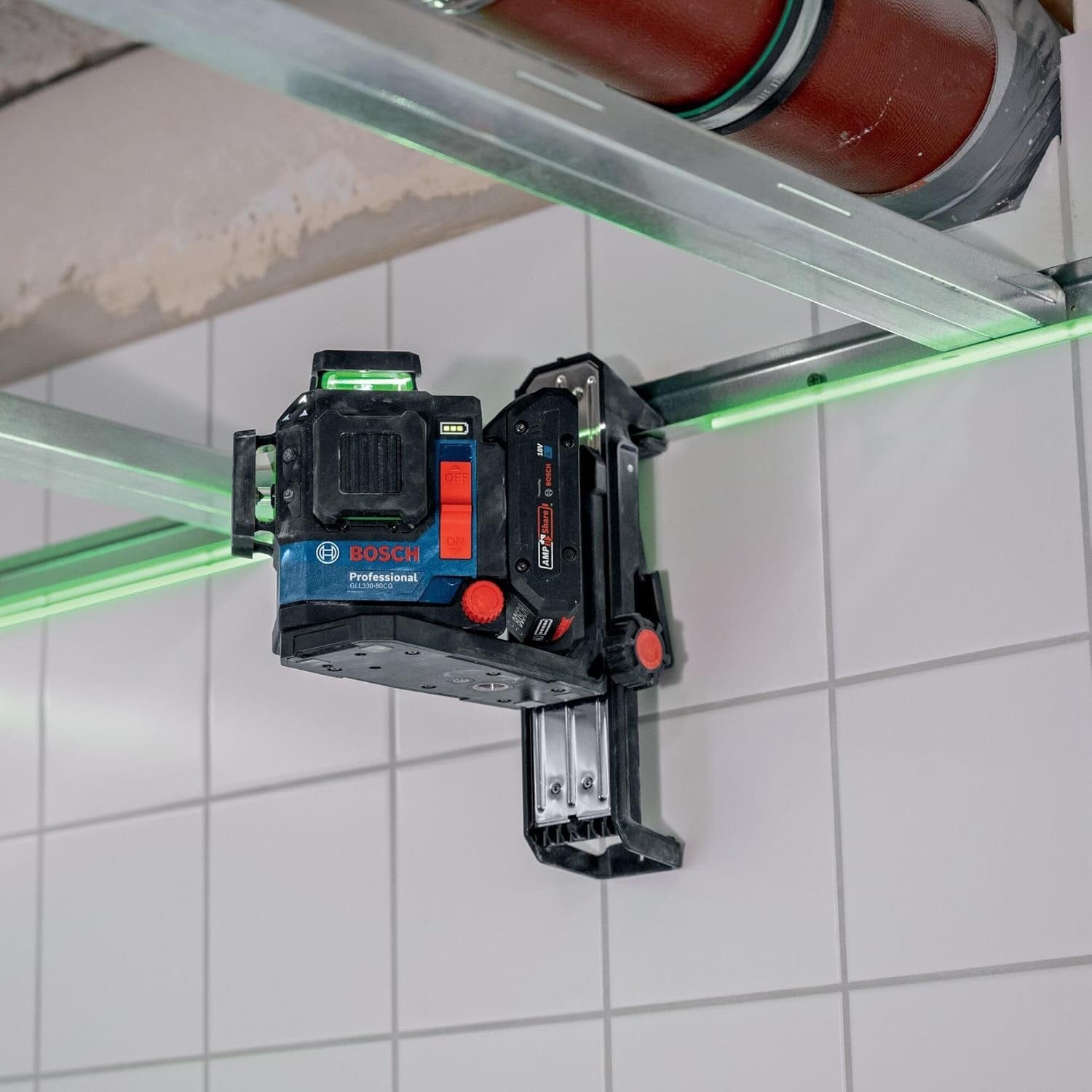

The laser level magnetically attached to a metal ceiling track and projecting a bright green horizontal line

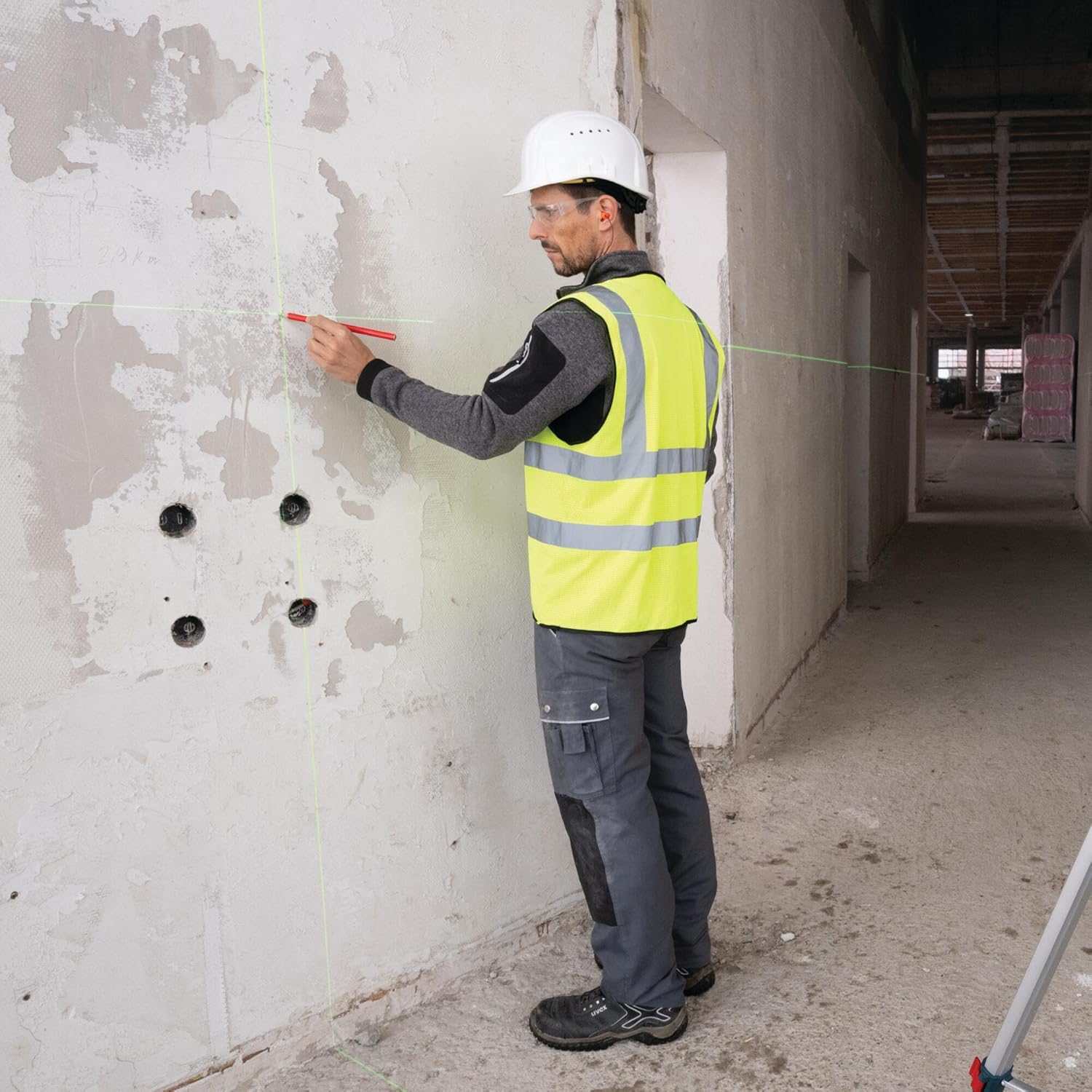

A construction worker in a safety vest marking a wall along the green laser beam projected by the tool
The laser level mounted high on a telescoping pole during a ceiling installation with a worker checking alignment in the background
Hands demonstrating the installation of the 18V battery pack into the side of the laser level unit

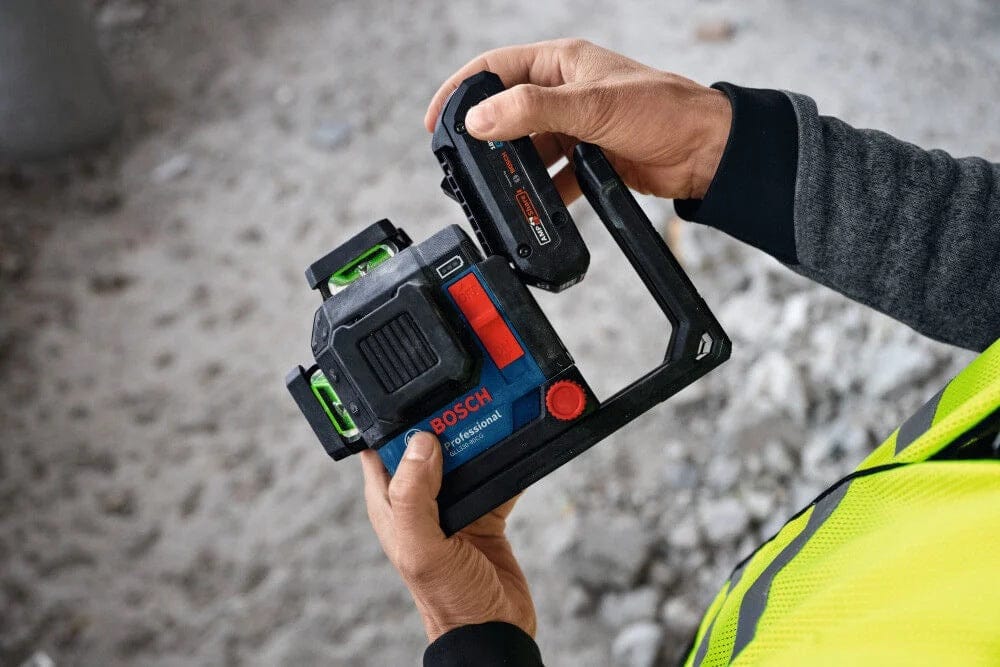

Close-up view of a user holding the laser level and sliding the rechargeable battery into place
A finger pressing the Bluetooth button on the keypad of the laser level while it is mounted on a tripod in a dusty jobsite environment
Informational graphic featuring the Core18V 4Ah battery with text stating the included battery is part of the AMPShare 18V Battery System
Warranty information graphic displaying coverage details including 1 year for the tool, 3 years for the battery, and 5 years for the charger
Bosch GLL330-80CGL 18V 360° Green Laser: Jobsite Precision & Connectivity promotional video
BOSCH

Bosch Laser Level GLL330-80CGL 18V 360 Green 3 Plane (115 Foot Range Bluetooth Connected IP65 Rechargeable 4Ah Battery Layout Kit)

In stock
SKU: GLL330-80CGL
$735.00 USD

Description

Bosch Promtional Logo Logout

Industrial-Grade 18V Cordless 360-Degree Three-Plane Green Laser Alignment System with Bluetooth Mobile Telemetry, CORE18V 4Ah Lithium Battery, and IP65 Shock Armor

The Bosch GLL330-80CGL 18V 360° Connected Green-Beam Three-Plane Laser Level Kit delivers specialized structural layout telemetry and exceptional multi-axis leveling accuracy across active indoor installation frameworks. Projecting one horizontal and two vertical independent 360-degree crossing coordinate fields up to 4X brighter than standard red wavelengths, this commercial-grade diagnostic instrument maintains a reliable 115-foot visible working range tracking at a precision line tolerance of ±1/8 inch at 30 feet. This professional layout solution resolves crooked cabinet configurations, slow framing plumb checking procedures, and early cell depletion downtime by combining a Smart Pendulum self-correcting alignment system with an innovative VisiMax dynamic temperature monitoring microcontroller. Outfitted with an integrated permanent rare-earth magnetic structural bracket, a hybrid power input layout accepting the included CORE18V 4.0 Ah rechargeable battery cell or standard C-cell batteries, and a rugged full rubber overmold chassis roll cage, this compact positioning layout system optimizes subcontractor productivity during drop ceiling grid elevations, commercial tile setting grids, and metal stud partition staging.

Best Used For:

  • Cabinetry Staging Realignment: Projecting concurrent horizontal baseline leveling lines to mount uniform wall cabinet groups, commercial shelving tracks, and architectural millwork components flush.
  • Drop Ceiling Leveling: Mapping exact perimeter channel wall heights and establishing clear cross-line paths for extensive acoustic drop-ceiling support wires from a single station mount.
  • Metal Stud Cavity Staging: Laying out precise true-plumb vertical track sections, square intersecting partition boundaries, and overhead track lines on raw structures single-handedly.

Key Performance & Safety Features

  • Three-Plane 360 Degree Matrix: Projects three comprehensive intersecting laser reference planes simultaneously to streamline leveling, plumbing, squaring, and layout tasks.
  • VisiMax Intelligent Telemetry: High-performance internal circuit monitoring constantly samples thermal load variables to maximize line brightness while extending internal battery runtimes.
  • Smart Pendulum System: Internal pendulum self-levels rapidly over grade deviations, blinks continuously if jarred out-of-level, and locks tight to block transport shock damage.
  • Hybrid Dual-Power Grid: Operates directly off the included 18V 4.0 Ah rechargeable lithium cell pack or standard C-cell alkaline power trays using the included adapter interface.
  • IP65 Dust and Water Armor: Sealed mechanical chassis prevents fine particulate dust deposits and resists high-pressure water spray vectors in rough trade conditions.

What's Included

  • (1) GLL330-80CGL 18V 360º Connected Green-Beam Three-Plane Laser Level
  • (1) 18V 4.0 Ah CORE18V Lithium-Ion Rechargeable Battery Pack
  • (1) 18V Lithium-Ion Rapid Battery Charger Station
  • (1) BA18-C Alkaline Battery Adapter Shroud
  • (1) DK20 Ceiling Grip Grid Clip
  • (1) High-Contrast Laser Target Plate
  • (1) Premium Protective Hard Carrying Case

Technical Specifications

Specification Value
Brand Name Bosch
Model Number GLL330-80CGL
Instrument Classification Type Self-Leveling 360-Degree 3-Plane Laser Level
Laser Beam Color Green (Class 2, < 10 mW Diodes)
Number of Laser Planes 3 Planes (1 Horizontal, 2 Vertical)
Visible Working Range Up to 115 ft.
Maximum Range with Receiver Up to 400 ft.
Planar Accuracy Metric ± 1/8 in. @ 30 ft.
Environmental Armor Standard IP65 Dust-Tight and Water-Resistant
Power Cell Configuration 18V CORE18V Lithium-Ion (Hybrid 4x C-Cell Alkaline Option)
Wireless Telemetry Interface Bluetooth (Bosch Leveling Remote App link)
Tripod Mount Base Threading 1/4 in.-20 and 5/8 in.-11 Thread Options
Operating Temperature Range 14° F to 104° F
Overall Body Dimensions 19.875 in. L x 16.25 in. W x 5.125 in. H
Net Kit Weight 7.67 lbs.

Pro-Tip: Use the Bluetooth mobile app link to toggle specific vertical or horizontal lines off when working across localized sections. Extinguishing inactive planes reduces power load drop factors, saves battery runtime limits, and eliminates unnecessary cross-room laser splash reflections.
