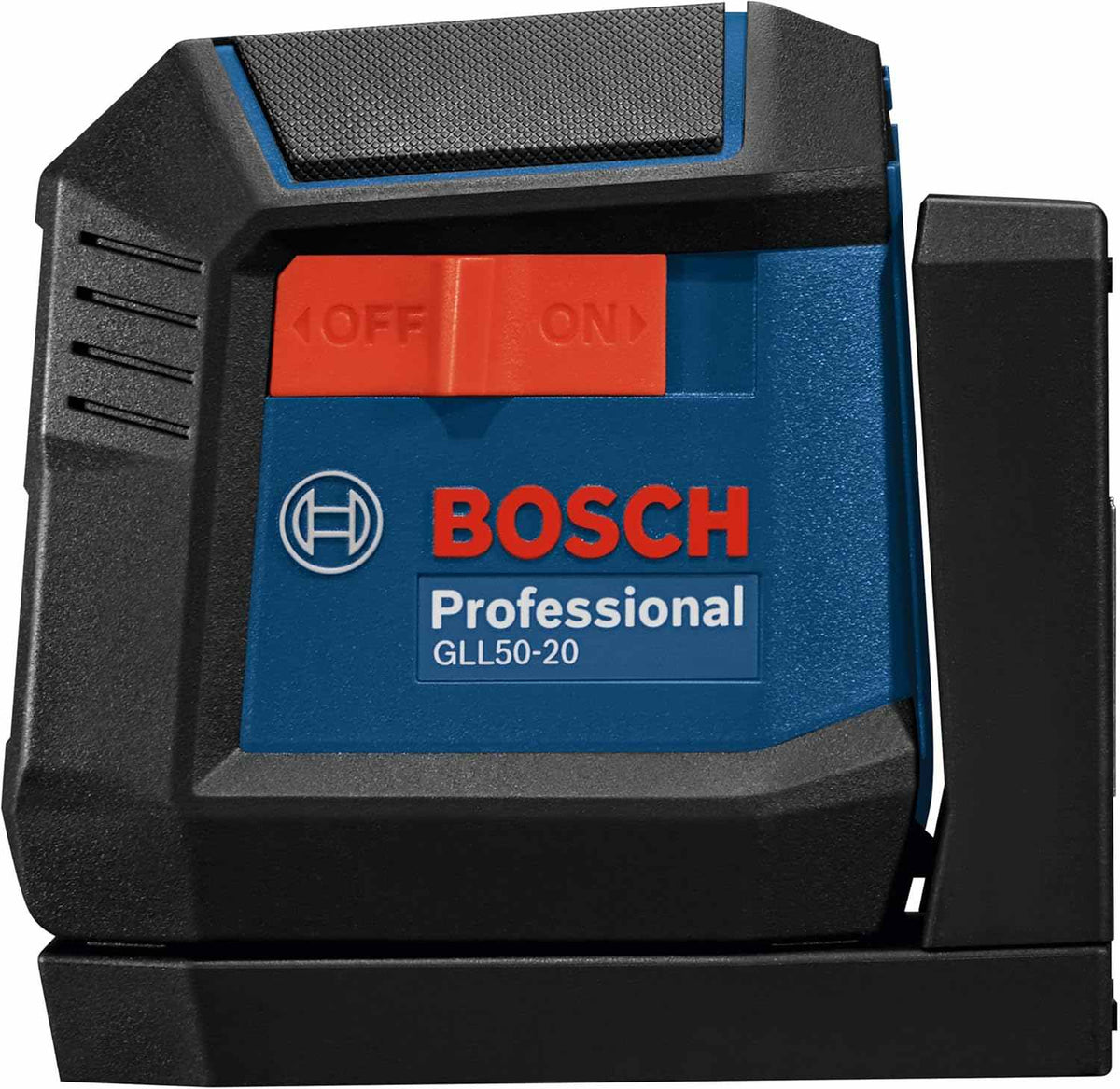

Side view of the Bosch Professional GLL50-20 cross-line laser focusing on the red on/off sliding power switch and the textured rubber overmold impact protection.

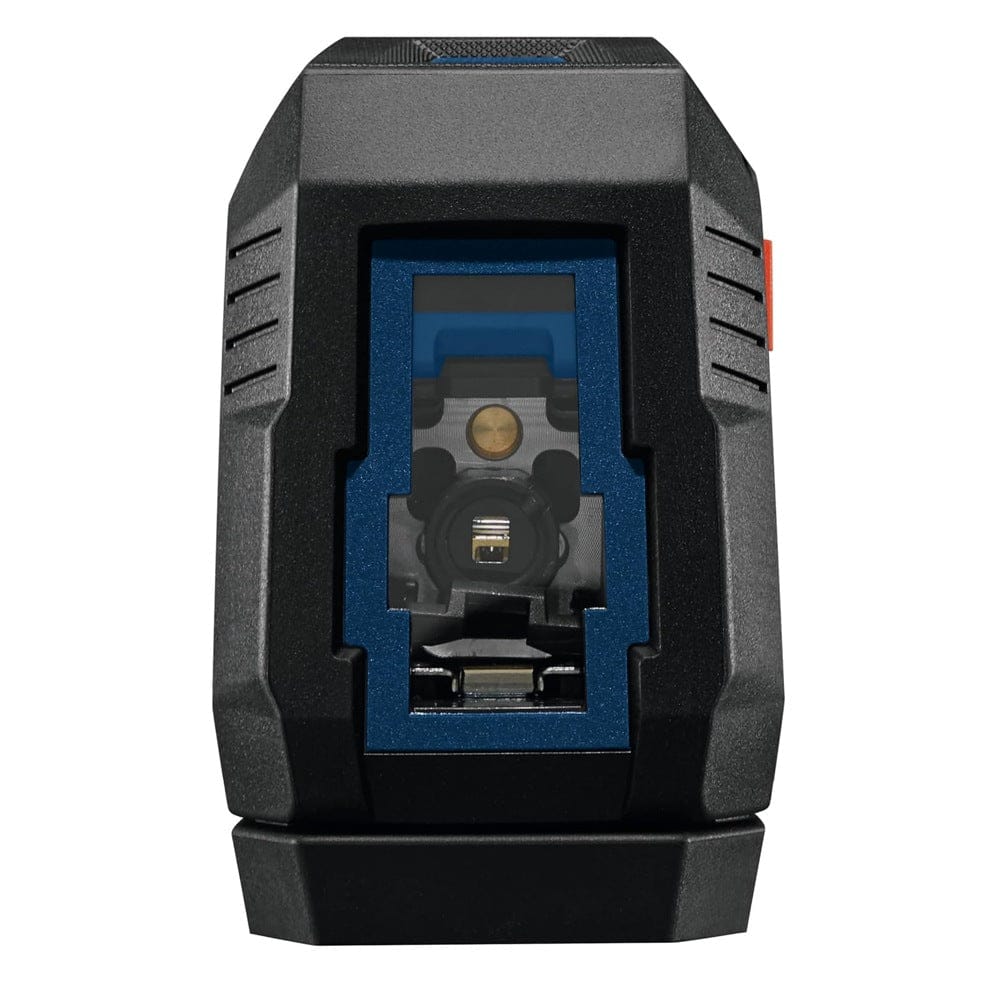

Front-facing view of the Bosch GLL50-20 laser level showing the vertical laser aperture and the internal diode components protected by a rugged blue and black housing.

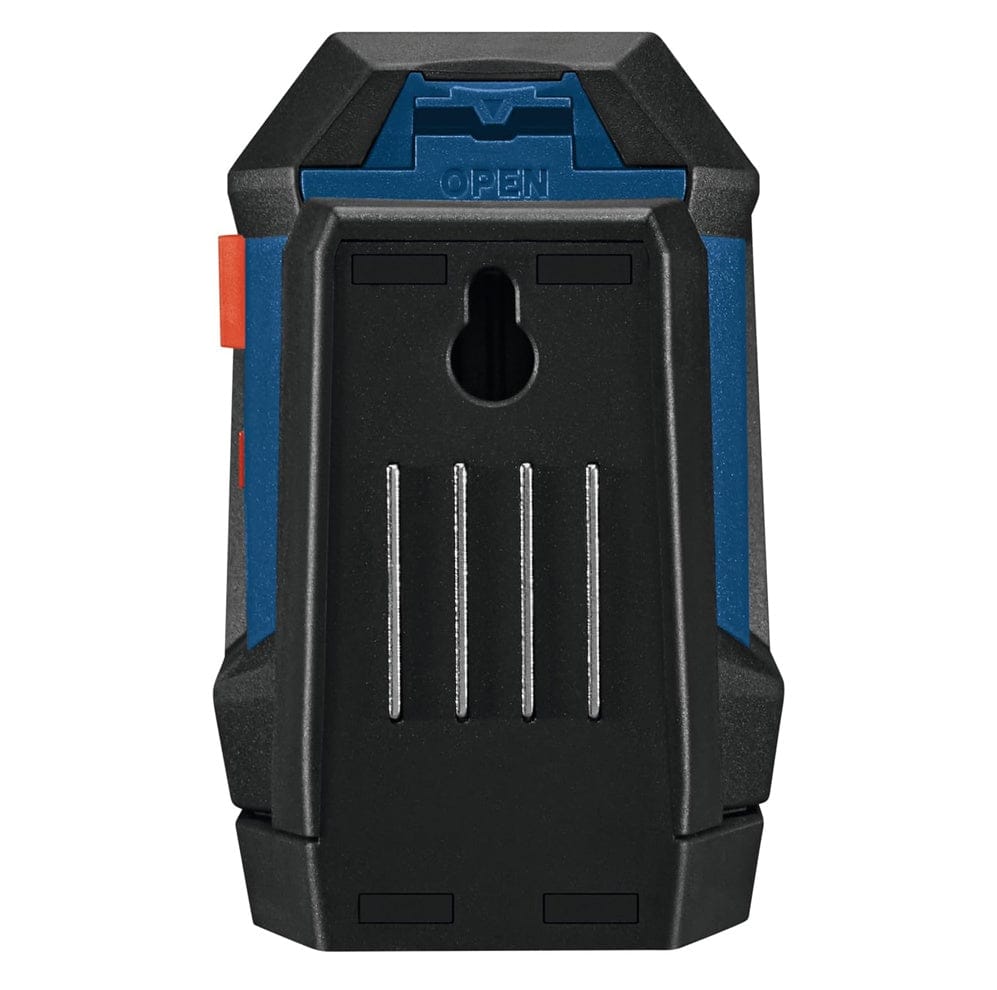

Rear view of the Bosch GLL50-20 laser tool showing the integrated magnetic mount with a built-in keyhole for hanging and the battery compartment access.

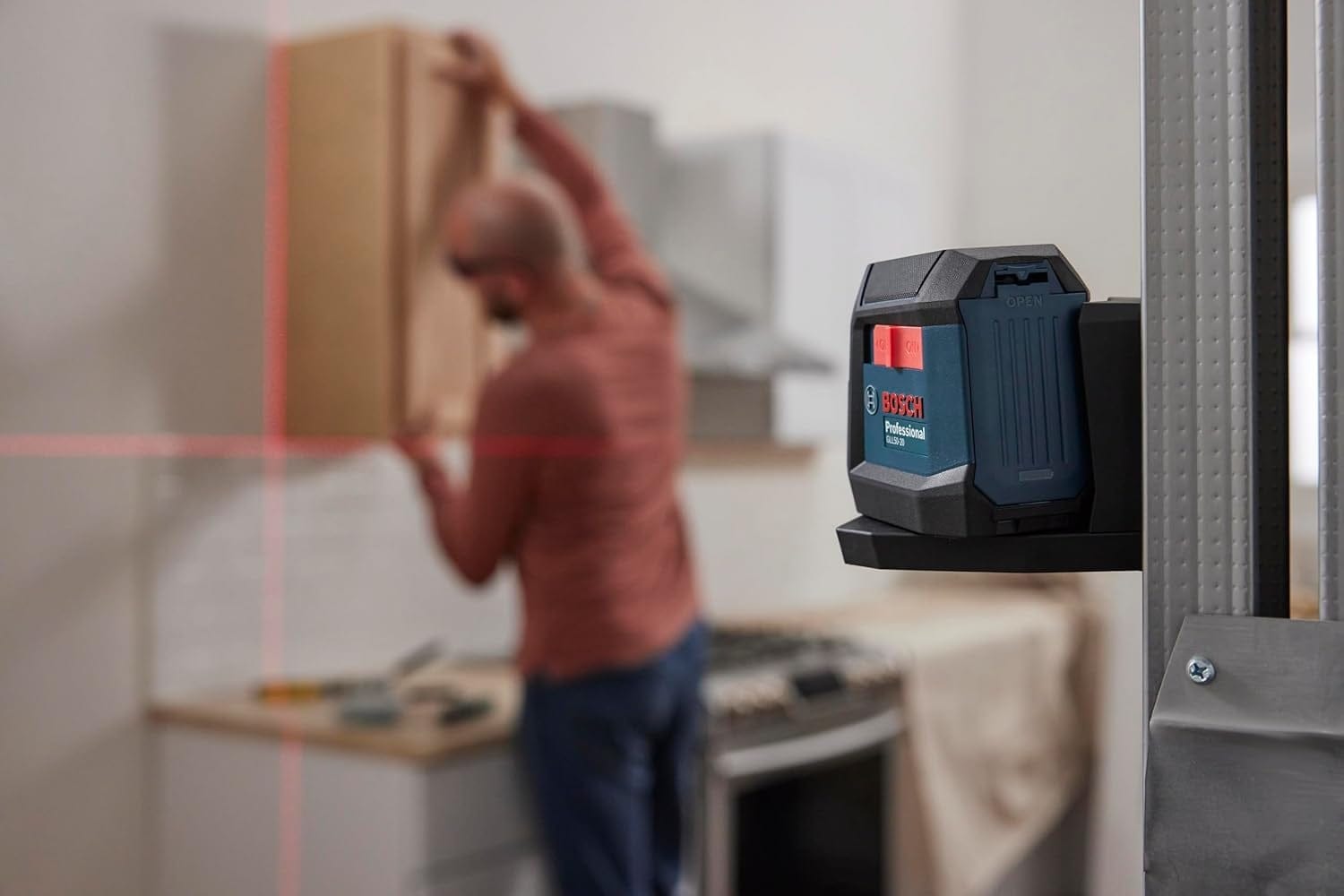

A professional using the Bosch GLL50-20 laser level mounted to a metal stud to align and install wooden cabinets in a residential kitchen.
The Bosch GLL50-20 self-leveling laser mounted on a tripod in a kitchen, projecting red cross-lines on a wall to assist with precise layout and hardware placement.

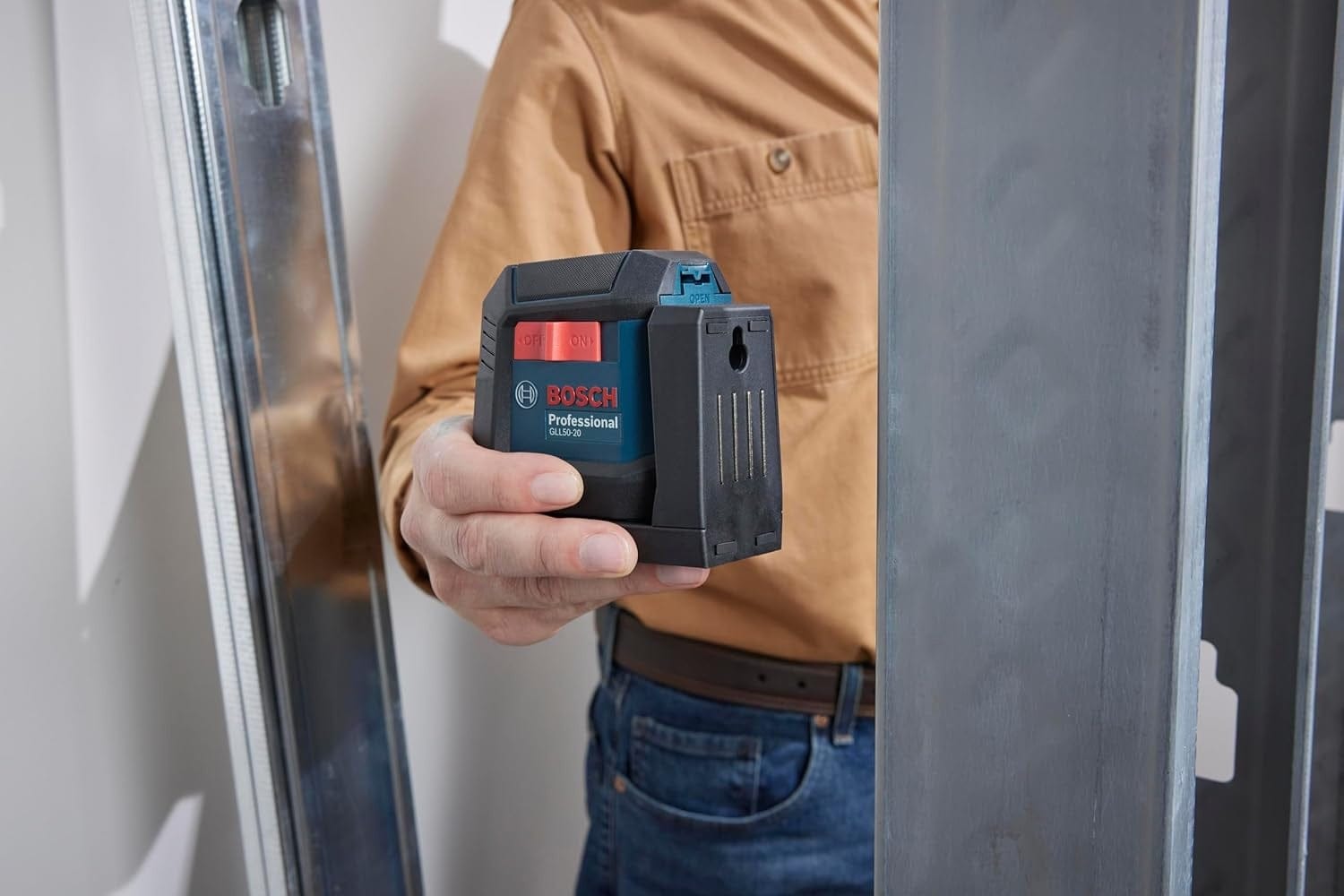

A person's hand holding the Bosch GLL50-20 laser level against a metal wall stud, demonstrating the strength and utility of the tool's integrated multipurpose magnetic mount.

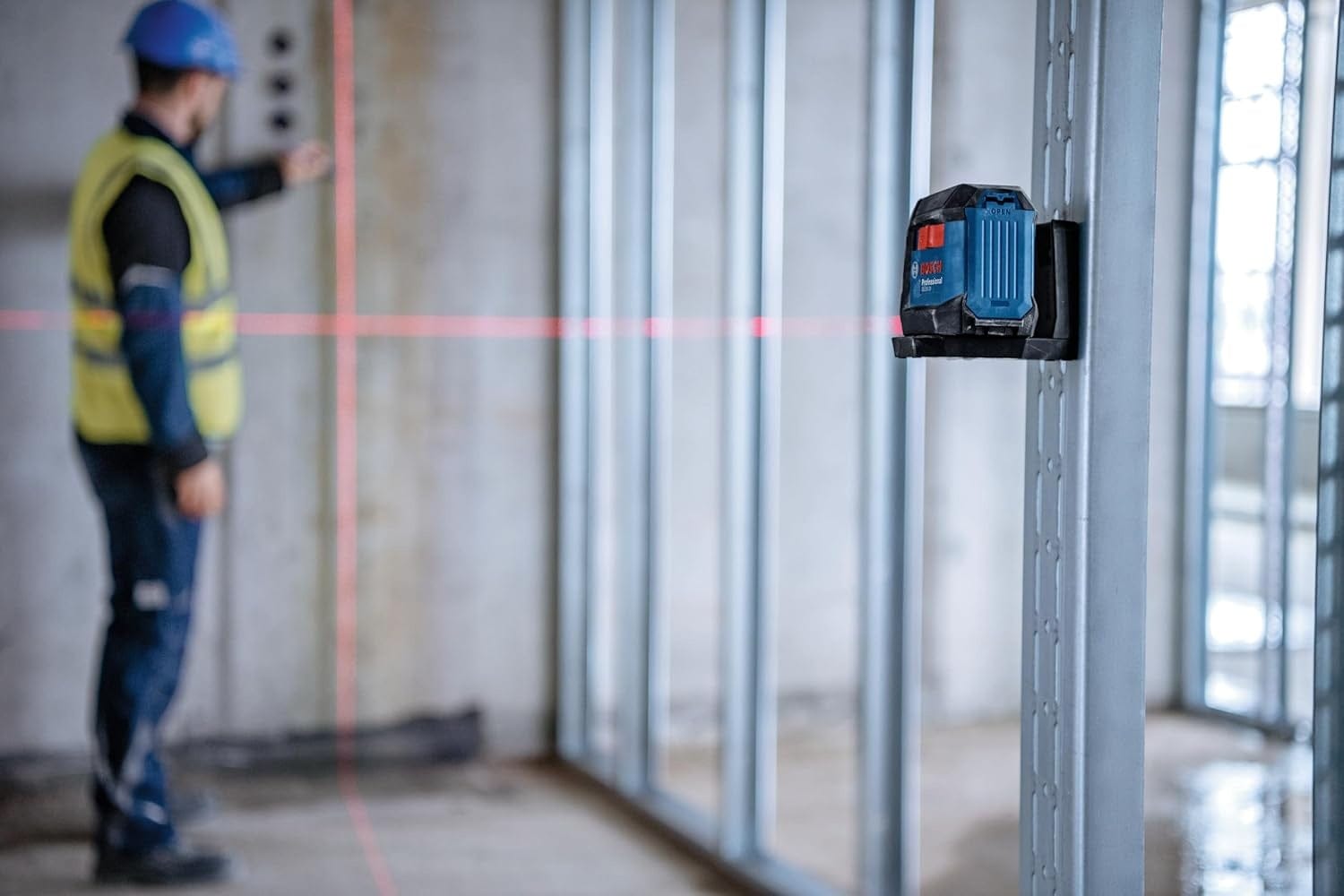

A worker on a commercial jobsite using the Bosch GLL50-20 laser level magnetically attached to a vertical steel track to project leveling lines across a large room.

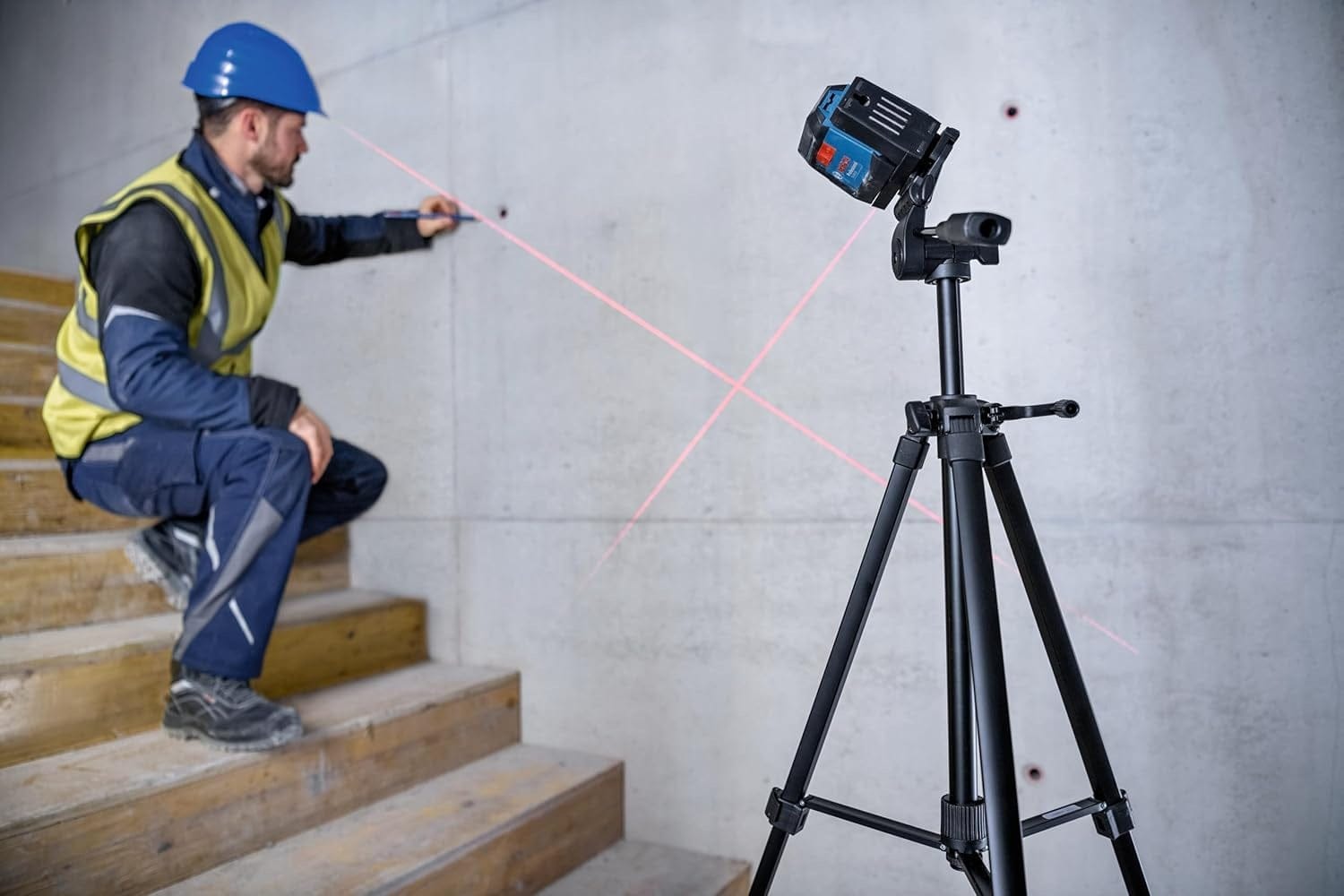

The Bosch GLL50-20 cross-line laser mounted on a professional tripod in manual tilt mode, projecting angled red beams for marking layout points on a concrete staircase.

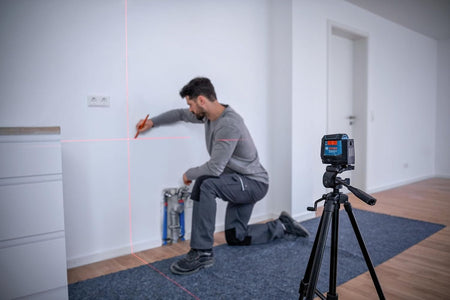

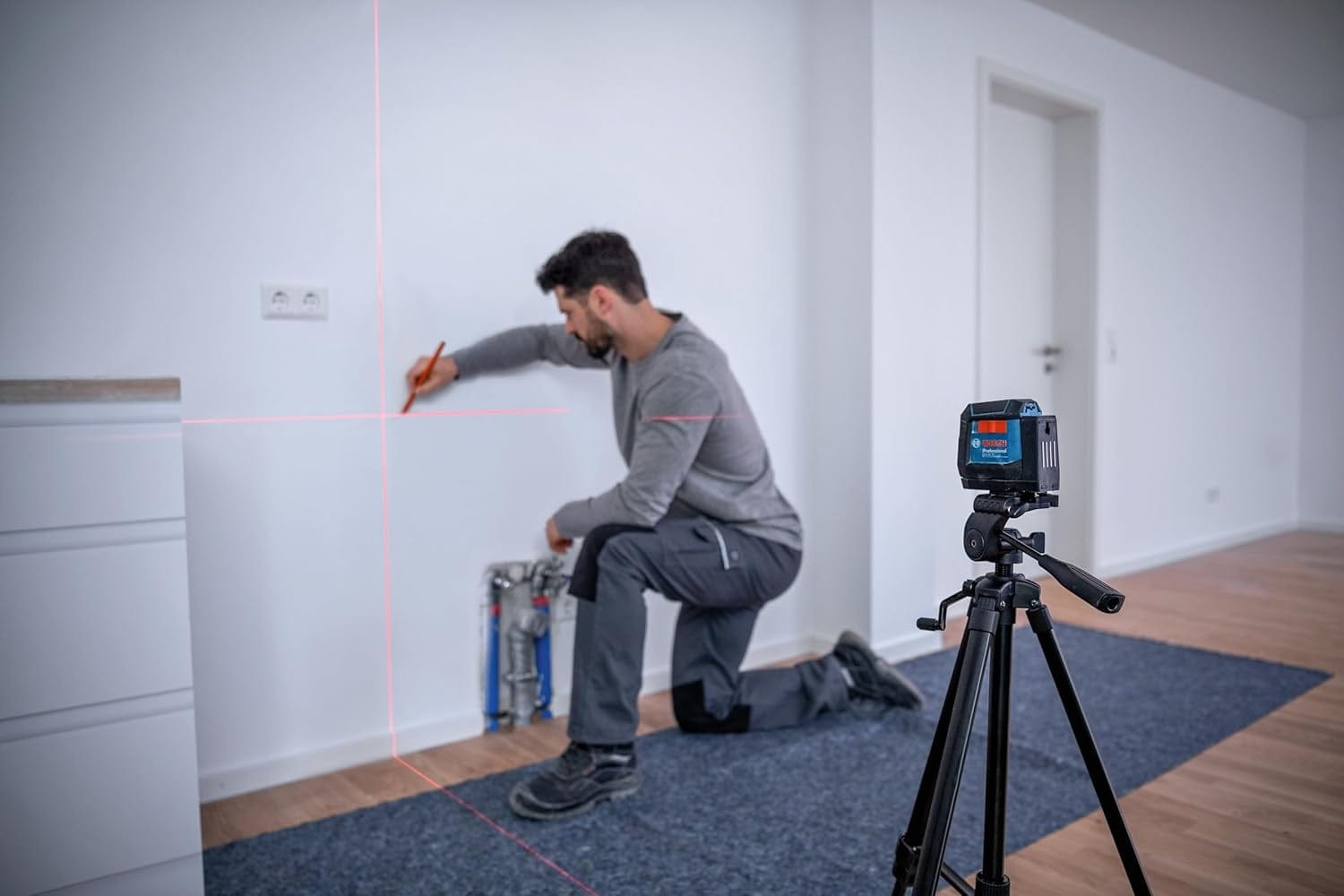

A construction professional kneeling in a room using the red cross-line beams from a tripod-mounted Bosch GLL50-20 laser level to mark precise plumbing or electrical points on a wall.
Bosch Measuring & Layout Tools warranty graphic showing a 1-year limited tool warranty with an additional 1-year extension available upon product registration.
Perspective view of the Bosch GLL50-20 self-leveling cross-line laser level projecting red horizontal and vertical beams for professional construction layout and leveling.
Detailed infographic of the Bosch GLL50-20 laser level highlighting its smart pendulum system, IP55 rated construction, full rubber overmold housing, and 50-foot range.
Side view of the Bosch Professional GLL50-20 cross-line laser focusing on the red on/off sliding power switch and the textured rubber overmold impact protection.
Front-facing view of the Bosch GLL50-20 laser level showing the vertical laser aperture and the internal diode components protected by a rugged blue and black housing.
Rear view of the Bosch GLL50-20 laser tool showing the integrated magnetic mount with a built-in keyhole for hanging and the battery compartment access.
A professional using the Bosch GLL50-20 laser level mounted to a metal stud to align and install wooden cabinets in a residential kitchen.
The Bosch GLL50-20 self-leveling laser mounted on a tripod in a kitchen, projecting red cross-lines on a wall to assist with precise layout and hardware placement.
A person's hand holding the Bosch GLL50-20 laser level against a metal wall stud, demonstrating the strength and utility of the tool's integrated multipurpose magnetic mount.
A worker on a commercial jobsite using the Bosch GLL50-20 laser level magnetically attached to a vertical steel track to project leveling lines across a large room.
The Bosch GLL50-20 cross-line laser mounted on a professional tripod in manual tilt mode, projecting angled red beams for marking layout points on a concrete staircase.
A construction professional kneeling in a room using the red cross-line beams from a tripod-mounted Bosch GLL50-20 laser level to mark precise plumbing or electrical points on a wall.
Bosch Measuring & Layout Tools warranty graphic showing a 1-year limited tool warranty with an additional 1-year extension available upon product registration.
BOSCH

Bosch GLL50-20 50 Ft Self-Leveling Cross-Line Laser Level with Integrated Magnetic Mount and Red Beam Horizontal Vertical Layout Tool for Construction

In stock
SKU: GLL50-20
$82.97 USD

Description

Achieve Professional Precision and Durability with the Bosch GLL50-20

The Bosch GLL50-20 Self-Leveling Cross-Line Laser is the perfect solution for professionals seeking accuracy and versatility in a compact layout tool. Featuring a reliable 50 Ft. range, this laser projects highly visible horizontal and vertical red lines, allowing for precise leveling with 5/16 In. accuracy at 30 Ft.. Whether you are installing cabinets, framing a room, or aligning tile, the Smart Pendulum System ensures the tool self-levels and provides an immediate warning if an out-of-level condition occurs. For specialized tasks, simply tilt the laser to project lines at any angle, while the manual lock secures the pendulum for safe transport between jobsites.

Built to survive the toughest conditions, the GLL50-20 features a full rubber overmold housing that acts like a roll cage to protect against impacts. With an IP 55 rating for dust and water resistance, this tool is as dependable as it is durable. One of its most innovative features is dual-power flexibility: use the included AA batteries to get started immediately, or upgrade to the Bosch 3.7V Lithium-Ion battery (sold separately) to enable continuous operation even while charging. The integrated magnetic mount and 1/4 In.-20 tripod threading offer endless positioning options, ensuring this laser fits perfectly into your existing workflow.

Key Features

  • Dual Power Flexibility: Operates on two AA batteries (included) or an optional 3.7V Lithium-Ion 1.0 Ah battery (sold separately).
  • Impact Protection: Full rubber overmold housing protects major impact points from accidental drops.
  • Integrated Multi-Surface Mount: Features strong magnets for metal surfaces and 1/4 In.-20 threading for tripod compatibility.
  • Jobsite Tough: IP 55 rated construction provides resistance against dust and water ingress.
  • Smart Pendulum System: Automatically self-levels, alerts users to out-of-level status, and locks for secure transport.
  • Versatile Layout: Cross-line mode projects both horizontal and vertical lines for comprehensive leveling.
  • Manual Tilt Mode: Allows the laser to be used at various angles for custom alignment tasks.

What's Included

  • (1) GLL50-20 Self-Leveling Cross-Line Laser
  • (1) Integrated Magnetic Mount
  • (2) AA Batteries

Specifications

Feature Details
Laser Beam Color Red
Accuracy 5/16 In. @ 30 Ft.
Max Range 50 Ft.
Leveling Type Self-Leveling, Up to 3.5°
Mounting Thread 1/4-20
IP Rating IP 55
Laser Diode Class 2
Number of Beams 2
Battery Requirement 2 AA (Included)
Operating Temperature 14° F to 104° F
Compatible Accessories BT 150, BP350, GR 16, GLM-BAT

Pro-Tip: When using the magnetic mount on metal studs, place a piece of painter's tape on the stud first. This prevents the strong magnets from scratching the finished surface or the tool, and makes it easier to slide the laser for fine-tuned height adjustments.
