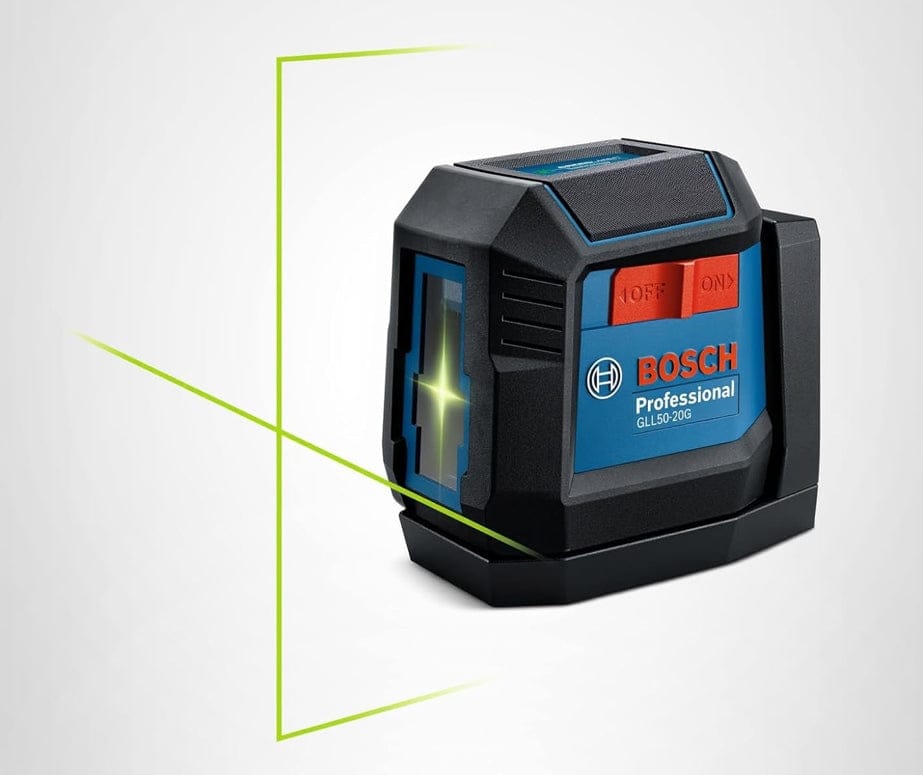

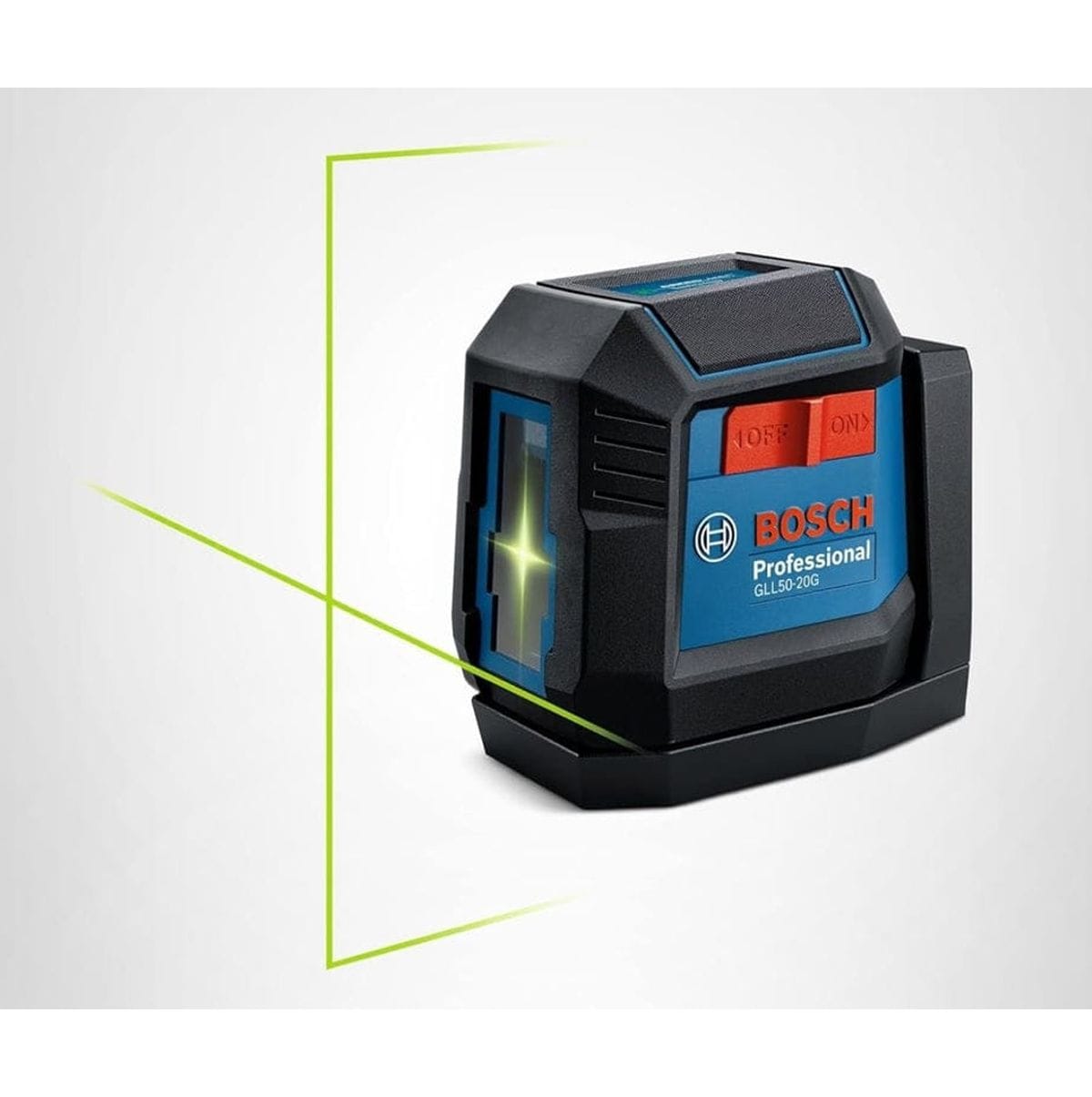

Studio view of the Bosch GLL50-20GL cross-line laser, featuring a rugged black and blue housing with a side-mounted red power switch and a bright green laser cross projected forward.

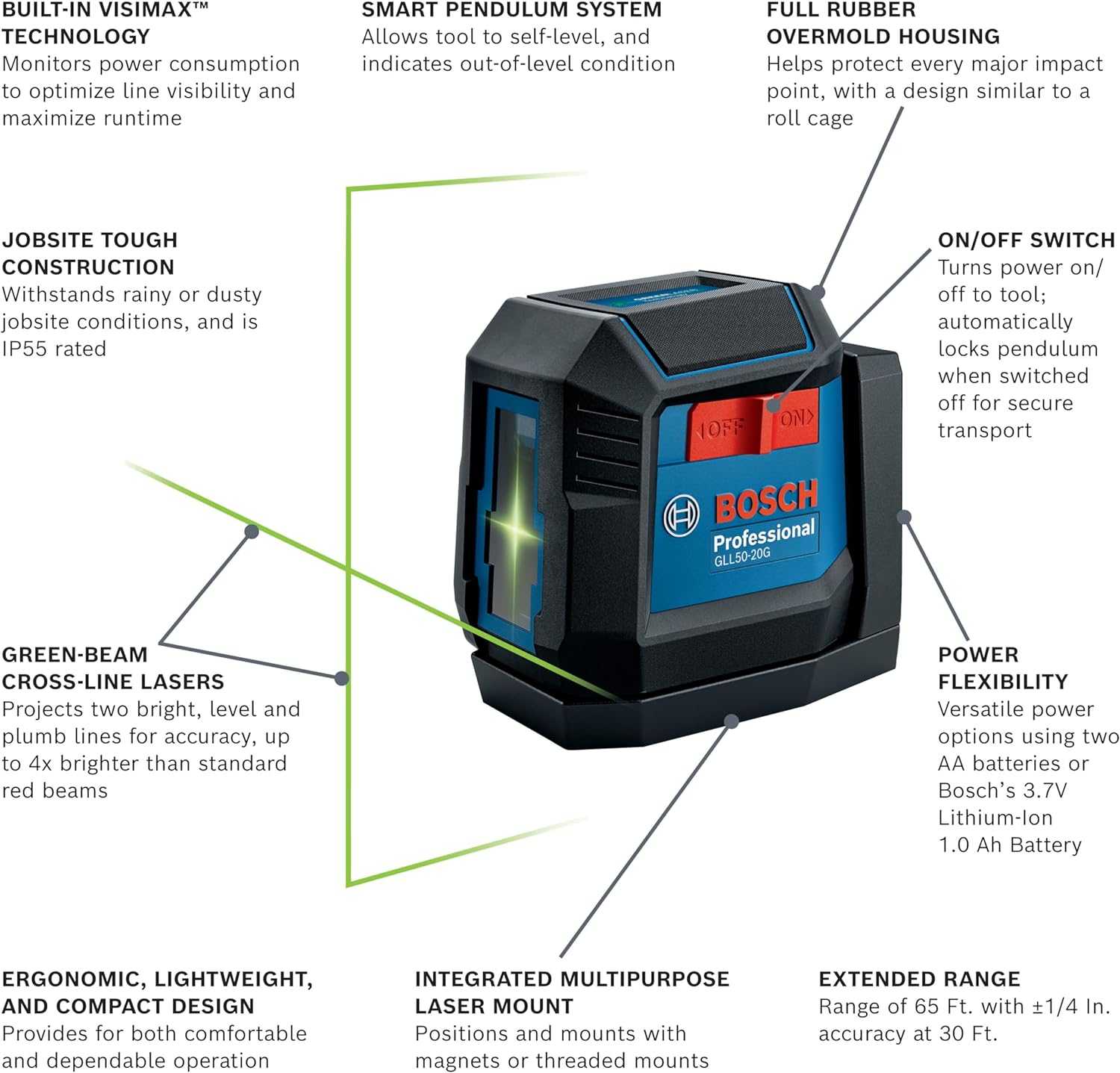

Infographic diagram highlighting key features including the VisiMax technology, smart pendulum system, rubber overmold housing, and power flexibility with the rechargeable 3.7V Lithium-Ion battery.

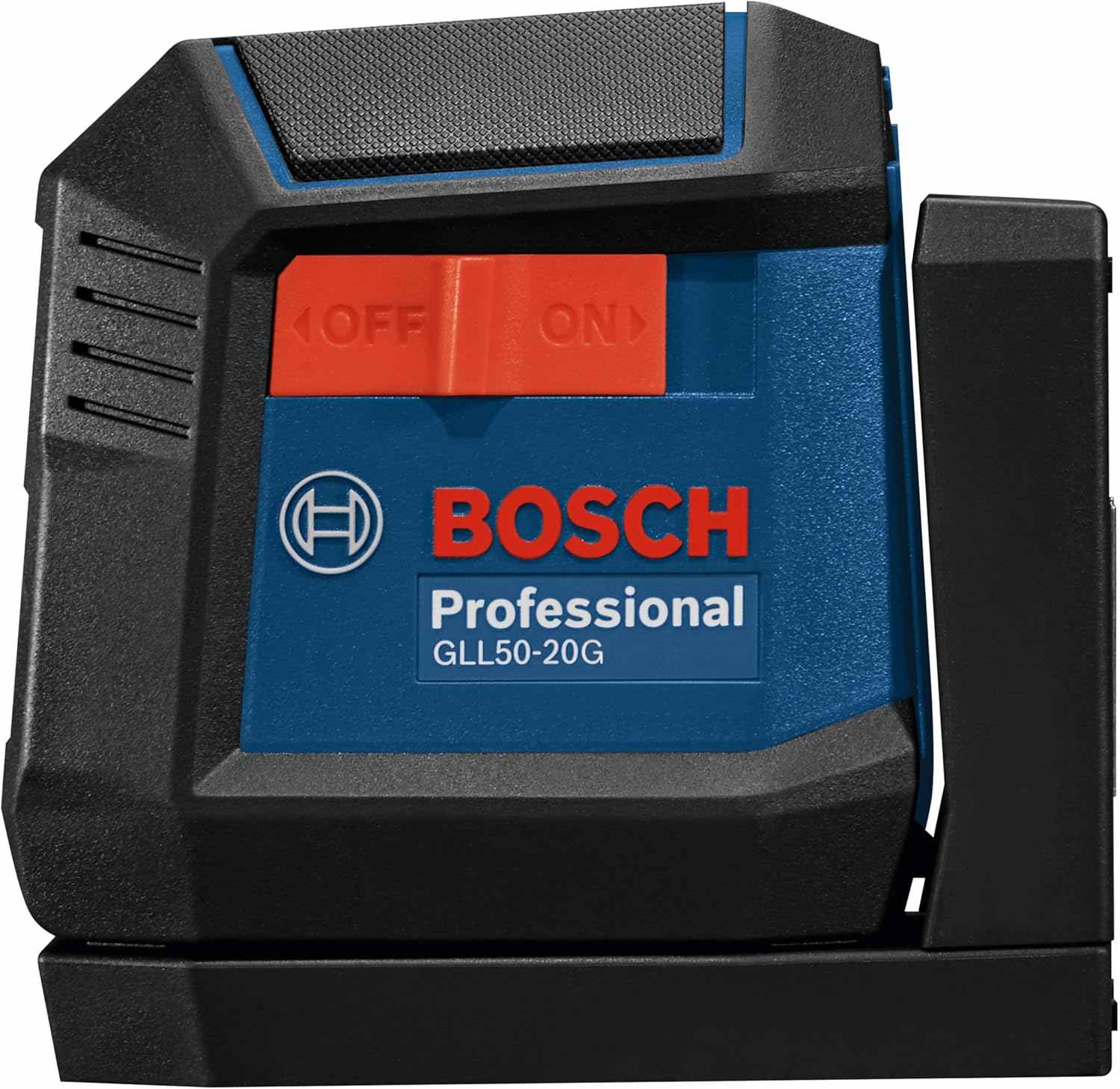

Close-up front view of the laser level showing the large red sliding on-off switch and the Bosch Professional branding on the blue housing.

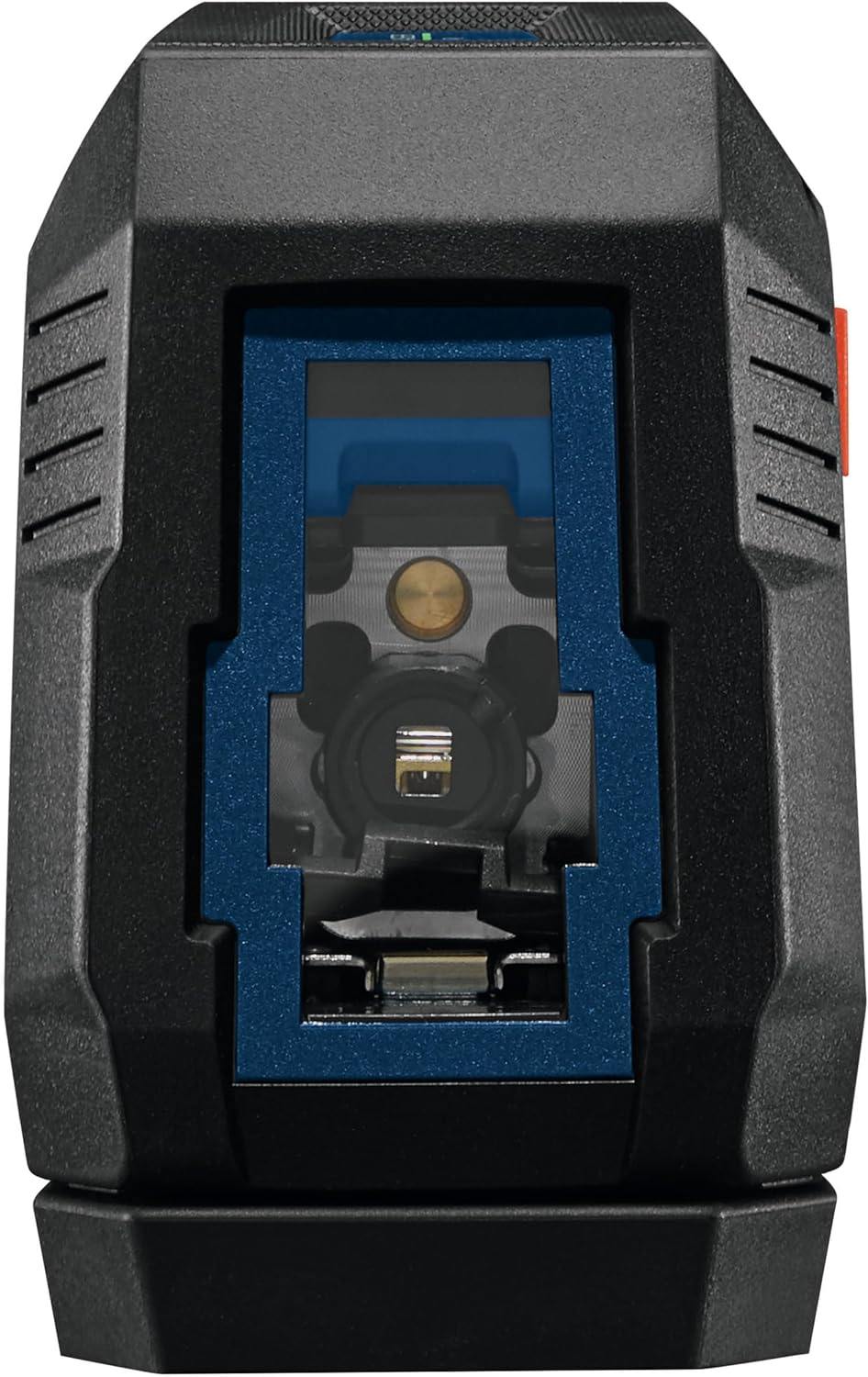

Direct front view of the laser aperture, revealing the internal self-leveling pendulum mechanism protected by the recessed housing window.

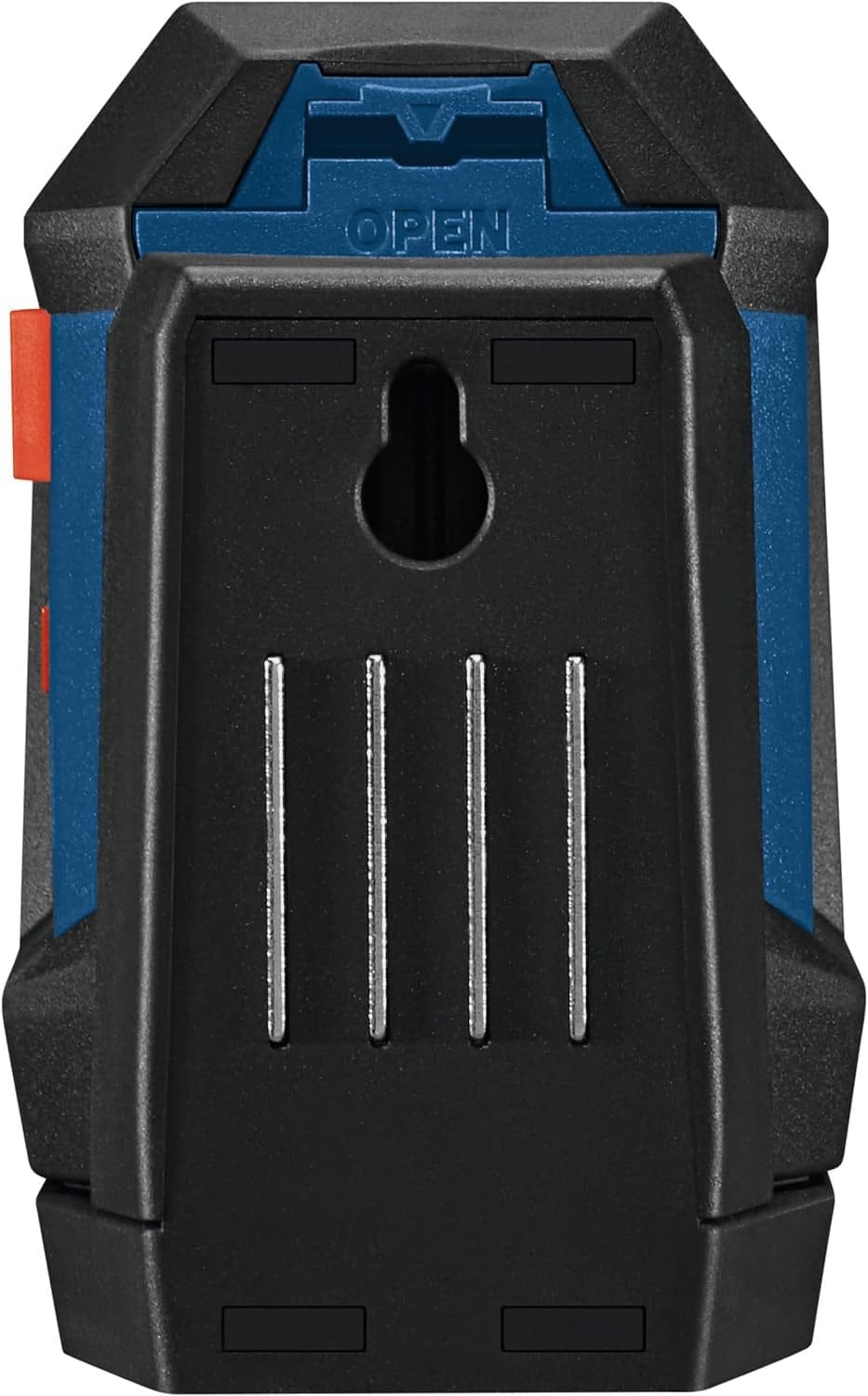

Rear view of the tool featuring a keyhole mounting slot and vertical friction strips for secure placement against wall surfaces.

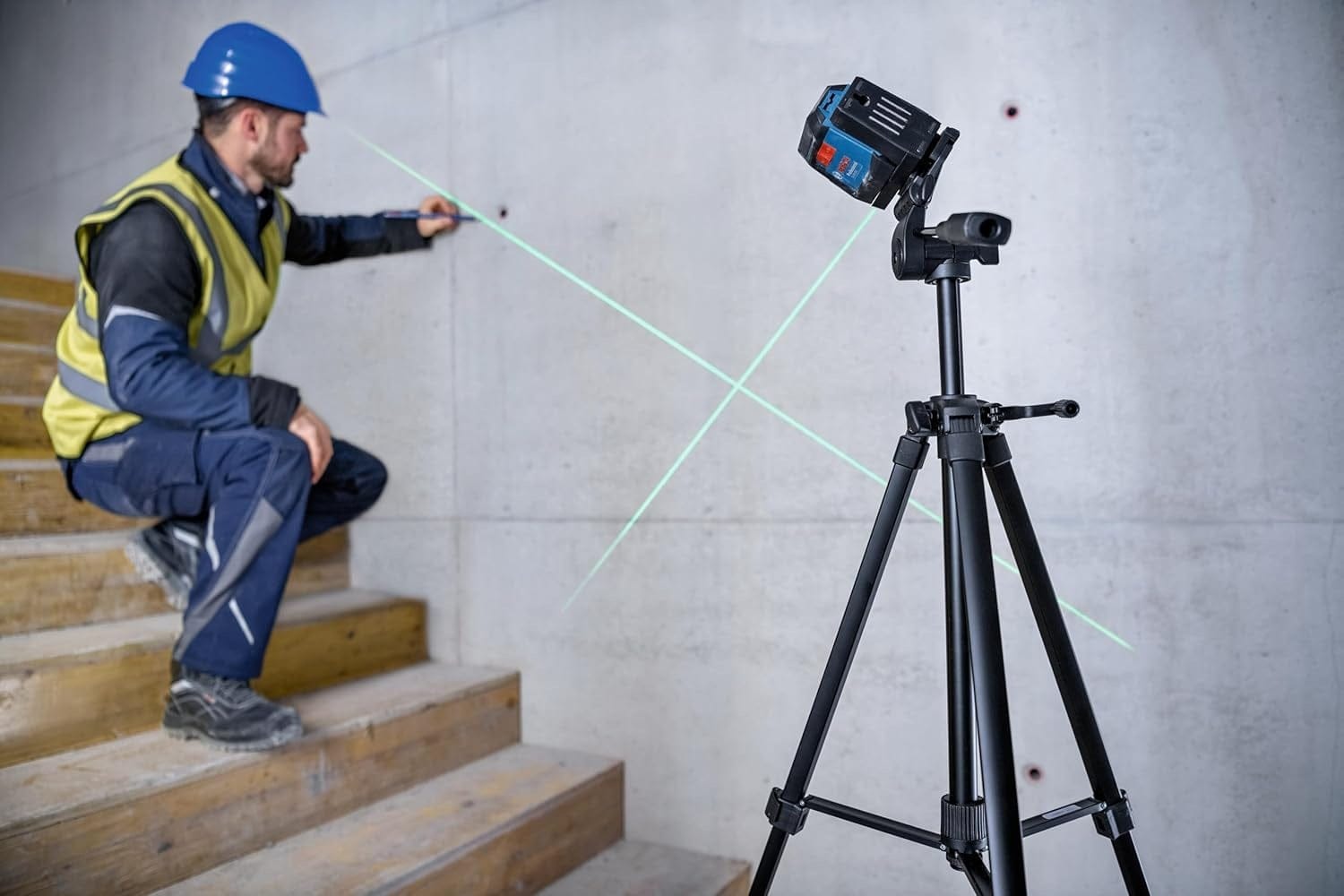

Jobsite scene showing a worker on a staircase using the laser level mounted on a tripod to project diagonal green reference lines on a concrete wall.

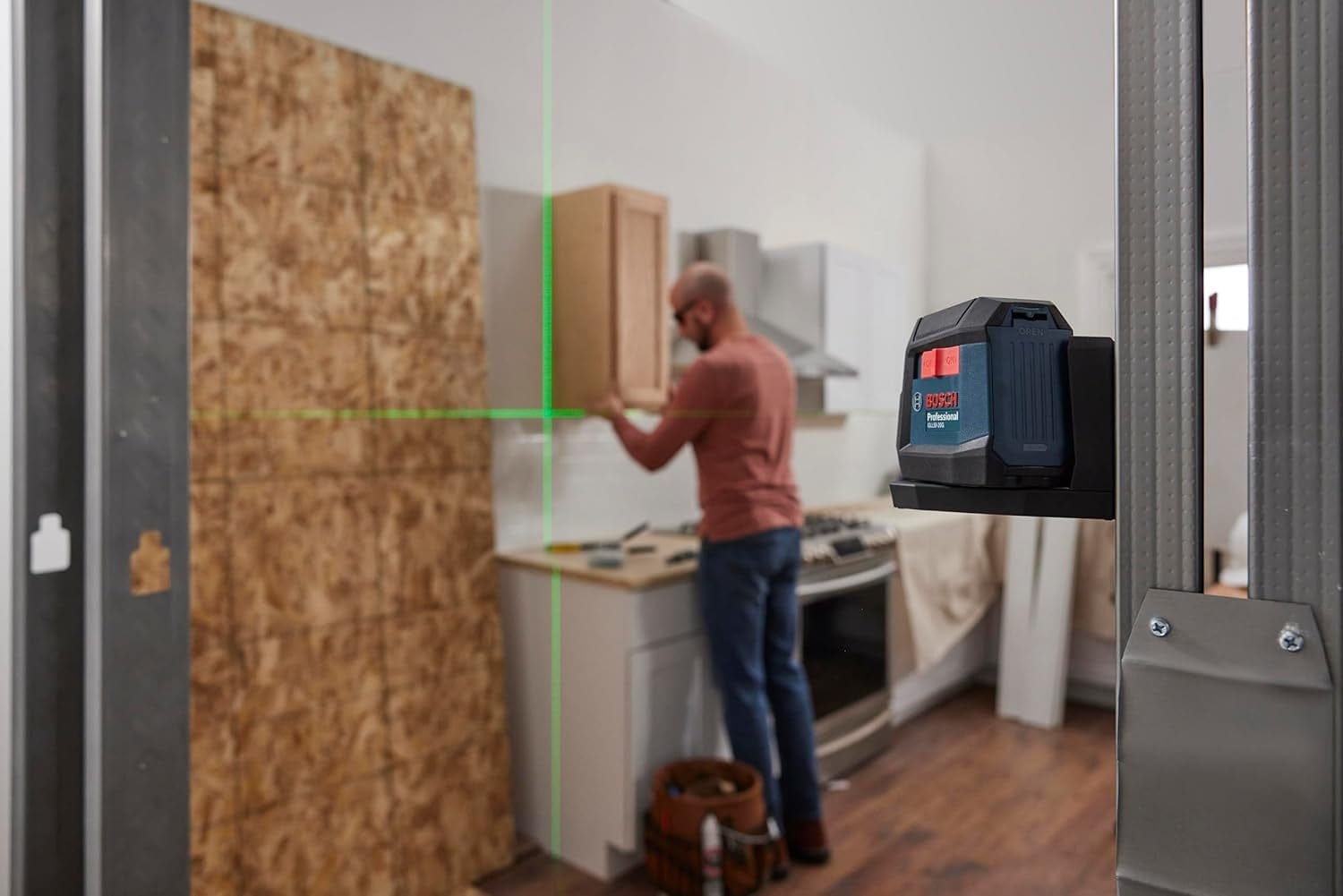

Application shot of the laser level magnetically attached to a metal door frame, projecting level horizontal and vertical green lines across a kitchen installation area.

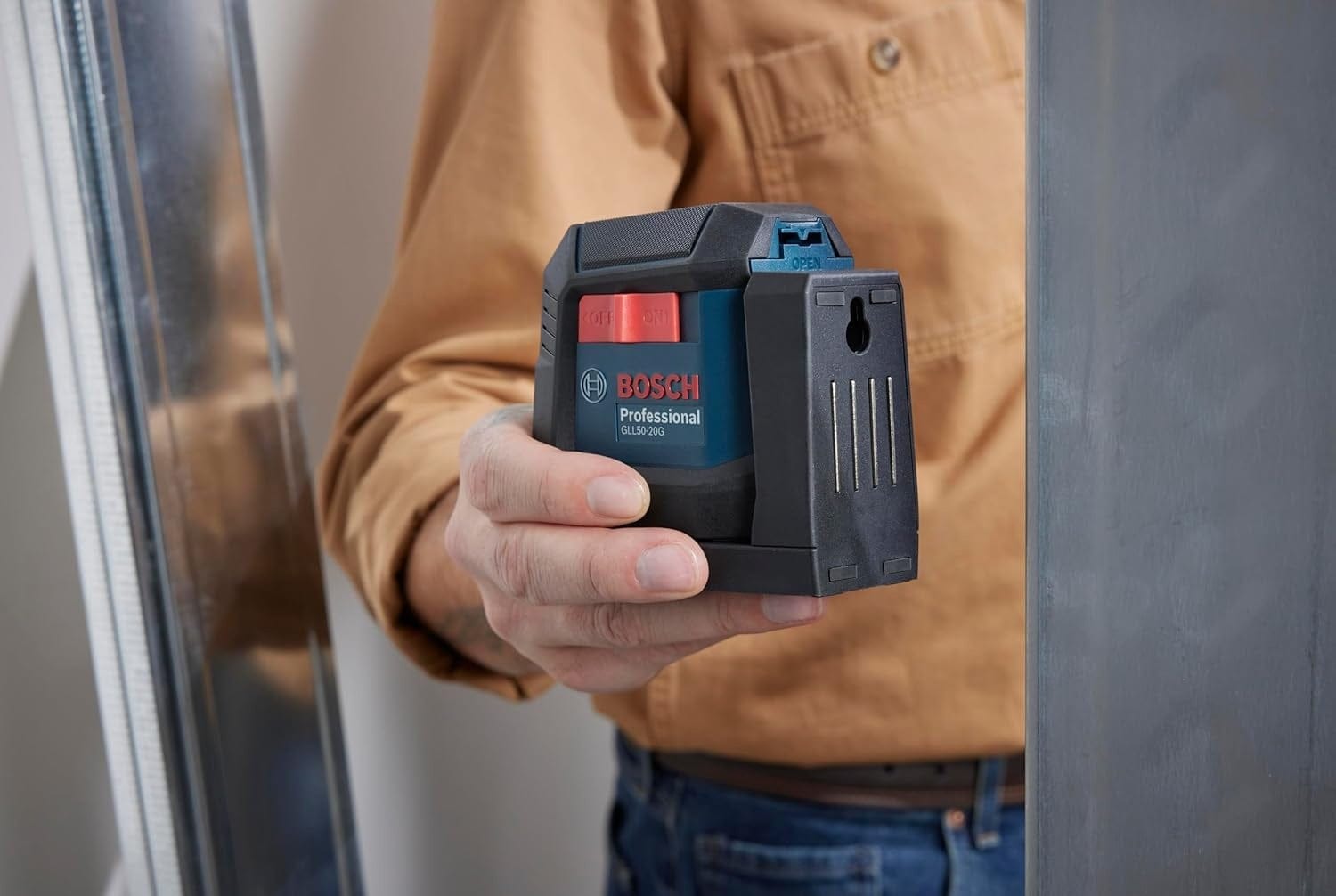

A worker holding the compact laser level in one hand, demonstrating its portable size and ergonomic rubberized grip.

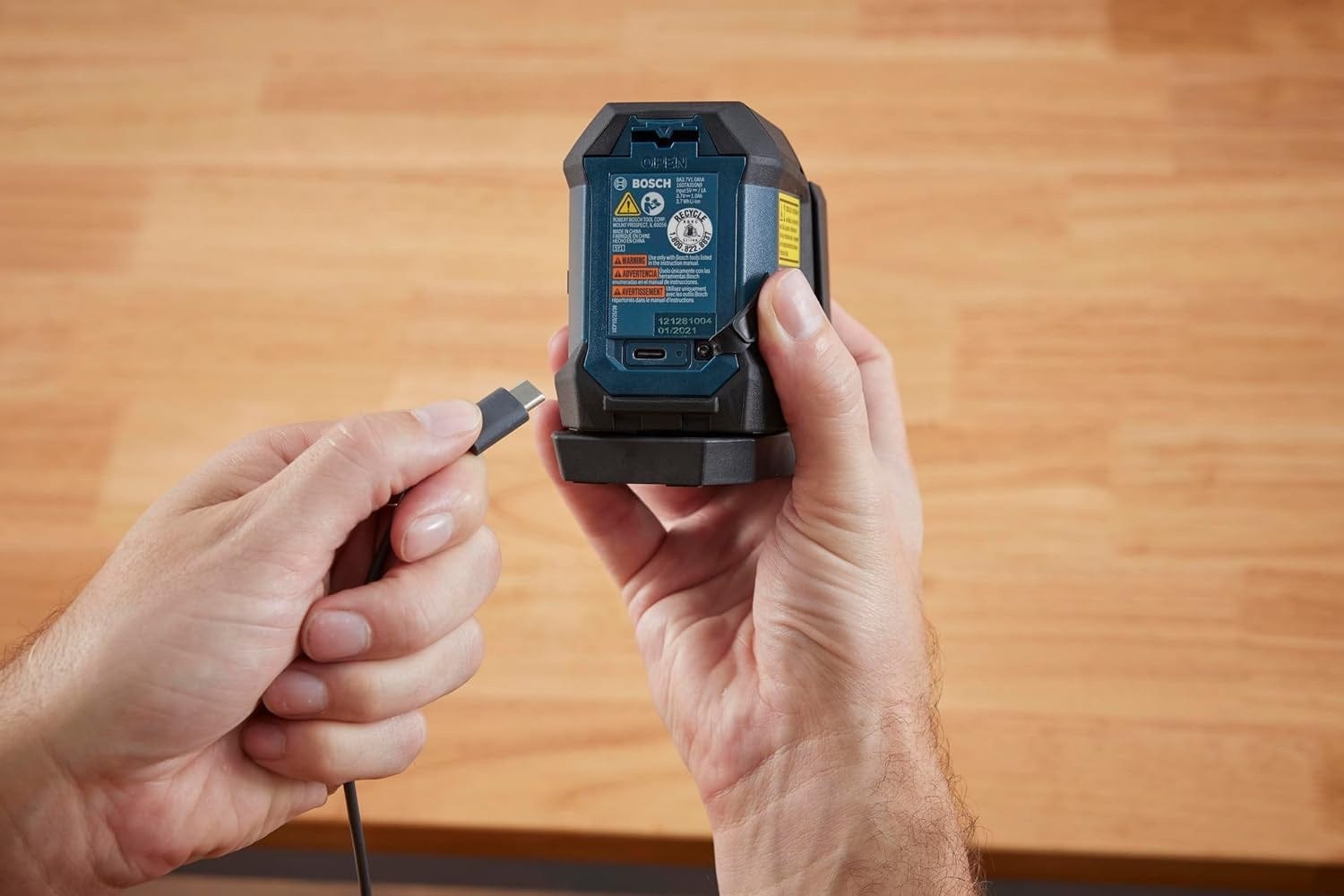

Close-up of a user plugging a USB-C charging cable directly into the charging port located on the back of the laser level unit.

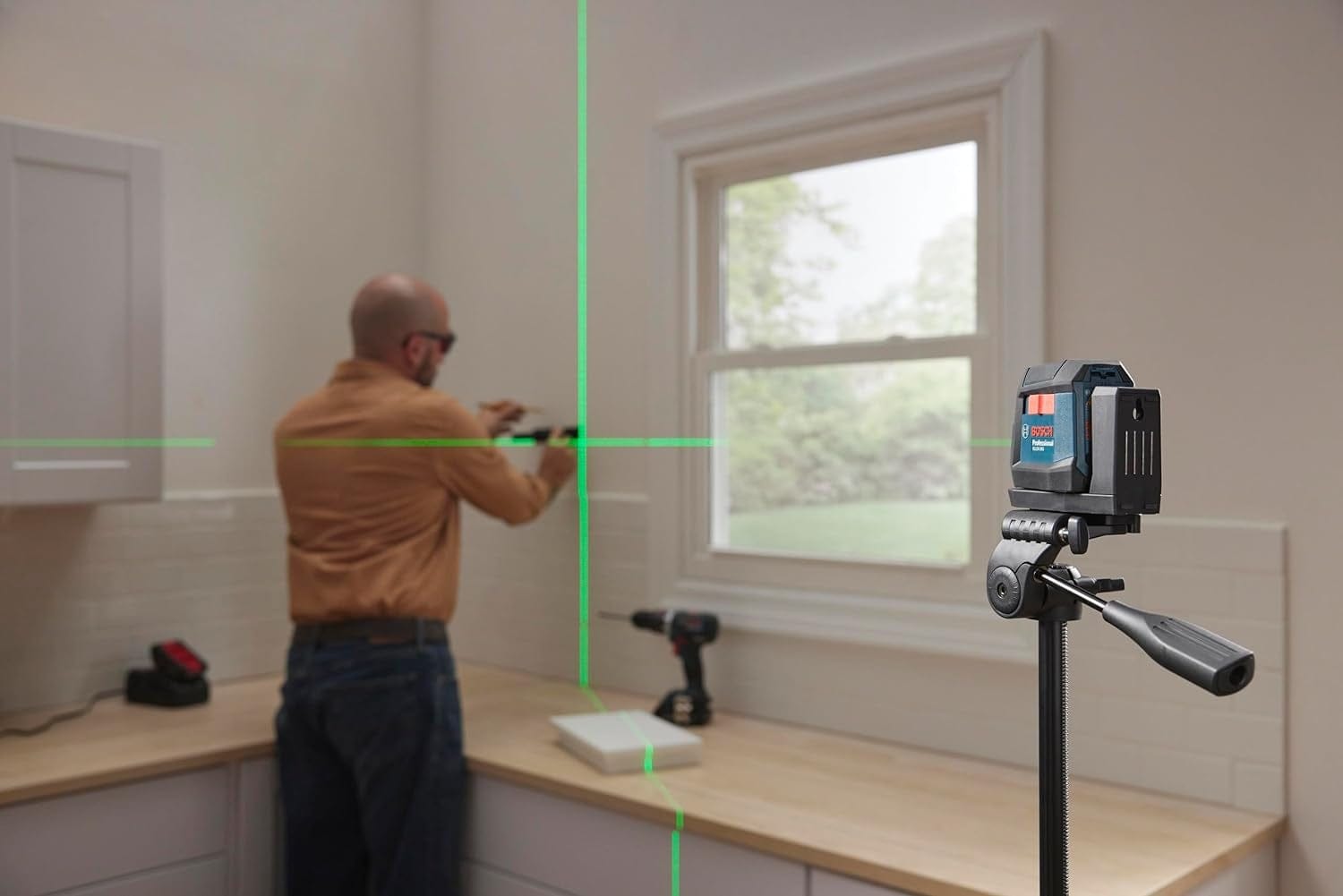

Interior view of the laser level mounted on a tripod, projecting bright green cross-lines onto a white wall to guide cabinet installation.
Studio view of the Bosch GLL50-20GL cross-line laser, featuring a rugged black and blue housing with a side-mounted red power switch and a bright green laser cross projected forward.
Infographic diagram highlighting key features including the VisiMax technology, smart pendulum system, rubber overmold housing, and power flexibility with the rechargeable 3.7V Lithium-Ion battery.
Close-up front view of the laser level showing the large red sliding on-off switch and the Bosch Professional branding on the blue housing.
Direct front view of the laser aperture, revealing the internal self-leveling pendulum mechanism protected by the recessed housing window.
Rear view of the tool featuring a keyhole mounting slot and vertical friction strips for secure placement against wall surfaces.
Jobsite scene showing a worker on a staircase using the laser level mounted on a tripod to project diagonal green reference lines on a concrete wall.
Application shot of the laser level magnetically attached to a metal door frame, projecting level horizontal and vertical green lines across a kitchen installation area.
A worker holding the compact laser level in one hand, demonstrating its portable size and ergonomic rubberized grip.
Close-up of a user plugging a USB-C charging cable directly into the charging port located on the back of the laser level unit.
Interior view of the laser level mounted on a tripod, projecting bright green cross-lines onto a white wall to guide cabinet installation.
BOSCH

Bosch GLL50-20GL Green Beam Self Leveling Cross Line Laser Level Kit Rechargeable 65 Ft Range Magnetic Mount VisiMax Technology

In stock
SKU: GLL50-20GL
$149.00

Description

Achieve Precision Leveling with Superior Green Beam Visibility

Elevate your layout accuracy with the Bosch GLL50-20GL Green-Beam Self-Leveling Cross-Line Laser. Designed for optimal visibility, this tool projects vivid vertical and horizontal green beams that are up to 4X brighter than standard red lasers, making it ideal for bright ambient lighting conditions. With a working range of up to 65 feet and precision accuracy of ±5/16 inch at 30 feet, this laser is the ultimate companion for installing cabinetry, tiling, framing, and drop ceilings. Bosch’s exclusive VisiMax™ technology constantly monitors the laser's temperature and power consumption to deliver the perfect balance of line brightness and extended battery runtime.

Versatility and durability are at the core of the GLL50-20GL design. It offers dual-power flexibility, allowing you to run off the included rechargeable 3.7V Lithium-Ion battery—which operates even while charging—or switch to standard AA batteries (sold separately) to prevent downtime. The unit is built with a rugged, full rubber overmold housing that acts like a roll cage, protecting impact points and achieving an IP55 rating for dust and water resistance. Featuring a Smart Pendulum System, the tool self-levels on uneven surfaces, blinks to indicate out-of-level conditions, and locks securely when switched off to prevent internal damage during transport.

Key Features

  • High-Visibility Green Beam: Projects lines up to 4X brighter than standard red lasers for easier viewing.
  • Dual Power Options: Runs on the included rechargeable 3.7V Li-Ion battery or compatible AA batteries (sold separately).
  • VisiMax™ Technology: Optimizes power consumption to maximize line visibility and extend battery life.
  • Smart Pendulum System: Self-levels up to 3.5°, alerts when out of level, and locks for safe transport.
  • Jobsite Durability: IP55 rated construction with a rubber overmold roll cage design protects against dust and water.
  • Flexible Mounting: Integrated magnetic mount attaches to metal surfaces, plus a 1/4"-20 thread for tripod compatibility.
  • Continuous Operation: Battery allows for use while charging, ensuring you never lose time on the job.

What's Included

(1) GLL50-20GL Green-Beam Self-Leveling Cross-Line Laser
(1) 3.7V Lithium-Ion 1.0 Ah Battery (GBA37V10)
(1) Integrated Magnetic Mount
(1) USB-C Charging Cord
(1) Soft Carrying Pouch

Specifications

Brand Bosch
Model Number GLL50-20GL
Laser Color Green (Class 2, 500-540 nm)
Range Up to 65 ft.
Accuracy ± 5/16 in. @ 30 ft.
Battery Rating 3.7V / 1.0 Ah
Mount Threading 1/4-20
Self-Leveling Range Up to 3.5°
IP Rating IP55 (Dust & Water Resistant)
Operating Temperature 41° F to 104° F
Dimensions (L x W x H) 4.1 in. x 2.5 in. x 3.9 in.
Weight 0.77 lbs
Pro-Tip: When installing a staircase railing or other angled features, you can activate the manual mode by locking the pendulum. This allows you to tilt the laser to any angle you need without the self-leveling mechanism blinking to alert you of an "out-of-level" condition.
